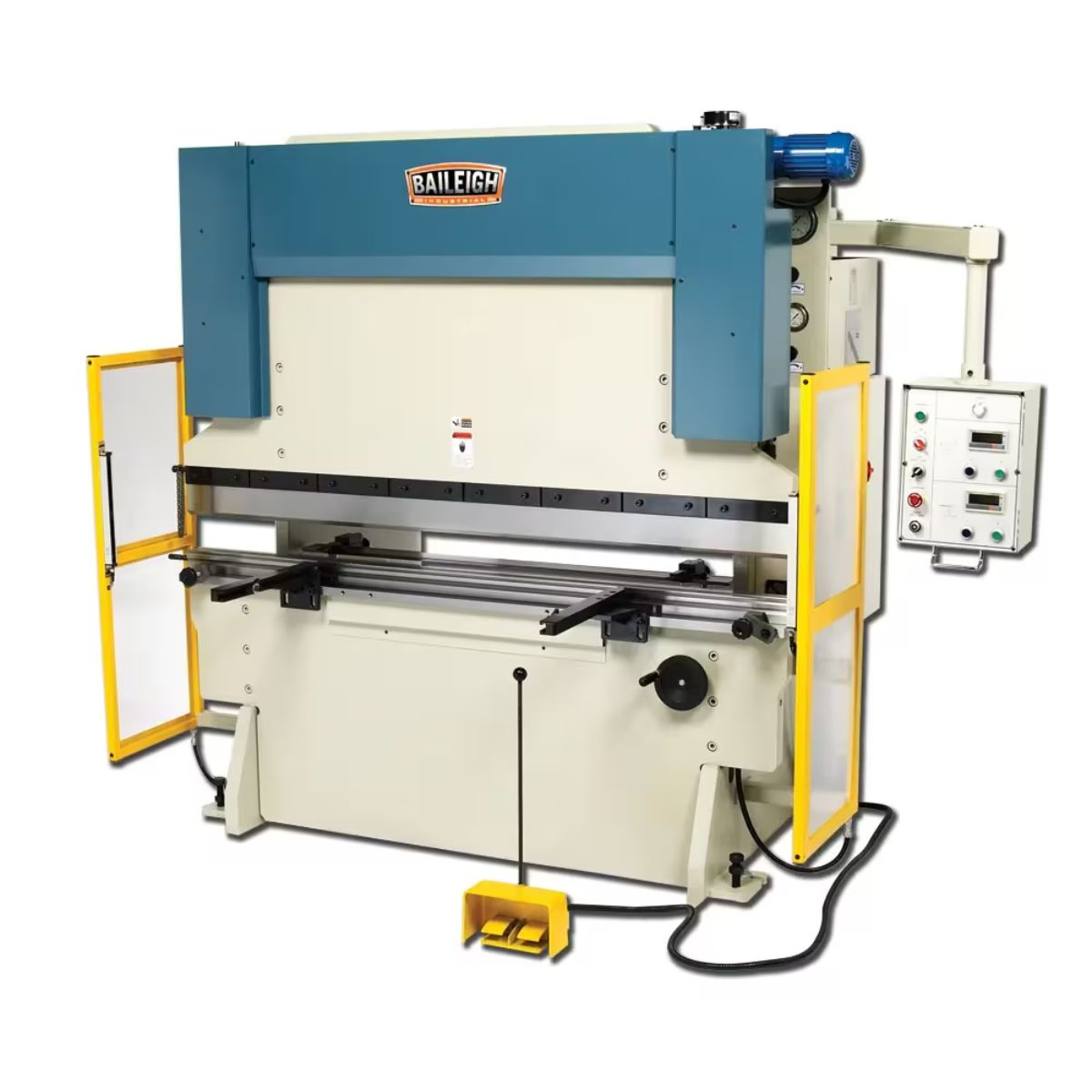

Baileigh BP-9078NC 220V 3-Phase 90-Ton 78" Hydraulic Press Brake with NC Controller
Are you looking for a press brake that handles heavy sheet metal forming without fighting your machine through every bend?
What if your shop had a 90-ton hydraulic press brake that held its position accurately from the first part to the last?
Meet the Baileigh BP-9078NC 220V 3-Phase 90-Ton 78" Hydraulic Press Brake with NC Controller, a fully welded industrial press brake built for demanding fabrication work.
With a 78" working bed, encoder-controlled hydraulics, motorized back gauge, and selectable operation modes, the BP-9078NC supports accurate and repeatable bending across a wide range of sheet metal tasks.
When the back gauge holds its position and the beam returns to the same depth every time, you can run production parts with confidence.
Baileigh BP-9078NC for Heavy Sheet Metal Forming
Welded Steel Frame Provides Rigid Support Under Load
The BP-9078NC is built on a fully welded steel frame designed to handle repeated heavy bending without flex or shift. Rigid frame construction keeps the ram and bed relationship stable, which supports consistent bend angles across long production runs.
Encoder-Controlled Hydraulics Deliver Repeatable Beam Position

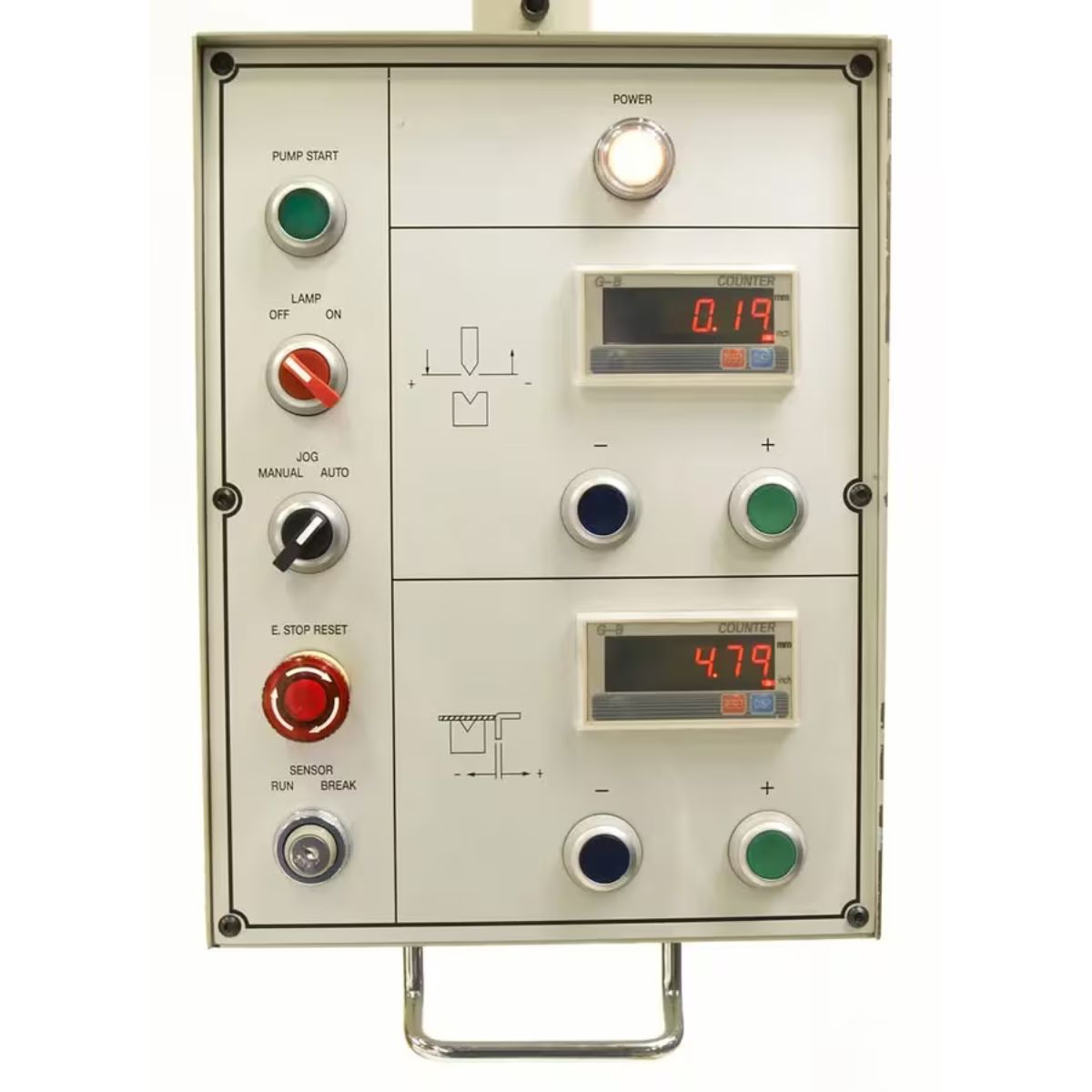

The hydraulic system uses encoder control to track and repeat beam stroke depth accurately. Dual digital readouts display both beam position and back gauge location so the operator can monitor and adjust each bend with confidence.
Motorized Back Gauge Positions Material Accurately

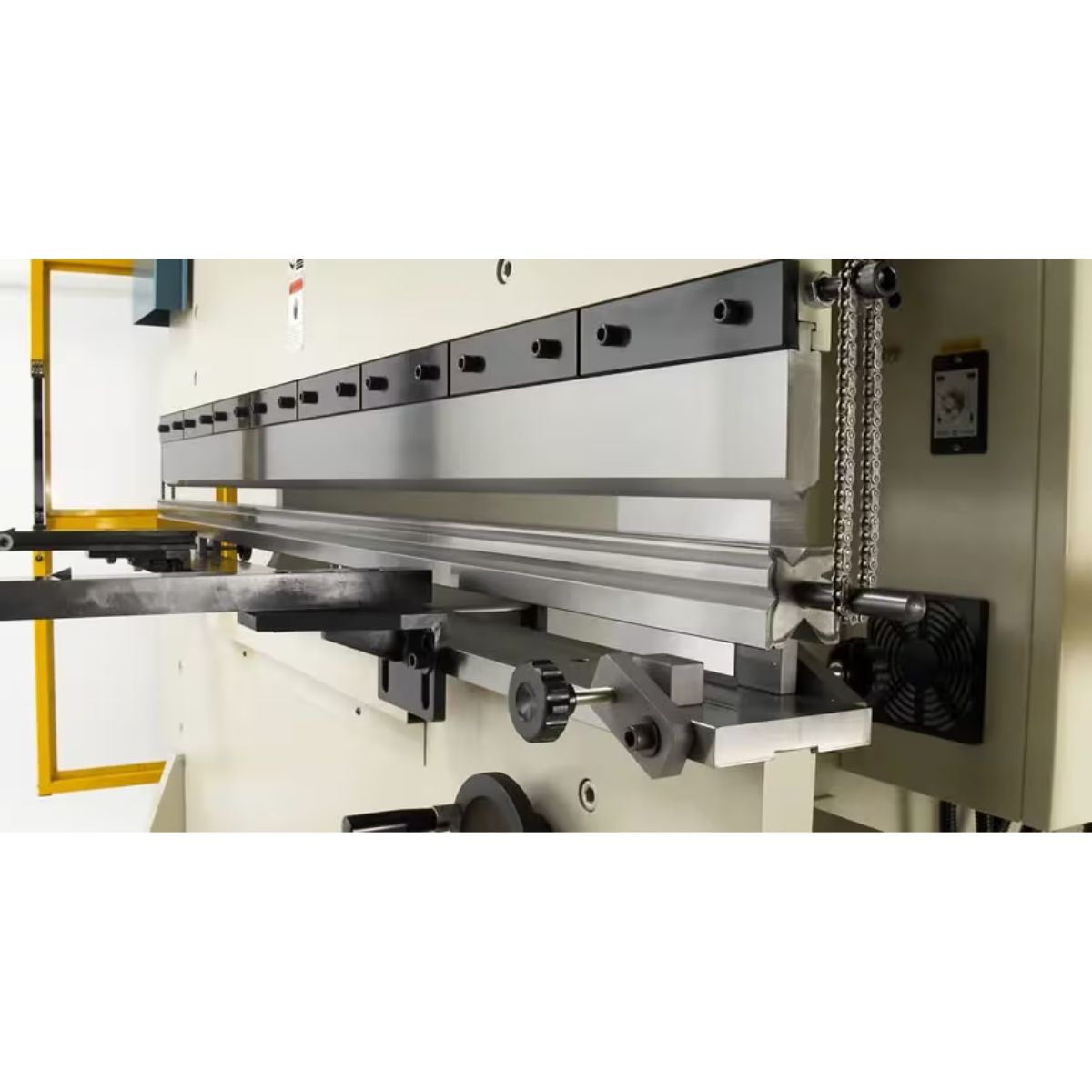

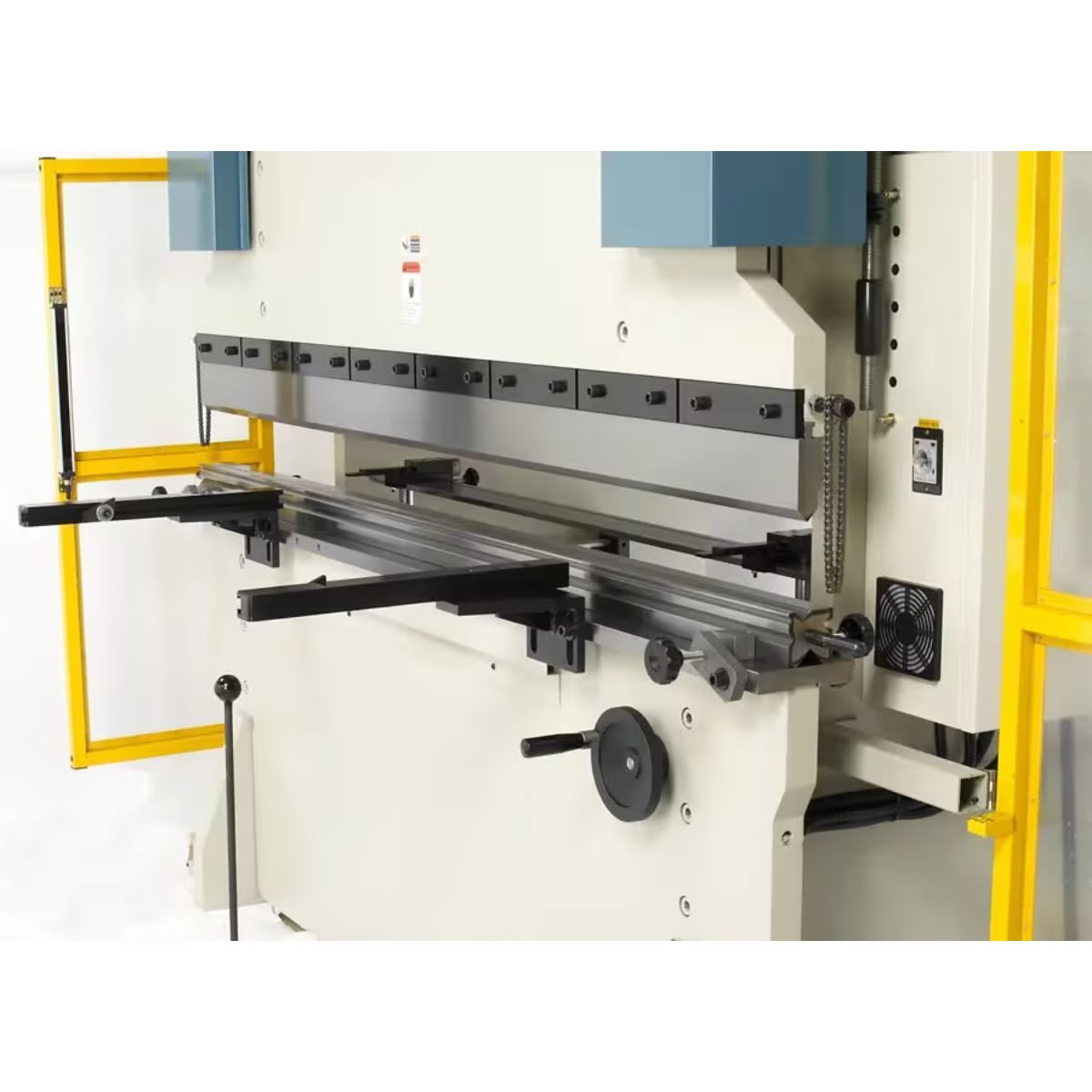

The motorized back gauge uses a ball screw drive to move and hold material position precisely. Consistent back gauge placement reduces setup time between bends and supports accurate part duplication across a run.
Selectable Operation Modes Support Different Work Styles
The BP-9078NC offers jog, manual, and automatic operation modes to match the pace and style of the work at hand. Switching between modes gives the operator direct control over how the machine cycles through each bend.
What's Included
What's Included? Baileigh BP-9078NC 220V 3-Phase 90-Ton 78" Hydraulic Press Brake with NC Controller
-
Baileigh BP-9078NC Press Brake — Provides a 90-ton hydraulic press brake platform with a 78" working bed for heavy sheet metal forming.
Specs
Baileigh BP-9078NC 220V 3-Phase 90-Ton 78" Hydraulic Press Brake with NC Controller Specifications
- Stock Number: BA9-1000839
- Model Number: BP-9078NC
- Rating: 90 Ton
- Bending Length: 78 in.
- Input Power: 220V Three Phase
- Motor: 10 HP
- Back Gauge Motor: 1/2 HP
- Approach Speed: 3.14 in./sec.
- Distance Per Stroke: 5.9 in.
- Distance From Table To Ram: 11.81 in.
- Throat Depth: 7.75 in.
- Maximum Bend Angle: 135°
- Net Weight: 8,800 lb
- Warranty: 1 Year
