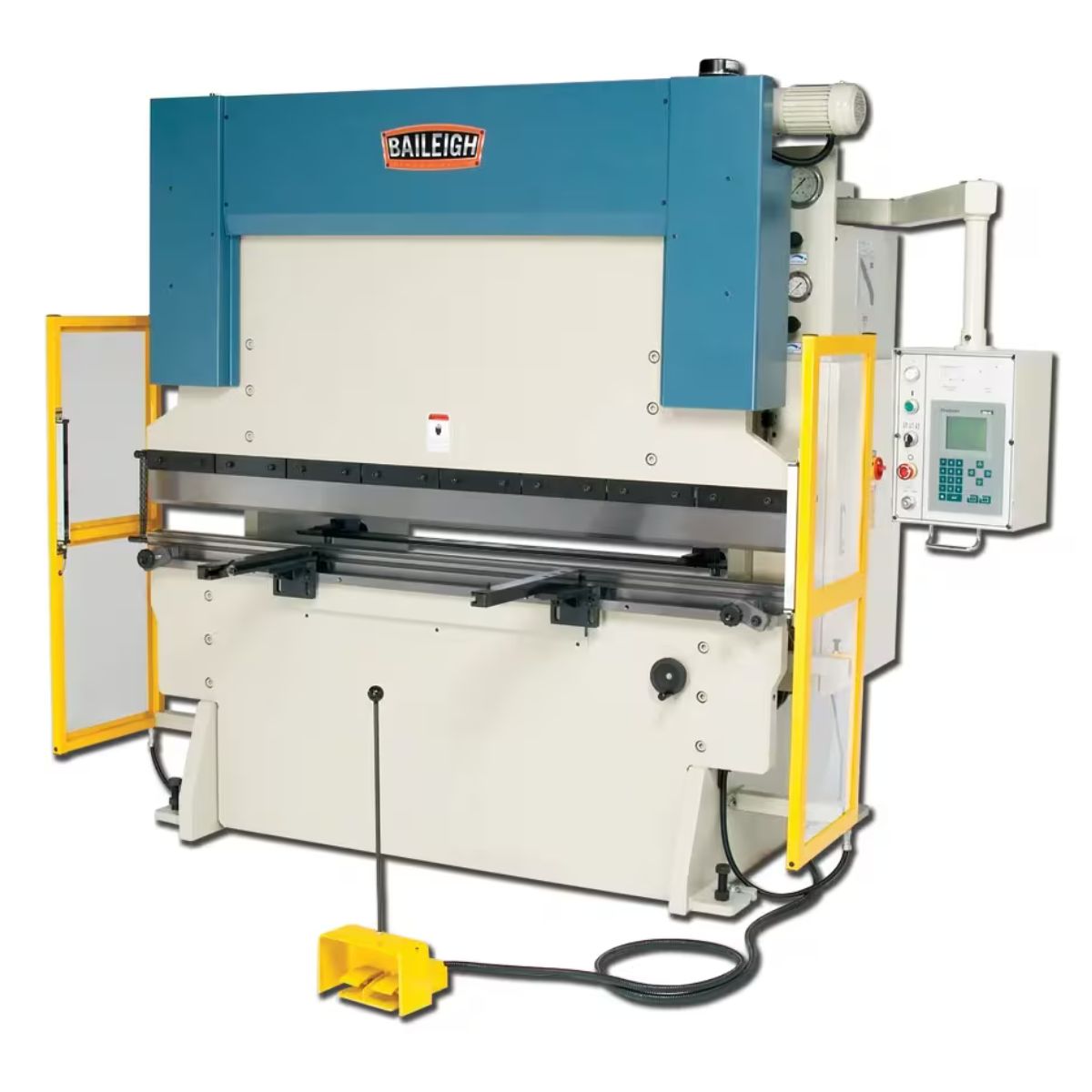

Baileigh BP-9078CNC 220V 3-Phase 90-Ton 78" CNC Hydraulic Press Brake with Delem Controller

Baileigh BP-9078CNC 220V 3-Phase 90-Ton 78" CNC Hydraulic Press Brake with Delem Controller

Baileigh BP-9078CNC for Heavy Sheet Metal Bending

Delem CNC Controller Simplifies Program Setup

The touchscreen Delem controller stores up to 100 programs so repeat jobs are ready to run in seconds. This cuts setup time and keeps bend sequences consistent across operators.

Hydraulic Auto-Crowning Keeps Bends Consistent

Auto-crowning adjusts for bed deflection across the full 78 inch width as the machine bends. This keeps the bend angle even from one end of the part to the other.

Motorized Back Gauge Improves Positioning Accuracy

An encoder controlled back gauge positions material automatically between bends. This speeds up repeat work and keeps part dimensions consistent from piece to piece.

Light Curtain System Adds Operator Safety

A 6 sensor light curtain monitors the work area and stops the ram if it detects an obstruction. Built-in inside lighting helps the operator see the bend line clearly during setup.

What's Included

What's Included? Baileigh BP-9078CNC 220V 3-Phase 90-Ton 78" CNC Hydraulic Press Brake with Delem Controller

• Baileigh BP-9078CNC Press Brake — Provides a complete 90 ton CNC hydraulic press brake ready for shop installation.

Specs

Baileigh BP-9078CNC 220V 3-Phase 90-Ton 78" CNC Hydraulic Press Brake with Delem Controller Specifications

• Model Number: BP-9078CNC
• Stock Number: BA9-1000837
• Rating: 90 Tons
• Bending Capacity Length: 78 in
• Throat Depth: 7.75 in
• Distance From Table To Ram: 11.81 in
• Distance Per Stroke: 5.9 in
• Approach Speed: 3.14 in/sec
• Maximum Bend Angle: 135°
• Input Power: 220V 3 Phase
• Net Weight: 9,000 lb
• Gross Weight: 9,000 lb
• Warranty: 1 Year Parts
