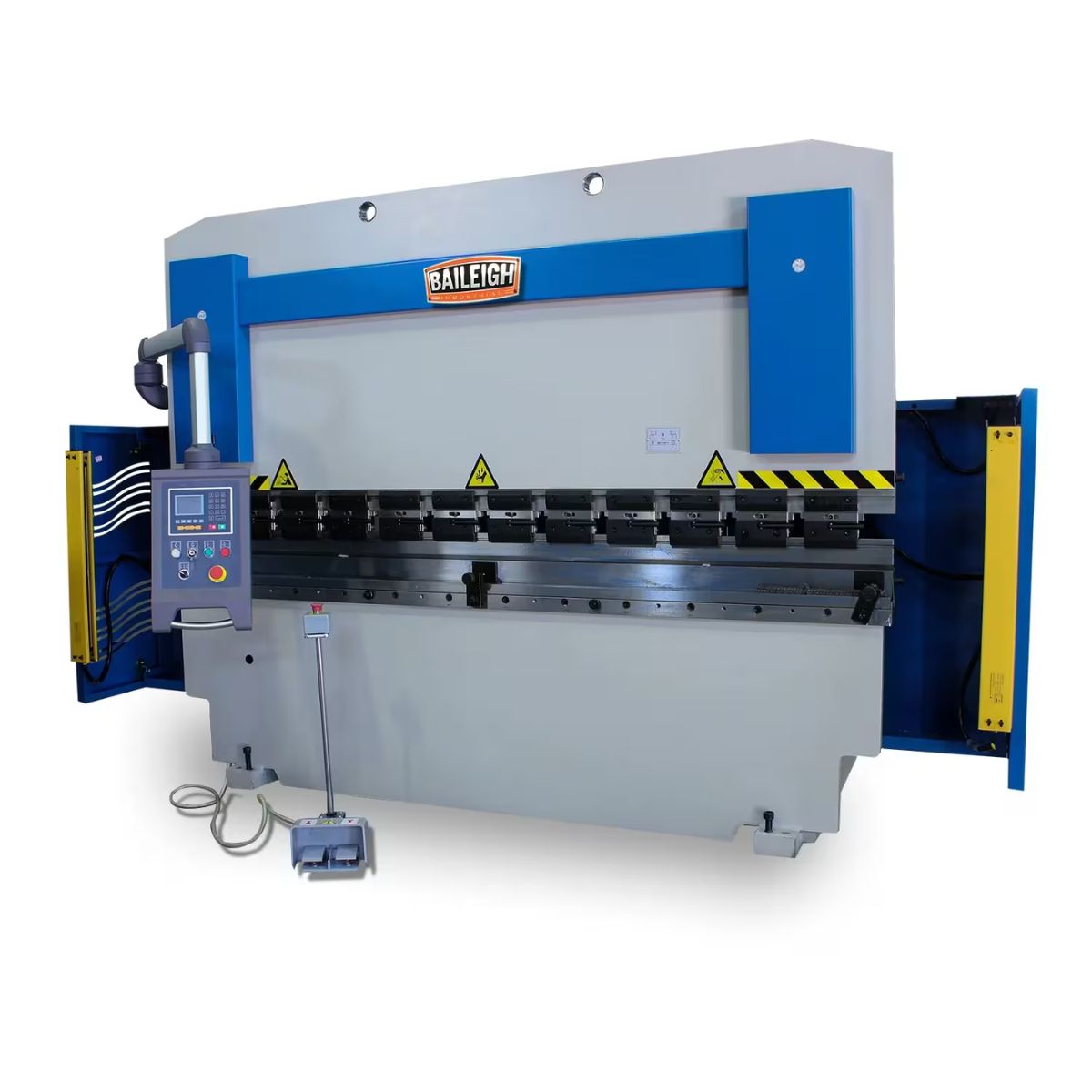

Baileigh BP-7098CNC 220V 3-Phase 70-Ton 98" 2-Axis CNC Hydraulic Press Brake

Baileigh BP-7098CNC 220V 3-Phase 70-Ton 98" 2-Axis CNC Hydraulic Press Brake

Baileigh BP-7098CNC for Industrial Sheet Metal Forming

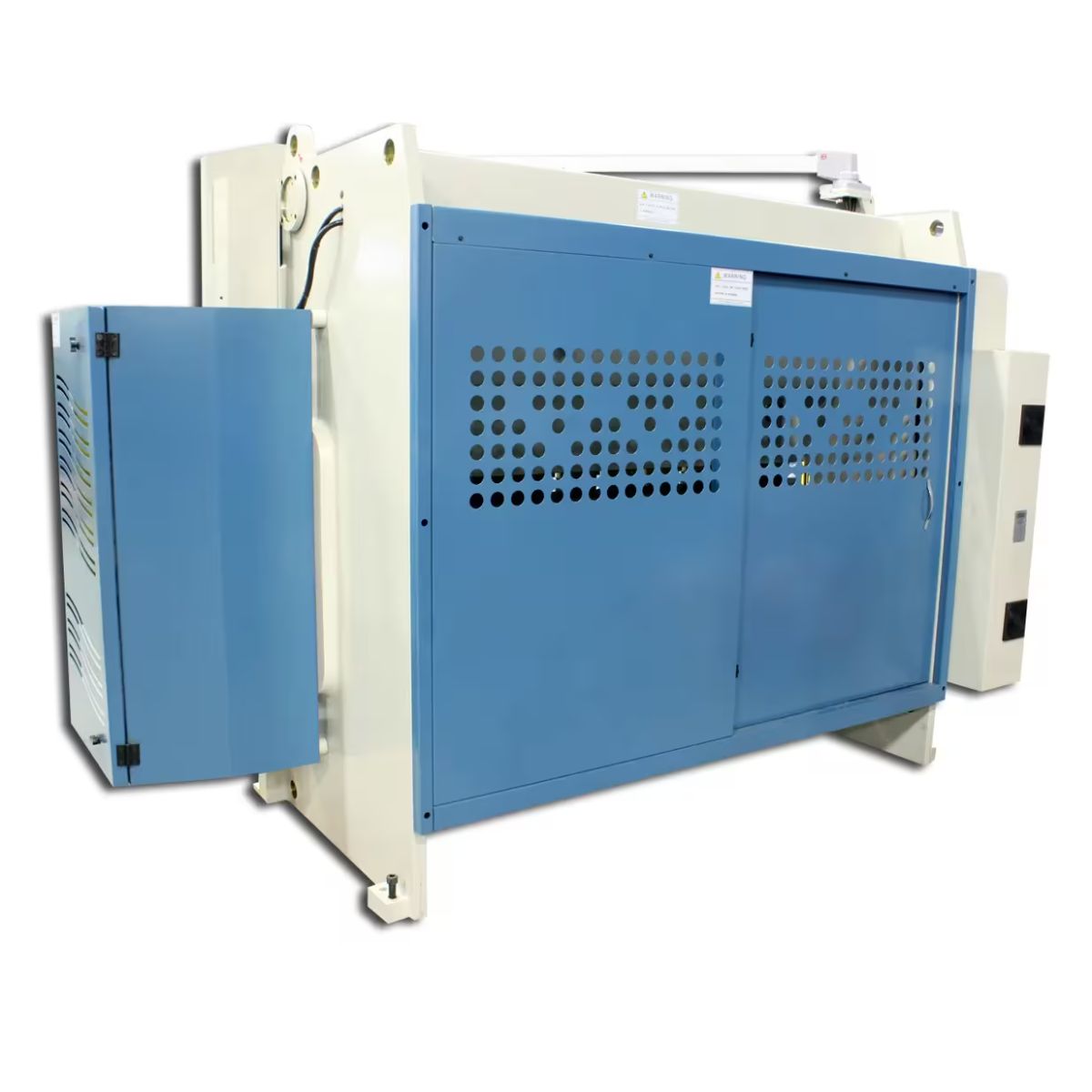

Welded Steel Frame Holds Long Term Alignment

The frame is fully welded and stress relieved to resist twisting under repeated bending loads. This keeps your bend angles consistent from the first part to the last in a production run.

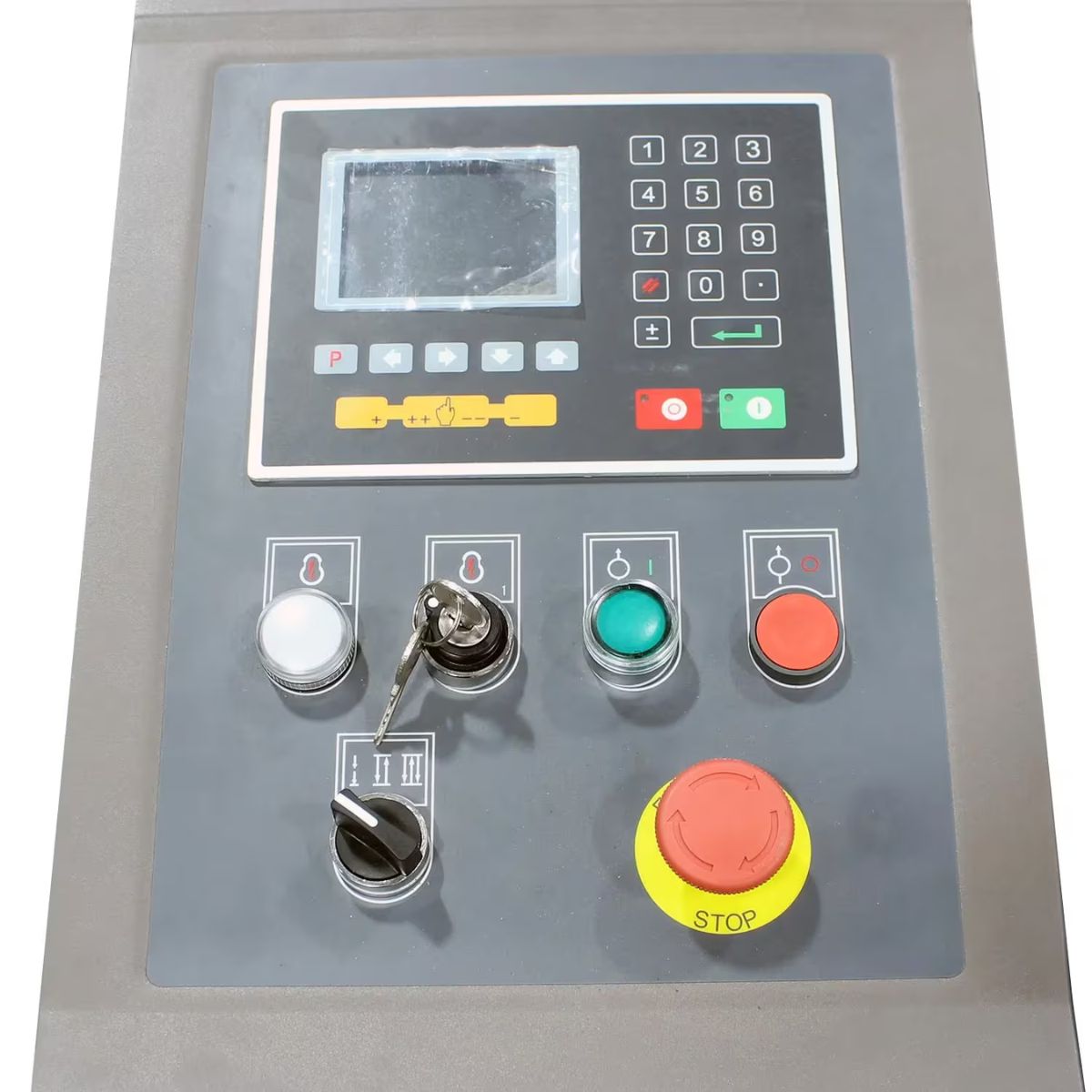

Estun E21 CNC Controller Stores Bend Programs

The 2 axis controller lets you save and recall up to 40 bend programs for repeat jobs. Switching between parts takes less setup time and keeps results consistent.

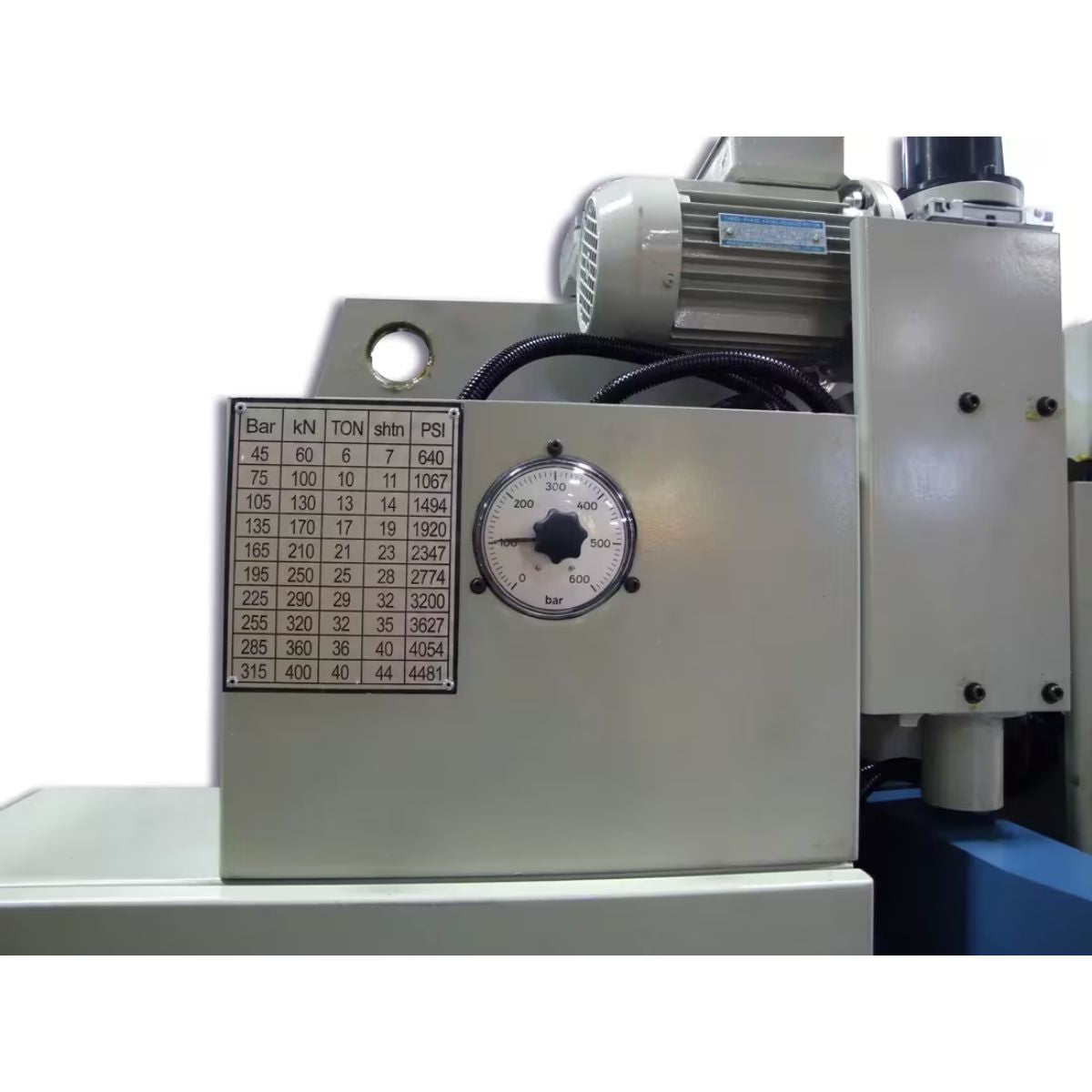

Vickers Eaton Hydraulic System Smooths Bending Motion

Industrial grade hydraulic components from Vickers and Eaton keep the ram moving smoothly through each stroke. This helps you produce clean bends without jerky motion or pressure drops.

CNC Back Gauge Improves Positioning Accuracy

The CNC controlled back gauge positions material automatically for each bend. This cuts down on manual measuring and helps parts come out the same size every time.

What's Included

What's Included? Baileigh BP-7098CNC Press Brake

• Baileigh BP-7098CNC Press Brake — Provides a 70 ton hydraulic press brake platform with an 8 foot bending bed.

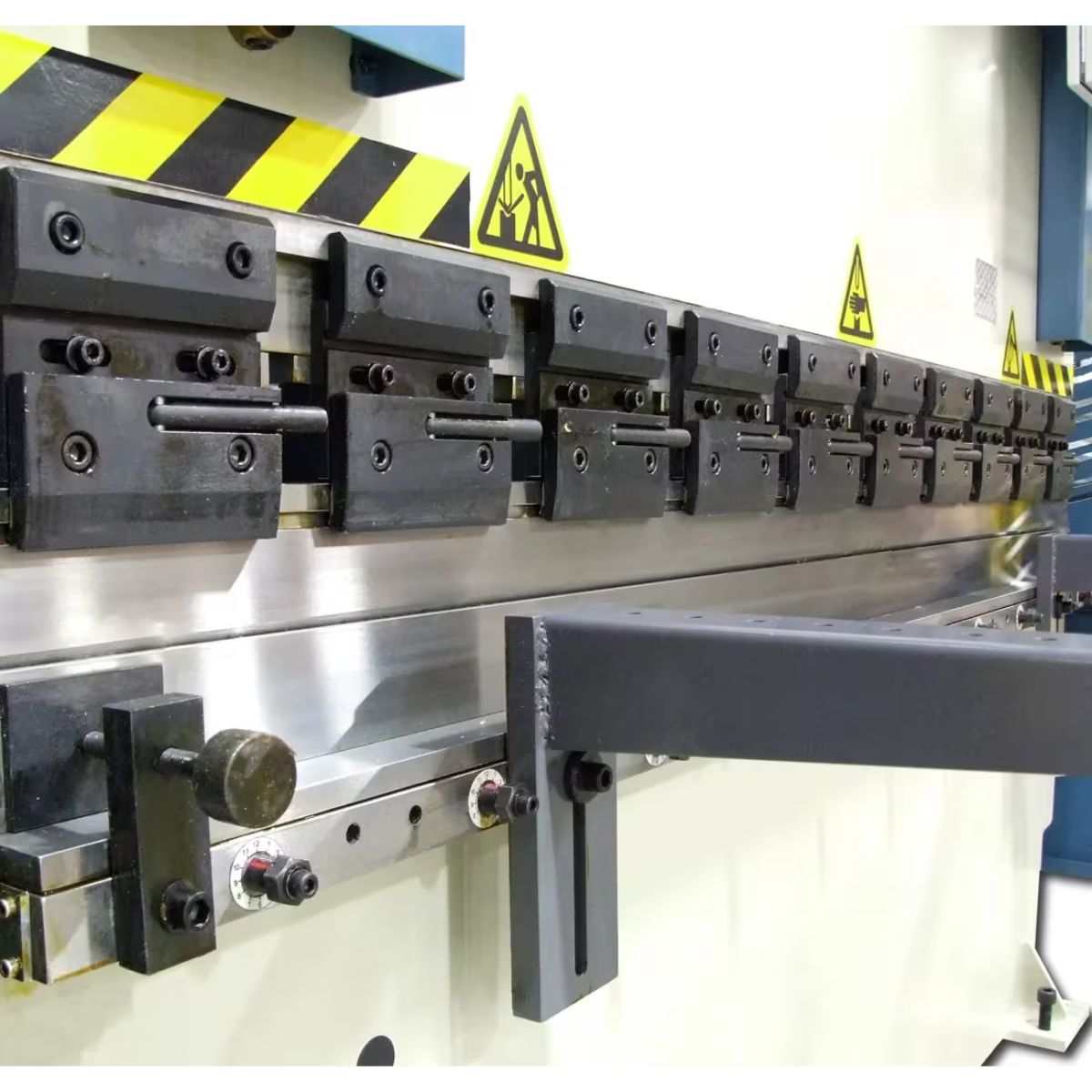

• Gooseneck Punch — Allows access for bending boxes and other tight form shapes.

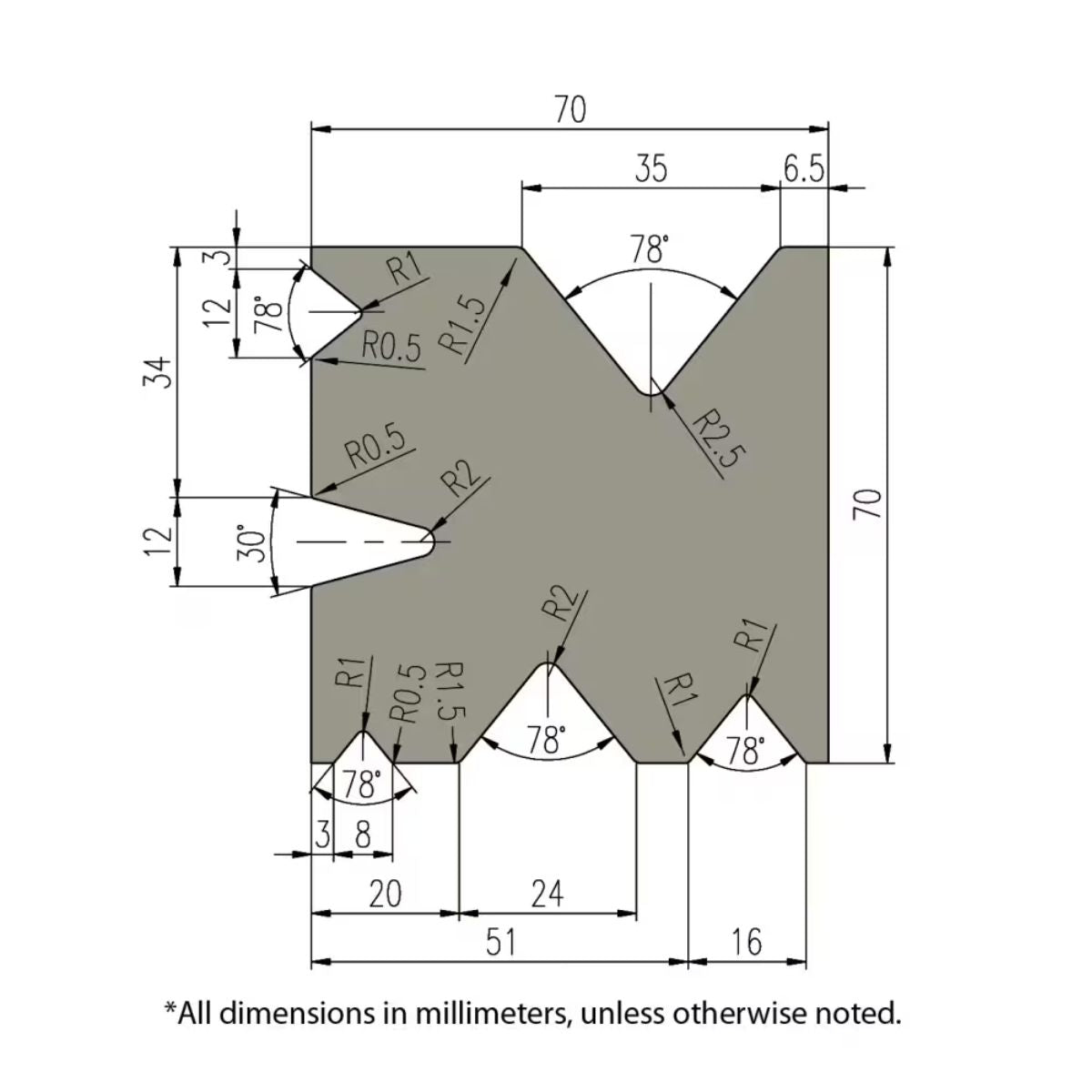

• Multi-V Bottom Die — Gives you several V opening widths for forming different material thicknesses.

Specs

Baileigh BP-7098CNC Press Brake Specifications

• Model: BP-7098CNC
• Stock Number: BA9-1000836
• Rating: 70 Tons
• Bending Capacity Length: 98 in
• Distance Between Housings: 80 in
• Throat Depth: 9.75 in
• Distance From Table to Ram: 14 in
• Distance Per Stroke: 4.7 in
• Approach Speed: 2.0 in/sec
• Bending Speed: 0.6 in/sec
• Maximum Bend Angle: 135°
• CNC Controller: 2-Axis Estun E21
• Back Gauge Motor: 1/2 HP
• Input Power: 220V Three Phase
• Net Weight: 10,850 lb
• Warranty: 1 Year
