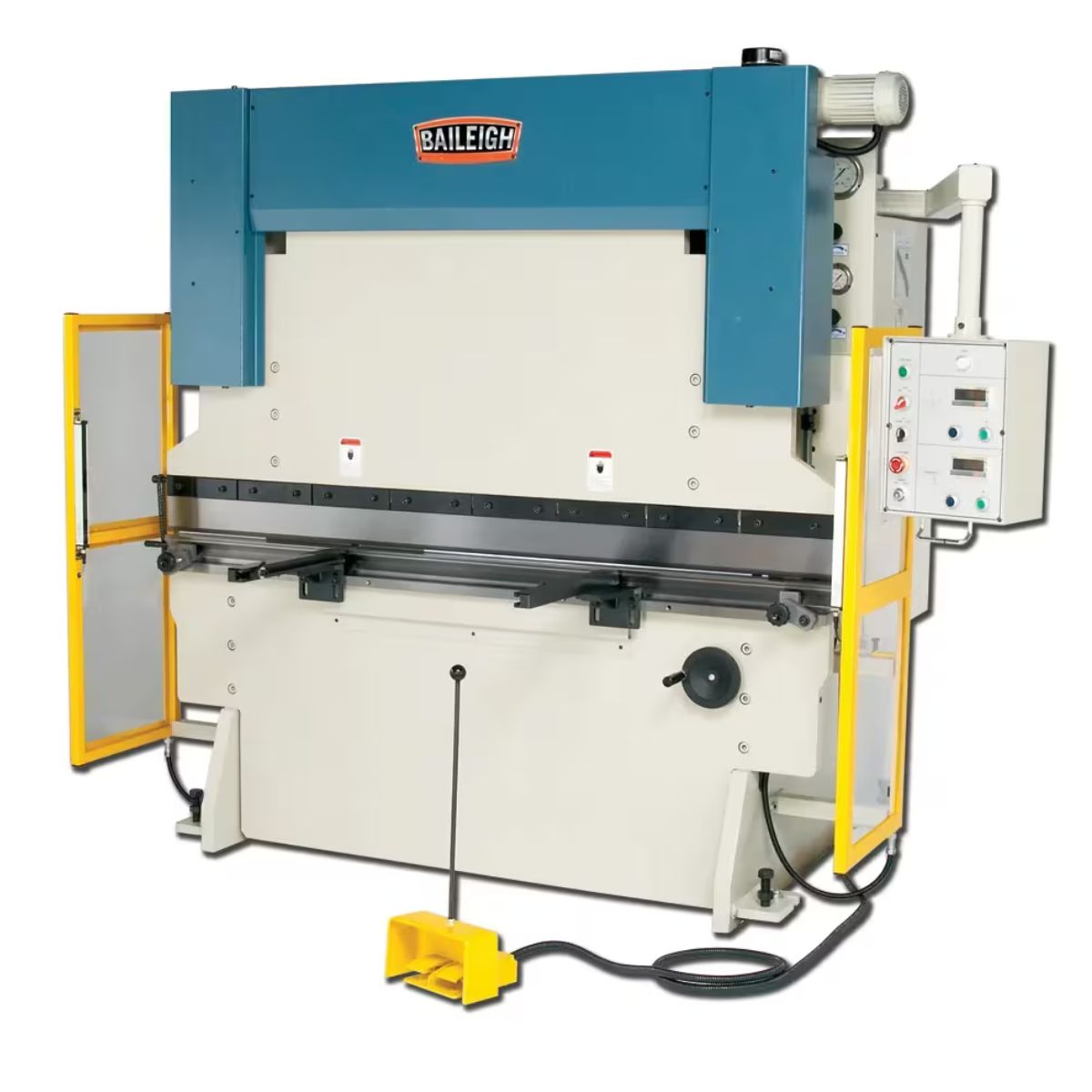

Baileigh BP-6778NC 220V 3-Phase 67-Ton 78" Hydraulic Press Brake with NC Controller
Are you struggling to get clean, repeatable bends from a press brake that requires constant manual adjustment?
What if your shop had a hydraulic press brake that holds your bend angle precisely and runs the same result from the first part to the last.
Meet the Baileigh BP-6778NC, a 67-ton hydraulic press brake with an NC controller built for accurate bending work in production and fabrication shops.
With a 78" bending length, hydraulic ram control, and an NC backgauge, the BP-6778NC gives you the reach and precision to work through a full range of sheet metal jobs.
When your press brake holds the same position job after job, you can focus on the work instead of checking every part.
Baileigh BP-6778NC for Accurate Sheet Metal Bending
Hydraulic Ram Delivers Consistent Bending Force
The 220V three-phase hydraulic system drives the ram with steady, controlled force across the full 78" bending length. Consistent ram pressure keeps your bend angle accurate across the entire part, even on wider material.
Encoder-Controlled DROs Track Stroke and Backgauge Position
Encoder-controlled digital readouts monitor both the ram stroke and backgauge position in real time. Knowing exactly where the ram and gauge are at every point in the bend lets you dial in results and repeat them without guesswork.
Motorized Backgauge Positions Material for Every Bend
The motorized backgauge uses a ball screw trolley to move precisely to your programmed position and hold it while you work. Accurate backgauge positioning keeps parts consistent from piece to piece without manual measurement between bends.
Electro-Welded Steel Frame Supports Long-Term Accuracy
The heavy electro-welded steel frame holds the bending beam true across the full working width under repeated load. A rigid frame reduces flex during bending and helps the machine maintain accuracy through daily production use.
What's Included
What's Included? Baileigh BP-6778NC 220V 3-Phase 67-Ton 78" Hydraulic Press Brake with NC Controller
-
Baileigh BP-6778NC Press Brake — Provides a 67-ton hydraulic bending platform with NC control for accurate, repeatable sheet metal work.
-
Motorized Backgauge with Ball Screw Trolley — Positions material precisely for each bend step without manual adjustment between parts.
-
Foot Pedal — Allows hands-free ram control for safe and efficient bending operation.
Specs
Baileigh BP-6778NC 220V 3-Phase 67-Ton 78" Hydraulic Press Brake with NC Controller Specifications
- Model: BP-6778NC
- SKU: BA9-1000835
- Bending Force: 67 Ton
- Bending Length: 78 in
- Maximum Bend Angle: 135°
- Distance Per Stroke: 5.9 in
- Approach Speed: 3.14 in/sec
- Distance from Table to Ram: 11.81 in
- Back Gauge Motor: 1/2 HP
- Input Power: 220V Three Phase
- Net Weight: 7,700 lb
- Warranty: 1 Year
