Baileigh BP-5078CNC 220V 3-Phase 50-Ton 78" 2-Axis CNC Hydraulic Press Brake
Are you looking for a hydraulic press brake that handles long sheet metal work with repeatable, programmed accuracy?
What if your shop had a CNC press brake that stored your bend programs and held position reliably from part to part?

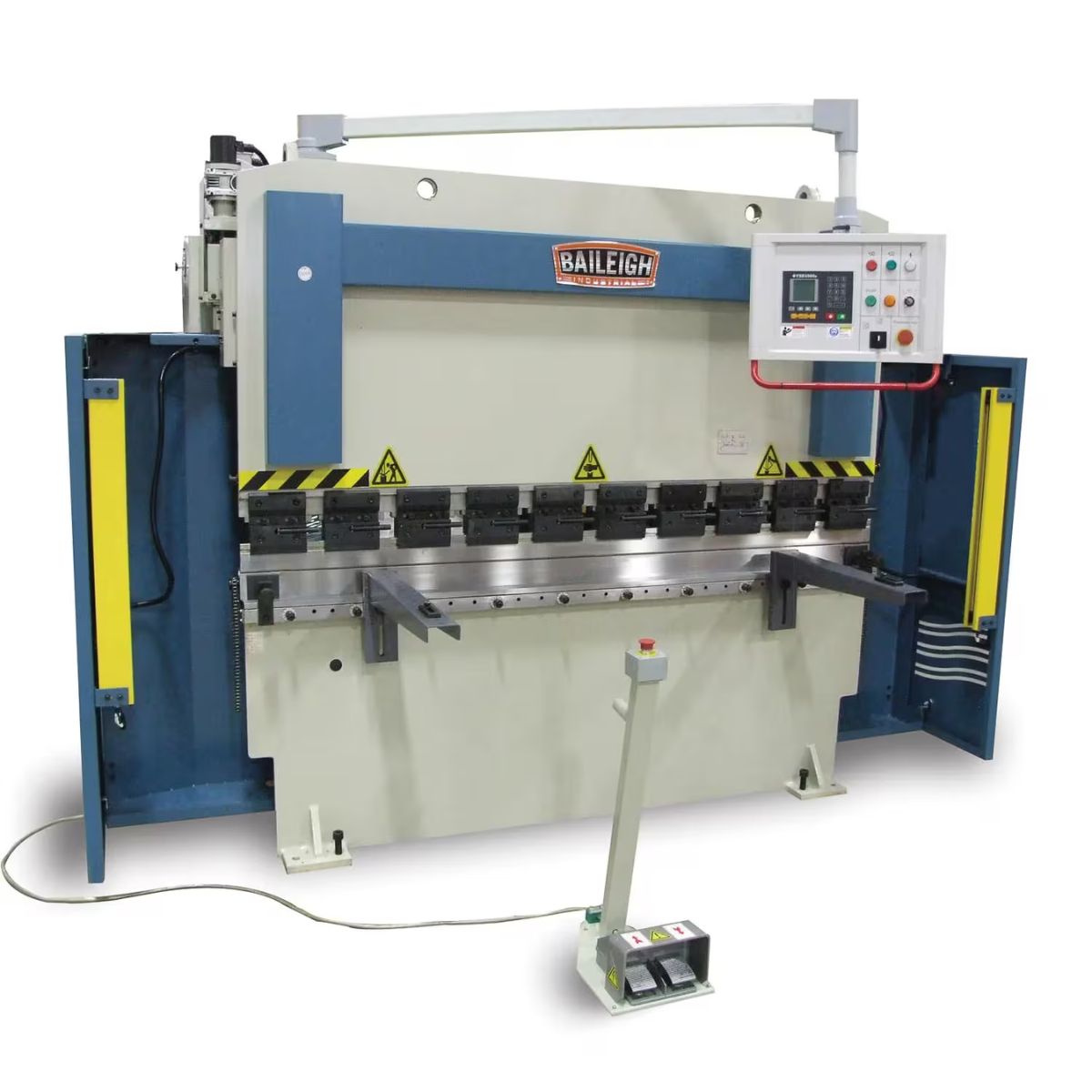

Meet the Baileigh BP-5078CNC 220V 3-Phase 50-Ton 78" 2-Axis CNC Hydraulic Press Brake, a fully welded steel machine built for production bending work.
With 50 tons of bending force, a 78-inch bed, and a 2-axis programmable controller, the BP-5078CNC handles long sheet sections and repeatable bend sequences in a fabrication shop environment.
When your programs are stored and your back gauge is set, you can move through a production run with confidence and consistent results.
Baileigh BP-5078CNC for Production Sheet Metal Bending

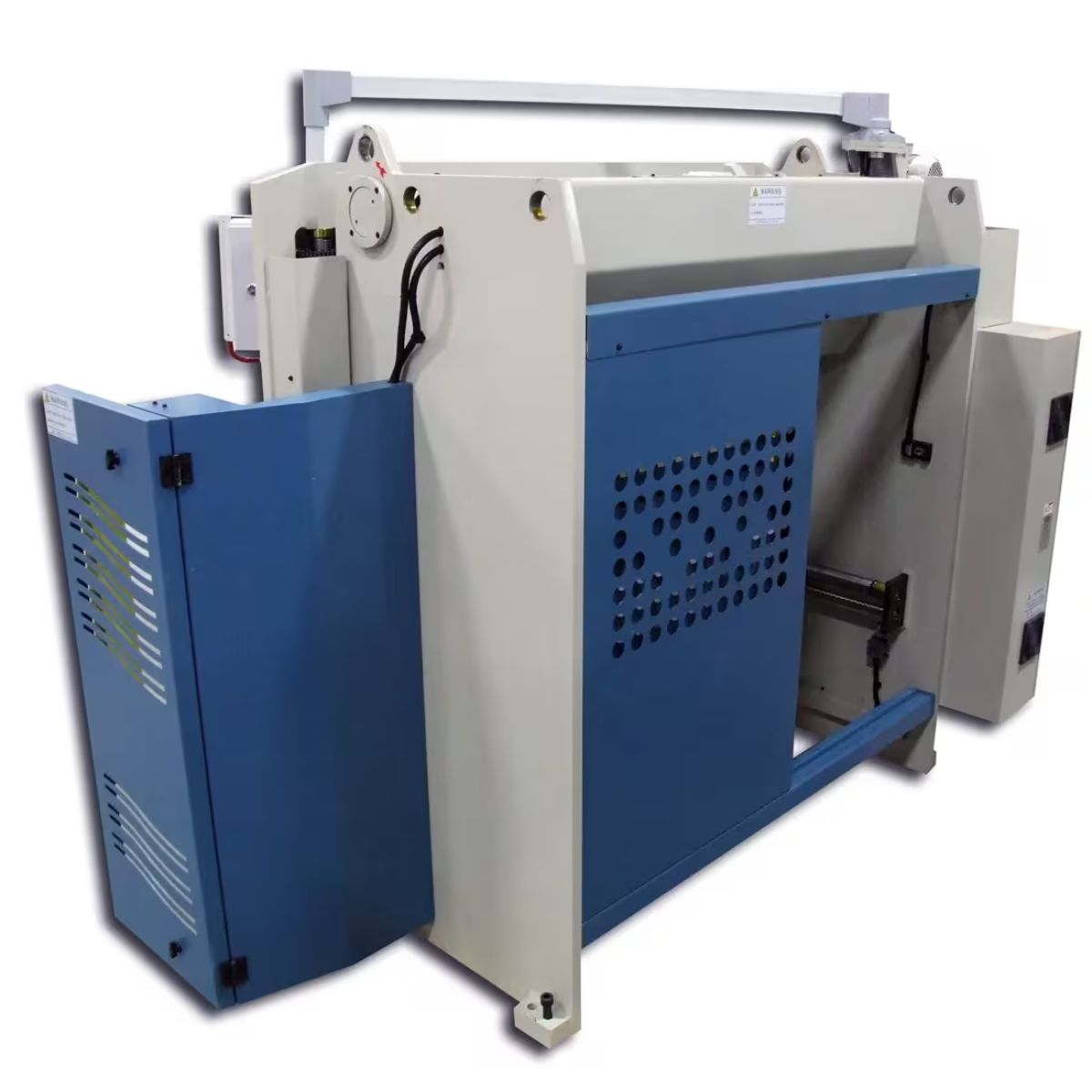

Welded Steel Frame Keeps the Machine Rigid Under Load
The BP-5078CNC is built on a fully welded steel plate framework with a synchronized torque tube for rigidity across the full working length. This construction resists flex during high-tonnage bends and keeps results consistent from the first part to the last.

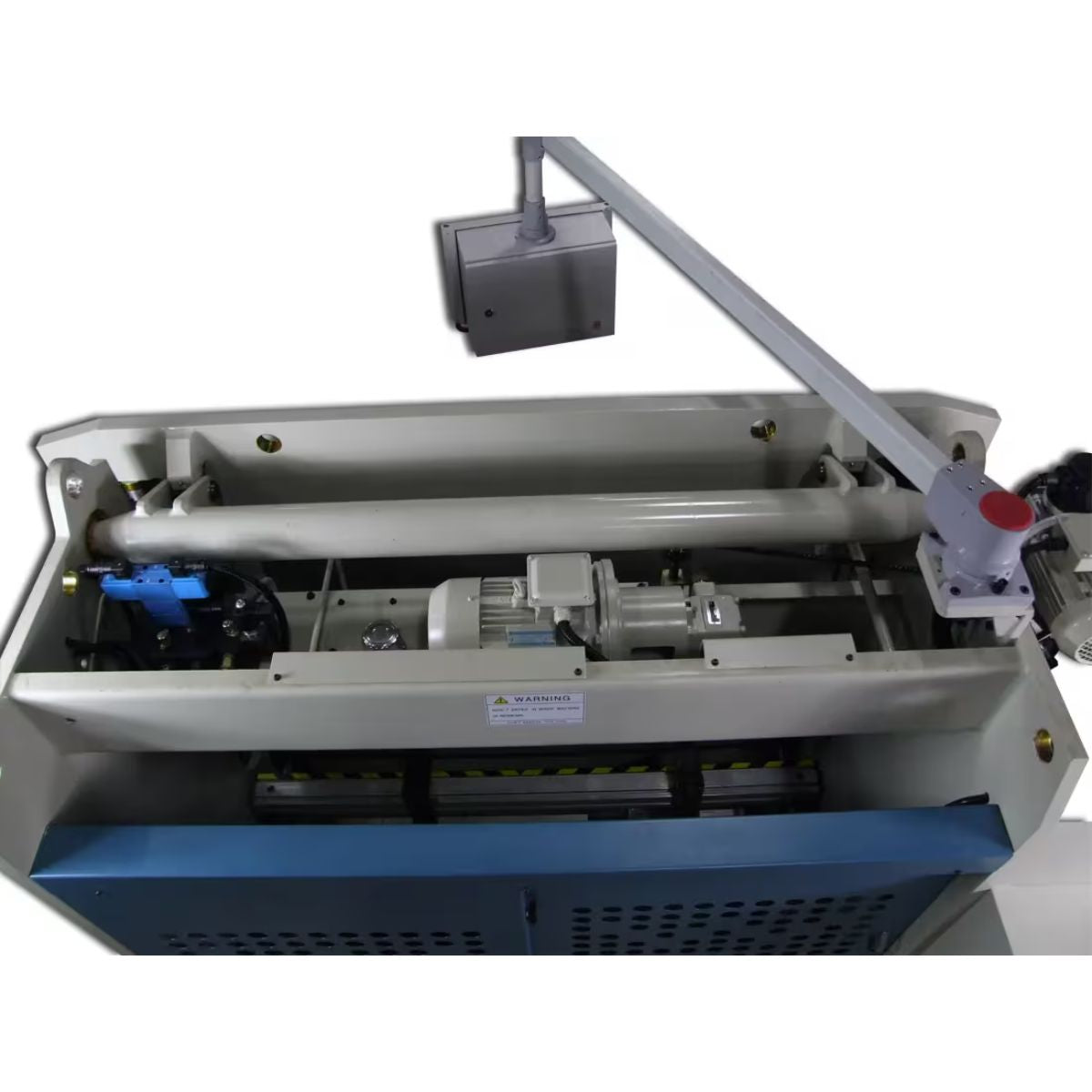

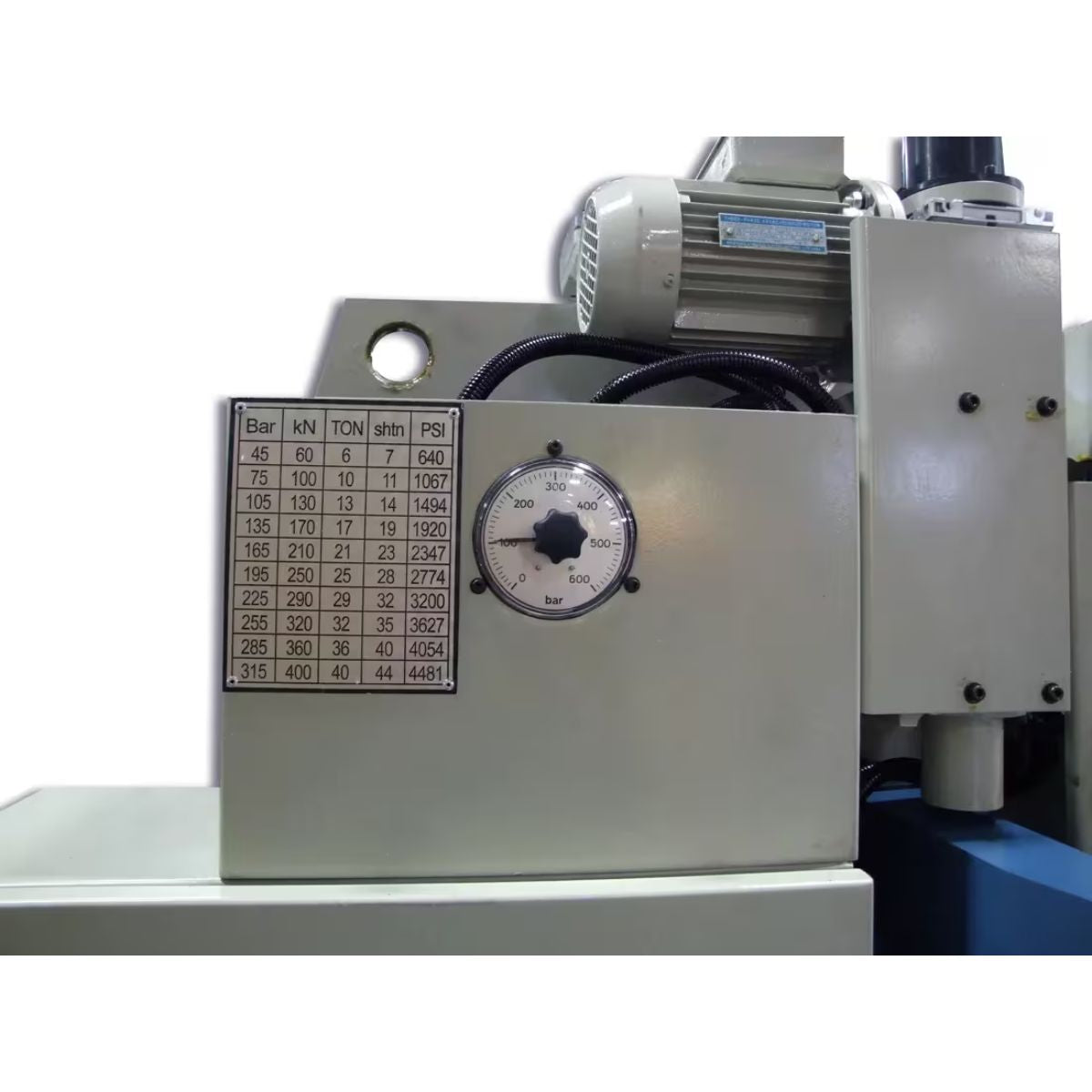

Vickers/Eaton Pump and NOK Seals Support Reliable Hydraulic Performance
The hydraulic system runs on a Vickers/Eaton pump paired with NOK seals, both well-regarded industrial components. This combination delivers steady pressure control and long-term reliability in daily production use.

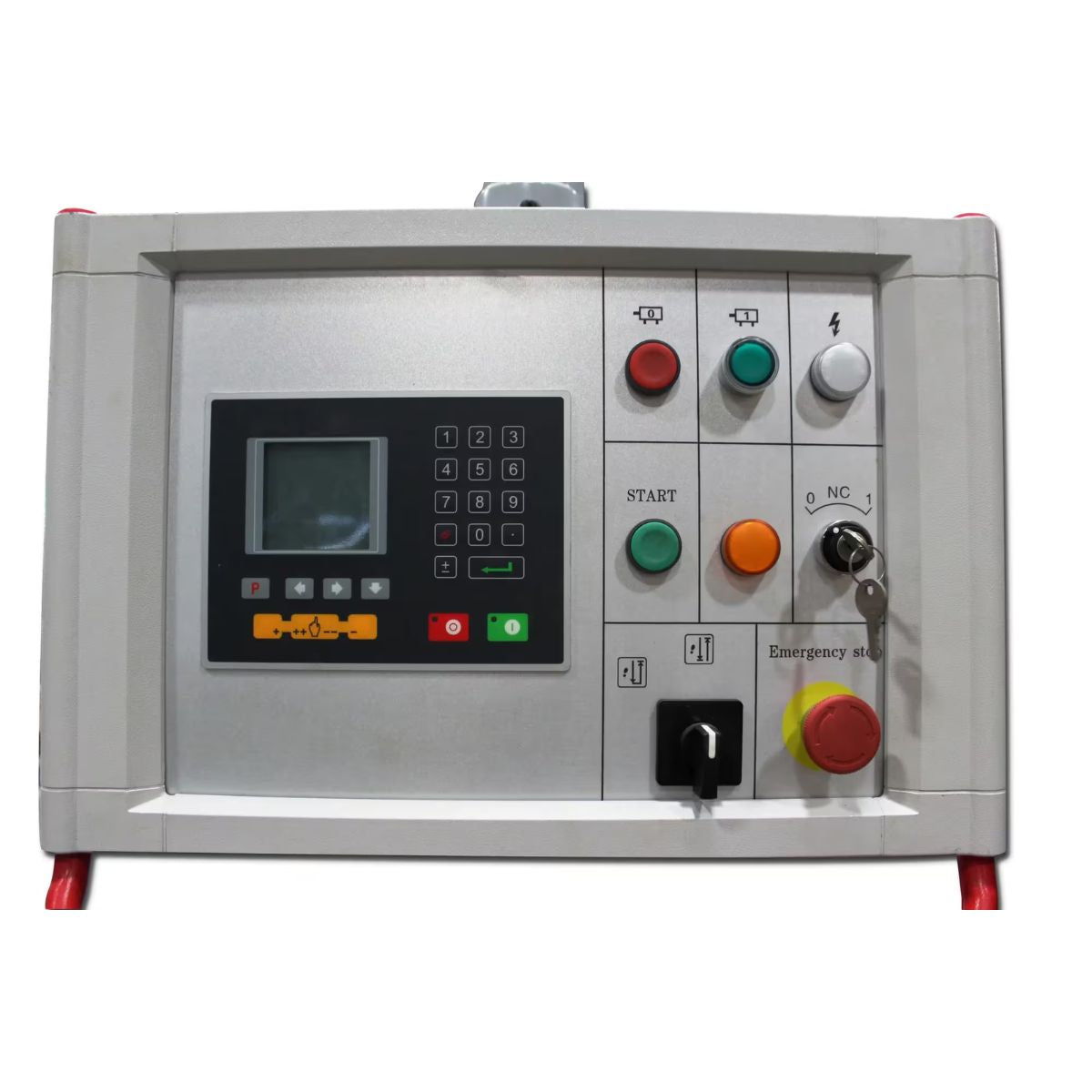

2-Axis CNC Controller Stores Programs for Repeatable Bends
The programmable 2-axis controller manages both stroke depth and back gauge positioning, storing up to 40 programs with up to 25 bends each. Once a program is set, operators can run repeat parts accurately without re-entering settings between jobs.

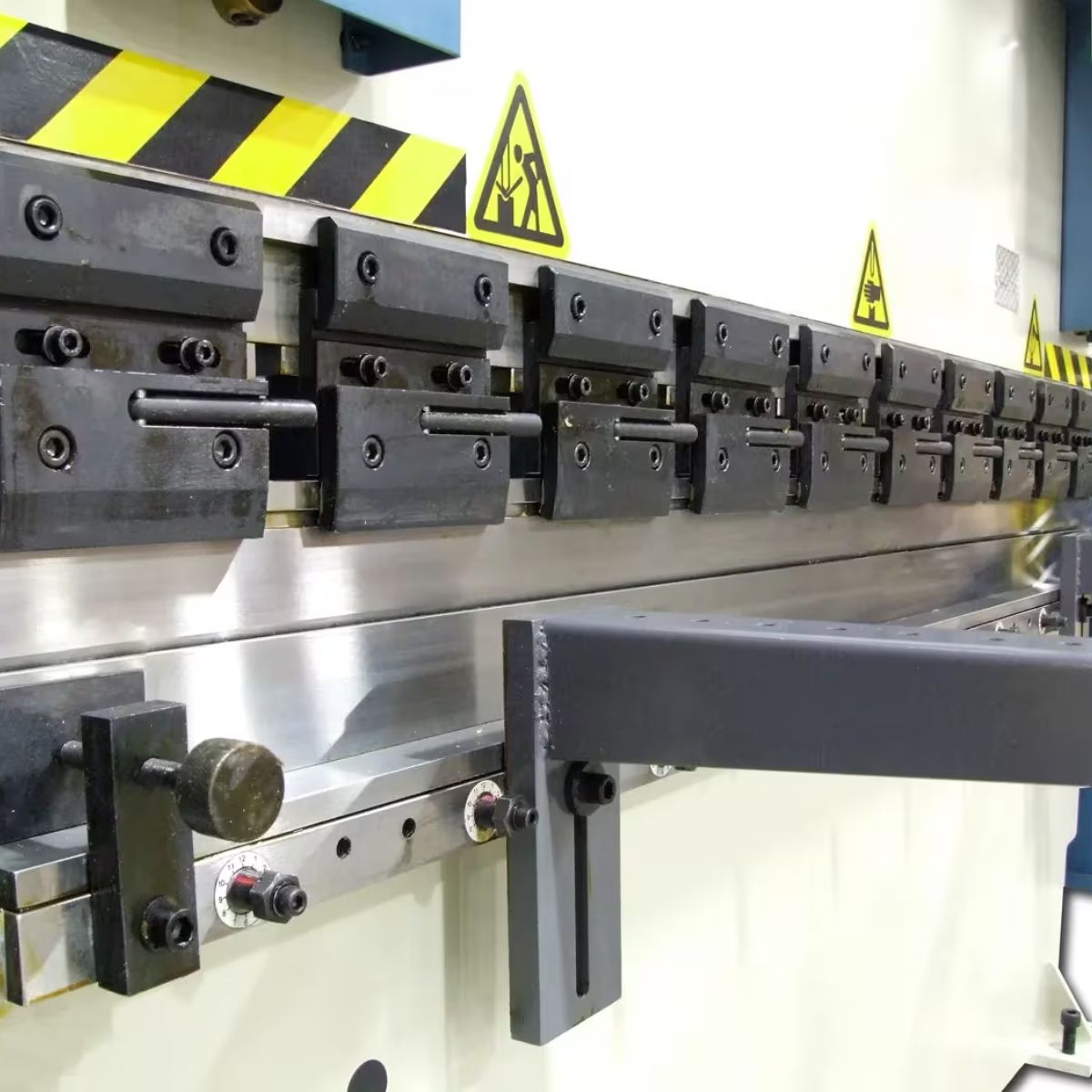

Chain-Drive Back Gauge and Foot Pedal Speed Up Production

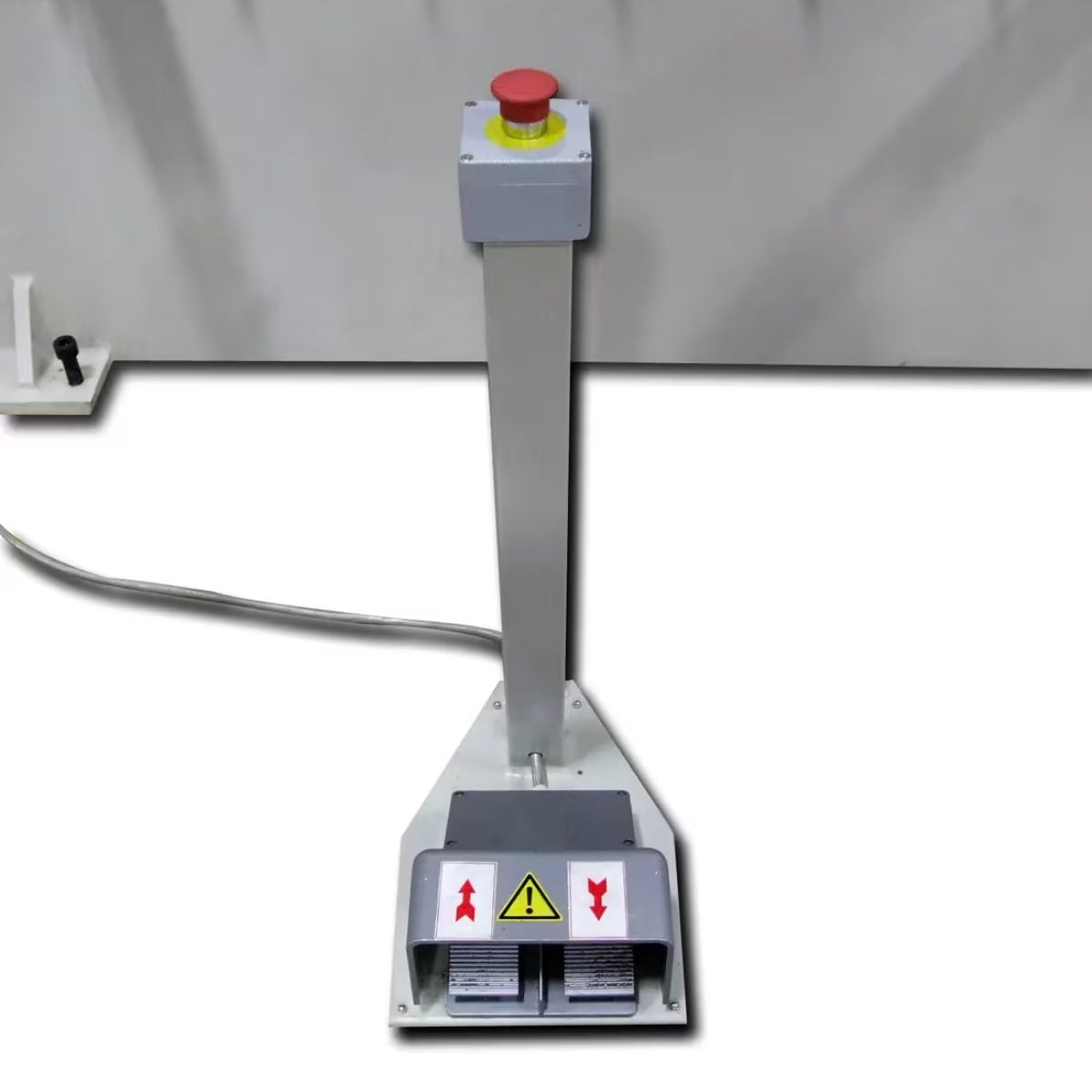

The chain-drive back gauge positions material consistently for each bend, with retractable travel when the gauge needs to be moved clear. The foot pedal gives hands-free control with both rapid approach and slow bend speed, keeping hands on the material throughout the operation.
What's Included
What's Included? Baileigh BP-5078CNC 220V 3-Phase 50-Ton 78" 2-Axis CNC Hydraulic Press Brake
-
Baileigh BP-5078CNC Press Brake — Provides a 50-ton, 78-inch CNC hydraulic press brake platform for production sheet metal bending.
Specs
Baileigh BP-5078CNC 220V 3-Phase 50-Ton 78" 2-Axis CNC Hydraulic Press Brake Specifications
- SKU: BA9-1010285
- Model: BP-5078CNC
- Rating: 50 Ton
- Bending Capacity Length: 78 in.
- Distance Between Housings: 64.5 in.
- Distance From Table To Ram: 11.81 in.
- Throat Depth: 7.75 in.
- Distance Per Stroke: 3.93 in.
- Approach Speed: 3.93 in./sec.
- Bending Speed: 0.393 in./sec.
- Maximum Bend Degree: 135°
- Back Gauge Length: 15.7 in.
- Back Gauge Motor: 1/2 HP
- Input Power: 220V Three Phase
- Net Weight: 7,700 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
