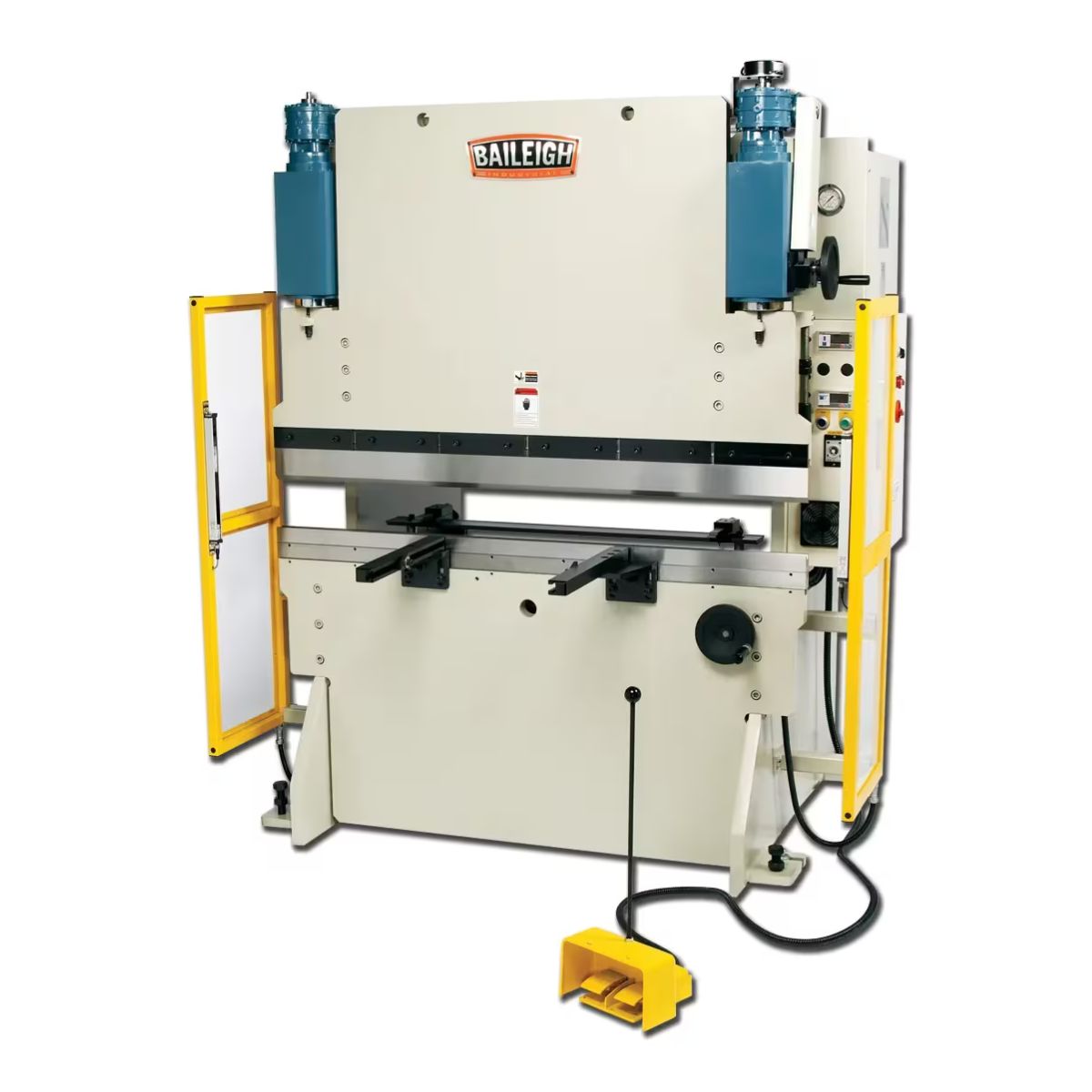

Baileigh BP-5060NC 220V 3-Phase 50-Ton 49" Hydraulic Press Brake with NC Controller
Are you looking for a press brake that handles heavy sheet metal work with consistent, repeatable bends?
What if your shop had a 50-ton hydraulic brake that held position accurately from the first bend to the last?
Meet the Baileigh BP-5060NC 220V 3-Phase 50-Ton 49" Hydraulic Press Brake with NC Controller, a heavy-duty industrial brake built for fabrication shops and maintenance departments.
With encoder-controlled hydraulics, separate DROs for bend depth and back gauge, and a motorized ball screw back gauge, the BP-5060NC delivers the control and repeatability that production work demands.
When your brake holds position accurately run after run, you can focus on the work without stopping to recheck your setup.
Baileigh BP-5060NC for Heavy Sheet Metal Fabrication
Electro-Welded Steel Frame Delivers Rigidity Under Load
The BP-5060NC is built on a heavy electro-welded steel frame with synchronized parallel beam design. This construction resists flex during bending and keeps the ram parallel across the full 60-inch working width.
Encoder-Controlled Hydraulics Produce Smooth, Accurate Bends
Encoder-controlled hydraulic cylinders manage ram movement for smooth, consistent bending action. The system supports bend angles up to 135 degrees with an approach speed of 3.14 inches per second and a stroke distance of 5.9 inches.
Separate DROs Keep Bend Depth and Back Gauge Position Precise
Independent digital readouts display bend depth and back gauge position separately so you can monitor and adjust each setting without confusion. This setup reduces setup time and helps you dial in repeatable results across a production run.
Motorized Ball Screw Back Gauge Speeds Accurate Positioning
The motorized back gauge uses a ball screw drive for accurate, repeatable material positioning. Multiple control modes — jog, manual, and automatic — let you match the workflow to the job, and foot pedal control keeps your hands free during the bend.
What's Included
What's Included? Baileigh BP-5060NC 220V 3-Phase 50-Ton 49" Hydraulic Press Brake with NC Controller
-
Baileigh BP-5060NC Press Brake — Provides 50 tons of hydraulic bending force across a 60-inch working width for heavy sheet metal fabrication.
-
Foot Pedal — Allows hands-free ram control for safer and more efficient bending operation.
Specs
Baileigh BP-5060NC 220V 3-Phase 50-Ton 49" Hydraulic Press Brake with NC Controller Specifications
- Model: BP-5060NC
- Stock Number: BA9-1000824
- Rating (Tons): 50
- Bending Capacity — Length: 60 in.
- Maximum Bend Angle: 135°
- Throat Depth: 7.75 in.
- Distance From Table To Ram: 11.81 in.
- Distance Per Stroke: 5.9 in.
- Approach Speed: 3.14 in./sec.
- Motor: 5 HP
- Back Gauge Motor: 1/2 HP
- Input Power: 220V Three Phase
- Net Weight: 6,160 lb
- Warranty: 1 Year
