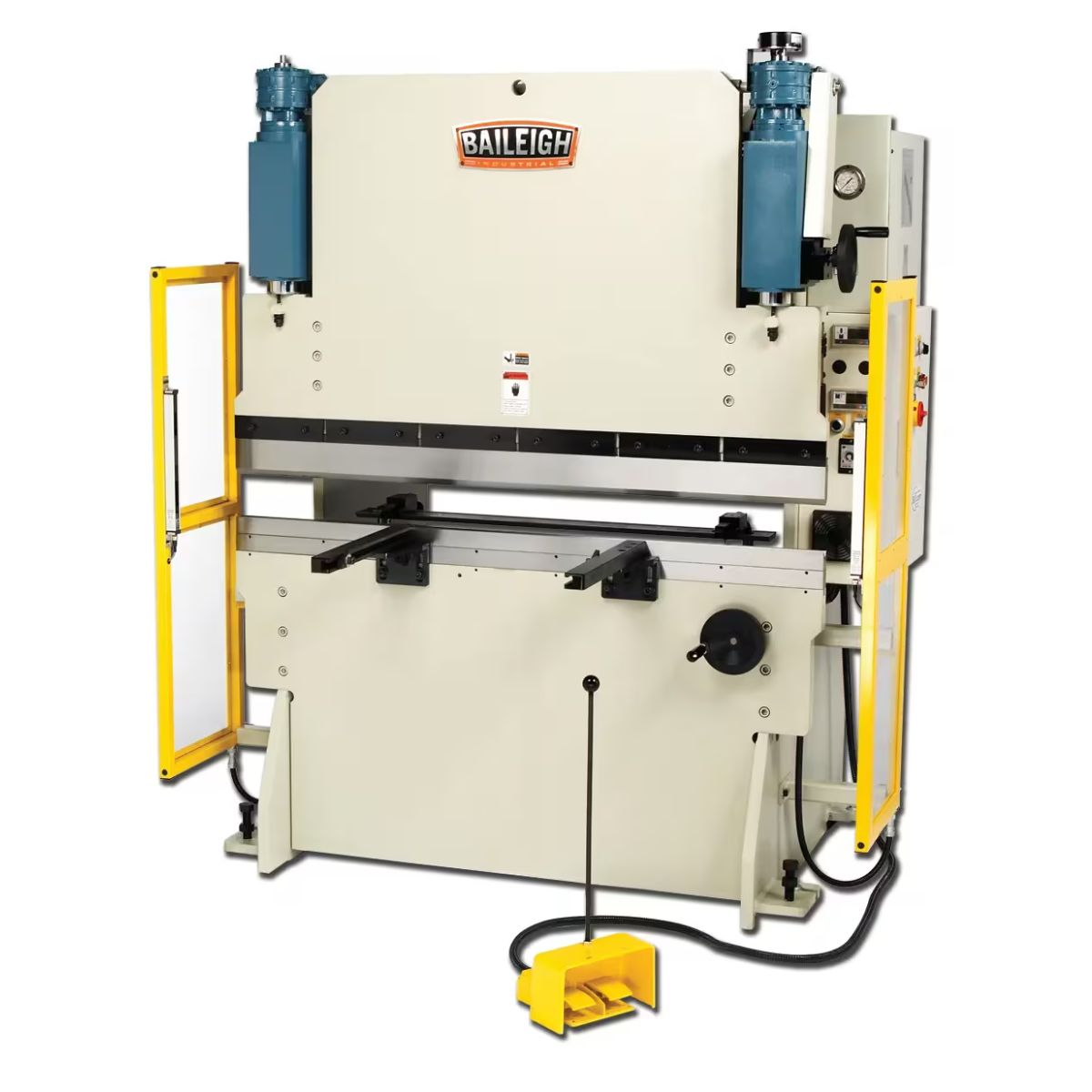

Baileigh BP-3360NC 220V 3-Phase 33-Ton 49" Hydraulic Press Brake with NC Controller
Are you looking for a hydraulic press brake that holds accurate, repeatable bends across a full day of production work?
What if your shop had a press brake where the back gauge and beam depth both returned to the same position every time without manual resetting.
Meet the Baileigh BP-3360NC 220V 3-Phase 33-Ton 49" Hydraulic Press Brake with NC Controller, a two-axis NC machine built for consistent metal forming in production and fabrication environments.
With encoder-controlled hydraulic cylinders, a motorized ball screw back gauge, and three selectable bend modes, the BP-3360NC gives you precise control over both beam depth and back gauge position from a single panel.
When the machine holds its position bend after bend, you can move through a run of parts with confidence and keep your focus on the work.
Baileigh BP-3360NC for Accurate Hydraulic Press Brake Work
Encoder-Controlled Cylinders Deliver Repeatable Bend Depth
Two hydraulic cylinders are coupled to encoders that measure exact ram position and display it on a digital readout. Mechanical stops inside the cylinders hold the bend depth setting, so every part in a run bends to the same angle without readjusting between cycles.
Motorized Ball Screw Back Gauge Holds Precise Back Stop Position
The back gauge rides on a solid ball screw drive with its own encoder and DRO, giving you a readable and repeatable back stop position across the full 23.62" of travel. Front and back push buttons on the control panel let you adjust the position without leaving the operator station.
Hardened Stabilization Tracks Keep the Beam Parallel Through the Stroke
The upper beam rides on 3-axis bearings along hardened stabilization tracks and is further controlled by a parallel synchronizing mechanism. This keeps the die square to the lower tooling at every point in the stroke for consistent bend angles across the full 49" working width.
Three Bend Modes Support Setup and Production Work
The cycle mode selector offers SIN, INCH, and AUTO modes so you can jog the ram for setup, step through a bend manually, or run a full automatic cycle for production. A safety light curtain with a key switch monitors the die area during operation and stops the ram if the beam is broken mid-cycle.
What's Included
What's Included? Baileigh BP-3360NC 220V 3-Phase 33-Ton 49" Hydraulic Press Brake with NC Controller
-
Baileigh BP-3360NC Press Brake — Provides the complete hydraulic press brake platform with NC controls, back gauge, and safety light curtain.
-
Hardened Single-Vee Tooling Set — Allows you to begin bending sheet metal right out of the box.
-
Foot Pedal Control — Allows hands-free operation of the ram down and up cycle.
-
Front Material Support Arms — Provides adjustable support for sheet material during the bend.
-
Tool Box with Grease Gun, Adjustable Wrench, Phillips Screwdriver, Hex Wrenches, Touchup Paint, and Leveling Pads — Provides the tools needed for installation, leveling, and ongoing maintenance.
Specs
Baileigh BP-3360NC 220V 3-Phase 33-Ton 49" Hydraulic Press Brake with NC Controller Specifications
- Model: BP-3360NC
- Stock Number: BA9-1000803
- Maximum Pressure: 33 Tons
- Bending Capacity (max length @ max thickness): 61" / .078" (1550mm / 2.0mm)
- Distance Between Housings: 49.21" (1250mm)
- Distance From Table to Ram: 9.84" (250mm)
- Table Width: 6.29" (160mm)
- Throat Depth (to housing): 7.87" (200mm)
- Stroke Distance: 5.9" (150mm)
- Approach Speed: 3.14" / sec.
- Bending Speed: .275" / sec.
- Return Speed: 2.36" / sec.
- Power Back Gauge Length: 23.62" (600mm)
- NC Control Type: Digital Counter
- Main Motor: 3HP
- Back Gauge Motor: 1/2 HP
- Voltage: 220V / 3 Phase
- Oil Capacity: 48 gal (185L)
- Shipping Dimensions (L/W/H): 81" x 59" x 92"
- Shipping Weight: 3,300 lbs (1,500kg)
- Warranty: 1 Year
