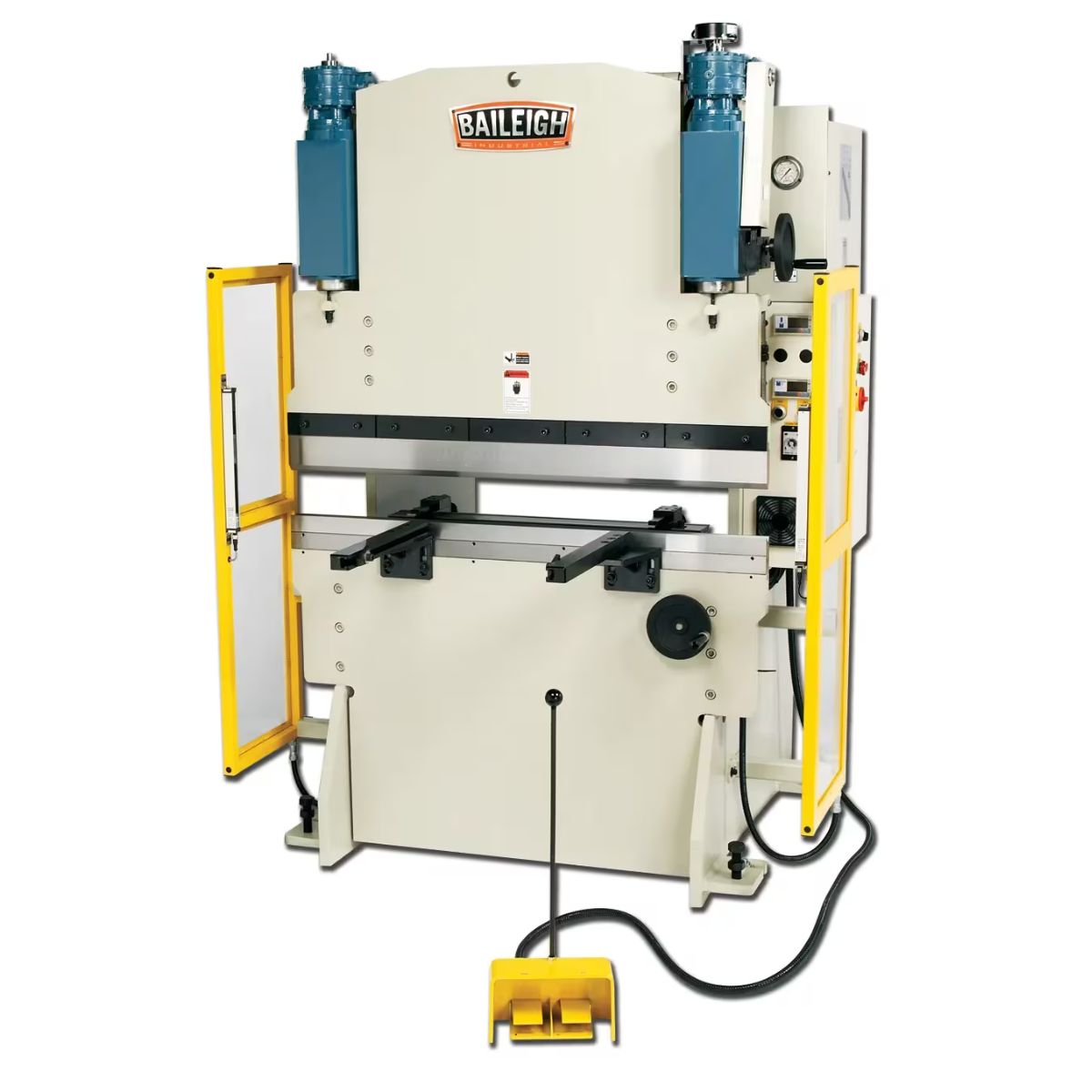

Baileigh BP-3350NC 220V 3-Phase 33-Ton 38" Hydraulic Press Brake with NC Controller
Are you spending too much time chasing accurate bends on sheet metal without a reliable brake to back you up?
What if your shop had a hydraulic press brake that held position precisely and repeated the same bend from the first part to the last?
Meet the Baileigh BP-3350NC 220V 3-Phase 33-Ton 38" Hydraulic Press Brake with NC Controller, a compact industrial brake built for accurate sheet metal forming.
With 33 tons of bending force, a motorized back gauge, and encoder-controlled depth readouts, the BP-3350NC gives you consistent, repeatable results on every part.
When the back gauge holds its position and the beam moves true, you can run a production job with confidence and move on.
Baileigh BP-3350NC for Accurate Sheet Metal Forming
Motorized Back Gauge Holds Precise Bend Position
The motorized back gauge uses a ball screw drive to position your material accurately before every bend. Once set, it holds that position reliably so you can repeat the same bend across a full run of parts without re-measuring.
Encoder-Controlled Cylinders Deliver Consistent Bend Depth
Two hydraulic cylinders with encoder feedback control the ram position throughout the stroke. The digital readout shows bend depth in real time so you can dial in the exact angle and hold it from part to part.
Heavy Welded Frame Keeps the Beam Running Parallel
The electro-welded steel frame and synchronized parallel beam mechanism keep both ends of the ram aligned through the full stroke. That alignment prevents twist in the beam and keeps your bends straight across the full working width.
Multiple Control Modes Support Setup and Production Work
Jog, manual, and automatic modes let you move between careful setup and steady production runs without changing machines. The foot pedal keeps both hands on the material while you cycle the ram.
What's Included
What's Included? Baileigh BP-3350NC 220V 3-Phase 33-Ton 38" Hydraulic Press Brake with NC Controller
-
Baileigh BP-3350NC Press Brake — Provides 33 tons of hydraulic bending force in a compact industrial frame for accurate sheet metal forming.
-
Foot Pedal — Allows hands-free ram control so both hands stay on the material during the bend cycle.
Specs
Baileigh BP-3350NC 220V 3-Phase 33-Ton 38" Hydraulic Press Brake with NC Controller Specifications
- Model: BP-3350NC
- Stock Number: BA9-1000801
- Bending Force: 33 Ton
- Bending Length: 50 in ⚠️ See flag above — verify against title spec of 38"
- Maximum Bend Degree: 135°
- Input Power: 220V Three Phase
- Back Gauge: Motorized with ball screw drive
- Hydraulic System: 2-cylinder with encoder control
- Net Weight: 2,640 lb
- Warranty: 1 Year Parts / Lifetime Technical Support
