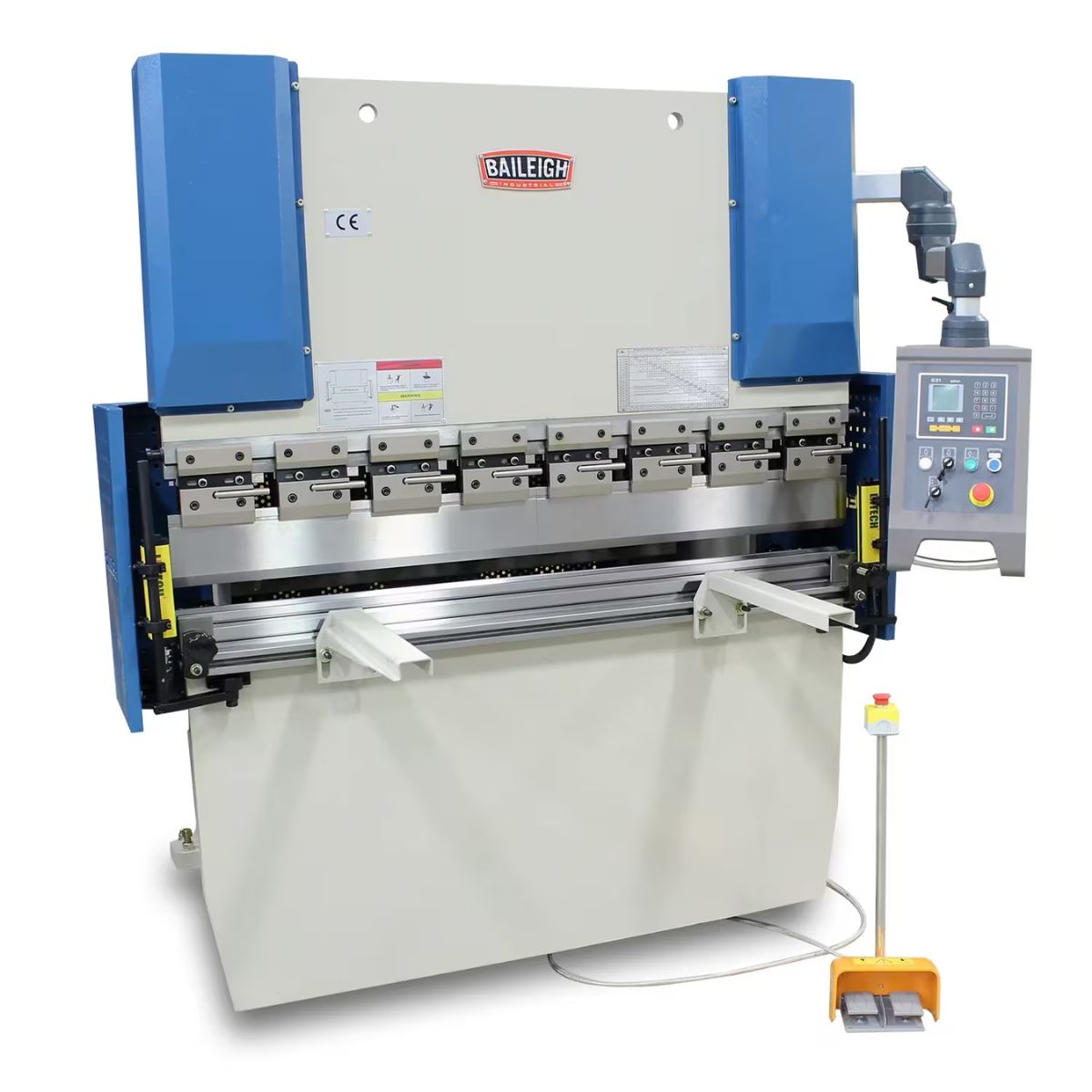

Baileigh BP-3305CNC 220V 3-Phase 33-Ton 63" 2-Axis CNC Hydraulic Press Brake with Light Curtains
Are you looking for a press brake that holds repeatable bend sequences without constant manual adjustment?
What if your shop had a compact hydraulic brake that delivers consistent angles across a full production run.
Meet the Baileigh BP-3305CNC, a 33-ton CNC hydraulic press brake built for precise sheet metal forming.
With a 2-axis CNC controller, heavy welded steel frame, and foot pedal operation, the BP-3305CNC gives you programmable control over every bend.
When the back gauge holds its position and the ram repeats the same depth, you can work through a run of parts with confidence.
Baileigh BP-3305CNC for Precise Sheet Metal Forming

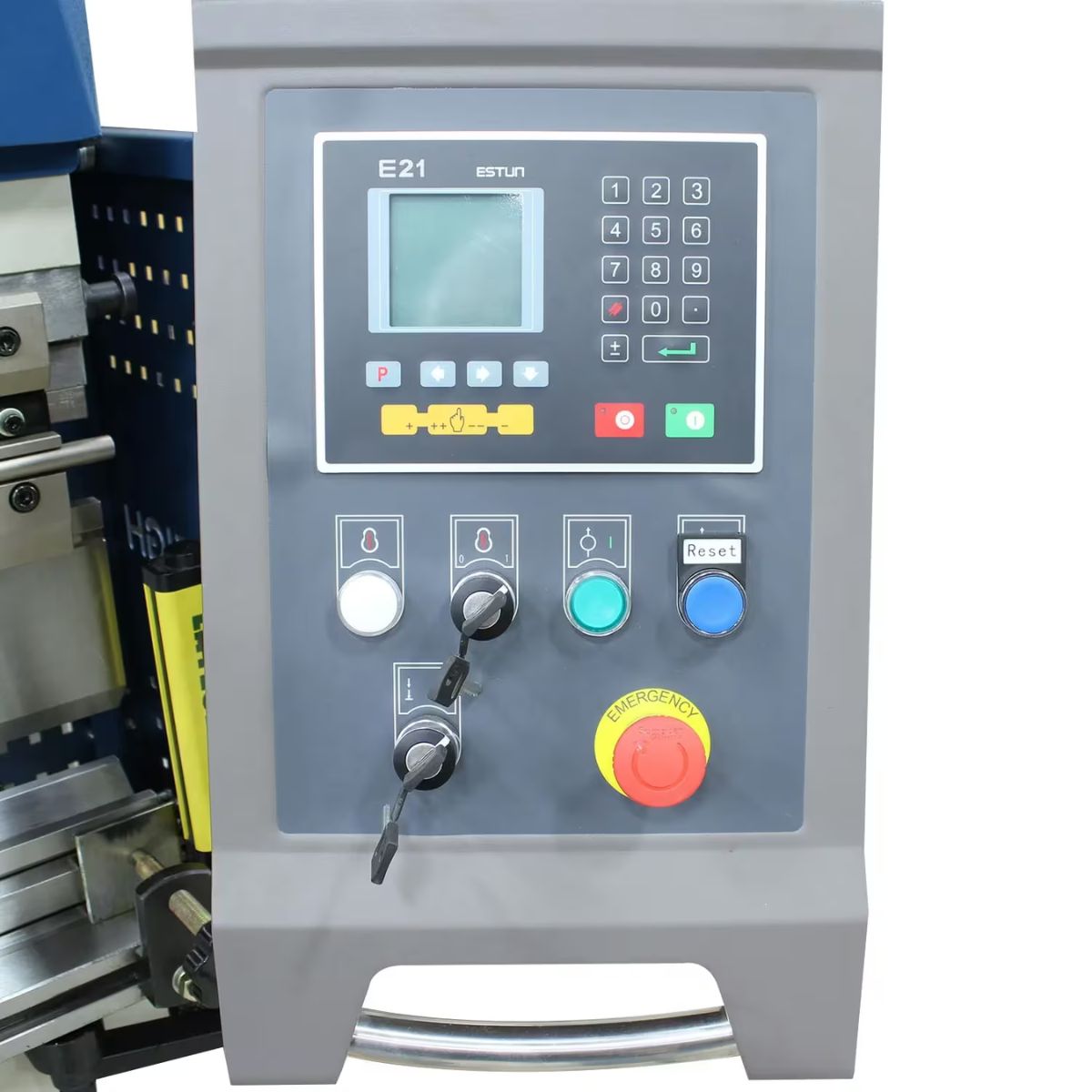

2-Axis CNC Controller Delivers Repeatable Bends

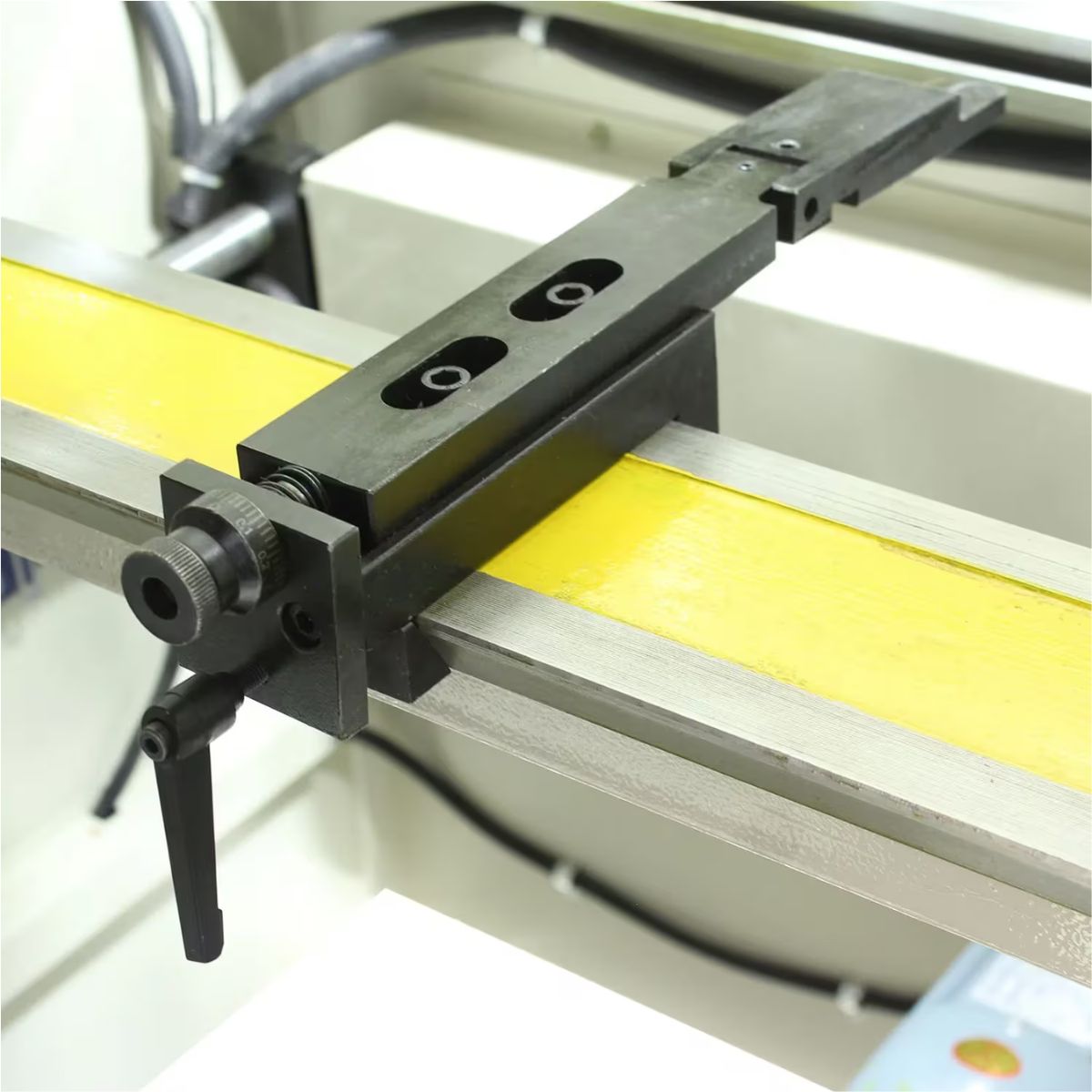

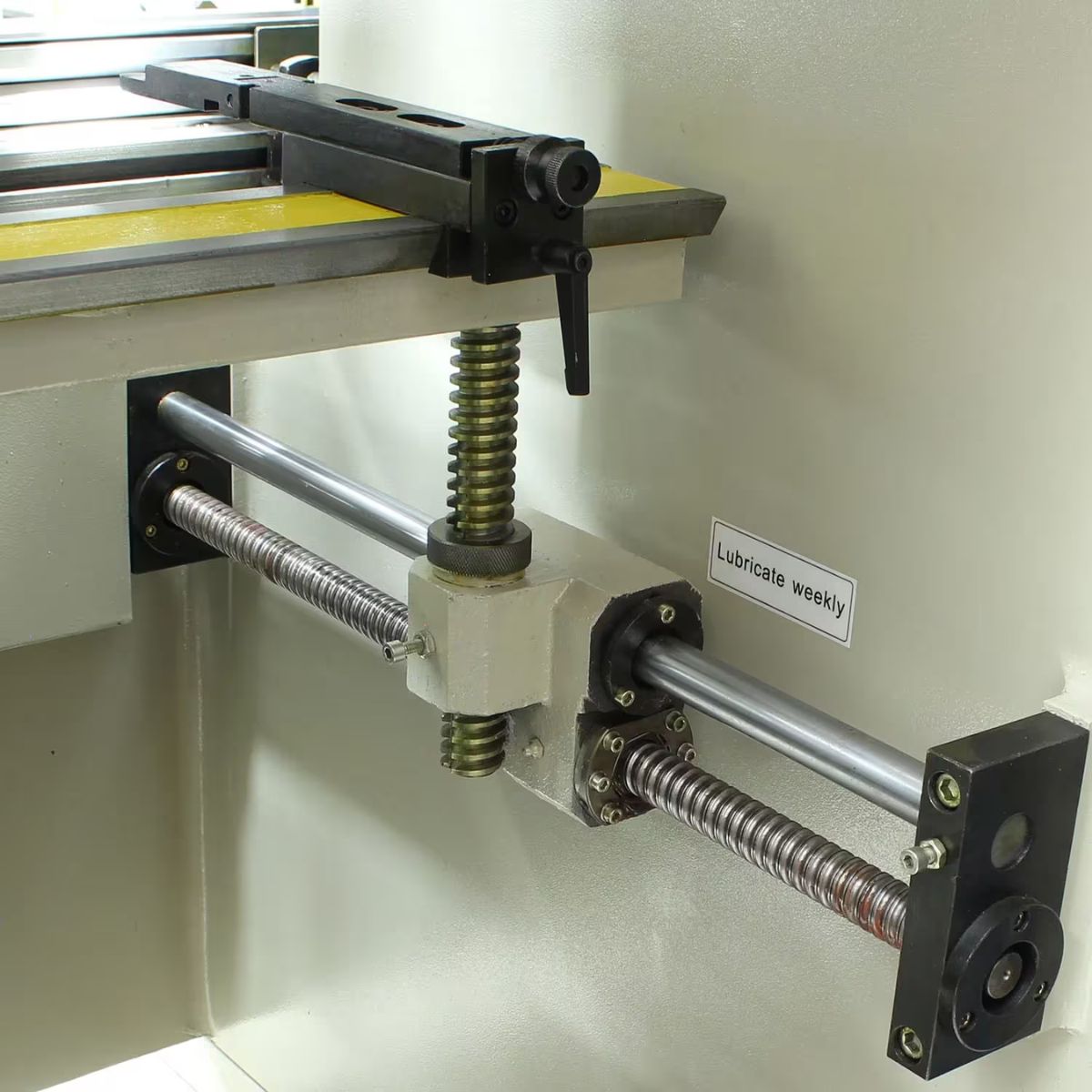

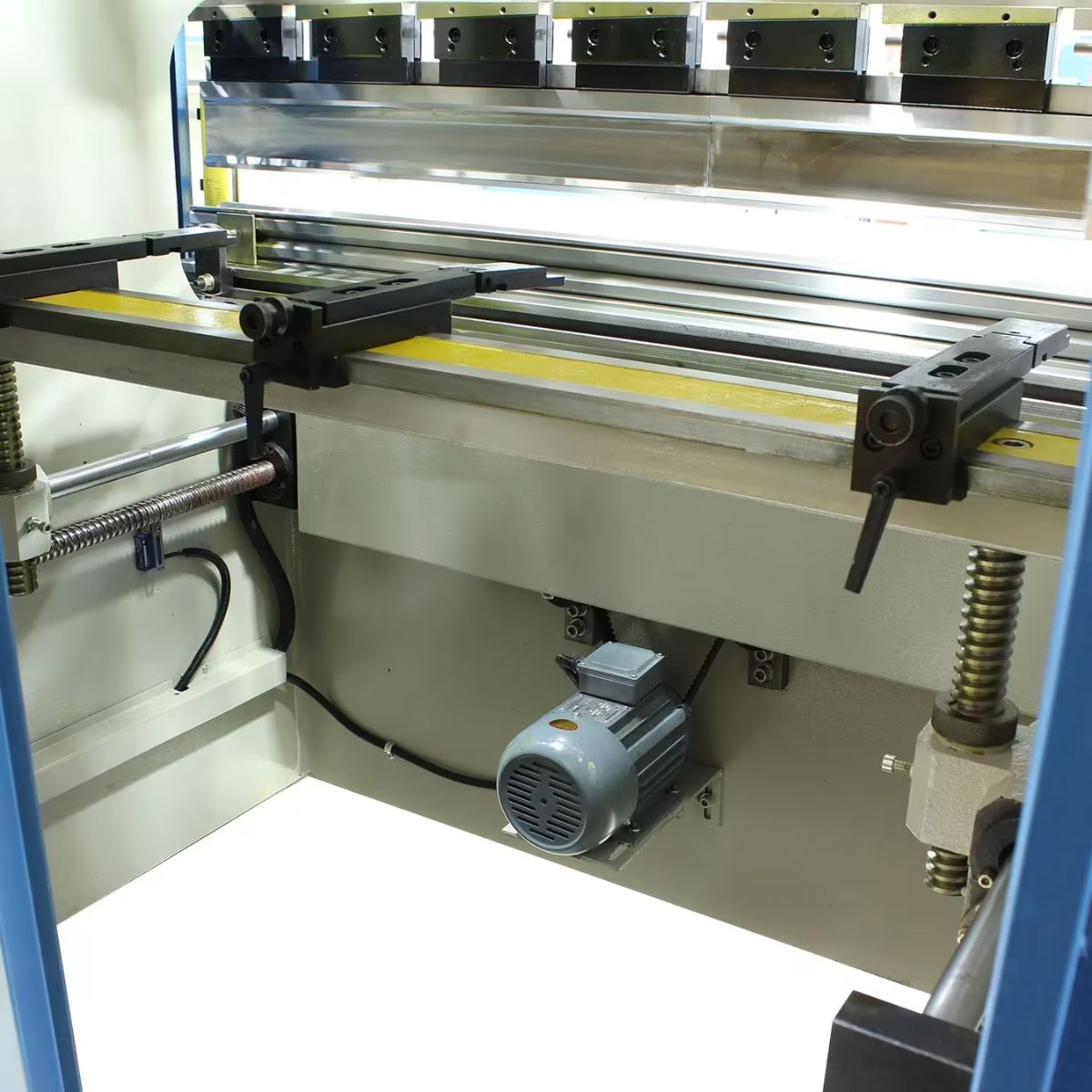

The 2-axis CNC digital controller lets you program bend depth and back gauge position, then repeat them across a full run. Stored programs reduce setup time when returning to familiar jobs.
Heavy Welded Steel Frame Maintains Long-Term Accuracy
The frame is built from heavy welded steel for rigidity under load. A stable frame keeps the ram aligned through repeated cycles and supports consistent results over the life of the machine.
Synchronized Hydraulic System Produces Balanced Ram Movement
The 220V three-phase hydraulic drive powers smooth and balanced ram travel across the full 63-inch bed. Even pressure distribution helps maintain bend angle accuracy from one end of the part to the other.

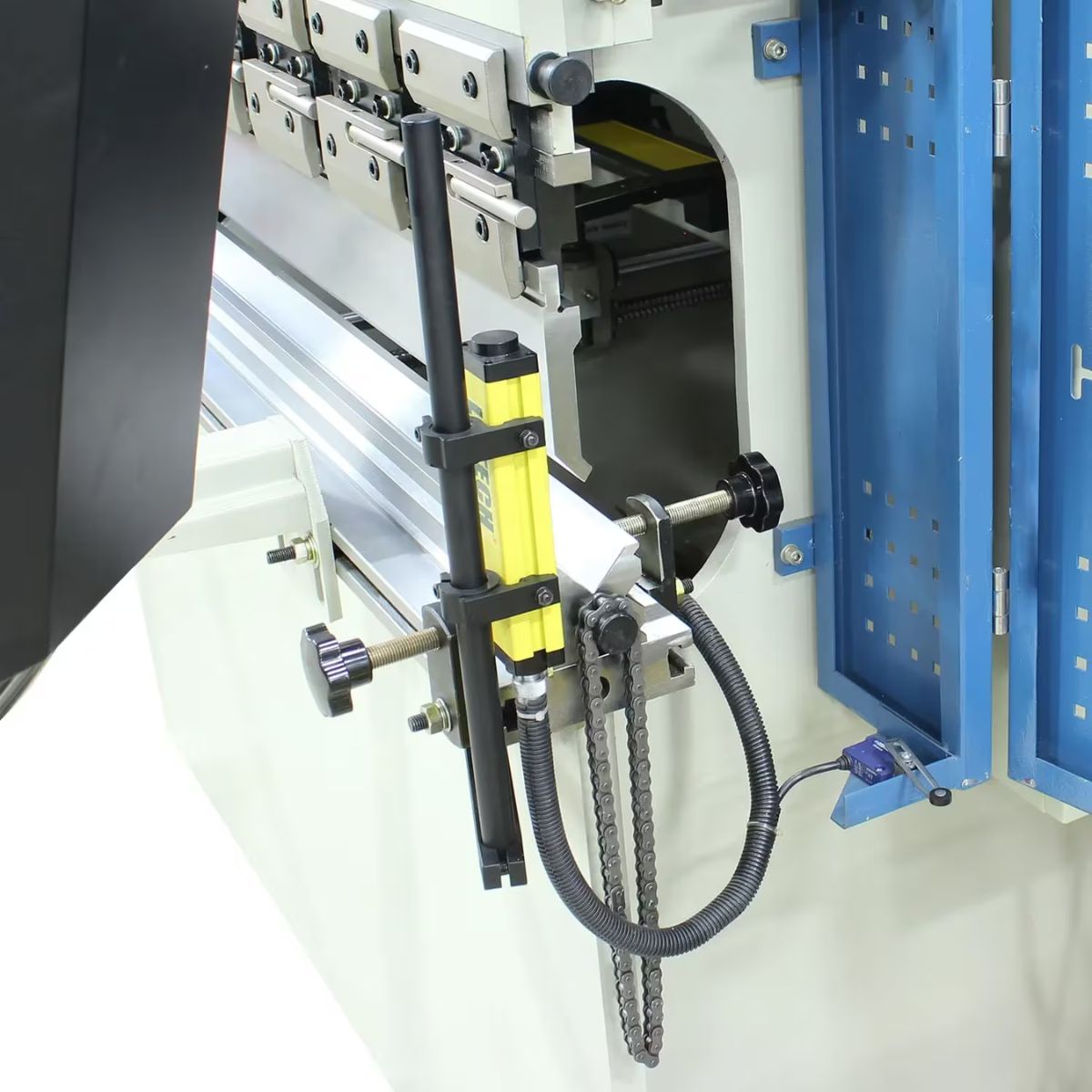

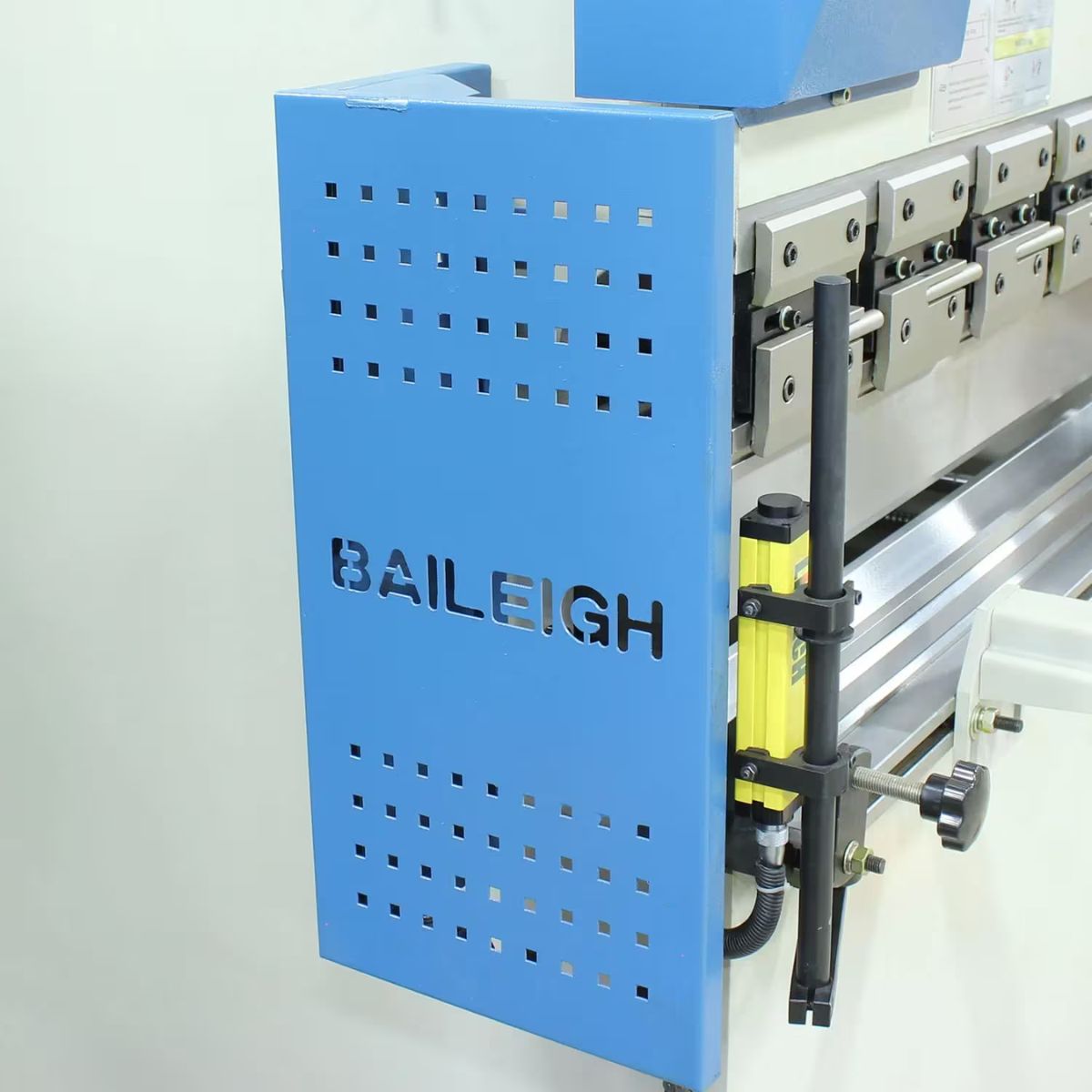

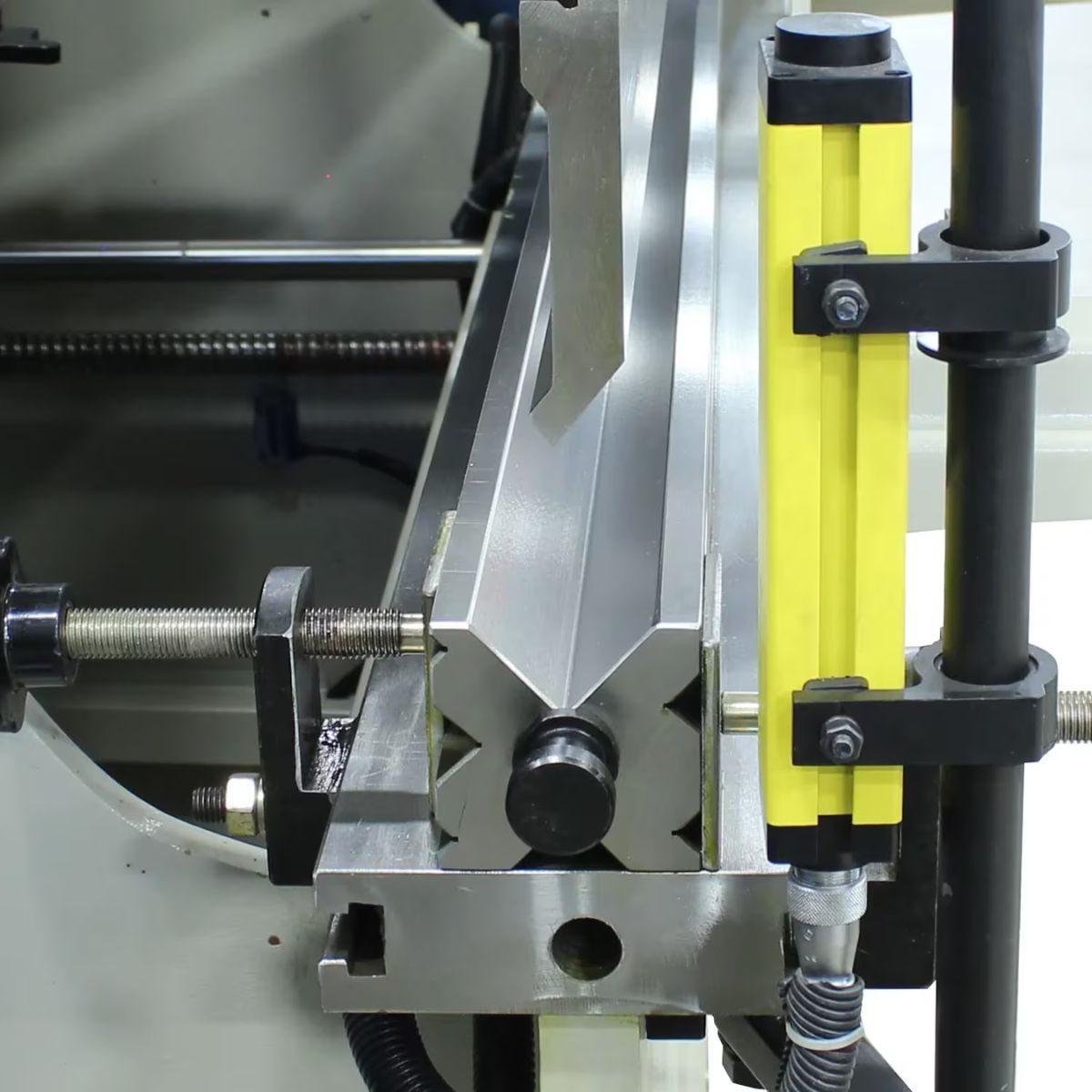

Light Curtains Support Safe Hands-Free Operation
Integrated light curtains help protect the operator during the bending cycle. Foot pedal activation keeps both hands free to support the workpiece while the ram descends.
What's Included
What's Included? Baileigh BP-3305CNC 220V 3-Phase 33-Ton 63" 2-Axis CNC Hydraulic Press Brake with Light Curtains
-
Baileigh BP-3305CNC Press Brake — Provides a 33-ton hydraulic bending platform with CNC control for repeatable sheet metal forming.
Specs
Baileigh BP-3305CNC Specifications
- Model: BP-3305CNC
- Stock Number: BA9-1020680
- Bending Capacity — Length: 63 in
- Rating Tons: 33
- Distance Between Housings: 51.25 in
- Distance From Table To Ram: 13.325 in
- Throat Depth: 8 in
- Distance Per Stroke: 3.15 in
- Maximum Bend Degree: 135°
- Approach Speed: 3.5 in/sec
- Bending Speed: 0.394 in/sec
- Minimum Return Speed: 3.3 in/sec

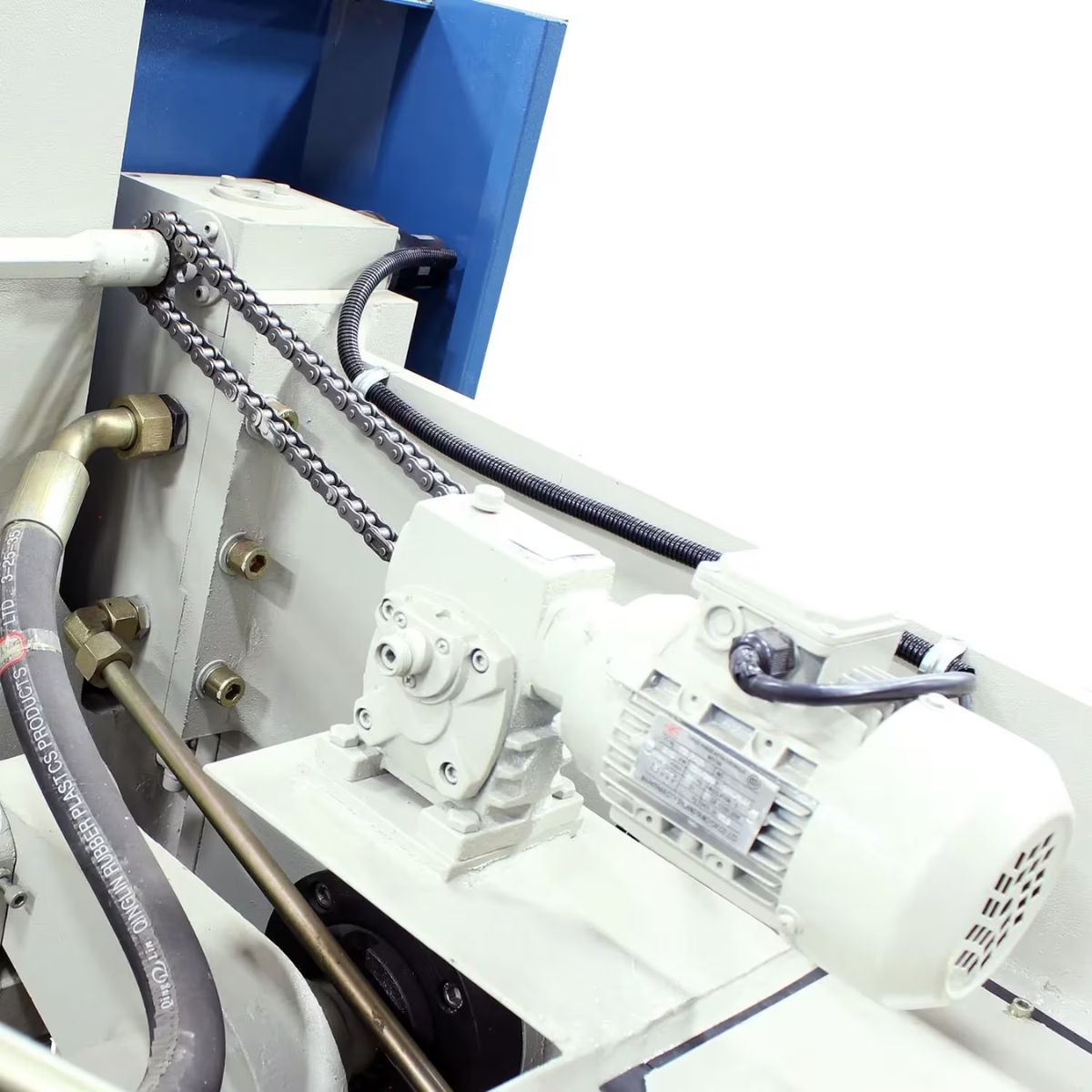

- Back Gauge Motor: 1/2 HP
- Input Power: 220V Three Phase
- Net Weight: 5,100 lb
- Warranty: 1 Year
