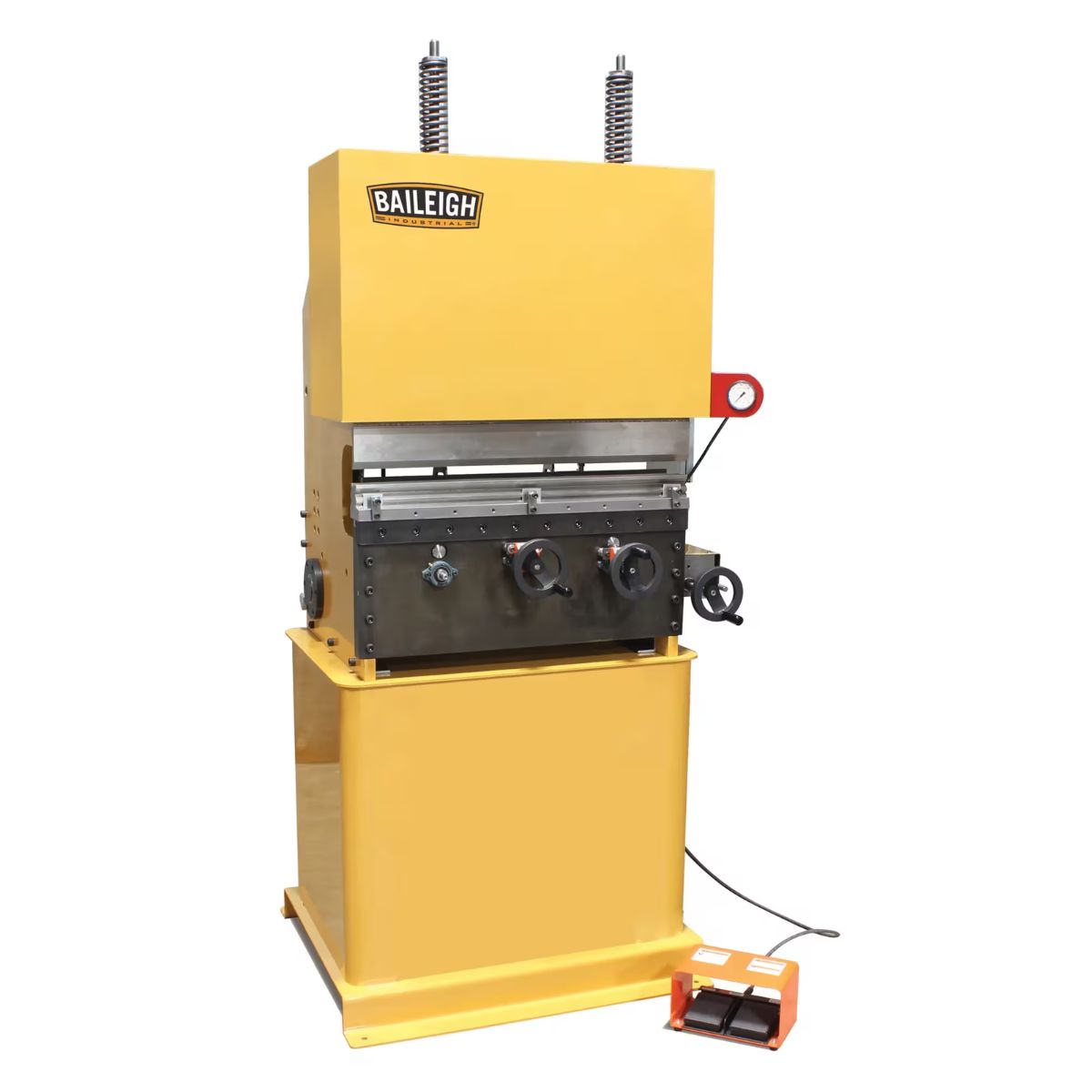

Baileigh BP-3142NC 220V 42-Ton 31" Hydraulic Press Brake with NC Controller

Baileigh BP-3142NC for Accurate Small Part Forming

42-Ton Hydraulic System Delivers Consistent Bending Force

The BP-3142NC uses a 2 HP hydraulic drive to generate 42 tons of bending force through a controlled 2-inch stroke. Separate approach and bending speeds give the ram steady, predictable movement through each press cycle.

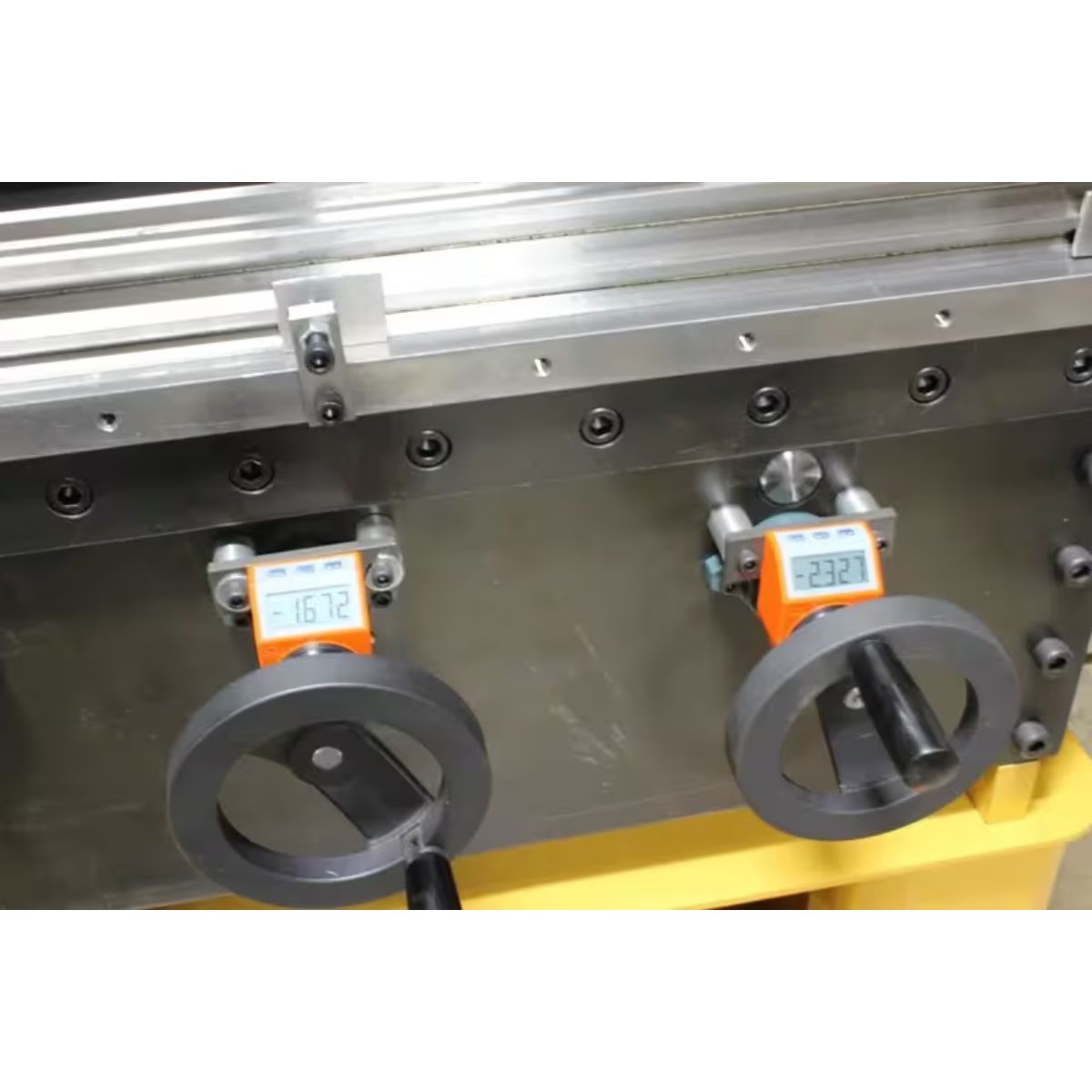

Digital Readouts Improve Bend Accuracy

DROs for both back gauge position and downward stroke let operators confirm settings before each bend. Repeating the same bend across a run of parts becomes straightforward when both positions are visible and confirmed.

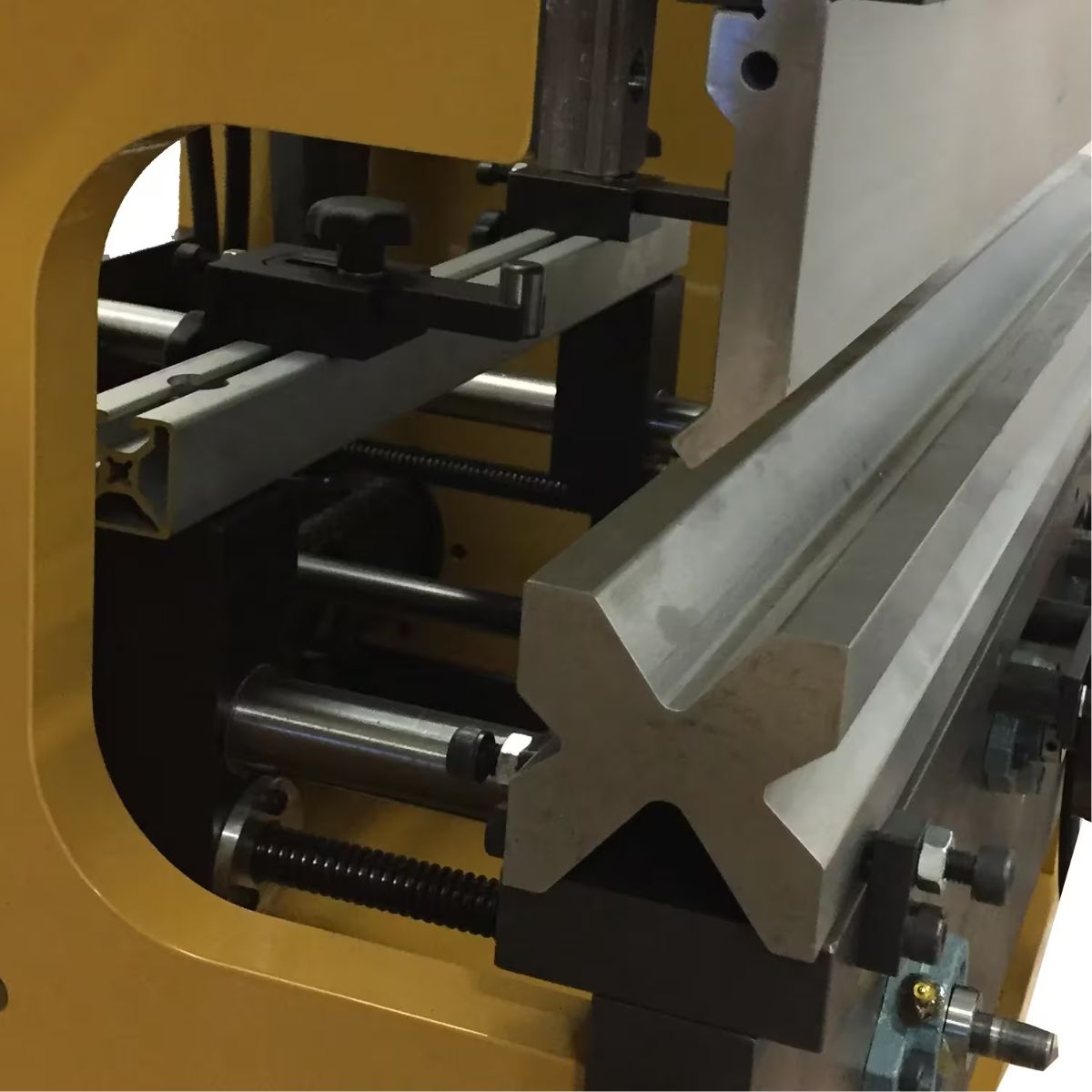

Manual Back Gauge Supports Repeatable Part Placement

The 19.5-inch manual back gauge gives operators a fixed reference point for consistent part positioning from piece to piece. Foot pedal control keeps both hands on the material while the stroke cycles.

Included Tooling and Universal Holder Add Setup Flexibility

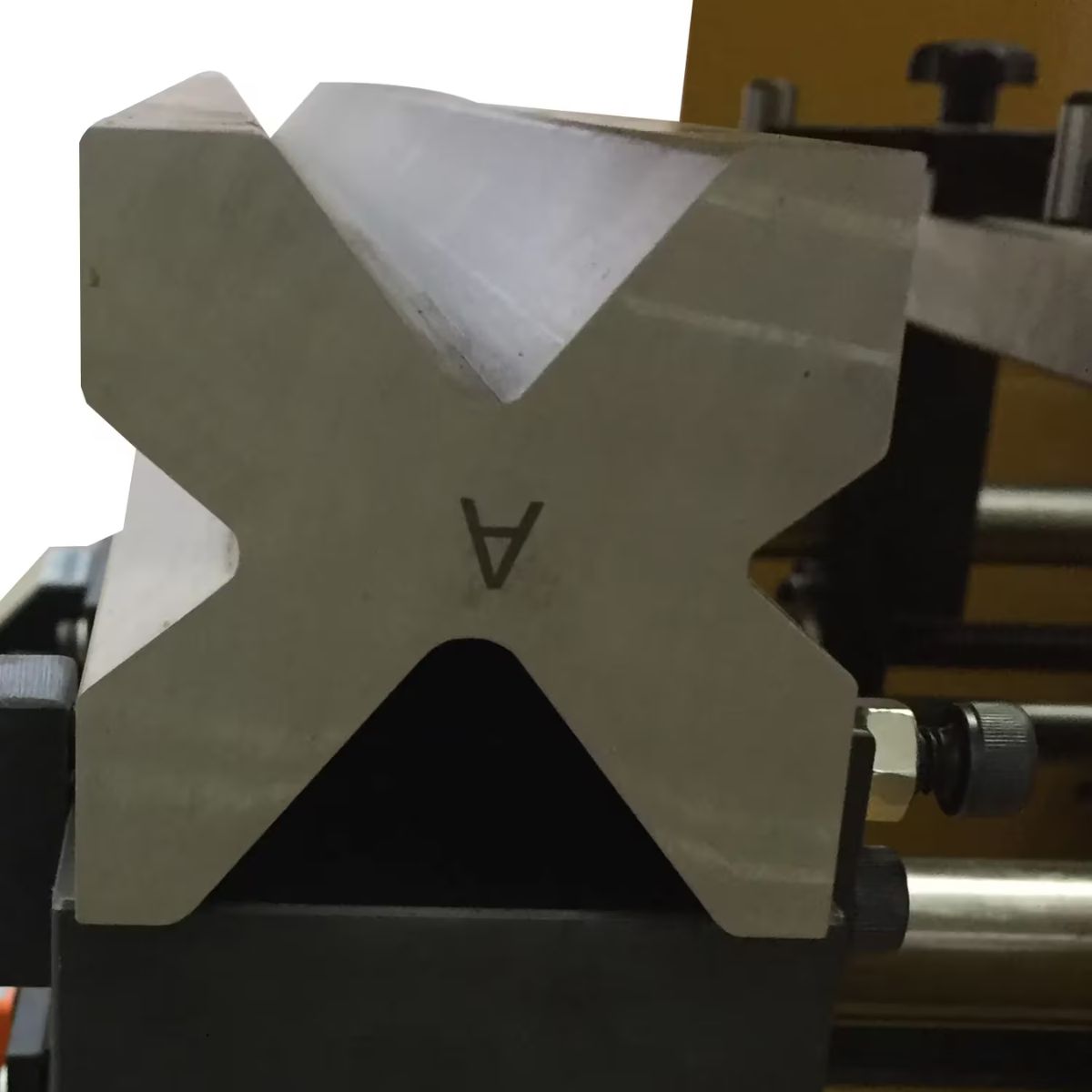

A hardened multi-V bottom die and universal tooling holder come with the machine, covering a range of common forming jobs without additional purchases. The 135-degree maximum bend range handles most standard sheet metal bracket and part work.

What's Included

What's Included? Baileigh BP-3142NC 220V 42-Ton 31" Hydraulic Press Brake with NC Controller

• Baileigh BP-3142NC Press Brake — Provides a 42-ton hydraulic forming platform with a 31-inch working bed for small to medium sheet metal parts.
• Hardened Multi-V Bottom Die — Supports a range of common bend profiles right out of the box.
• Universal Tooling Holder — Allows the machine to accept a variety of tooling for different forming jobs.
• Foot Pedal — Keeps both hands free to position and guide material during the press cycle.

Specs

Baileigh BP-3142NC 220V 42-Ton 31" Hydraulic Press Brake with NC Controller Specifications

• Model: BP-3142NC
• SKU: BA9-BP3142NC
• Bending Force: 42 Ton
• Bed Length: 31 in
• Distance Between Housings: 28 in
• Distance from Table to Ram: 8.5 in
• Stroke Distance: 2 in
• Maximum Bend Angle: 135°
• Back Gauge Length: 19.5 in
• Approach Speed: 0.9 in/sec
• Bending Speed: 0.4 in/sec
• Motor: 2 HP
• Motor Phase: Single Phase
• Voltage: 220V
• Digital Readout: Yes
• Net Weight: 2,110 lb
• Warranty: 1 Year Parts, Lifetime Technical Support
