Baileigh BP-22413CNC 220V 3-Phase 224-Ton 157" 2-Axis CNC Hydraulic Press Brake
Are you looking for a press brake that can handle heavy structural bending without flexing under load?
What if your shop had a CNC press brake that delivers consistent, repeatable bends across a 13 foot bed.

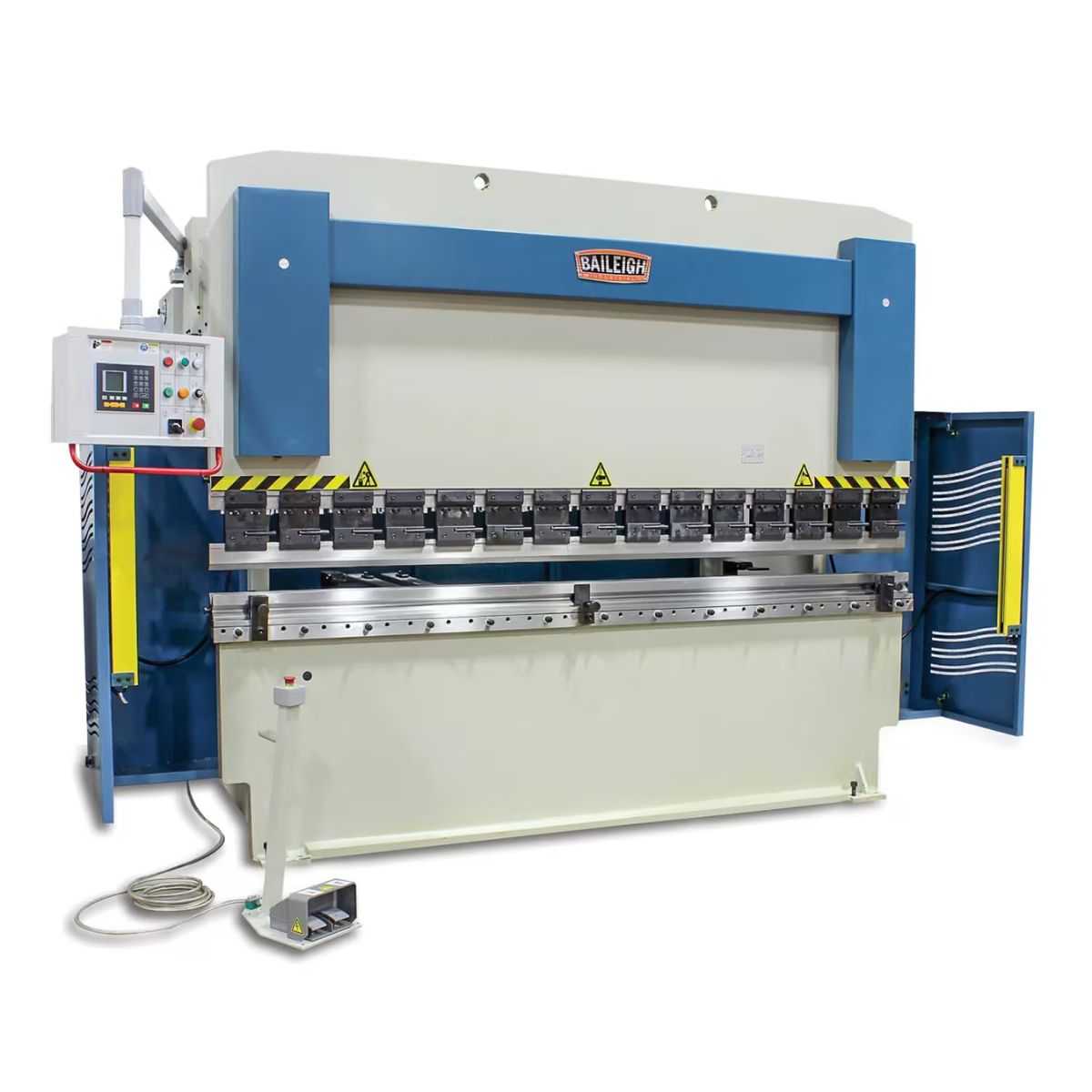

Meet the Baileigh BP-22413CNC, a 224 ton hydraulic press brake built for demanding fabrication work.
With a fully welded steel frame, Estun E21 2-axis CNC control, and a CNC-controlled back gauge, the machine holds tight tolerances bend after bend.
When your press brake tracks true through every program, you can move through production runs with confidence.
Baileigh BP-22413CNC for Heavy Structural Bending
Fully Welded Steel Frame Reduces Deflection Under Load
The frame is fully welded and stress relieved for rigidity. This construction keeps the frame stable during heavy tonnage bends, helping maintain accuracy across long runs.

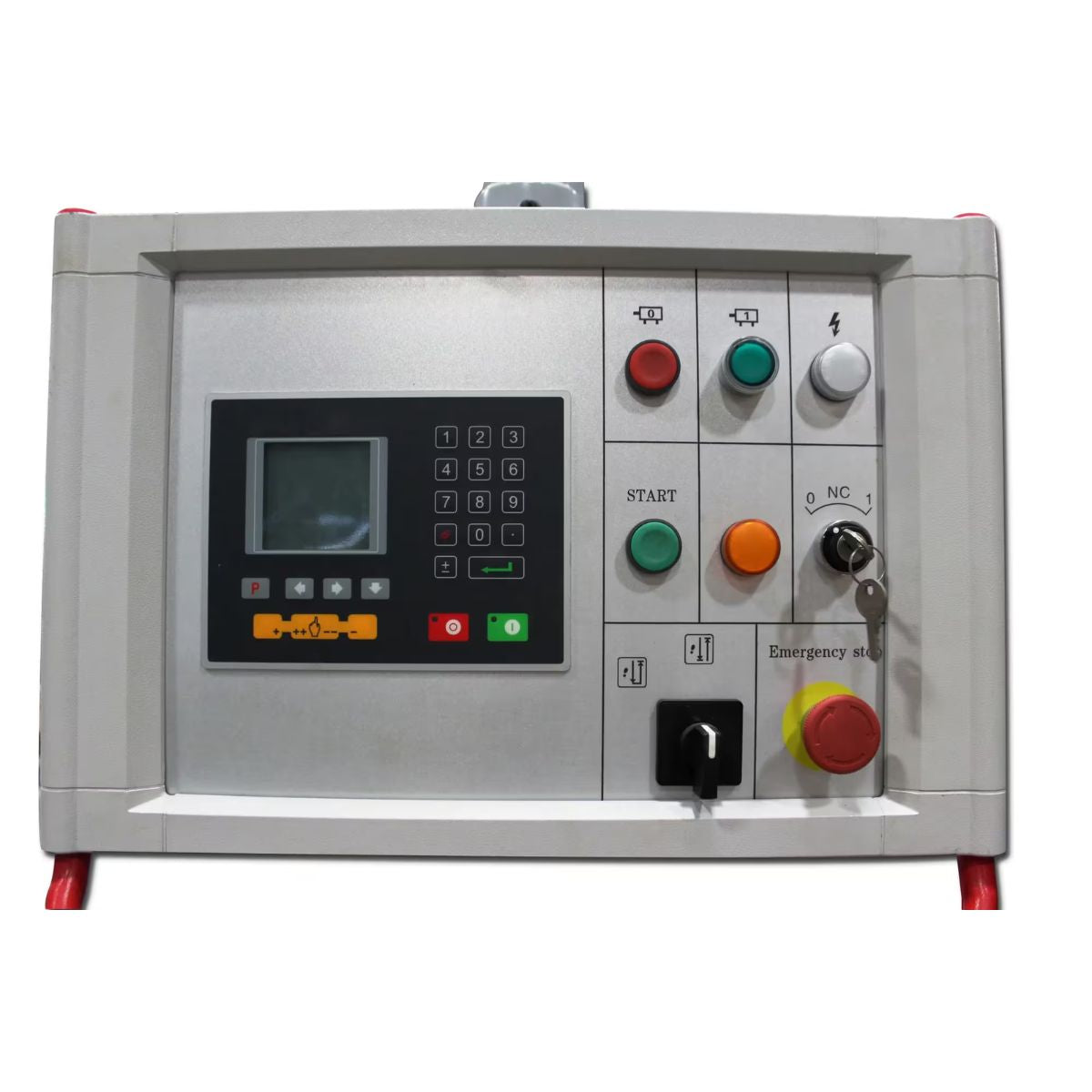

Estun E21 CNC Control Stores 40 Bend Programs
The 2-axis Estun E21 CNC control lets you program and save up to 40 bend sequences. Stored programs cut setup time and produce repeatable results from the first part to the last.
CNC Back Gauge Improves Positioning Accuracy
The CNC-controlled back gauge positions material automatically for each bend sequence. This reduces manual adjustment and helps maintain consistent part dimensions across a production run.
Vickers/Eaton Hydraulic Pump Delivers Smooth Ram Control
An industrial-grade Vickers/Eaton hydraulic pump powers the ram through each stroke. Smooth hydraulic performance helps the machine hold steady pressure through thick material and long beds.
What's Included
What's Included? Baileigh BP-22413CNC Press Brake
-
BP-22413CNC Press Brake — Provides the core 224 ton CNC bending platform for structural and panel work.
-
Gooseneck Punch — Standard punch tooling for a range of bend profiles.
-

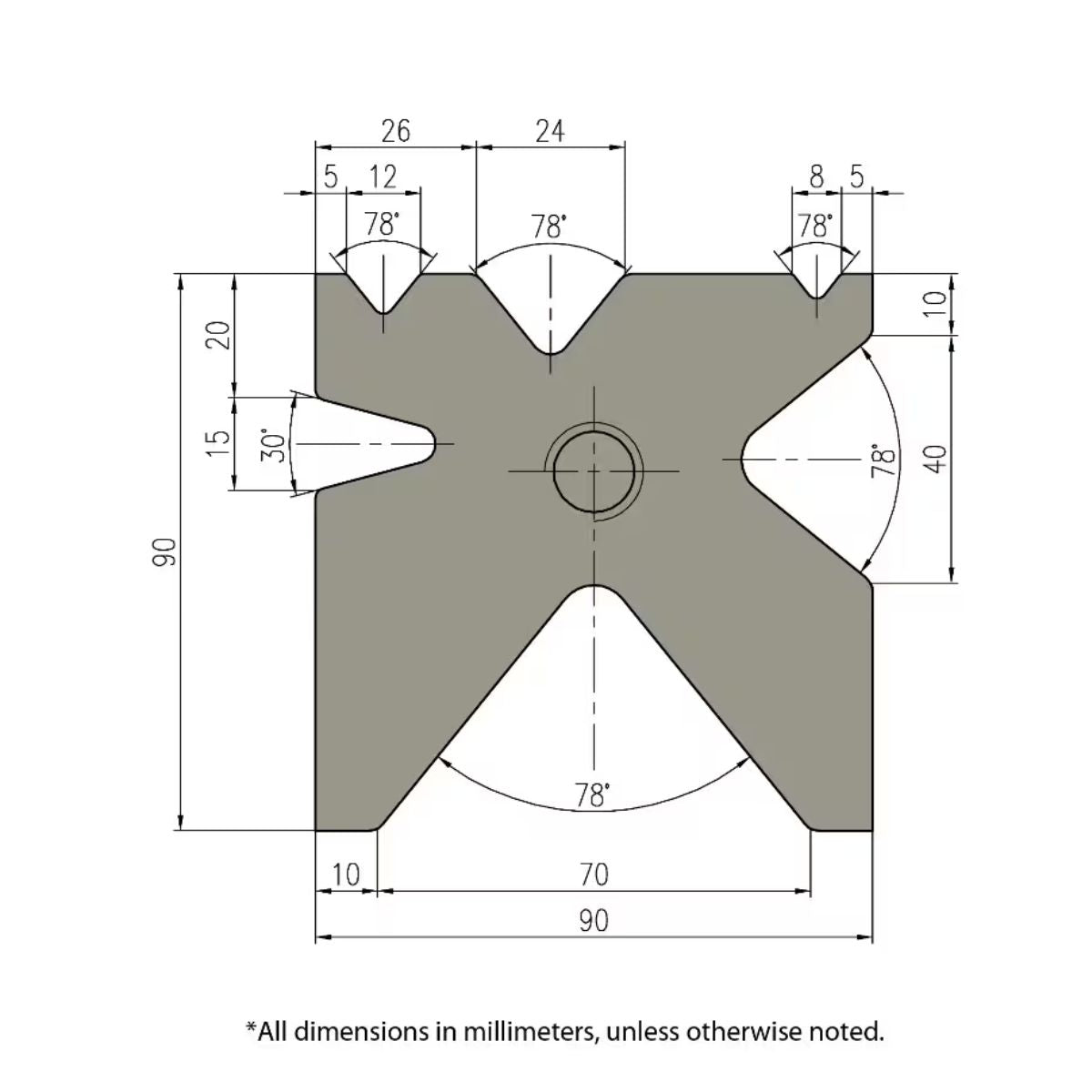

Multi-V Bottom Die — Bottom die that expands forming versatility right out of the box.
Specs
Baileigh BP-22413CNC Press Brake Specifications
- SKU: BA9-1000791
- Model Number: BP-22413 CNC
- Rating Tons: 224
- Bending Capacity Length: 157 in
- Distance Between Housings: 100/123 in
- Throat Depth: 12.5 in
- Distance From Table To Ram: 19.6 in
- Distance Per Stroke: 7 in
- Maximum Bend Degree: 135°
- Approach Speed: 2.0 in/sec
- Bending Speed: .236 in/sec
- Back Gauge Length: 23.62 in
- Back Gauge Motor: 1/2 hp
- Input Power: 220V Three Phase
- Motor Voltage: 220V
- Motor Phase: Three
- Assembled Dimensions: 134 in x 64 in x 103 in
- Net Weight: 27,400 lb
- Gross Weight: 27,400 lb
- Warranty: 1 Year
