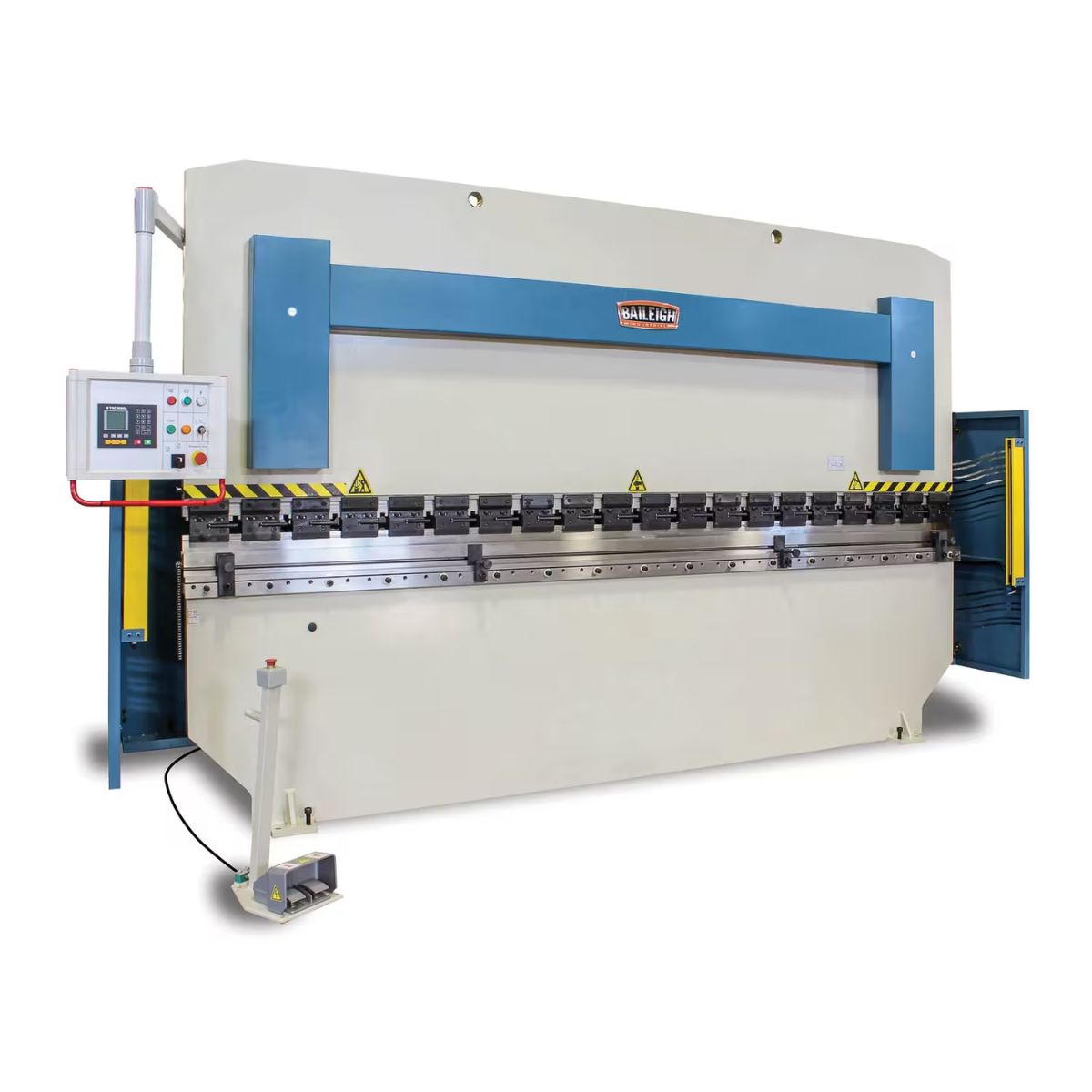

Baileigh BP-17913CNC 220V 3-Phase 179-Ton 156" 2-Axis CNC Hydraulic Press Brake
Are you looking for a press brake that can handle large panels without losing accuracy?
What if your shop had a heavy duty CNC brake built to bend consistently, load after load?
Meet the Baileigh BP-17913CNC, a 179 ton hydraulic press brake with a 13 foot bending bed.
With a 2-axis Estun E21 CNC control and a fully welded steel frame, this machine holds tight tolerances on big jobs.
When the frame stays rigid and the controls stay simple, your team can move through long production runs with confidence.
Baileigh BP-17913CNC for Heavy-Duty Metal Forming

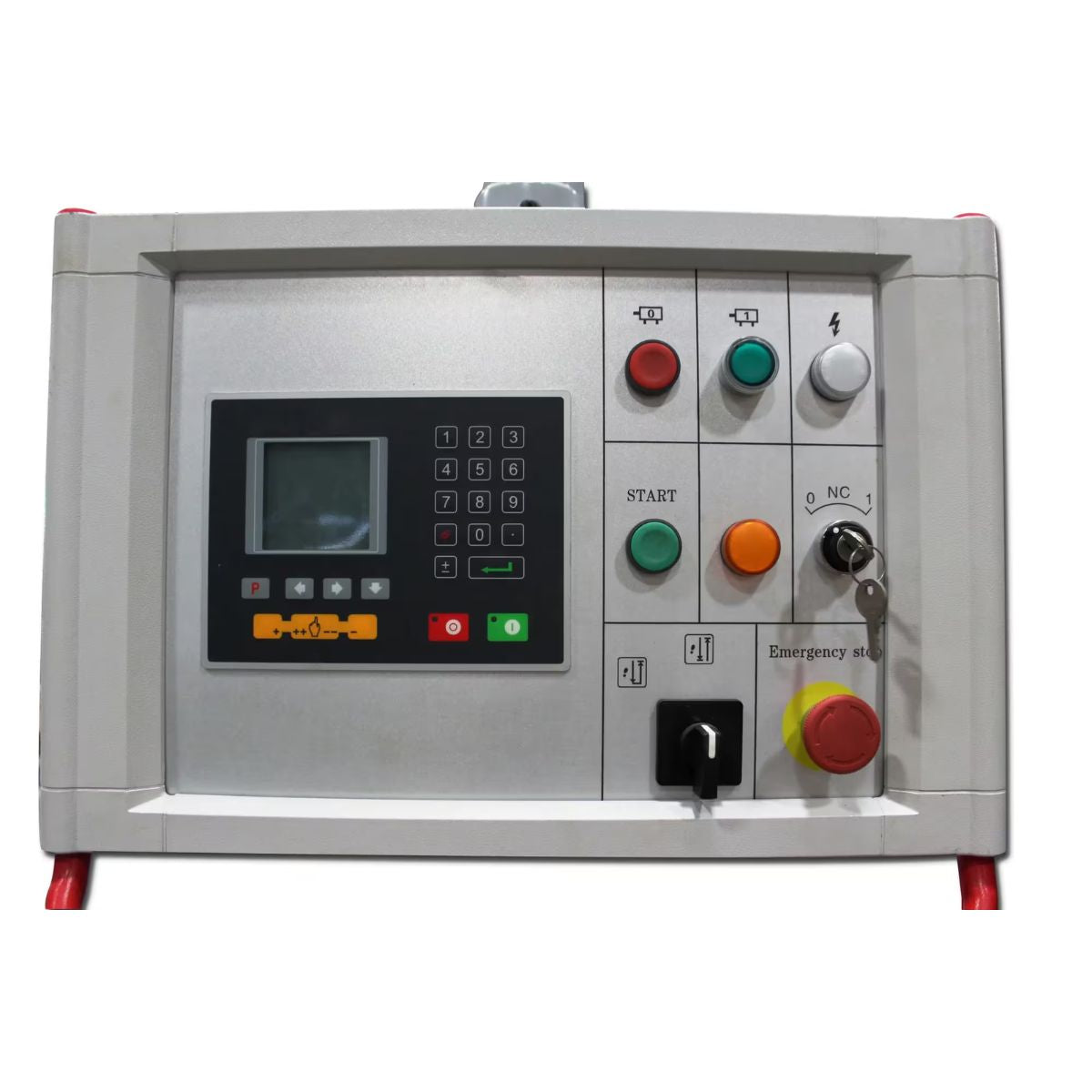

Estun E21 CNC Control Stores Repeatable Bend Programs
The 2-axis Estun E21 control lets you save and recall up to 40 programs for repeat jobs. This keeps setup fast and bend results consistent from one run to the next.
Welded Steel Frame Holds Bends Steady Under Load
The fully welded, stress-relieved frame resists flex during heavy bending work. A rigid frame keeps the ram square to the bed so bend angles stay accurate across the full length.
CNC Back Gauge Speeds Accurate Positioning
The CNC-controlled back gauge positions material automatically before each bend. This cuts setup time and helps you hit precise dimensions without manual measuring.
Industrial Hydraulic System Delivers Smooth Bending Force
Nachi and Vickers/Eaton hydraulic components power the ram through 179 tons of bending force. The system runs smooth and controlled, even on thick or wide material.
What's Included
What's Included? Baileigh BP-17913CNC Press Brake
-
Baileigh BP-17913CNC Press Brake — Provides a heavy duty 179 ton press brake platform for shop metal forming.
-
Gooseneck Punch — Allows you to begin general bending work right out of the box.
-

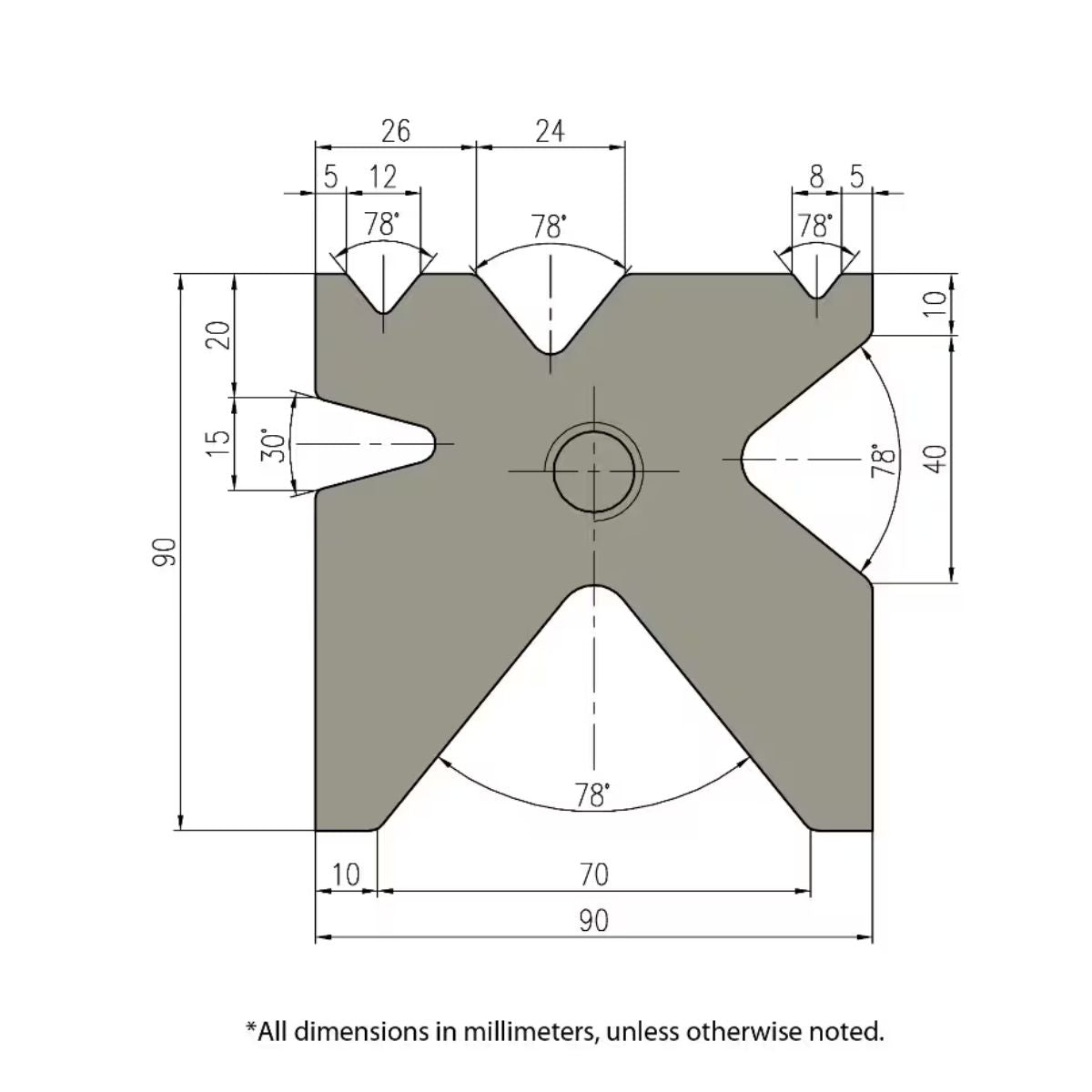

Multi-V Die — Gives you flexibility for a range of bend widths and materials.
Specs
Baileigh BP-17913CNC Press Brake Specifications
- SKU: BA9-1000789
- Model Number: BP-17913 CNC
- Rating: 179 Tons
- Bending Capacity Length: 157 in
- Distance Between Housings: 100/123 in
- Throat Depth: 12.5 in
- Distance From Table To Ram: 17.7 in
- Maximum Bend Angle: 135°
- Approach Speed: 2.0 in/sec
- Bending Speed: 0.236 in/sec
- Distance Per Stroke: 7 in
- Back Gauge Length: 23.62 in
- Back Gauge Motor: 1/2 HP
- Input Power: 220V Three Phase
- Assembled Dimensions: 134 in x 64 in x 103 in
- Net Weight: 24,000 lb
- Warranty: 1 Year
