Baileigh BP-17910CNC 220V 3-Phase 179-Ton 120" 2-Axis CNC Hydraulic Press Brake
Are you tired of hydraulic press brakes that lose accuracy on longer runs?
What if your shop had a CNC press brake that repeats every bend without extra setup time?

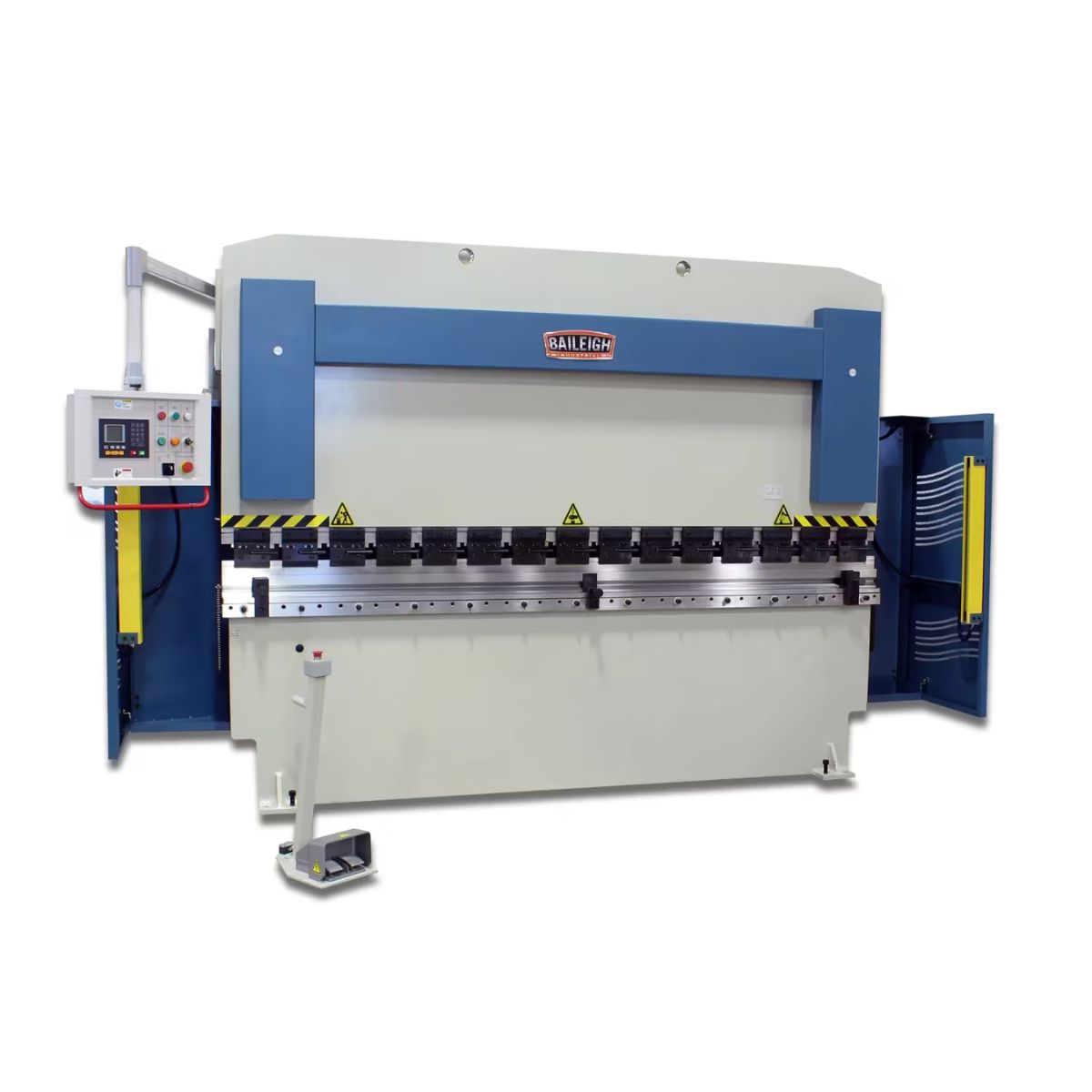

Meet the Baileigh BP-17910CNC, a 179 ton hydraulic press brake built for heavy sheet metal forming.
With a two axis CNC control and a fully welded steel frame, the press brake holds its accuracy through demanding production runs.
When the machine holds its settings bend after bend, you can move through complex jobs with steady confidence.
Baileigh BP-17910CNC for Heavy Sheet Metal Forming
CNC Two Axis Control Speeds Repeat Bends

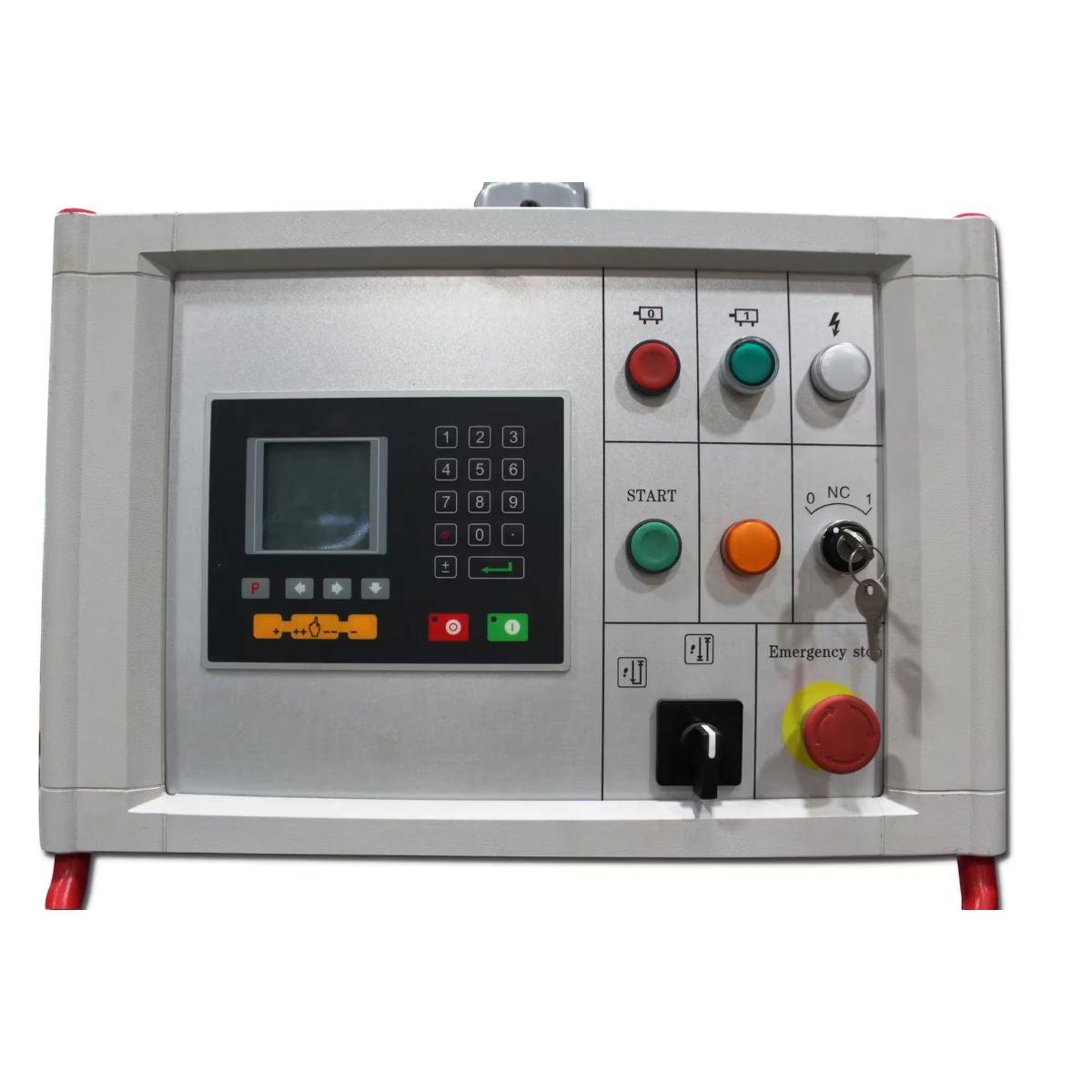

The two axis CNC control manages ram stroke and back gauge position together, and the controller stores up to 40 programs. This lets you recall bend sequences instead of resetting the machine for every repeat job.
Industrial Hydraulic System Delivers Balanced Bending Power
The hydraulic system runs on Nachi and Vickers/Eaton components built for daily industrial use. This gives the ram smooth, balanced pressure across the full 120 inch bed.
Welded Steel Frame Holds Long Term Accuracy
The frame is fully welded from steel for lasting rigidity under heavy loads. A rigid frame keeps the press brake bending true even after years of daily shop use.
Deep Throat Design Handles Complex Forming Work
A 12.5 inch throat depth gives you room to work on deeper panels and boxed parts. The 7 inch stroke distance supports a wide range of bending tasks without changing setups.
What's Included
What's Included? Baileigh BP-17910CNC 220V 3-Phase 179-Ton 120" 2-Axis CNC Hydraulic Press Brake
-
Baileigh BP-17910CNC 220V 3-Phase 179-Ton 120" 2-Axis CNC Hydraulic Press Brake — Provides a complete CNC hydraulic press brake ready for shop installation.
Specs
Baileigh BP-17910CNC 220V 3-Phase 179-Ton 120" 2-Axis CNC Hydraulic Press Brake Specifications
- Model: BP-17910CNC
- Stock Number: BA9-1000788
- Bending Capacity (Tons): 179
- Bending Bed Length: 120 in
- Throat Depth: 12.5 in
- Distance Per Stroke: 7 in
- Distance From Table To Ram: 17.7 in
- Approach Speed: 2.0 in/sec
- Maximum Bend Angle: 135°
- Back Gauge Motor: 1/2 HP
- Input Power: 220V Three Phase
- Net Weight: 21,280 lb
- Warranty: 1 Year
