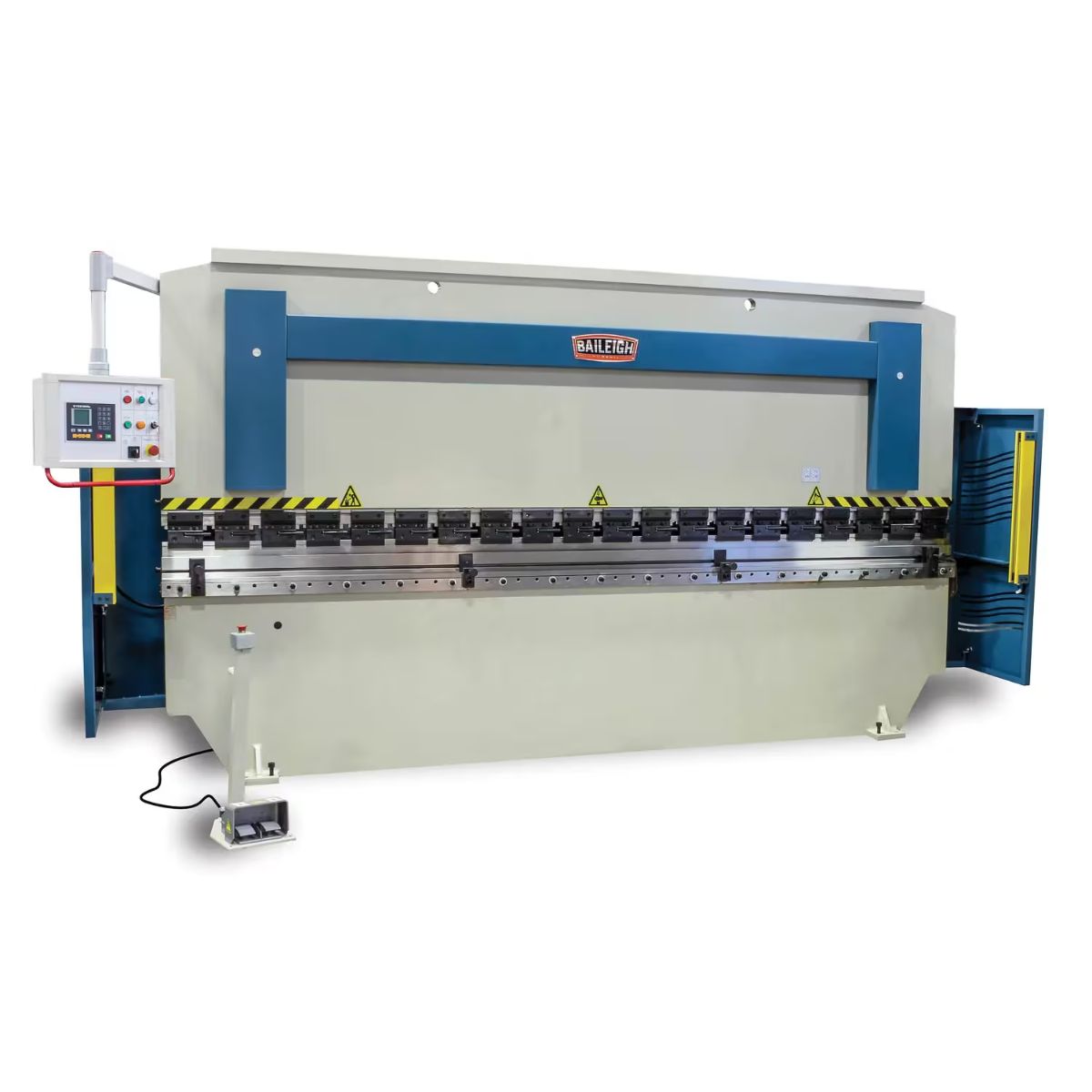

Baileigh BP-14013CNC 220V 3-Phase 140-Ton 157" 2-Axis CNC Hydraulic Press Brake
Are your bending jobs slowed down by a press brake that can't hold a tight tolerance across a long bed?
What if your shop had a CNC press brake that stores your bend programs and repeats them accurately every time?
Meet the Baileigh BP-14013CNC, a 140 ton hydraulic press brake built for high production sheet metal work.
With a 157 inch bed, Estun E21 CNC control, and a welded stress relieved steel frame, this machine is built to hold up under daily shop demands.
When your back gauge and bend program work together, you spend less time setting up and more time forming parts.
Baileigh BP-14013CNC for High Production Sheet Metal Forming

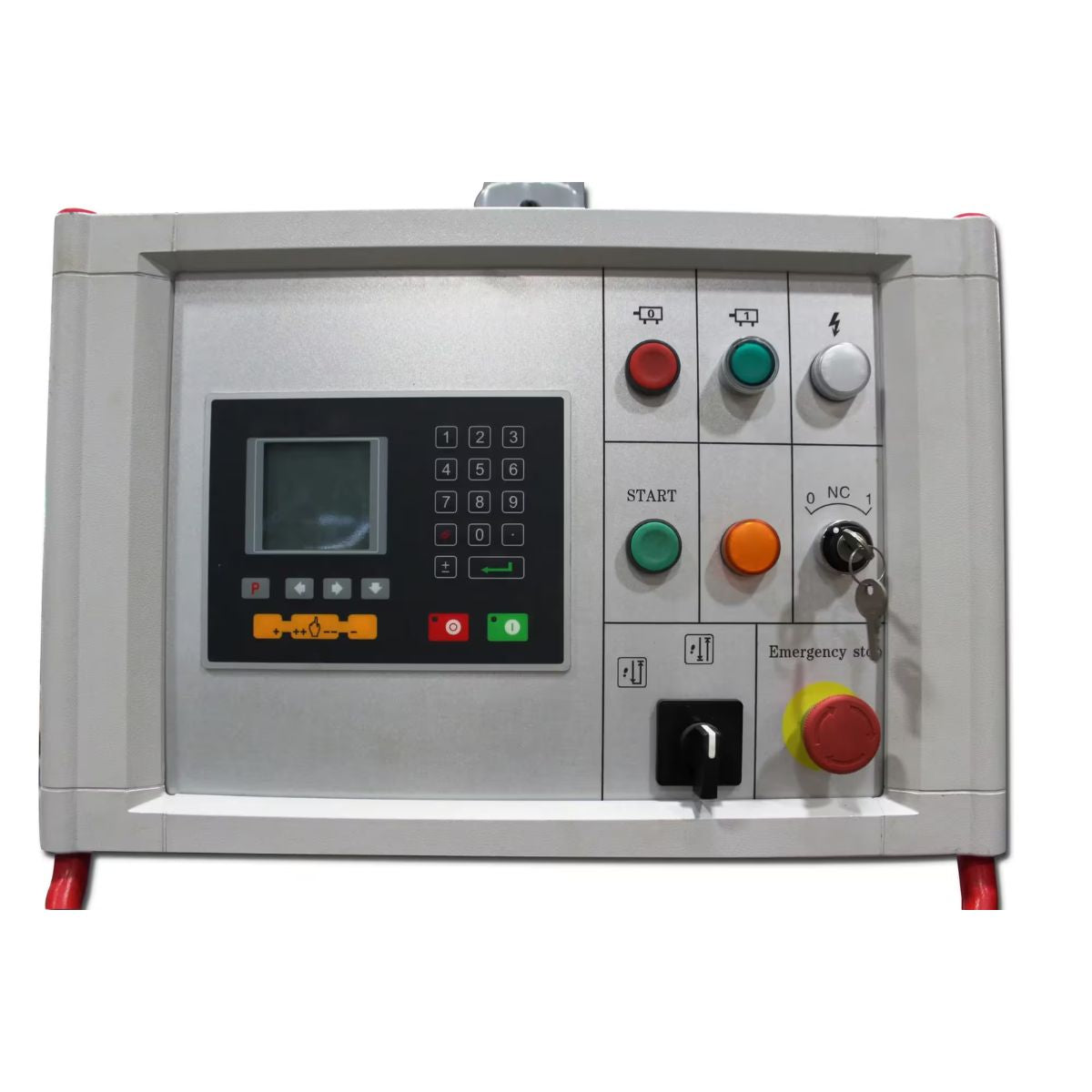

Estun E21 CNC Control Stores Repeatable Bend Programs
The 2-axis Estun E21 control lets you program and save bend sequences for repeat jobs. This cuts down on setup time and helps you produce the same accurate bend run after run.
CNC-Controlled Back Gauge Speeds Accurate Positioning
The back gauge moves into position automatically based on your programmed settings. This keeps part placement consistent and reduces the guesswork that slows down manual setups.
Welded Steel Frame Holds Tight Bend Tolerances
The fully welded, stress relieved steel frame resists flex under heavy bending loads. A rigid frame keeps your bend angles consistent from the first piece to the last.
NOK Hydraulic Seals Keep Bending Motion Smooth
NOK hydraulic seals are built to hold up under repeated cycles without leaking or wearing out early. Smooth hydraulic motion helps the ram move predictably through every stroke.
What's Included
What's Included? Baileigh BP-14013CNC 220V 3-Phase 140-Ton 157" 2-Axis CNC Hydraulic Press Brake
-
Baileigh BP-14013CNC Press Brake — Provides the 140 ton, 157 inch CNC press brake platform for sheet metal forming.
-
Gooseneck Punch — Allows access for forming boxes and parts with upturned flanges.
-

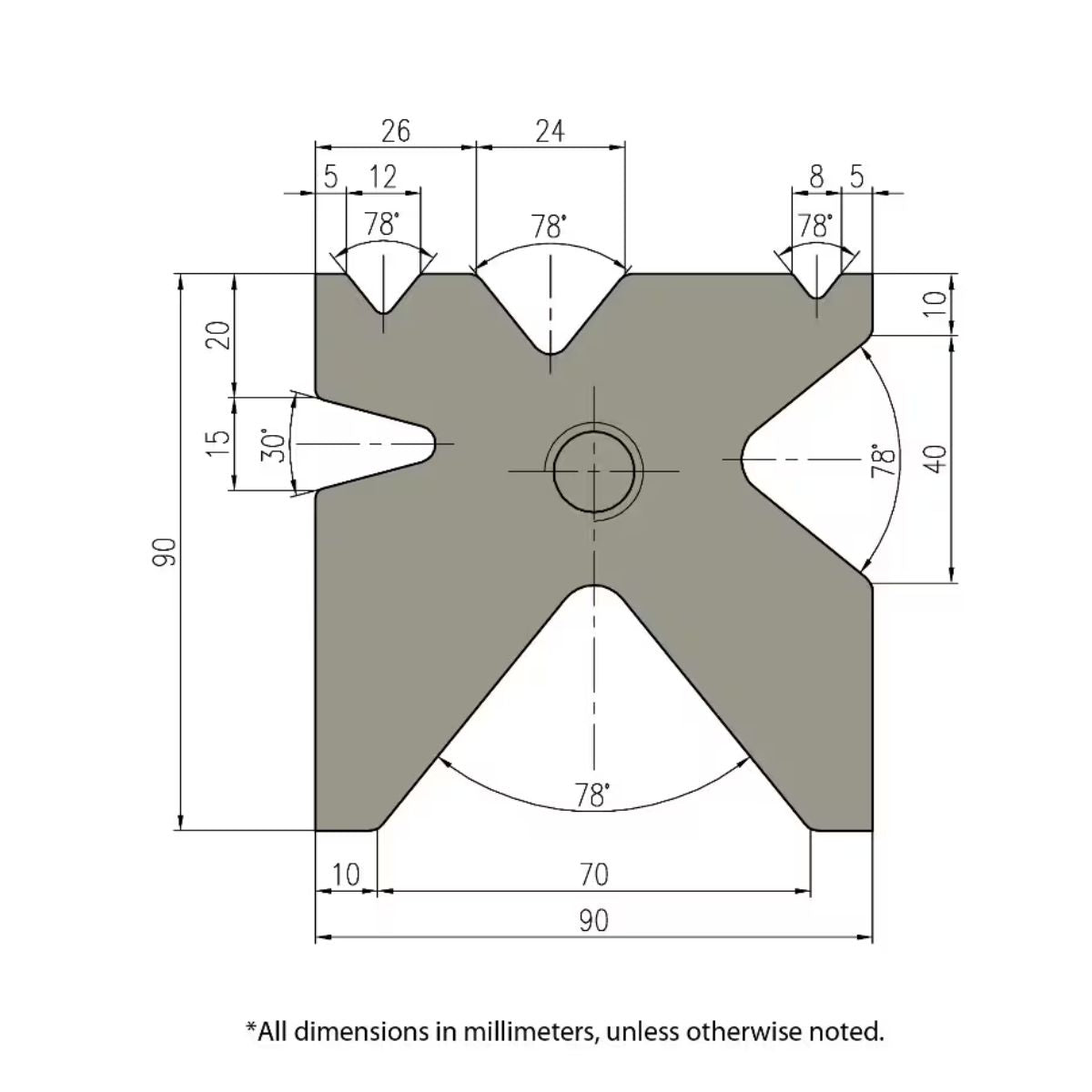

Multi-V Die Set — Supports a range of bend widths and thicknesses without swapping tooling.
Specs
Baileigh BP-14013CNC 220V 3-Phase 140-Ton 157" 2-Axis CNC Hydraulic Press Brake Specifications
- Model Number: BP-14013 CNC
- Stock Number: BA9-1000787
- Rating Tons: 140
- Bending Capacity Length: 157 in
- Throat Depth: 12.5 in
- Distance Between Housings: 124 in
- Distance From Table To Ram: 15.3 in
- Distance Per Stroke: 4.7 in
- Approach Speed: 2 in/sec
- Bending Speed: 0.6 in/sec
- Maximum Bend Angle: 135°
- Back Gauge Length: 23.62 in
- Back Gauge Motor: 1/2 HP
- Input Power: 220V Three Phase
- Motor Phase: Three
- Net Weight: 28,400 lb
- Gross Weight: 28,400 lb
- Warranty: 1 Year
