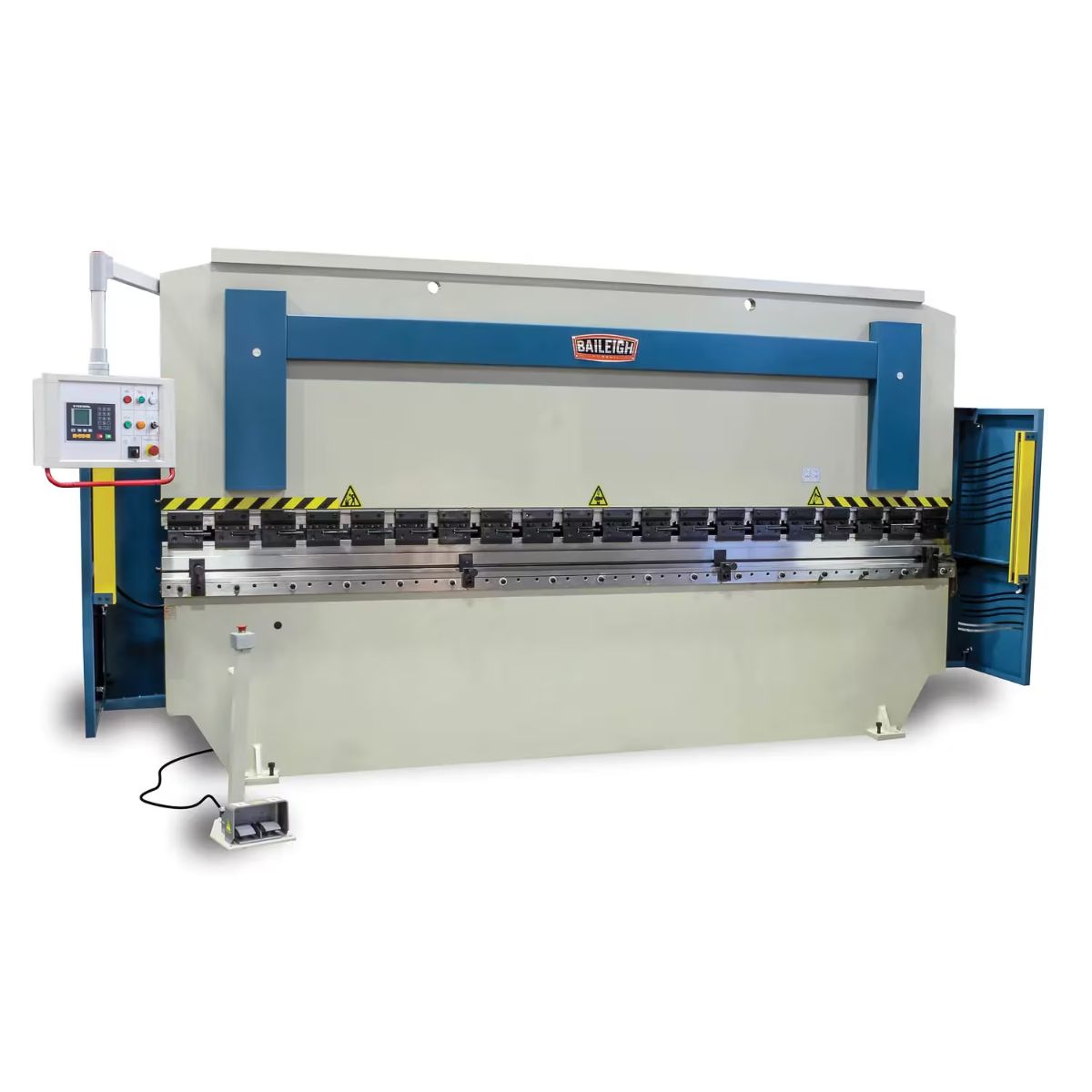

Baileigh BP-14010CNC 220V 3-Phase 140-Ton 120" 2-Axis CNC Hydraulic Press Brake
Are you dealing with sheet metal jobs that need more bending force and length than your current press brake can handle?
What if your shop had a CNC press brake that holds tight bend angles and repeats them job after job?
Meet the Baileigh BP-14010CNC, a 140 ton hydraulic press brake built for heavy fabrication work.
With a fully welded steel frame and an Estun 2-axis CNC control, this press brake handles long, complex bends with less setup time.
When the controller stores your bend programs, you can move from one job to the next with confidence.
Baileigh BP-14010CNC for Heavy Sheet Metal Bending
Fully Welded Steel Frame Resists Flex Under Load
The frame is fully welded and stress relieved for long-term rigidity. A stable frame helps the ram apply even pressure across the full 10 foot bed, so bend angles stay accurate from end to end.

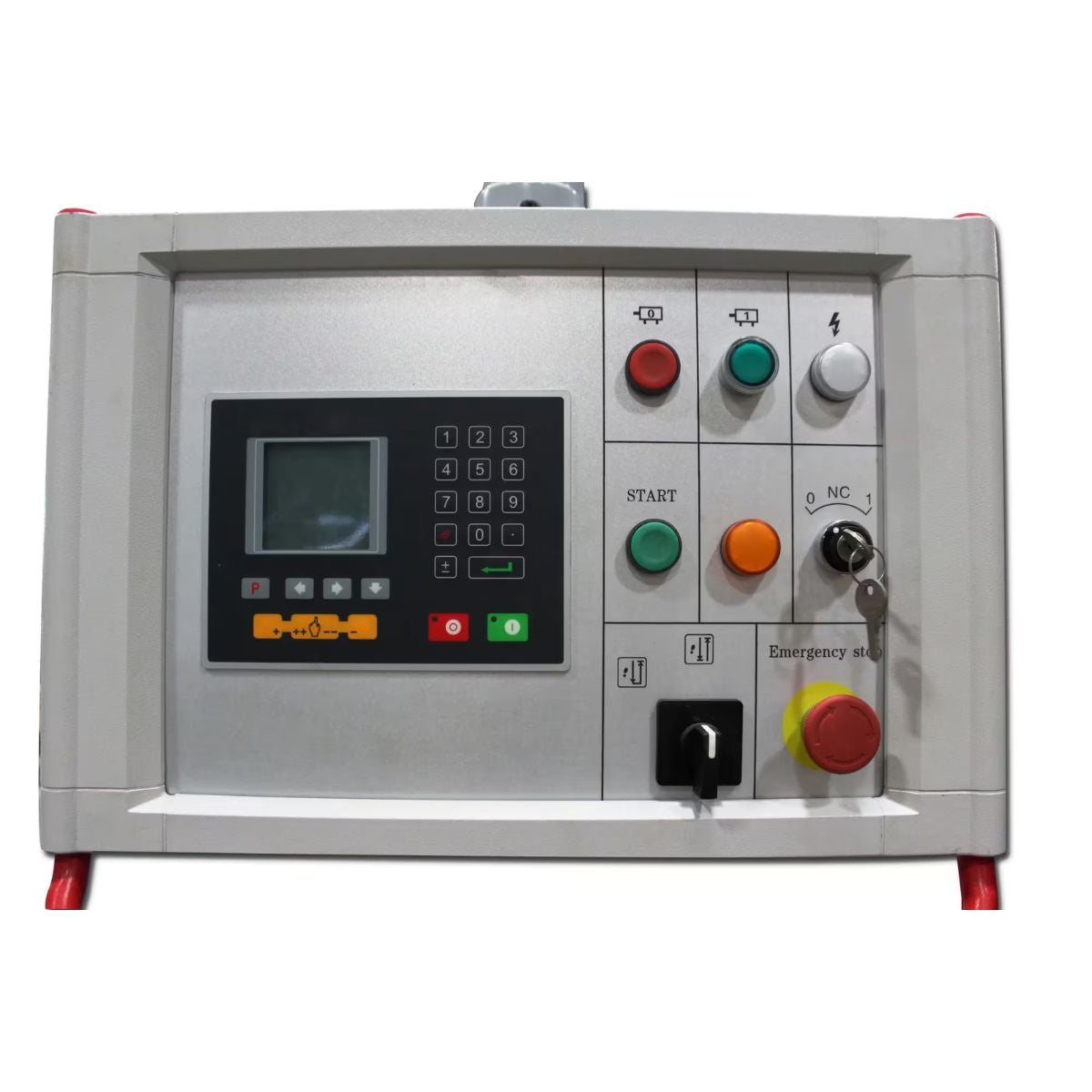

Estun 2-Axis CNC Stores Repeatable Bend Programs
The CNC controller stores up to 40 programs, so you can save bend sequences for parts you run often. Once a program is set, the machine repeats it accurately without resetting stops by hand.
Programmable Back Gauge Speeds Material Positioning
The back gauge moves into position automatically based on your program, taking the guesswork out of part placement. This keeps setup time down when you are running multiple bends on the same piece.
Vickers/Eaton Hydraulics Deliver Smooth Ram Control
The hydraulic system runs on Vickers/Eaton pumps with NOK seals for smooth, controlled ram movement. This combination supports consistent bending speed and long-term reliability under daily shop use.
What's Included
What's Included? Baileigh BP-14010CNC Press Brake
-
Baileigh BP-14010CNC Press Brake — Provides a 140 ton, 10 foot CNC press brake platform for heavy sheet metal forming.
-
Gooseneck Punch — Allows you to begin standard bending work right out of the box.
-

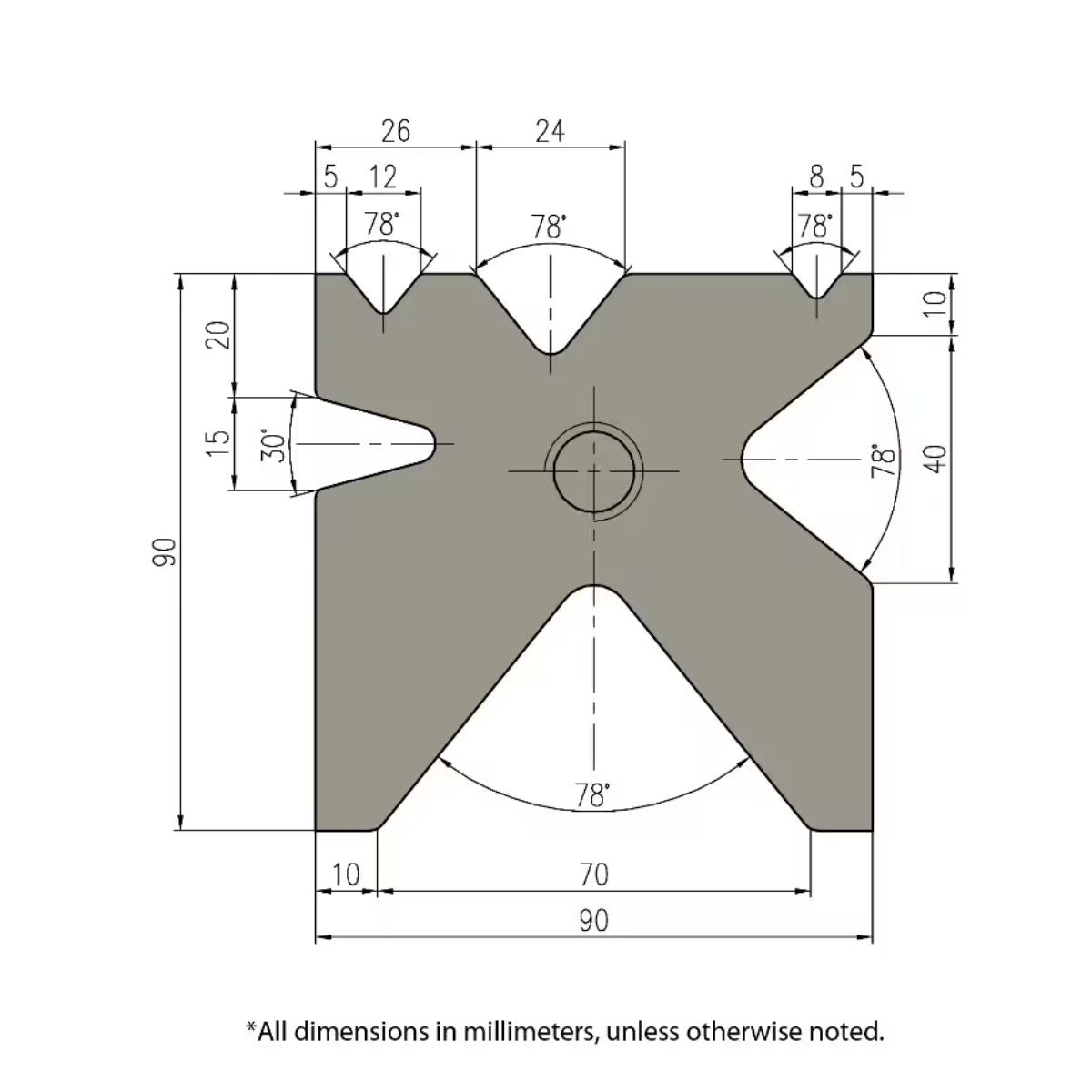

Multi-V Die Set — Gives you a range of V openings for different material thicknesses without buying separate tooling.
Specs
Baileigh BP-14010CNC Press Brake Specifications
- Model: BP-14010 CNC
- Stock Number: BA9-1000786
- Rating: 140 Tons
- Bending Capacity Length: 157 in
- Distance Between Housings: 102/124 in
- Throat Depth: 12.5 in
- Distance From Table to Ram: 15.3 in
- Maximum Bend Angle: 135°
- Approach Speed: 2.0 in/sec
- Bending Speed: 0.6 in/sec
- Distance Per Stroke: 4.7 in
- Back Gauge Length: 23.62 in
- Back Gauge Motor: 1/2 HP
- Input Power: 220V Three Phase
- Motor Phase: Three
- Net Weight: 16,000 lb
- Warranty: 1 Year
