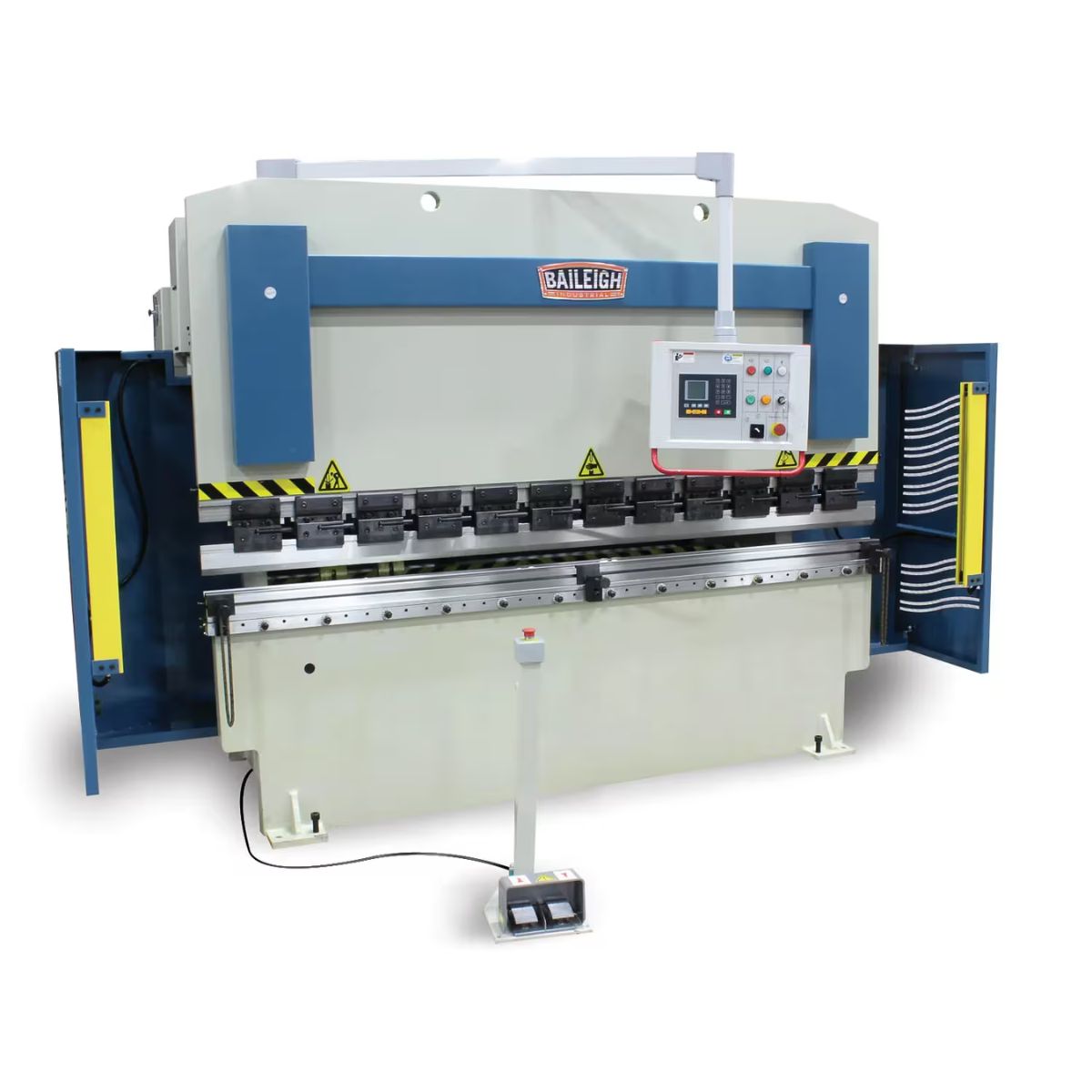

Baileigh BP-11210CNC 220V 3-Phase 112-Ton 120" 2-Axis CNC Hydraulic Press Brake

Baileigh BP-11210CNC 220V 3-Phase 112-Ton 120" 2-Axis CNC Hydraulic Press Brake

Baileigh BP-11210CNC for Heavy Steel Forming

Welded Steel Frame Holds Bending Accuracy

The frame is fully welded and stress relieved to remove built-in tension before the brake leaves the factory. This keeps the bed and ram aligned through repeated heavy bends.

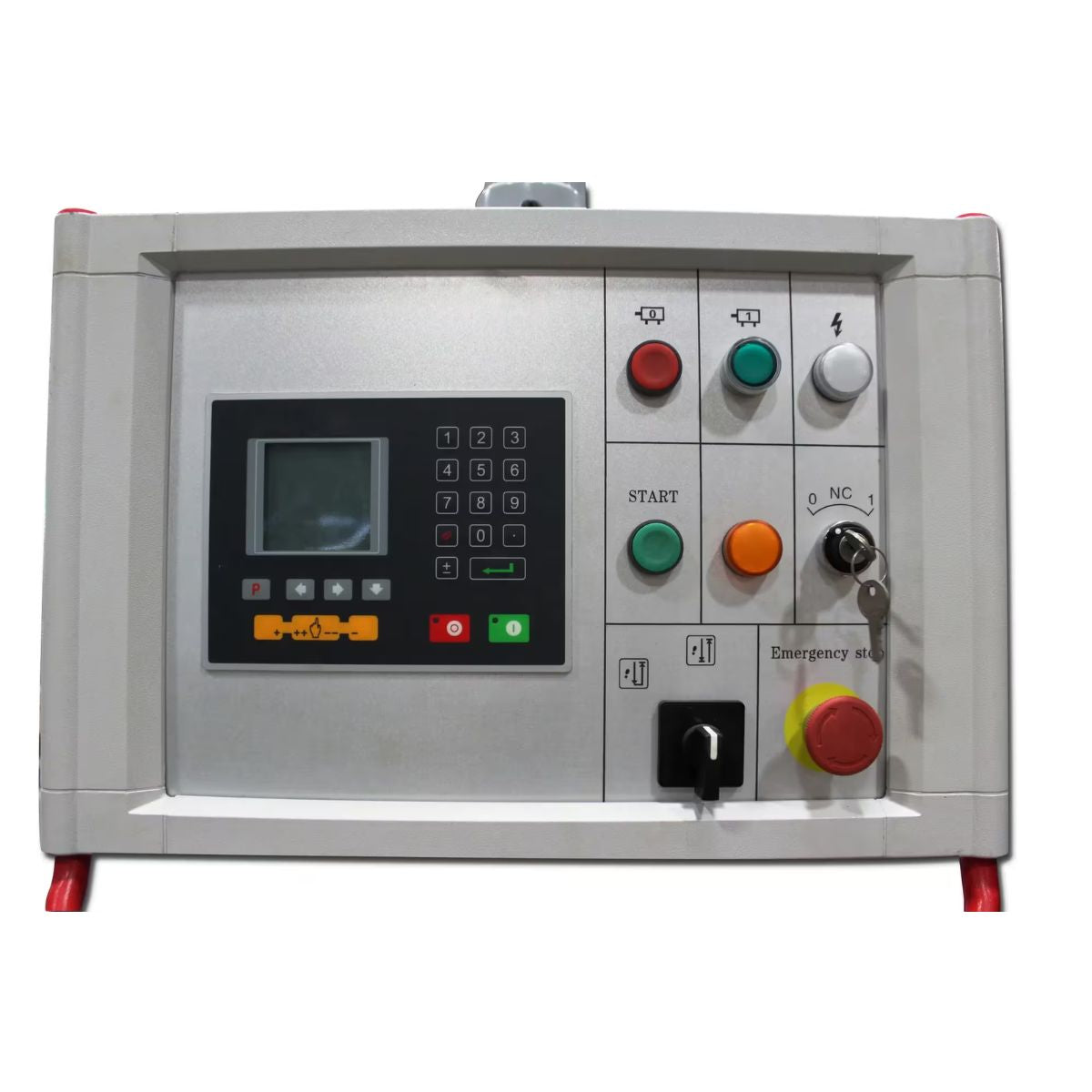

Estun E21 CNC Control Stores 40 Bend Programs

The 2-axis controller saves up to 40 programs so you can recall a bend sequence instead of resetting it by hand. This cuts setup time on repeat jobs and keeps results consistent from part to part.

Programmable Back Gauge Improves Positioning Repeatability

The back gauge positions material automatically based on the stored program, removing manual measurement on each piece. Consistent positioning helps you hold tolerance across a full run of parts.

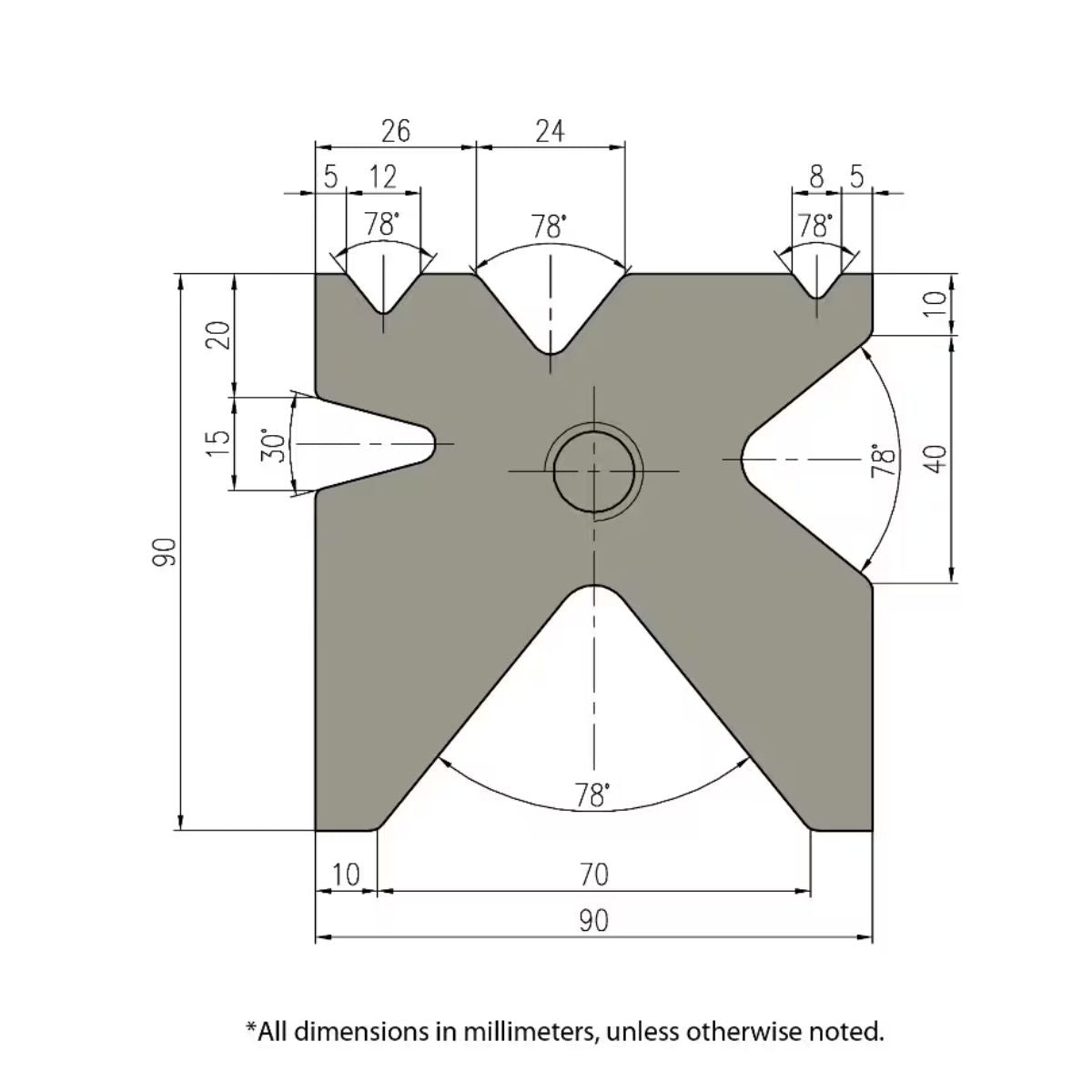

Gooseneck Punch and Multi-V Die Add Forming Versatility

The brake ships with a gooseneck punch and multi-V die so you can start box and pan forming work right away. Having both included means less time sourcing tooling before your first job.

What's Included

What's Included? Baileigh BP-11210CNC 220V 3-Phase 112-Ton 120" 2-Axis CNC Hydraulic Press Brake

• Baileigh BP-11210CNC Press Brake — Provides the 112 ton CNC press brake platform for heavy shop bending work.
• Gooseneck Punch — Allows forming of box and pan shapes without a separate tooling purchase.
• Multi-V Die — Supports a range of bend angles and material thicknesses right out of the box.

Specs

Baileigh BP-11210CNC 220V 3-Phase 112-Ton 120" 2-Axis CNC Hydraulic Press Brake Specifications

• Model Number: BP-11210 CNC
• Stock Number: BA9-1000781
• Rating: 112 Tons
• Bending Capacity Length: 120 in
• Throat Depth: 12.5 in
• Distance Between Housings: 102/124 in
• Distance From Table To Ram: 15.3 in
• Distance Per Stroke: 4.7 in
• Approach Speed: 2.0 in/sec
• Bending Speed: 0.6 in/sec
• Maximum Bend Angle: 135°
• Back Gauge Length: 23.62 in
• Back Gauge Motor: 1/2 HP
• Input Power: 220V Three Phase
• Motor Phase: Three
• Net/Gross Weight: 14,550 lb
• Warranty: 1 Year
