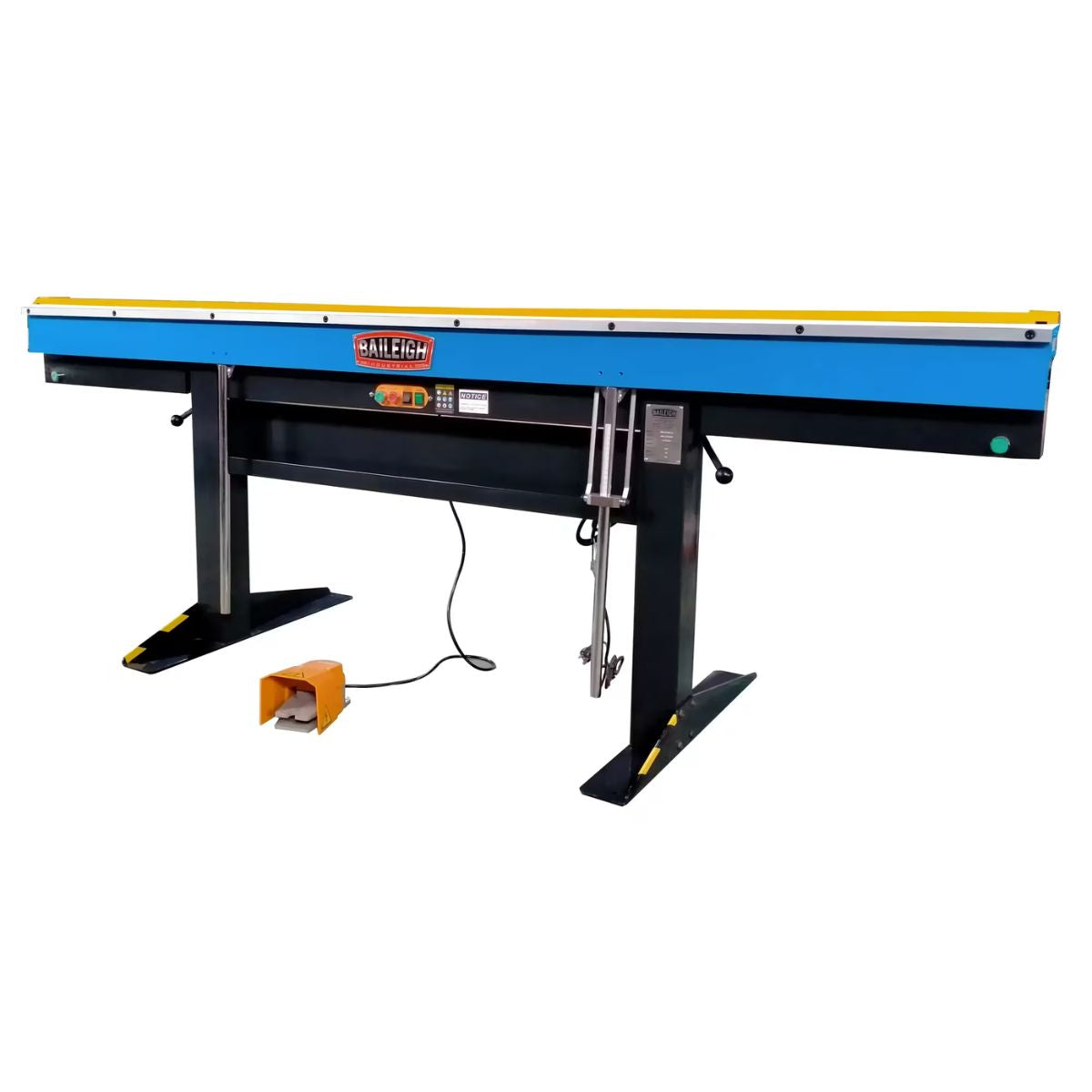

Baileigh BB-9616M 96" Magnetic Sheet Metal Brake
Are you bending large sheet metal panels and running into the limits of a traditional finger brake?
What if your shop had a full 8-foot magnetic brake that clamped material securely without requiring you to set individual fingers?
Meet the Baileigh BB-9616M 96" Magnetic Sheet Metal Brake, an industrial electromagnetic brake built for large panel and box work.
With a 96-inch bending length, 6-ton electromagnetic clamping force, and an open-ended design, the brake handles HVAC panels, fabricated boxes, and formed parts without depth restrictions.
When the clamp holds your material flat and steady across the full length, you can bend with confidence from one end to the other.
Baileigh BB-9616M for Large Panel and Box Forming
Electromagnetic Clamp Holds Material Across the Full Length
The brake uses an industrial-strength electromagnetic system to clamp material firmly between the work surface and the bending bar. At 6 tons of clamping force, the magnet holds sheet metal flat and consistent across the entire 96-inch working length without individual fingers to set or adjust.
Open-Ended Design Removes Box Depth Restrictions
The open-ended box and pan construction allows you to form boxes and pans of virtually any depth. There is no limit imposed by a closed frame, so the brake handles deep fabricated parts the same way it handles flat panels.
Full 180-Degree Bend Angle Handles Complex Shapes
The brake bends material up to a full 180 degrees, covering the range needed for hems, flanges, and closed shapes. That range supports HVAC panel work, industrial art fabrication, and general sheet metal forming in a single machine.
What's Included
What's Included? Baileigh BB-9616M 96" Magnetic Sheet Metal Brake
-
Baileigh BB-9616M 96" Magnetic Sheet Metal Brake — Provides a full 8-foot electromagnetic bending platform for large panel and box fabrication work.
Specs
Baileigh BB-9616M 96" Magnetic Sheet Metal Brake Specifications
- Bending Length: 96 in (8 ft)
- Mild Steel Capacity: 16 gauge
- Stainless Steel Capacity: 20 gauge
- Maximum Bend Angle: 180°
- Clamping Force: 6 Ton
- Box Depth Capacity: Unlimited
- Input Power: 220V, 1 Phase, 60 Hz, 15A
- Required Voltage Range: 209–231VAC (220VAC +/- 5%) — operating outside this range will damage the machine and void the warranty
- Net Weight: 2,755 lb
- Stock Number: BA9-1231891
- Warranty: 1 Year Parts, Lifetime Technical Support
