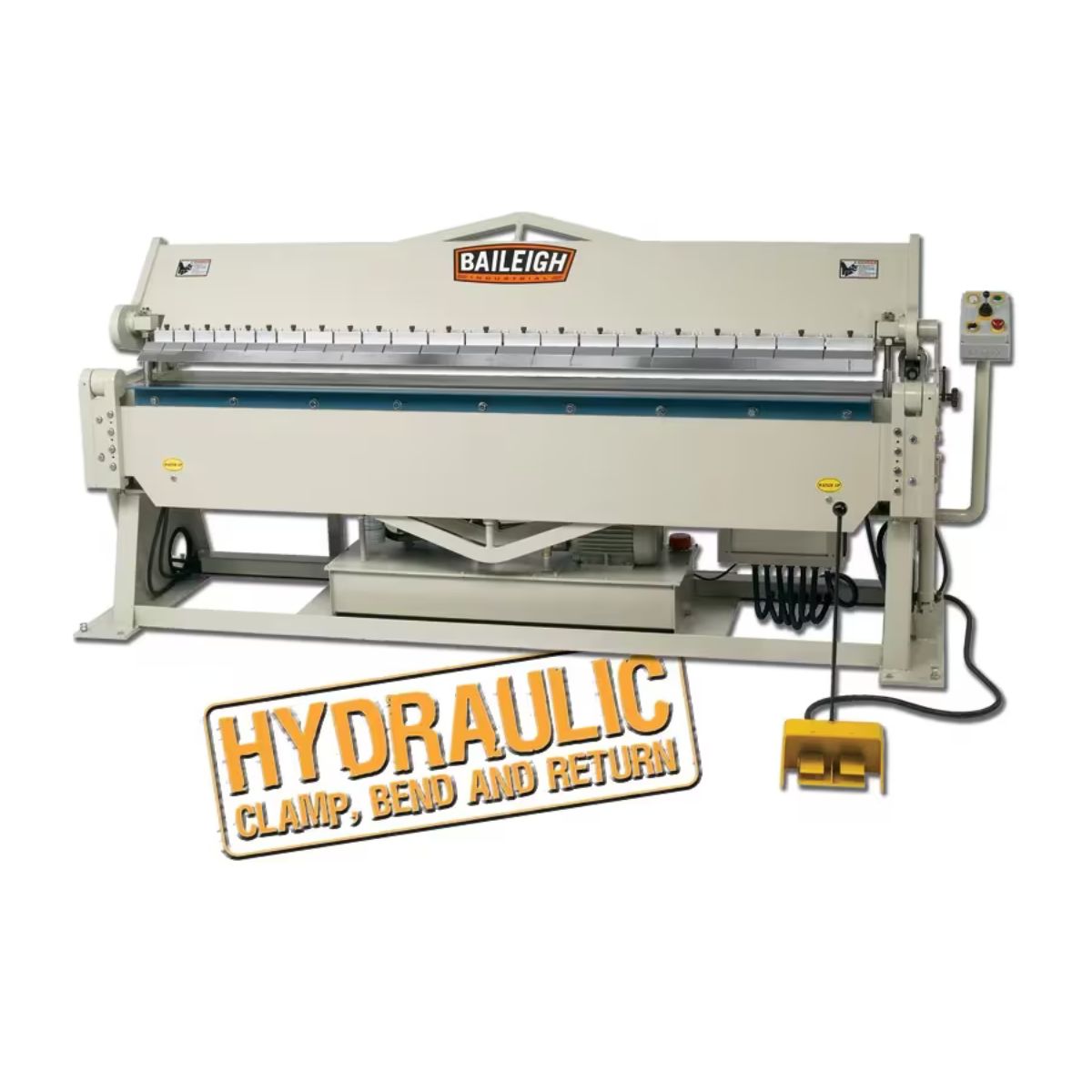

Baileigh BB-9612H 96" Hydraulic Box & Pan Brake — 12 Gauge
Are you looking for a hydraulic box and pan brake that handles large sheet metal work without losing accuracy across the full bend length?
What if your shop had an 8-foot brake that held consistent clamping force from one end of the sheet to the other?
Meet the Baileigh BB-9612H 96" Hydraulic Box & Pan Brake, a heavy-duty forming machine built for professional sheet metal work.
With a welded steel frame, 22 hardened fingers, and hydraulic clamping across the full 96 inch width, this brake handles 12 gauge mild steel with steady and repeatable results.
When the brake holds true across the full sheet length, you can work through production runs with confidence in every bend.
Baileigh BB-9612H for Large-Format Sheet Metal Forming
Welded Steel Frame Minimizes Deflection Under Load
The BB-9612H is built on a fully welded steel frame designed to hold its shape under the stress of bending 12 gauge mild steel across an 8-foot span. A rigid frame keeps the beam and leaf aligned through long production runs, giving you consistent results from the first bend to the last.
Hydraulic Clamping System Delivers Consistent Force
The industrial hydraulic system lifts and clamps the beam and leaf across the full working width, applying even pressure whether you are bending a narrow strip or a full sheet. Consistent clamping force means the material holds in place through the entire bend without shifting.
22-Finger Set Handles Box and Pan Forming Up to 6 Inches Deep
The brake ships with 22 hardened fingers in four widths: six 3 inch, four 4 inch, ten 5 inch, and two 6 inch. Fingers can be arranged to form boxes and pans up to 6 inches deep, giving you flexibility across a wide range of part shapes without additional tooling.
Programmable Auto-Stop Supports Accurate Production Work
The adjustable bend auto-stop lets you set a target angle and repeat it consistently across a run of parts. Manual or semi-automatic operation via toggle or foot pedal gives you control over workflow pace without sacrificing bend accuracy.
What's Included
What's Included? Baileigh BB-9612H 96" Hydraulic Box & Pan Brake — 12 Gauge
-
Baileigh BB-9612H Hydraulic Box & Pan Brake — Provides a full 96 inch hydraulic bending platform for large-format sheet metal forming.
-
22 Hardened Fingers (6×3", 4×4", 10×5", 2×6") — Allows you to form boxes and pans in a range of widths up to 6 inches deep.
Specs
Baileigh BB-9612H 96" Hydraulic Box & Pan Brake — 12 Gauge Specifications
- Model: BB-9612H
- Stock Number: BA9-1021004
- Bending Length: 96 in
- Mild Steel Capacity: 12 gauge
- Maximum Bend Angle: 135°
- Maximum Box Depth: 6 in
- Fingers Included: 22 (6×3", 4×4", 10×5", 2×6")
- Motor: 3 HP
- Input Power: 220V Three Phase
- Net Weight: 4,060 lb
- Warranty: 1 Year Parts
