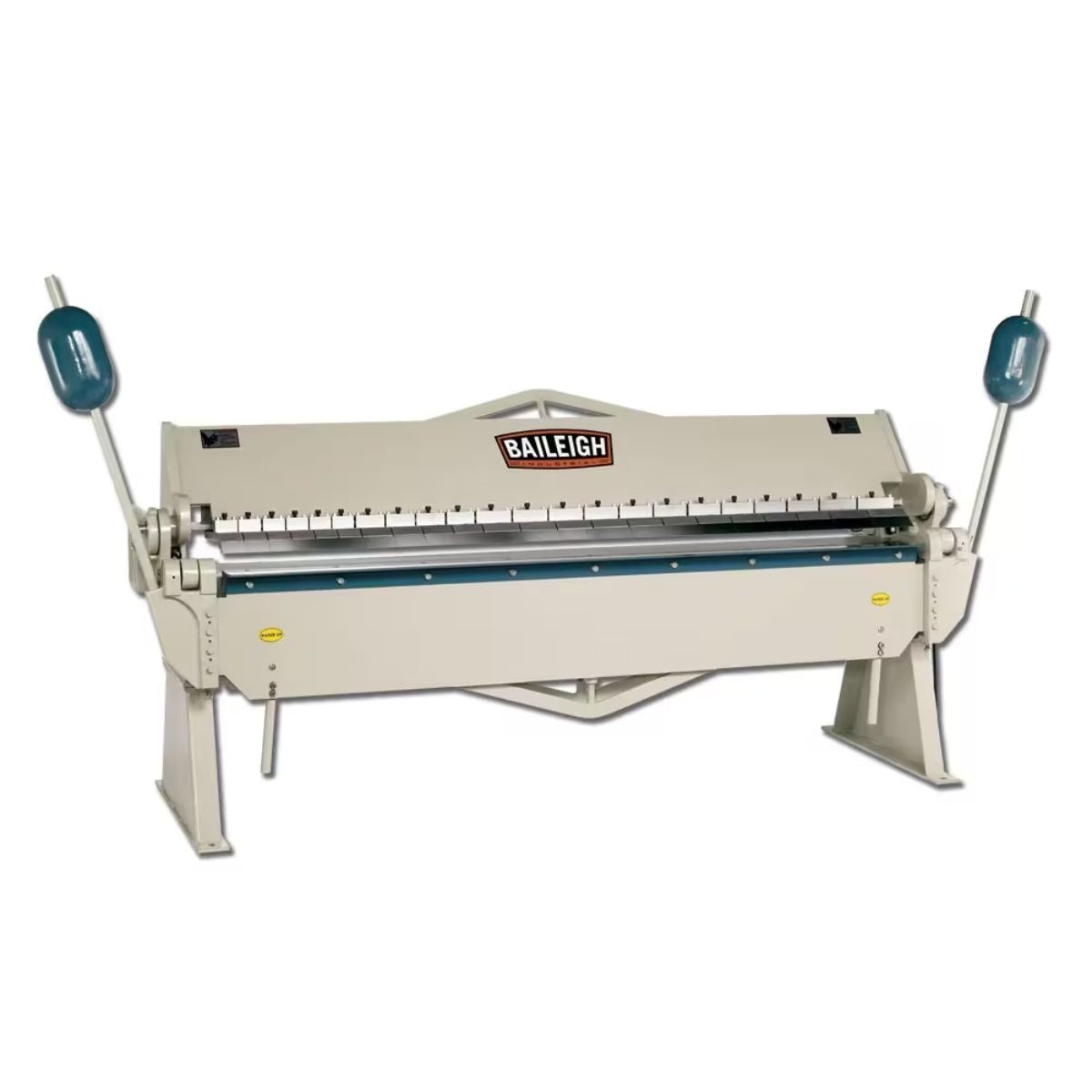

Baileigh BB-9612 96" Heavy Duty Manual Box & Pan Brake — 12 Gauge
Are you working with large sheet stock and struggling to find a brake that handles the full width without deflection?
What if your shop had a manual box and pan brake built to take on full 4 by 8 panels and hold its accuracy through years of heavy use.
Meet the Baileigh BB-9612 96" Heavy Duty Manual Box & Pan Brake, a professional manual brake built for fabrication shops doing serious sheet metal work.
With a 96 inch working width, 22 removable fingers, and a fully welded steel frame, it handles 12 gauge mild steel across the full bend range.
When the brake holds true from one end to the other, you can move through production work with confidence in every bend.
Baileigh BB-9612 for Heavy Sheet Metal Bending
Welded Steel Frame Resists Deflection Under Load
The BB-9612 is built on an electro-welded heavy steel frame designed to hold its shape under repeated bending loads. That rigidity keeps the bend line consistent across the full 96 inch width, so results stay accurate from the first part to the last.
22 Removable Fingers Allow a Wide Range of Forms
The brake ships with 22 hardened removable fingers in four sizes — 3, 4, 5, and 6 inch — that can be arranged to create box, pan, and channel shapes. Fingers are repositioned without tools, so the setup changes as quickly as the work requires.
Counterweights Reduce Operator Fatigue on Long Runs
Dual counterweights offset the weight of the apron so lifting takes less effort across a full shift. That makes a difference on production work where the apron cycles repeatedly throughout the day.
Manual Operation Requires No Electrical Power
The BB-9612 runs entirely without electricity, so it works in any shop regardless of power availability. There is nothing to wire in and no motor to maintain — the machine is ready to run as soon as it is set up.
What's Included
What's Included? Baileigh BB-9612 96" Heavy Duty Manual Box & Pan Brake — 12 Gauge
-
Baileigh BB-9612 96" Heavy Duty Manual Box & Pan Brake — 12 Gauge — Provides a full 96 inch manual bending platform for heavy sheet metal fabrication.
-
22 Assorted Removable Fingers — Allows configuration of box, pan, and channel forms up to 6 inches deep. Includes 6 fingers at 3 inch, 4 fingers at 4 inch, 10 fingers at 5 inch, and 2 fingers at 6 inch.
Specs
Baileigh BB-9612 96" Heavy Duty Manual Box & Pan Brake — 12 Gauge Specifications
- Model: BB-9612
- Stock Number: BA9-1000553
- Bending Length: 96 in (8 ft)
- Mild Steel Capacity: 12 gauge
- Stainless Steel Capacity: 16 gauge
- Maximum Bend Angle: 135°
- Maximum Box Depth: 6 in
- Finger Sizes Included: 3 in (qty 6), 4 in (qty 4), 5 in (qty 10), 6 in (qty 2)
- Total Fingers Included: 22
- Frame Construction: Electro-welded heavy steel
- Apron Assist: Dual counterweights
- Input Power: Manual — no electrical power required
- Net Weight: 3,250 lb
- Warranty: 1 Year Parts
