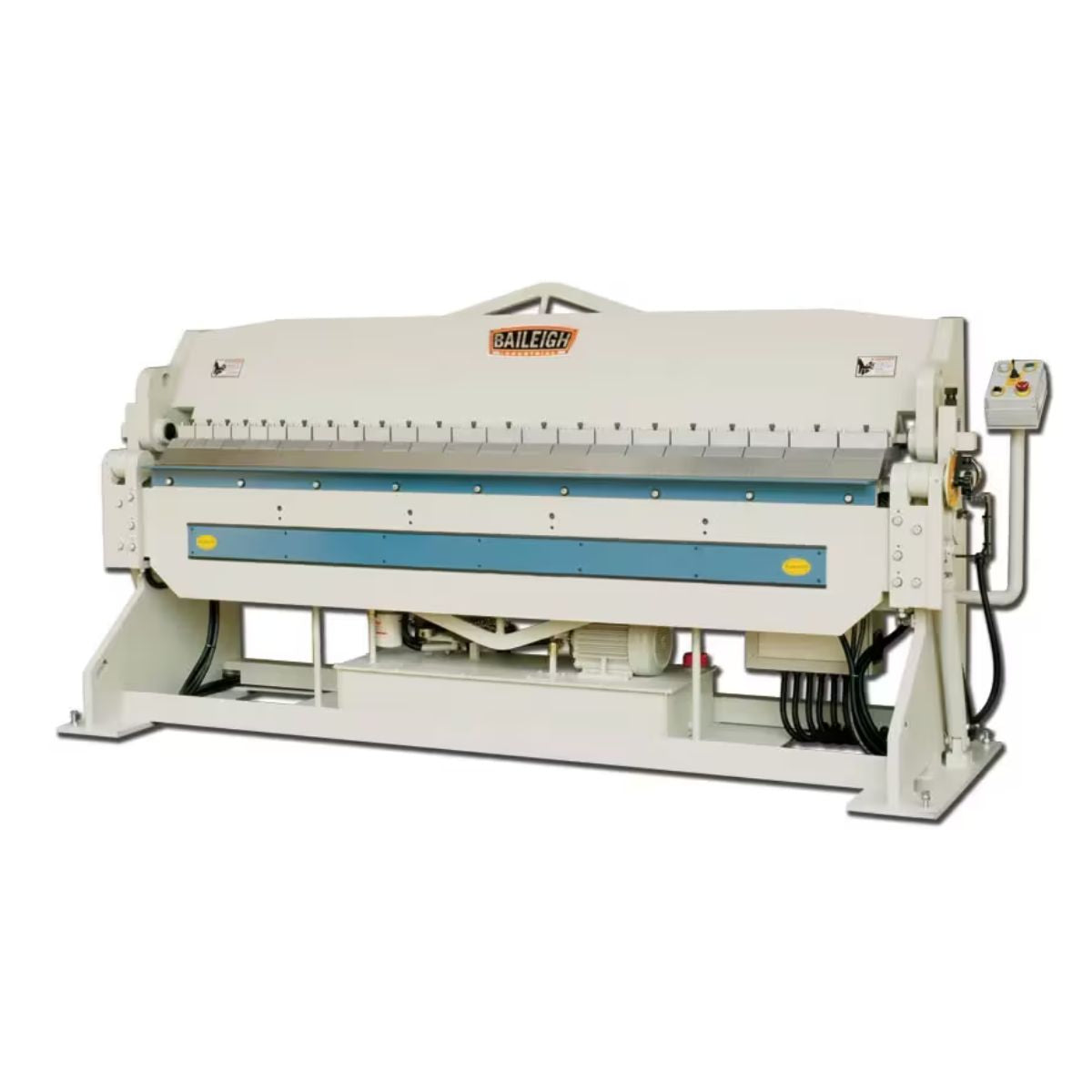

Baileigh BB-9610H 96" Hydraulic Box & Pan Brake — 10 Gauge
Are you working with large sheet metal components that need clean, repeatable bends across a full 8-foot width?
What if your shop had a hydraulic brake that handled 10 gauge mild steel without fighting the material or losing accuracy across the length of the bed?
Meet the Baileigh BB-9610H 96" Hydraulic Box & Pan Brake — 10 Gauge, a heavy-duty hydraulic brake built for serious sheet metal forming work.
With a fully welded steel frame, hydraulic clamping and bending, and 22 included hardened fingers, the BB-9610H handles box and pan work with steady, controlled force.
When the brake holds true across every bend, you can move through large jobs with confidence and consistent results.
Baileigh BB-9610H for Large-Scale Box and Pan Forming
Hydraulic Clamping System Reduces Operator Effort
The hydraulic clamping and bending system handles the force so the operator focuses on placement and accuracy. Foot pedal and toggle joystick controls let you work in manual or semi-automatic mode depending on the job.
Welded Steel Frame Maintains Accuracy Across Full Width
The fully welded heavy-duty steel frame keeps the brake rigid across the entire 96 inch working width. That rigidity helps each bend stay consistent from one end of the sheet to the other.
Included Finger Set Covers Common Box and Pan Shapes
Twenty-two hardened three-piece fingers are included in sizes from 3 to 6 inches, giving you the range to form boxes, pans, and complex sheet metal shapes without additional tooling. Fingers are adjustable and removable to suit the work at hand.
Wide Gauge Range Handles Mild Steel and Stainless
The BB-9610H bends up to 10 gauge mild steel and 13 gauge stainless steel with a maximum bend angle of 135 degrees. Box depth capacity reaches up to 6 inches for deeper forming work.
What's Included
What's Included? Baileigh BB-9610H 96" Hydraulic Box & Pan Brake — 10 Gauge
-
Baileigh BB-9610H 96" Hydraulic Box & Pan Brake — 10 Gauge — Provides a full 96 inch hydraulic forming platform for box, pan, and sheet metal bending work.
-
22 Hardened Three-Piece Fingers (6 of 3", 4 of 4", 10 of 5", 2 of 6") — Allows immediate box and pan forming across a range of common shapes without additional tooling purchases.
Specs
Baileigh BB-9610H 96" Hydraulic Box & Pan Brake — 10 Gauge Specifications
- Model: BB-9610H
- Stock Number: BA9-1021003
- Bending Capacity Length: 96 in
- Mild Steel Capacity: 10 Gauge
- Stainless Steel Capacity: 13 Gauge
- Maximum Bend Angle: 135°
- Maximum Box Depth: 6 in
- Included Fingers: 22 hardened three-piece (6 of 3", 4 of 4", 10 of 5", 2 of 6")
- Motor: 5 HP
- Input Power: 220V Three Phase
- Controls: Foot pedal and toggle joystick — manual and semi-automatic modes
- Net Weight: 5,640 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
