Baileigh BB-7216M 72" Magnetic Sheet Metal Brake
Are you running into the limits of a standard box and pan brake when your parts require enclosed shapes or multi-plane bends?
What if your shop had a full 6-foot brake that could form boxes, triangles, and complex bends without fighting the clamp?

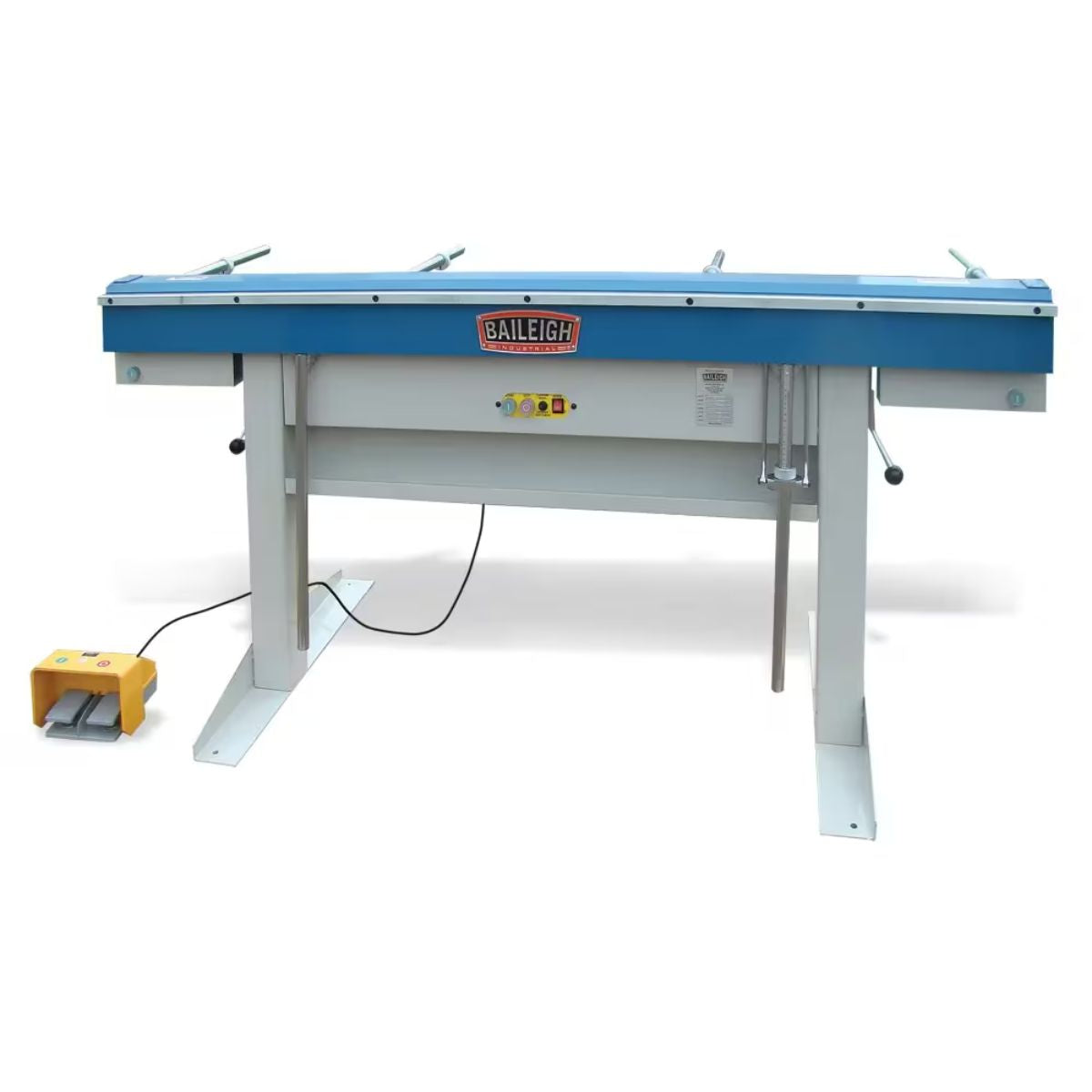

Meet the Baileigh BB-7216M 72" Magnetic Sheet Metal Brake, an electromagnetic forming brake built for fabricators who need more than straight bends.
With a powerful magnetic clamping system, foot pedal control, and open-ended design, the BB-7216M handles the kind of work a standard brake cannot.
When the brake holds firm across the full length of a panel, you can work with confidence through every bend.
Baileigh BB-7216M for Enclosed Shapes and Complex Sheet Metal Work
Electromagnetic Clamping System Enables Enclosed Bends
The magnetic clamping system replaces the mechanical clamp bar of a standard brake, leaving the work area open on all sides. This open-ended design allows you to form fully enclosed boxes, triangles, and multi-plane bends that a traditional brake cannot complete.

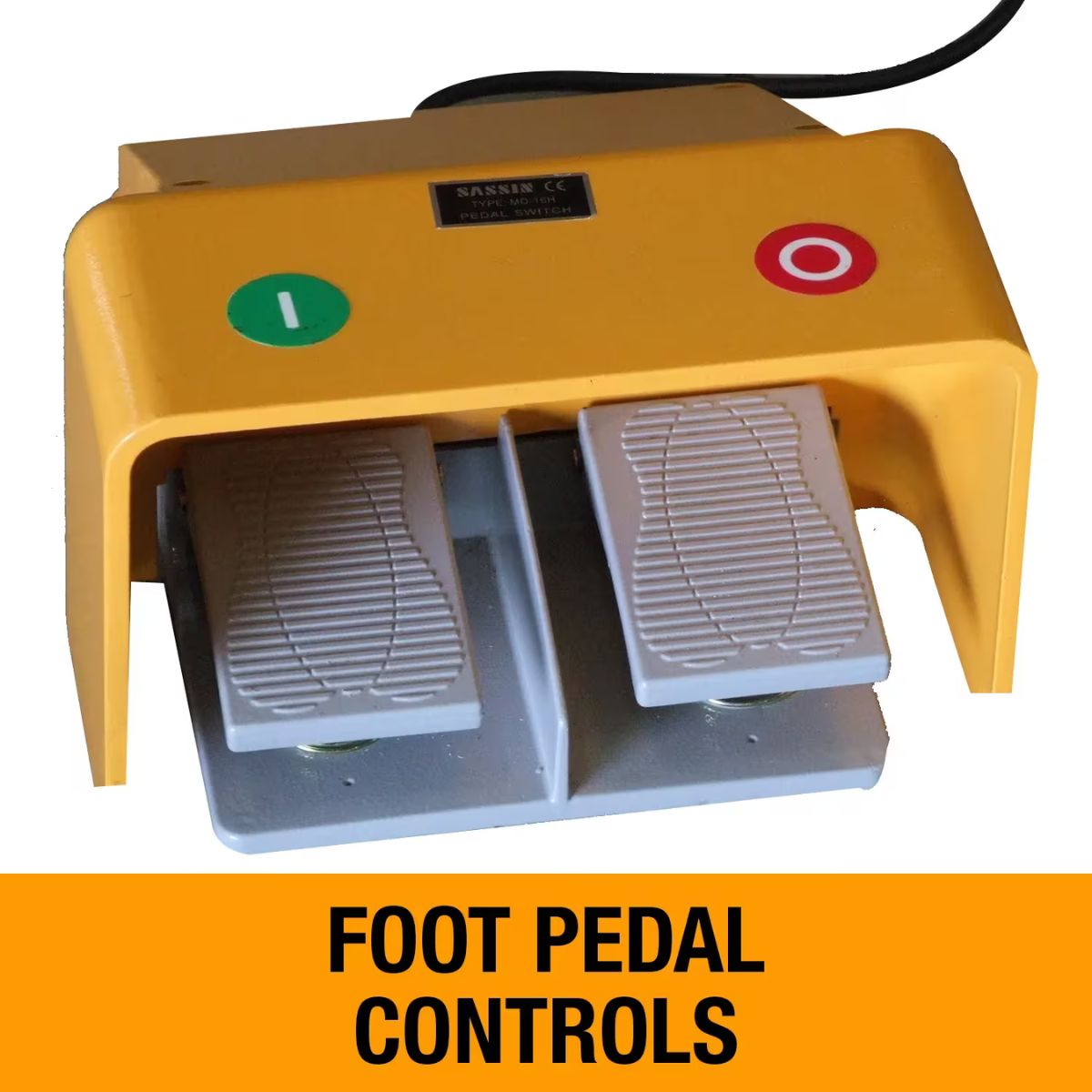

Foot Pedal Control Frees Both Hands During Forming
A foot pedal engages the magnetic clamp, so both hands stay on the workpiece during setup and repositioning. This lets you adjust material position before committing to the bend without losing control of the part.
72-Inch Working Width Handles Large Panels

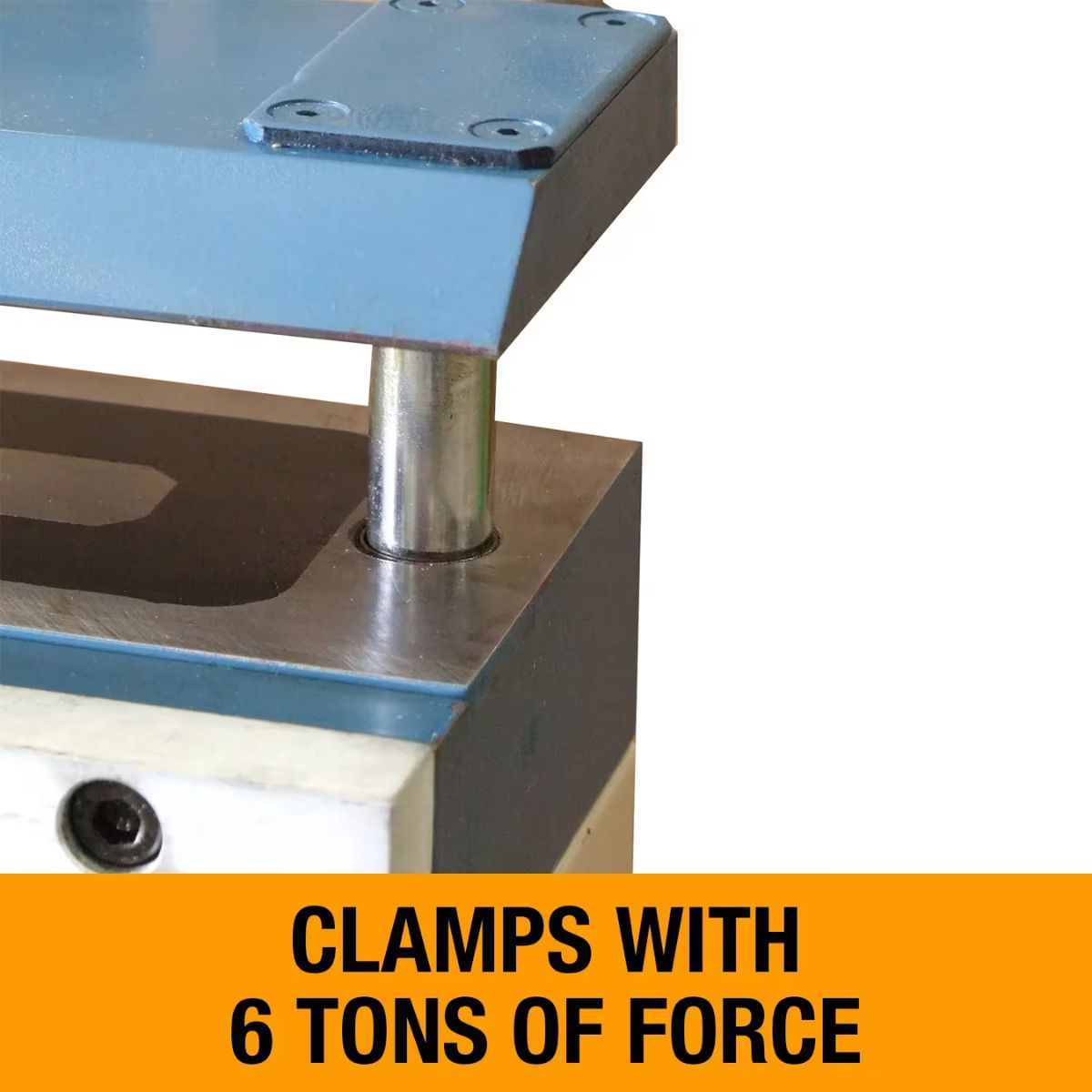

The full 6-foot bending length accommodates larger sheet metal panels in a single setup. Six tons of clamping force hold consistent pressure across the entire length for clean, uniform bends from end to end.

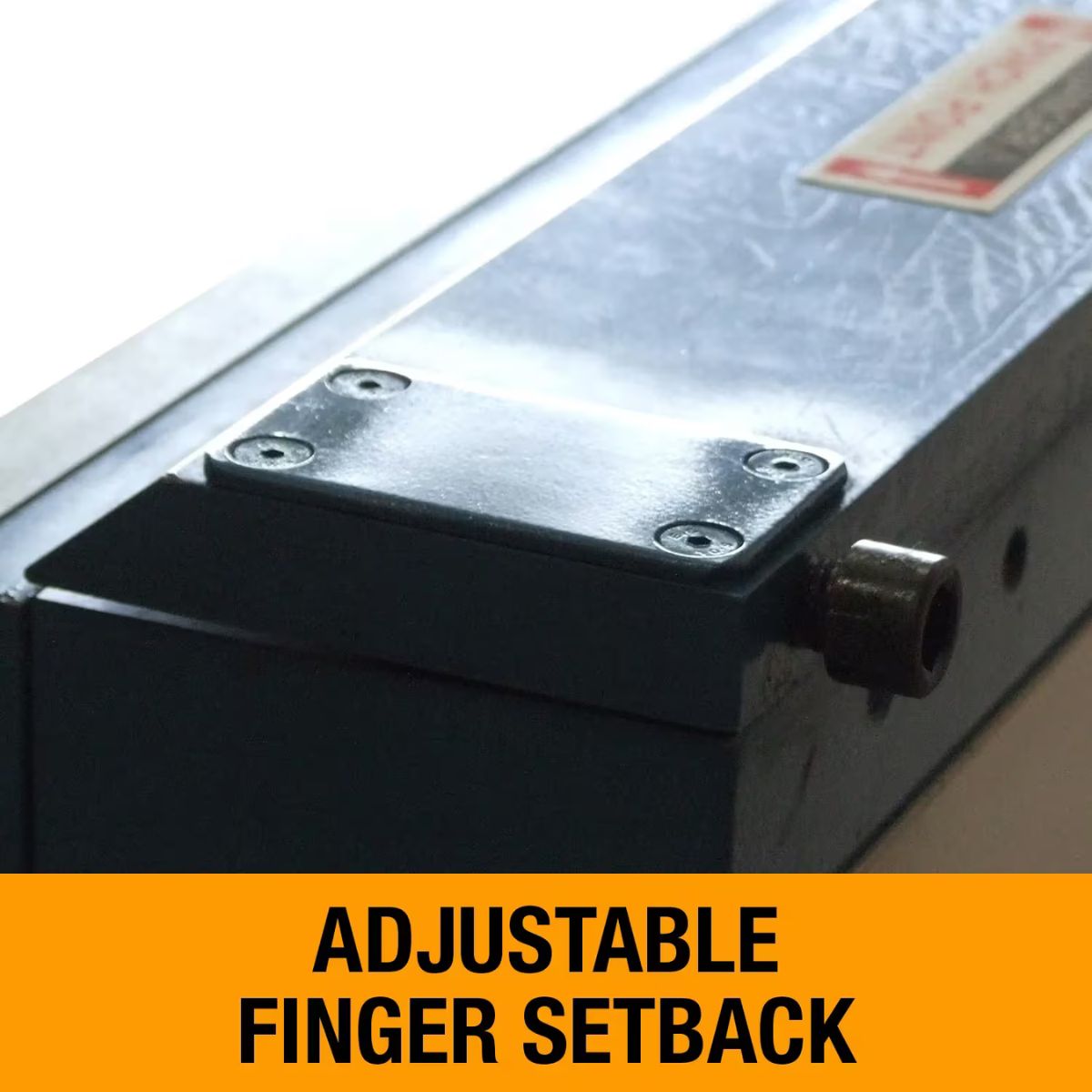

Adjustable Finger Setback Supports Straight and Segmented Bends

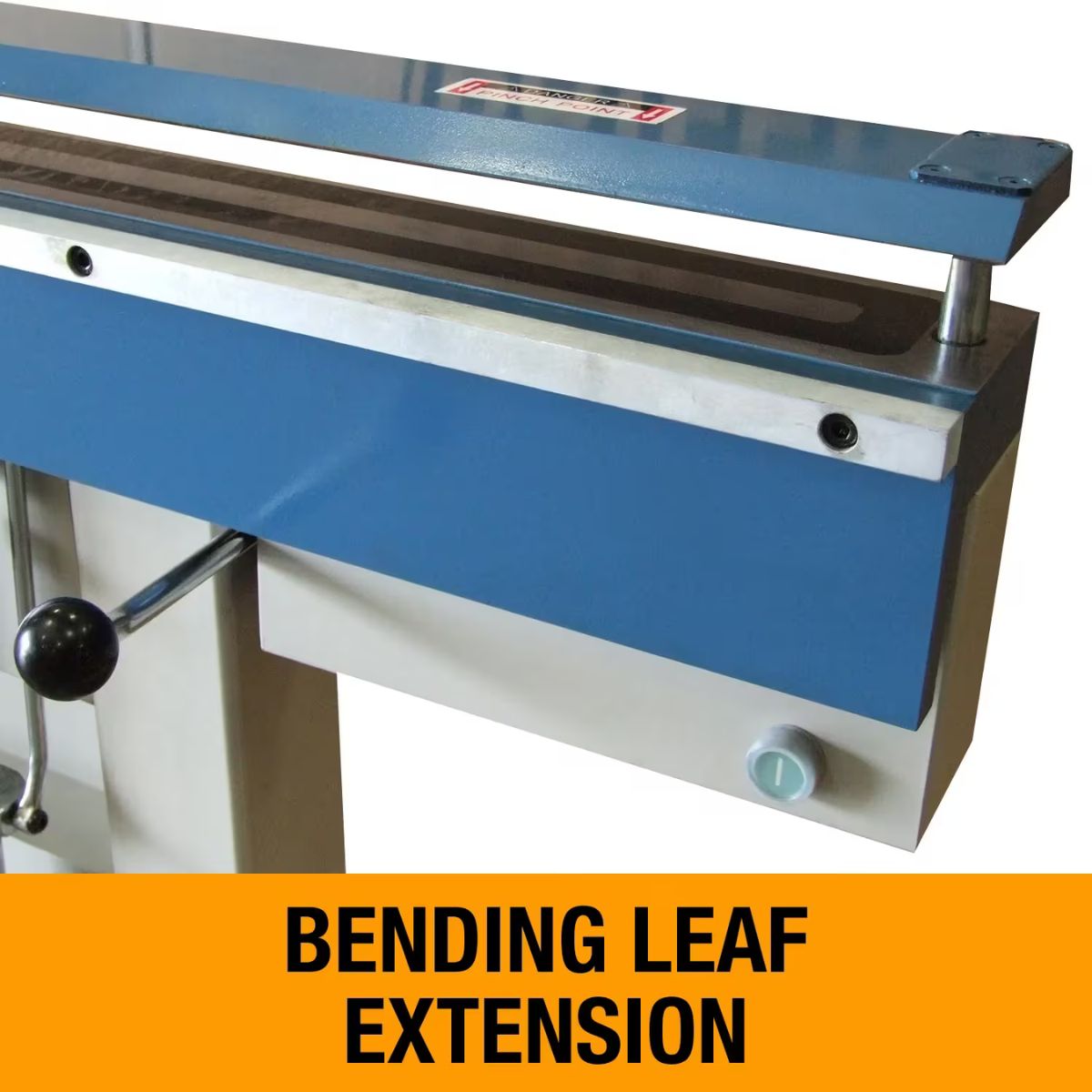

The finger setback adjusts to accommodate material thickness for both straight bends and segmented box and pan work. With the bending leaf extension removed, the brake handles up to 16-gauge mild steel and 20-gauge stainless, bending to a full 180 degrees.
What's Included
What's Included? Baileigh BB-7216M 72" Magnetic Sheet Metal Brake
-
Baileigh BB-7216M 72" Magnetic Sheet Metal Brake — Provides a full 6-foot electromagnetic forming brake for enclosed shapes and complex sheet metal bends.
Specs
Baileigh BB-7216M 72" Magnetic Sheet Metal Brake Specifications
- Model: BB-7216M-V2
- Stock Number: BA9-1231890
- Bend Length: 72 in (1829mm)
- Capacity - Bending Leaf Extension Removed: 16 ga mild steel, 20 ga stainless steel
- Capacity - Bending Leaf Extension Installed: 18 ga mild steel, 21 ga stainless steel
- Bend Angle: 0–180°
- Box Depth: Unlimited
- Clamping Force: 6 ton (5443 kg)
- Minimum Depth Under Clamping Bar: 2 in (51mm)
- Input Power: 220V, 1ph, 60Hz, 12A
- Duty Cycle: 30%
- Thermal Cut-Out: 158°F (70°C)
- Shipping Dimensions: 86.6" x 13.8" x 16.5"
- Shipping Weight: 595 lb (270 kg)
- Warranty: 1 Year
