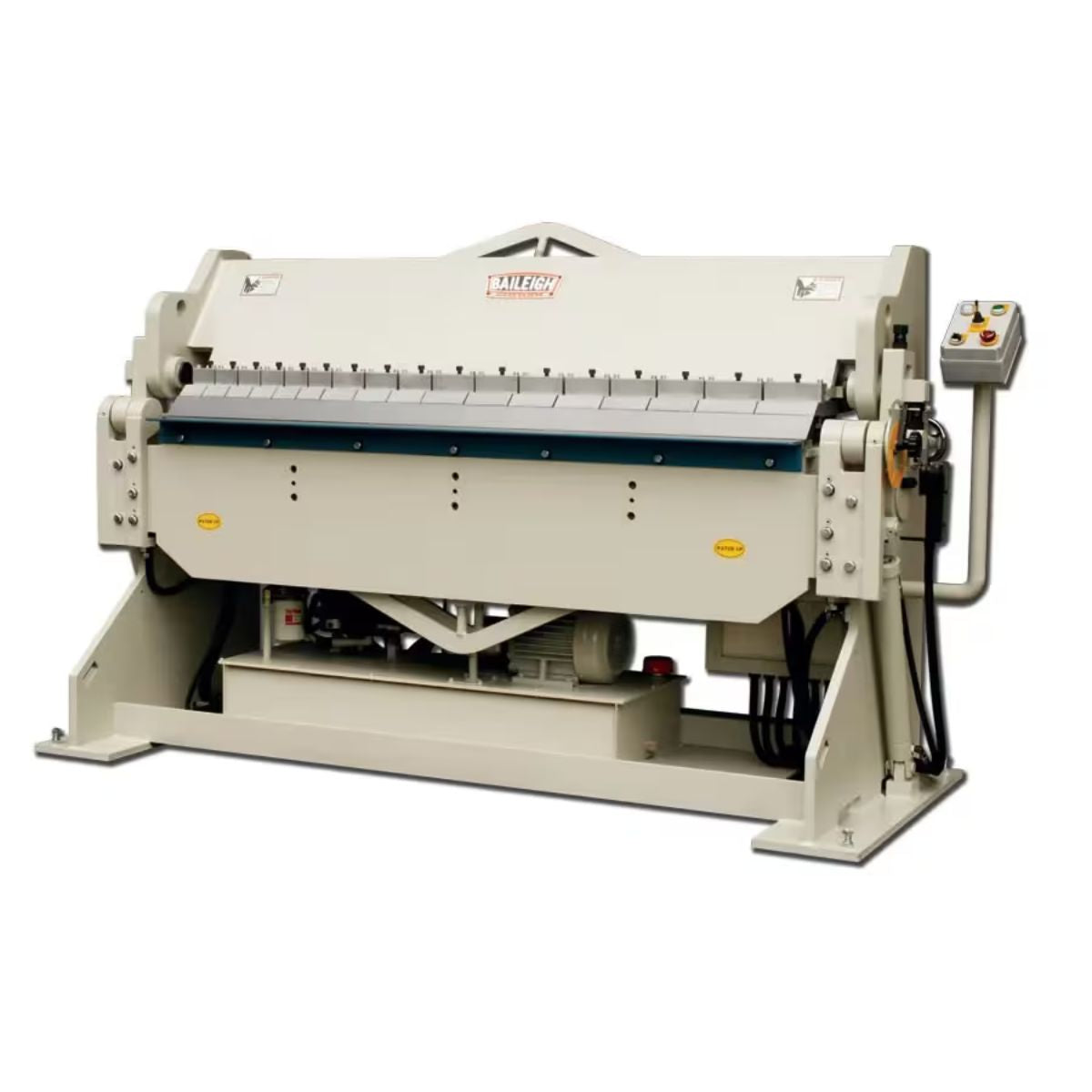

Baileigh BB-7210H 72" Hydraulic Box & Pan Brake — 10 Gauge
Are you doing box and pan work that demands clean, repeatable bends across wide sheet stock?
What if your shop had a hydraulic brake that held its angle through every bend without constant readjustment.
Meet the Baileigh BB-7210H 72" Hydraulic Box & Pan Brake, a heavy-duty forming machine built for serious sheet metal fabrication.
With a fully welded steel frame, hydraulic clamping, a 72 inch working width, and 17 included fingers, the BB-7210H handles demanding production bending and custom box forming work.
When the brake holds consistent pressure from one end of the bed to the other, you move through a production run with confidence.
Baileigh BB-7210H for Heavy Sheet Metal Box and Pan Forming
Hydraulic Clamping System Reduces Operator Effort
The hydraulic clamping and bending system applies consistent force across the full 72 inch working width without relying on manual leverage. This reduces operator fatigue during long production runs and improves bend accuracy from part to part.
Fully Welded Steel Frame Minimizes Deflection
The heavy-duty welded steel frame holds its shape under load to keep bends accurate across the full bed length. A rigid frame is especially important on longer brakes where flex can cause angle variation between the center and the ends of the material.
Removable Fingers Allow Box and Pan Forming
The brake includes 17 hardened, removable fingers ranging in size to configure the tooling for boxes, pans, channels, and custom shapes. Removing fingers where needed lets the material bend around existing flanges without obstruction.
Programmable Bend Auto-Stop Improves Repeatability
A programmable bend auto-stop lets you set a precise bend angle and repeat it consistently across a production run. This reduces the need to check angles manually between parts and keeps output uniform from the first piece to the last.
What's Included
What's Included? Baileigh BB-7210H 72" Hydraulic Box & Pan Brake — 10 Gauge
-
Baileigh BB-7210H 72" Hydraulic Box & Pan Brake — Provides a 72 inch hydraulic bending platform for box, pan, and sheet metal forming work.
-
17 Hardened Removable Fingers (3"–6") — Allows you to configure the tooling for boxes, pans, channels, and custom bend profiles.
Specs
Baileigh BB-7210H 72" Hydraulic Box & Pan Brake — 10 Gauge Specifications
- Model: BB-7210H
- Stock Number: BA9-1021002
- Working Width: 72 in
- Mild Steel Capacity: 10 Gauge
- Maximum Bend Angle: 135°
- Maximum Box Depth: 6 in
- Fingers Included: 17 hardened removable fingers
- Motor: 5 HP
- Input Power: 220V, 3-Phase
- Frame: Fully welded heavy-duty steel
- Net Weight: 5,010 lb
- Warranty: 1 Year parts, lifetime technical support
