Baileigh BB-5016F-DS 50" Manual Reversible Box & Pan Brake — 16 Gauge
Are you working with sheet metal that needs bends a standard box brake simply cannot make?
What if your shop had a 50 inch finger brake that handles reverse bends, boxes, pans, and flanges without custom tooling?

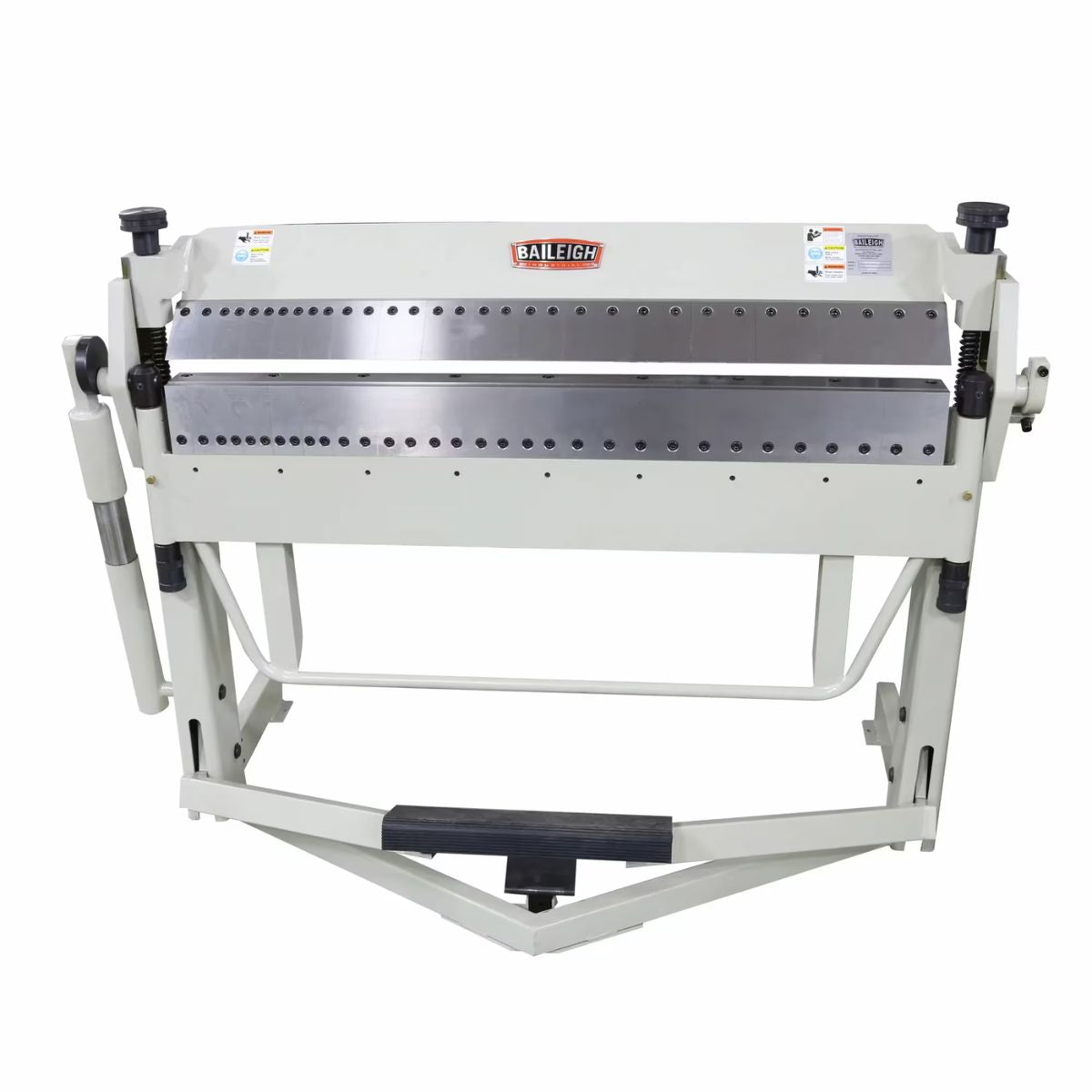

Meet the Baileigh BB-5016F-DS 50" Manual Reversible Box & Pan Brake, a heavy-duty finger brake built for complex sheet metal forming.
With segmented hardened fingers on both beams, foot-pedal clamping, and a full 50 inch bending length, the brake handles a wide range of part geometries in 16 gauge mild steel.
When the brake gives you consistent, repeatable bends on complex parts, you can move through fabrication work with confidence.
Baileigh BB-5016F-DS for Complex Sheet Metal Forming

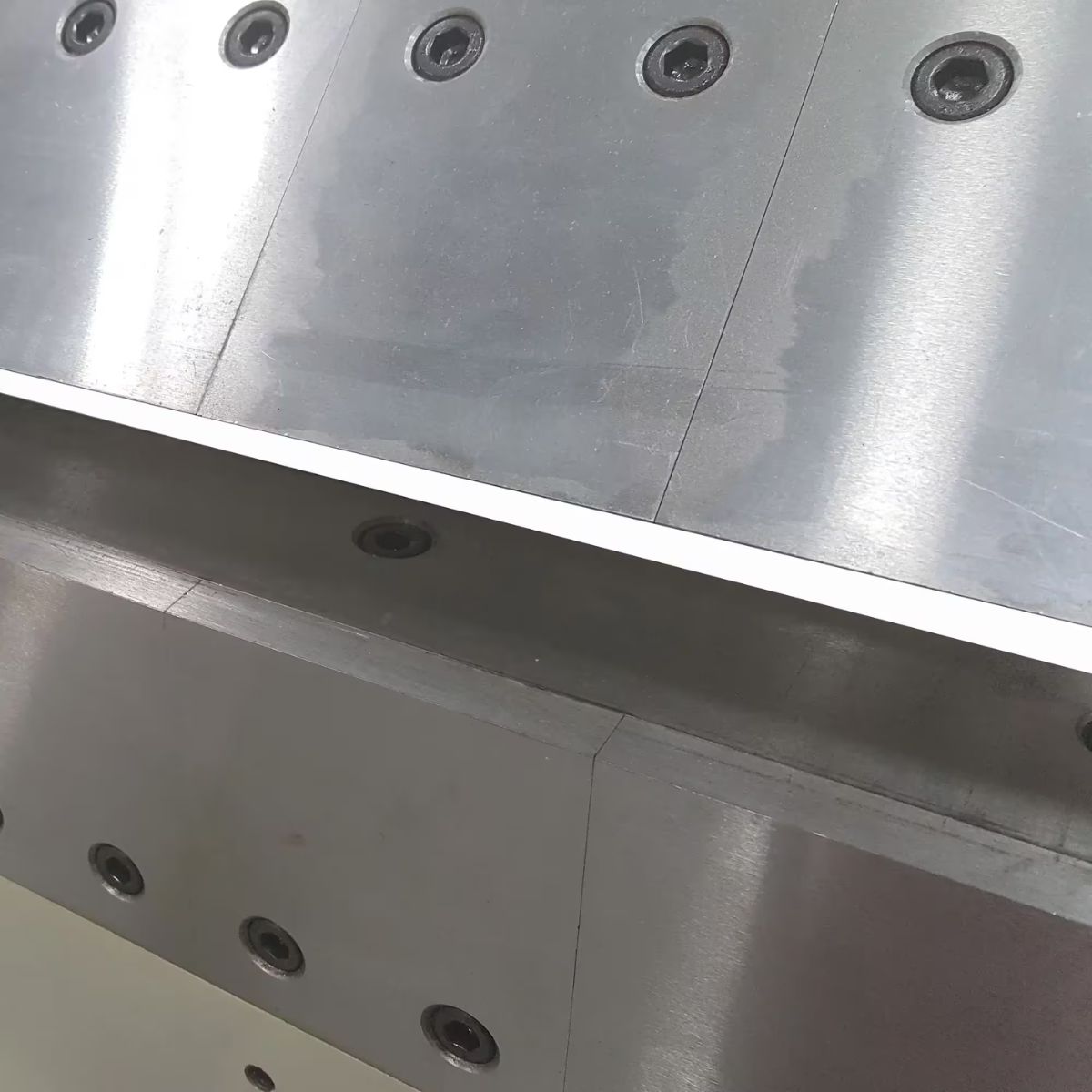

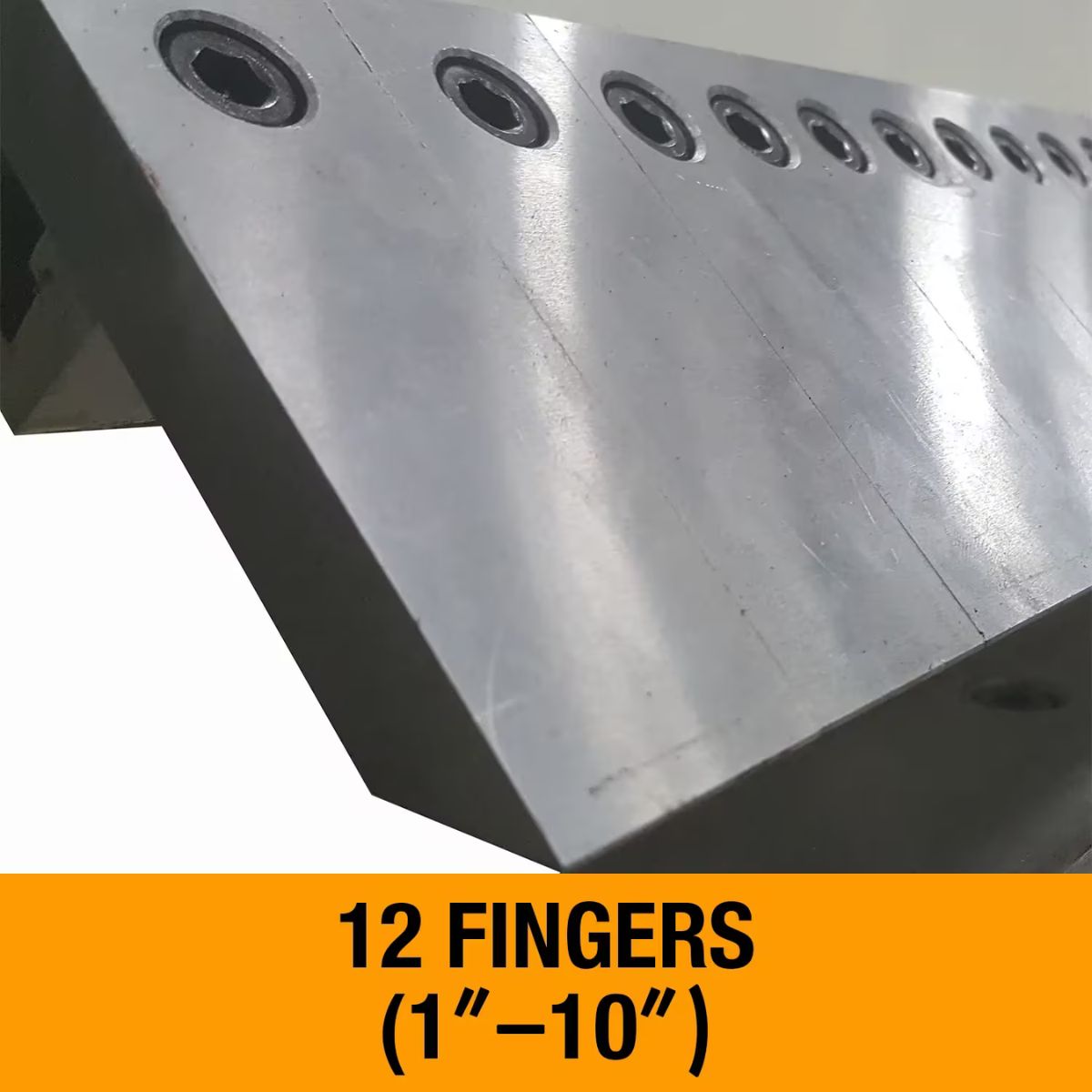

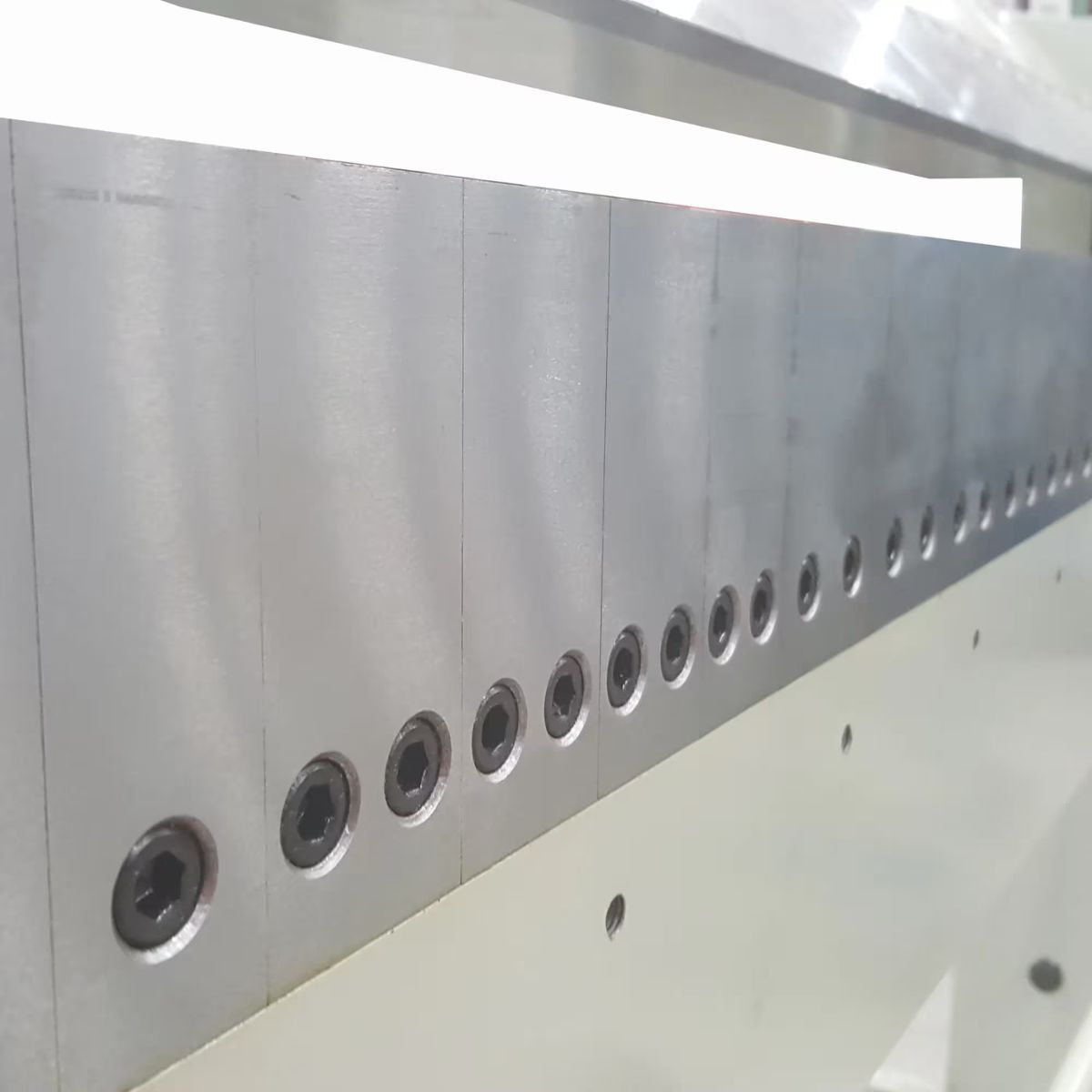

Reversible Segmented Fingers Enable Unusual Bends
Hardened segmented fingers are mounted on both the top beam and the lower lifting beam. This dual-beam setup lets you make reverse bends and complex part geometries that a standard box brake cannot produce.

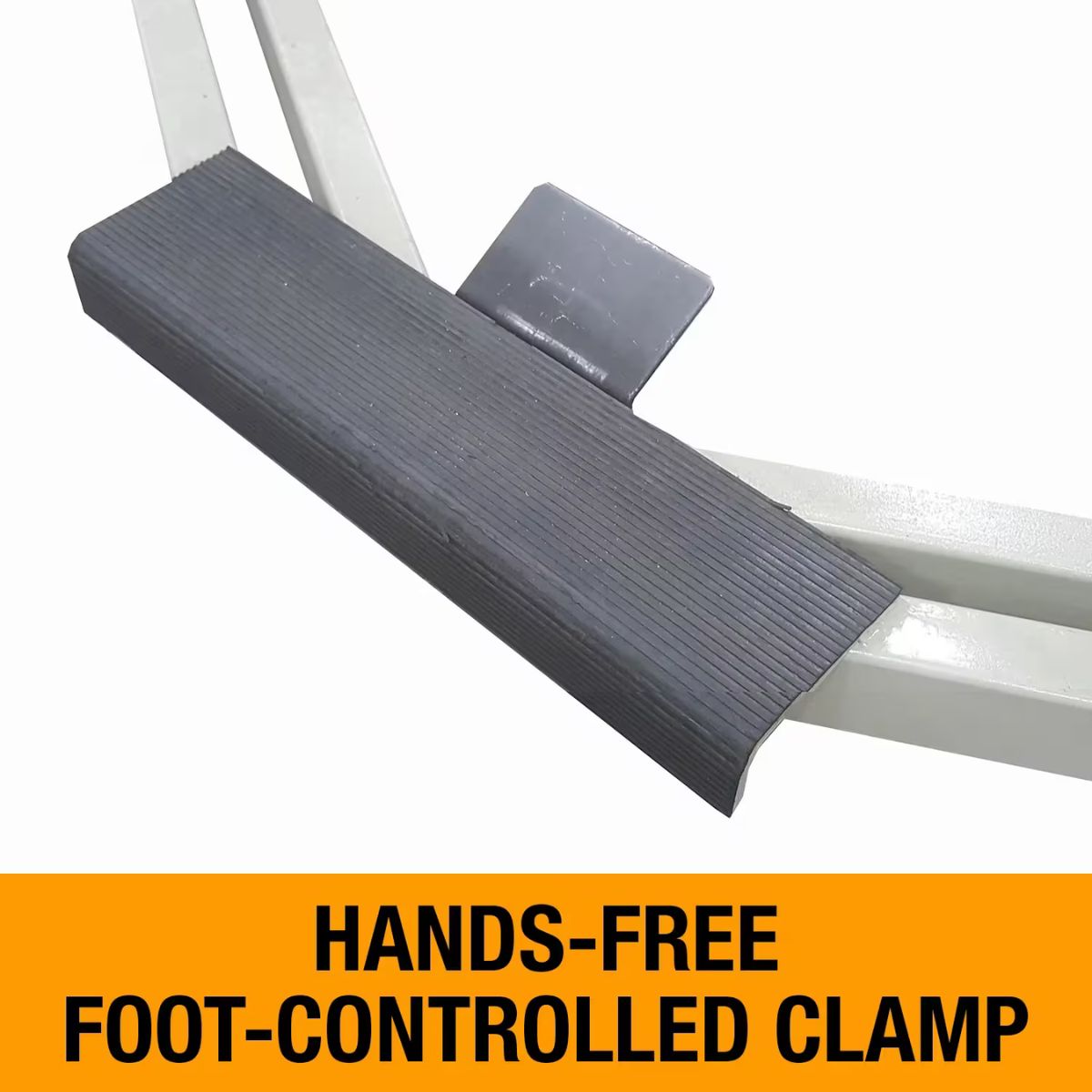

Foot Pedal Clamping Frees Both Hands
A manual foot-operated clamping system holds the workpiece securely without tying up your hands. This lets you focus on positioning the material accurately at the bend line before each press.
Adjustable Stop Rod Supports Repeatable Production Work
The adjustable stop rod gives you a fixed reference point for consistent part placement run after run. Once set, you can produce matched parts without re-measuring between bends.

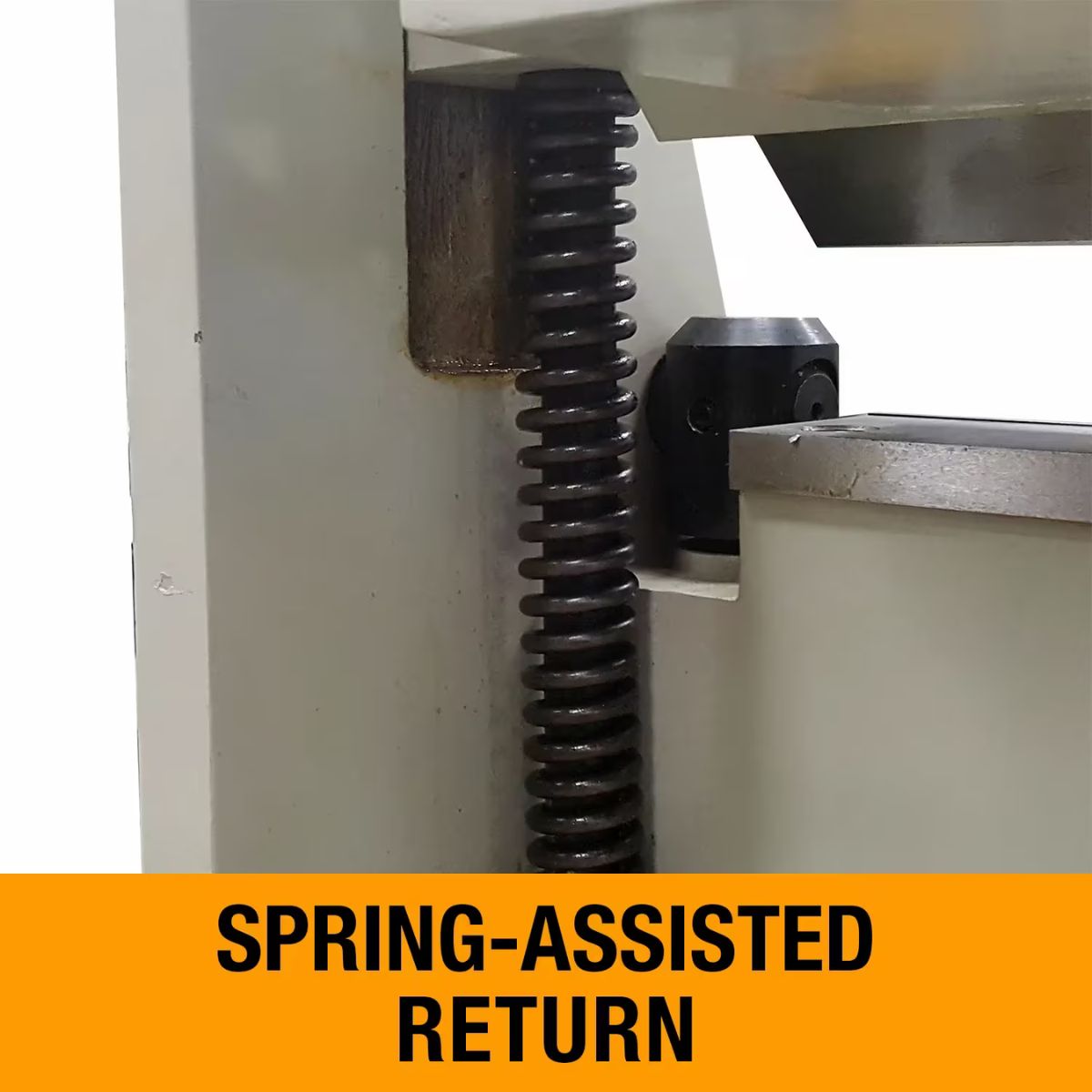

Spring-Loaded Apron Reduces Operator Effort
A spring-loaded cylinder assists in lifting the apron after each bend. This reduces the physical effort needed during repetitive work and helps you maintain a steady pace through longer production runs.
What's Included
What's Included? Baileigh BB-5016F-DS 50" Manual Reversible Box & Pan Brake — 16 Gauge
-
Baileigh BB-5016F-DS 50" Manual Reversible Box & Pan Brake — Provides a 50 inch reversible finger brake platform for complex sheet metal forming work.
Specs
Baileigh BB-5016F-DS 50" Manual Reversible Box & Pan Brake — 16 Gauge Specifications
- Model: BB-5016F-DS
- Stock Number: BA9-1010428
- Bending Length: 50 in
- Mild Steel Capacity: 16 gauge
- Maximum Bend Angle: 135°
- Maximum Box Depth: 2.5 in
- Input Power: Manual
- Net Weight: 1000 lb
- Warranty: 1 Year
