Baileigh BB-5014F 50" Manual Box & Pan Brake — 14 Gauge
Are you losing time repositioning sheet metal because your brake does not give you both hands free to hold the work in place?
What if your shop had a finger brake with foot pedal clamping so you could position material with both hands before every bend?

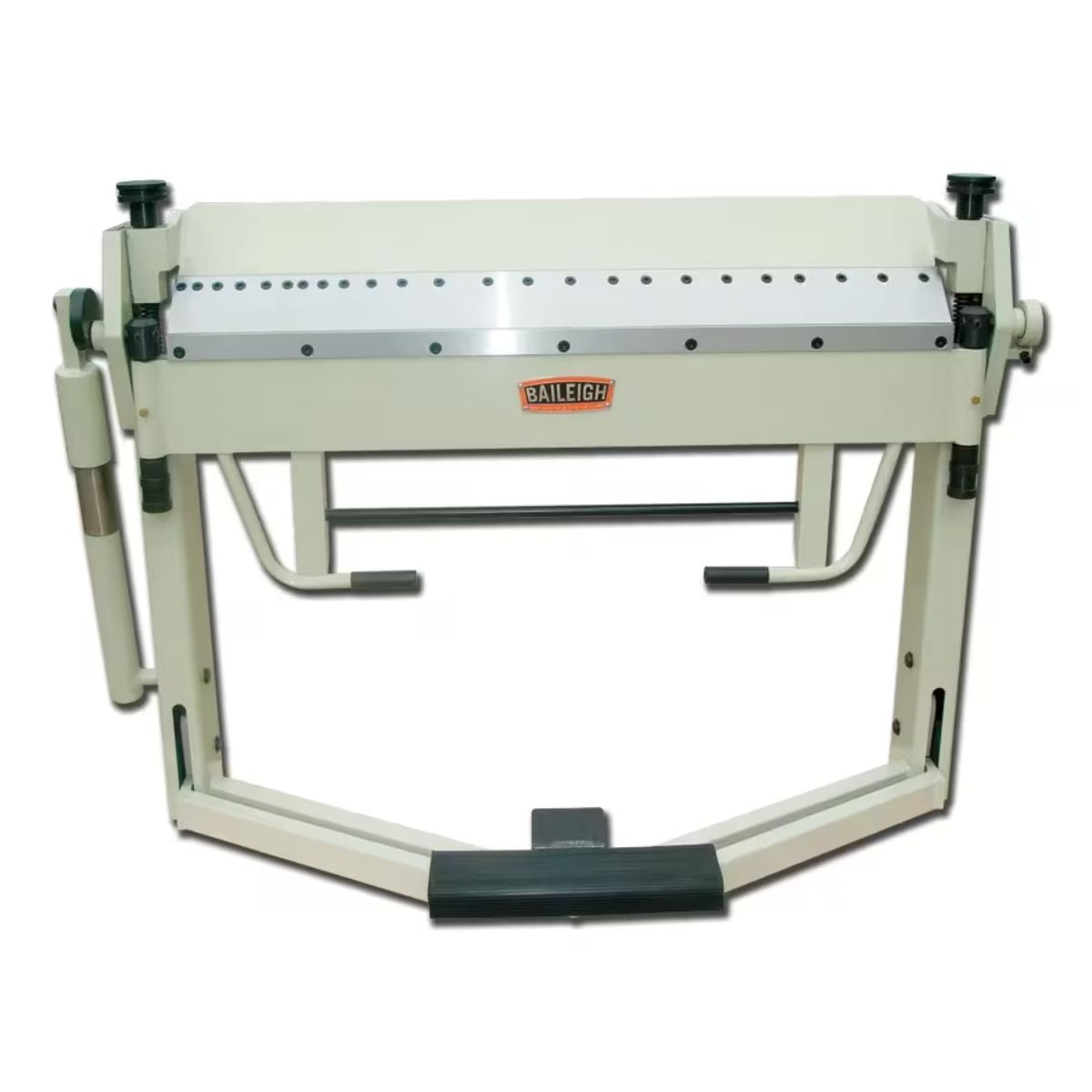

Meet the Baileigh BB-5014F 50" Manual Box & Pan Brake — 14 Gauge, a heavy-duty manual finger brake built for forming boxes, pans, tanks, and ductwork in mild steel up to 14 gauge.
With 12 adjustable fingers, a foot pedal clamp, and a fully welded steel frame, the BB-5014F holds alignment and gives you repeatable results across a 50 inch working length.
When the fingers are set and the foot pedal locks your material in place, you can focus on the bend without losing control of the workpiece.
Baileigh BB-5014F for Box, Pan, and Ductwork Forming

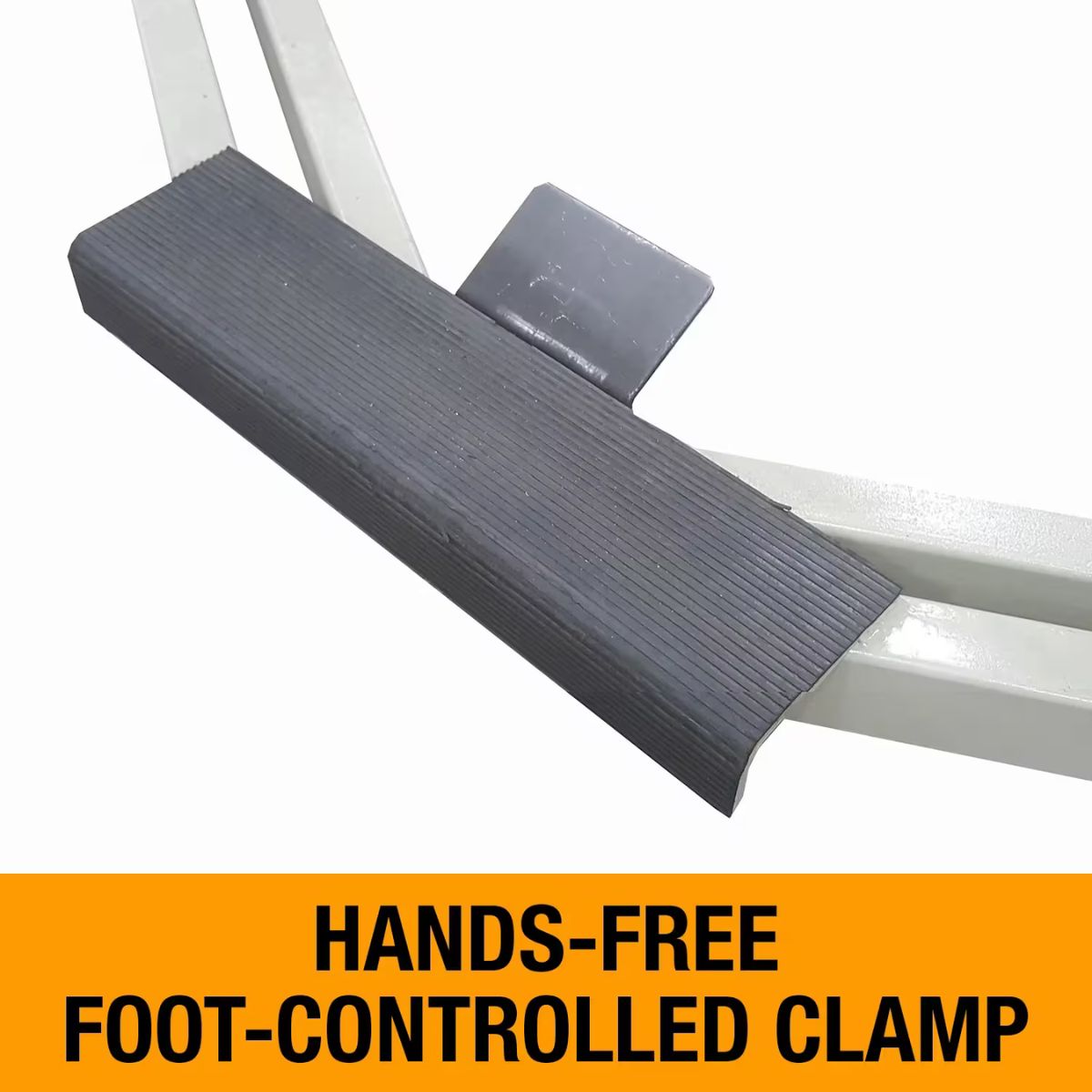

Foot Pedal Clamping Keeps Both Hands on the Material
The foot pedal clamping system locks the workpiece in place without requiring a hand on the clamp lever, so both hands stay free to position sheet metal before the bend. That control matters most on larger pieces where material shift before clamping leads to off-spec bends.

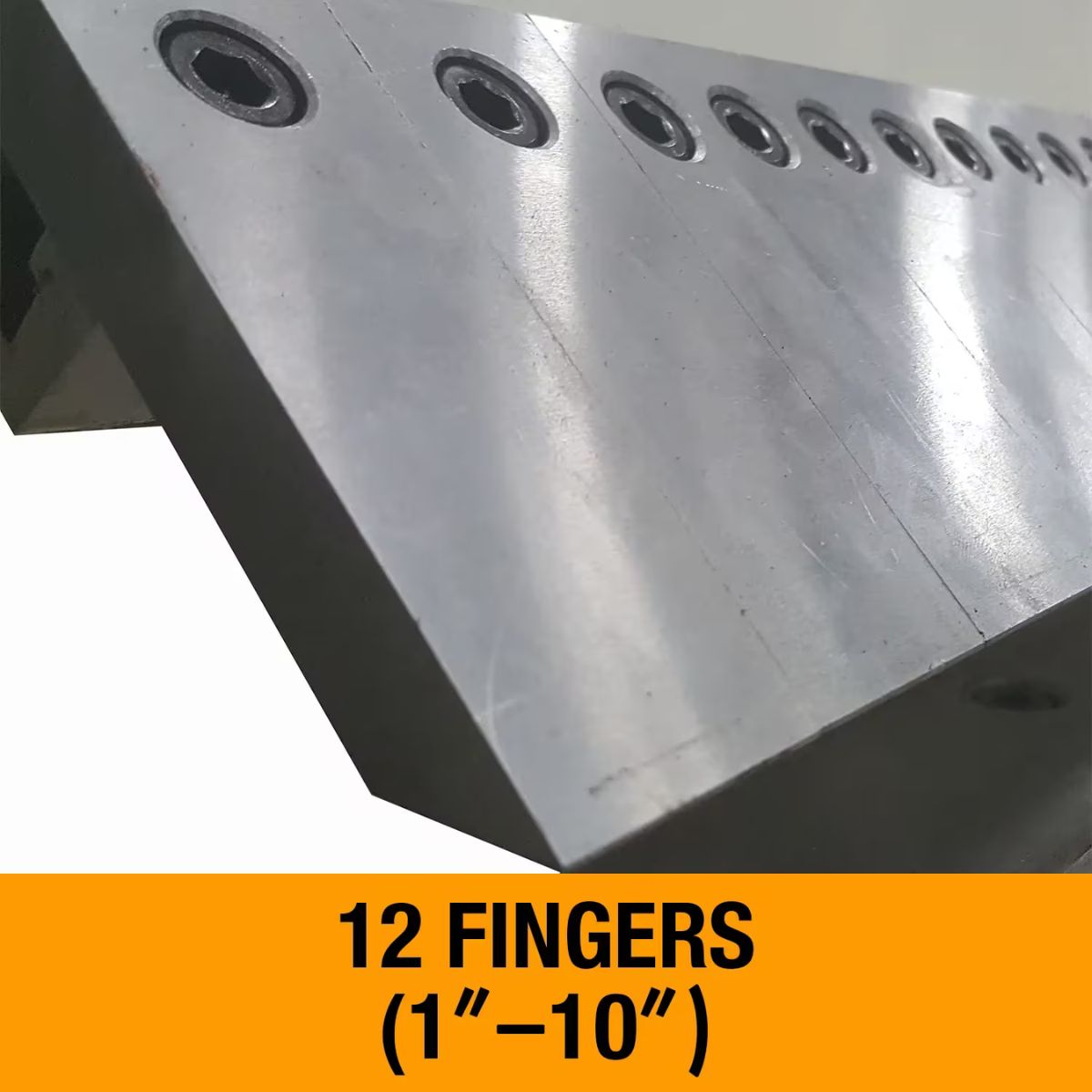

12 Adjustable Fingers Form Boxes, Pans, and Channels
The 12 removable and repositionable fingers let you clear material on either side of a bend for inside corners, box profiles, and channel work. Repositioning fingers takes the place of multiple setups, which keeps production moving on varied part runs.
Welded Steel Frame Holds Alignment Across the Full Length
The fully welded steel framework resists flex and deformation across the 50 inch working length. Consistent frame rigidity means the bend angle stays true from one end of the material to the other.

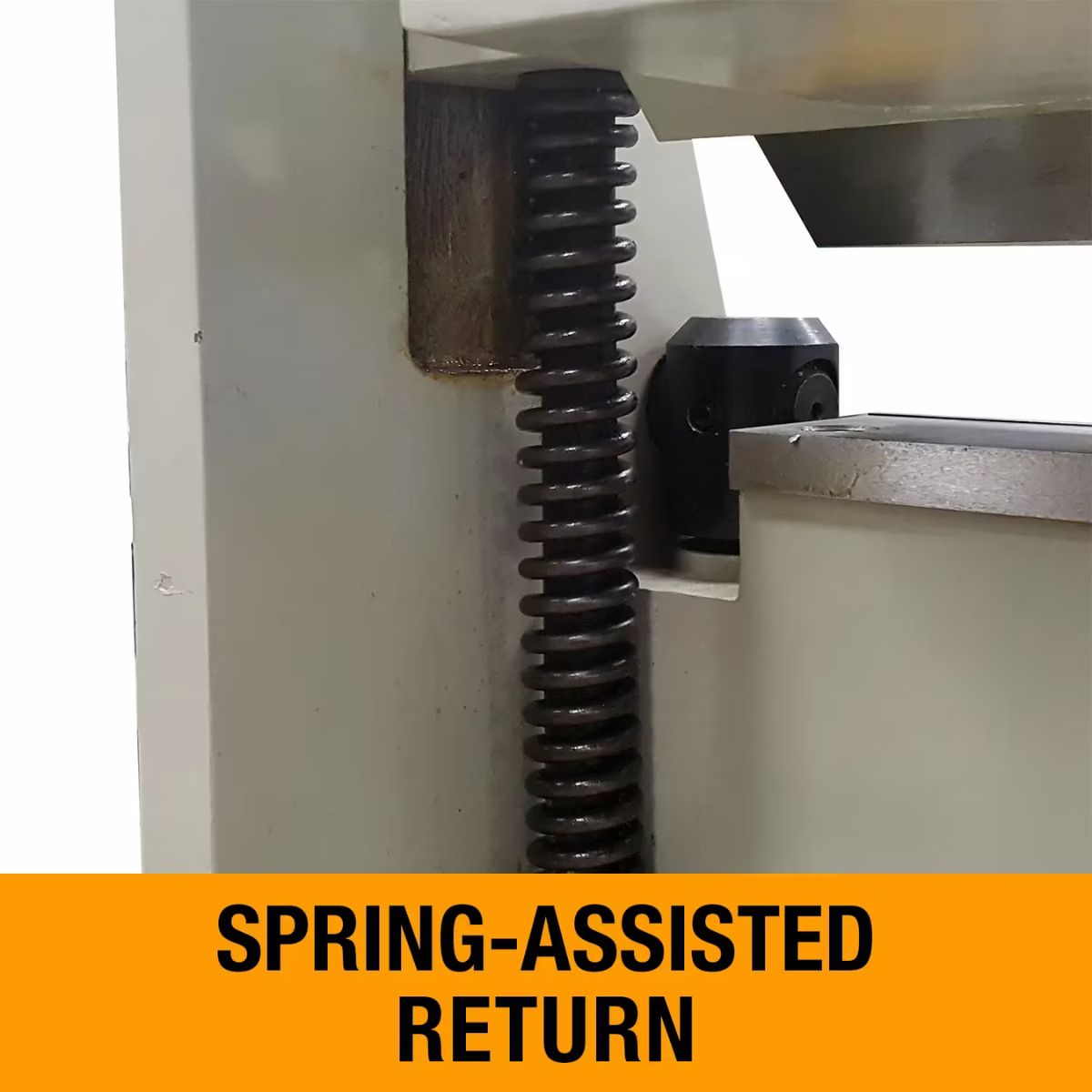

Spring-Assist Cylinder Reduces Effort at Full Capacity
A spring-loaded cylinder assists apron lifting when bending heavier gauge material at full capacity. The assist reduces operator fatigue during longer runs and keeps the motion consistent bend after bend.
What's Included
What's Included? Baileigh BB-5014F 50" Manual Box & Pan Brake — 14 Gauge
-
Baileigh BB-5014F 50" Manual Box & Pan Brake — 14 Gauge — Provides a 50 inch manual finger brake platform for forming boxes, pans, tanks, and ductwork in mild steel up to 14 gauge.
-
Foot Pedal — Allows hands-free clamping so both hands stay free to position the workpiece before bending.
Specs
Baileigh BB-5014F 50" Manual Box & Pan Brake — 14 Gauge Specifications
- Model: BB-5014F
- Stock Number: BA9-1000529
- Bending Capacity Length: 50 in
- Mild Steel Capacity: 14 Gauge
- Maximum Bend Angle: 135°
- Maximum Box Depth: 2.5 in
- Fingers Included: 12 adjustable
- Operation: Manual with foot pedal clamping
- Frame: Fully welded steel
- Net Weight: 915 lb
- Warranty: 1 Year parts
