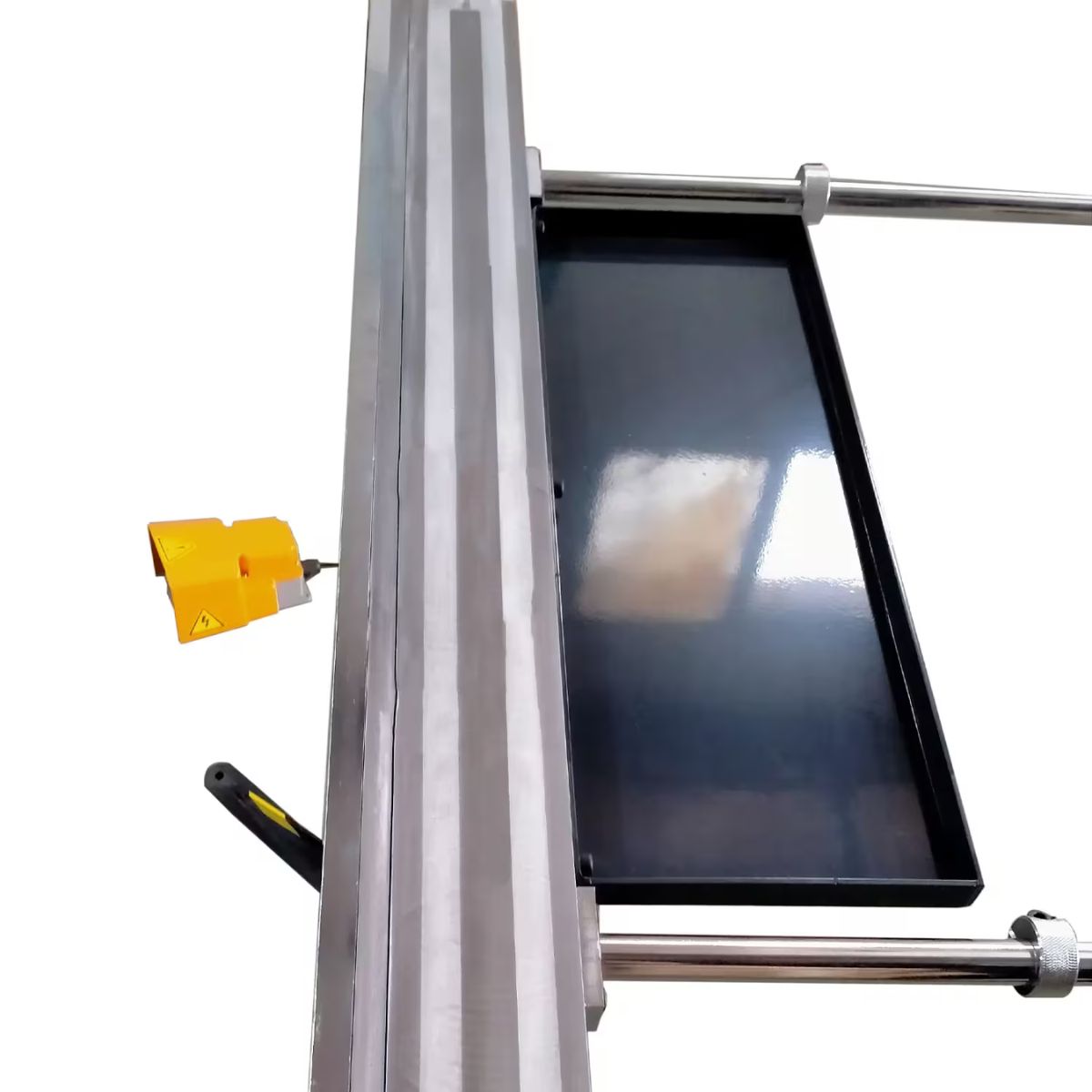

Baileigh BB-4816M-V2 48" Magnetic Sheet Metal Brake
Are you trying to bend enclosed boxes or deep channels on a standard finger brake and running out of options?
What if your shop had a 48 inch brake that could form complex shapes across its full width without repositioning the work.

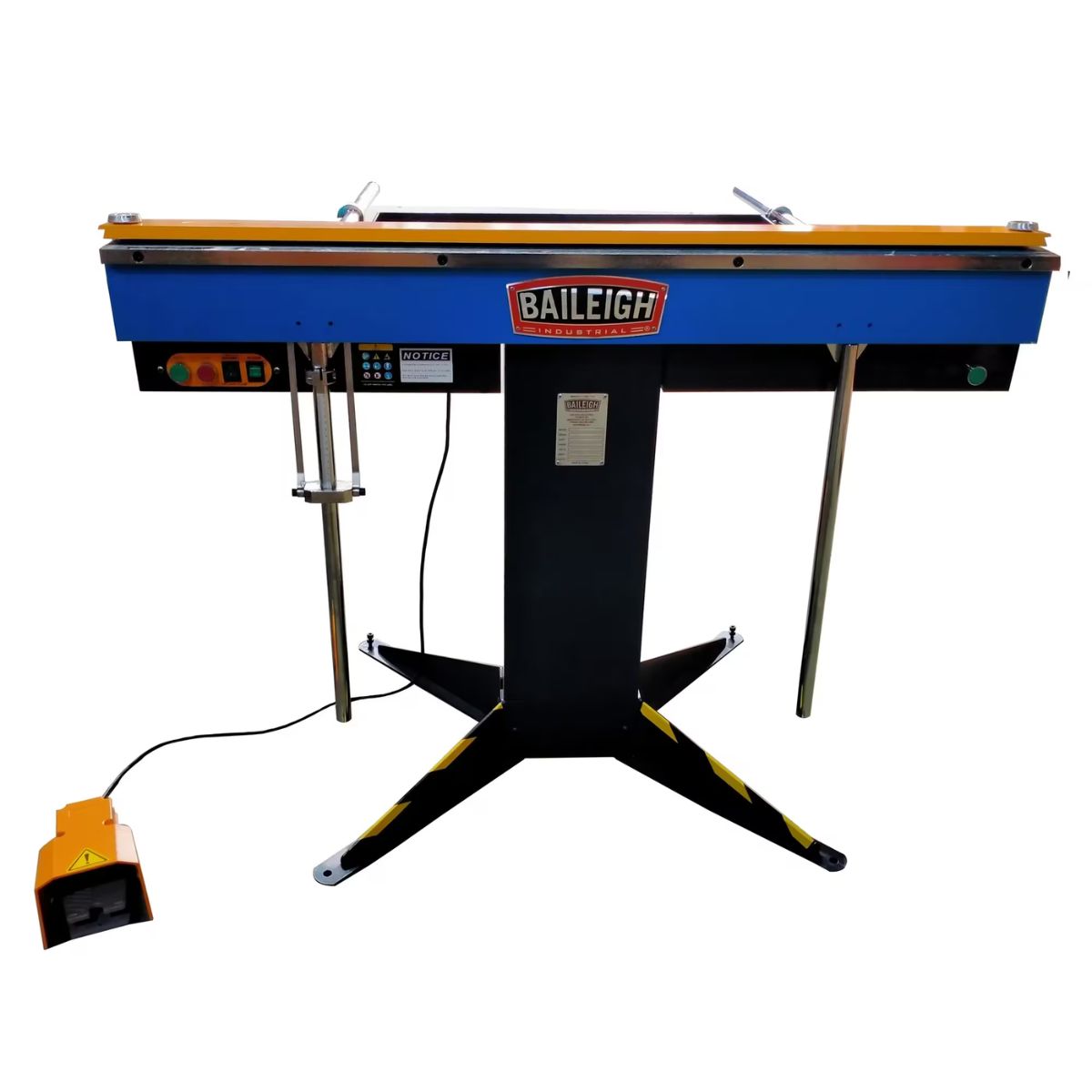

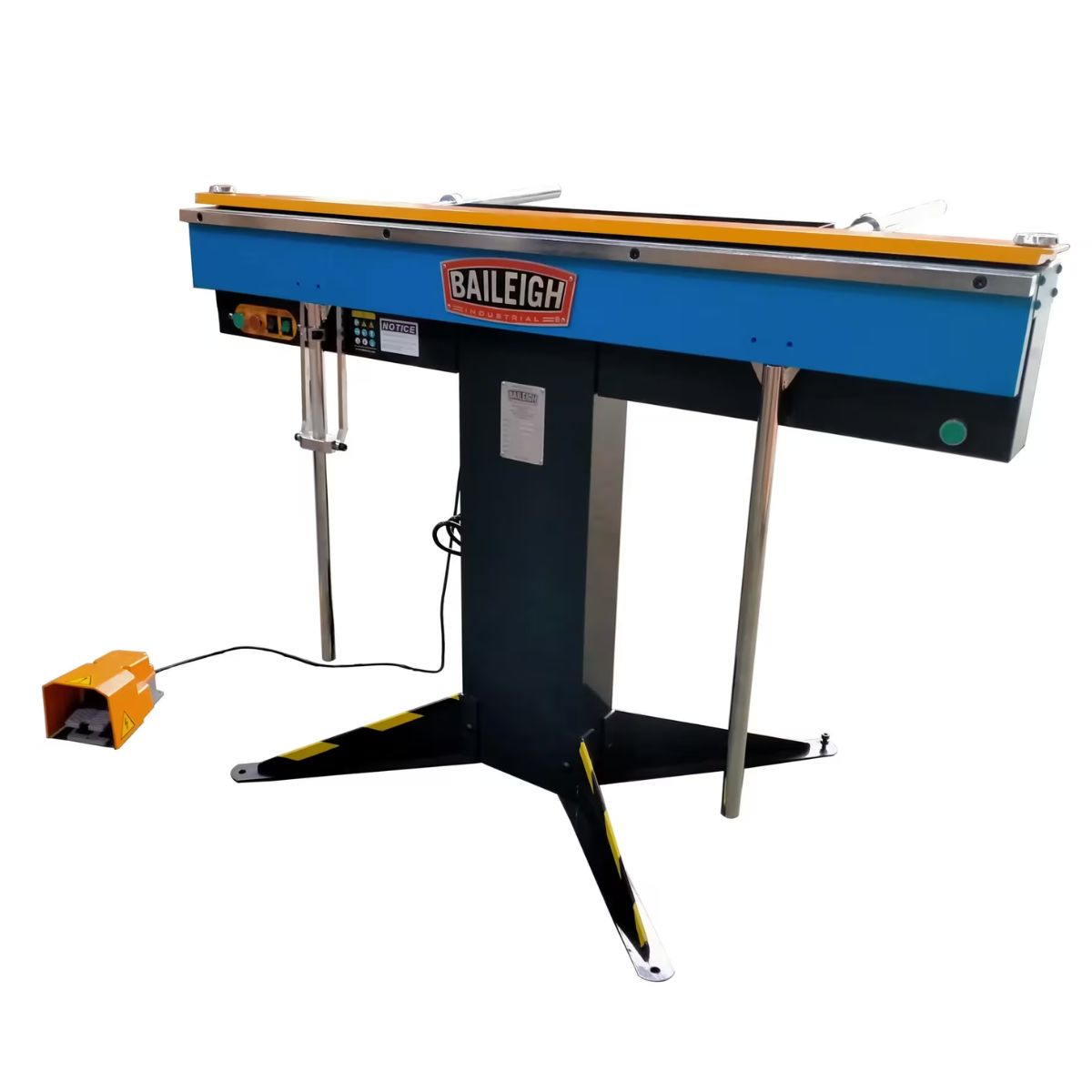

Meet the Baileigh BB-4816M-V2 48" Magnetic Sheet Metal Brake, a heavy-duty electromagnetic brake built for fabrication shops and HVAC work.
With a powerful magnetic clamping system, removable clamping bars, and foot pedal control, the brake holds material firmly and keeps your hands free during forming.
When the clamp holds steady and the bend comes out clean, you can move through your work with confidence.
Baileigh BB-4816M-V2 for Precision Sheet Metal Forming
Magnetic Clamping System Holds Material Across Full Width
The electromagnetic clamping system secures sheet metal firmly along the full 48 inch working width without mechanical clamps getting in the way. This gives you consistent hold across the entire bend, which matters most when working with long or irregular stock.
Open-Ended Design Enables Enclosed Shape Forming
The open-ended frame allows you to form enclosed boxes, deep pans, and complex shapes that a standard finger brake cannot produce. There is no fixed depth limit, so you can work with taller box sides without restriction.

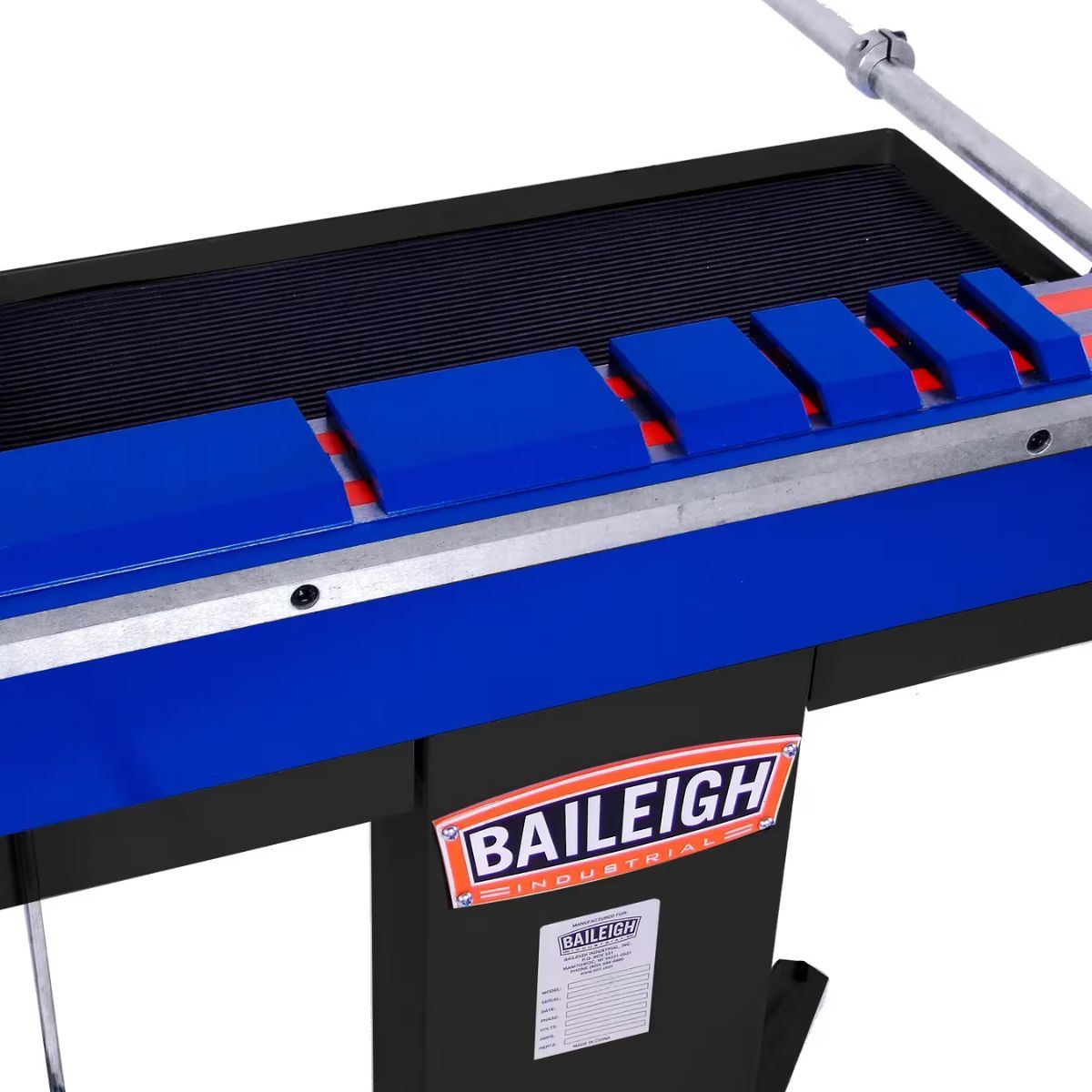

Removable Clamping Bars Support Segmented Bending
Multiple clamping bar sizes are included so you can set up straight bends or segment the clamping area for box and pan work. Swapping bars is straightforward, which keeps setup time short between jobs.
Foot Pedal Control Keeps Hands on the Work
A foot pedal activates the magnetic clamp so both hands stay on the workpiece during positioning. This improves control when placing material and reduces the chance of shifting before the bend is made.
What's Included
What's Included? Baileigh BB-4816M-V2 48" Magnetic Sheet Metal Brake
-
Baileigh BB-4816M-V2 48" Magnetic Sheet Metal Brake — Provides a 48 inch electromagnetic forming platform for sheet metal fabrication.
-
Removable Clamping Bars (Multiple Sizes) — Allow you to configure the brake for straight bends or segmented box and pan forming.
Specs
Baileigh BB-4816M-V2 48" Magnetic Sheet Metal Brake Specifications
- Model: BB-4816M-V2
- Stock Number: BA9-1231889
- Bending Capacity Length: 48 in
- Mild Steel Capacity: 16 gauge
- Maximum Bend Angle: 135°
- Maximum Box Depth: Unlimited
- Input Power: 220V Single Phase
- Net Weight: 387 lb
- Warranty: 1 Year
