Baileigh BB-4814 48" Manual Box & Pan Brake — 14 Gauge
Are you struggling to get clean, repeatable bends on sheet metal with a brake that loses its setup under load?
What if your shop had a manual box and pan brake that held its angle and stayed rigid from the first bend to the last.

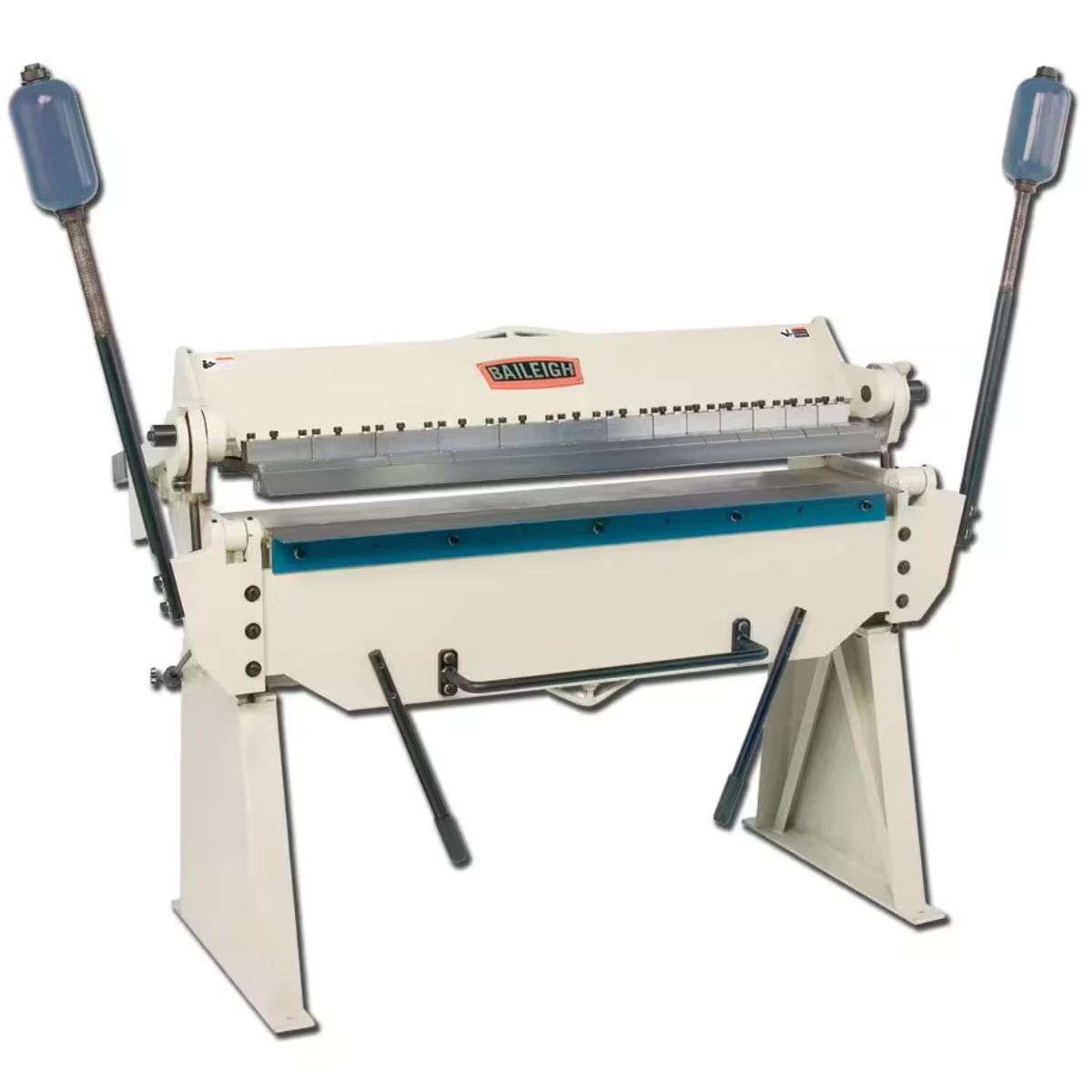

Meet the Baileigh BB-4814 48" Manual Box & Pan Brake, a fully welded manual brake built for accurate sheet metal forming work.
With 9 hardened fingers, dual counterweights, and a 48 inch working width rated to 14 gauge mild steel and 18 gauge stainless, the BB-4814 handles box, pan, and flat bend work across a range of material.
When the brake holds its setting through a full run of parts, you can form with confidence and keep the work moving.
Baileigh BB-4814 for Box, Pan, and Flat Sheet Metal Bending

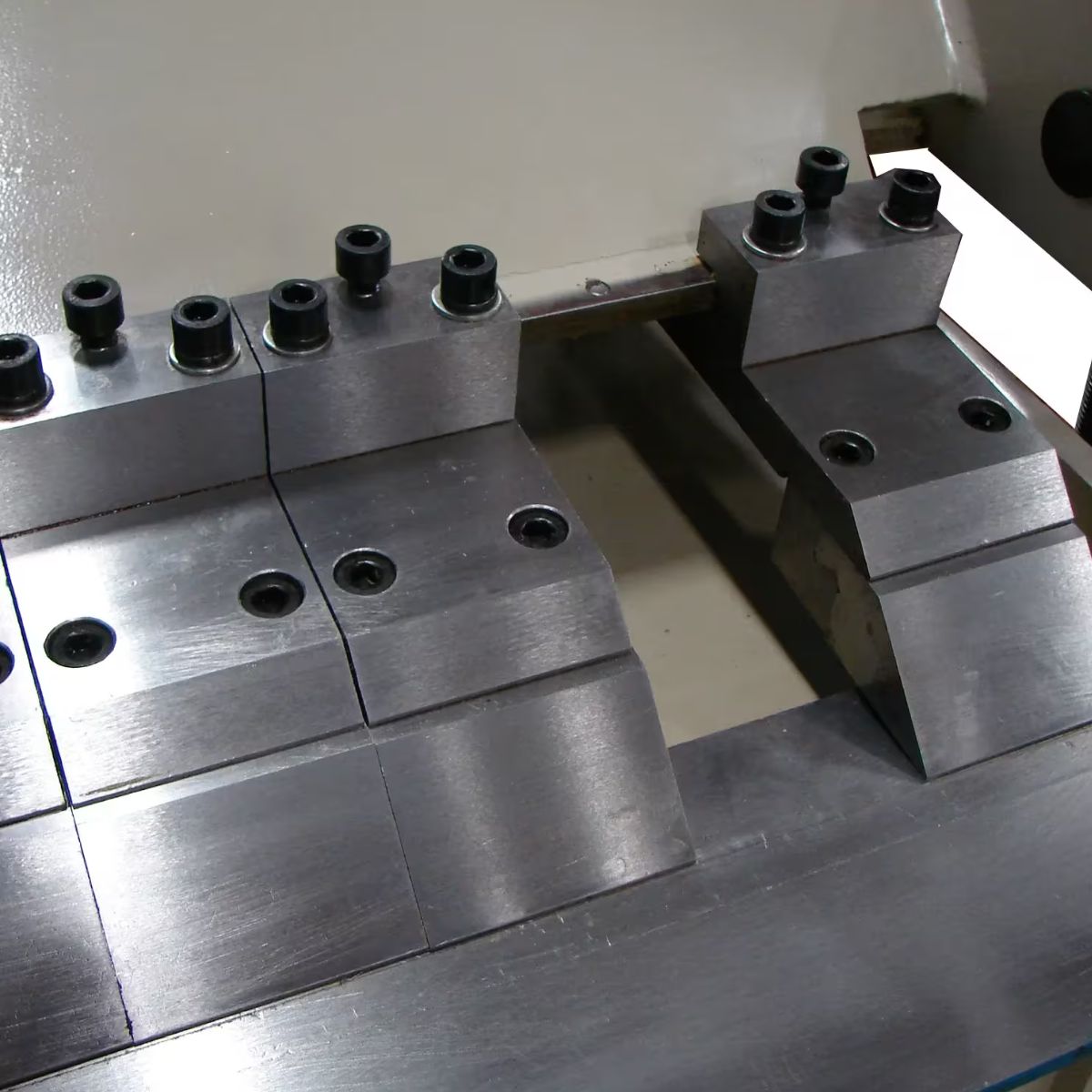

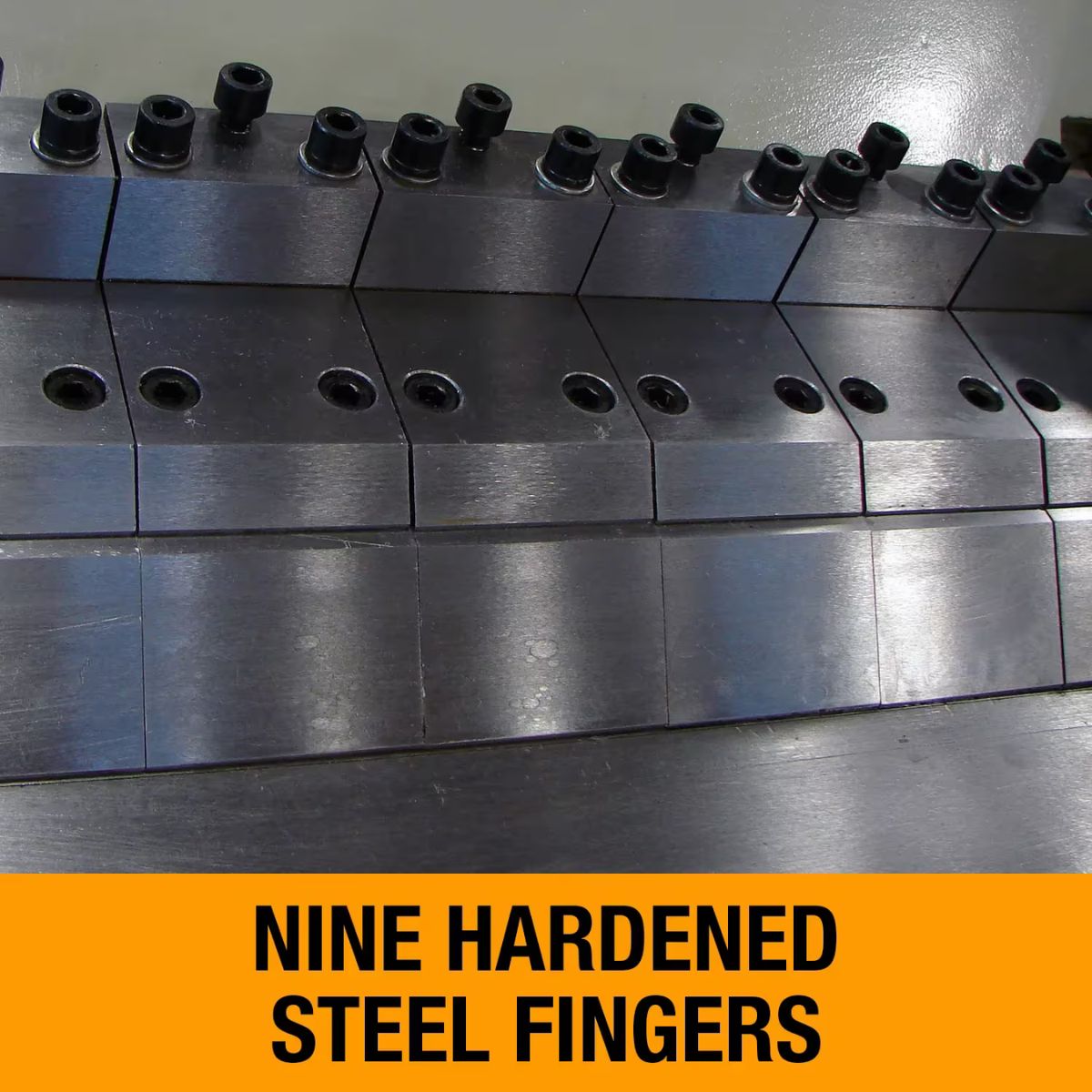

Hardened Fingers Enable Box and Pan Forming

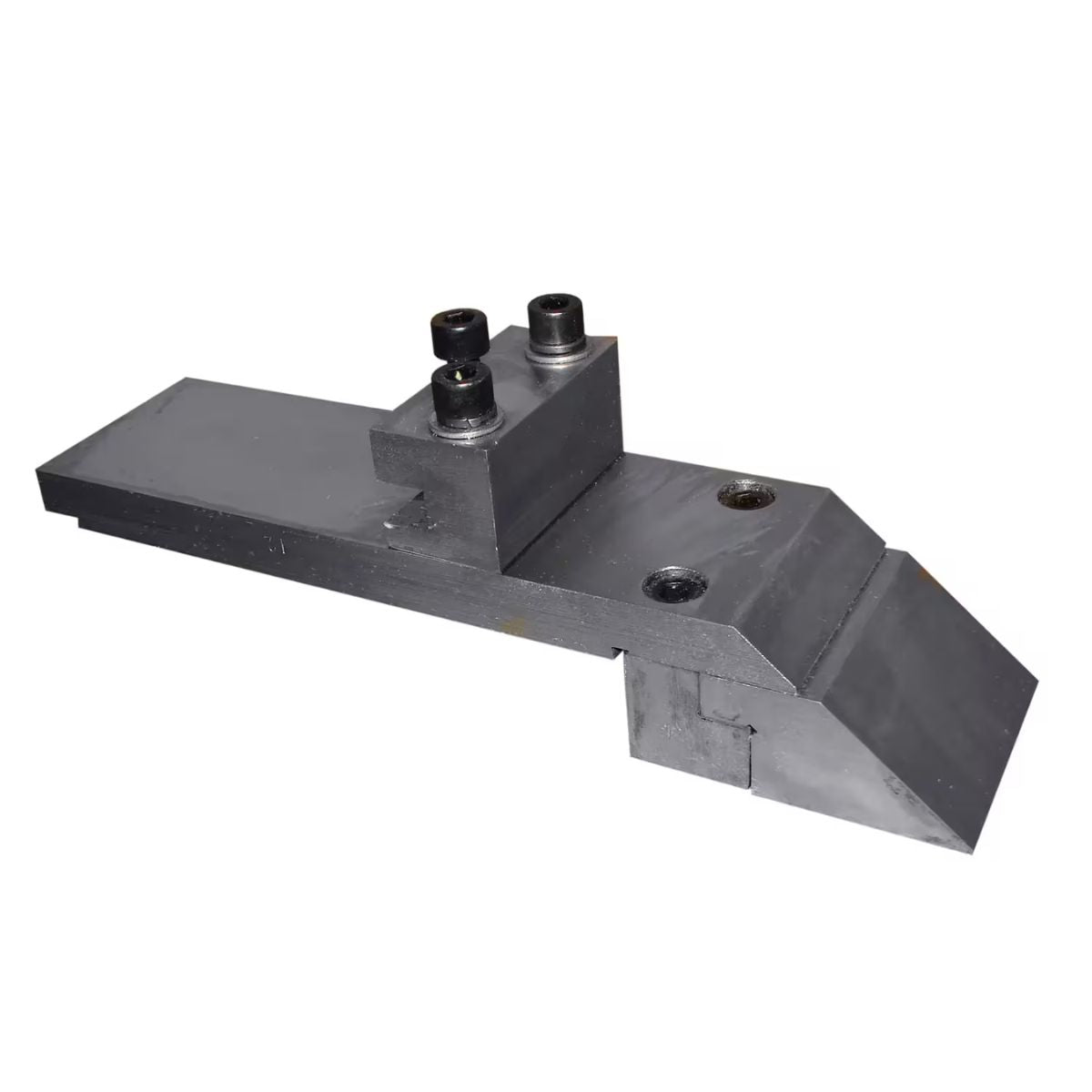

The brake includes 9 hardened fingers of varying sizes that can be arranged to clear the sides of a box or pan during forming. A maximum box depth of 4 inches gives you room to form enclosures and pans of practical shop dimensions without repositioning the part.

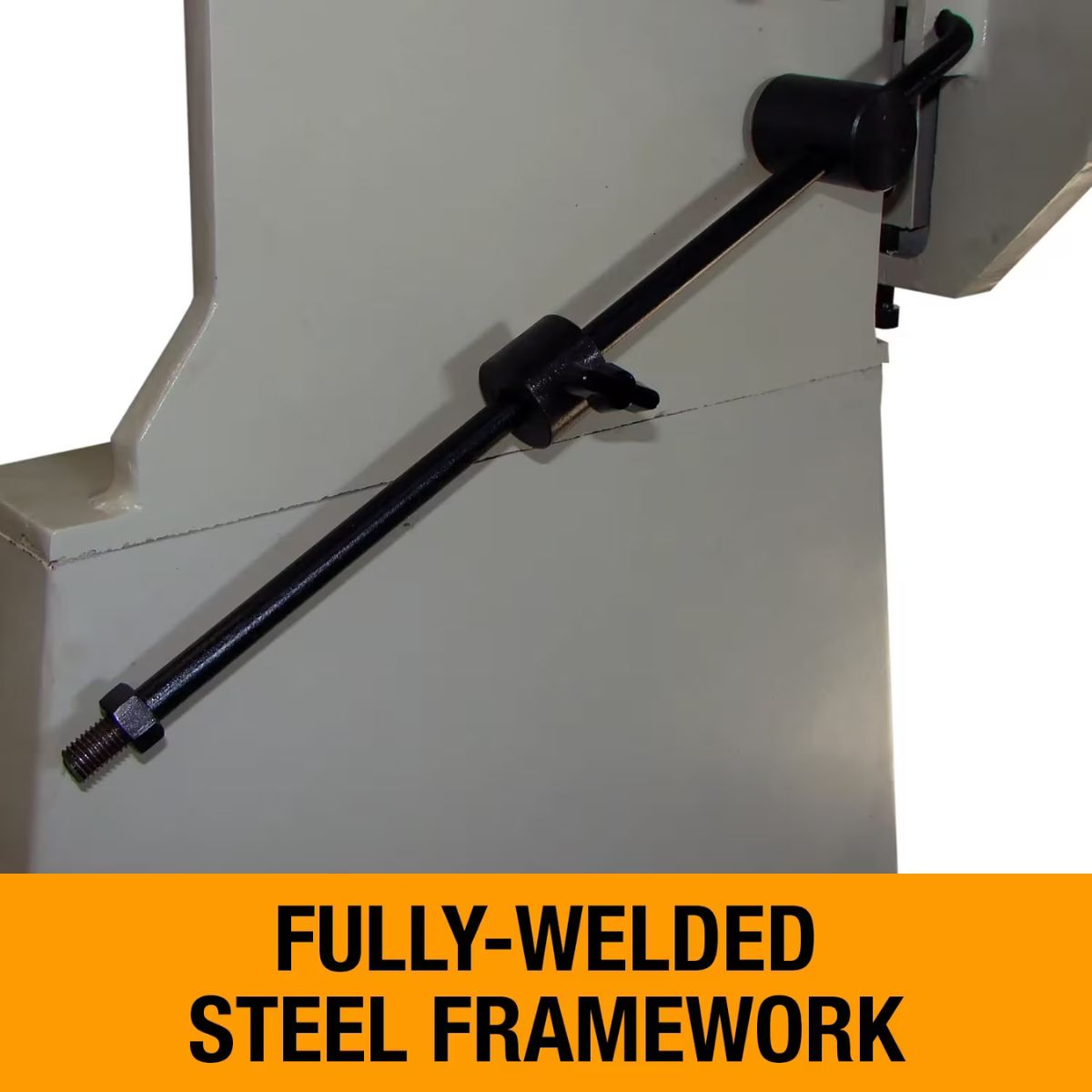

Fully Welded Steel Frame Holds Accuracy Under Load
The frame is fully welded steel construction that resists flex when forming at full 14 gauge capacity. A rigid frame keeps the bending beam in line so your angles stay consistent across a run of parts.

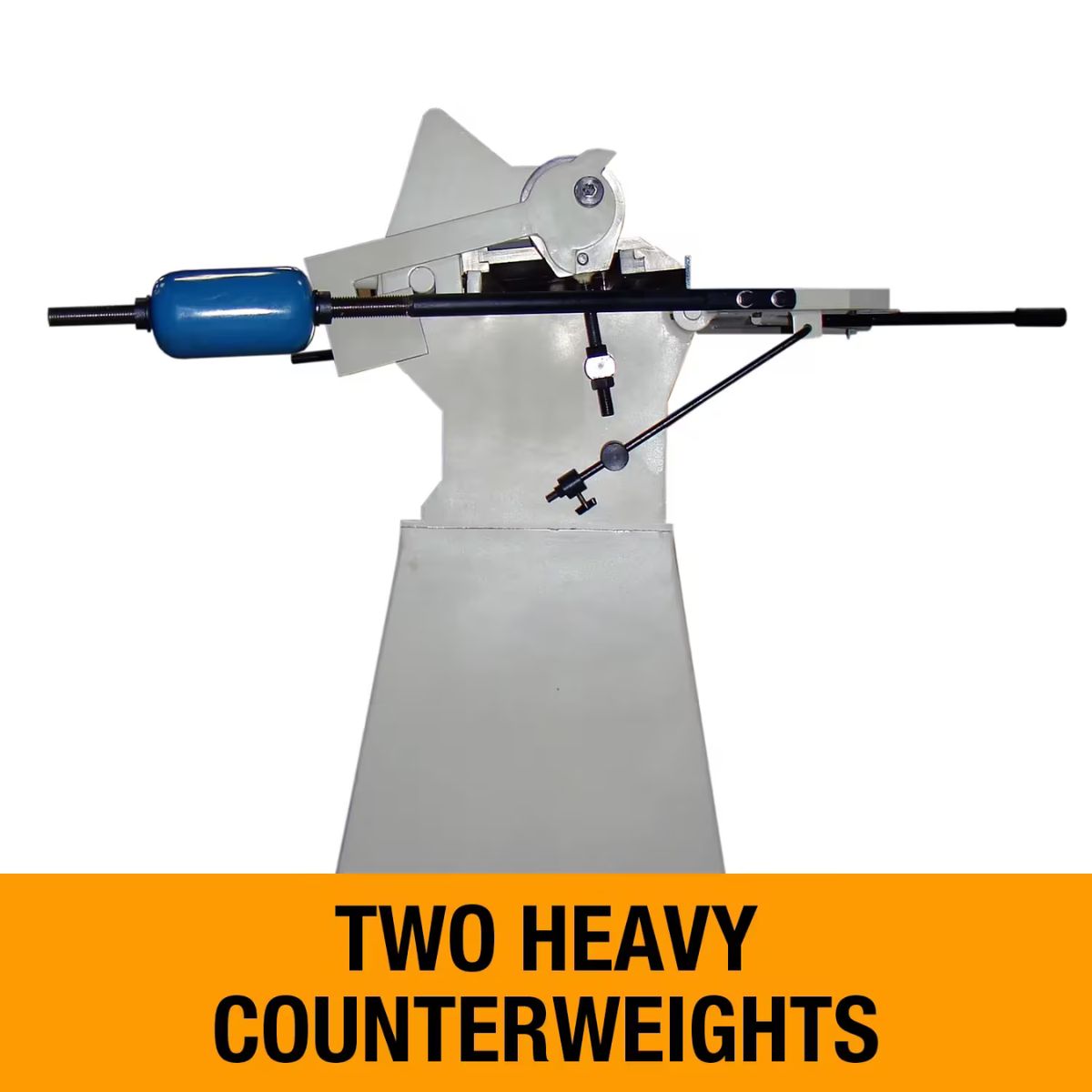

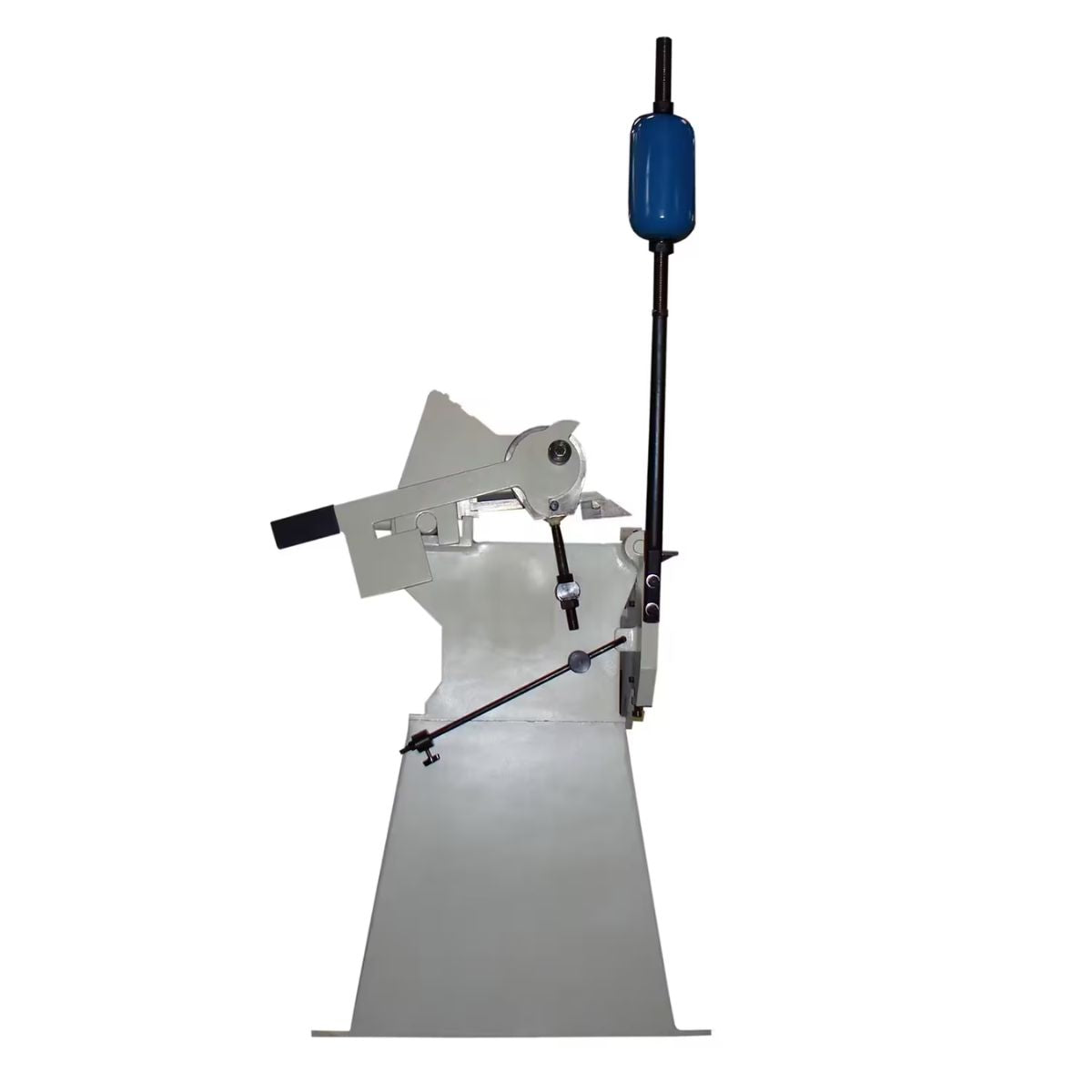

Dual Counterweights Reduce Operator Fatigue
Two heavy counterweights on the apron assist with lifting and lowering the bending beam during operation. That assist reduces the effort needed on repetitive bends and keeps the work pace steady over a longer session.
Adjustable Bend Angle Covers Most Forming Work
The bending beam adjusts from 0 to 135 degrees to cover flat bends, box corners, and most standard forming angles. Setting the angle once lets you repeat the same bend across multiple pieces without re-measuring between each one.
What's Included
What's Included? Baileigh BB-4814 48" Manual Box & Pan Brake — 14 Gauge
-
Baileigh BB-4814 48" Manual Box & Pan Brake — Provides the complete manual brake assembly with floor stand for box, pan, and flat sheet metal forming.
-
9 Hardened Fingers — Allow forming of boxes and pans across a range of dimensions up to 4 inches deep.
Specs
Baileigh BB-4814 48" Manual Box & Pan Brake — 14 Gauge Specifications
- Model: BB-4814
- Stock Number: BA9-1000417
- Bending Capacity Length: 48 in
- Mild Steel Capacity: 14 Gauge
- Stainless Steel Capacity: 18 Gauge
- Maximum Box Depth: 4 in
- Maximum Bend Angle: 135°
- Fingers Included: 9 Hardened Fingers
- Frame: Fully Welded Steel
- Input Power: Manual
- Net Weight: 1,250 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
