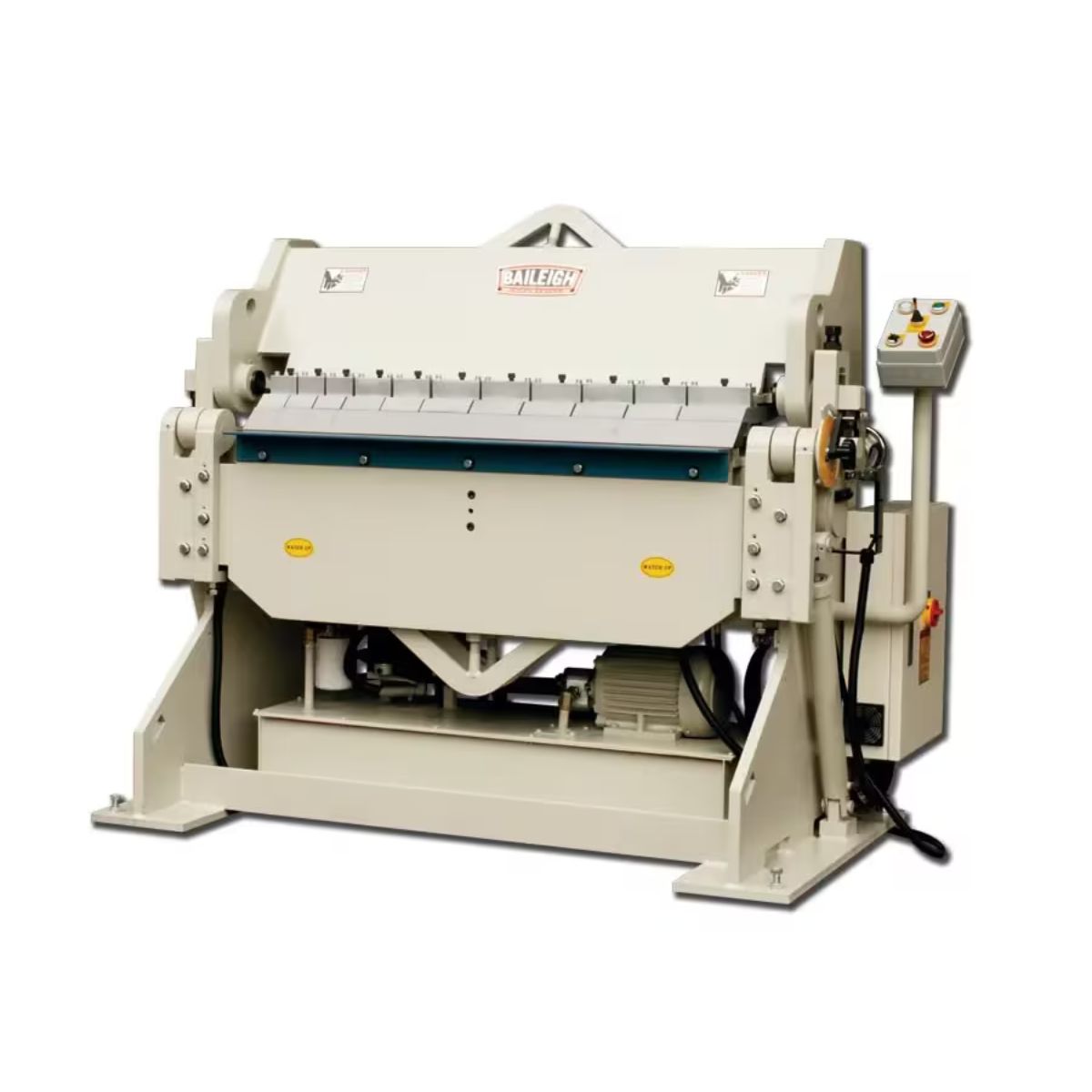

Baileigh BB-4810H 48" Hydraulic Box & Pan Brake — 10 Gauge
Are you bending heavy sheet metal on a brake that struggles to hold capacity across a full 4-foot width?
What if your shop had a hydraulic box and pan brake that held its bend angle consistently from one end to the other?
Meet the Baileigh BB-4810H 48" Hydraulic Box & Pan Brake — 10 Gauge, a heavy-duty hydraulic finger brake built for serious fabrication work.
With a 3 HP hydraulic motor, truss rod frame stabilization, and 11 removable fingers, the BB-4810H handles 10 gauge mild steel across a full 48-inch bending length.
When your brake holds true through every bend, you can move through box and pan work with confidence and consistency.
Baileigh BB-4810H for Heavy Sheet Metal Box and Pan Work
Hydraulic Clamping Beam Handles Full-Width 10 Gauge Capacity
A 3 HP hydraulic motor drives the clamping beam to lift and hold 10 gauge mild steel across the full 48-inch working width. Industrial-grade hydraulics give the brake consistent clamping force at full capacity without relying on manual effort.
Truss Rod Frame Reduces Deflection at Full Load
The fully welded steel frame uses truss rod stabilization to minimize deflection when bending at maximum capacity. A stiffer frame means bend angles stay consistent from the center of the sheet to the edges.
Eleven Removable Fingers Allow Box and Pan Forming
The brake includes 11 removable fingers ranging from 3 inches to 6 inches wide, giving you the ability to configure the working width for different box and pan sizes. Fingers can be arranged and removed to clear the sides of a box during forming.
Programmable Bend Auto-Stop Improves Repeatability
The programmable bend auto-stop lets you set a target bend angle and repeat it accurately across a production run. Manual and semi-automatic operation modes give you control over how the machine cycles through each bend.
What's Included
What's Included? Baileigh BB-4810H 48" Hydraulic Box & Pan Brake — 10 Gauge
-
Baileigh BB-4810H Hydraulic Box & Pan Brake - Provides a 48-inch hydraulic finger brake platform for heavy sheet metal forming.
-
11 Removable Fingers (3" to 6") - Allows you to configure the bending width for a range of box and pan sizes right out of the box.
Specs
Baileigh BB-4810H 48" Hydraulic Box & Pan Brake — 10 Gauge Specifications
- Model: BB-4810H
- Stock Number: BA9-1000403
- Bending Capacity Length: 48 in
- Mild Steel Capacity: 10 Gauge
- Maximum Bend Angle: 135°
- Maximum Box Depth: 6 in
- Fingers Included: 11 (3 x 3", 2 x 4", 5 x 5", 1 x 6")
- Motor: 3 HP
- Input Power: 220V Three Phase
- Net Weight: 3,850 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
