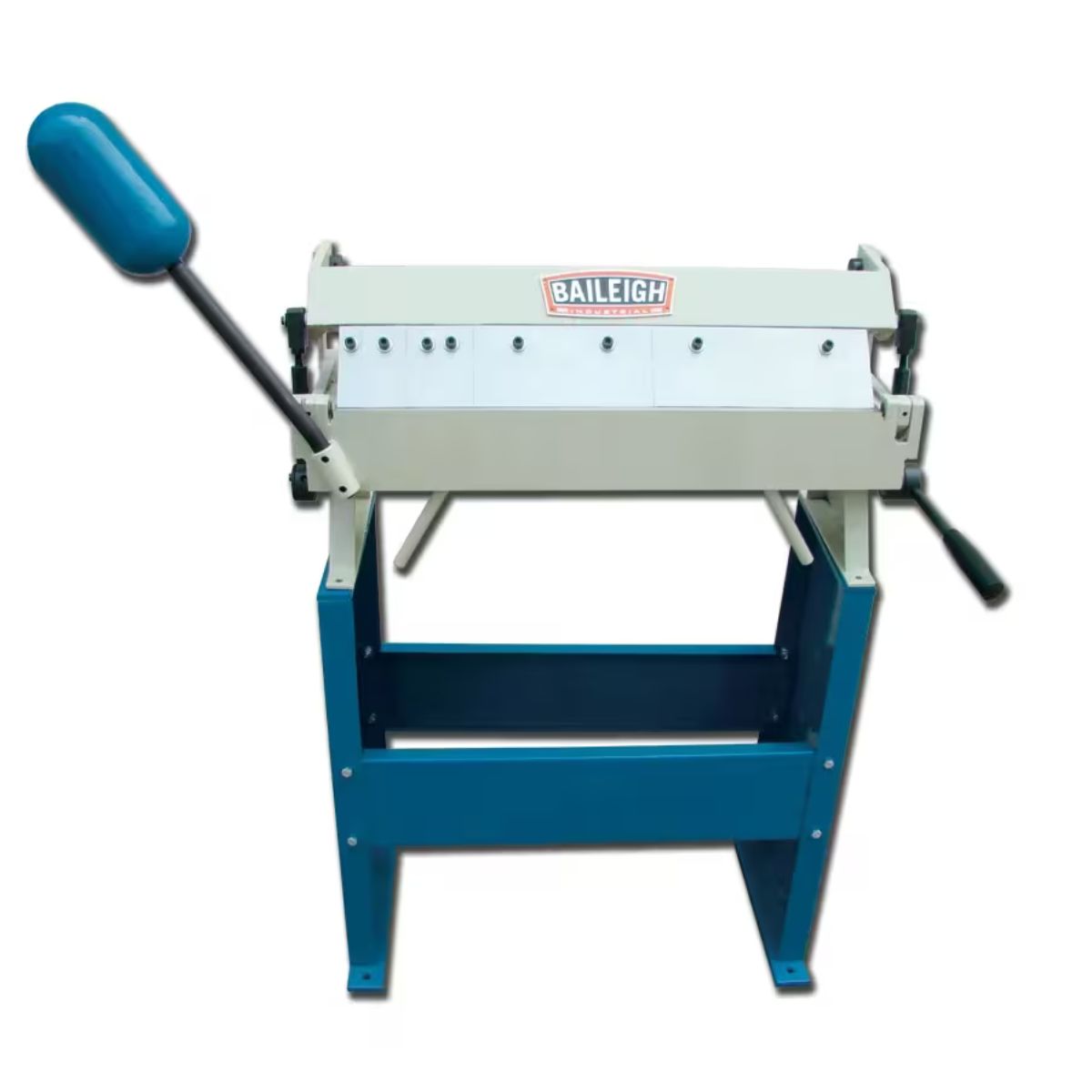

Baileigh BB-2416E 24" Manual Box & Pan Brake — 16 Gauge

Baileigh BB-2416E 24" Manual Box & Pan Brake — 16 Gauge

Baileigh BB-2416E for Light Sheet Metal Box and Pan Forming

Steel Plate Frame Resists Flex Under Load

The BB-2416E is built on a steel plate framework designed to hold its shape through repeated bending cycles. A rigid frame keeps the bending leaf aligned and helps maintain consistent bend angles across the full 24 inch working width.

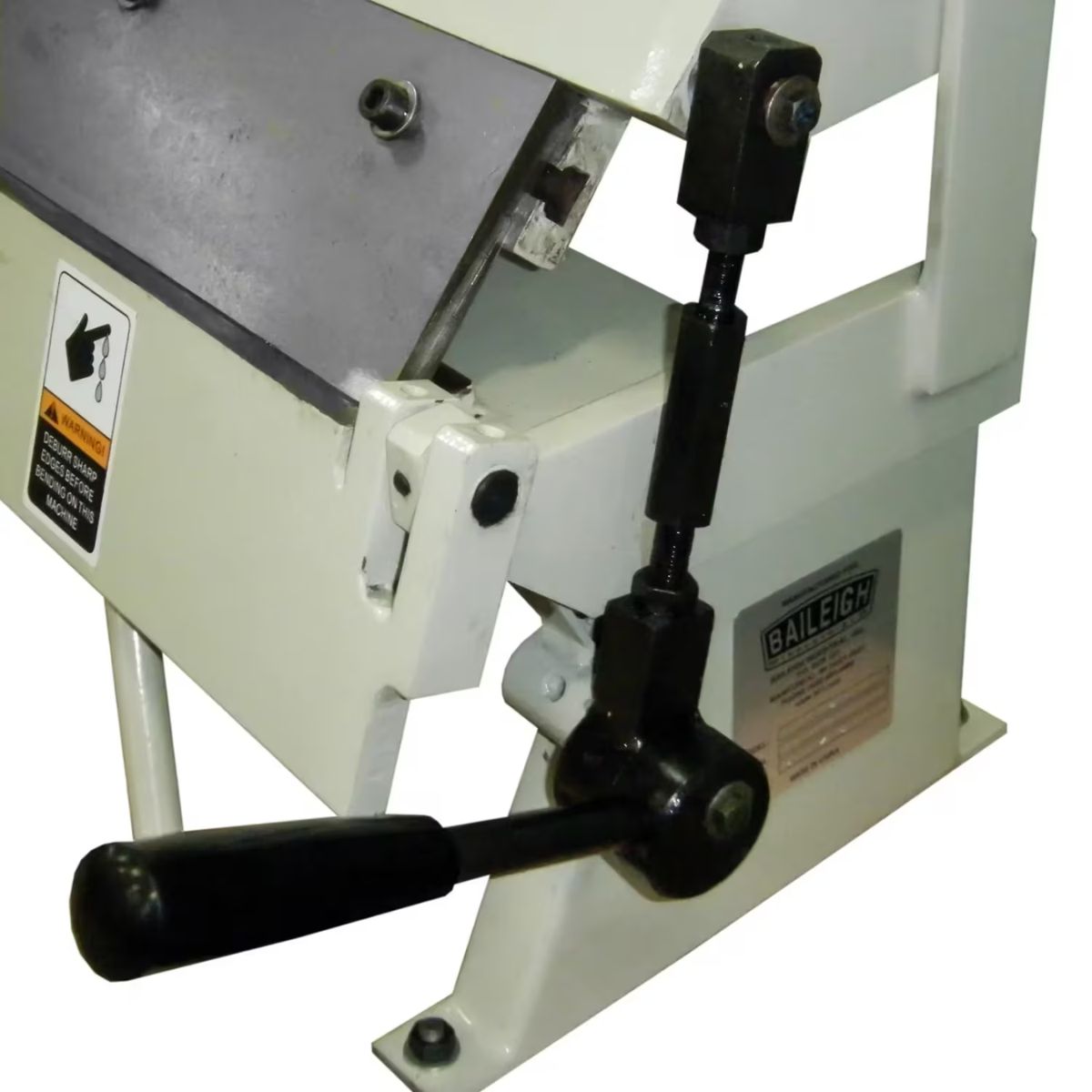

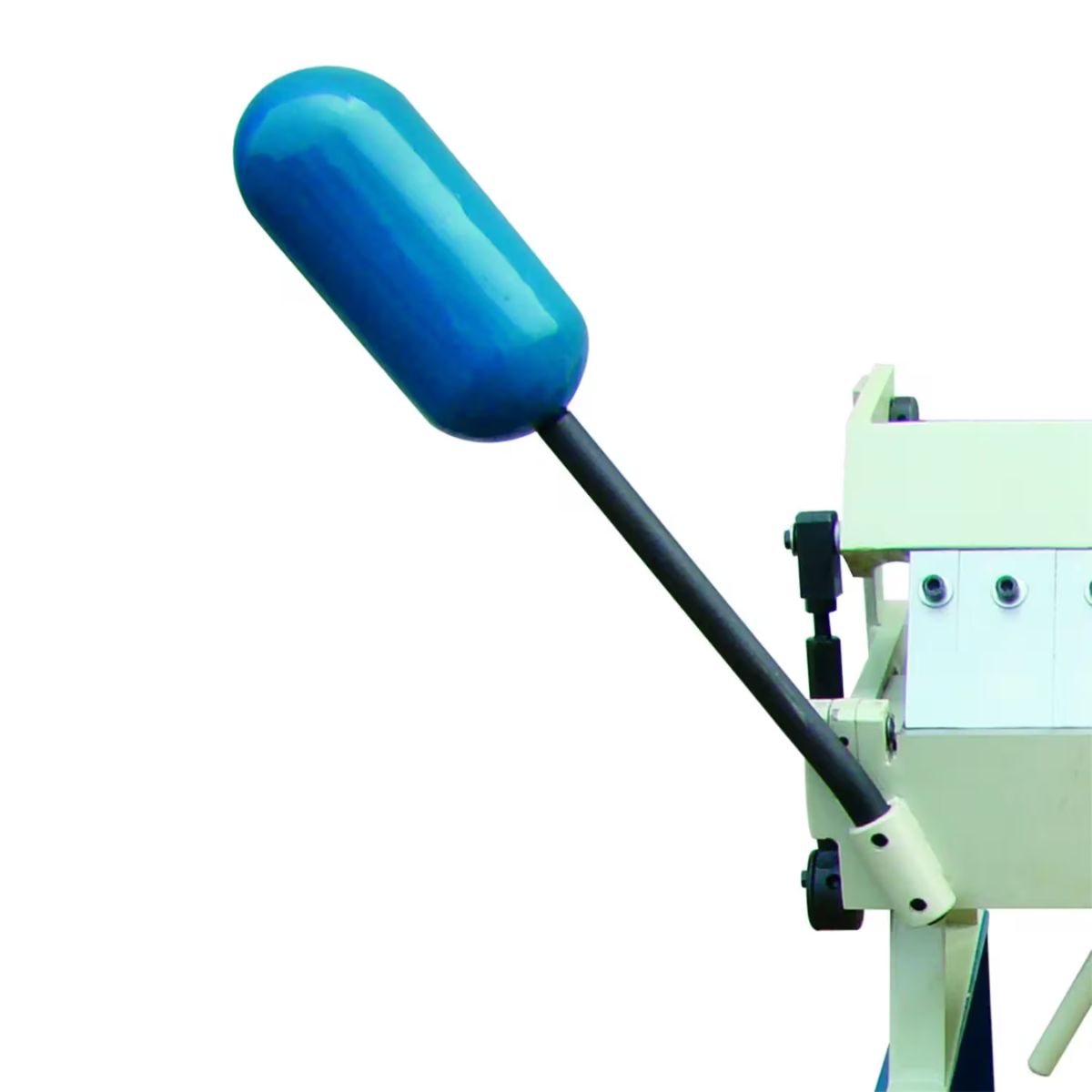

Counterweight Apron Lift Reduces Operator Effort

A counterweight assist on the bending leaf reduces the effort needed to lift the apron through each bend cycle. This makes repeated forming tasks easier to manage during a full work session.

Hardened Fingers Allow Box and Pan Forming

Five hardened fingers of varying lengths come included for forming box and pan shapes up to 1.18 inches deep. The finger arrangement lets you remove sections to clear formed sides when bending boxes or pans.

What's Included

What's Included? Baileigh BB-2416E 24" Manual Box & Pan Brake — 16 Gauge

• Baileigh BB-2416E 24" Manual Box & Pan Brake — Provides a 24 inch manual bending platform for light sheet metal fabrication.
• 5 Hardened Fingers (Varying Lengths) — Allows box and pan forming with adjustable finger configurations.
• Floor Stand — Provides stable footing during bending operations.

Specs

Baileigh BB-2416E 24" Manual Box & Pan Brake — 16 Gauge Specifications

• Model: BB-2416E
• Stock Number: BA9-1000383
• Bending Capacity Length: 24 in
• Mild Steel Capacity: 16 Gauge
• Maximum Bend Angle: 135°
• Maximum Box Depth: 1.18 in
• Fingers Included: 5 (varying lengths, hardened)
• Input Power: Manual
• Net Weight: 200 lb
• Warranty: 1 Year
