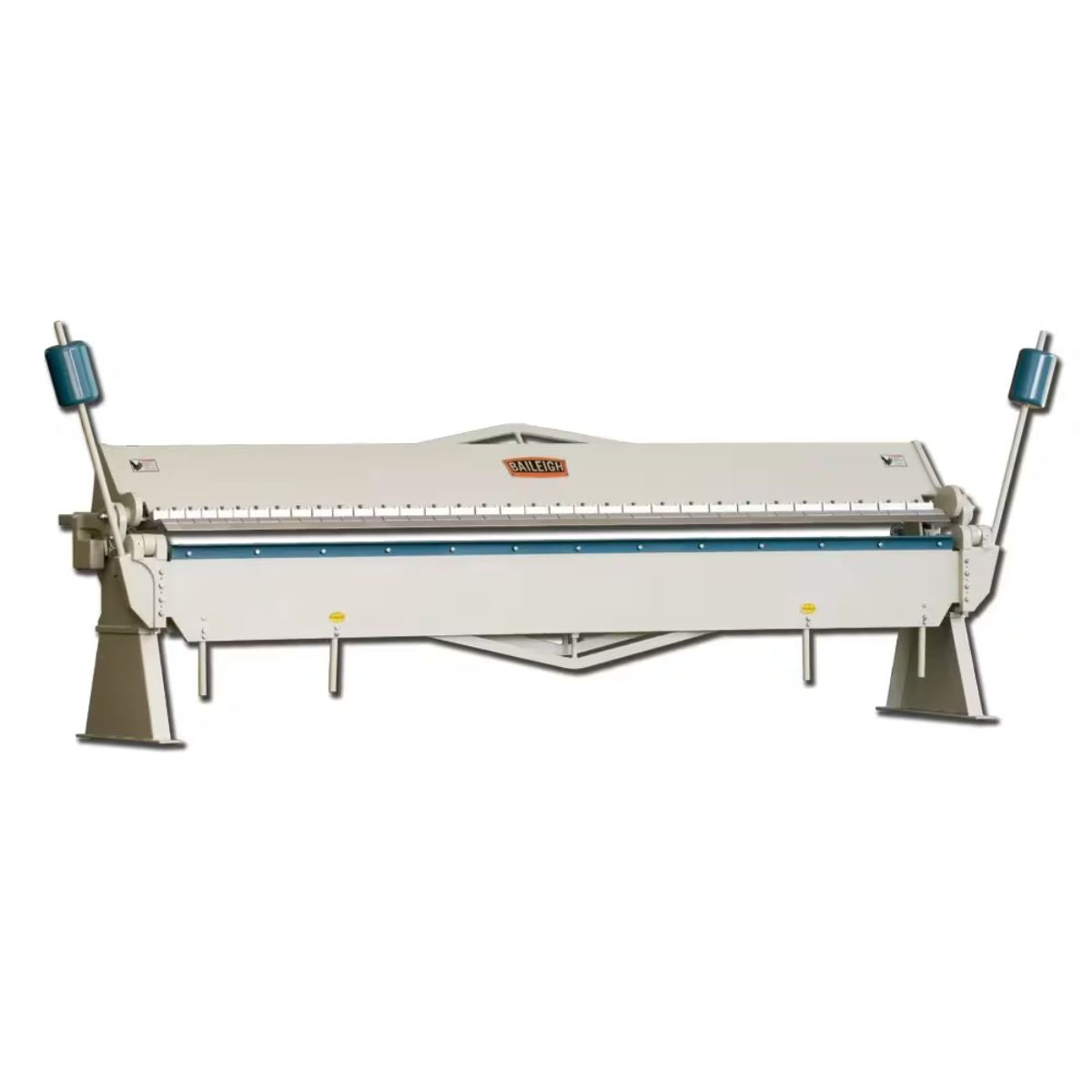

Baileigh BB-15722 157" Heavy Duty Manual Box & Pan Brake — 22 Gauge
Are you bending large sheet metal runs and finding that shorter brakes slow down the work?
What if your shop had a manual finger brake long enough to handle full-length panels without repositioning the sheet?
Meet the Baileigh BB-15722 157" Heavy Duty Manual Box & Pan Brake — 22 Gauge, a 13-foot manual finger brake built for fabrication shops, HVAC production, and industrial metalworking.
With a fully welded steel frame, 33 interchangeable fingers, and a stop rod system for repeatable bends, it holds its accuracy across the full working width.
When the brake holds true from end to end, you can move through long panel runs with confidence and consistent results.
Baileigh BB-15722 for Large-Format Sheet Metal Bending
Welded Steel Frame Holds Accuracy Across Full Length
The BB-15722 is built on a fully welded steel frame that resists deflection under load. This keeps bends accurate and consistent across the entire 157-inch working width, even during heavy production runs.
33 Interchangeable Fingers Allow Flexible Box and Pan Forming
The brake includes 33 removable fingers in four lengths — 3", 4", 5", and 6" — that can be configured for box, pan, and custom part forming up to 6 inches deep. Swapping finger arrangements lets you adapt quickly to different part shapes without changing machines.
Stop Rod System Supports Repeatable Production Bends
The integrated stop rod system lets you set a position and repeat it accurately across a full production run. This reduces setup time between parts and keeps results consistent from the first bend to the last.
Counterweights Reduce Operator Effort on Large Panels
Heavy counterweights are built into the brake to offset the weight of the bending leaf on large panel work. This reduces the physical effort needed to lift and form oversized sheet metal without sacrificing control.
What's Included
What's Included? Baileigh BB-15722 157" Heavy Duty Manual Box & Pan Brake — 22 Gauge
-
Baileigh BB-15722 157" Heavy Duty Manual Box & Pan Brake — 22 Gauge — Provides a 13-foot manual finger brake platform for large-format box, pan, and sheet metal forming work.
-
33 Interchangeable Fingers (3", 4", 5", 6") — Allows flexible configuration for forming boxes and pans up to 6 inches deep across a wide range of part sizes.
Specs
Baileigh BB-15722 157" Heavy Duty Manual Box & Pan Brake — 22 Gauge Specifications
- Model: BB-15722
- Stock Number: BA9-1000382
- Bending Capacity Length: 157 in (13 ft)
- Mild Steel Capacity: 22 Gauge
- Maximum Box Depth: 6 in
- Maximum Bend Angle: 135°
- Fingers Included: 33 (6 × 3", 6 × 4", 10 × 5", 11 × 6")
- Input Power: Manual
- Frame: Fully welded steel
- Net Weight: 6000 lb
- Warranty: 1 Year
