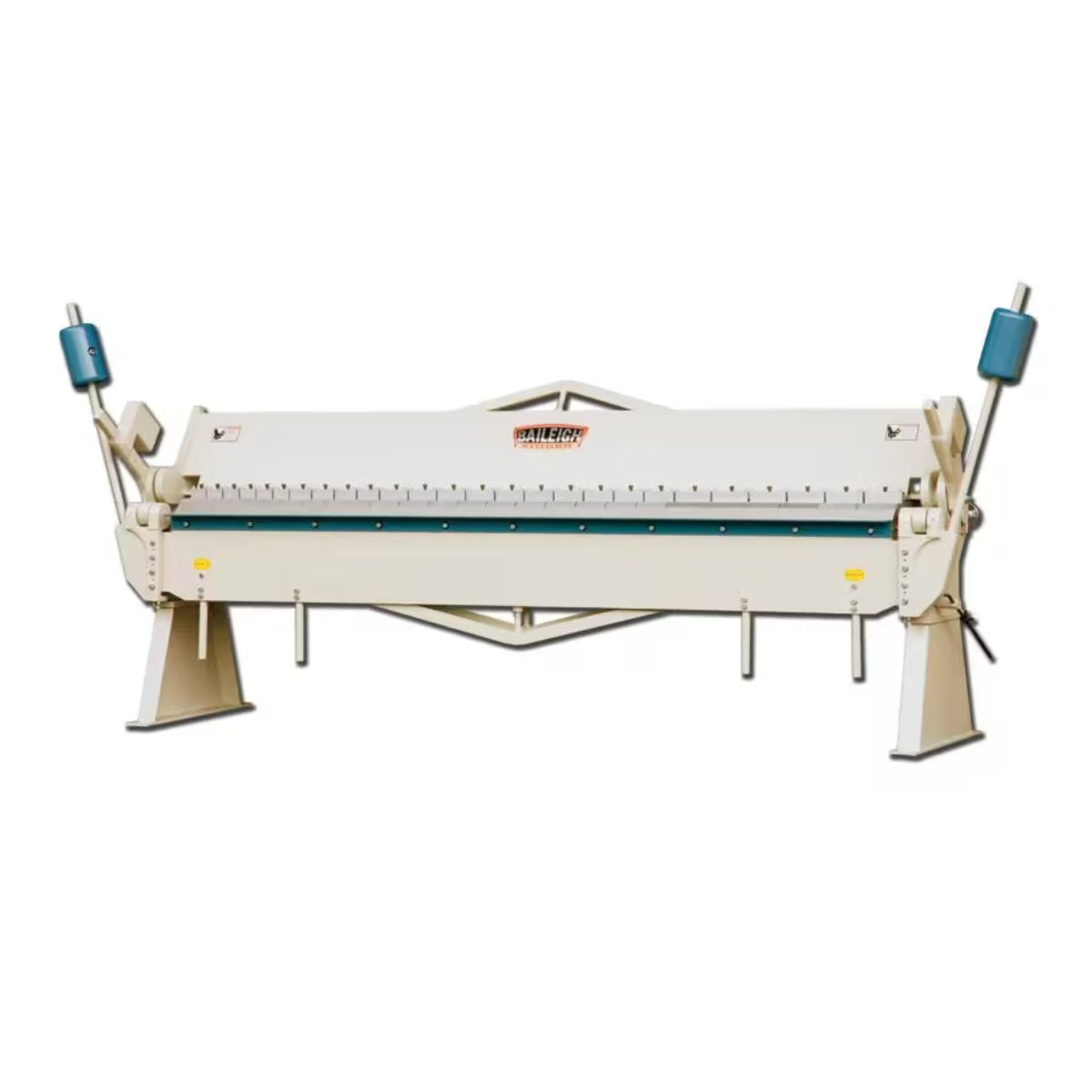

Baileigh BB-12016 120" Heavy Duty Manual Box & Pan Brake — 16 Gauge
Are you looking for a manual box and pan brake that handles large sheet metal panels without losing accuracy across the full bend length?
What if your shop had a 10-foot brake that holds alignment under load and gives you clean, consistent bends from end to end?
Meet the Baileigh BB-12016 120" Heavy Duty Manual Box & Pan Brake, a full-length hand-operated brake built for serious sheet metal work.
With 26 removable hardened fingers, precision bearing-mounted shafts, and dual counterweights, the BB-12016 handles boxes, pans, and channels across a wide range of sizes and gauges.
When the brake holds true through a full-length bend, you can work through a production run with steady, repeatable results.
Baileigh BB-12016 for Large-Scale Box and Pan Forming
Electro-Welded Steel Frame Maintains Alignment Under Load
The BB-12016 is built on an electro-welded steel frame with support rods that hold the machine in alignment through the full bend length. A rigid frame is especially important on a 10-foot brake, where flex in the structure can cause uneven bends across wide panels.
Precision Bearings Reduce Effort and Improve Consistency
The bending leaf shafts ride in lube-for-life precision bearings for smooth, consistent operation across the full working width. Dual large counterweights offset the weight of the bending leaf, reducing operator fatigue over a full day of forming work.
26 Removable Fingers Allow a Wide Range of Box Shapes
The brake includes 26 individual hardened fingers in four lengths — six 3-inch, four 4-inch, ten 5-inch, and six 6-inch — that can be arranged to form boxes, pans, and channel shapes. Maximum box depth is 6 inches, and the brake bends up to 135 degrees for precise formed profiles.
What's Included
What's Included? Baileigh BB-12016 120" Heavy Duty Manual Box & Pan Brake — 16 Gauge
-
Baileigh BB-12016 120" Heavy Duty Manual Box & Pan Brake — 16 Gauge — Provides a full 10-foot manual bending platform for box, pan, and channel forming in sheet metal up to 16 gauge.
-
26 Hardened Fingers (3", 4", 5", 6") — Allow you to configure the brake for a wide range of box sizes and pan shapes right out of the box.
Specs
Baileigh BB-12016 120" Heavy Duty Manual Box & Pan Brake — 16 Gauge Specifications
- Stock Number: BA9-1000380
- Model Number: BB-12016
- Bending Capacity Length: 120 in (10 ft)
- Mild Steel Capacity: 16 gauge
- Maximum Bend Angle: 135°
- Maximum Box Depth: 6 in
- Fingers Included: 26 (six 3 in, four 4 in, ten 5 in, six 6 in)
- Input Power: Manual (no electrical power required)
- Net Weight: 3,500 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
