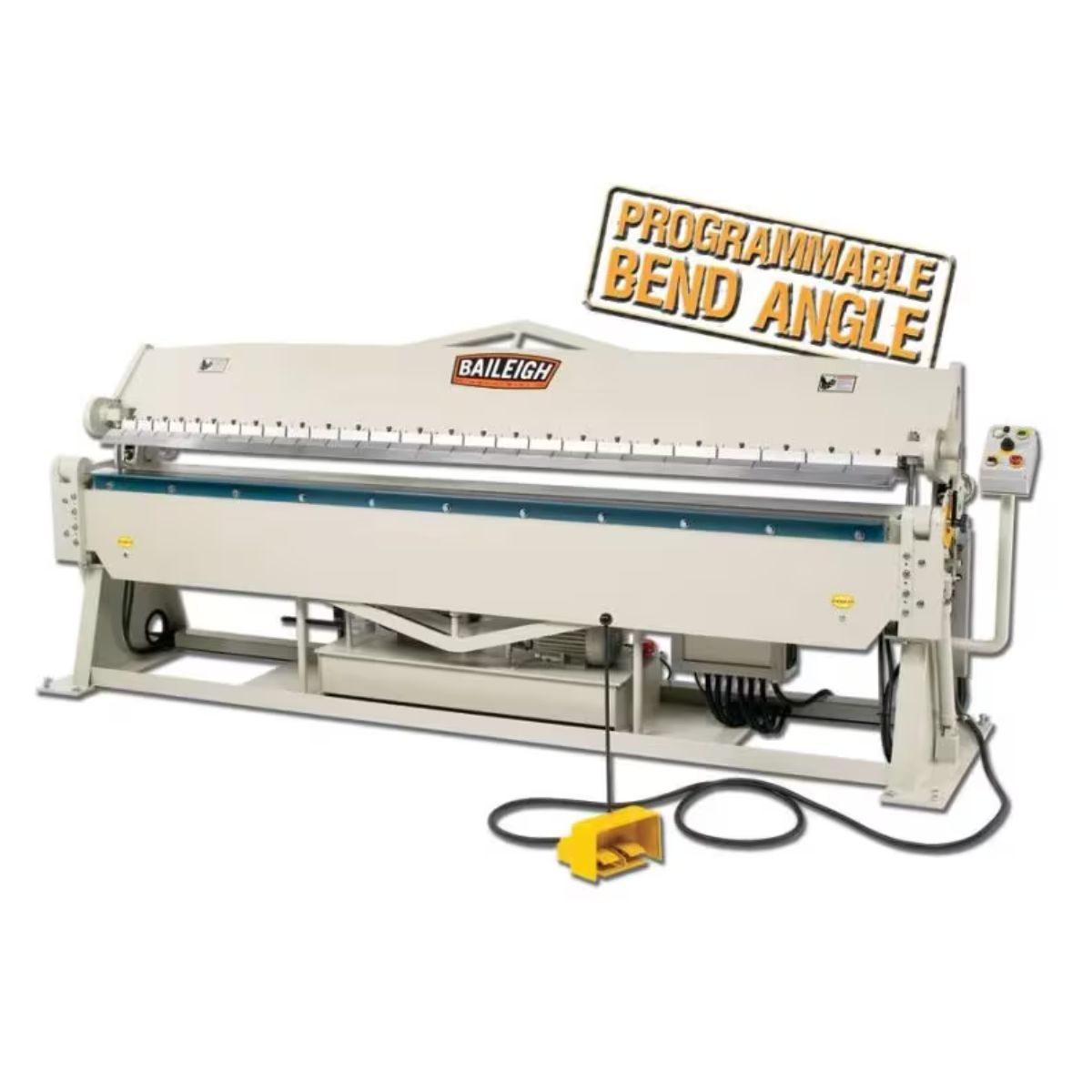

Baileigh BB-12014H 120" Hydraulic Box & Pan Brake — 14 Gauge
Are you tired of inconsistent bends and operator fatigue when forming long sheet metal panels?
What if your shop had a 10-foot hydraulic brake that held accuracy from one end of the sheet to the other?
Meet the Baileigh BB-12014H 120" Hydraulic Box & Pan Brake, a heavy-duty forming machine built for fabrication shops that work with full-size sheet metal.
With a fully welded steel frame, hydraulic clamping, 26 hardened fingers, and a programmable auto-stop, the BB-12014H handles boxes, pans, channels, and panels up to 14 gauge mild steel.
When the machine holds its angle across a 10-foot bend, you can move through a production run with confidence.

Baileigh BB-12014H for Full-Length Sheet Metal Forming
Welded Steel Frame Resists Deflection Across Full Width
The BB-12014H is built on a fully welded heavy steel frame with support rods that minimize flex during bending. This keeps the brake accurate from one end of the 120-inch working width to the other, even under load.
Hydraulic Clamping Delivers Consistent Control
The 3 HP hydraulic power unit drives smooth, controlled clamping and lifting across the full length of the machine. Hydraulic operation reduces the physical effort of manual brakes and keeps clamping pressure consistent from bend to bend.
26 Hardened Fingers Support a Wide Range of Forms
The brake ships with 26 hardened fingers in four sizes — 3", 4", 5", and 6" — that can be arranged to form boxes, pans, and channels up to 6 inches deep. The varied finger set lets you configure the brake for different part shapes without additional tooling.
Programmable Auto-Stop Enables Repeatable Bend Angles
The auto-stop lets you set a precise bend angle up to 135° and repeat it across a production run. Control panel and foot pedal operation give you flexibility depending on how you are working at the machine.
What's Included
What's Included? Baileigh BB-12014H 120" Hydraulic Box & Pan Brake — 14 Gauge
- Baileigh BB-12014H 120" Hydraulic Box & Pan Brake — Provides a 10-foot hydraulic forming platform for sheet metal boxes, pans, and panels.
- 26 Hardened Fingers (6 × 3", 4 × 4", 10 × 5", 6 × 6") — Allows you to configure the brake for a wide range of box and pan shapes out of the box.
Specs
Baileigh BB-12014H 120" Hydraulic Box & Pan Brake — 14 Gauge Specifications
- Model: BB-12014H
- Stock Number: BA9-1021000
- Bending Length: 120 in (10 ft)
- Mild Steel Capacity: 14 gauge
- Stainless Steel Capacity: 18 gauge
- Maximum Bend Angle: 135°
- Maximum Box Depth: 6 in
- Motor: 3 HP
- Input Power: 220V, 3-Phase
- Fingers Included: 26 hardened fingers (6 × 3 in, 4 × 4 in, 10 × 5 in, 6 × 6 in)
- Net Weight: 5,830 lb
- Warranty: 1 Year Parts
