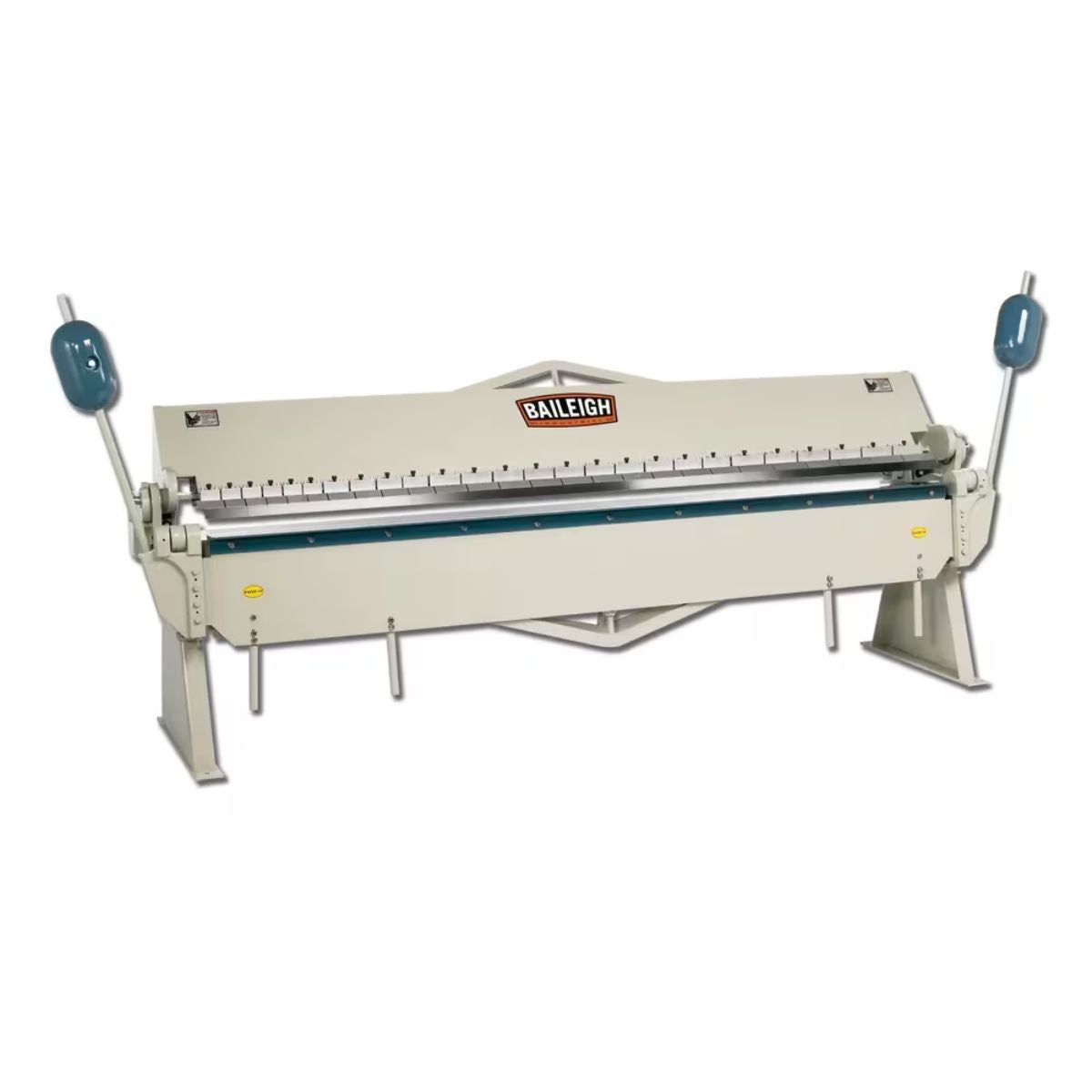

Baileigh BB-12014 120" Heavy Duty Manual Box & Pan Brake — 14 Gauge
Are you forming boxes, pans, and channels from full sheets of mild steel and need a brake that holds its setup across the full length?
What if your shop had a 10-foot manual brake that bends consistently from one end to the other without flex or drift.
Meet the Baileigh BB-12014 120" Heavy Duty Manual Box & Pan Brake, a full-length all-steel brake built for demanding sheet metal work.
With 26 hardened removable fingers, a 135-degree bend range, and precision-lube apron bearings, the brake handles complex box and pan forming with repeatable results.
When your brake holds true across a full 10-foot sheet, you can work through a production run without stopping to check your bends.
Baileigh BB-12014 for Full-Length Sheet Metal Forming
All-Steel Electro-Welded Frame Holds Rigidity Under Load
The BB-12014 is built on an electro-welded all-steel frame designed to resist flex during heavy bending work. A rigid frame keeps the bend line consistent across the full 120-inch working width, which matters most when forming long channel and angle pieces.
26 Hardened Removable Fingers Allow Complex Box and Pan Work
The brake ships with 26 hardened fingers in four sizes — 3", 4", 5", and 6" — that can be arranged or removed for box and pan forming up to 6 inches deep. Being able to configure the finger layout lets you form closed shapes and inside bends that a standard straight brake cannot handle.
Precision-Lube Apron Bearings Reduce Fatigue on Long Runs
Apron shafts run on precision-lube bearings that smooth out the motion through each bend cycle. Counterweights on the apron help balance the lifting load, which reduces the effort required to hold consistent bend angles over a full shift of production work.
135-Degree Bend Range Covers Most Fabrication Needs
The adjustable bend angle runs from 0 to 135 degrees, covering standard 90-degree box forming as well as acute and obtuse bends in a single setup. That range handles most HVAC, enclosure, and structural forming work without changing machines.
What's Included
What's Included? Baileigh BB-12014 120" Heavy Duty Manual Box & Pan Brake — 14 Gauge
-
Baileigh BB-12014 Box & Pan Brake — Provides a 120-inch manual braking platform for box, pan, channel, and angle forming.
-
26 Hardened Removable Fingers — Includes 6 fingers at 3", 4 at 4", 10 at 5", and 6 at 6" for configurable box and pan depth setups.
Specs
Baileigh BB-12014 120" Heavy Duty Manual Box & Pan Brake — 14 Gauge Specifications
- Model: BB-12014
- SKU: BA9-1000361
- Bending Length: 120 in (10 ft)
- Mild Steel Capacity: 14 gauge
- Maximum Box Depth: 6 in
- Maximum Bend Angle: 135°
- Fingers Included: 26 (6 at 3", 4 at 4", 10 at 5", 6 at 6")
- Input Power: Manual
- Frame Construction: Electro-welded all-steel
- Net Weight: 3,950 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
