Baileigh BB-12010H-NC 120" Hydraulic Box & Pan Brake — 10 Gauge
Are you running large sheet metal jobs where bend accuracy and repeatability are non-negotiable?
What if your shop had a 10-foot hydraulic brake that could store bend sequences and repeat them across a full production run without resetting by hand?

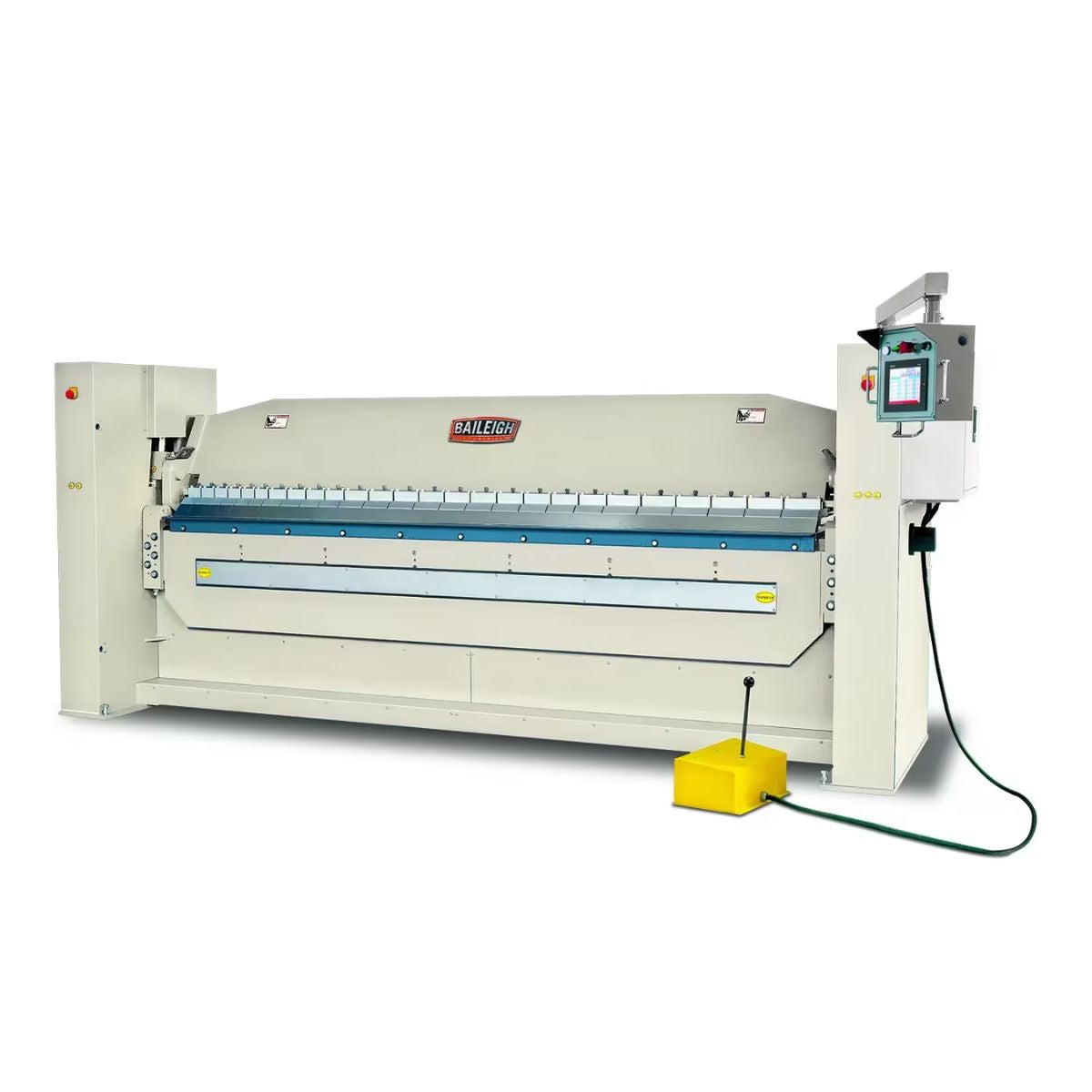

Meet the Baileigh BB-12010H-NC 120" Hydraulic Box & Pan Brake, a numerically controlled hydraulic brake built for serious fabrication work.
With a welded heavy-steel frame, industrial hydraulic clamping, and NC programmable controls, this brake handles heavy panels and complex shapes with consistent results.
When the machine holds your settings from part to part, you can focus on the work instead of the setup.
Baileigh BB-12010H-NC for Heavy Sheet Metal Forming
Welded Steel Frame Resists Deflection Under Load
The frame is built from electro-welded heavy steel with truss rods to maintain rigidity across the full 120-inch working width. A frame that holds its shape under load means your bends stay consistent from the first part to the last.
Industrial Hydraulic System Delivers Smooth Clamping Force
The hydraulic clamping and bending system applies even pressure across the full working width for consistent results on heavy material. Smooth hydraulic action reduces operator fatigue during long production runs.

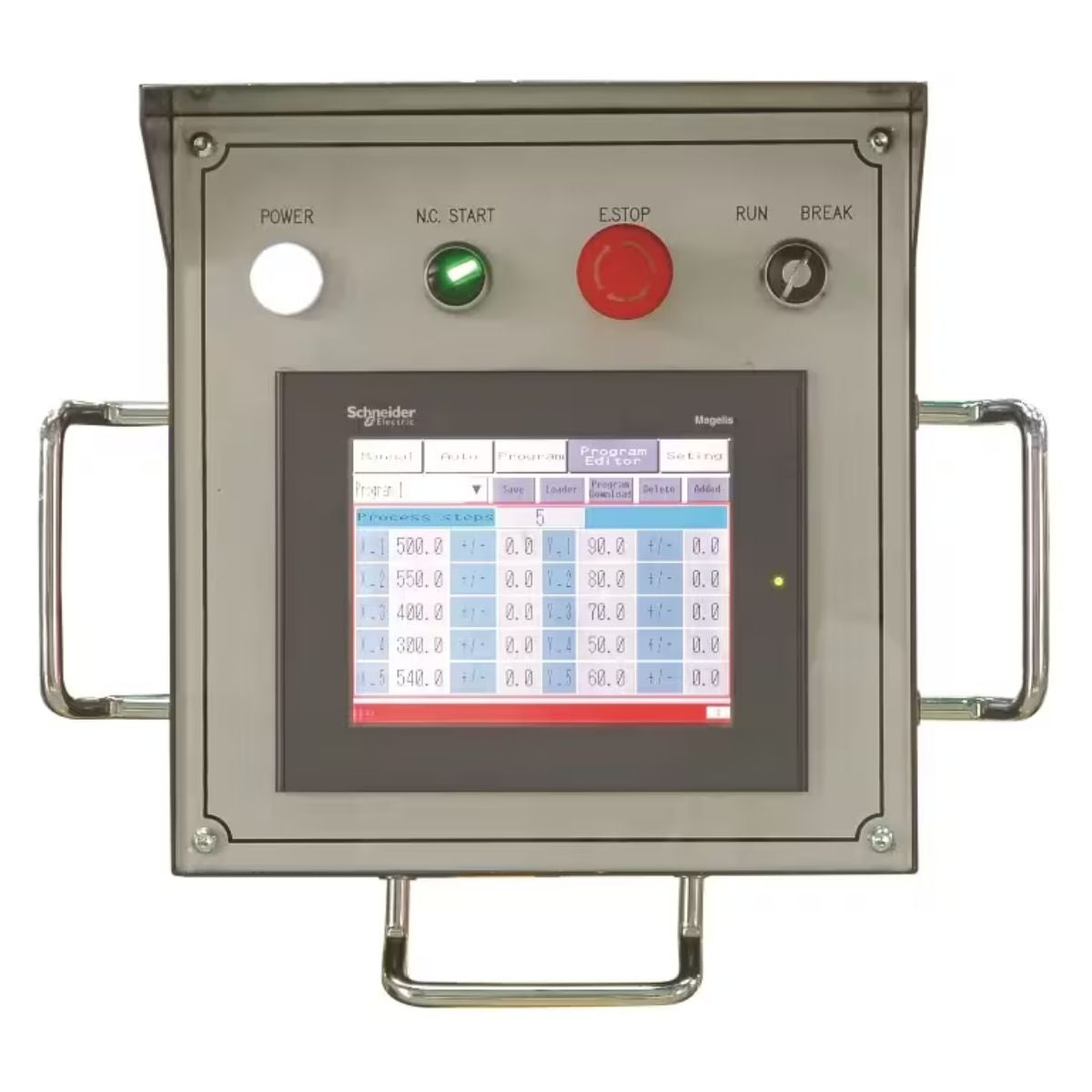

NC Programmable Controls Store Bend Sequences
The numerical control lets you program bend angles and sequences and recall them for repeat production runs. Foot pedal and console toggle control options with programmable auto-stop give operators flexible control at the machine.
Adjustable Hardened Fingers Form Complex Box and Pan Shapes
The brake includes 26 hardened fingers in assorted sizes from 3 to 6 inches, allowing you to set up box, pan, channel, and custom profiles up to 6 inches deep. Removable and repositionable fingers adapt to a wide range of part geometries without special tooling.
What's Included
What's Included? Baileigh BB-12010H-NC 120" Hydraulic Box & Pan Brake — 10 Gauge
-
Baileigh BB-12010H-NC 120" Hydraulic Box & Pan Brake — Provides a full 120-inch hydraulic forming platform for heavy sheet metal production work.
-
26 Hardened Fingers (3", 4", 5", 6" sizes) — Allows you to set up box, pan, and channel shapes up to 6 inches deep right out of the box.
Specs
Baileigh BB-12010H-NC 120" Hydraulic Box & Pan Brake — 10 Gauge Specifications
- Model: BB-12010H-NC
- Stock Number: BA9-1020999
- Bending Capacity Length: 120 in
- Mild Steel Capacity: 10 gauge
- Stainless Steel Capacity: 12 gauge
- Maximum Bend Angle: 135°
- Maximum Box Depth: 6 in
- Fingers Included: 26 (6 of 3", 4 of 4", 10 of 5", 6 of 6")
- Motor: 5 HP
- Input Power: 220V Three Phase
- Net Weight: 10,550 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
