Baileigh BB-12010H 120" Hydraulic Box & Pan Brake — 10 Gauge
Are you forming large steel panels that demand consistent bends across a full ten-foot span?
What if your shop had a hydraulic box and pan brake that clamps, bends, and forms heavy gauge steel with repeatable control from one end to the other?

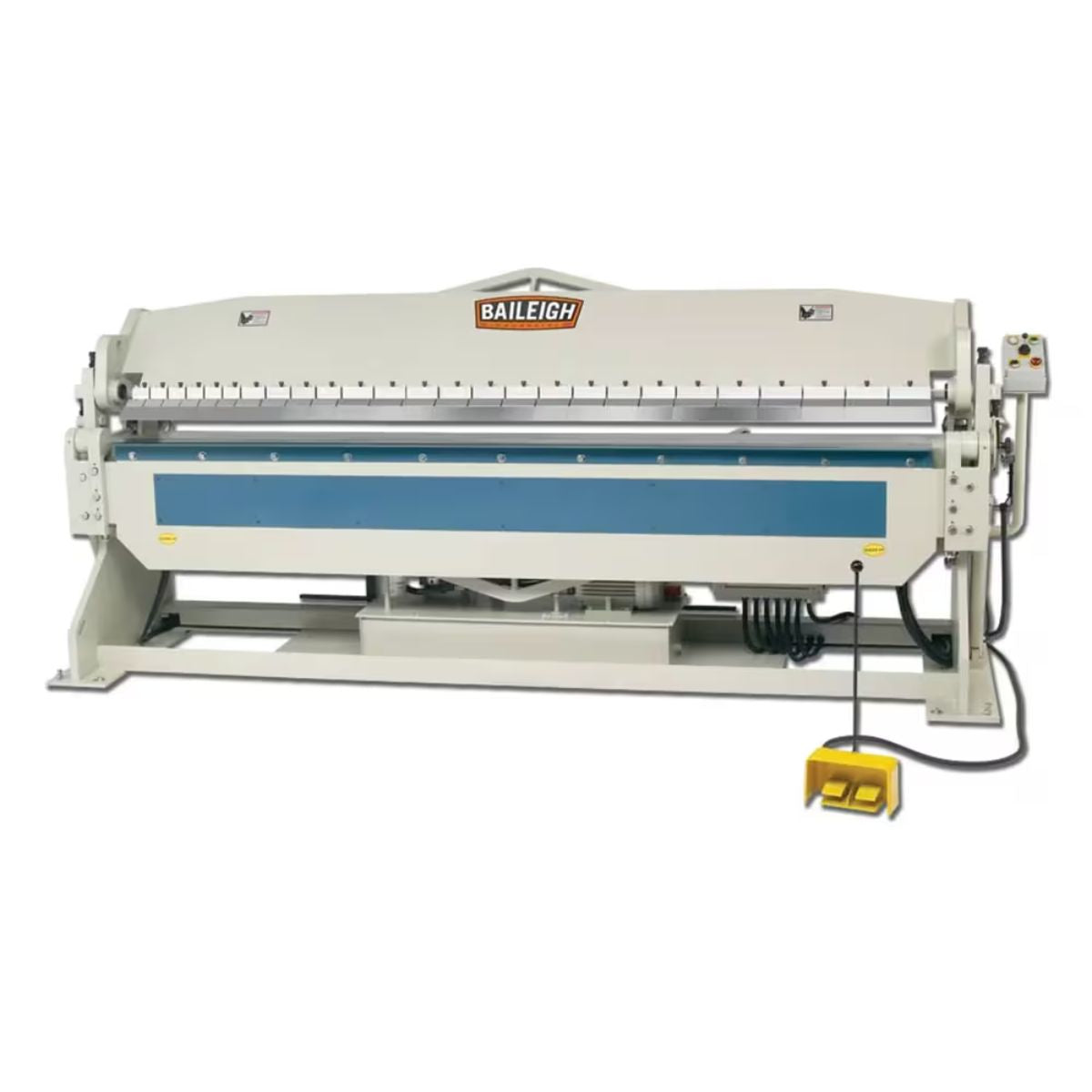

Meet the Baileigh BB-12010H 120" Hydraulic Box & Pan Brake, a floor-standing hydraulic brake built for serious fabrication work.
With a heavy steel frame, truss rods to resist deflection, and 26 adjustable hardened fingers, the BB-12010H handles complex box and pan forming at full width without giving up accuracy.
When the machine holds steady through every bend, you can work through a production run with confidence in the result.
Baileigh BB-12010H for Heavy Gauge Box and Pan Forming
Welded Steel Frame Resists Deflection Across Full Width
The frame is built from heavy-gauge electro-welded steel with truss rods that brace the machine under load. This construction keeps the beam from flexing across the full 120-inch working width, so bends stay consistent from the first piece to the last.
Hydraulic Clamping Delivers Controlled Force on Every Bend
The hydraulic system drives both the clamping action and the bend leaf with adjustable speed and pressure. Foot pedal and console controls let you set the pace of each operation and keep both hands on the material.
Adjustable Hardened Fingers Support Complex Forming Work
The brake includes 26 hardened fingers in four sizes — 3", 4", 5", and 6" — that arrange along the clamping beam to define box openings and pan profiles. Repositioning fingers lets you move between different box depths and part shapes without changing tooling.
0 to 135-Degree Bend Range Covers Most Fabrication Tasks
The bend leaf travels through a full 0 to 135-degree range with programmable auto-stop to set a repeatable angle. Once the stop is set, the machine returns to the same bend angle on every cycle.
What's Included
What's Included? Baileigh BB-12010H 120" Hydraulic Box & Pan Brake — 10 Gauge
-
Baileigh BB-12010H Hydraulic Box & Pan Brake — Provides a 120-inch hydraulic brake platform for heavy gauge box and pan forming.
-
26 Hardened Fingers (6 of 3", 4 of 4", 10 of 5", 6 of 6") — Allows you to configure the clamping beam for a range of box depths and pan profiles.
Specs
Baileigh BB-12010H 120" Hydraulic Box & Pan Brake — 10 Gauge Specifications
- Model: BB-12010H
- Stock Number: BA9-1020998
- Bending Length: 120 in
- Mild Steel Capacity: 10 gauge
- Maximum Bend Angle: 135°
- Maximum Box Depth: 6 in
- Fingers Included: 26 (6 of 3", 4 of 4", 10 of 5", 6 of 6")
- Motor: 5 HP
- Input Power: 220V Three Phase
- Frame: Electro-welded heavy steel with truss rods
- Net Weight: 7,700 lb
- Warranty: 1 Year
