Baileigh AP-3 3-Ton Manual Arbor Press
Are you looking for a manual arbor press that holds steady through daily pressing and assembly work?
What if your shop had a 3 ton press that lines up true with every stroke?

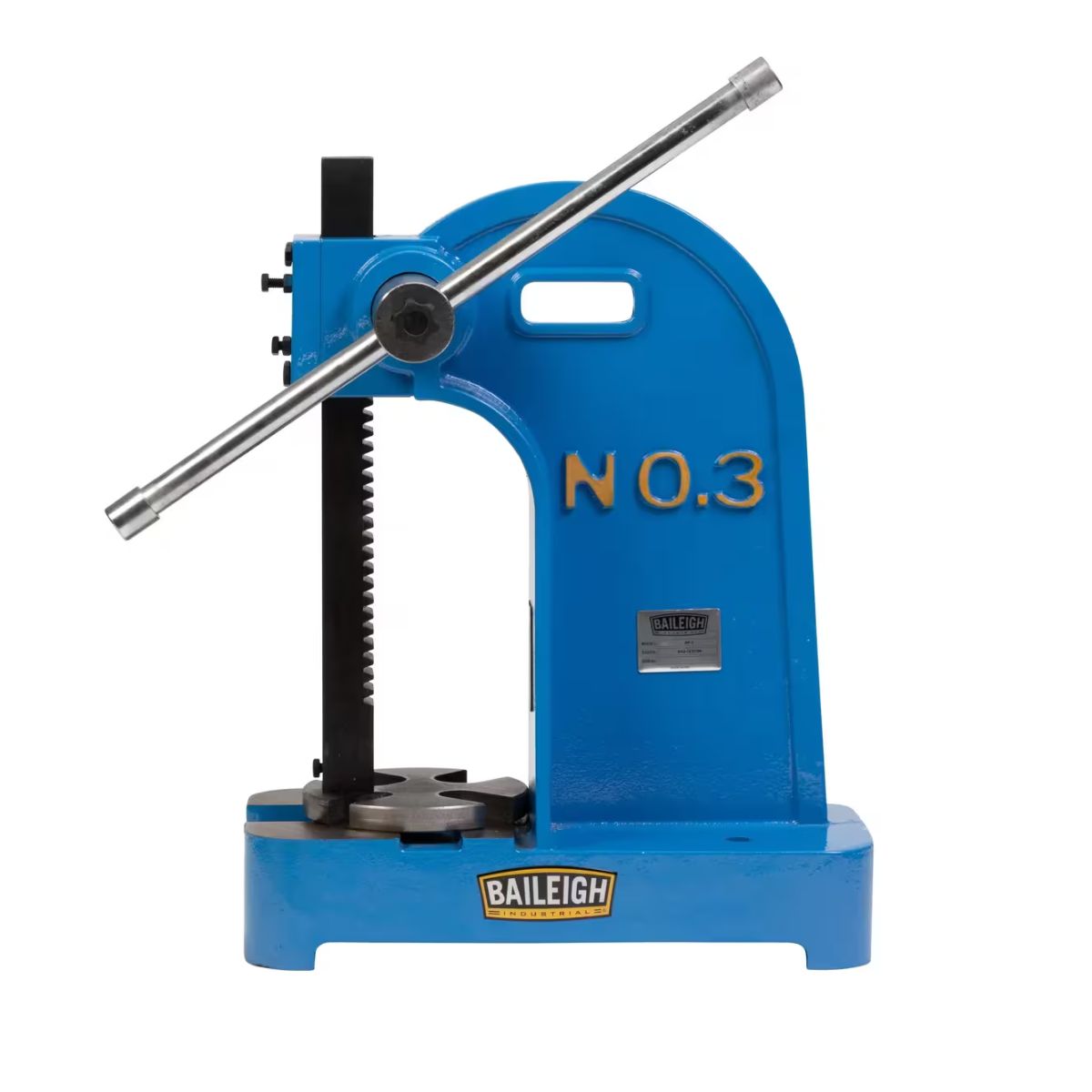

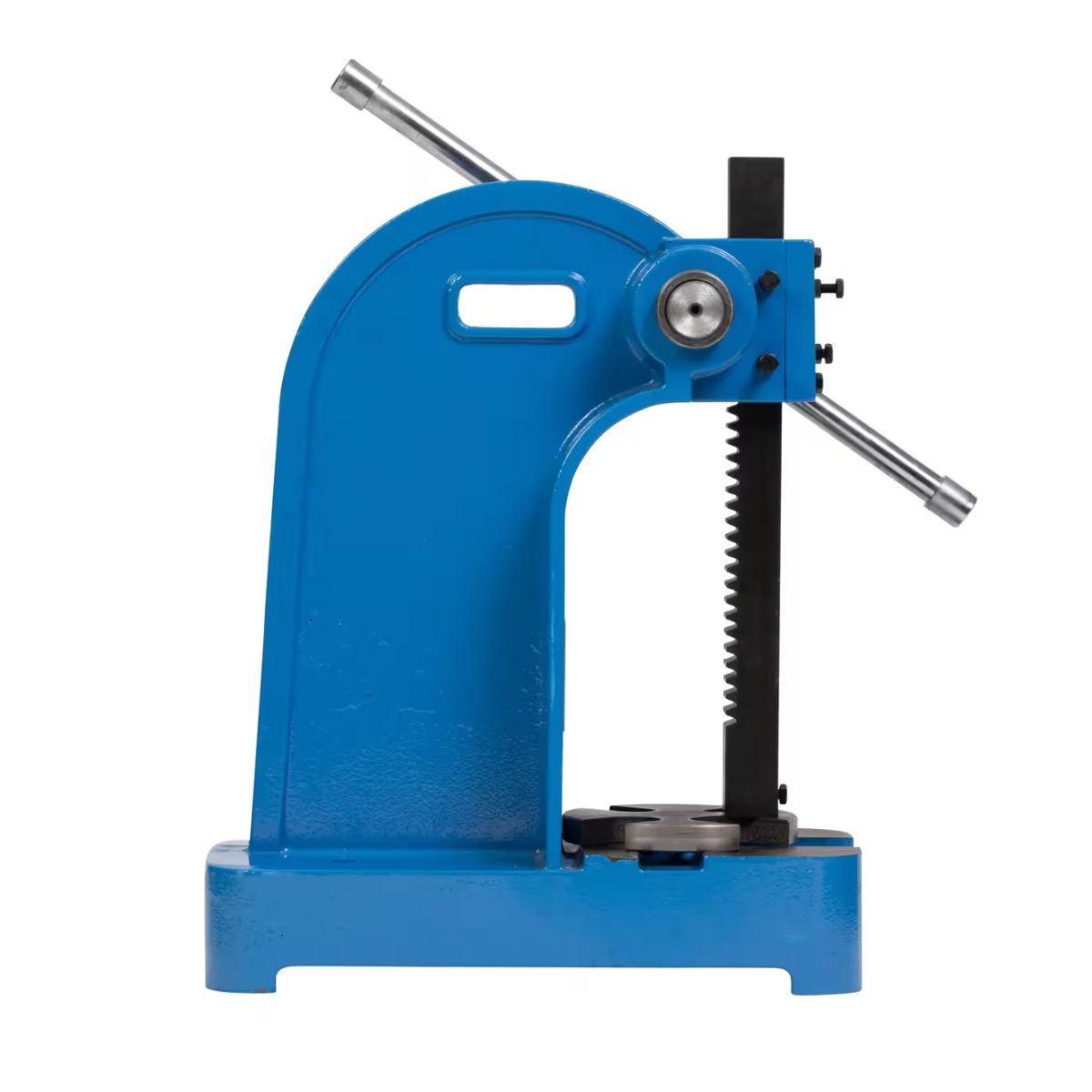

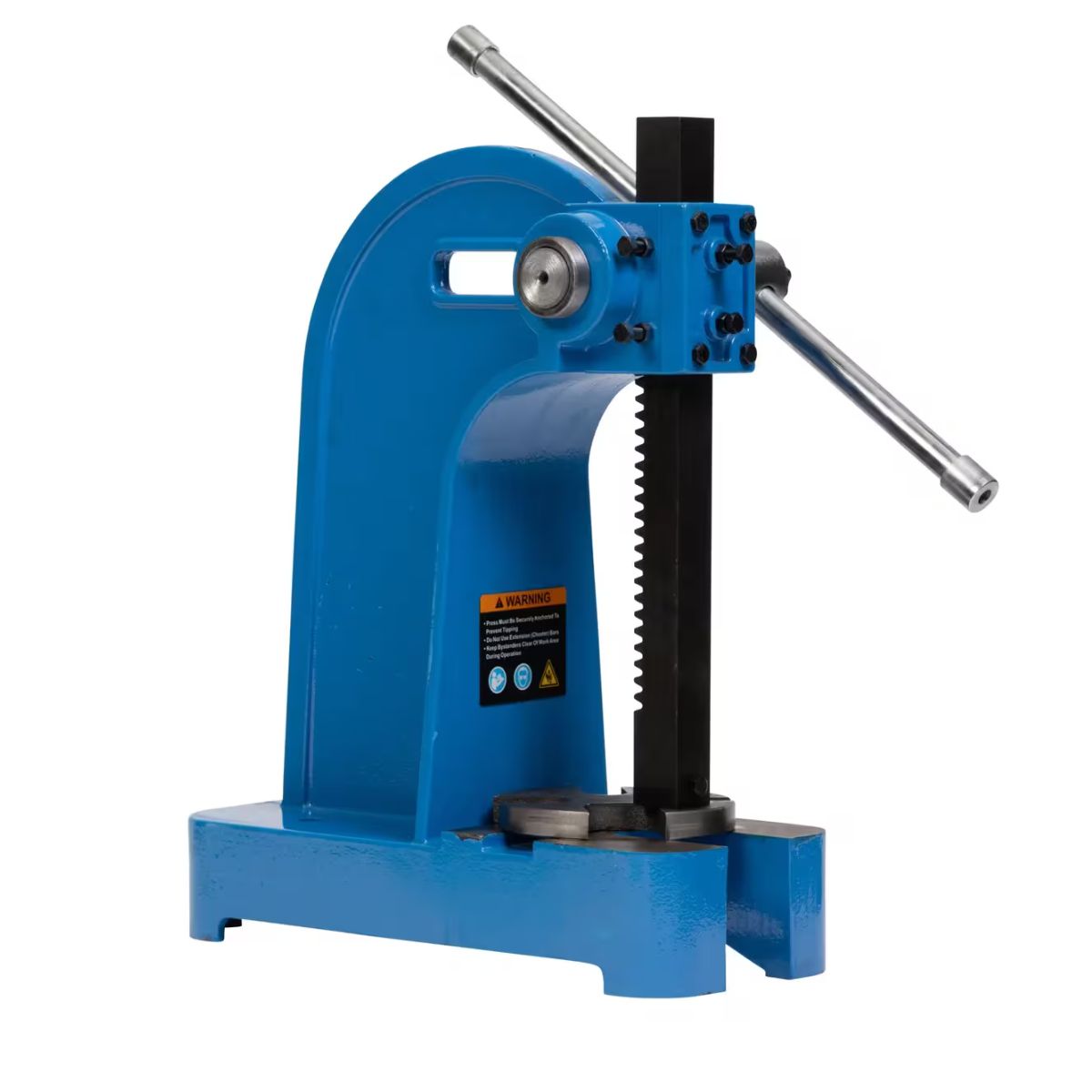

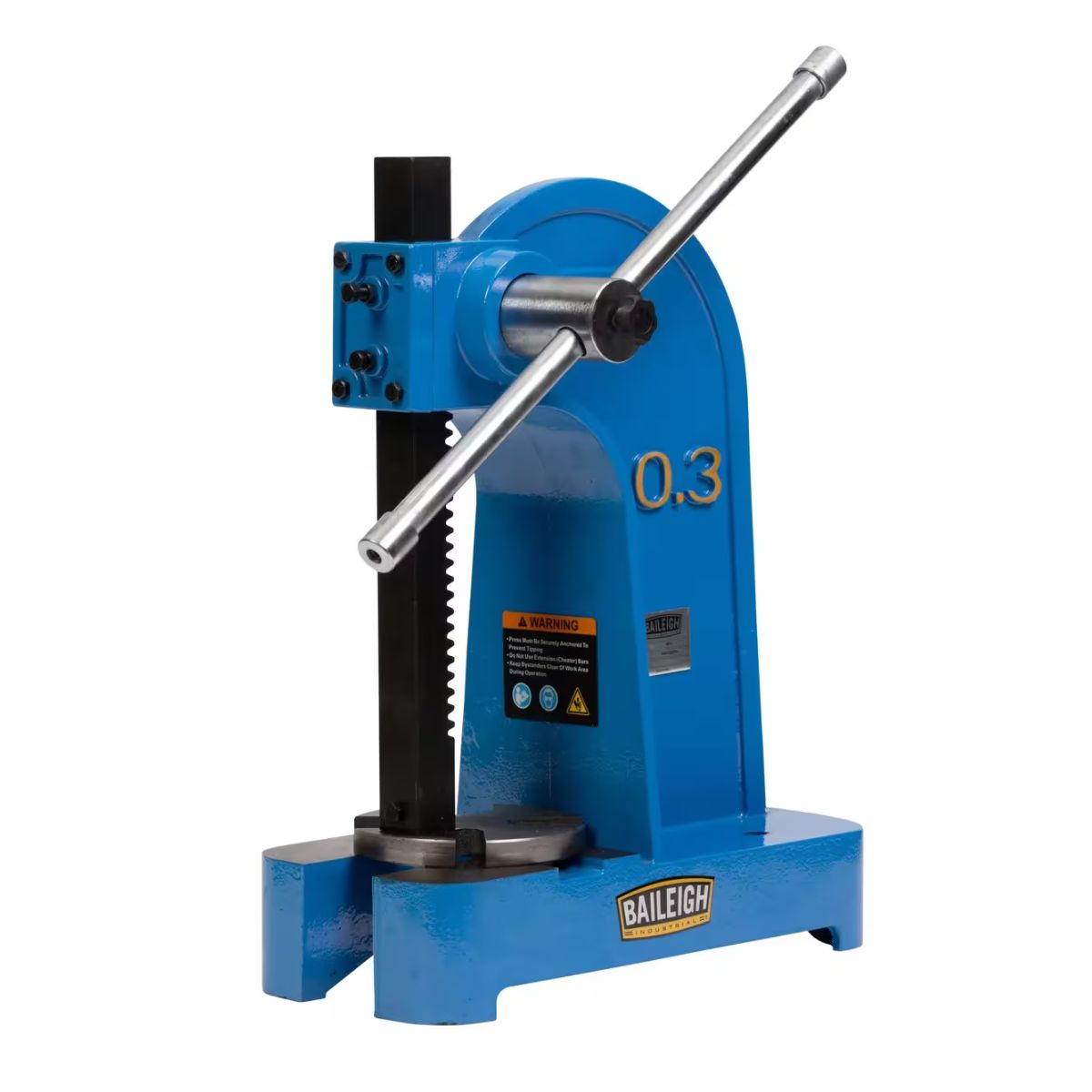

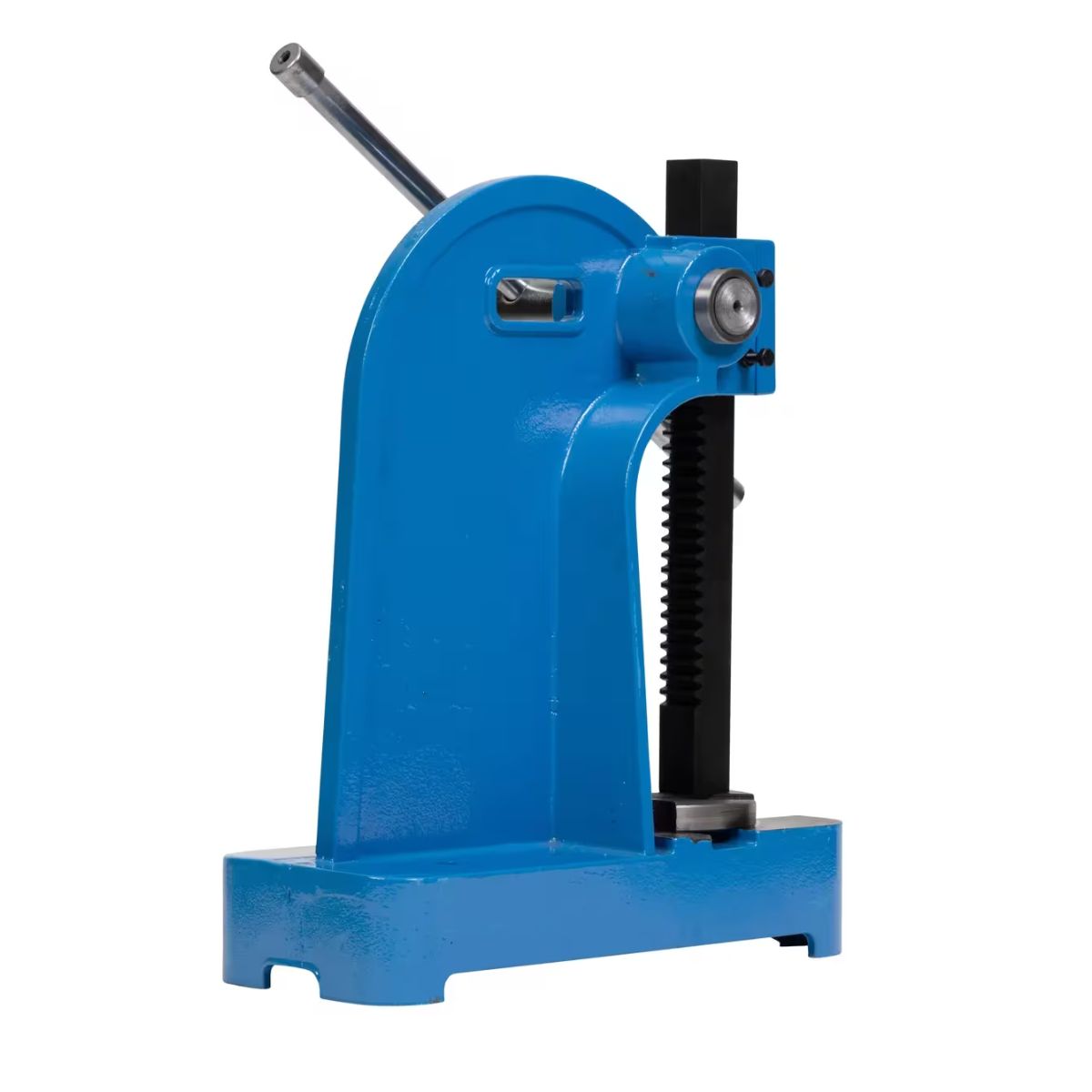

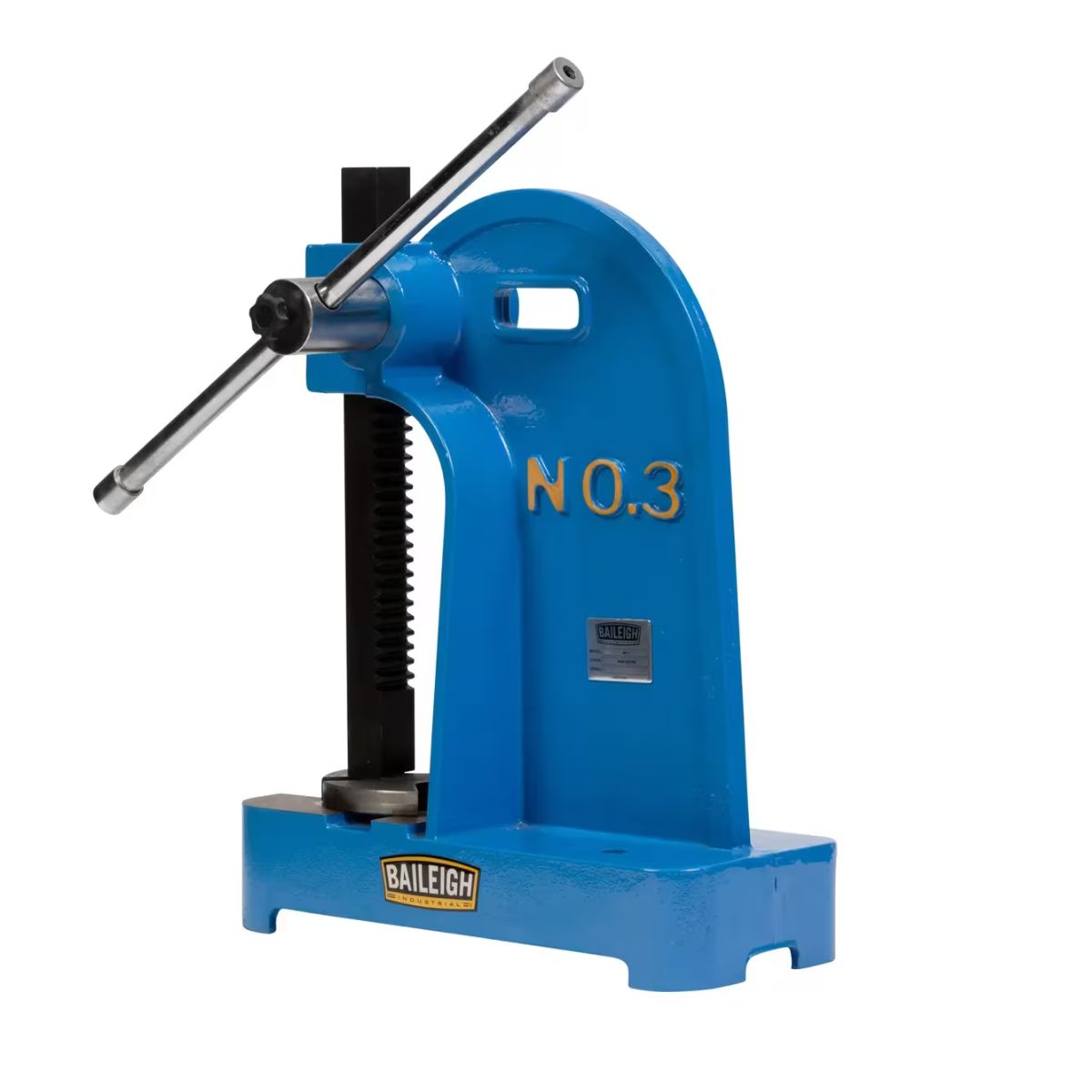

Meet the Baileigh AP-3 3-Ton Manual Arbor Press, a cast iron shop press built for riveting, punching, bending, and swaging.
With a case hardened ram and a machined 4-position die plate, the press keeps your workpiece aligned through every stroke.
When the press holds its position under load, you can press parts with confidence and consistent results.
Baileigh AP-3 for Precision Metal Pressing Work
Cast Iron Frame Resists Flex Under Load
The AP-3 frame is built from rigid cast iron to resist flex during pressing. A stable frame keeps the ram aligned and helps maintain accuracy through repeated cycles.
Case Hardened Ram Delivers Precise Pressing Force
The solid 1.5 inch square ram is case hardened to stand up to daily pressing, punching, and riveting work. Its size and hardness help the press hold a consistent line through each stroke.

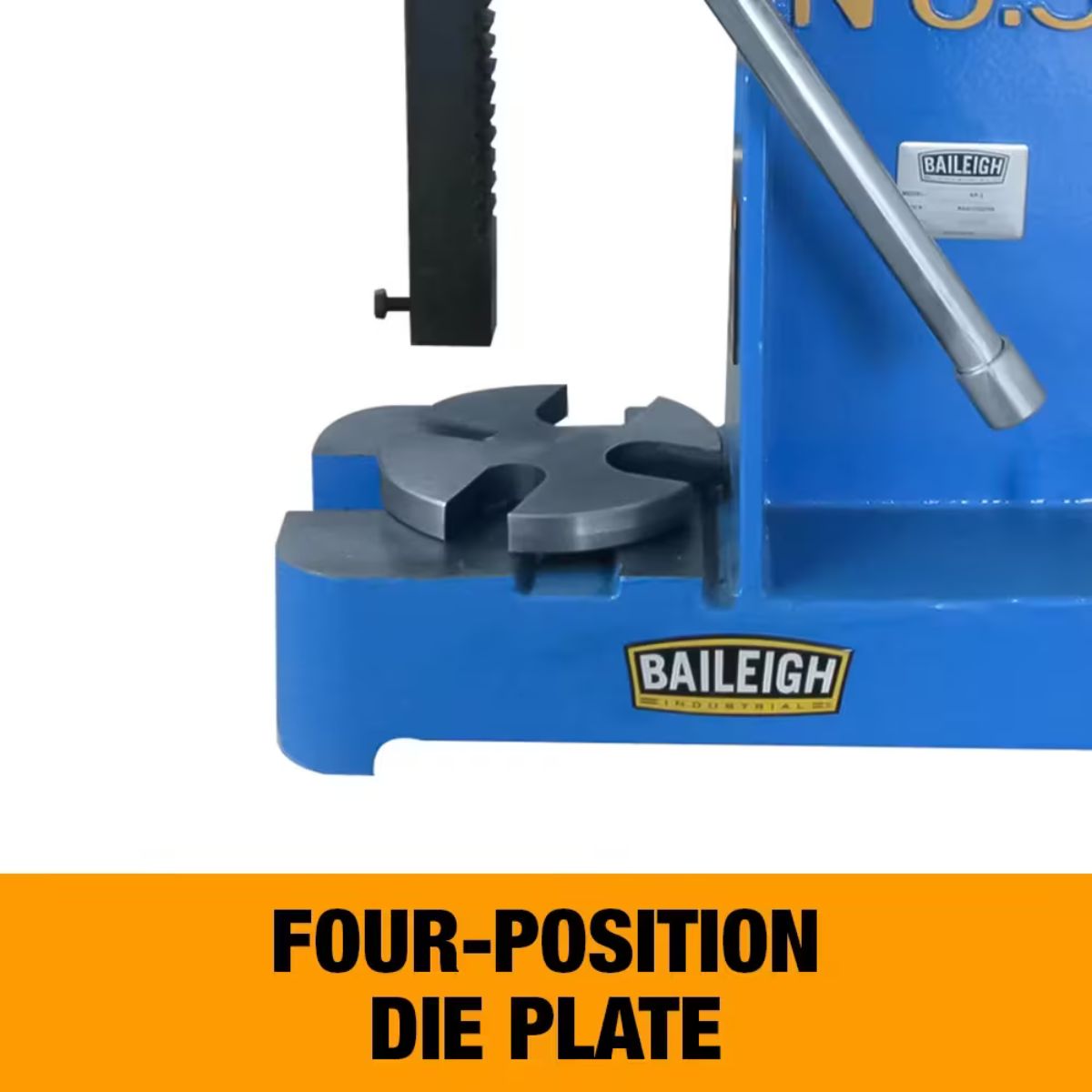

Machined Die Plate Keeps Workpieces Aligned

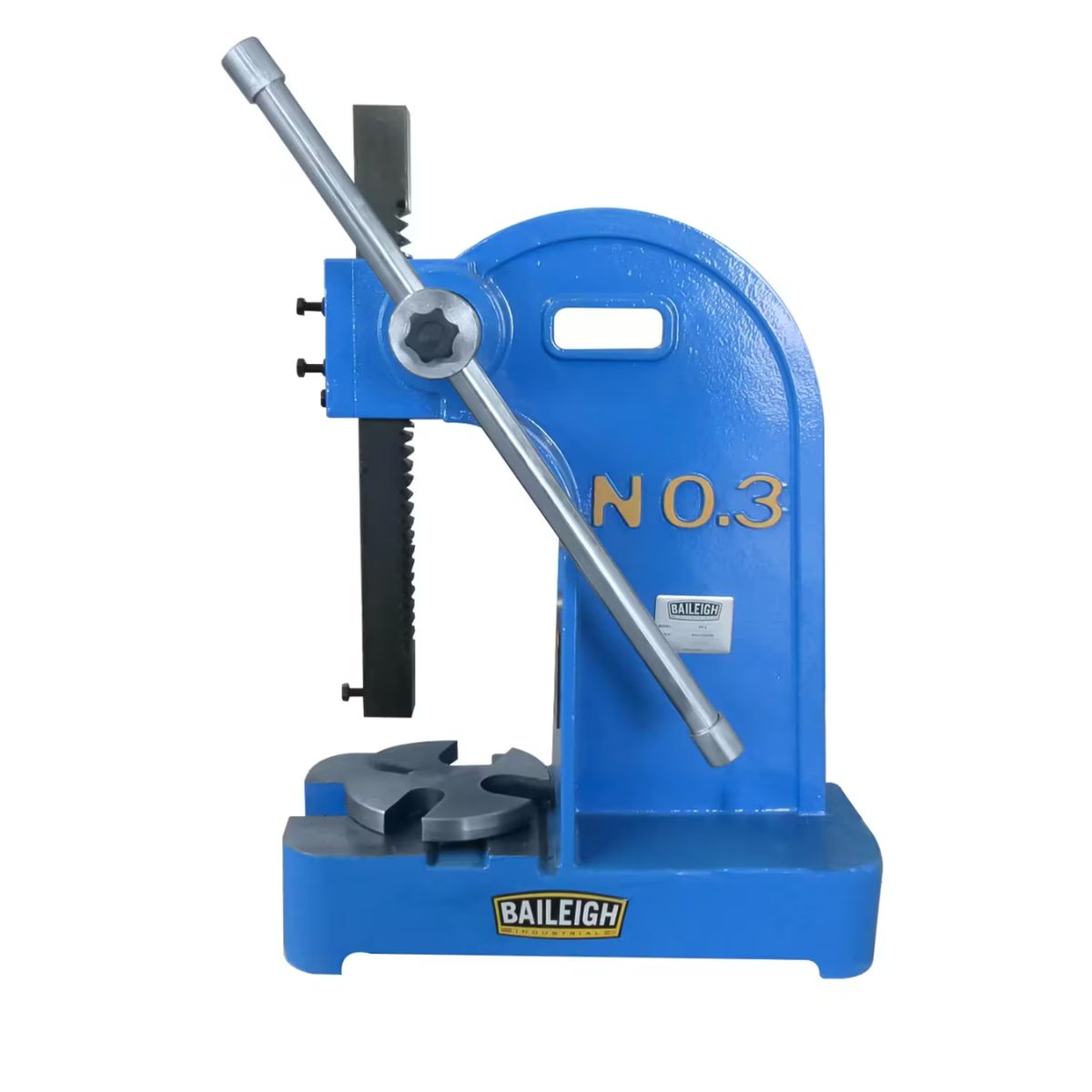

The 4-position die plate is machined for accurate workpiece support during pressing. A slideway lets you adjust tension and gap for a closer fit to the job.
Deep Stroke and Throat Handle Larger Work
A 12.5 inch stroke and 5.675 inch throat opening give you room to press taller parts and reach further into the work. This capacity makes the AP-3 useful for a wider range of assembly and metalworking tasks.
What's Included
What's Included? Baileigh AP-3 3-Ton Manual Arbor Press
-
Baileigh AP-3 3-Ton Manual Arbor Press — Provides a manual 3 ton press ready for bench or pedestal mounting.
Specs
Baileigh AP-3 3-Ton Manual Arbor Press Specifications
- Model: AP-3
- Stock Number: BA9-1232700
- Capacity: 3 Ton
- Throat Opening: 5.675 in
- Stroke Length: 12.5 in
- Capacity Over Table: 11.5 in
- Ram: Case hardened, solid square, 1.5 in
- Die Plate: Machined 4-position
- Frame: Cast iron
- Mounting: Bench or pedestal
- Input Power: Manual
- Net Weight: 108 lb
- Gross Weight: 108 lb
- Warranty: 1 Year
