Axiom Iconic-8 CNC Router, 24" x 48"
Are you limited by CNC machines that cannot handle full-length panels or larger production work efficiently?
What if you could process longer materials with consistent precision while maintaining smooth motion across the entire cutting area?

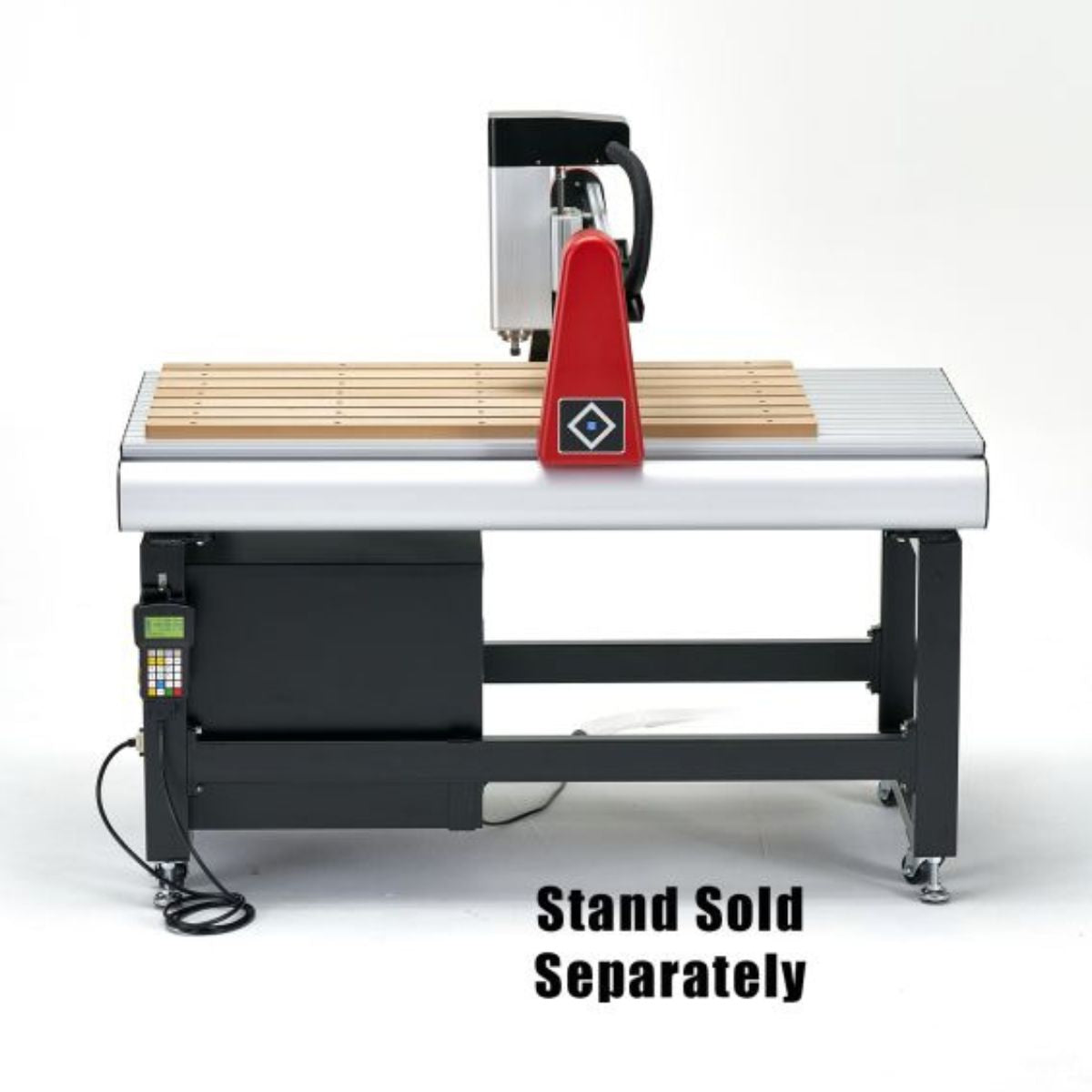

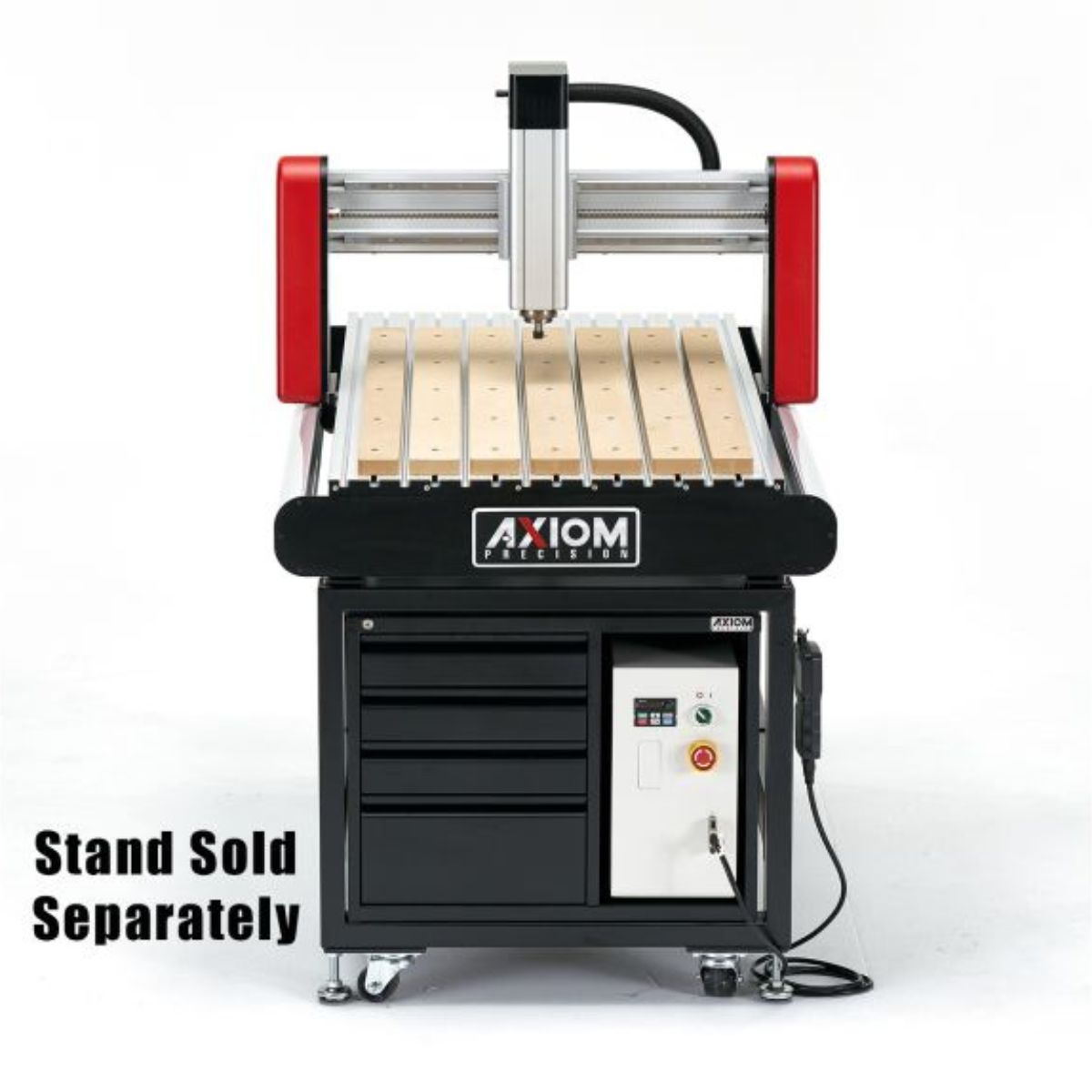

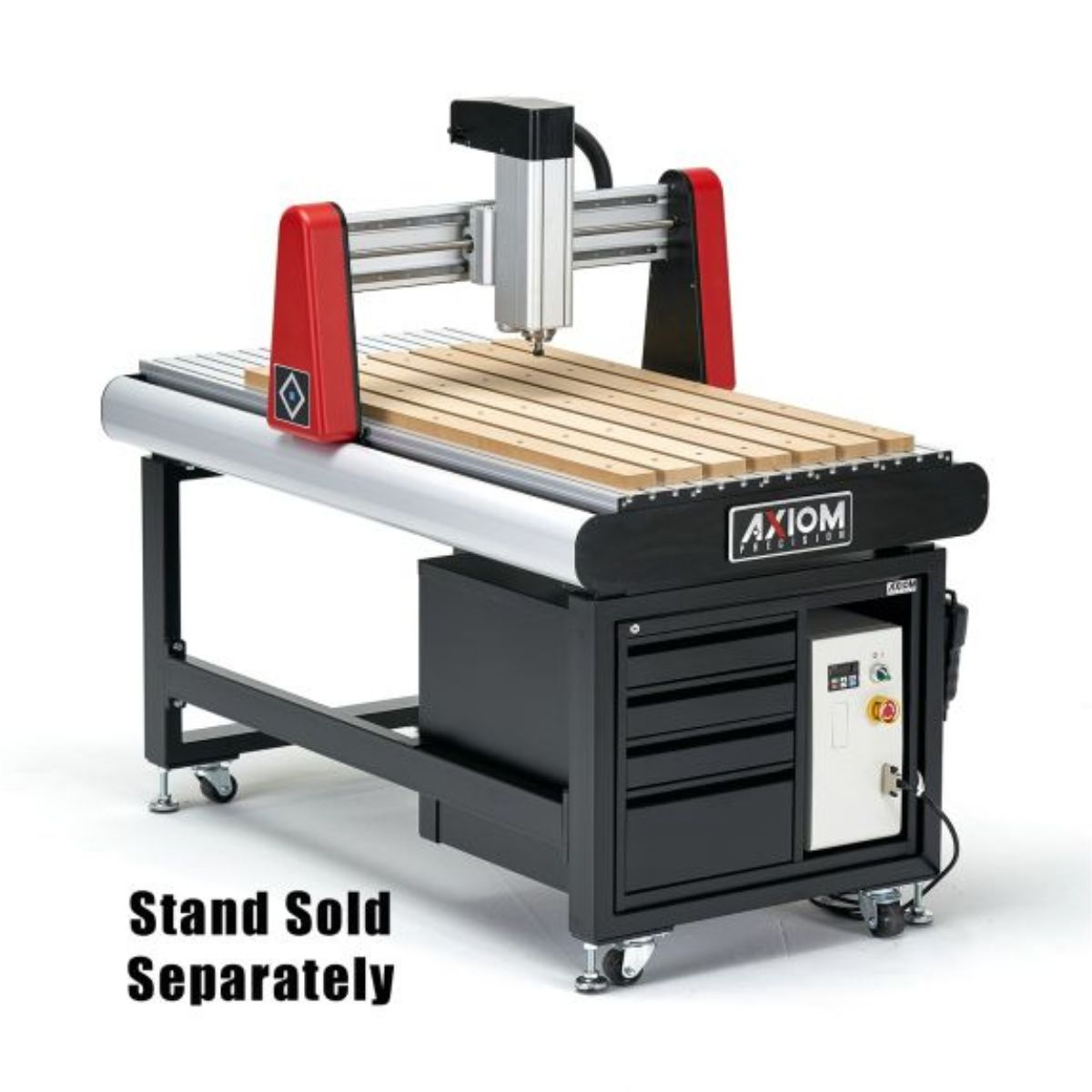

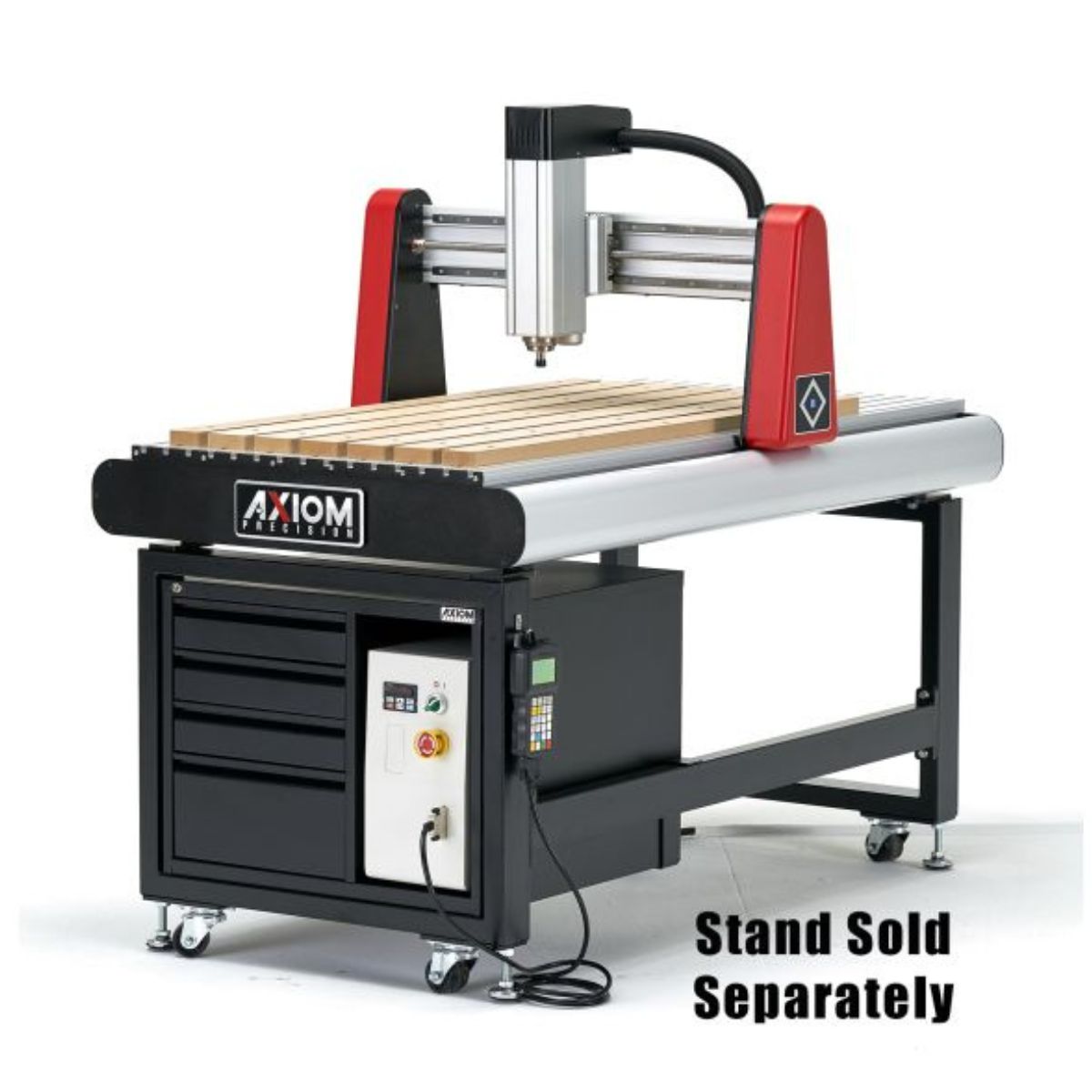

Meet the Axiom Iconic-8 CNC Router, a 24" x 48" platform designed for extended routing, carving, and engraving applications.
With precision ball screws, prismatic linear guides, and a rigid aluminum frame, it delivers smooth travel and ±0.00589" accuracy.
When your machine supports full-length work with reliable precision, your production capacity expands and your workflow becomes more efficient.
Axiom Iconic-8 for Full-Length CNC Routing Work

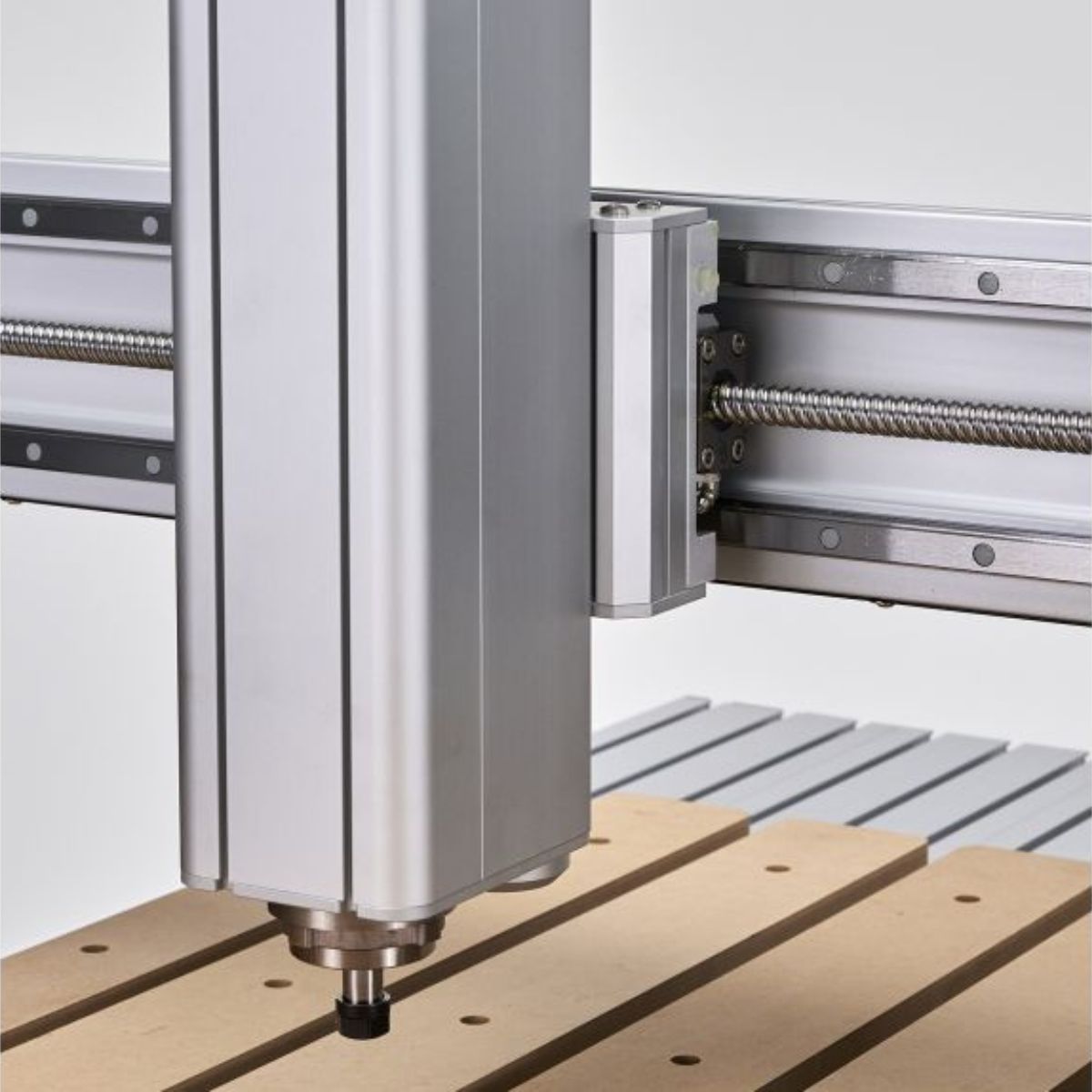

Ball Screw Drive System Maintains Cutting Accuracy
Precision ball screws across all axes minimize backlash and ensure controlled, repeatable motion. This allows consistent accuracy across longer cutting paths and complex designs. It supports reliable output in both single projects and batch production.
Extruded Aluminum Frame Reduces Vibration
The high-rigidity aluminum frame stabilizes the machine during operation. Reduced vibration improves cut quality and surface finish across the full 48" length. This helps maintain accuracy even during demanding jobs.

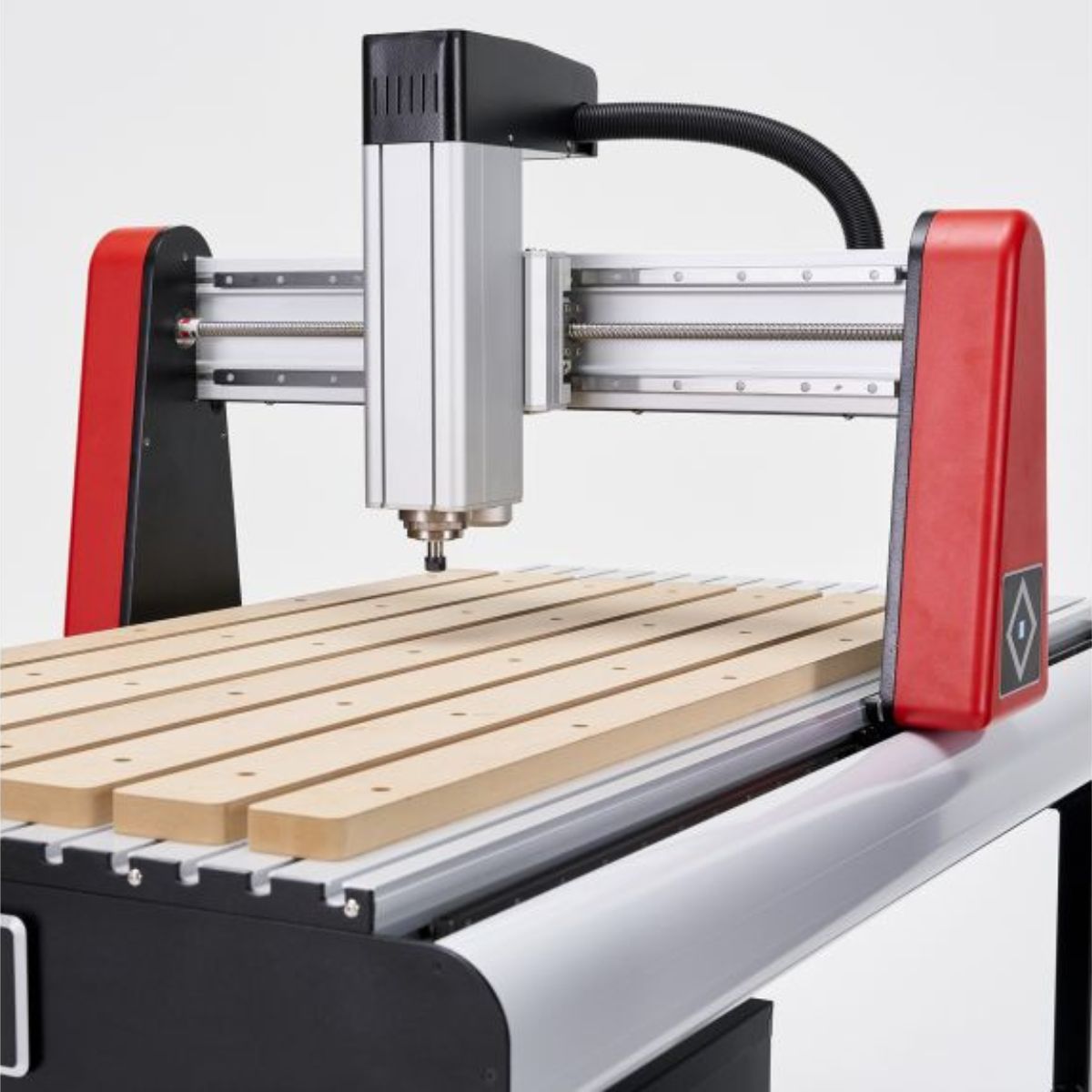

Prismatic Linear Guides Support Smooth Axis Movement
Prismatic guides provide stable, low-friction motion along all axes. This ensures consistent travel and reduces wear over time. It helps maintain precision across repeated operations and long production cycles.

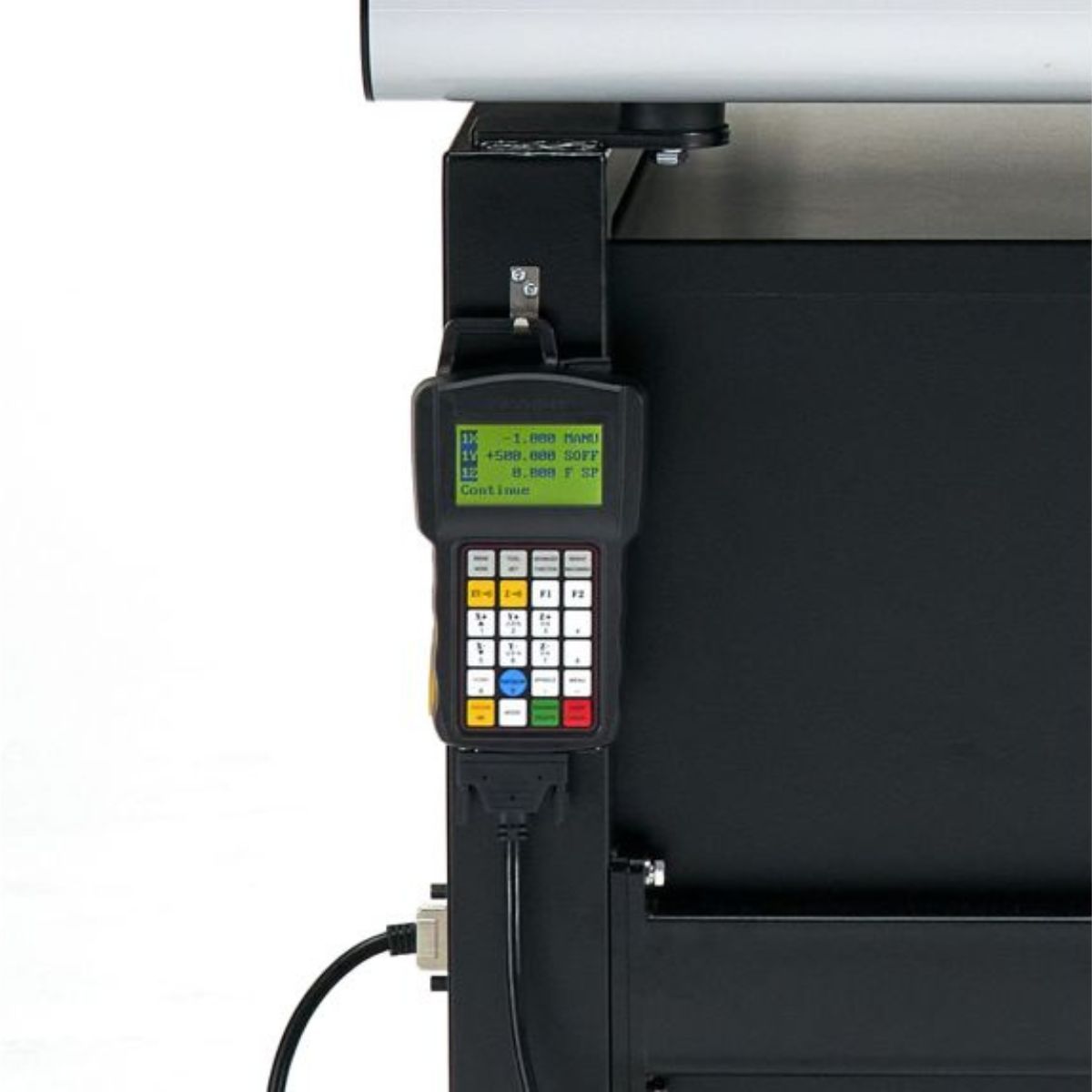

RichAuto Controller Enables Standalone Operation
The RichAuto B11 controller allows users to run jobs directly without a connected computer. This simplifies workflow and reduces setup time in the shop. Operators can manage jobs efficiently with minimal system dependency.
What’s Included
What’s Included? Axiom Iconic-8 CNC Router, 24" x 48"
-
Axiom Iconic-8 CNC Router Machine – Full CNC system with extended table capacity for routing, carving, and engraving.
-

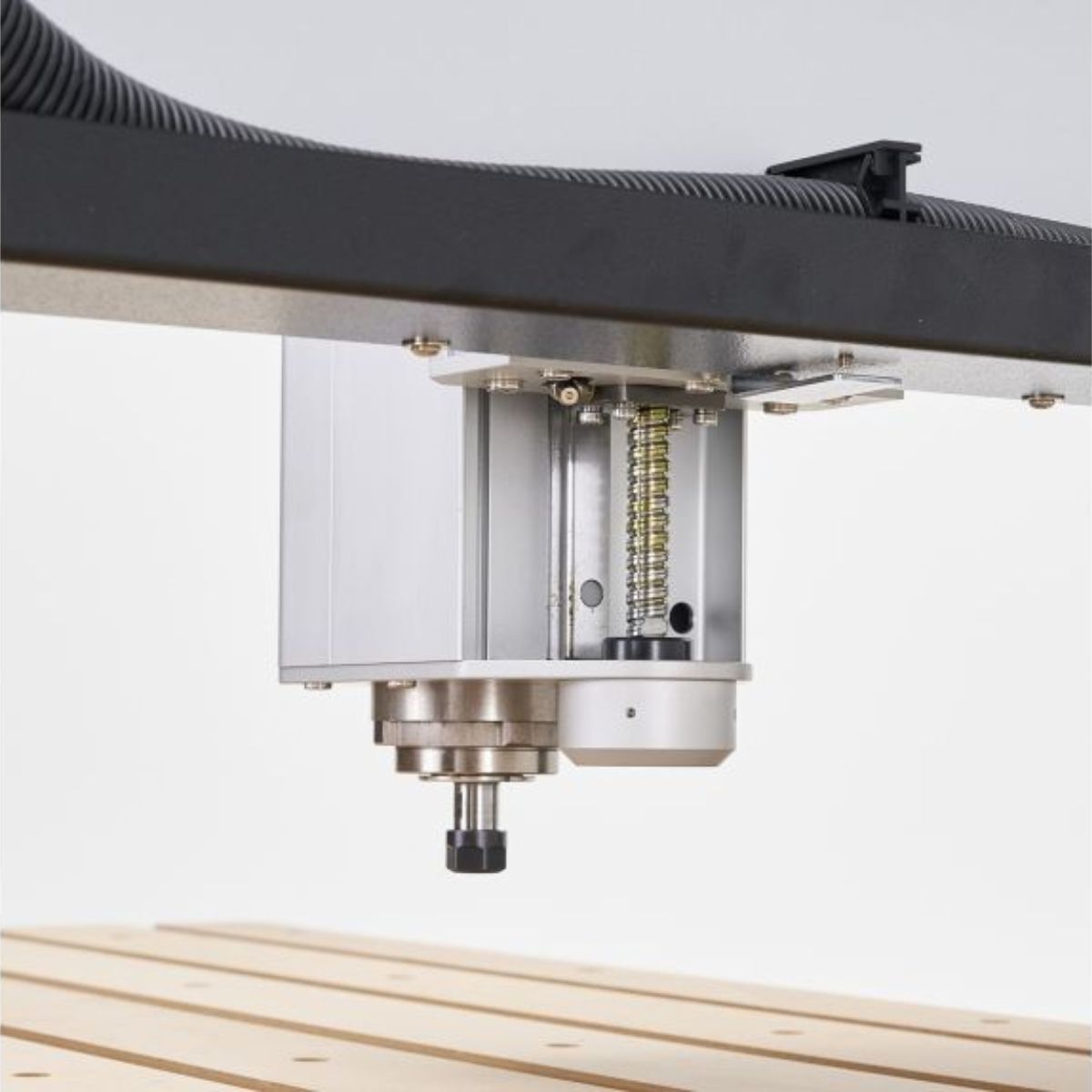

1HP Electro Spindle – Delivers cutting power up to 24,000 RPM for wood, plastics, and non-ferrous materials.
-
Auto Tool Touch-Off Plate – Provides accurate Z-axis zeroing for consistent tool setup.
-

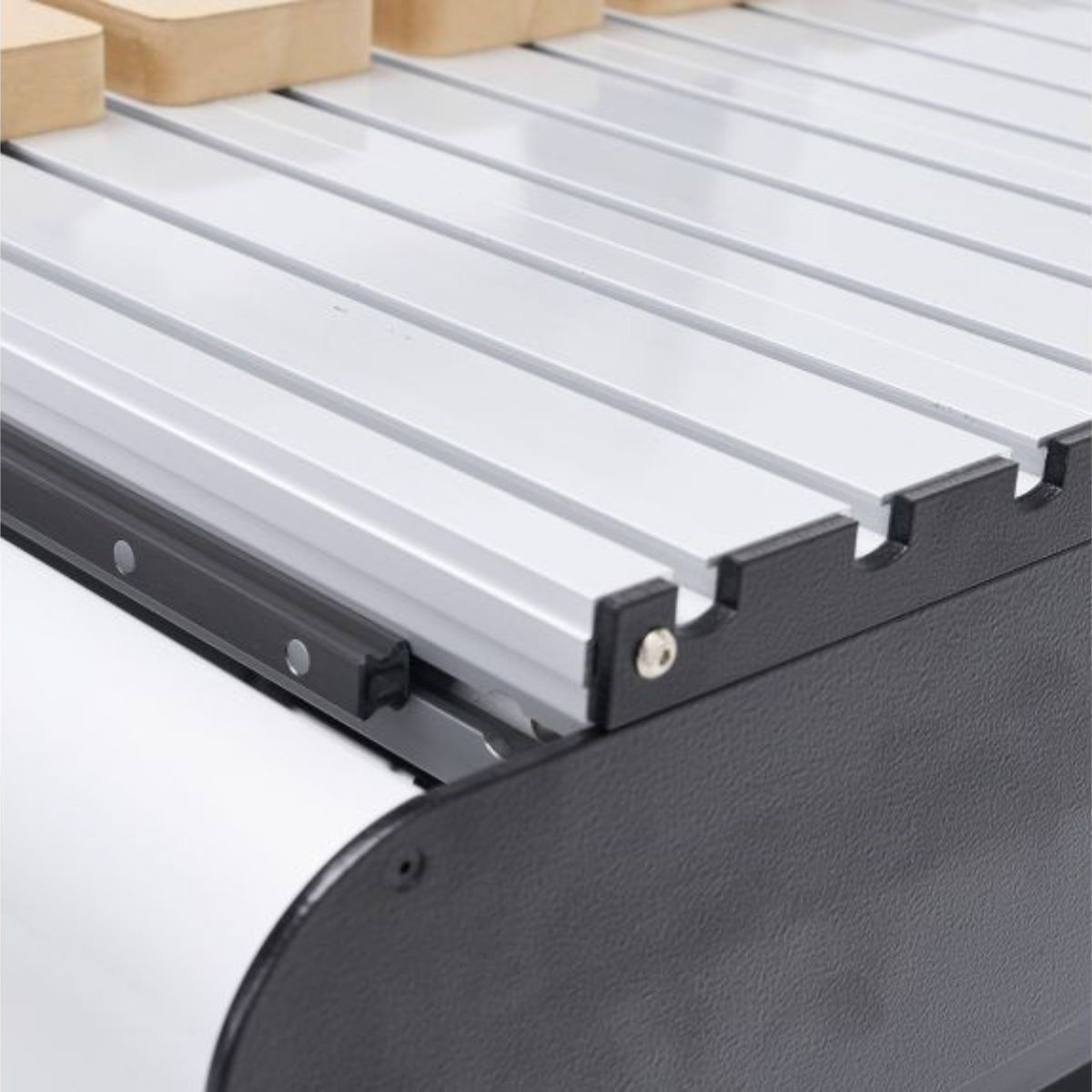

Integrated MDF Spoil Board – Supports materials and protects the table during machining operations.
-
RichAuto B11 Controller – Enables standalone operation and direct job control without a PC.
-
Collets (1/8" and 1/4") – Secure a variety of CNC router bits for different applications.
-

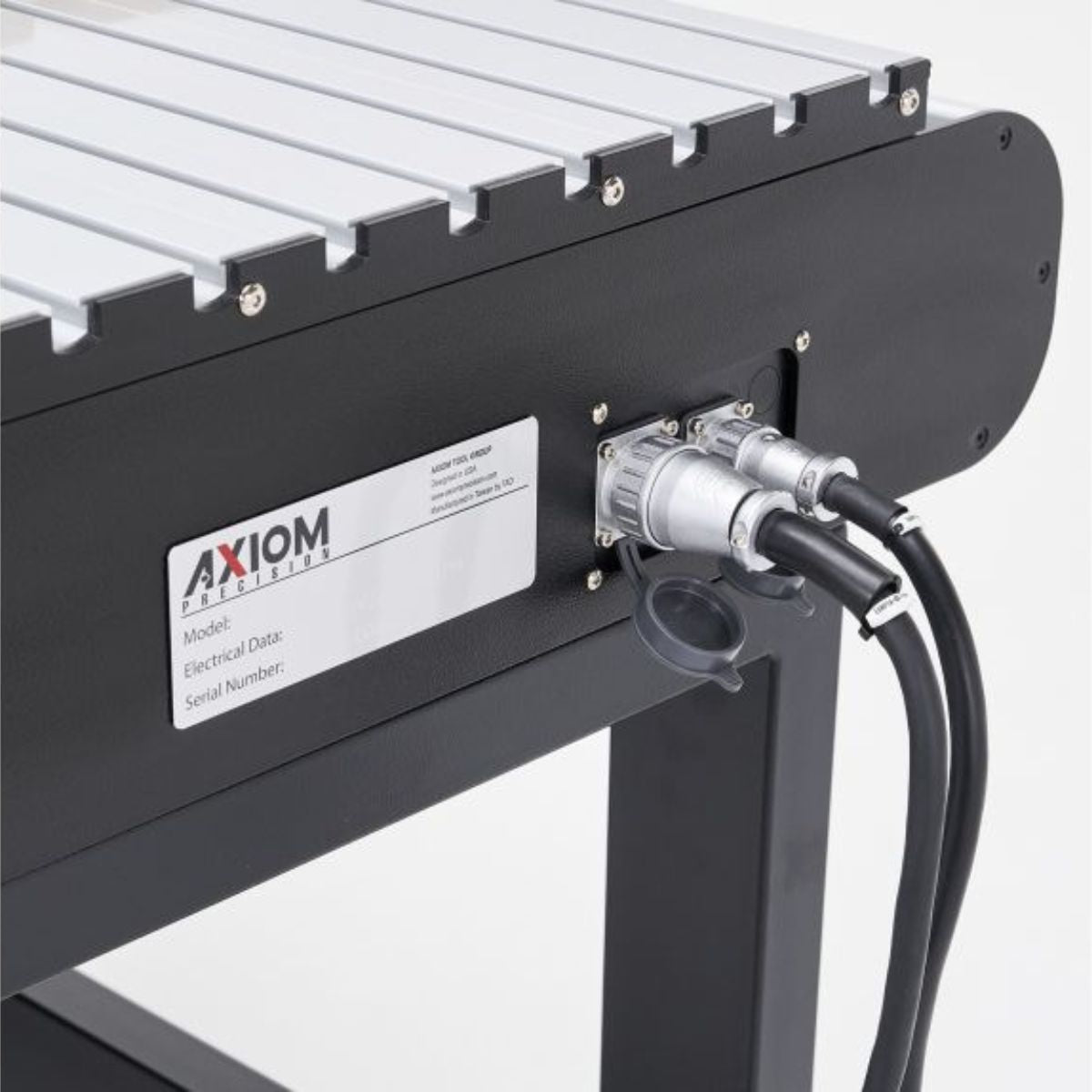

Power Cord – Supplies electrical power for machine operation.
-
Instruction Manual – Guides setup, operation, and maintenance procedures.
Specs
Axiom Iconic-8 CNC Router, 24" x 48" Specifications
- Model Number: Iconic-8
- Stock Number: AX9-ICONIC8
- Table Size: 24" x 48"
- X-Axis Travel: 23.81"
- Y-Axis Travel: 47.63"
- Z-Axis Travel: 3.937"
- Accuracy: ±0.00589"
- Motor: 1 HP (800W)
- Spindle Speed: Up to 24,000 RPM
- Spindle Taper: ER11
- Included Collets: 1/8", 1/4"
- Drive System: Precision Ball Screws (X/Y/Z)
- Linear Motion: Prismatic Linear Guides
- Controller: RichAuto B11
- Max Engraving Speed: 150 IPM
- Input Power: 115V, 1PH
- Amperage: 13A
- Machine Dimensions: 62"L x 35"W x 28"H
- Net Weight: 290 lbs
- Warranty: 1 Year
