Axiom Iconic-6 CNC Router, 24" x 36"
Are you constrained by limited CNC table size when working on longer panels, signs, or production parts?
What if you could handle larger workpieces while maintaining the same level of precision, control, and repeatability in every cut?

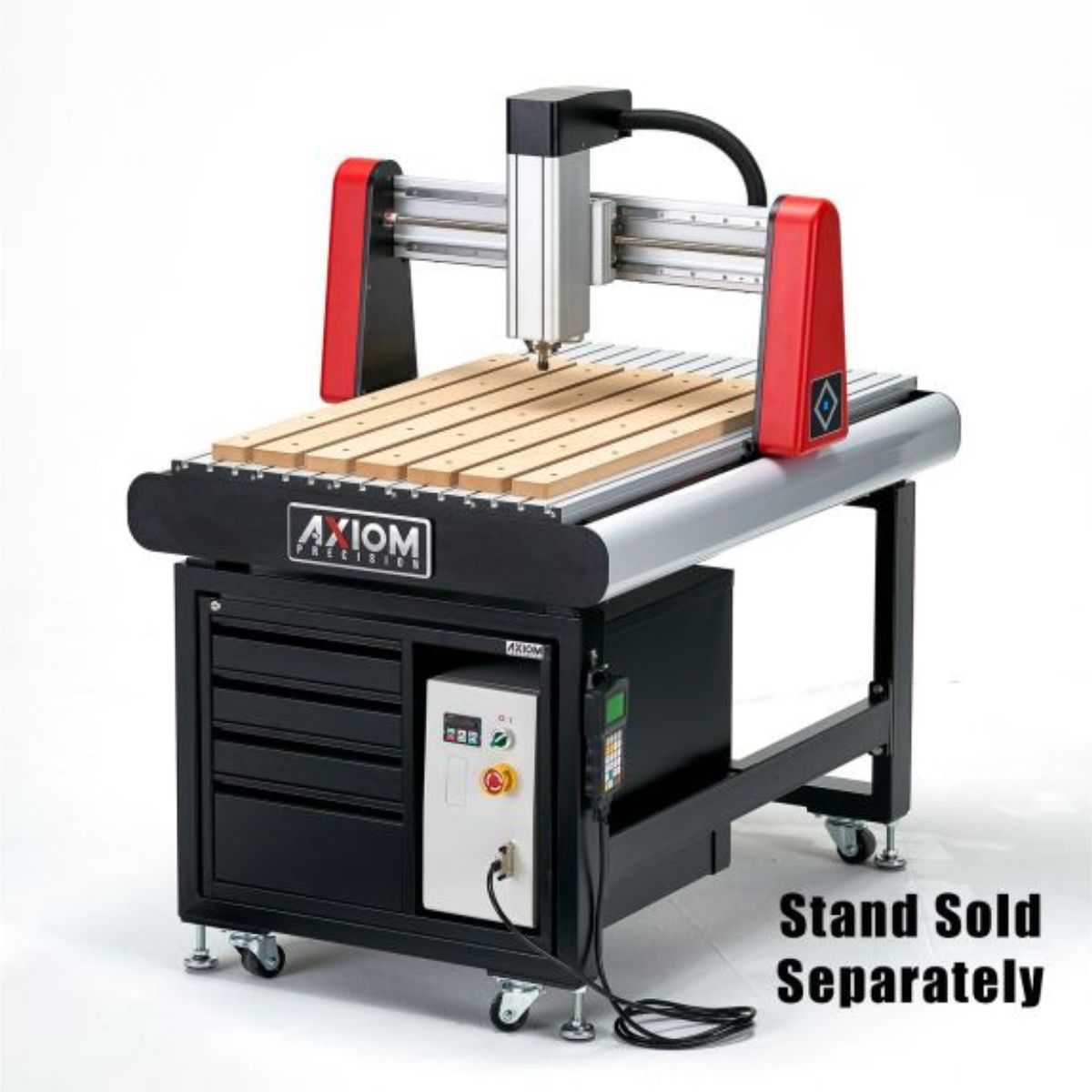

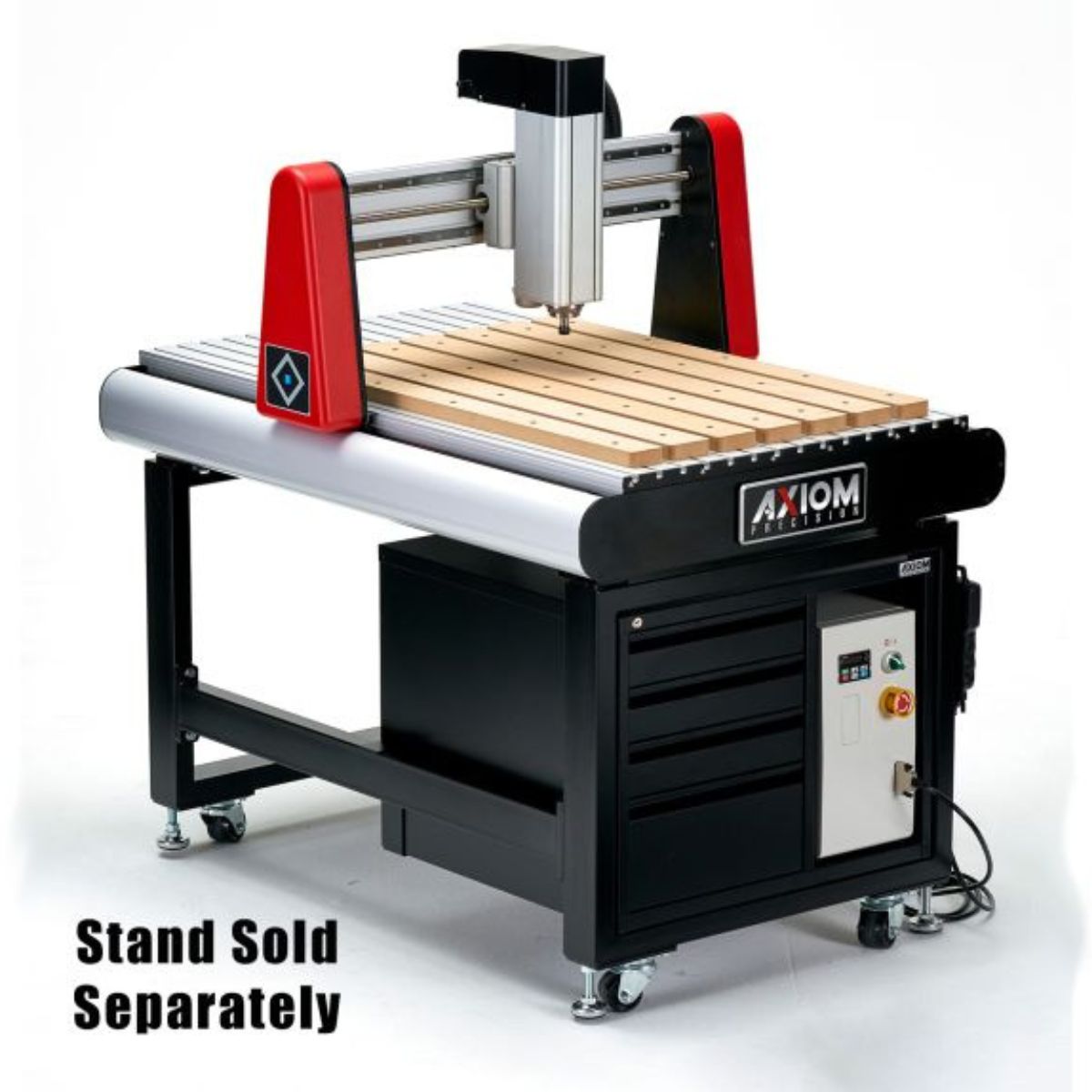

Meet the Axiom Iconic-6 CNC Router, a 24" x 36" platform designed for extended routing, carving, and engraving applications.
With precision ball screws, prismatic linear guides, and a rigid aluminum frame, it delivers smooth motion and ±0.00589" accuracy.
When your machine supports larger work without sacrificing precision, your workflow expands and your output becomes more consistent.
Axiom Iconic-6 for Extended CNC Routing Work

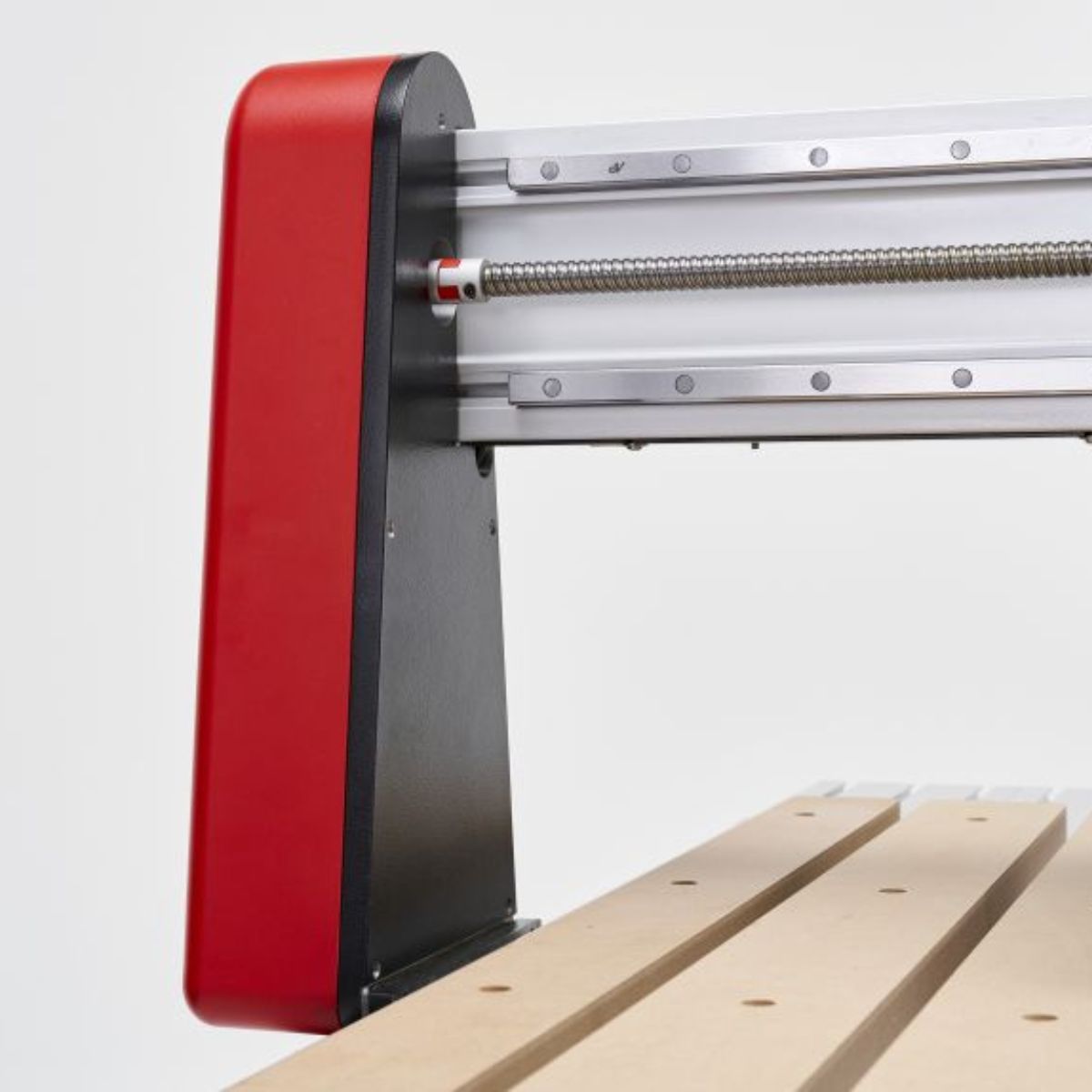

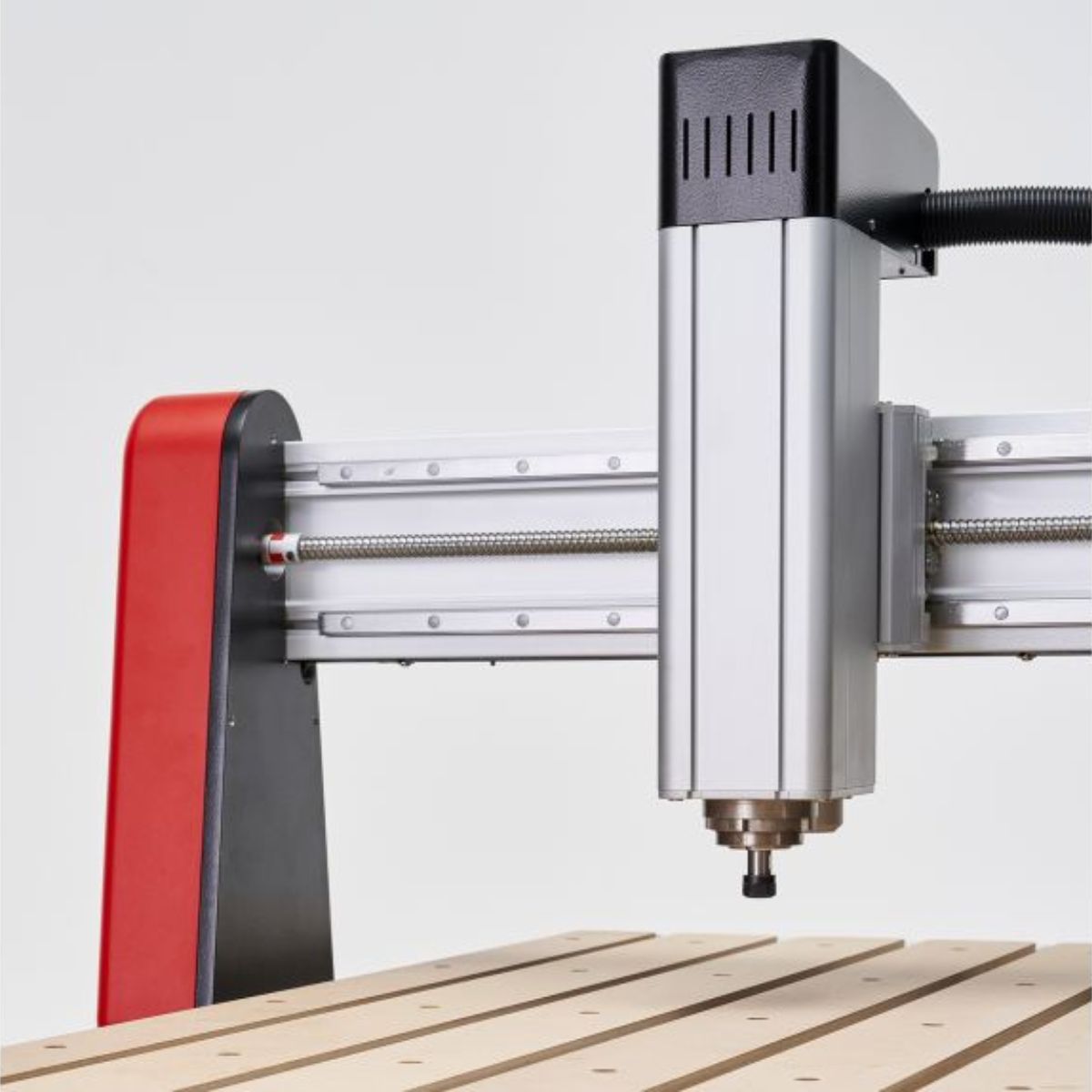

Ball Screw Drive System Maintains Axis Accuracy
Precision ball screws on all axes reduce backlash and ensure controlled positioning throughout each job. This allows for consistent repeatability across longer workpieces and detailed cuts. It improves reliability in both production runs and custom projects.

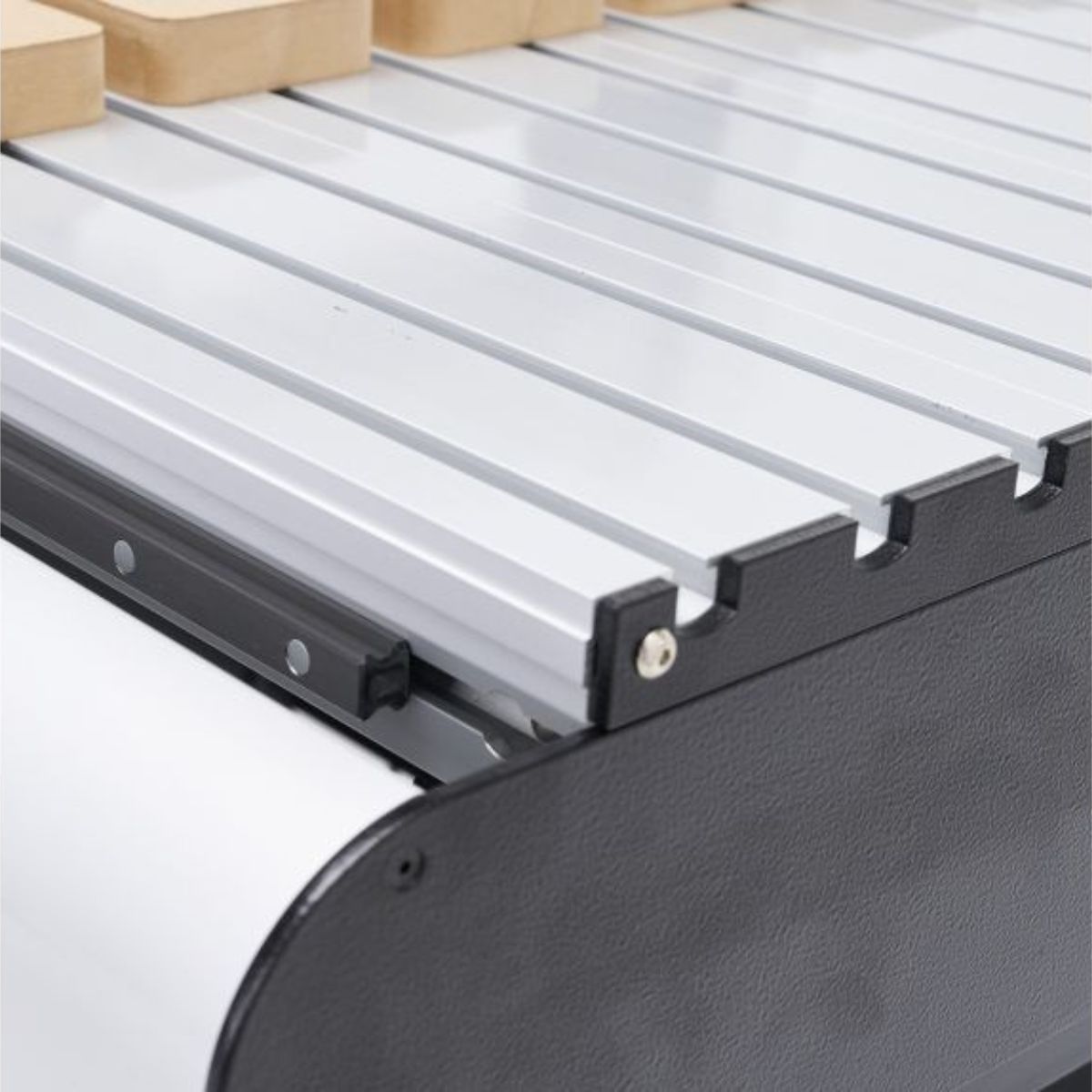

Extruded Aluminum Frame Stabilizes Cutting Operations
The high-rigidity aluminum frame minimizes vibration during machining. This stability improves surface finish and cutting precision across the full table length. It supports consistent results even at higher feed rates.

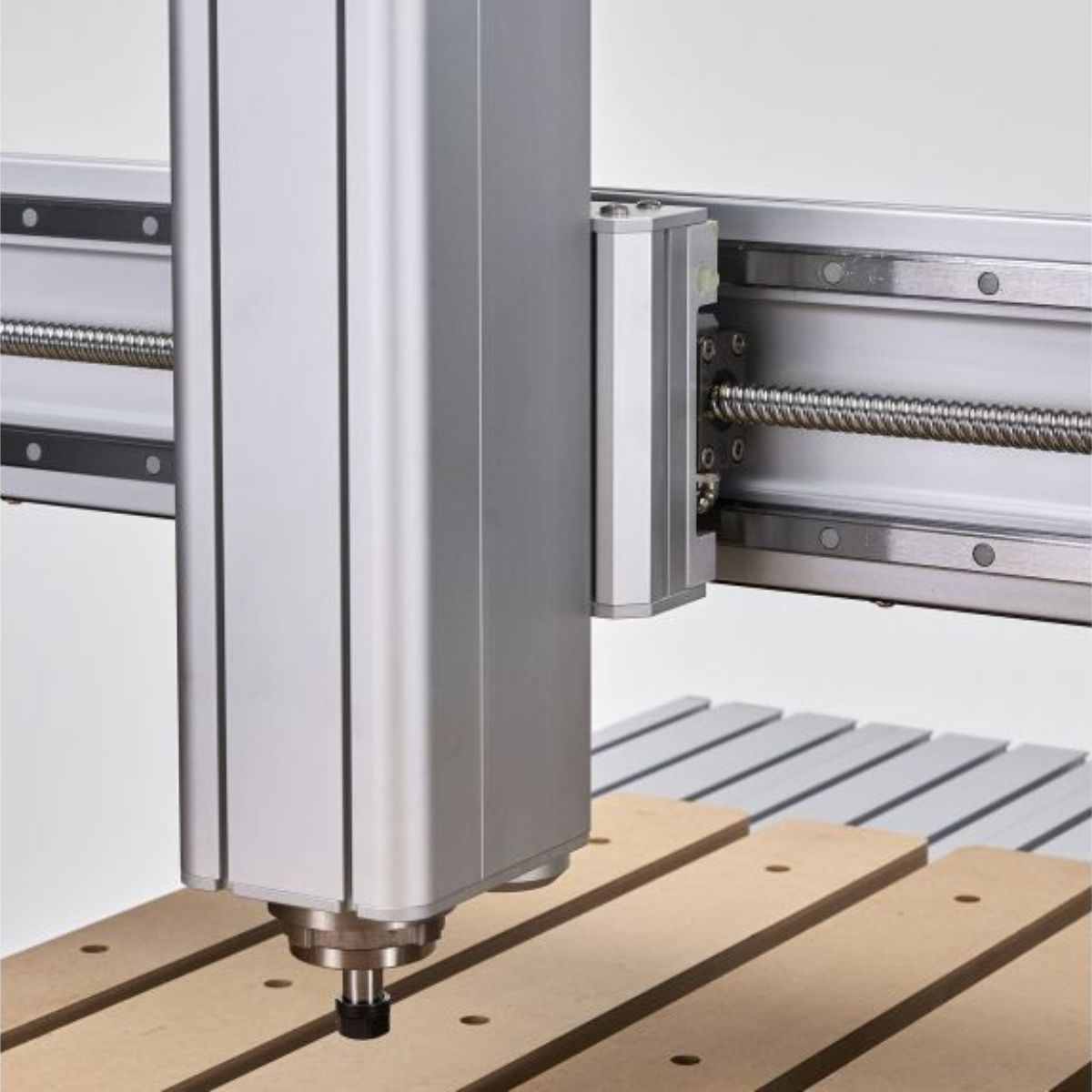

Prismatic Linear Guides Ensure Smooth Travel
Prismatic guides provide stable, low-friction motion along each axis. This results in smoother movement and reduced wear over time. It helps maintain accuracy during continuous or repetitive machining operations.

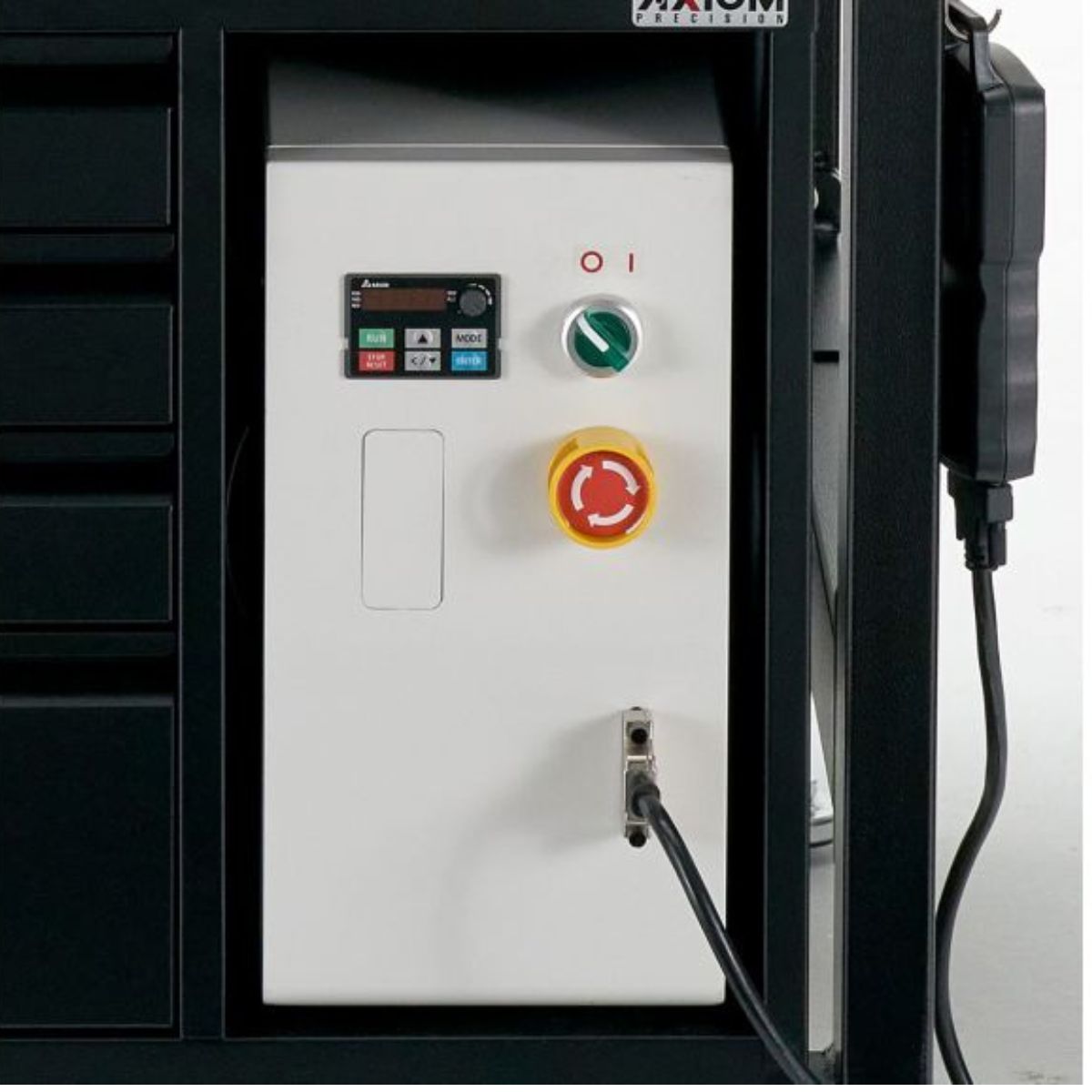

RichAuto Controller Enables Standalone Workflow
The RichAuto B11 controller allows direct control of the machine without a dedicated computer. Files can be loaded and executed easily, simplifying daily operation. This reduces setup time and keeps workflow efficient in shop environments.
What’s Included
What’s Included? Axiom Iconic-6 CNC Router, 24" x 36"
-
Axiom Iconic-6 CNC Router Machine – Complete CNC system with extended table capacity for routing and engraving.
-

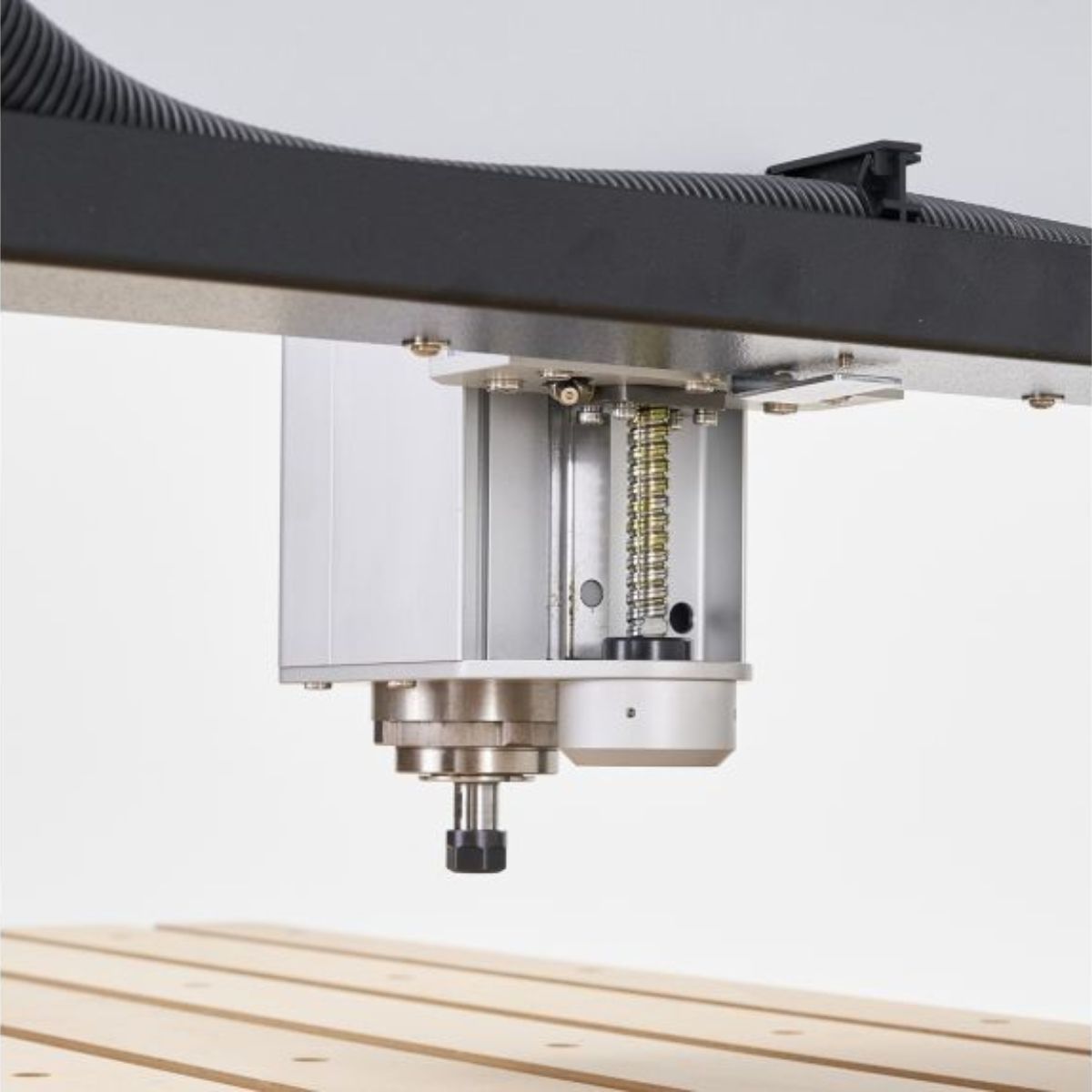

1HP Electro Spindle – Provides cutting power up to 24,000 RPM for wood, plastics, and non-ferrous materials.
-
Auto Tool Touch-Off Plate – Enables accurate Z-axis zeroing for consistent tool height setup.
-
Integrated MDF Spoil Board – Supports material and protects the machine table during cutting operations.
-
RichAuto B11 Controller – Allows standalone machine control and job execution without a PC.
-
Collets (1/8" and 1/4") – Secure a range of CNC router bits for different applications.
-
Power Cord – Supplies electrical power for machine operation.
-
Instruction Manual – Provides setup guidance and operational instructions.
Specs
Axiom Iconic-6 CNC Router, 24" x 36" Specifications
- Model Number: Iconic-6
- Stock Number: AX9-ICONIC6
- Table Size: 24" x 36"
- X-Axis Travel: 23.81"
- Y-Axis Travel: 35.82"
- Z-Axis Travel: 3.937"
- Accuracy: ±0.00589"
- Motor: 1 HP (800W)
- Spindle Speed: Up to 24,000 RPM
- Spindle Taper: ER11
- Included Collets: 1/8", 1/4"
- Drive System: Precision Ball Screws (X/Y/Z)
- Linear Motion: Prismatic Linear Guides
- Controller: RichAuto B11
- Max Engraving Speed: 150 IPM
- Input Power: 115V, 1PH
- Amperage: 13A
- Machine Dimensions: 50"L x 35"W x 28"H
- Net Weight: 265 lbs
- Warranty: 1 Year
