Axiom Iconic-4 CNC Router, 24" x 24"
Are you limited by entry-level CNC machines that lack rigidity and consistent accuracy for detailed work?
What if you could achieve precise, repeatable results with a machine designed for both creative flexibility and dependable performance?

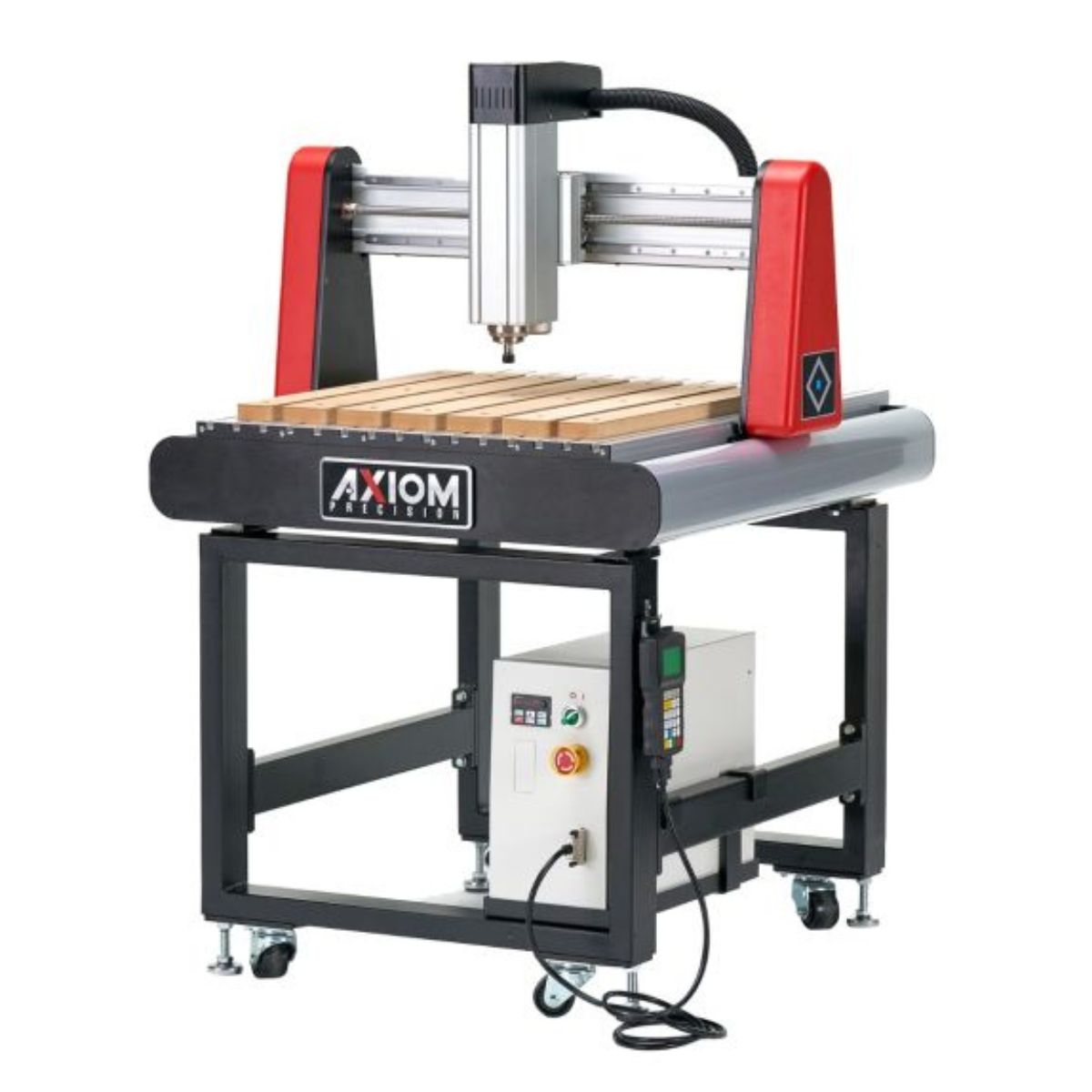

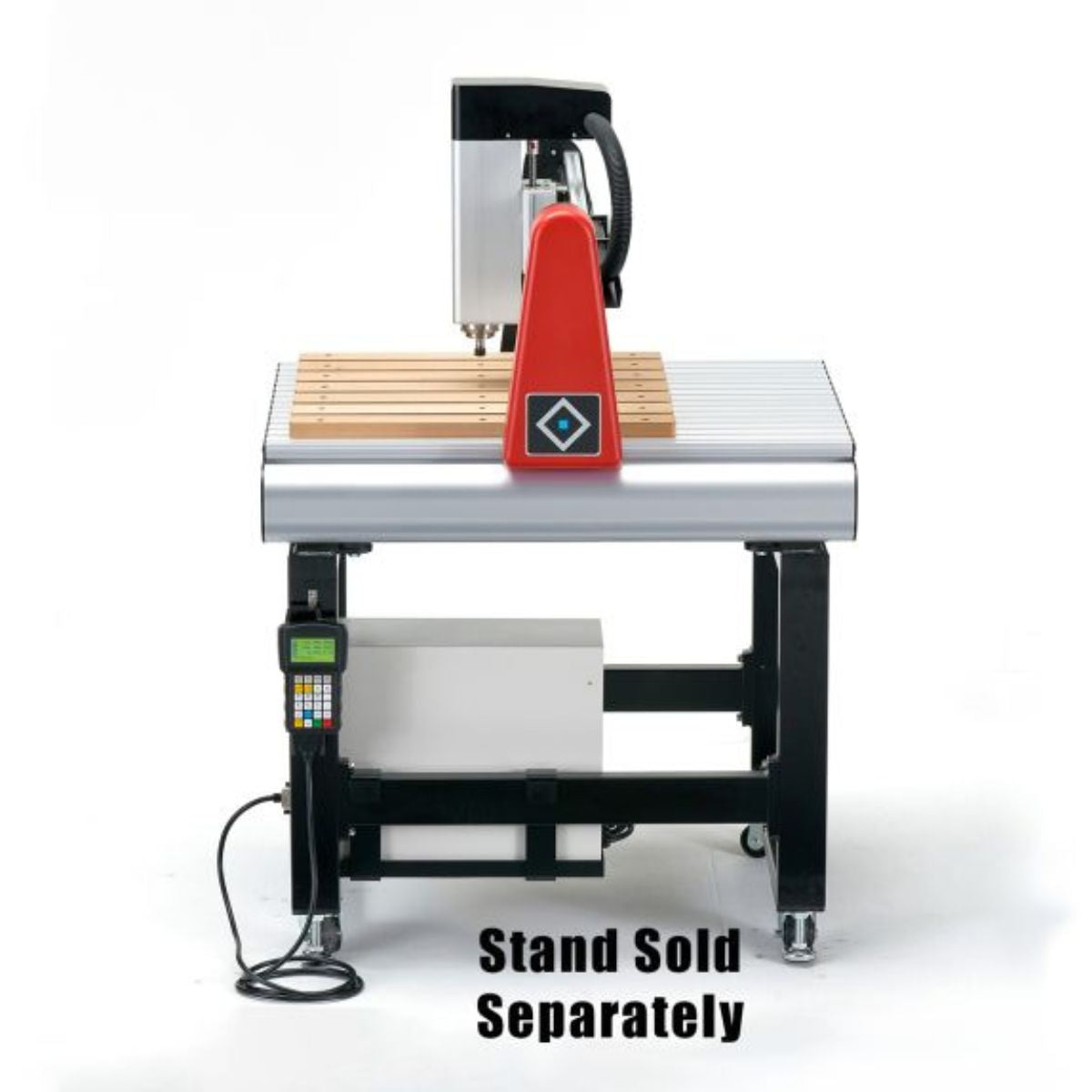

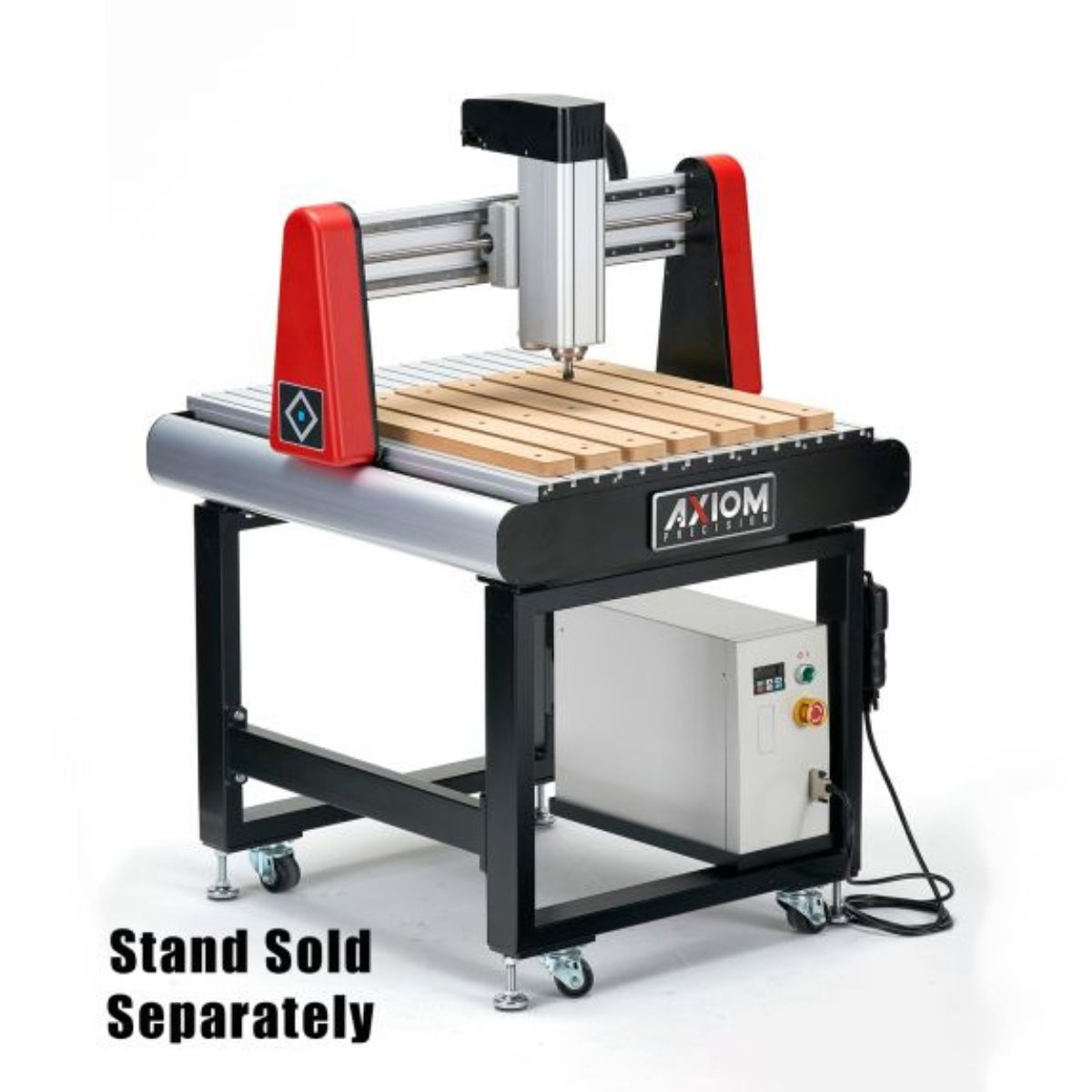

Meet the Axiom Iconic-4 CNC Router, a compact CNC platform engineered for precision routing, engraving, and carving applications.
With a rigid aluminum frame, ball screw drive system, and prismatic linear guides, it delivers consistent accuracy across a wide range of materials.
When your machine performs reliably on every pass, you gain confidence to take on more detailed and demanding projects.
Axiom Iconic-4 for Compact CNC Routing and Engraving

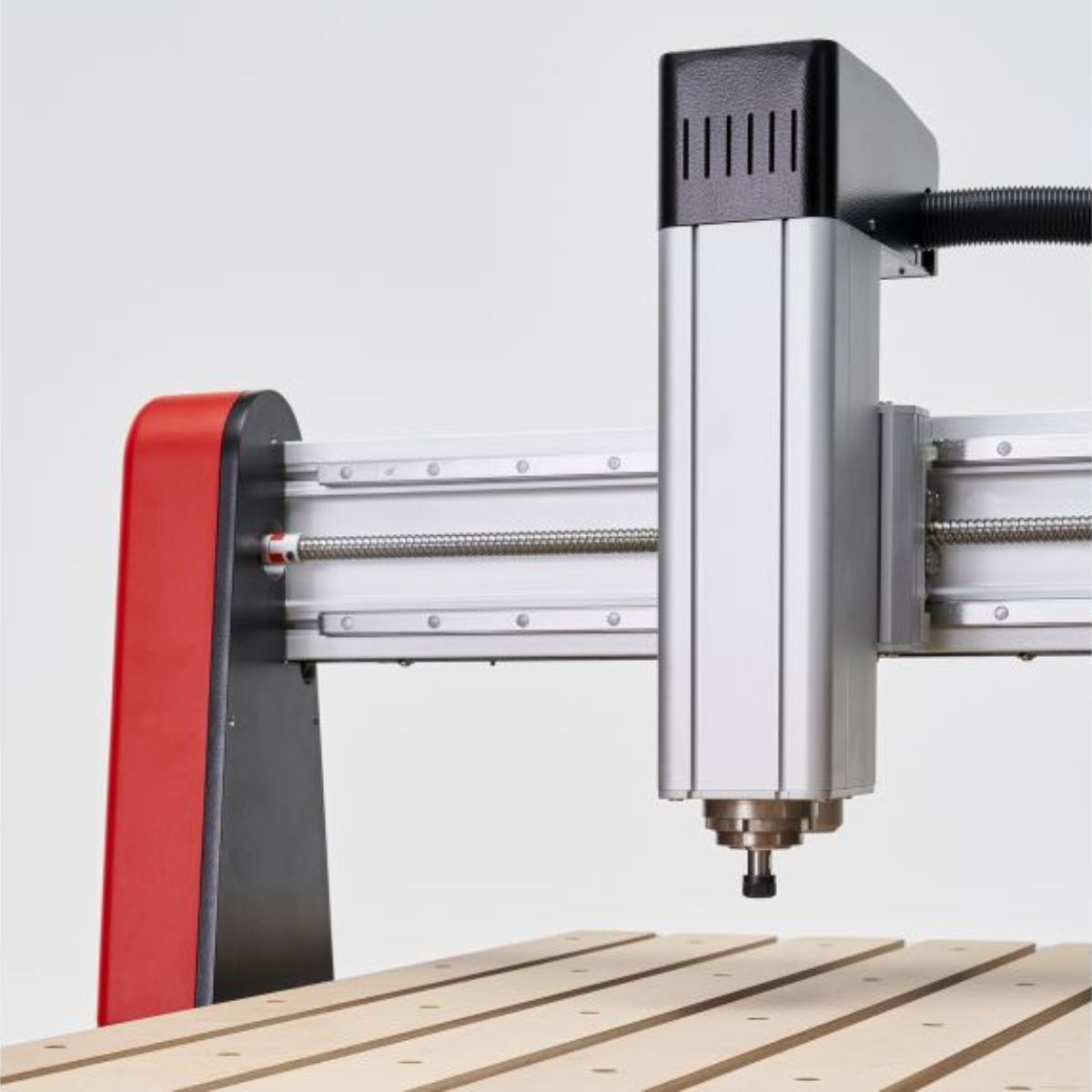

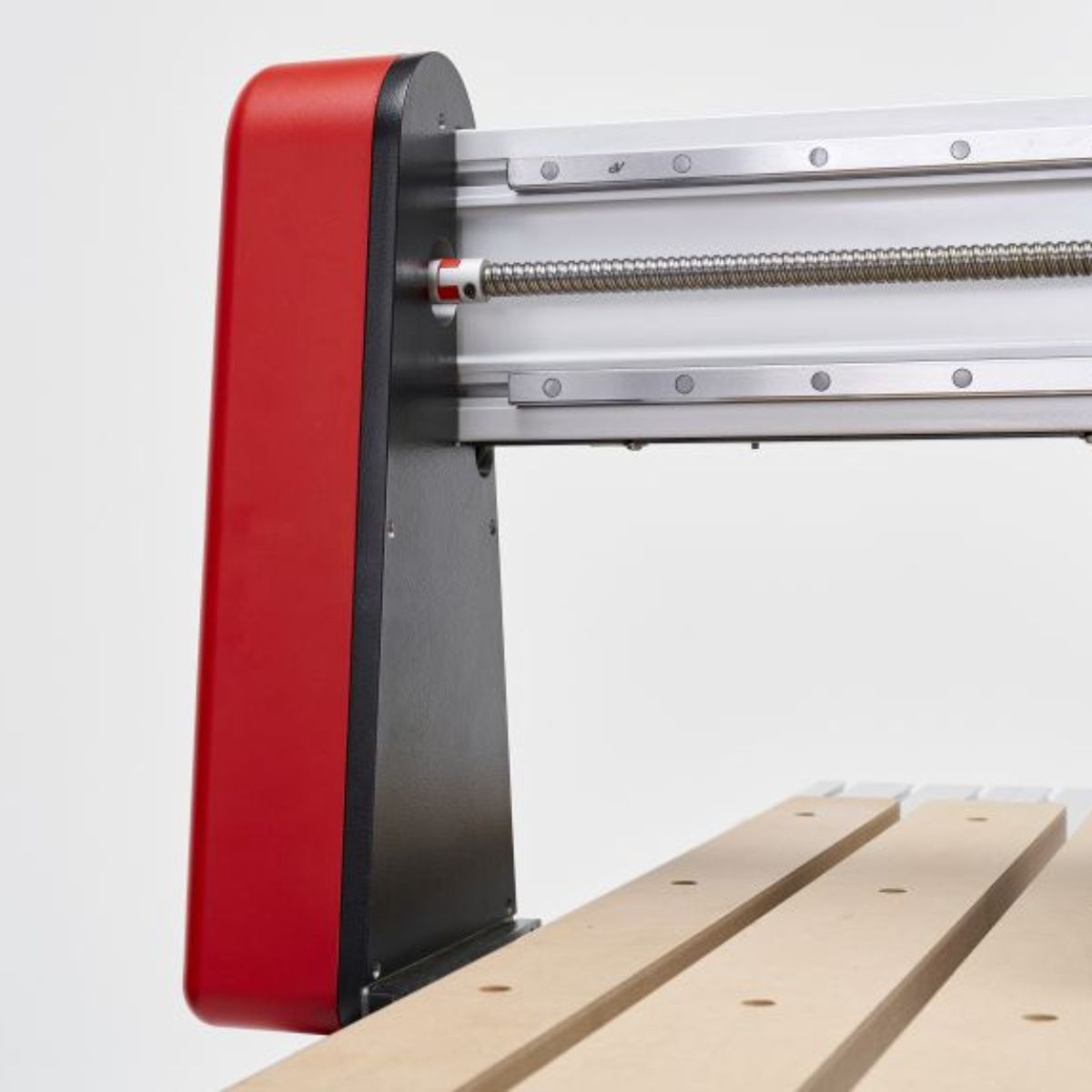

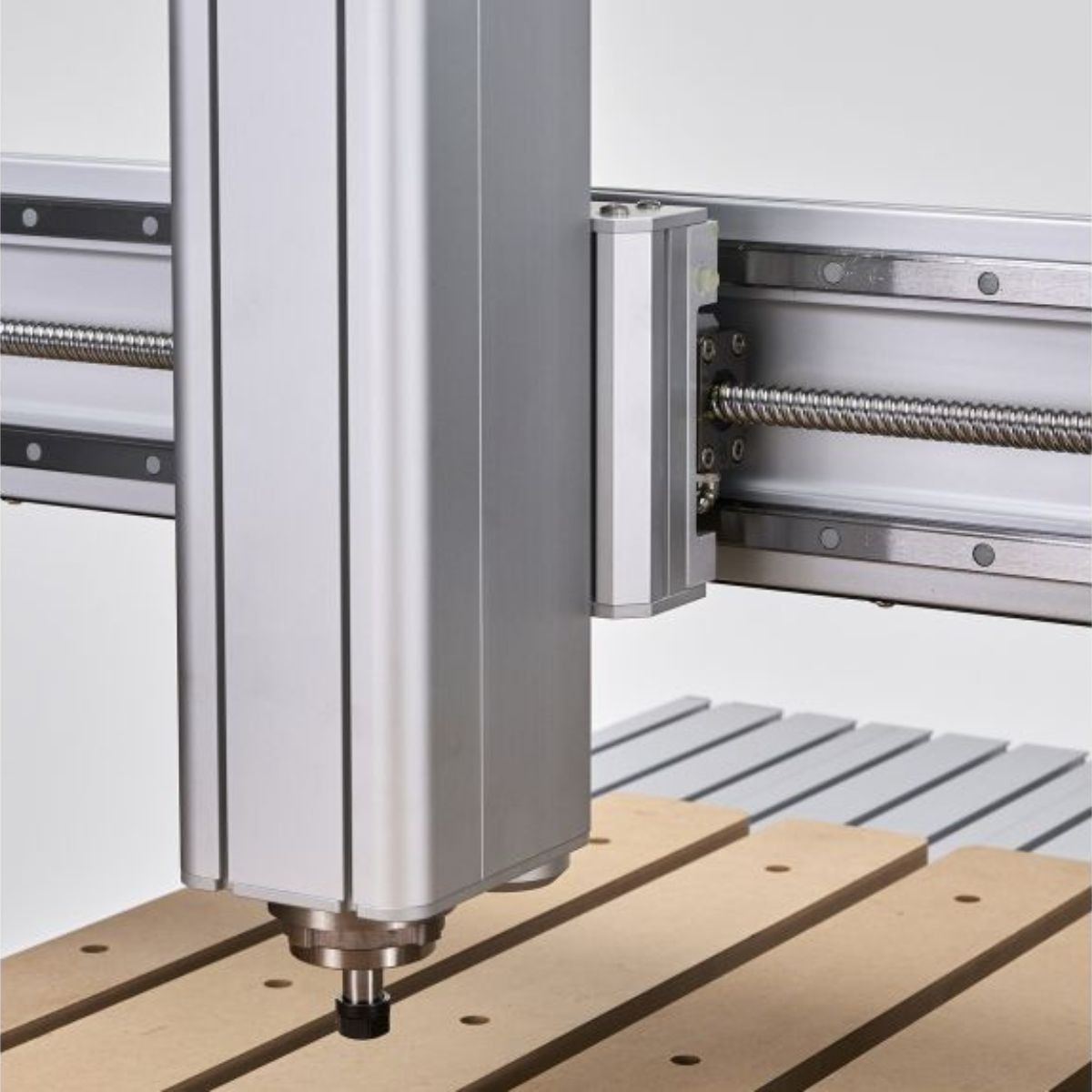

Ball Screw Drive System Improves Cutting Accuracy
Precision ball screws on all axes provide smooth, controlled motion with minimal backlash. This results in consistent positioning and repeatable cuts across projects. It supports tighter tolerances for detailed engraving and joinery work.

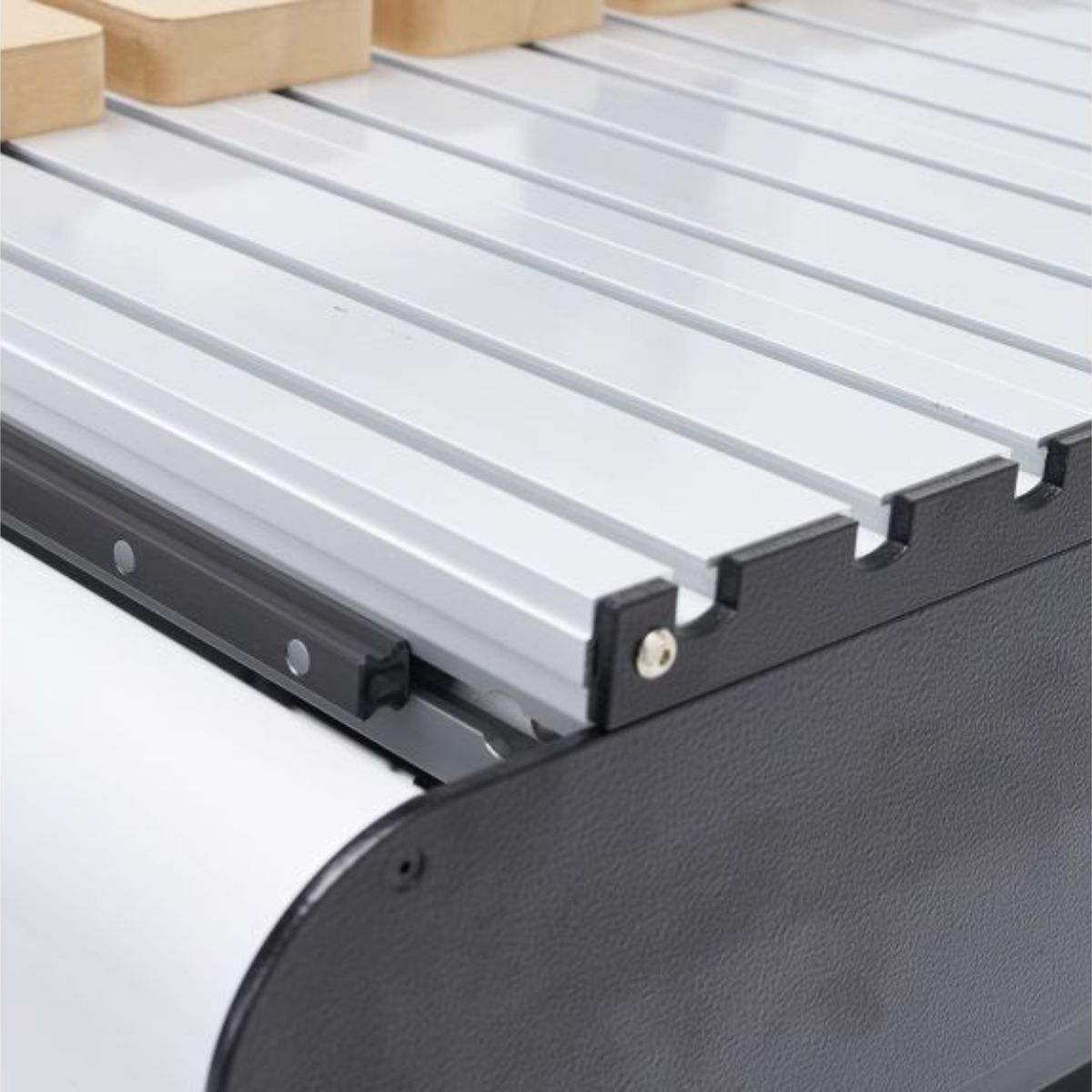

Extruded Aluminum Frame Increases Machine Rigidity
The high-rigidity extruded aluminum frame reduces vibration during operation. This stability improves surface finish and cutting precision, especially during intricate toolpaths. It also allows higher feed rates without sacrificing accuracy.
Prismatic Linear Guides Maintain Smooth Motion
Prismatic guides across all axes ensure stable, low-friction movement throughout the cutting area. This enhances long-term durability and consistent performance. It also reduces wear compared to lower-grade motion systems.

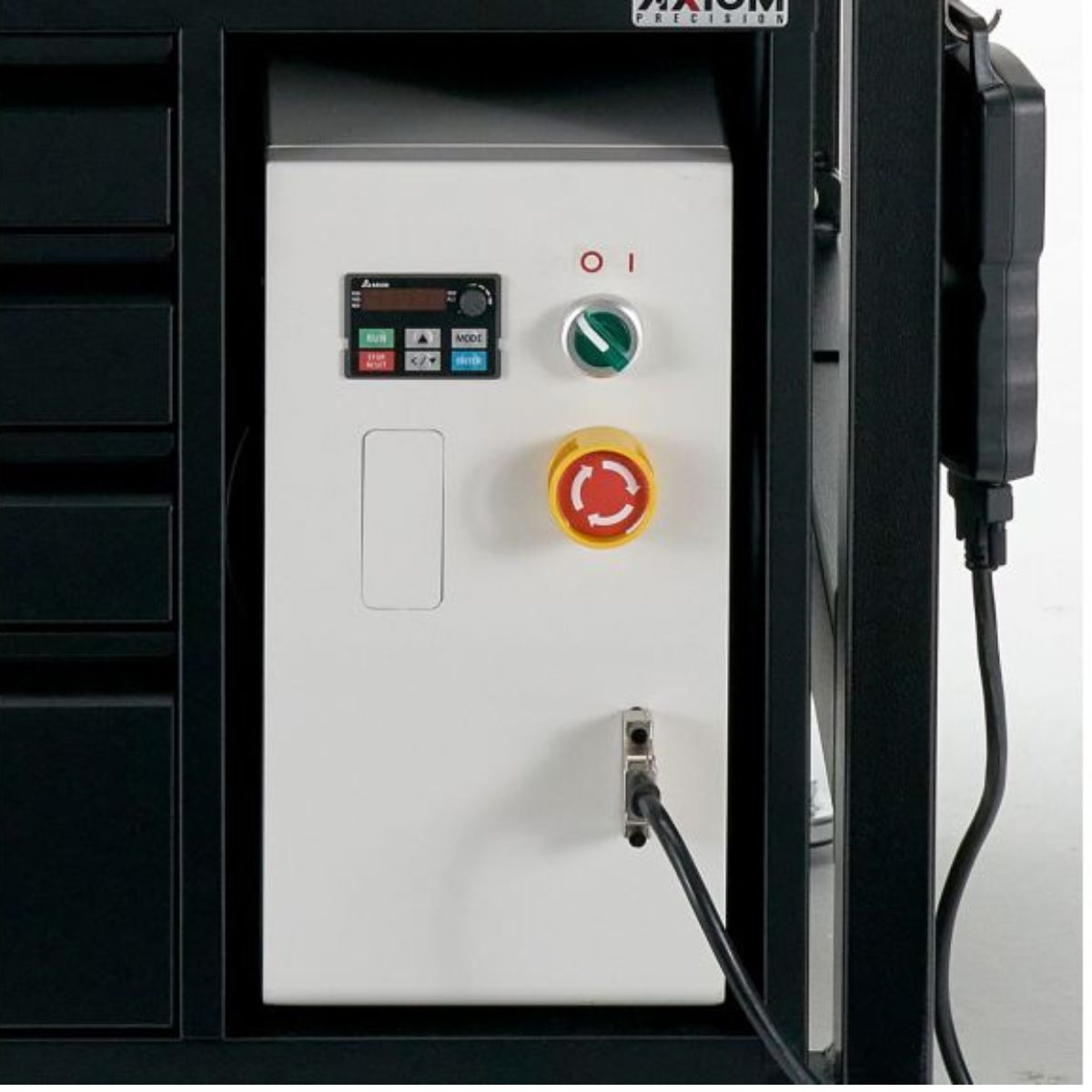

Integrated Controller System Simplifies Operation
The RichAuto B11 controller provides a self-contained operating system without requiring a dedicated PC. This streamlines workflow by allowing direct file input and machine control. It improves ease of use for both new and experienced operators.
What’s Included
What’s Included? Axiom Iconic-4 CNC Router
-
Axiom Iconic-4 CNC Router Machine – Complete CNC system with frame, gantry, and motion components ready for routing and engraving.
-

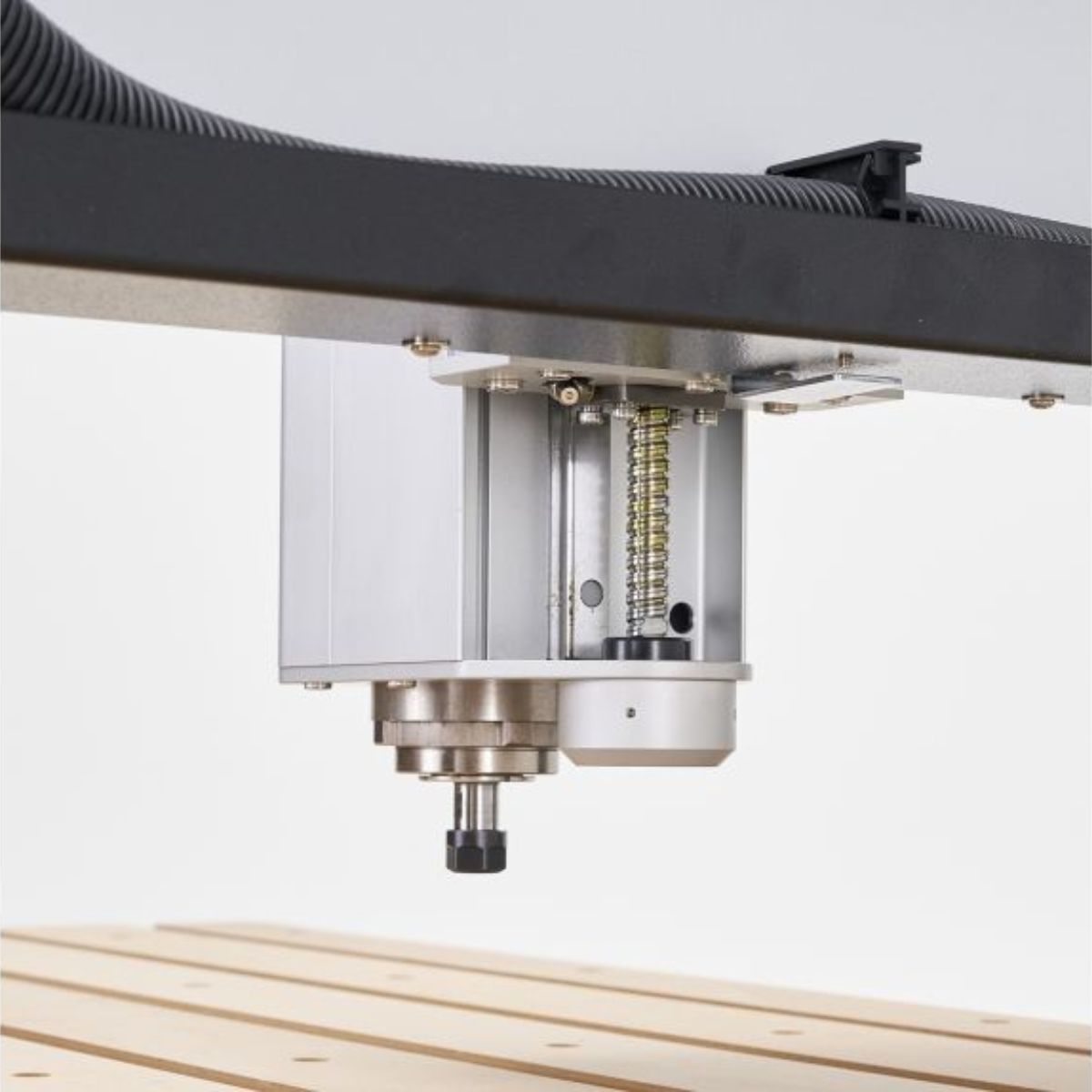

1HP Electro Spindle – Provides high-speed cutting performance up to 24,000 RPM for a variety of materials.
-
Auto Tool Touch-Off Plate – Enables quick and accurate Z-axis zeroing for consistent tool setup.
-
Integrated MDF Spoil Board – Protects the machine table while supporting workpieces during cutting.
-
RichAuto B11 Controller – Allows standalone operation and easy file management without a computer.
-
Collets (1/8" and 1/4") – Secure a range of cutting tools for different applications.
-
Power Cord – Supplies power to operate the CNC system.
-
Instruction Manual – Provides setup, operation, and maintenance guidance.
Specs
Axiom Iconic-4 CNC Router Specifications
- Model Number: Iconic 4
- Stock Number: AX9-ICONIC4
- Table Size: 24" x 24"
- X-Axis Travel: 23.81"
- Y-Axis Travel: 24.01"
- Z-Axis Travel: 3.937"
- Accuracy: ±0.00589"
- Spindle Power: 1 HP (800W)
- Spindle Speed: Up to 24,000 RPM
- Spindle Taper: ER11
- Included Collets: 1/8", 1/4"
- Drive System: Precision Ball Screws (X/Y/Z)
- Linear Motion: Prismatic Linear Guides
- Controller: RichAuto B11
- Max Engraving Speed: 150 IPM
- Input Power: 115V, 1PH
- Amperage: 13A
- Machine Dimensions: 38"L x 35"W x 28"H
- Net Weight: 220 lbs
- Warranty: 1 Year
