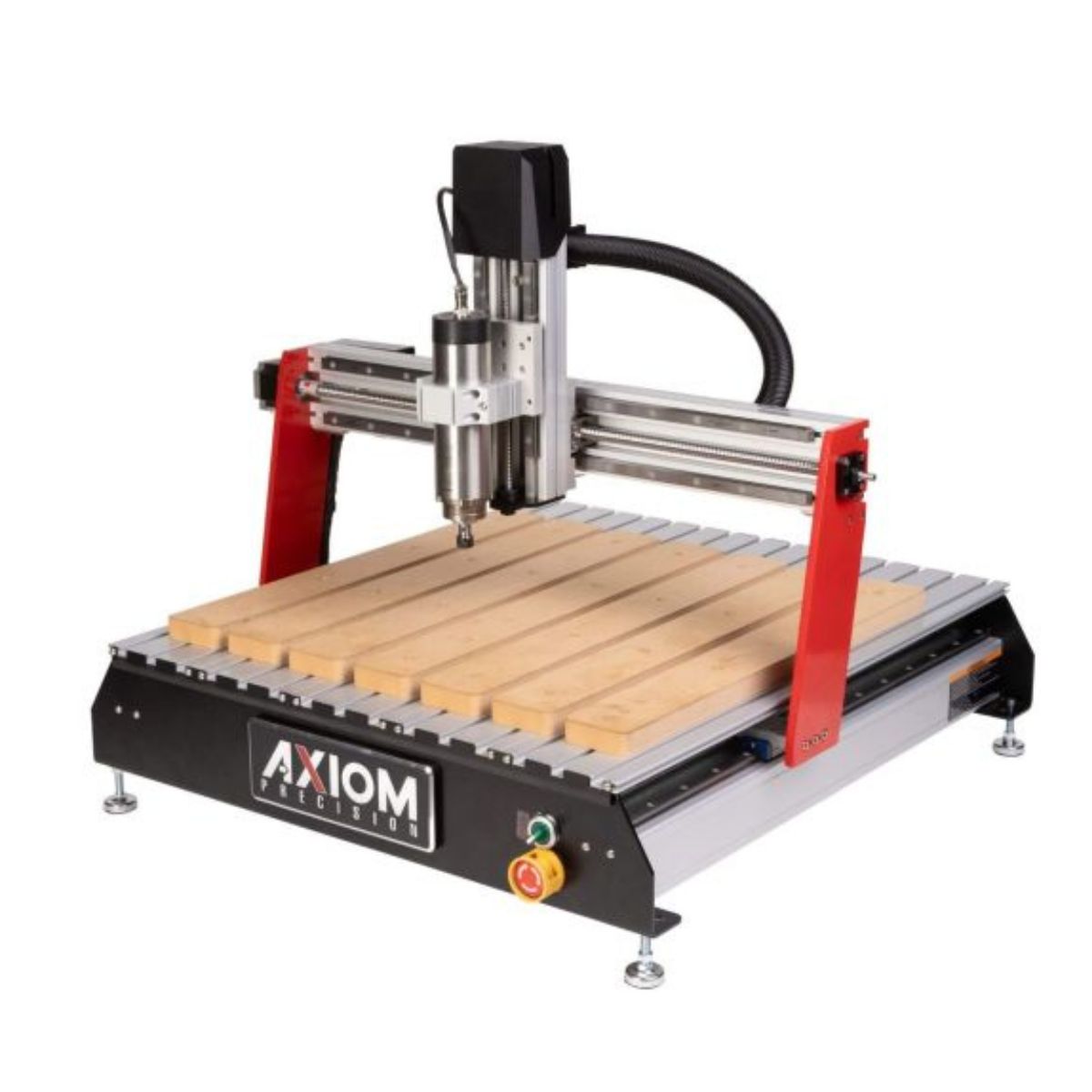

Axiom 2X2 CNC Router, 24'' x 24''
Are you limited by workspace constraints while still needing precise, production-level CNC performance?
What if you could achieve industrial-grade accuracy and speed in a compact machine designed for smaller shops?

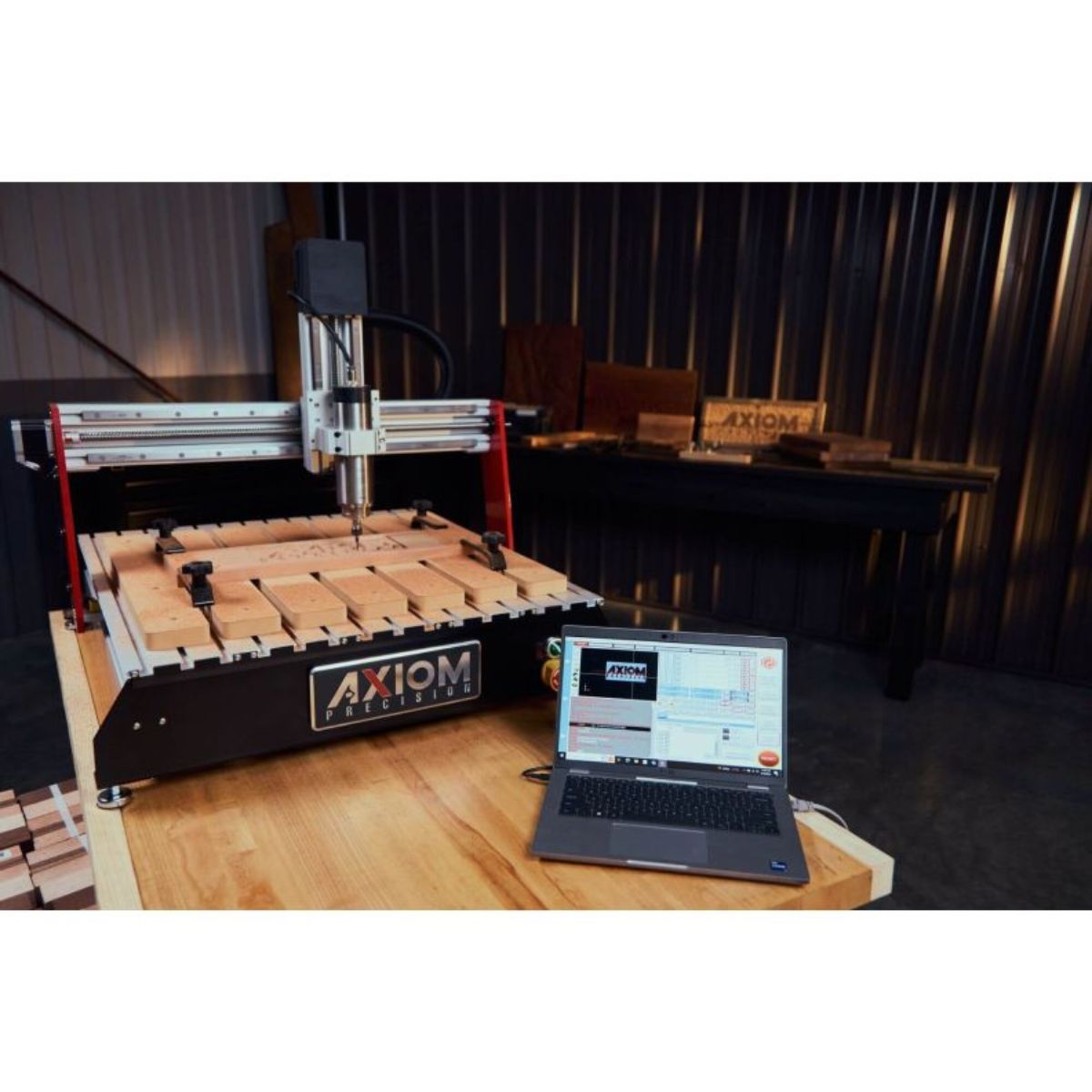

Meet the Axiom 2X2 CNC Router, a compact routing platform built to deliver precision cutting, repeatability, and efficient workflow.
With a rigid steel frame, ball screw drive system, and ±0.006'' accuracy, it provides dependable performance across wood, plastics, and more.
When your machine fits your space without sacrificing capability, your workflow becomes faster, cleaner, and more productive.
Axiom 2X2 CNC Router for Compact Precision Routing

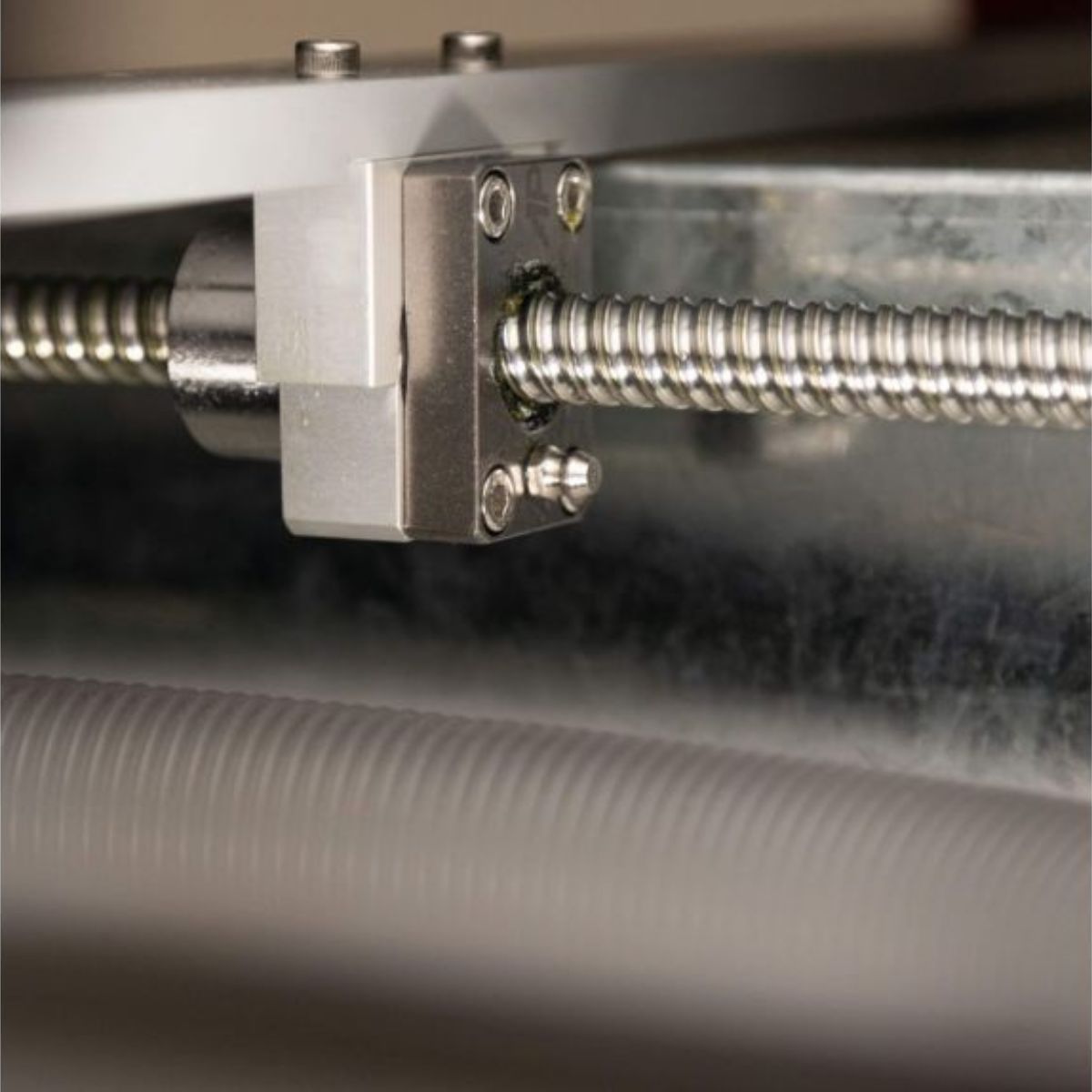

Ball Screw Drive System Improves Positional Accuracy
Precision ball screws on all axes provide smooth, backlash-resistant motion during cutting operations. This results in improved positional accuracy and consistent repeatability across projects. It ensures cleaner cuts and tighter tolerances in detailed work.
Steel Frame and Aluminum Gantry Increase Rigidity
The rigid steel frame combined with an extruded aluminum gantry minimizes vibration during machining. This stability supports higher cutting speeds while maintaining accuracy. It also improves surface finish and tool control.

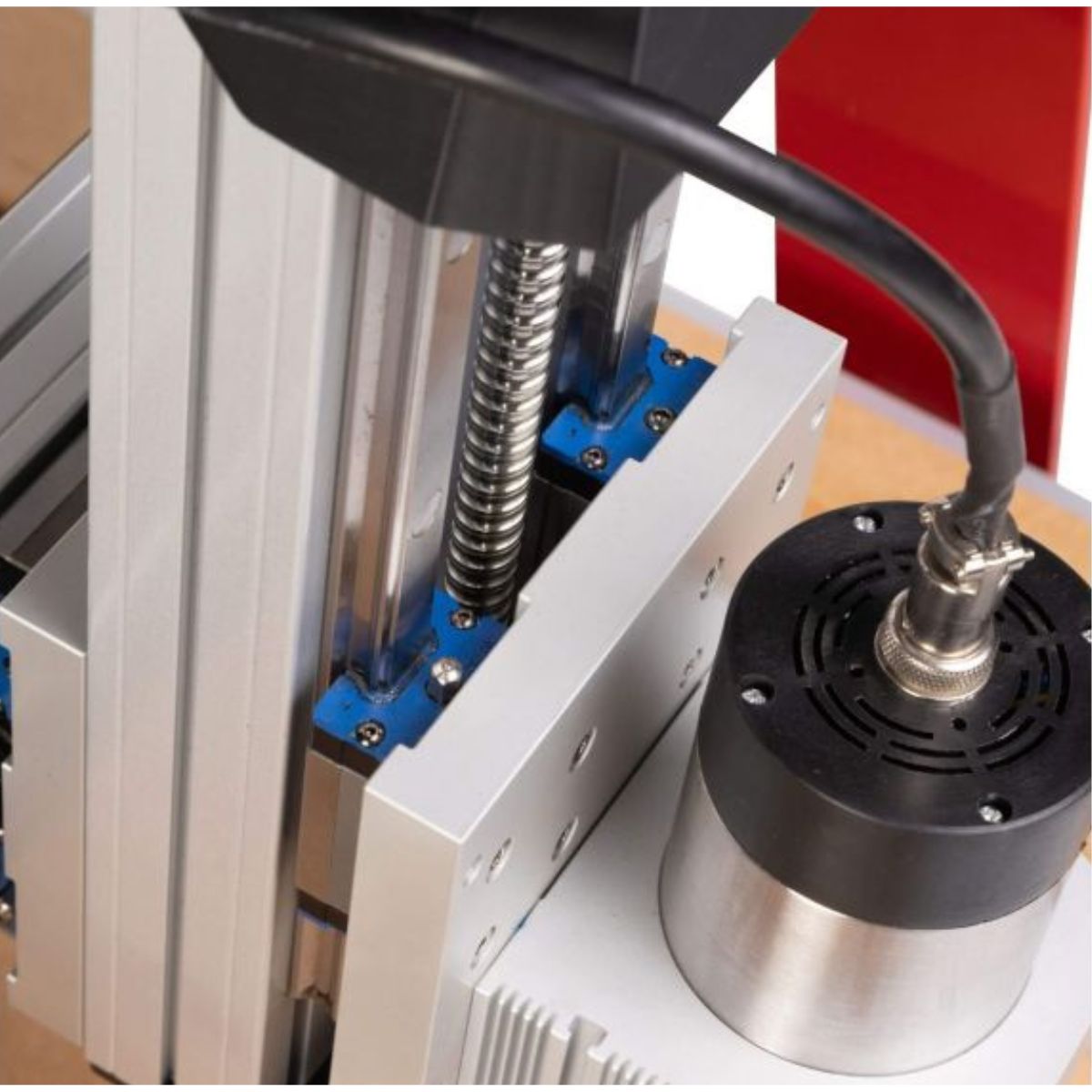

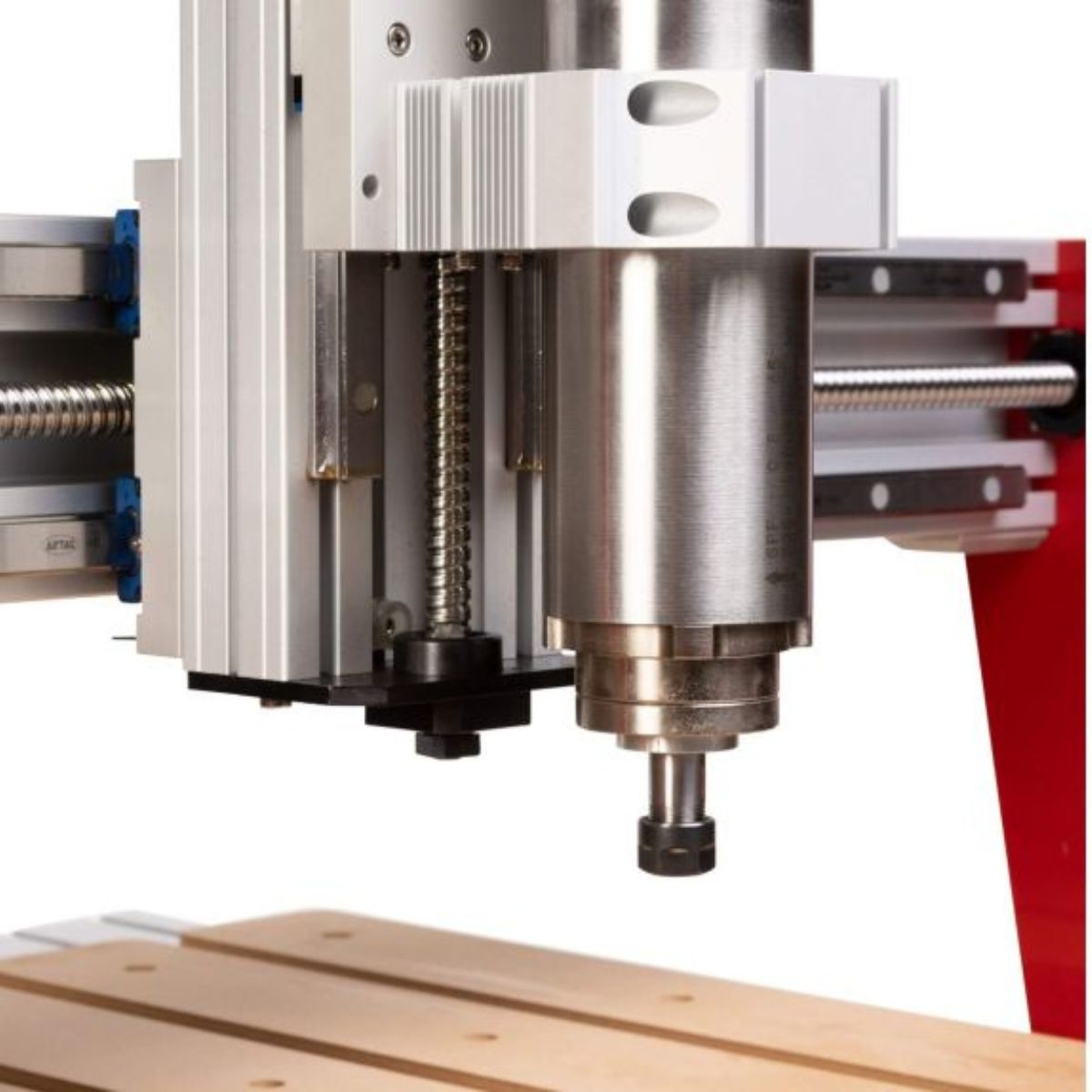

High-Speed Electro Spindle Expands Cutting Capability
The 1HP air-cooled electro spindle operates up to 24,000 RPM for a wide range of materials. This allows efficient cutting of wood, plastics, and composites with consistent performance. Variable speed control supports both roughing and finishing passes.

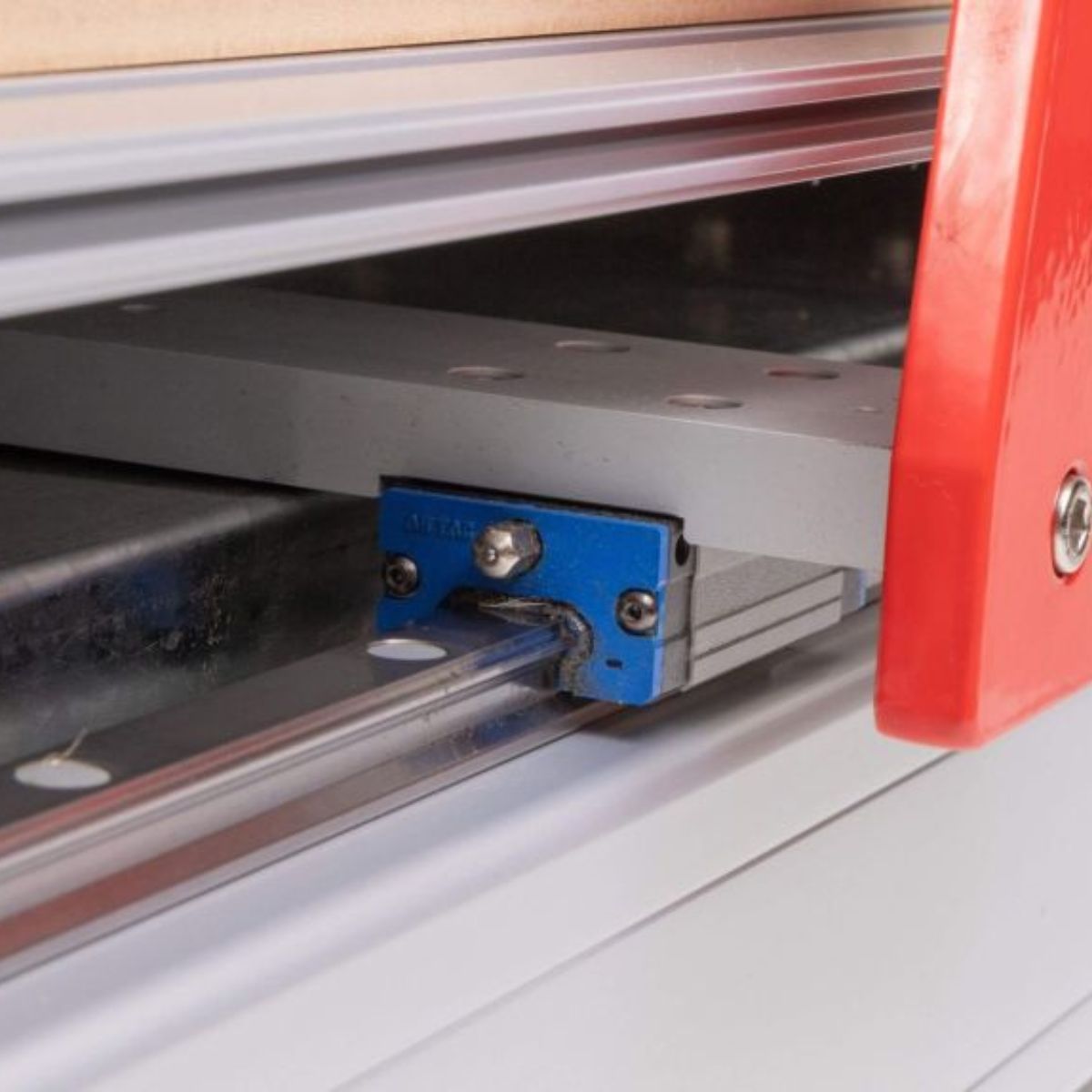

Prismatic Linear Guides Maintain Smooth Motion
Prismatic linear guides on all axes ensure controlled, low-friction travel across the cutting area. This improves motion consistency and reduces wear over time. It supports long-term accuracy in repeated production work.
What’s Included
What’s Included? Axiom 2X2 CNC Router
-
Axiom 2X2 CNC Router Machine – Complete CNC system with frame, gantry, and motion components ready for precision routing.
-
1HP Electro Spindle – Provides high-speed cutting power for a wide range of materials and applications.
-
Spring Chuck (ER11) – Secures cutting tools in the spindle for accurate and stable operation.
-

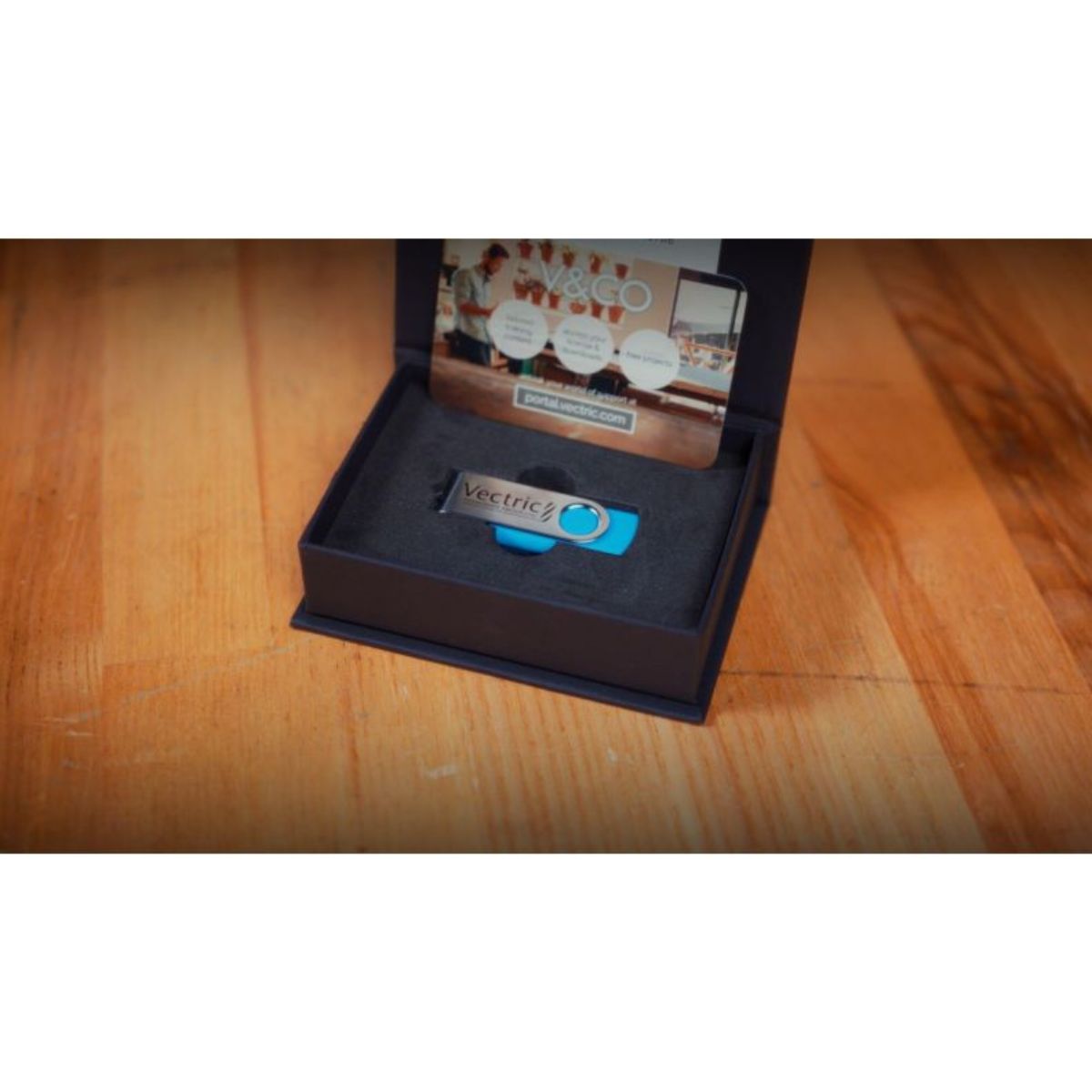

USB Drive – Enables easy transfer of design files directly to the machine.
-
RJ-45 Ethernet Cable – Connects controller components for reliable machine communication.
-

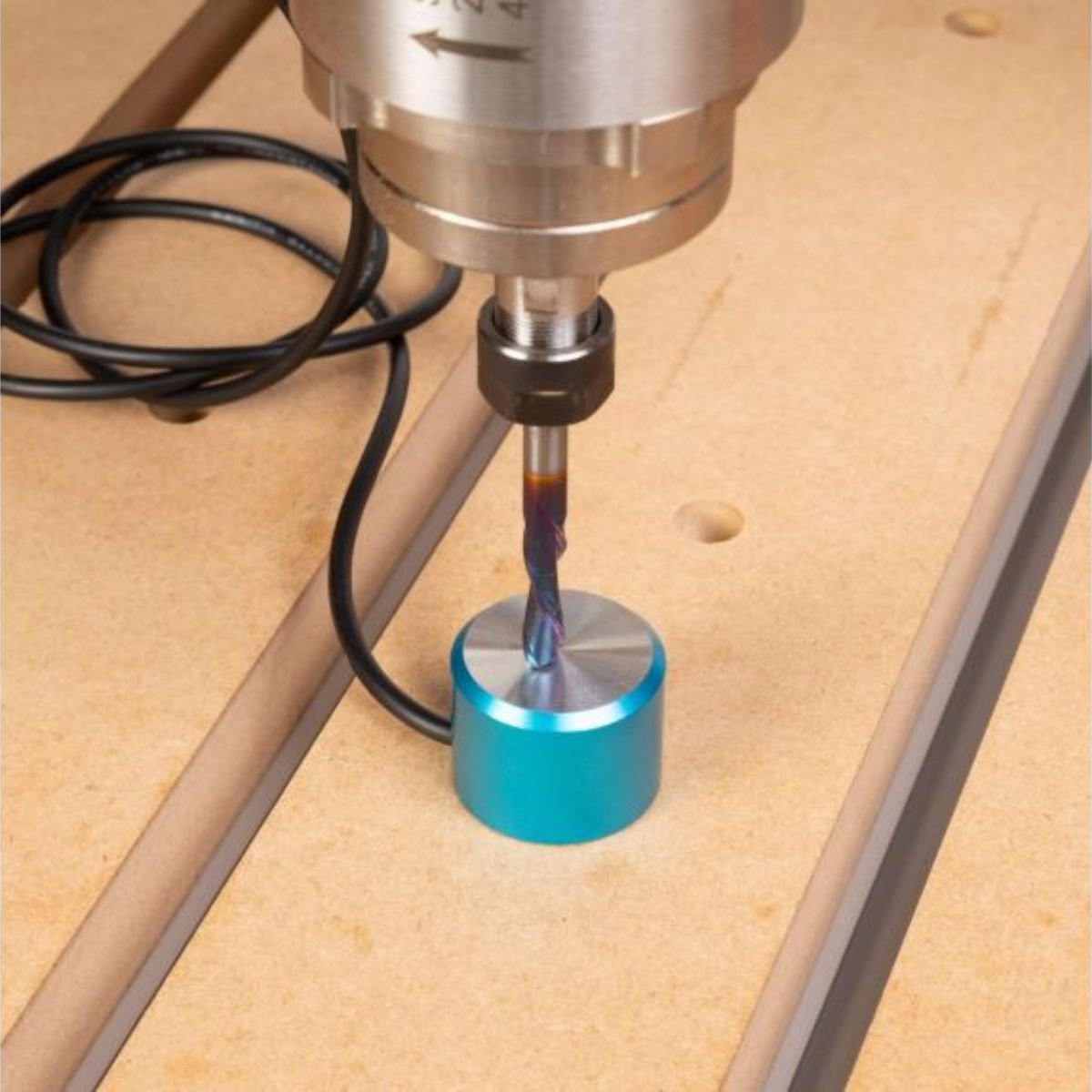

Tool Touch-Off Puck – Allows quick and accurate Z-axis zeroing for consistent tool setup.
-
Power Cord – Supplies power to operate the CNC system.
-
Wrenches (2) – Used for tool changes and spindle adjustments.
-
Hardware Pack – Includes necessary fasteners for setup and assembly.
-
Owner’s Manual – Provides instructions for setup, operation, and maintenance.
Specs
Axiom 2X2 CNC Router Specifications
- Model: AX1-101
- Table Work Area: 24'' x 24''
- X-Axis Travel: 24''
- Y-Axis Travel: 24''
- Z-Axis Travel: 5.5''
- Positional Accuracy: ±0.006''
- Spindle: 1 HP Electro Spindle
- Spindle Speed: 0–24,000 RPM
- Spindle Taper: ER11
- Included Collets: 1/4'', 1/8''
- Rapid Feed Rate: 200 IPM
- Drive System: Precision Ball Screws (X/Y/Z)
- Linear Motion: Prismatic Linear Guides
- Motor Type: NEMA 23 Stepper Motors
- Power Requirements: 115V, 1PH, 15A
- Machine Dimensions: 35''W x 31.5''L x 31.5''H
- Machine Weight: 165.3 lbs
- Tool Touch-Off: Included
- Warranty: 1 Year
