Axiom AR8 Pro V6 CNC Router, 24" x 48"
Are you limited by CNC machines that cannot maintain power and precision across full-length materials?
What if you could machine large panels with consistent accuracy while maintaining speed and control in every pass?

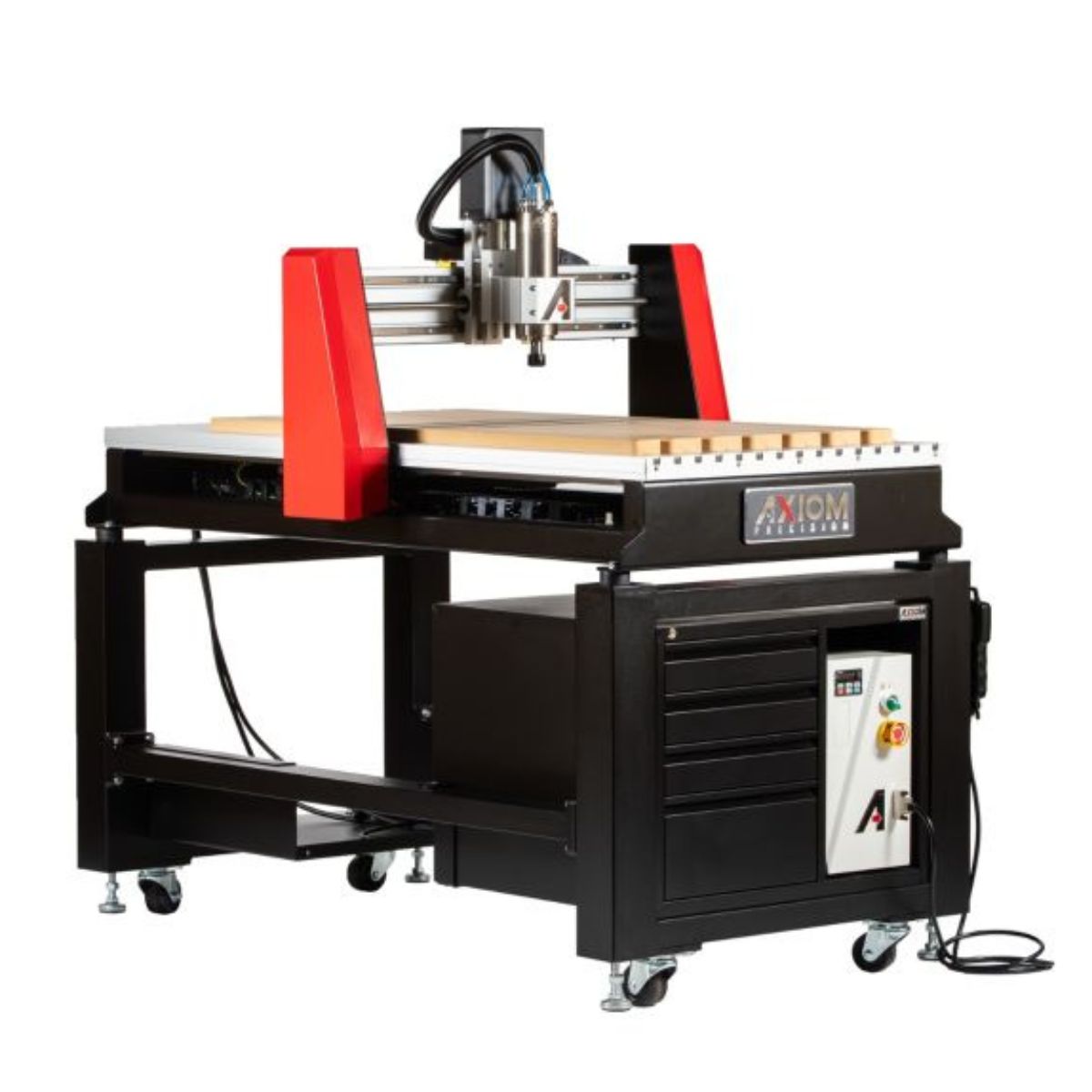

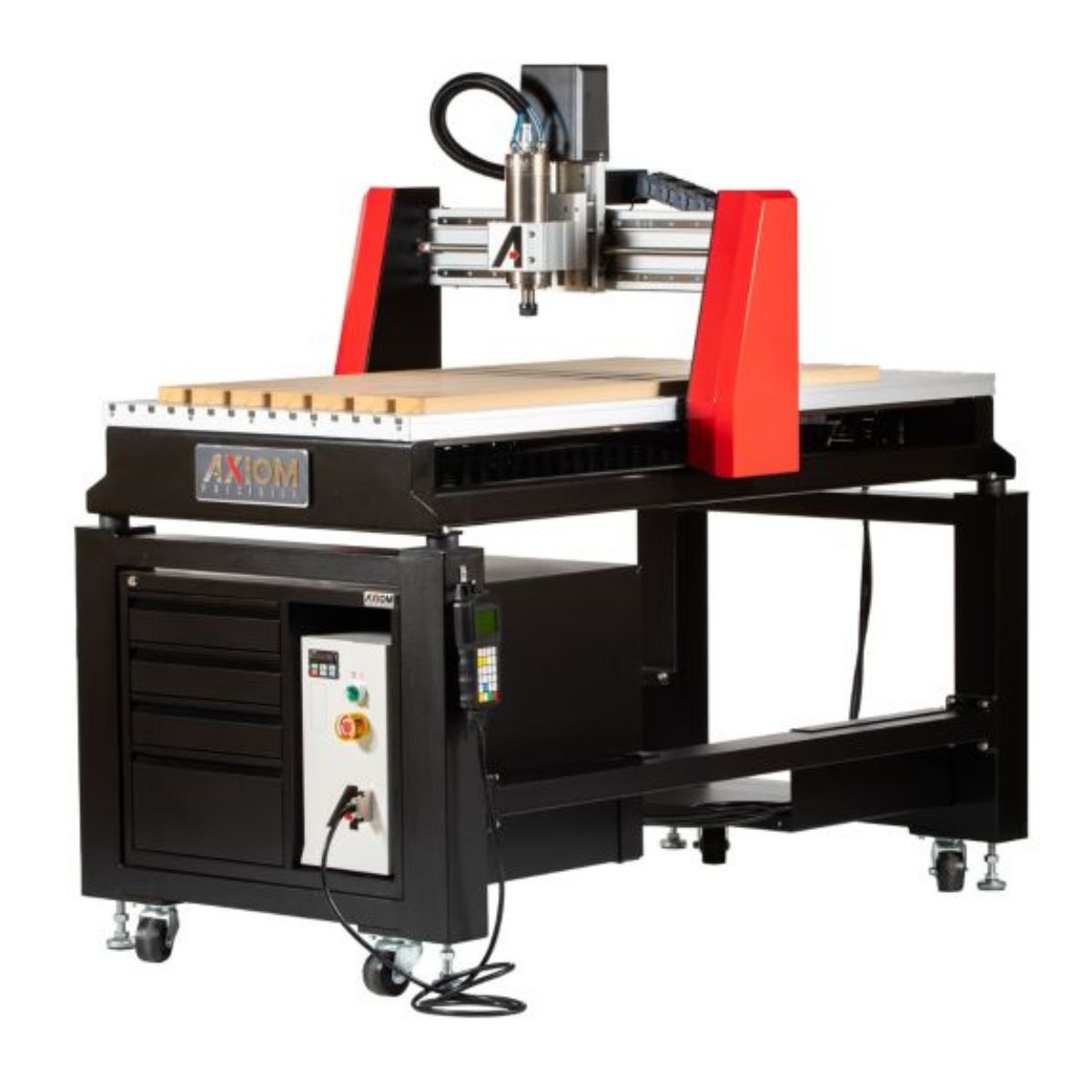

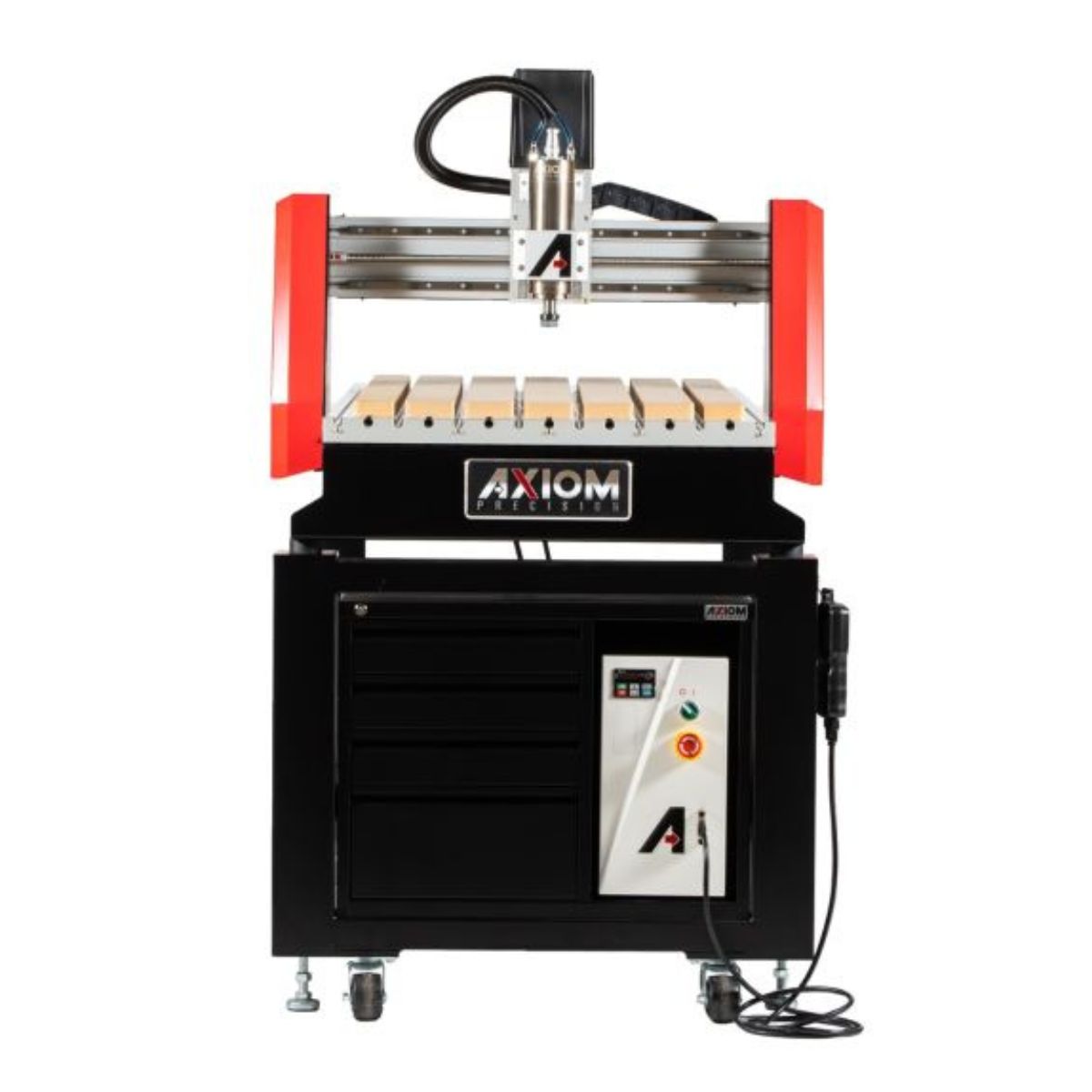

Meet the Axiom AR8 Pro V6 CNC Router, a 24" x 48" platform engineered for high-performance routing, carving, and production work.
With a 3HP liquid-cooled spindle, 48V stepper motors, and precision ball screws, it delivers ±0.00393" accuracy and smooth motion.
When your machine handles full-length work with precision and stability, your production capacity increases and results stay consistent.

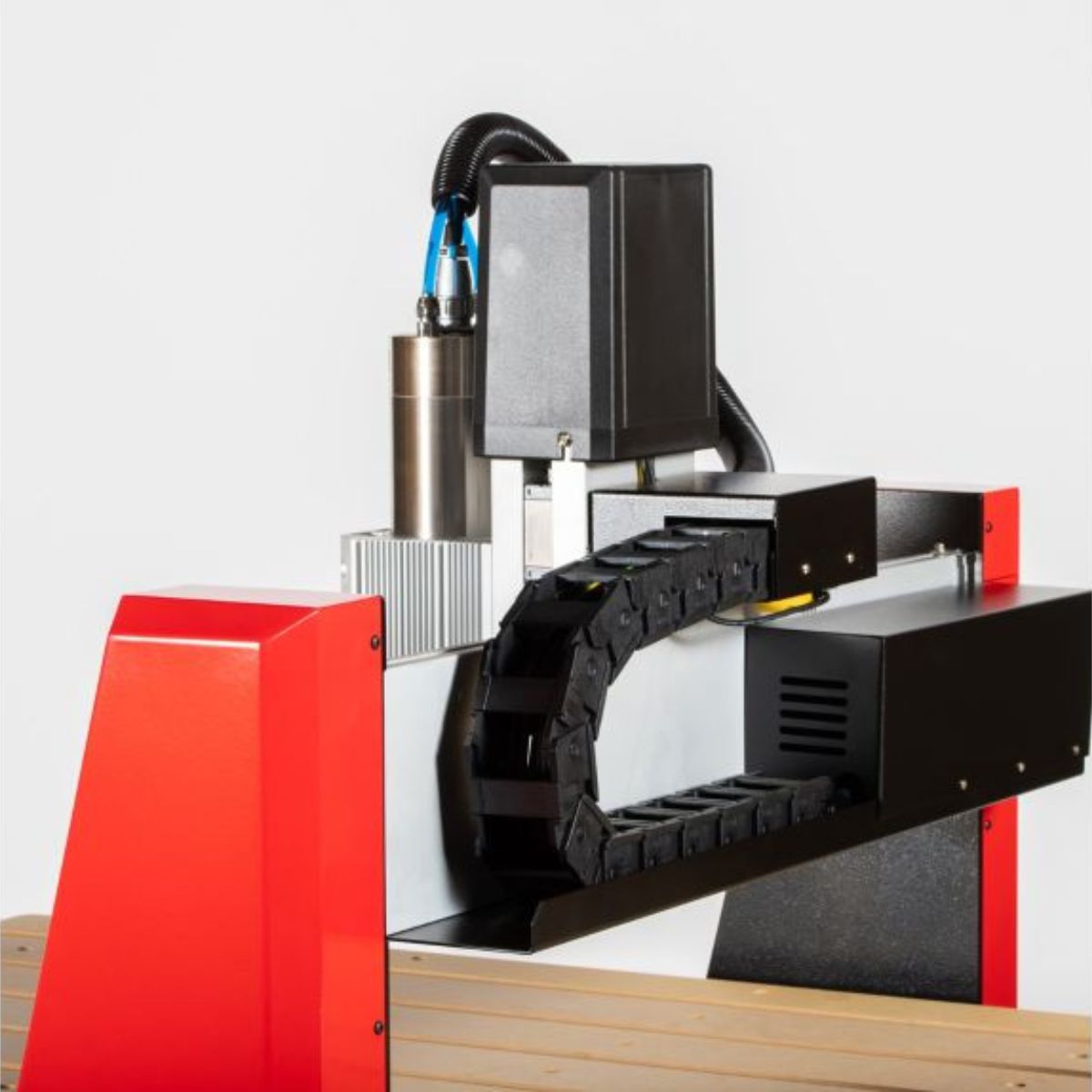

Axiom AR8 Pro V6 for Full-Length Precision CNC Machining

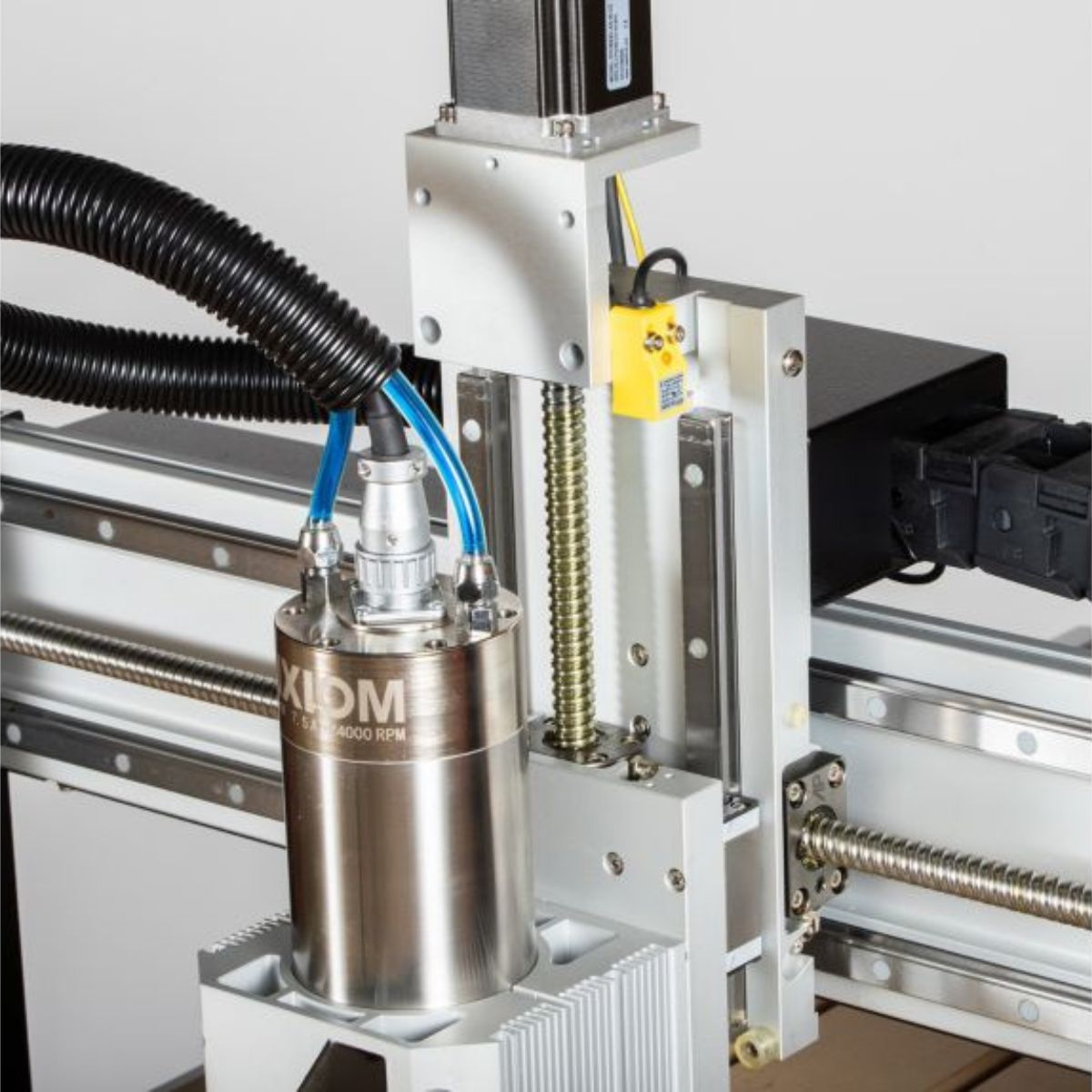

3HP Liquid-Cooled Spindle Powers Heavy Cuts
The 3HP electro spindle delivers high torque for demanding materials and deeper cutting passes. Its liquid cooling system maintains stable temperatures during extended operation. This enables consistent performance and longer tool life in production environments.
48V Stepper Motor System Improves Motion Control
High-voltage stepper motors provide increased torque and smoother acceleration. This enhances axis control and maintains accuracy at higher feed rates. It supports efficient machining across large work areas.

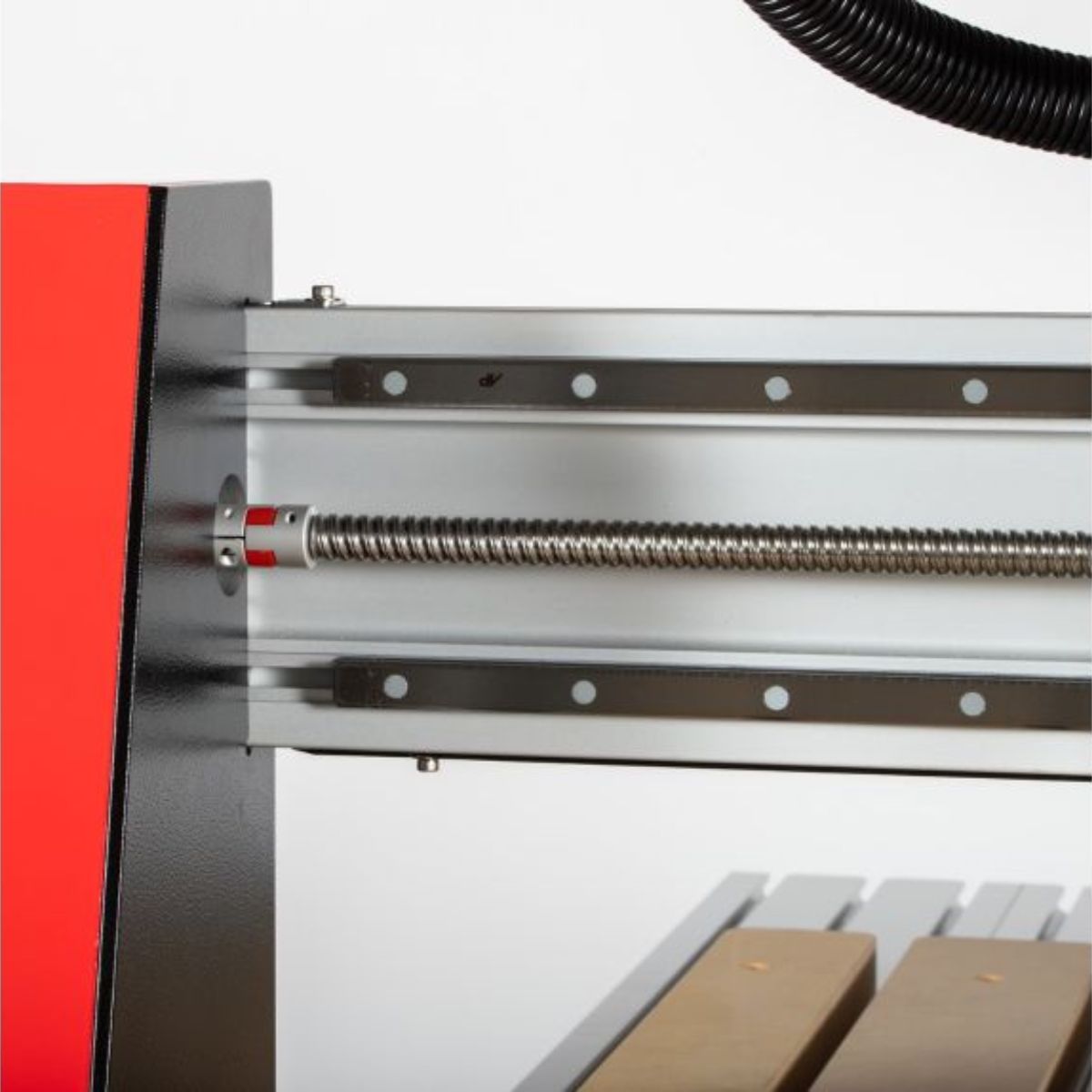

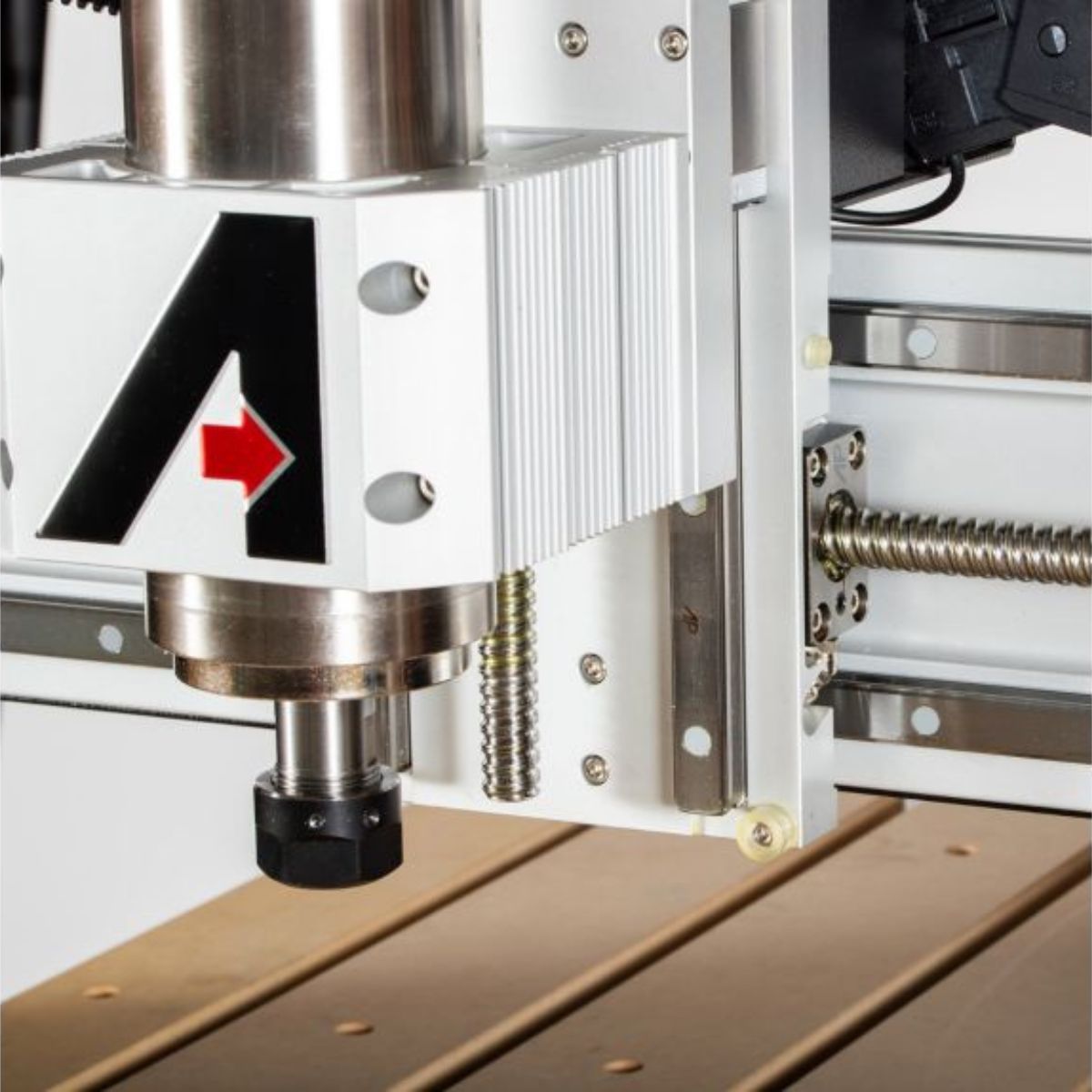

Ball Screw Drive System Maintains Precision
Precision ball screws reduce backlash and ensure accurate positioning across all axes. This results in repeatable cuts and tight tolerances. It is essential for detailed machining and consistent production output.
Prismatic Linear Guides Stabilize Axis Movement
Prismatic guides provide rigid, low-friction support for smooth axis travel. This reduces vibration and component wear over time. It ensures stable performance during long machining cycles.
What’s Included
What’s Included? Axiom AR8 Pro V6 CNC Router, 24" x 48"
-
Axiom AR8 Pro V6 CNC Router Machine – Full CNC system with extended table capacity for routing, carving, and machining.
-
3HP Liquid-Cooled Electro Spindle – Provides high-torque cutting power with cooling for continuous operation.
-

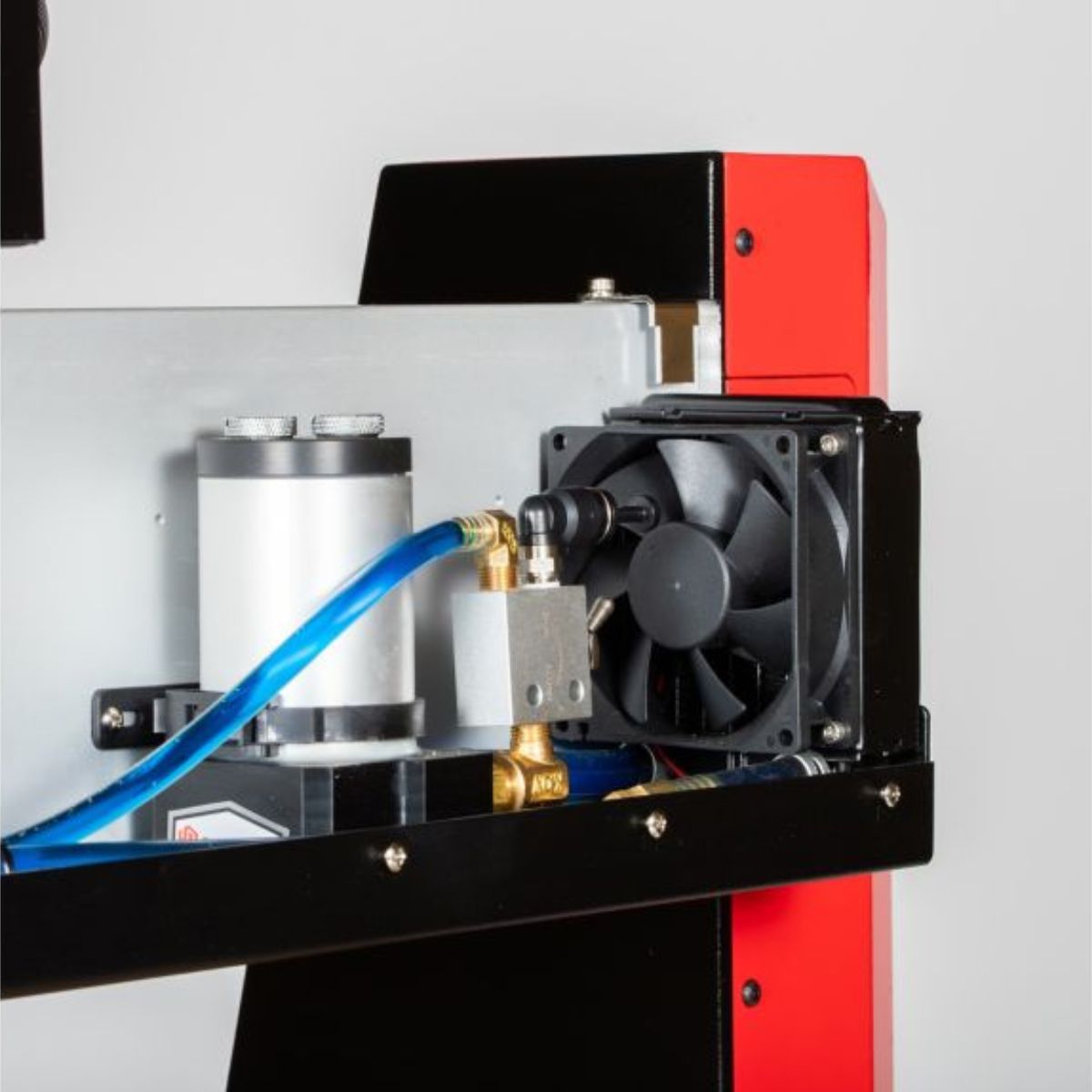

Integrated Liquid Cooling System – Maintains spindle temperature for consistent performance and durability.
-
Auto Tool Touch-Off Plate – Enables precise Z-axis calibration for accurate tool setup.
-

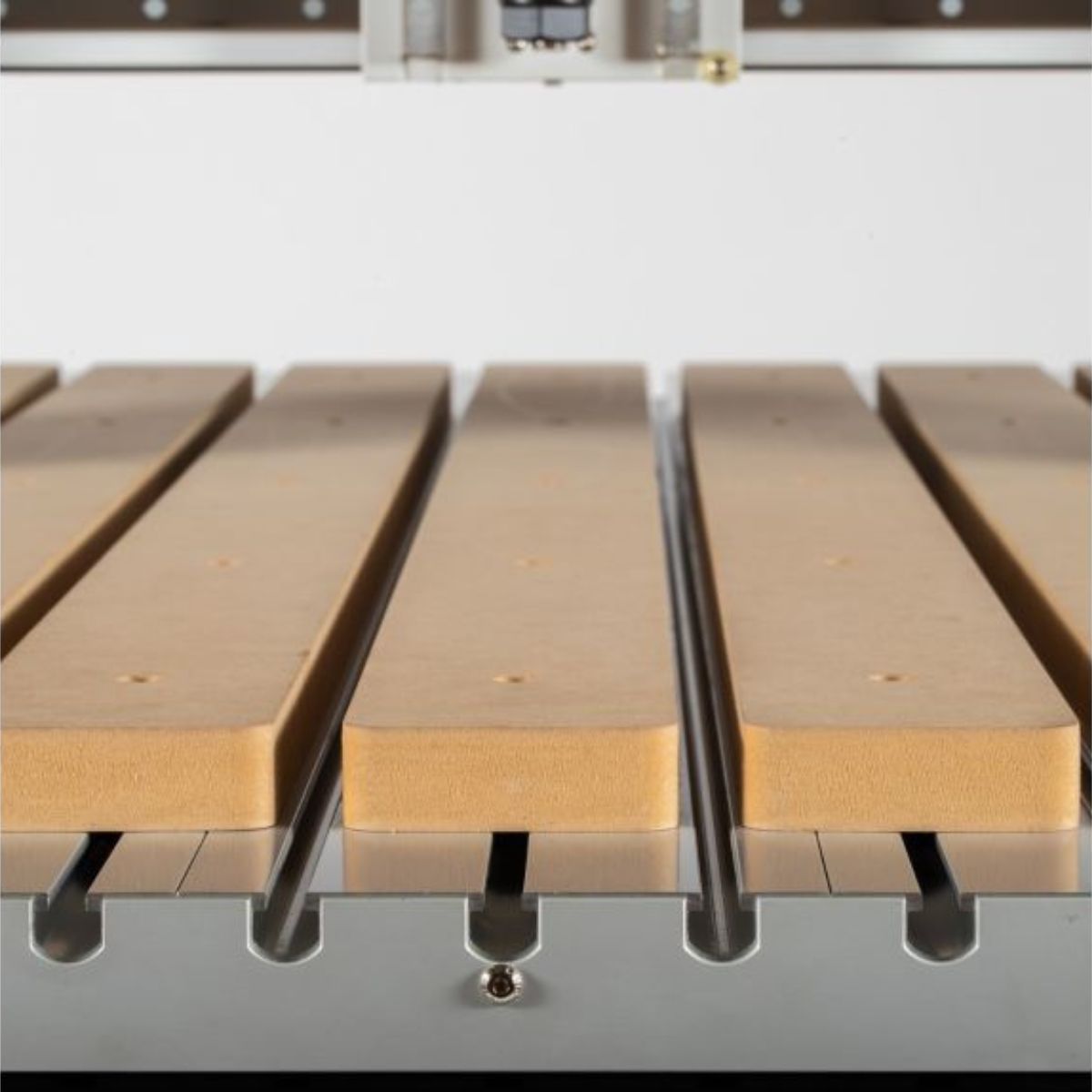

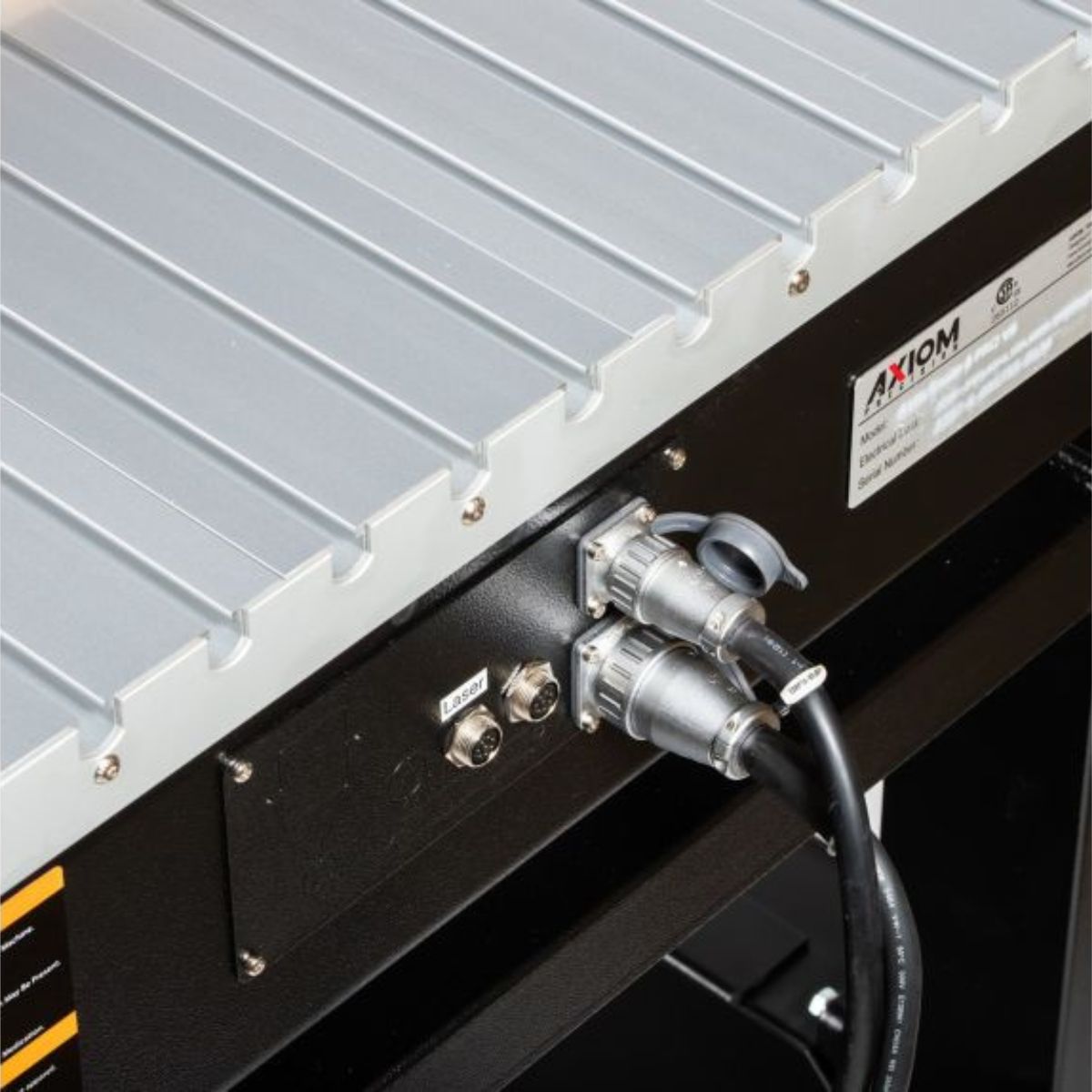

Interlocking Aluminum Table – Provides a stable and durable work surface for supporting materials.
-

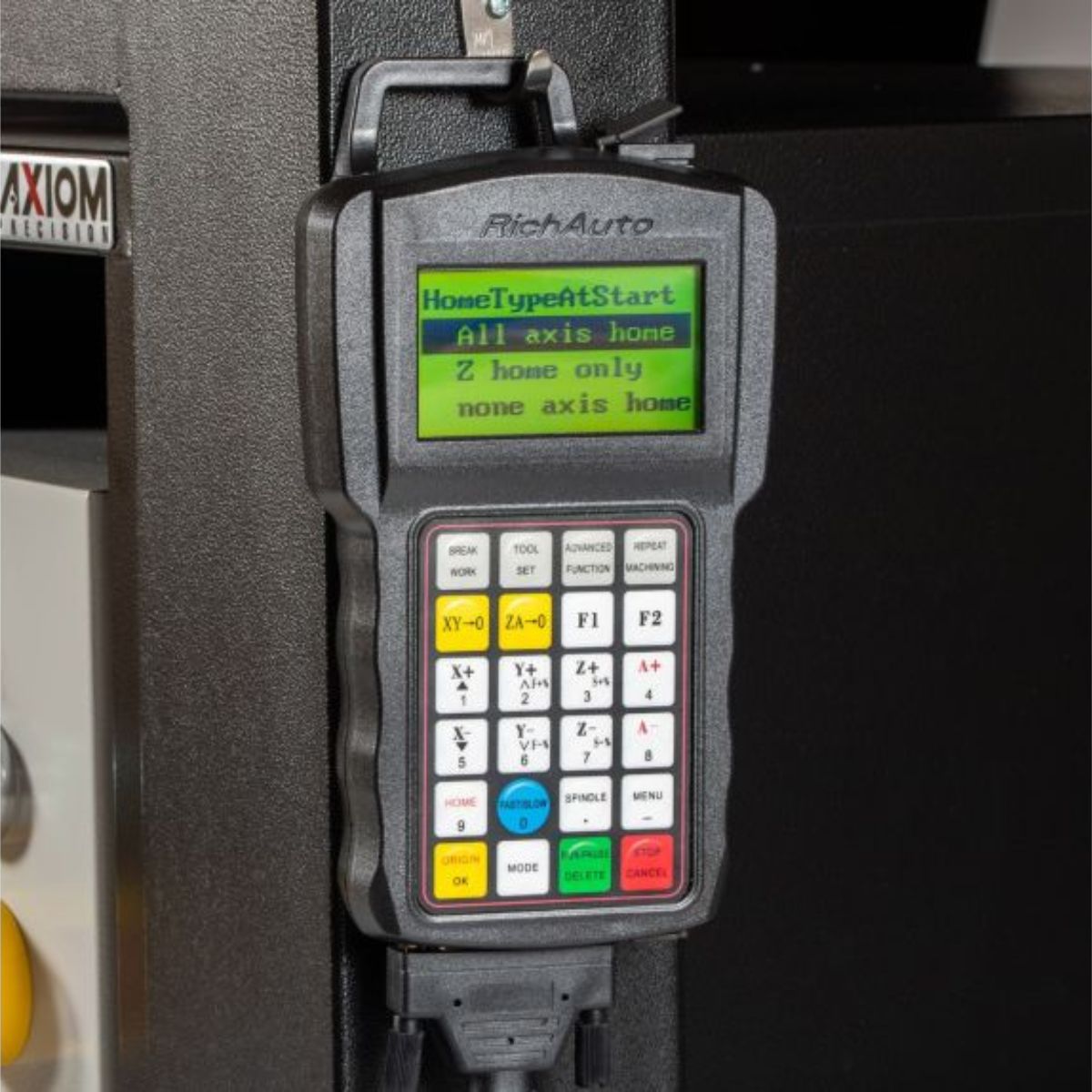

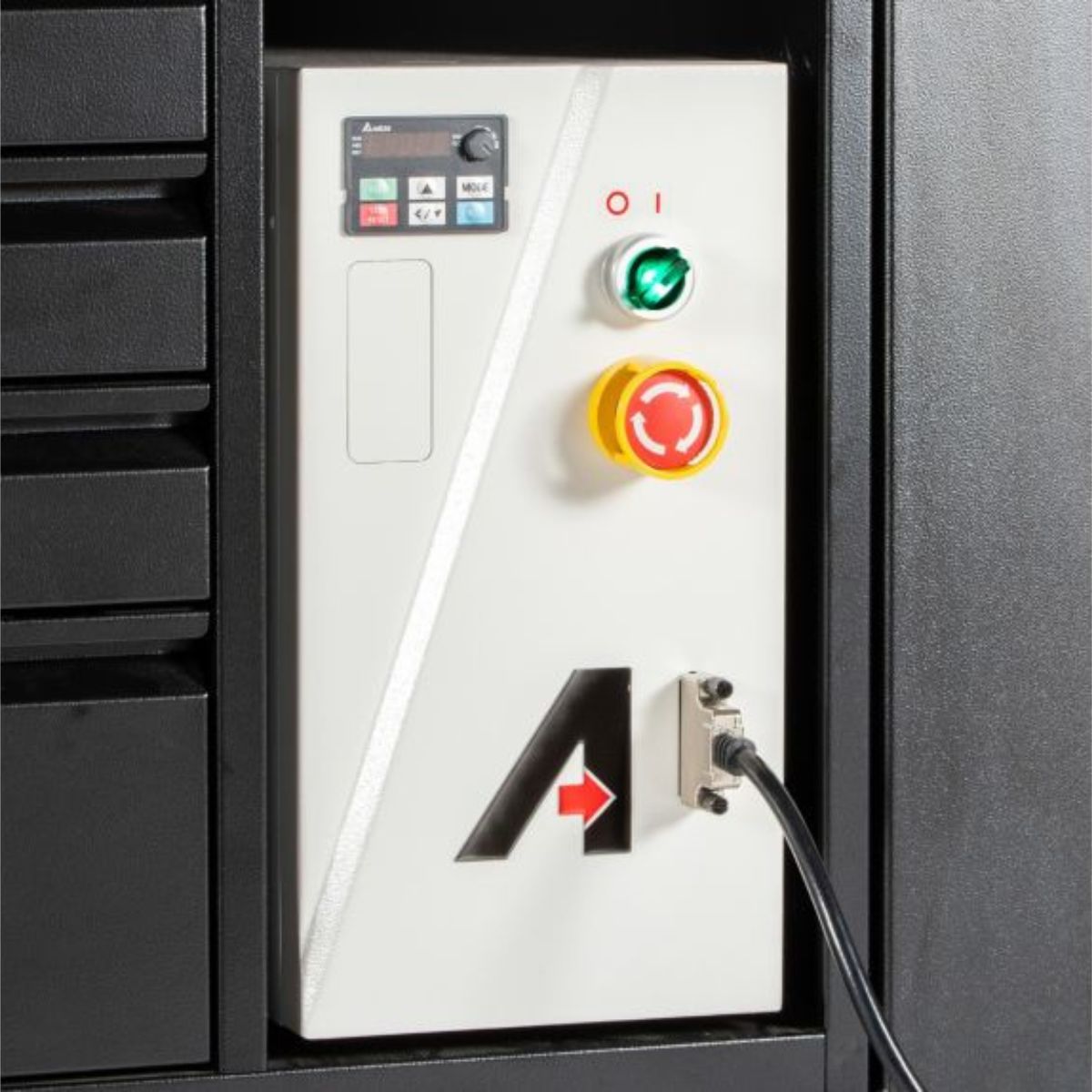

Axiom Industrial 4-Axis CNC Controller – Supports advanced machining control and rotary expansion capability.
-
Collets (1/4" and 1/2") – Secure larger tooling for a wider range of cutting applications.
-
Power Cord – Supplies electrical power for machine operation.
-
Instruction Manual – Provides setup, operation, and maintenance guidance.
Specs
Axiom AR8 Pro V6 CNC Router, 24" x 48" Specifications
- Model Number: AR8-PRO V6
- Stock Number: AX9-AR8PROV6
- Table Size: 24" x 48"
- X-Axis Travel: 24"
- Y-Axis Travel: 47.63"
- Z-Axis Travel: 6"
- Accuracy: ±0.00393"
- Motor: 3 HP
- Spindle Speed: Up to 24,000 RPM
- Spindle Taper: ER20
- Included Collets: 1/4", 1/2"
- Drive System: Precision Ball Screws (X/Y/Z)
- Linear Motion: Prismatic Linear Guides
- Controller: Axiom Industrial 4-Axis CNC Controller
- Max Engraving Speed: 350 IPM
- Input Power: 220V, Single Phase
- Amperage: 10A
- Machine Dimensions: 62.99" x 37.36" x 30.27"
- Net Weight: 405 lbs
- Warranty: 1 Year
