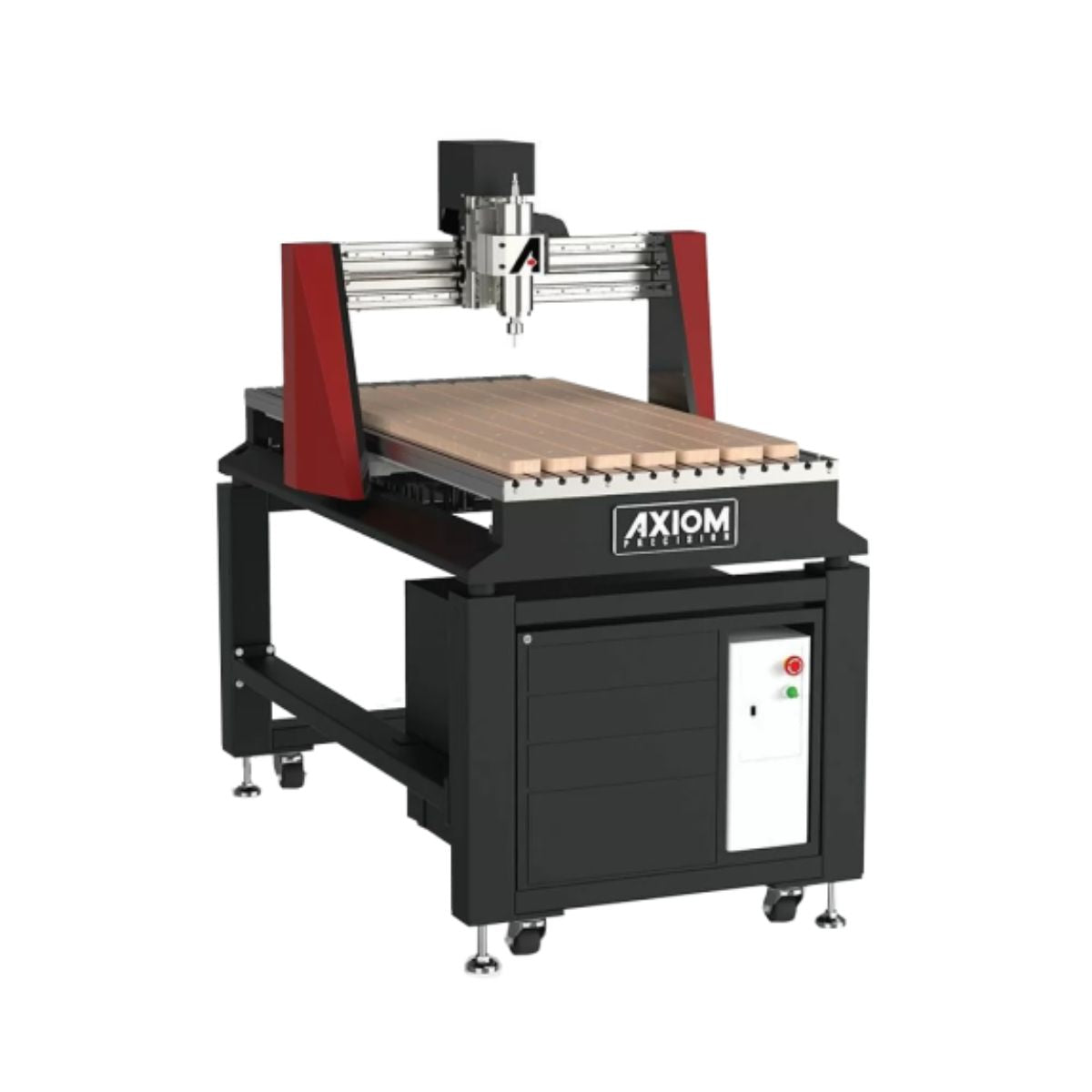

Axiom AR8 Elite CNC Router, AR8 ELITE (24" x 48") CNC Table
Are you outgrowing entry-level CNC machines that struggle to hold accuracy on detailed work?
What if your router could deliver clean cuts, repeatable results, and steady performance across long jobs?
Meet the Axiom AR8 Elite CNC Router, AR8 ELITE (24" x 48") CNC Table.
With servo motors, precision ball screws, and a rigid steel frame, it is built for consistent, controlled machining.
When your machine runs smoothly and holds tolerance, your workflow becomes more predictable and efficient.
Axiom AR8 Elite for Precision CNC Routing Work

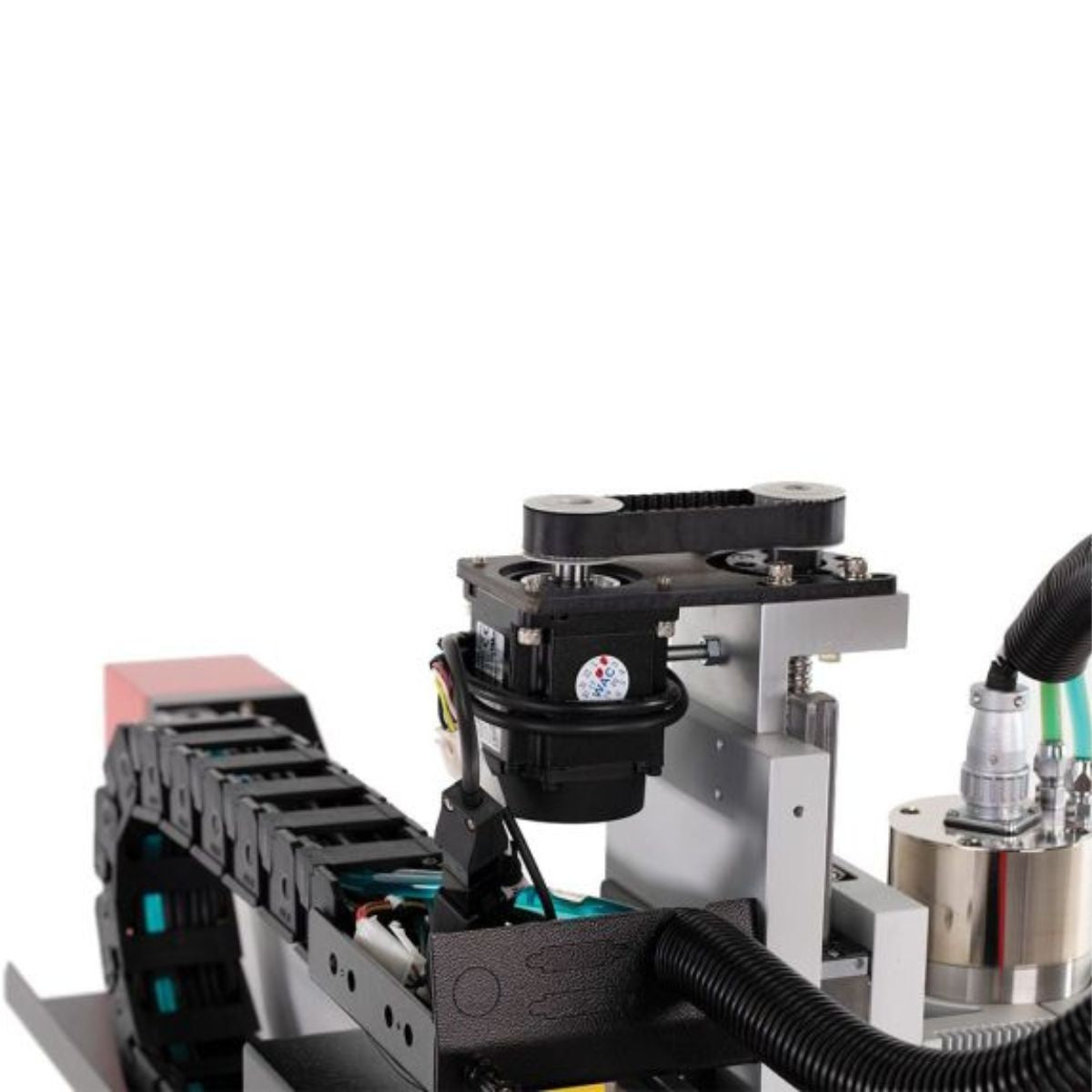

Servo Motor Drive System Improves Motion Control
The servo system provides higher torque and faster response than stepper-driven machines. Closed-loop feedback constantly corrects position during operation. This helps maintain accuracy across long runs and reduces the risk of lost steps. The result is smoother cutting and more consistent finished parts.

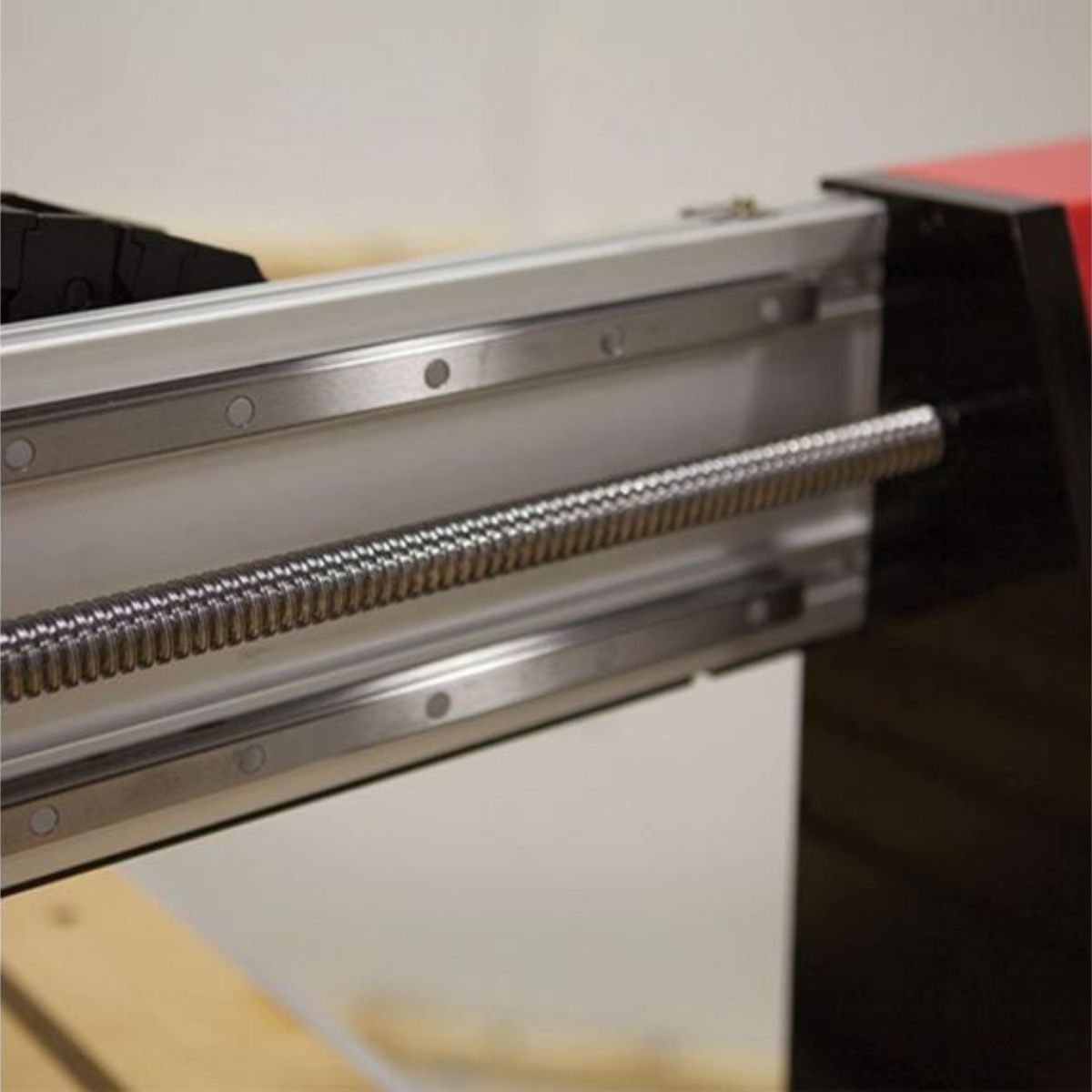

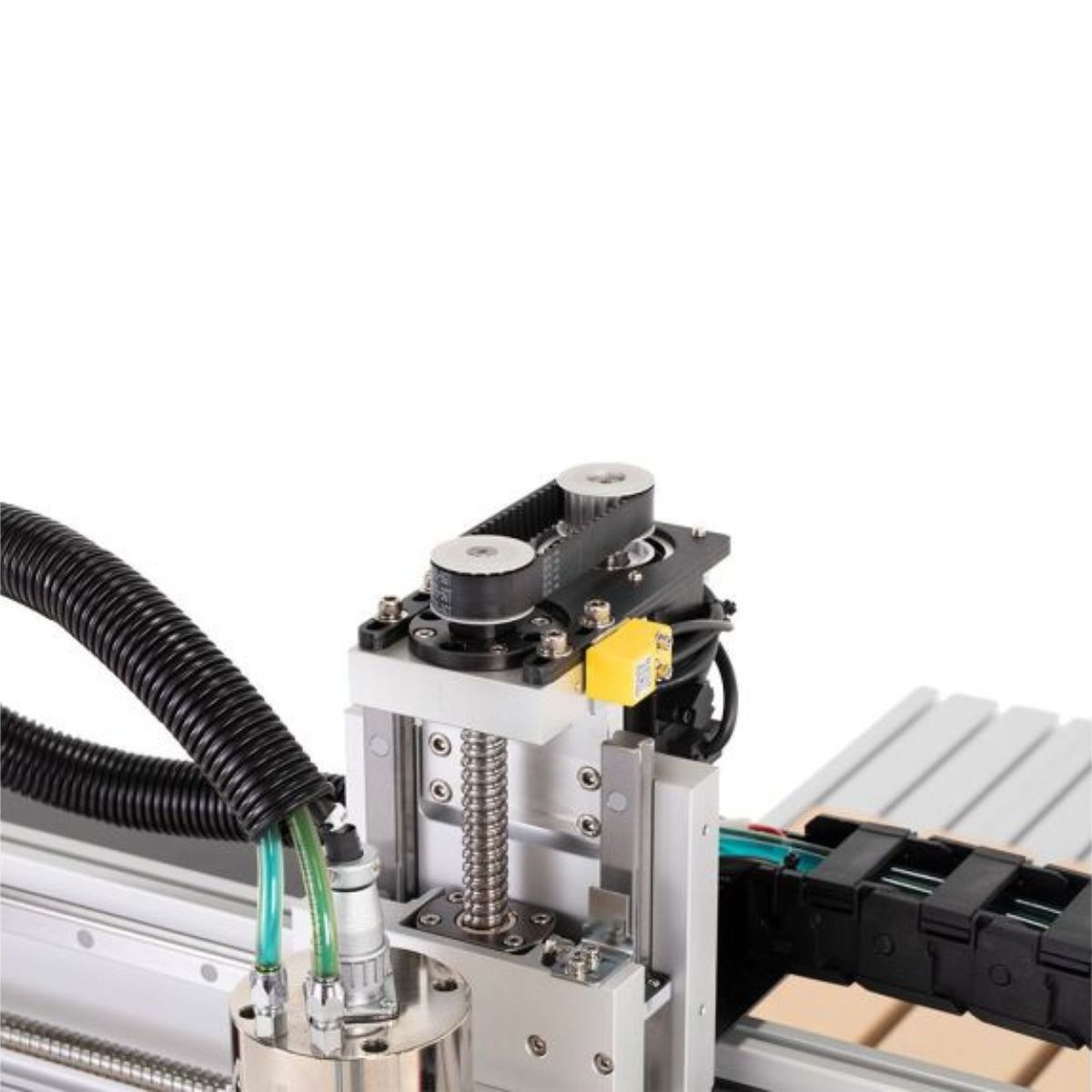

Precision Ball Screws Maintain Positional Accuracy
Ball screws on all axes reduce backlash and keep movement tight and predictable. This is especially important for detailed carving and joinery work. The system supports repeatable positioning when running multiple parts. It also helps maintain clean edge quality across materials.
3HP Liquid-Cooled Spindle Supports Continuous Cutting
The 3HP electro spindle delivers consistent power across a wide speed range. Liquid cooling stabilizes operating temperature during extended jobs. This allows longer run times without heat-related performance drop. The ER20 collet system supports common 1/4" and 1/2" tooling.

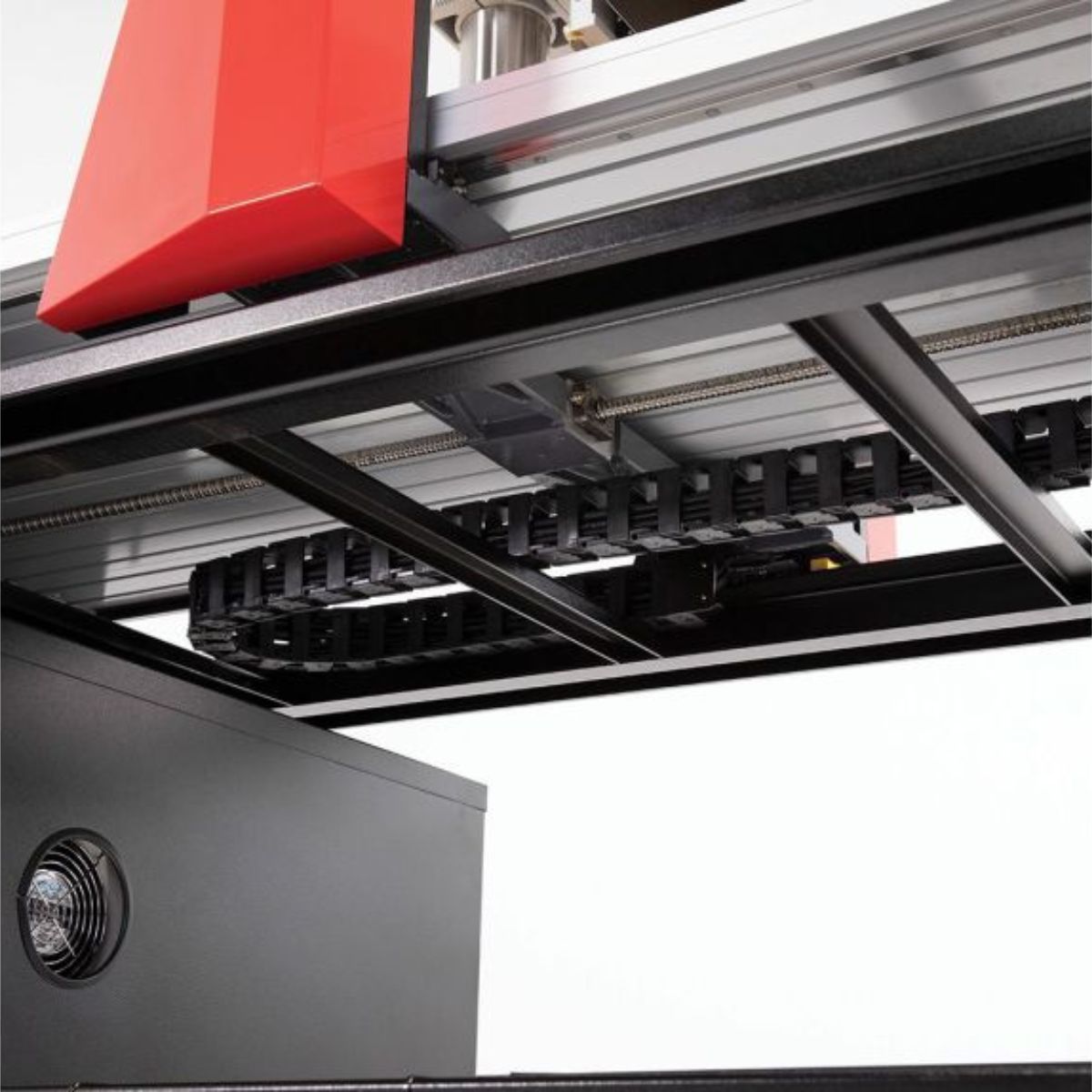

Rigid Steel Frame and Linear Guides Reduce Vibration
The welded steel frame provides a stable base for machining. Prismatic linear guides keep movement aligned under load. This reduces chatter and improves surface finish. The added mass helps the machine stay steady during heavier cutting passes.
What’s Included
What’s Included? Axiom AR8 Elite CNC Router, AR8 ELITE (24" x 48") CNC Table
-
CNC Router Machine Fully assembled unit ready for installation and setup
-
3HP Electro Spindle Provides cutting power for a wide range of materials
-

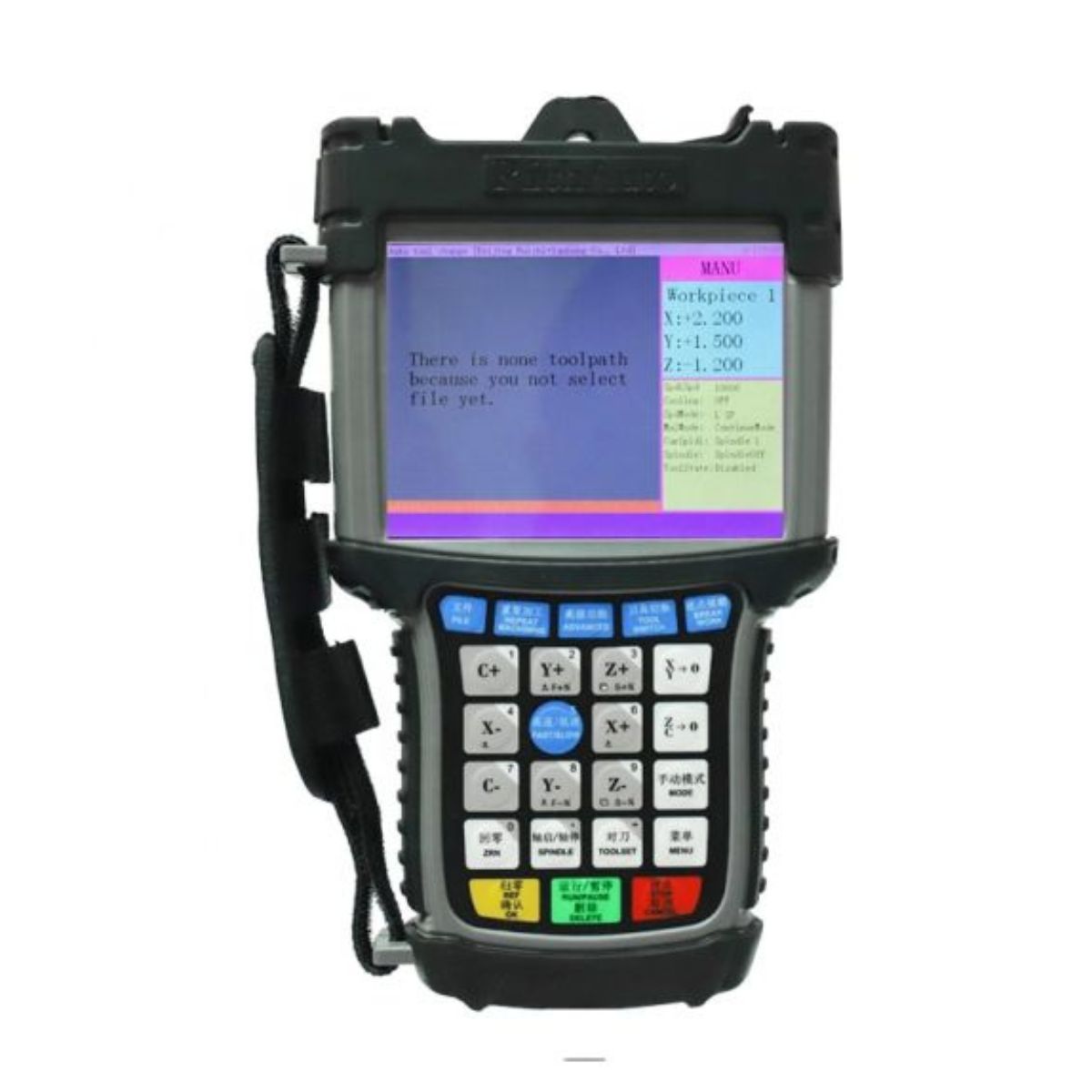

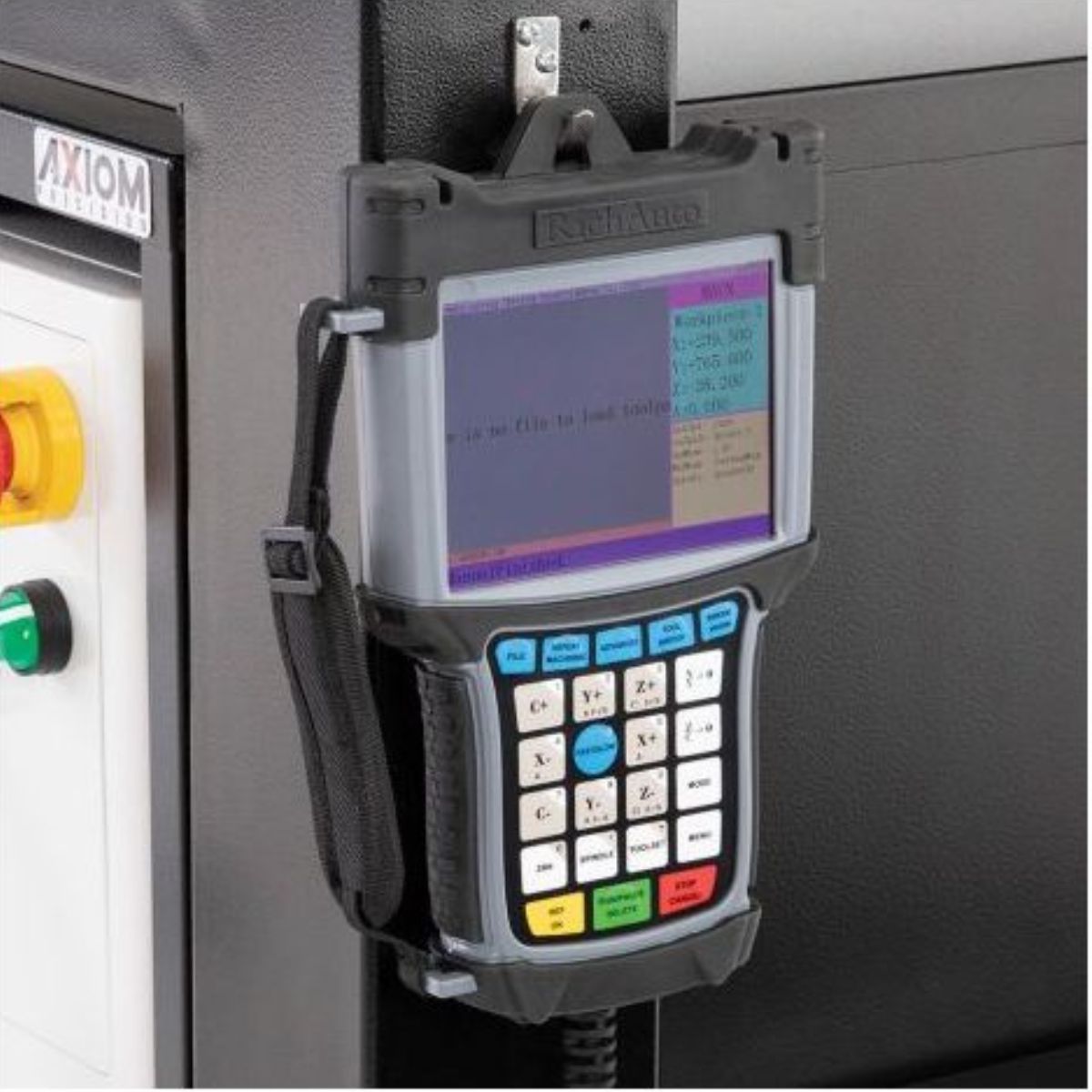

Industrial 4-Axis Controller Controls machine movement and job execution
-
Machine Stand Supports the router and maintains proper working height
-
Tool Storage Keeps essential tooling organized and within reach
-
ER20 Collets (1/4" and 1/2") Hold standard CNC tooling securely
Specs
Axiom AR8 Elite CNC Router, AR8 ELITE (24" x 48") CNC Table Specifications
- Working Area: 24" x 48"
- Z Travel: 7.48"
- Accuracy: +/- .00197"
- Max Engraving Speed: 320 IPM
- Spindle: 3 HP ER20
- Spindle Speed: Up to 24,000 RPM
- Power Requirement: 220V Single Phase
- Amperage: 10 Amps
- Drive System: Servo Motors
- Motion System: Precision Ball Screws
- Guides: Prismatic Linear Guides
- Tool Capacity: 1/4" and 1/2" shank
- Machine Dimensions: 70" x 34" x 42"
- Machine Weight: 936 lbs
- Warranty: 1 Year
