Axiom AR6 Pro V6 CNC Router, 24" x 36"
Are you limited by CNC machines that struggle to maintain power and accuracy across larger workpieces?
What if you could machine longer parts with consistent precision while maintaining speed and control in every pass?

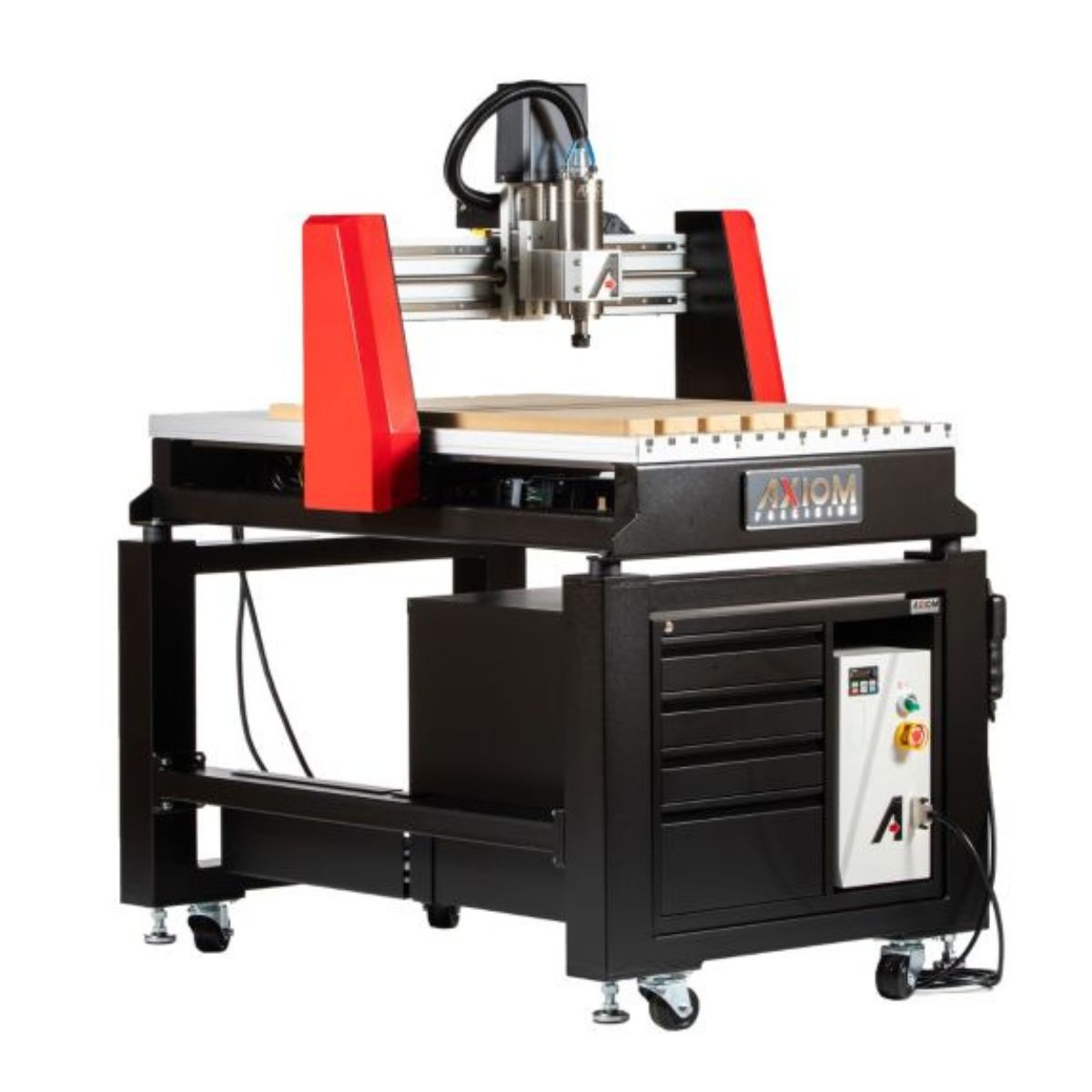

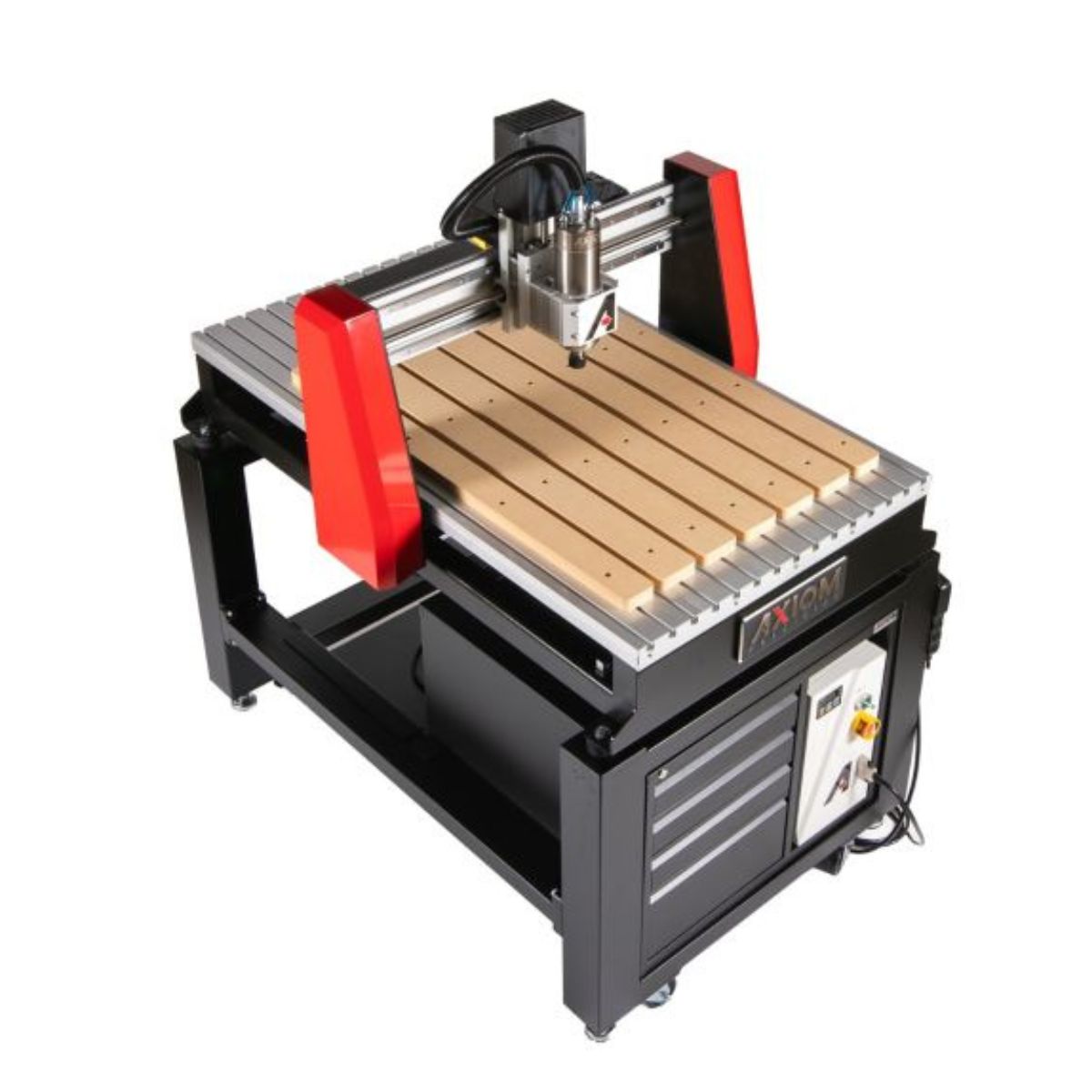

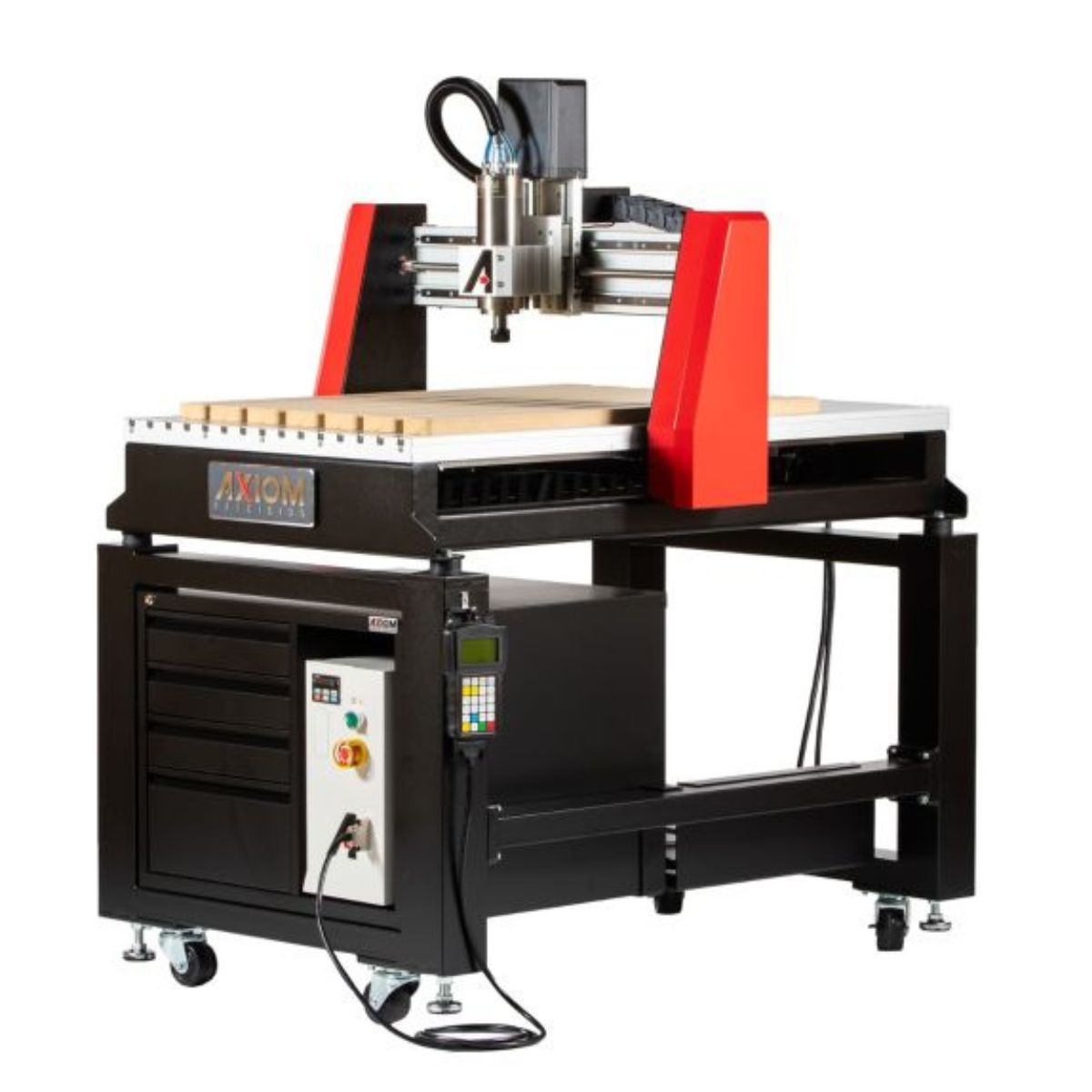

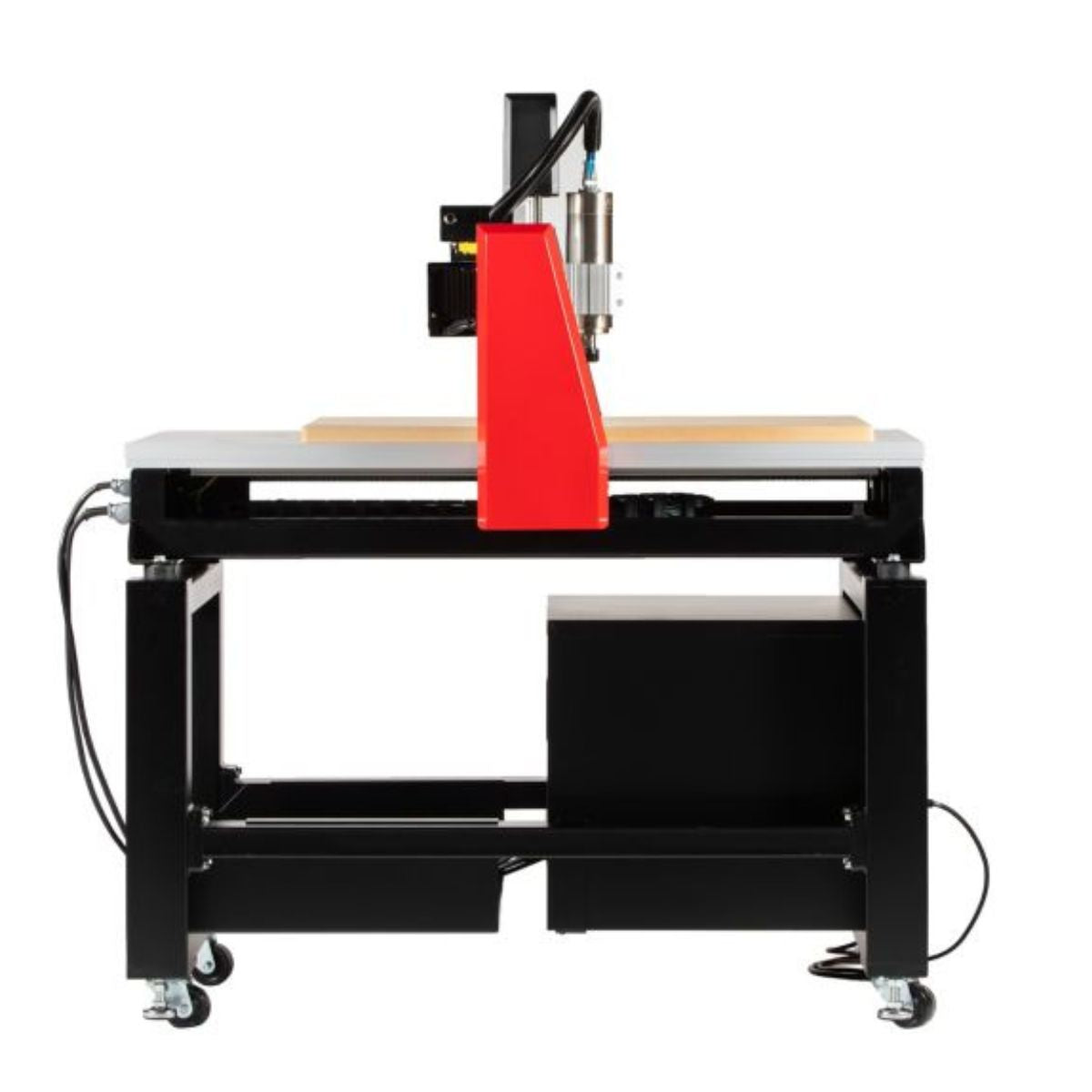

Meet the Axiom AR6 Pro V6 CNC Router, a 24" x 36" platform engineered for high-performance routing, carving, and prototyping.
With a 3HP liquid-cooled spindle, 48V stepper motors, and precision ball screws, it delivers ±0.00393" accuracy and smooth motion.
When your machine handles larger work with consistent precision, your production workflow becomes faster and more reliable.
Axiom AR6 Pro V6 for Extended Precision CNC Machining

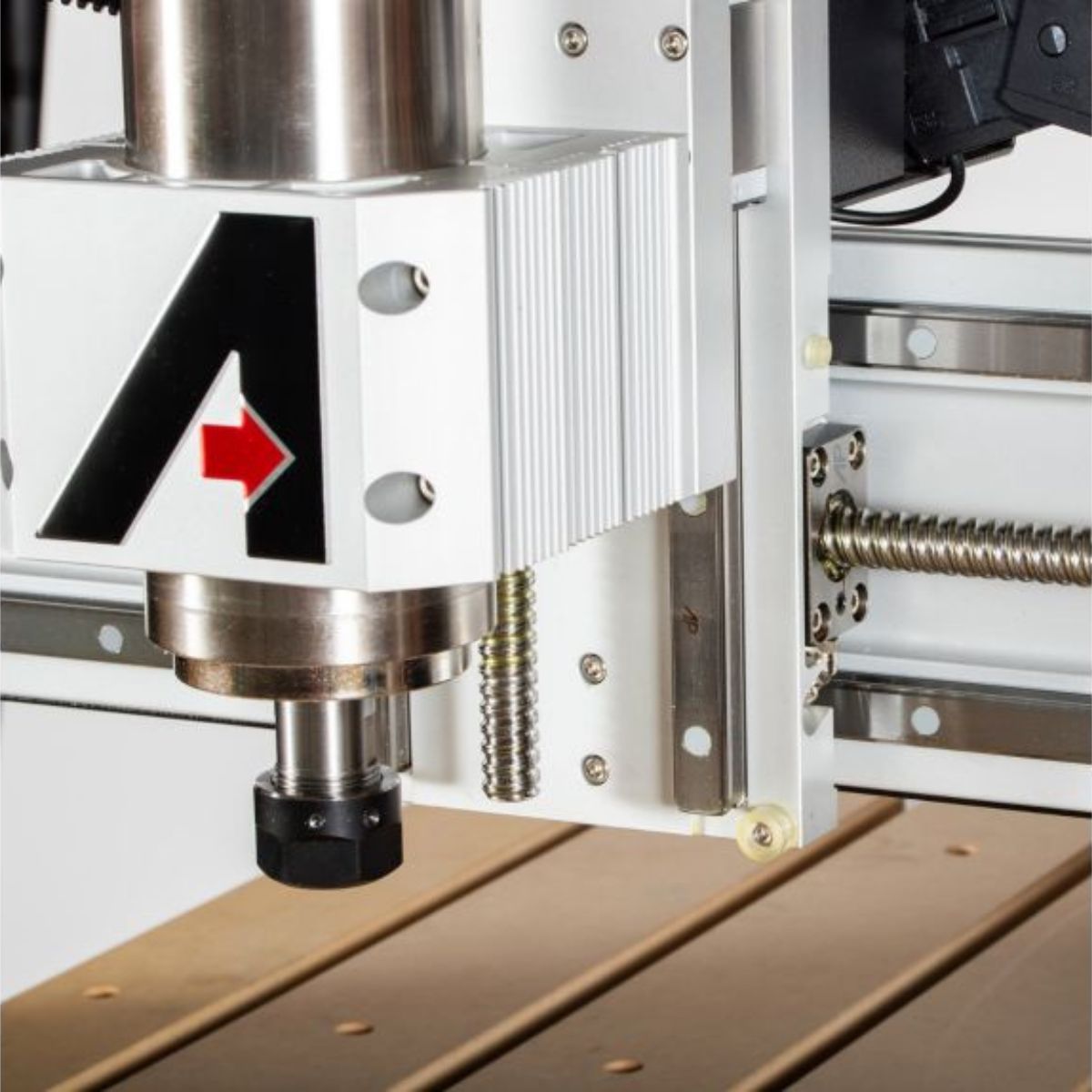

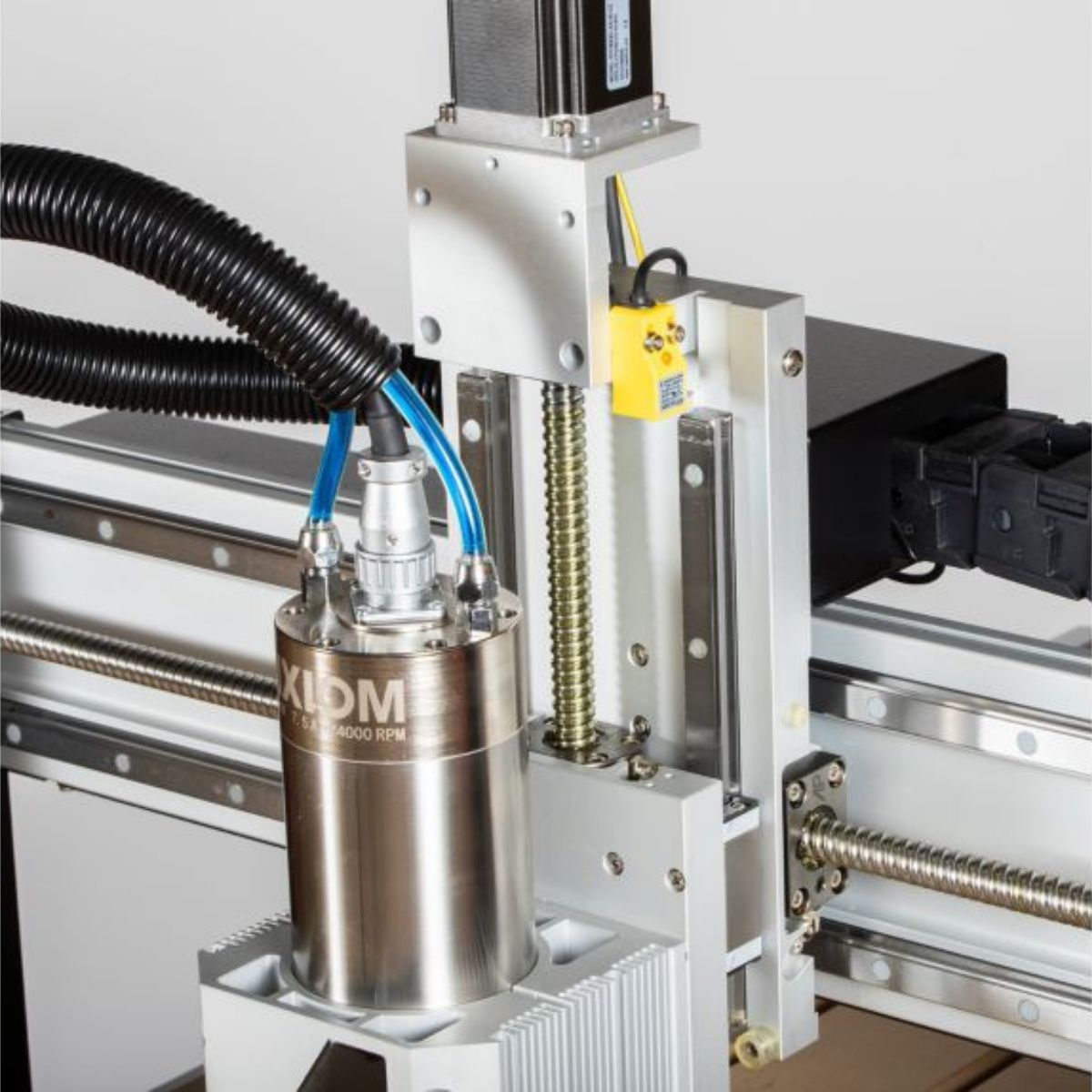

3HP Liquid-Cooled Spindle Supports Heavy Cutting
The 3HP electro spindle delivers high torque for demanding materials and deeper cuts. Its liquid cooling system maintains stable temperatures during extended operation. This enables longer run times and improved tool life in production environments.
48V Stepper Motor System Enhances Motion Control
High-voltage stepper motors provide increased torque and smoother acceleration. This improves axis control and maintains accuracy at higher feed rates. It allows efficient machining across larger work areas.

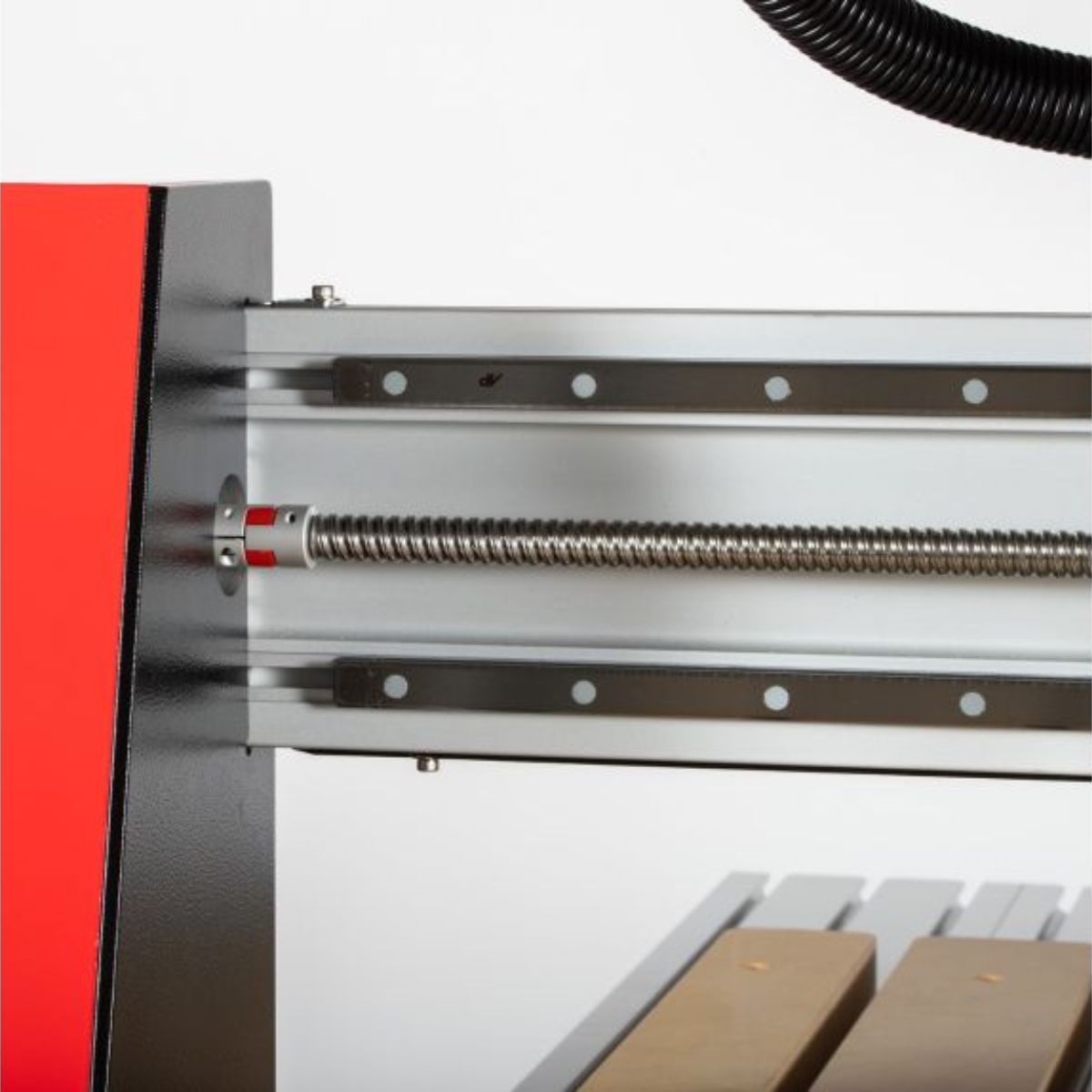

Ball Screw Drive System Maintains Precision
Precision ball screws minimize backlash and ensure accurate positioning across all axes. This results in repeatable cuts and tighter tolerances. It is critical for detailed routing and production consistency.
Prismatic Linear Guides Stabilize Axis Movement
Prismatic guides provide rigid support and smooth travel along each axis. This reduces vibration and component wear over time. It ensures consistent performance during extended machining cycles.
What’s Included
What’s Included? Axiom AR6 Pro V6 CNC Router, 24" x 36"
-
Axiom AR6 Pro V6 CNC Router Machine – Complete CNC system with extended table capacity for routing, carving, and machining.
-
3HP Liquid-Cooled Electro Spindle – Provides high-torque cutting power with cooling for continuous operation.
-

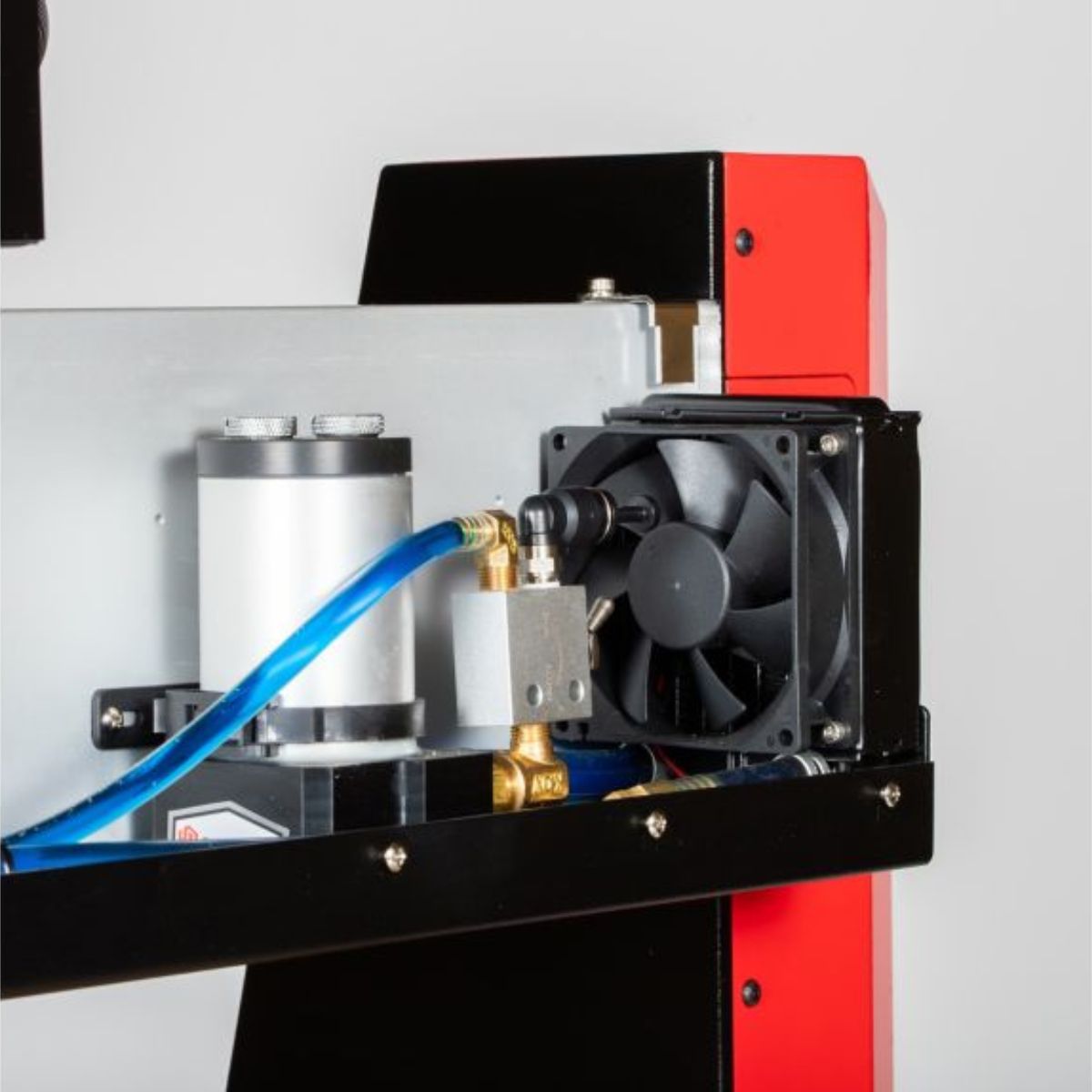

Integrated Liquid Cooling System – Maintains spindle temperature for consistent performance and durability.
-
Auto Tool Touch-Off Plate – Enables precise Z-axis calibration for accurate tool setup.
-

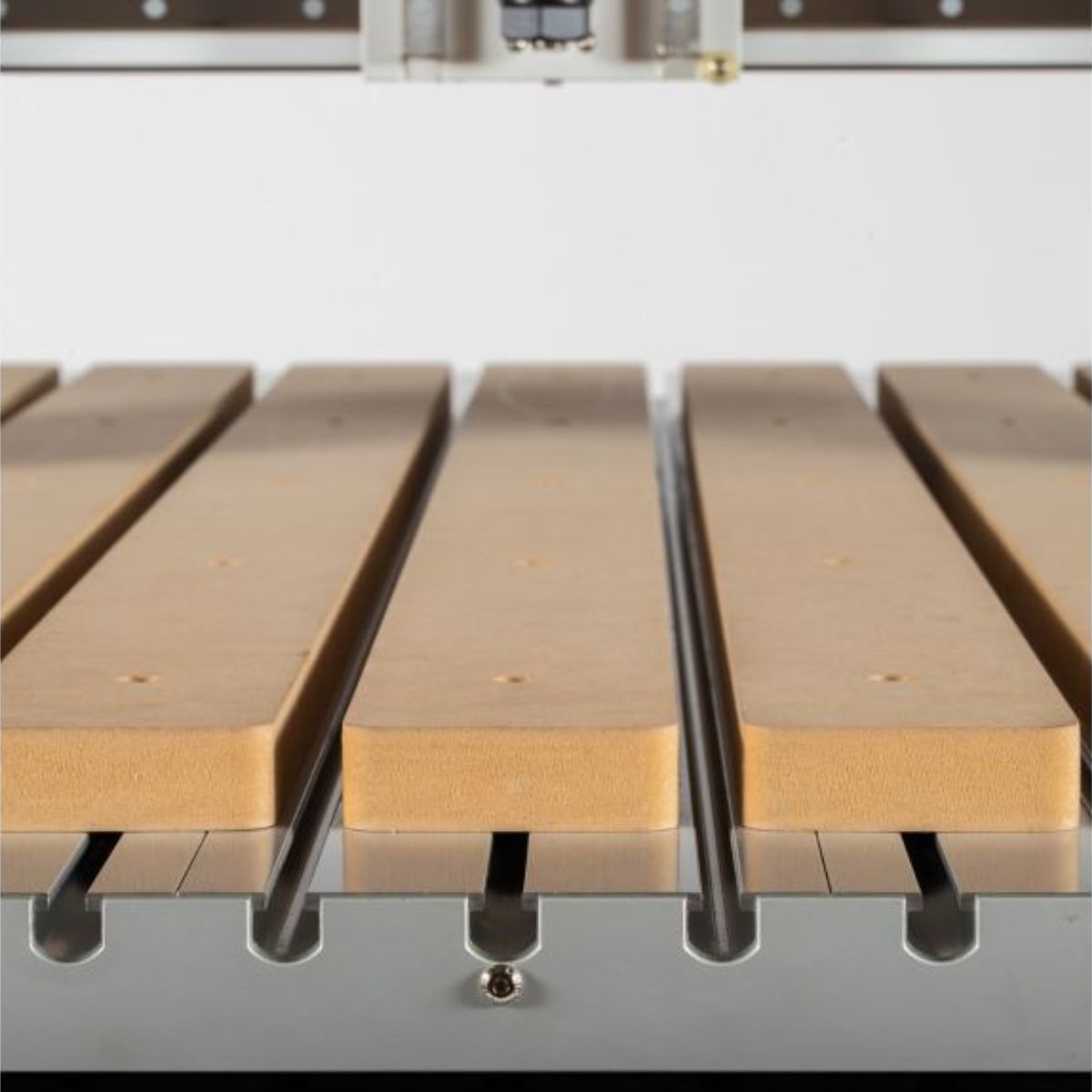

Interlocking Aluminum Table – Provides a stable and durable work surface for material support.
-

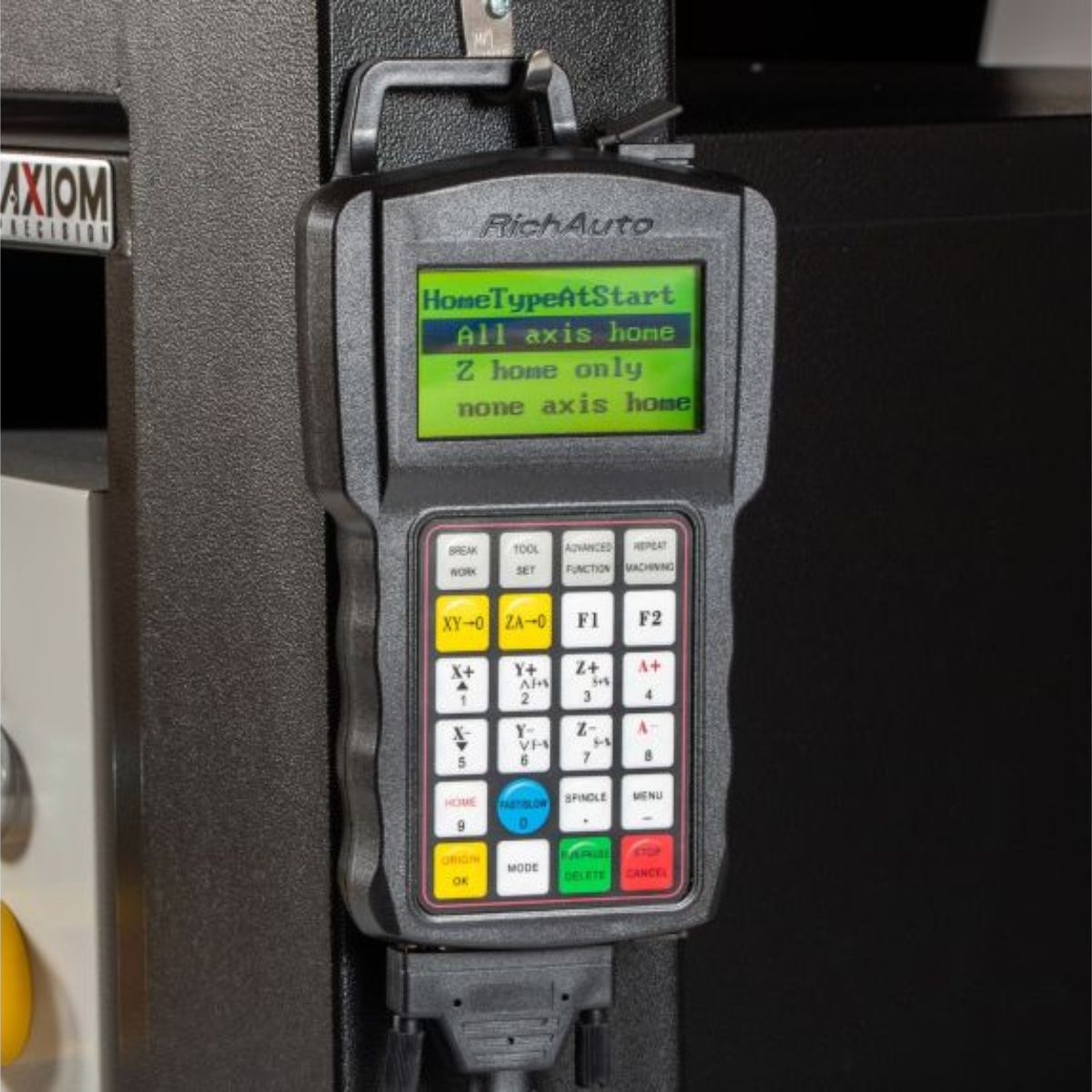

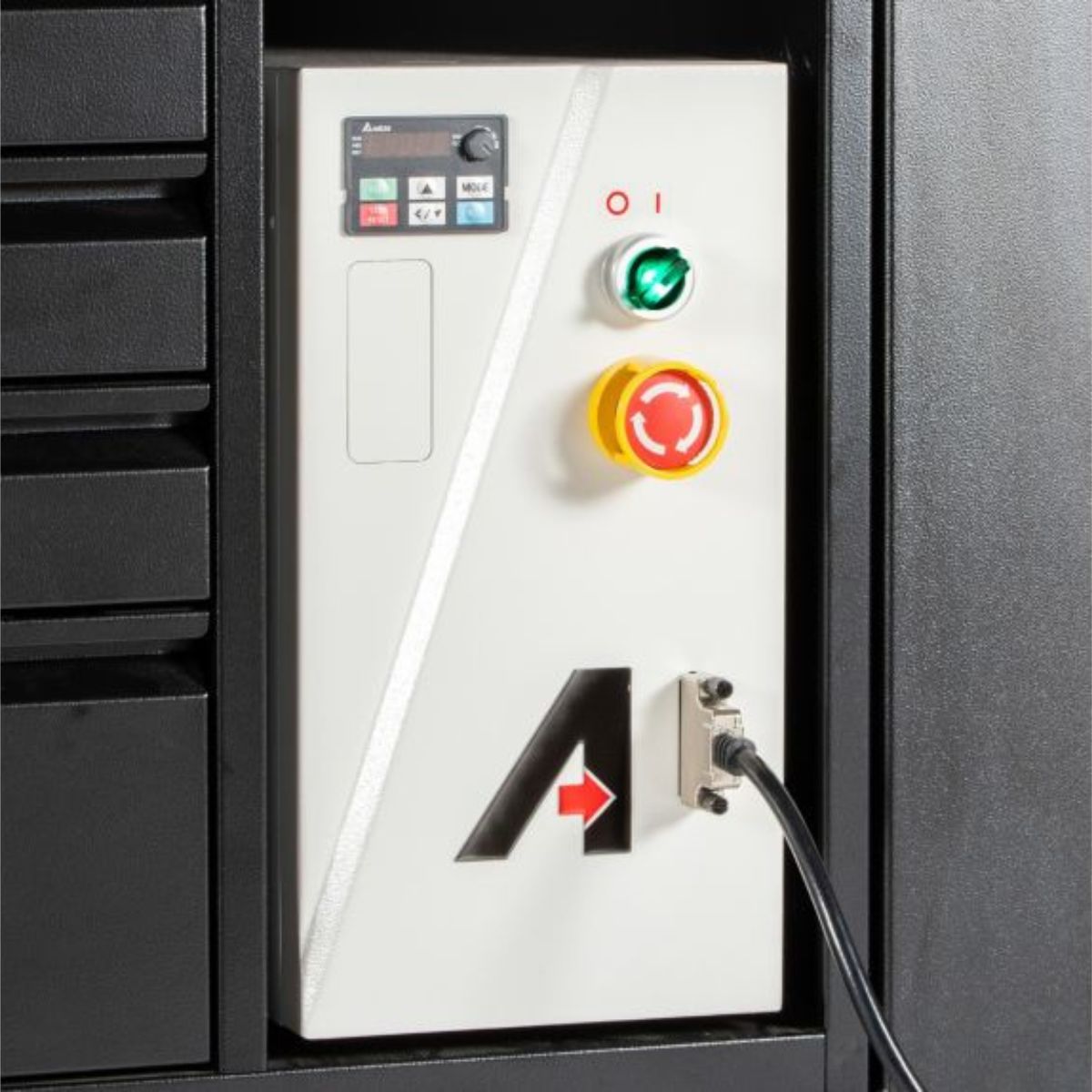

Axiom Industrial 4-Axis CNC Controller – Supports advanced machining control and optional rotary expansion.
-
Collets (1/4" and 1/2") – Secure larger tooling for a wider range of cutting applications.
-
Power Cord – Supplies electrical power for machine operation.
-
Instruction Manual – Provides setup, operation, and maintenance guidance.
Specs
Axiom AR6 Pro V6 CNC Router, 24" x 36" Specifications
- Model Number: AR6-PRO V6
- Stock Number: AX9-AR6PROV6
- Table Size: 24" x 36"
- X-Axis Travel: 24"
- Y-Axis Travel: 35.82"
- Z-Axis Travel: 6"
- Accuracy: ±0.00393"
- Motor: 3 HP
- Spindle Speed: Up to 24,000 RPM
- Spindle Taper: ER20
- Included Collets: 1/4", 1/2"
- Drive System: Precision Ball Screws (X/Y/Z)
- Linear Motion: Prismatic Linear Guides
- Controller: Axiom Industrial 4-Axis CNC Controller
- Max Engraving Speed: 350 IPM
- Input Power: 220V, Single Phase
- Amperage: 10A
- Machine Dimensions: 51.18" x 37.36" x 30.27"
- Net Weight: 380 lbs
- Warranty: 1 Year
