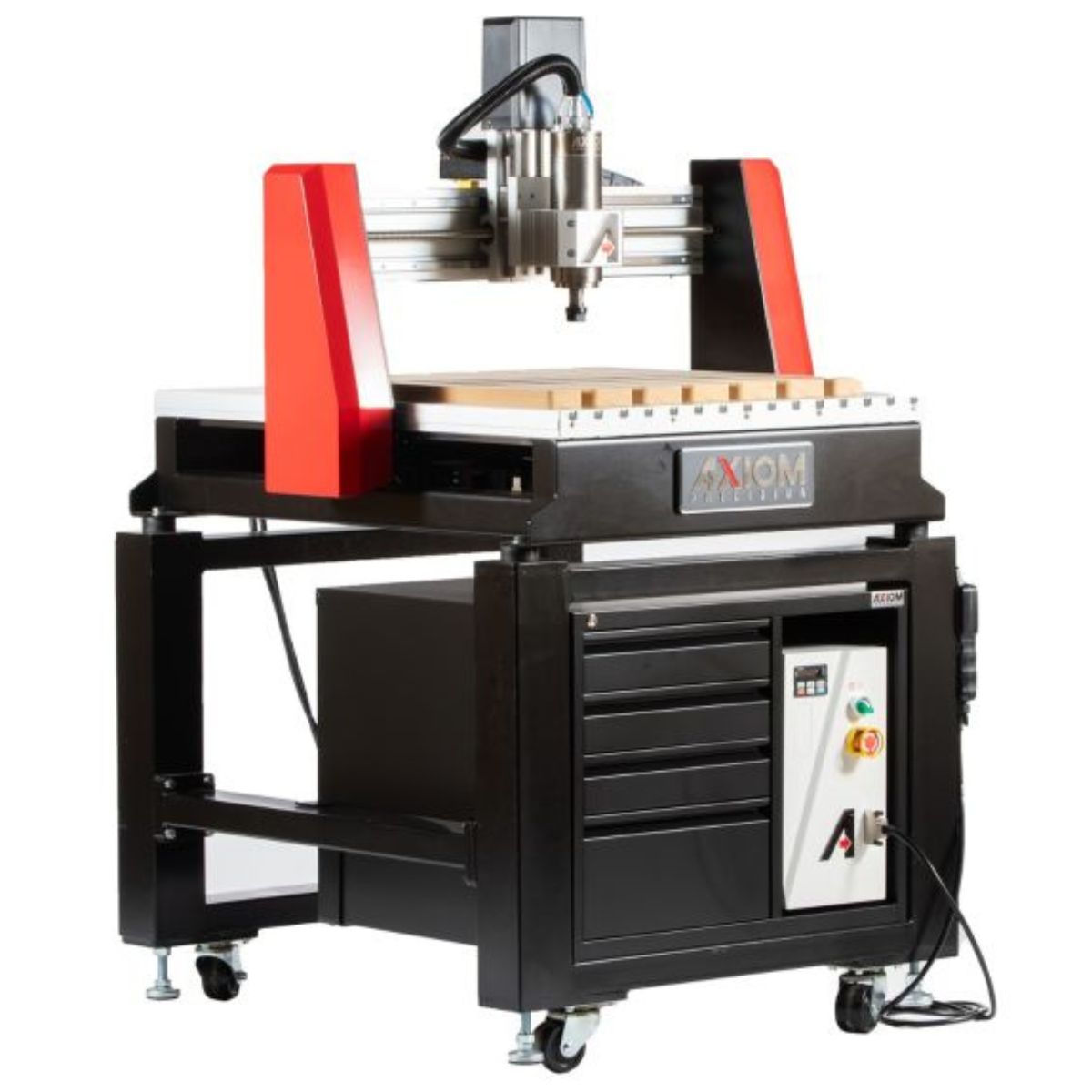

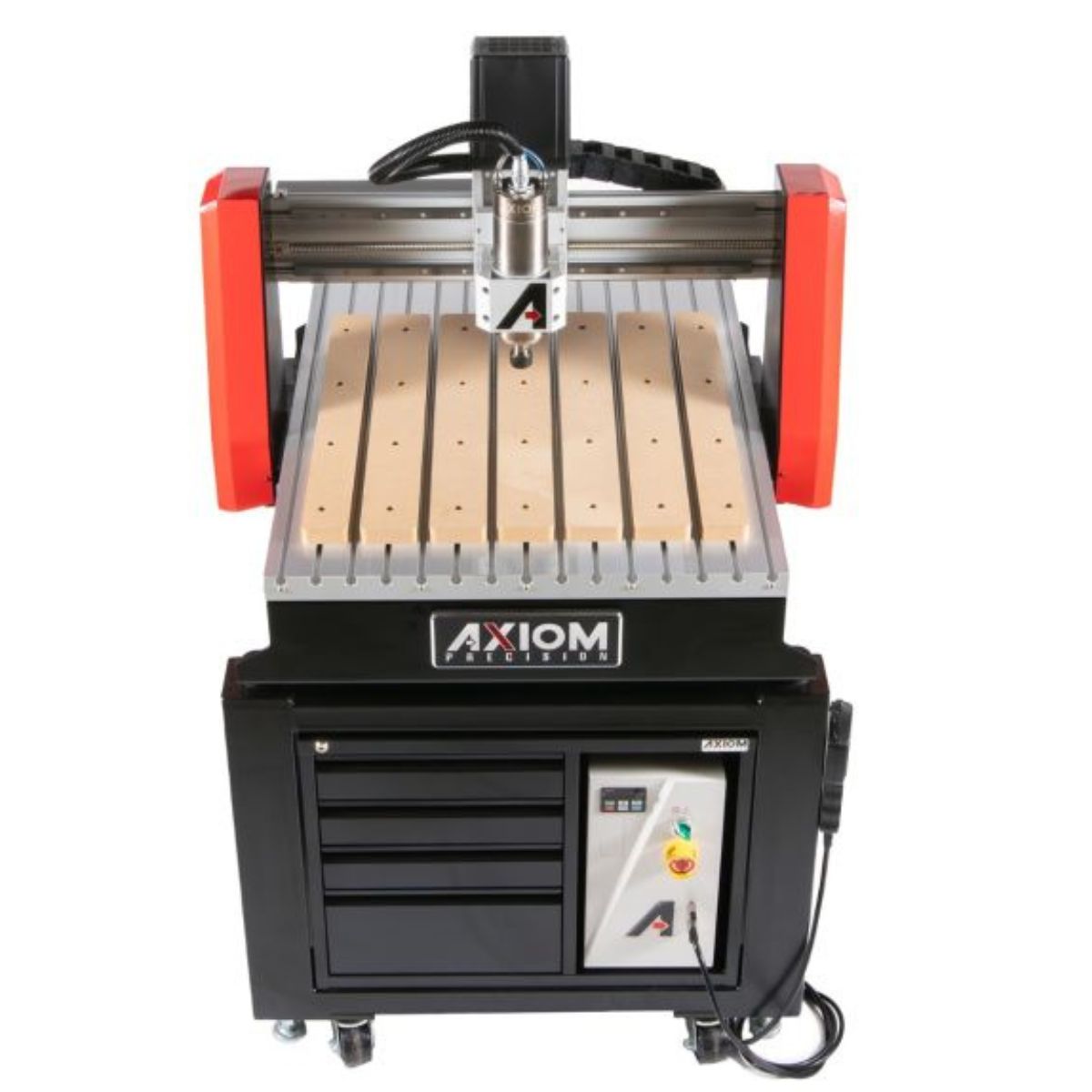

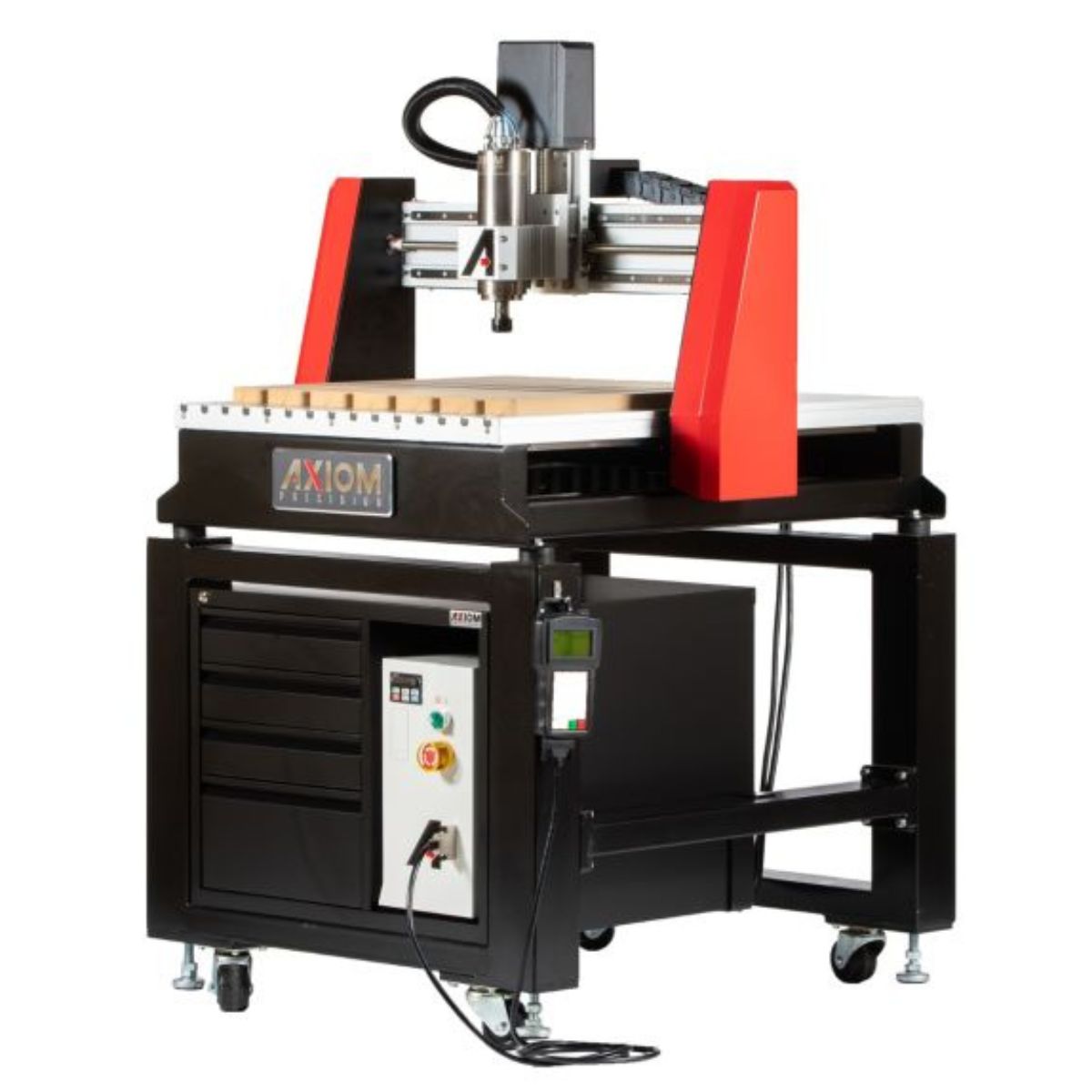

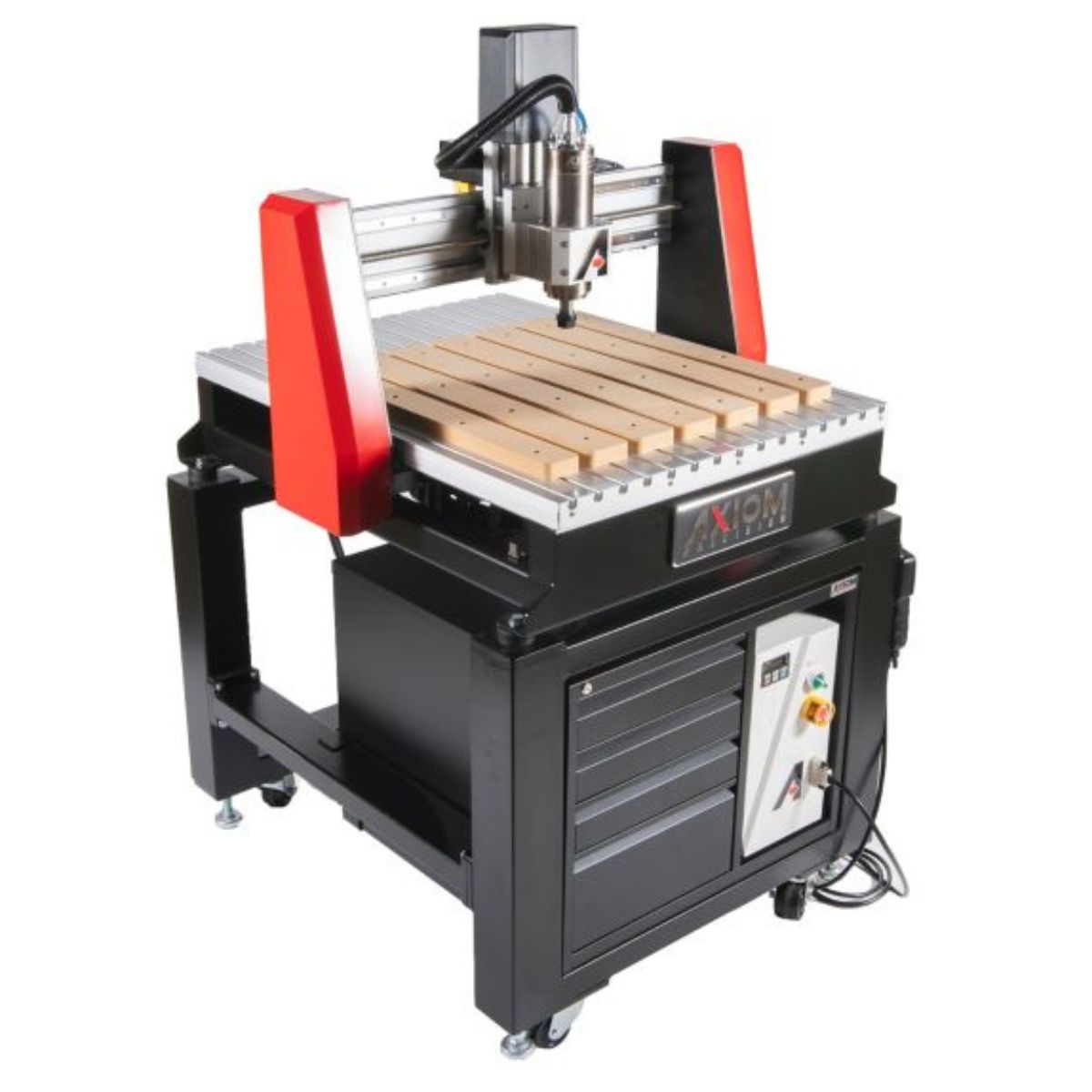

Axiom AR4 Pro V6 CNC Router, 24" x 24"
Are you outgrowing entry-level CNC machines that lack the power, speed, and rigidity for demanding projects?
What if you could run faster, cut deeper, and maintain precision across complex parts with a machine built for serious production?
Meet the Axiom AR4 Pro V6 CNC Router, a 24" x 24" platform engineered for high-performance routing, carving, and prototyping.
With a 3HP liquid-cooled spindle, 48V stepper motors, and precision ball screws, it delivers ±0.00393" accuracy and smooth motion.
When your machine keeps up with advanced workloads, your productivity increases and your results stay consistently precise.
Axiom AR4 Pro V6 for High-Precision CNC Machining

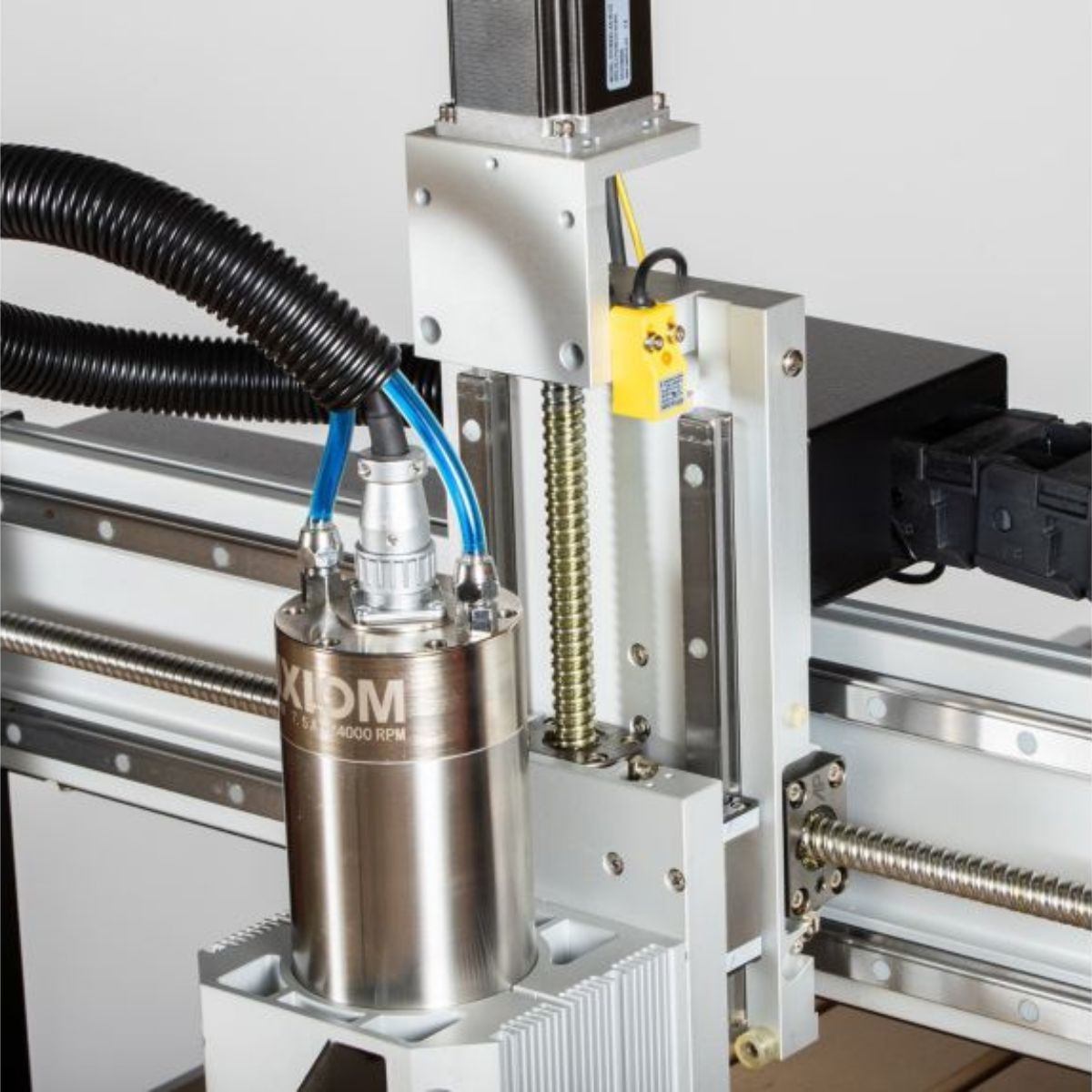

3HP Liquid-Cooled Spindle Expands Cutting Capacity
The 3HP electro spindle provides higher torque and sustained cutting power for demanding materials. Its liquid-cooled system supports longer run times without overheating. This allows deeper cuts and improved tool life in production environments.
48V Stepper Motor System Improves Motion Control
Upgraded 48-volt stepper motors deliver increased torque and smoother acceleration. This enhances motion control and maintains accuracy at higher feed rates. It supports efficient machining across a wide range of applications.

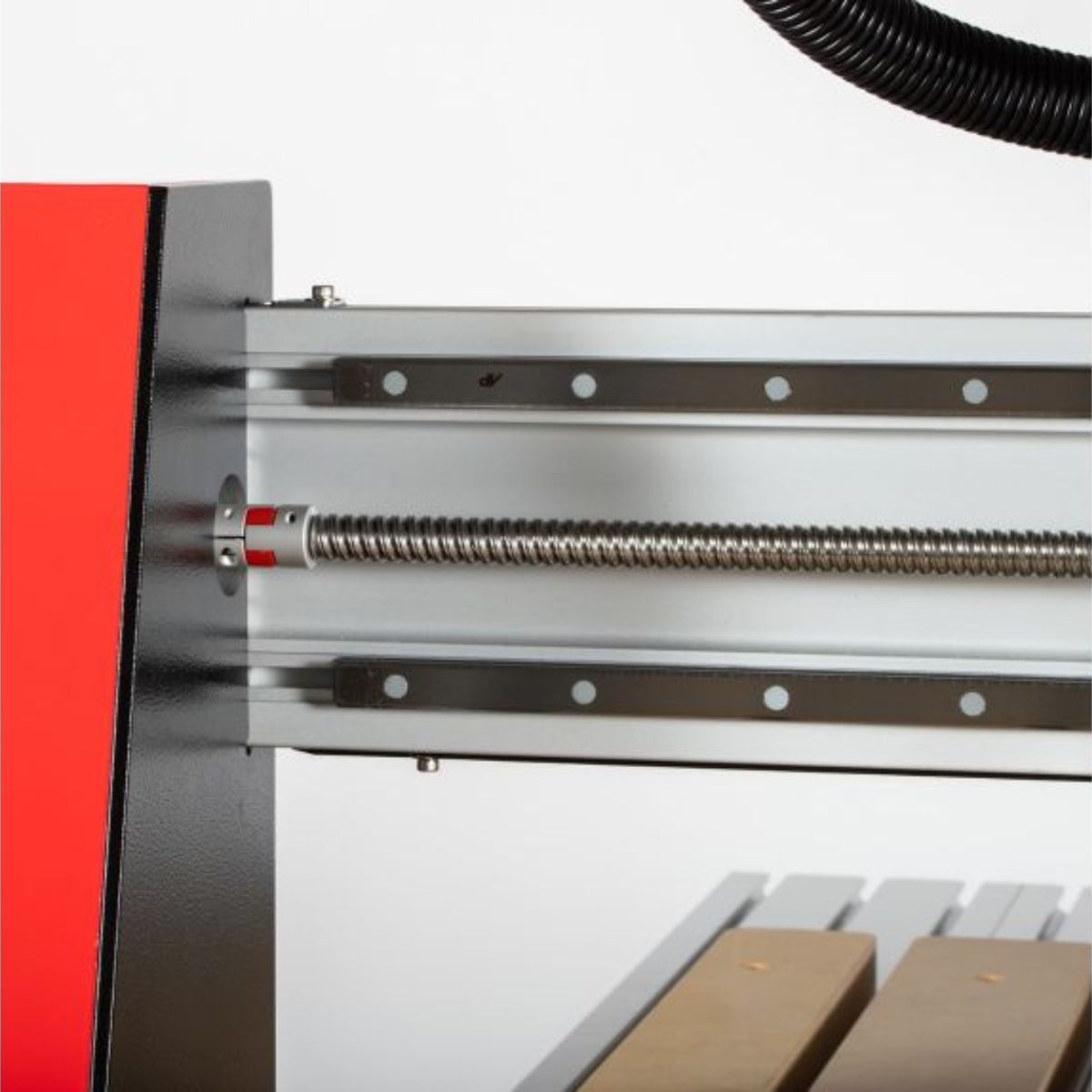

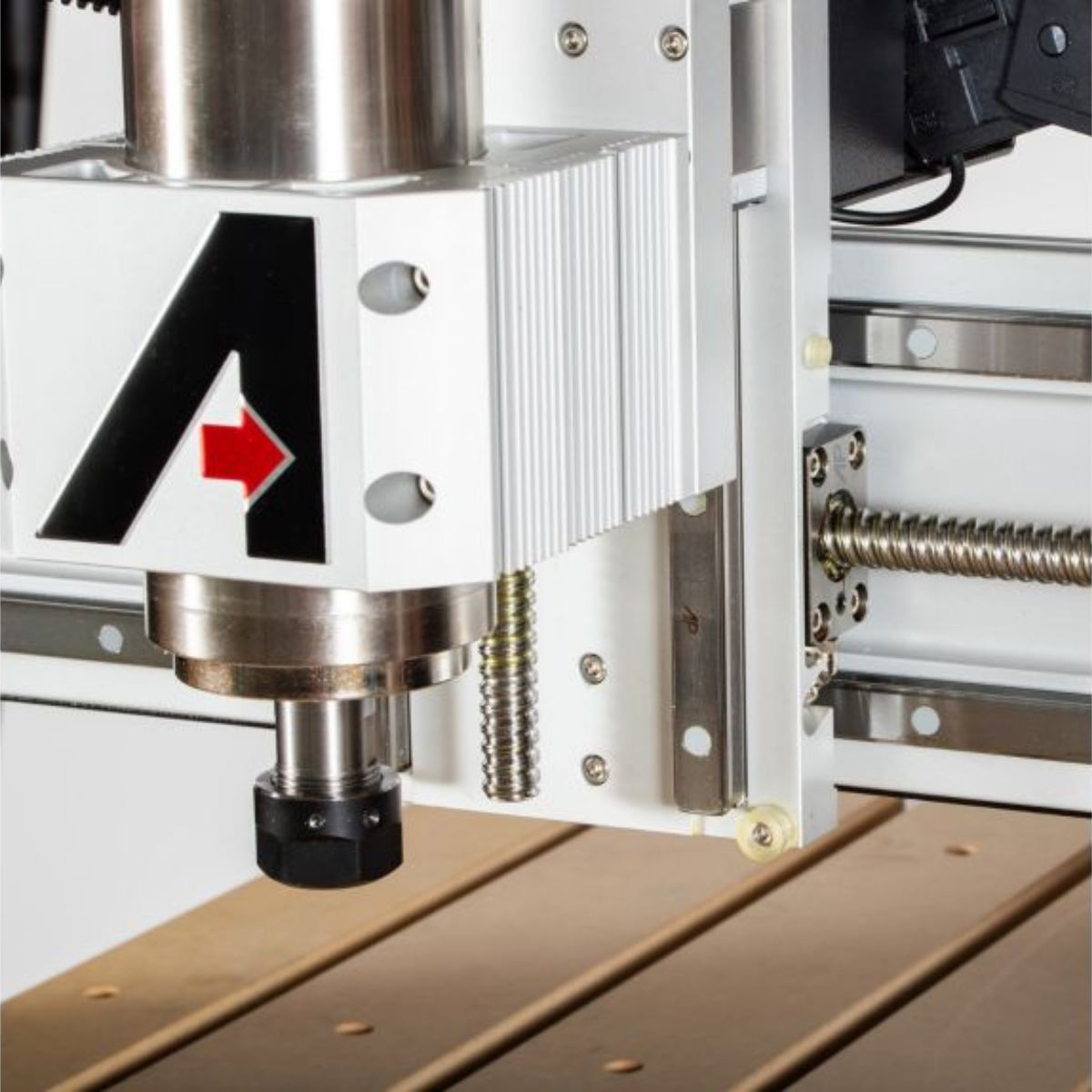

Ball Screw Drive System Maintains Precision
Precision ball screws across all axes reduce backlash and ensure consistent positioning. This results in tighter tolerances and repeatable outcomes. It is essential for detailed carving and precision part production.
Prismatic Linear Guides Stabilize Axis Movement
Prismatic guides provide rigid, low-friction support for all machine motion. This improves stability and reduces wear over time. It ensures smooth travel and maintains accuracy during extended machining cycles.
What’s Included
What’s Included? Axiom AR4 Pro V6 CNC Router, 24" x 24"
-
Axiom AR4 Pro V6 CNC Router Machine – Complete high-performance CNC system for routing, carving, and machining applications.
-
3HP Liquid-Cooled Electro Spindle – Provides high-torque cutting power with cooling for extended operation.
-

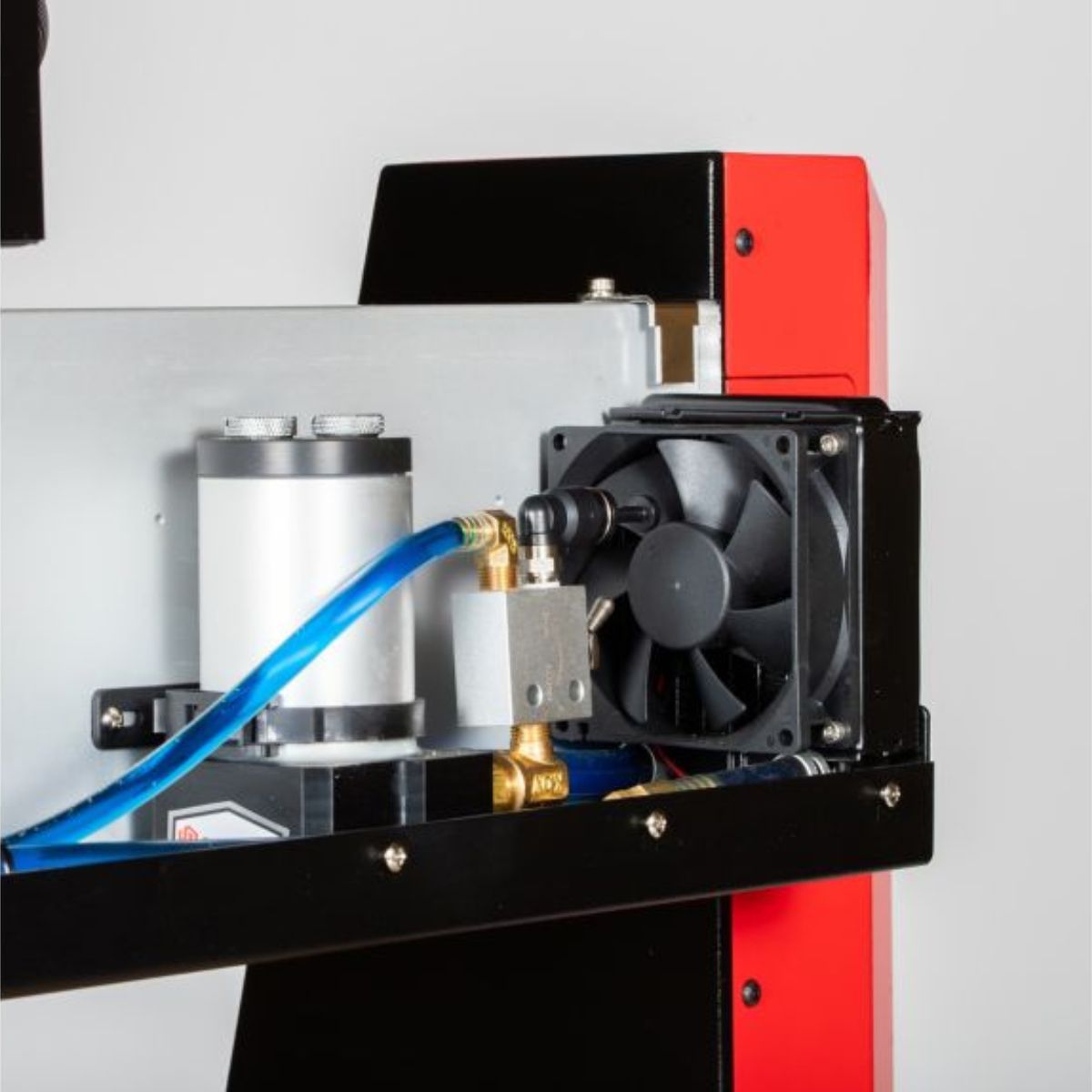

Integrated Liquid Cooling System – Maintains spindle temperature for consistent performance and durability.
-
Auto Tool Touch-Off Plate – Enables precise Z-axis calibration for accurate tool setup.
-

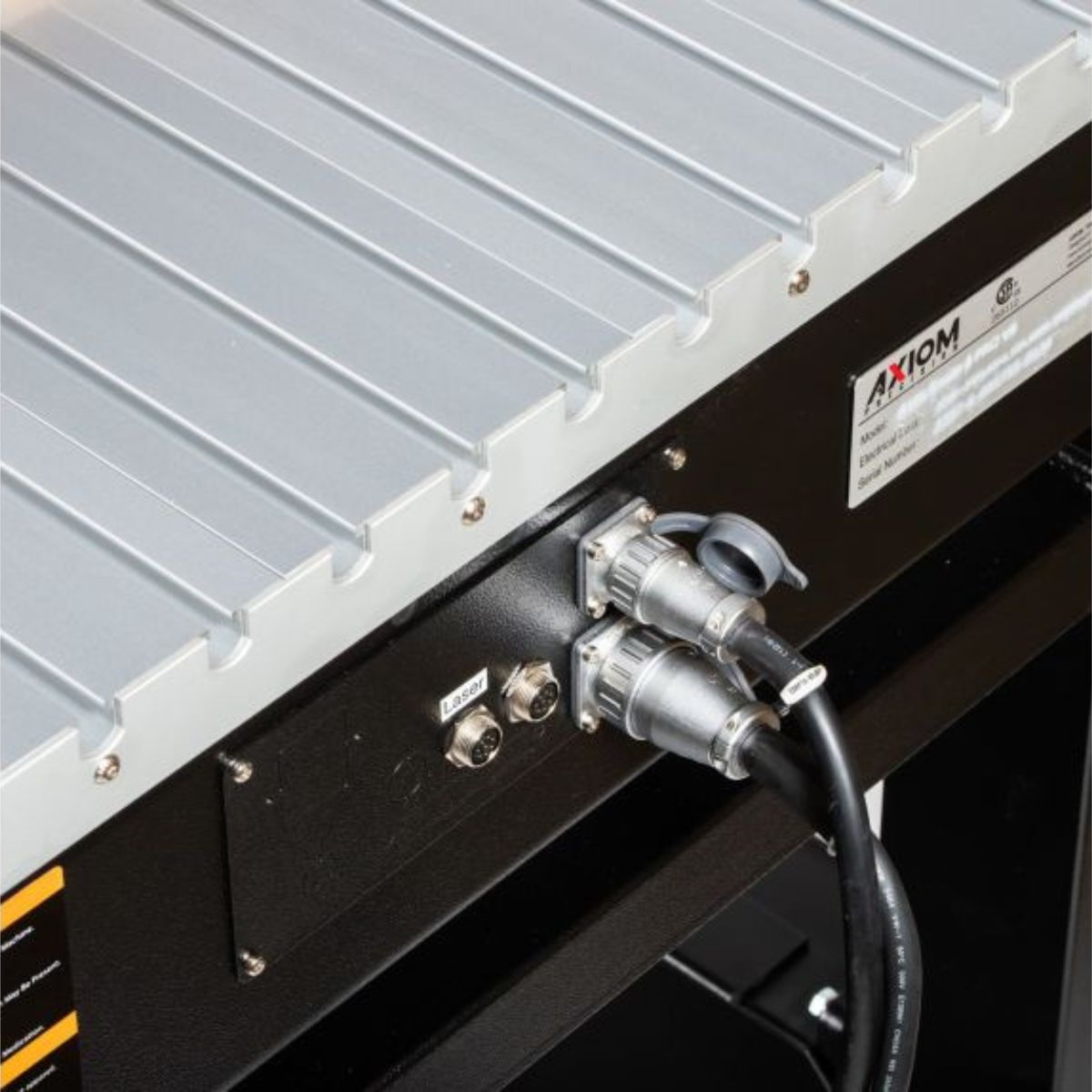

Interlocking Aluminum Table – Provides a stable and durable work surface for securing materials.
-

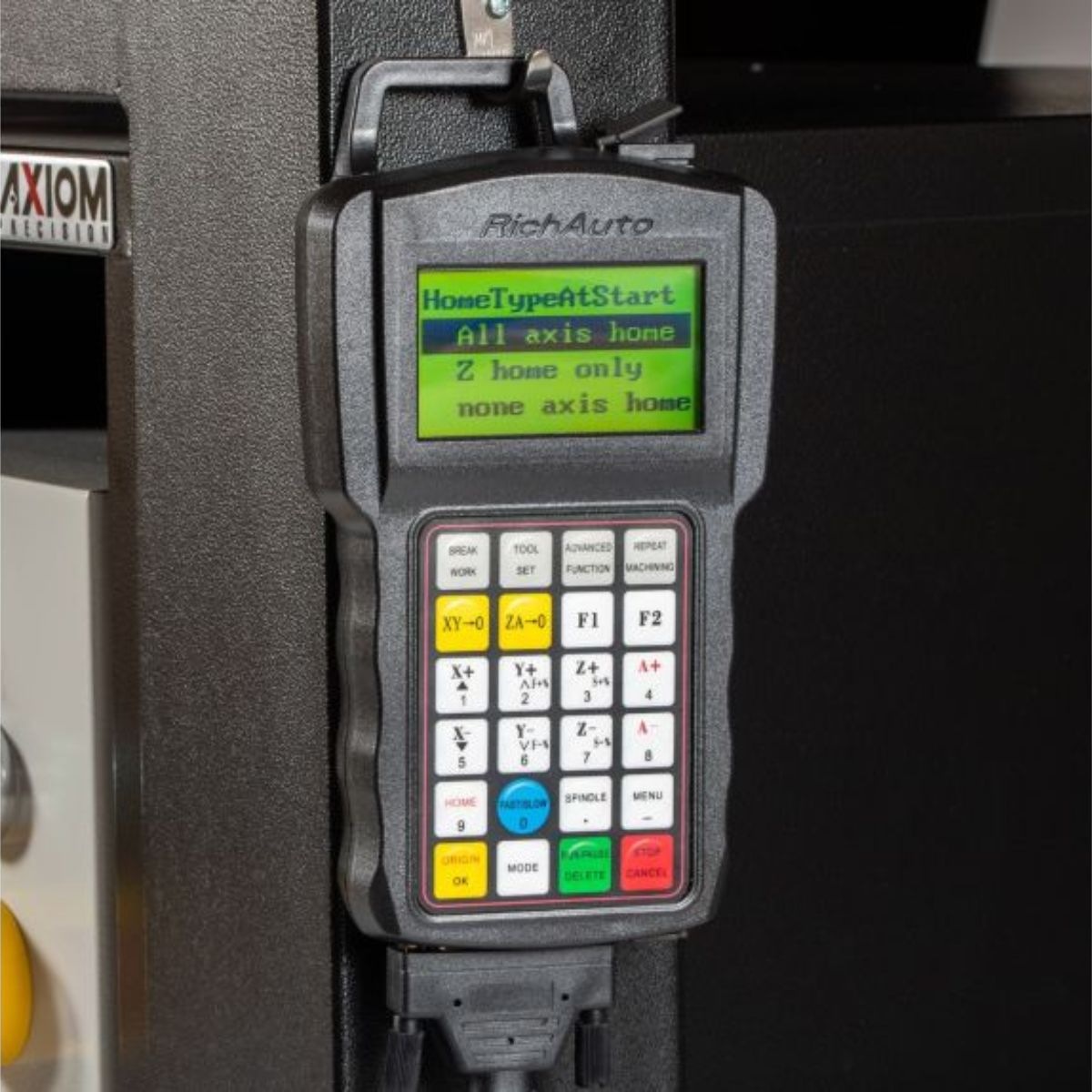

Axiom Industrial 4-Axis CNC Controller – Supports advanced control and optional rotary axis expansion.
-
Collets (1/4" and 1/2") – Secure larger tooling for a wider range of cutting applications.
-
Power Cord – Supplies electrical power for machine operation.
-
Instruction Manual – Provides setup, operation, and maintenance guidance.
Specs
Axiom AR4 Pro V6 CNC Router, 24" x 24" Specifications
- Model Number: AR4-PRO V6
- Stock Number: AX9-AR4PROV6
- Table Size: 24" x 24"
- X-Axis Travel: 24"
- Y-Axis Travel: 24.1"
- Z-Axis Travel: 6"
- Accuracy: ±0.00393"
- Motor: 3 HP
- Spindle Speed: Up to 24,000 RPM
- Spindle Taper: ER20
- Included Collets: 1/4", 1/2"
- Drive System: Precision Ball Screws (X/Y/Z)
- Linear Motion: Prismatic Linear Guides
- Controller: Axiom Industrial 4-Axis CNC Controller
- Max Engraving Speed: 350 IPM
- Input Power: 220V, Single Phase
- Amperage: 10A
- Machine Dimensions: 39.17" x 37.36" x 30.27"
- Net Weight: 321 lbs
- Warranty: 1 Year
