Axiom AR25 Elite CNC Router, AR25 ELITE (60" x 60") CNC Router
Are you limited by CNC capacity when working with oversized panels and larger projects?
What if your router could handle full-size sheets while maintaining consistent accuracy and clean cuts?

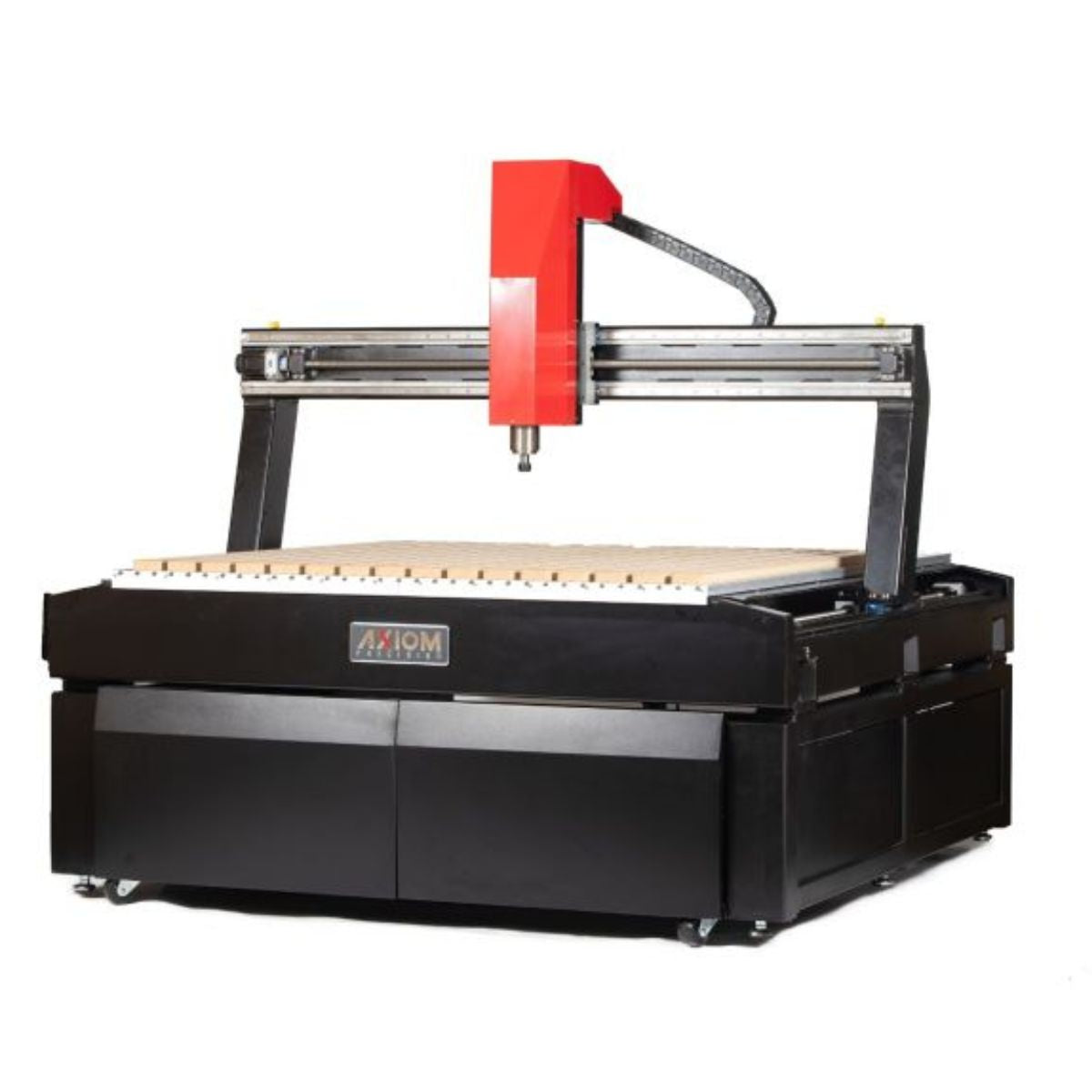

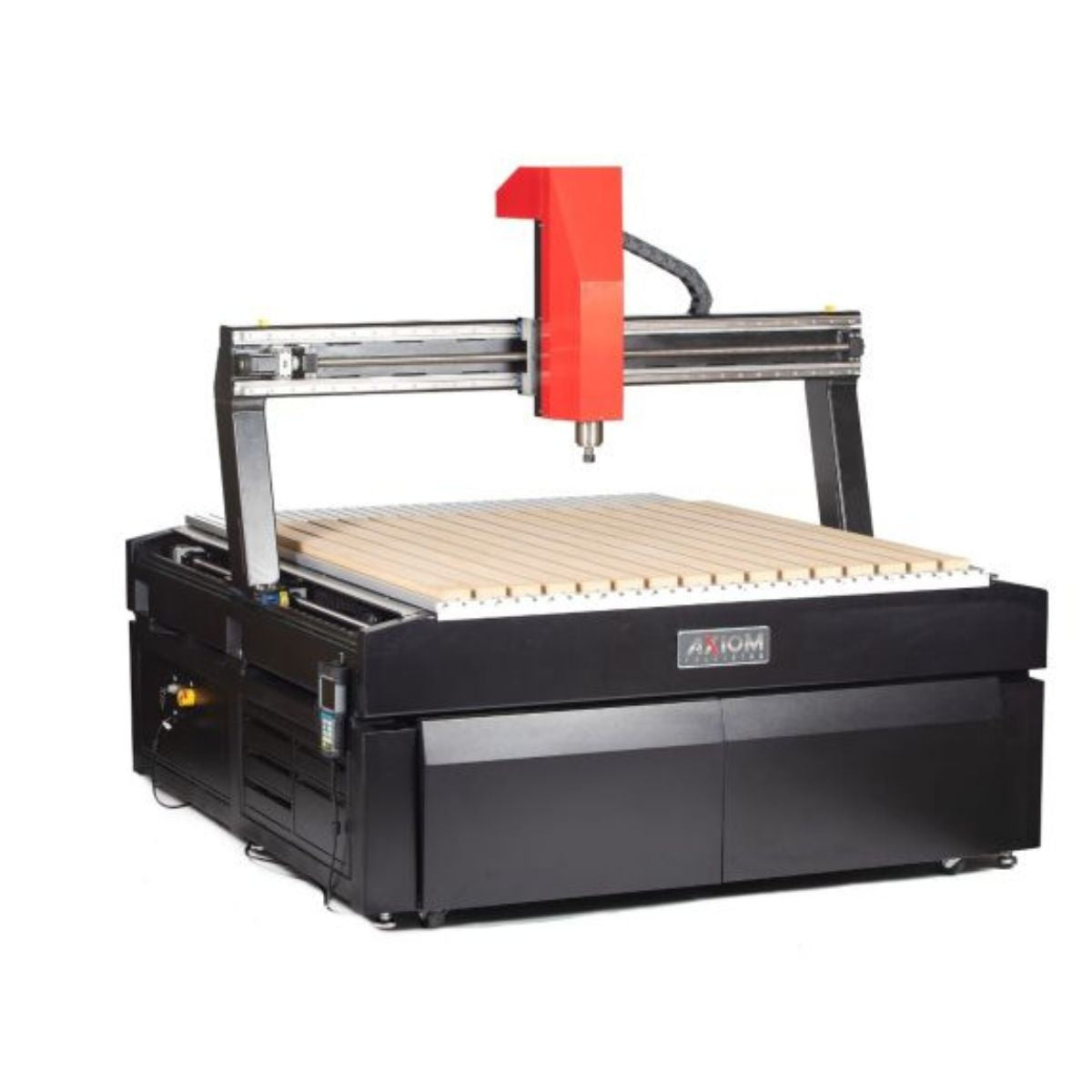

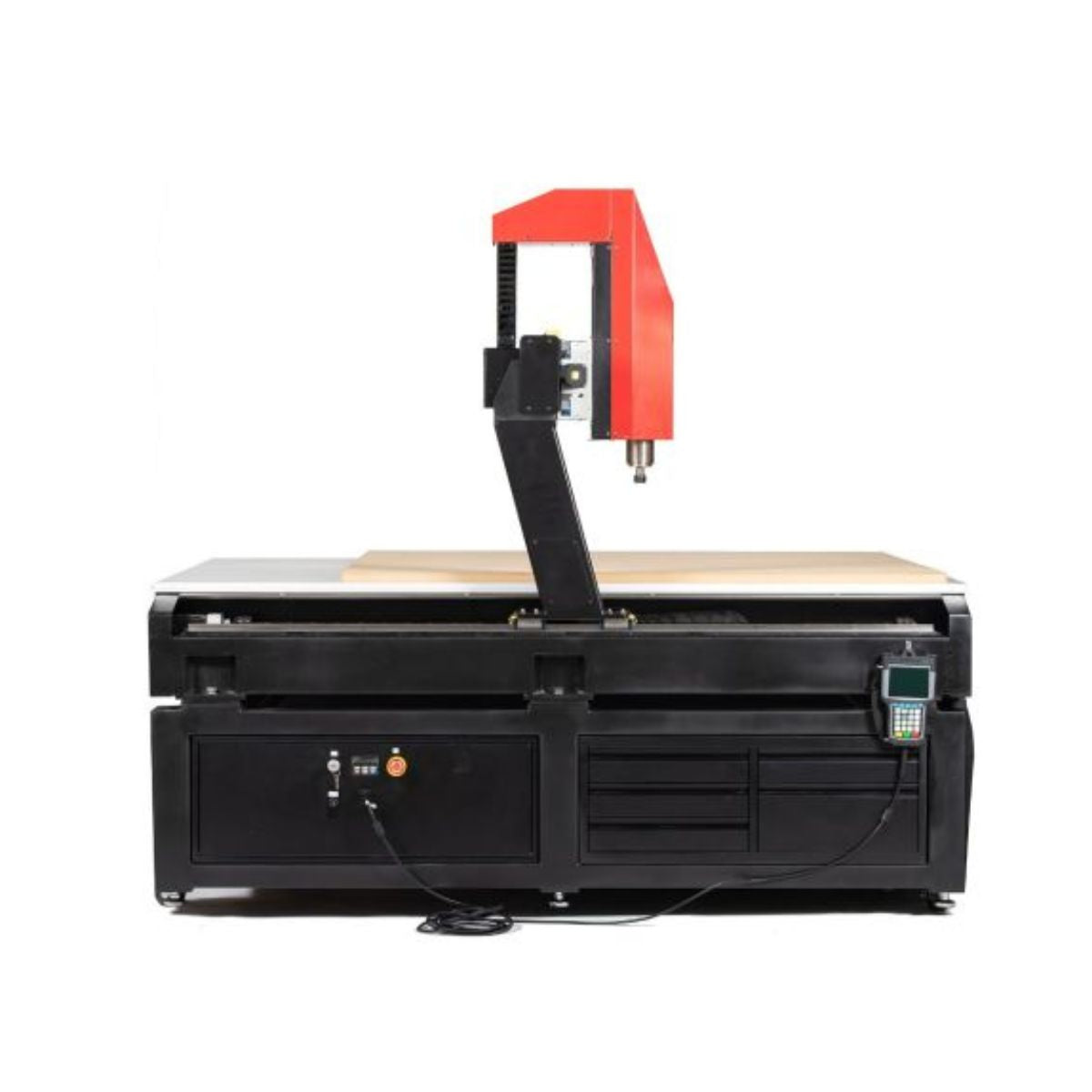

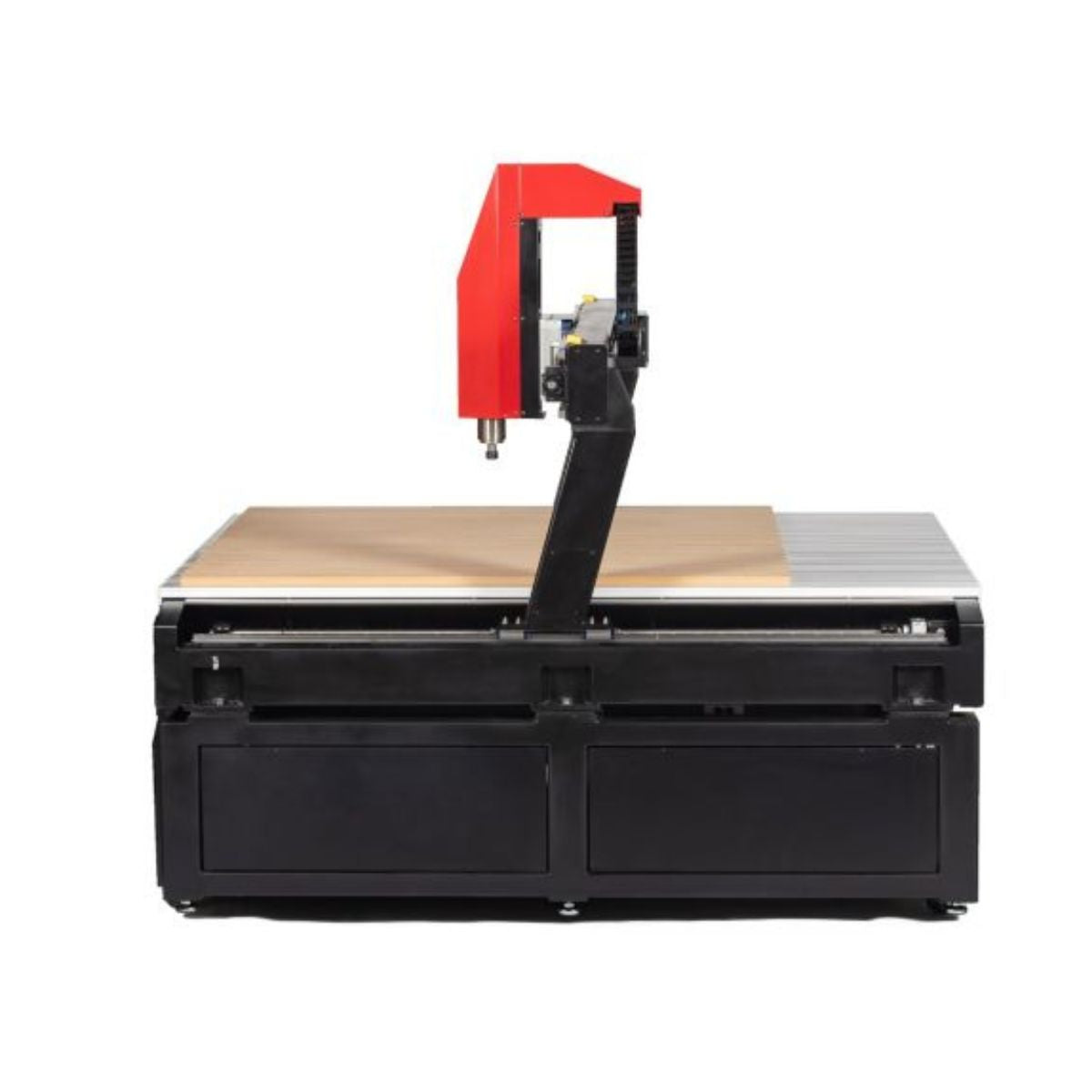

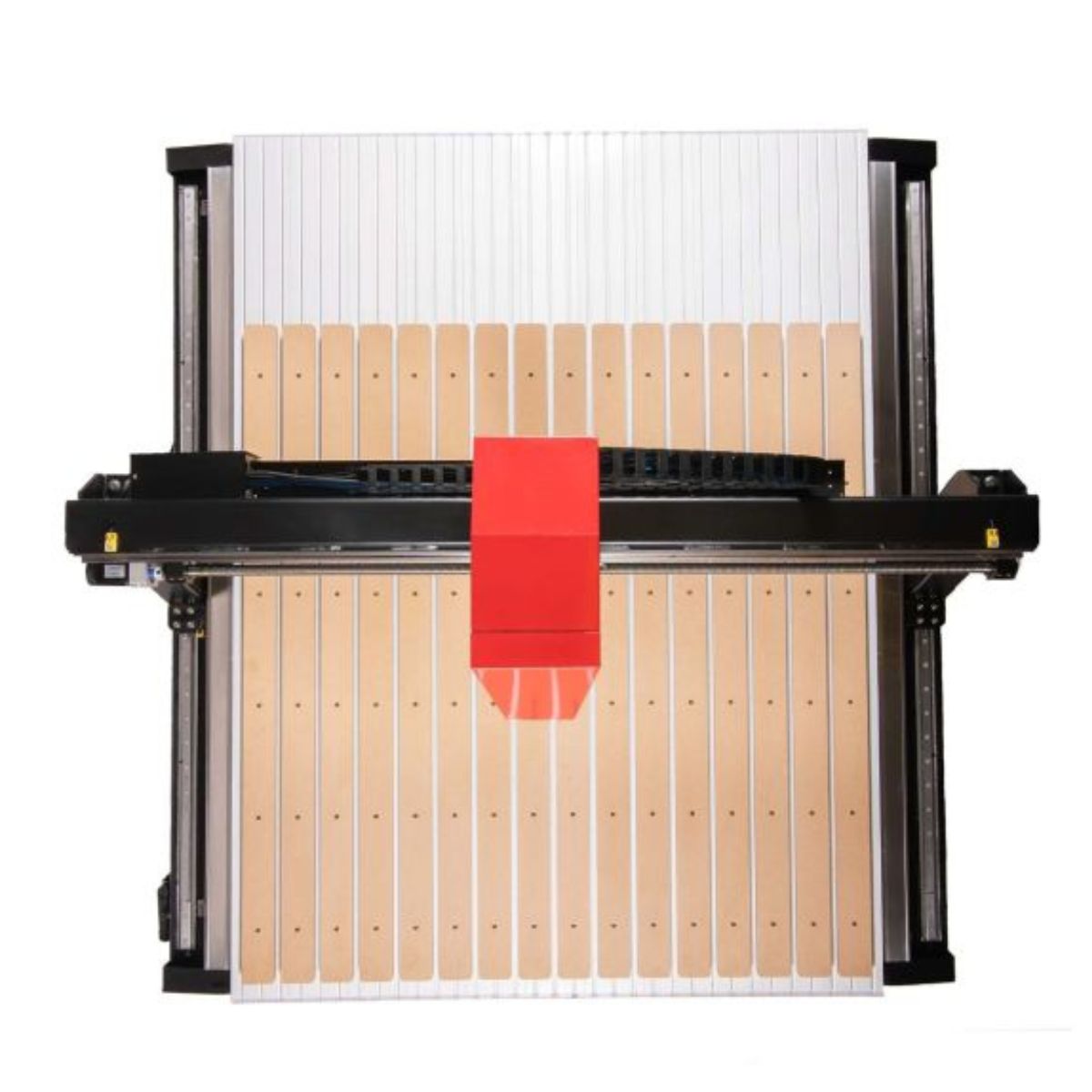

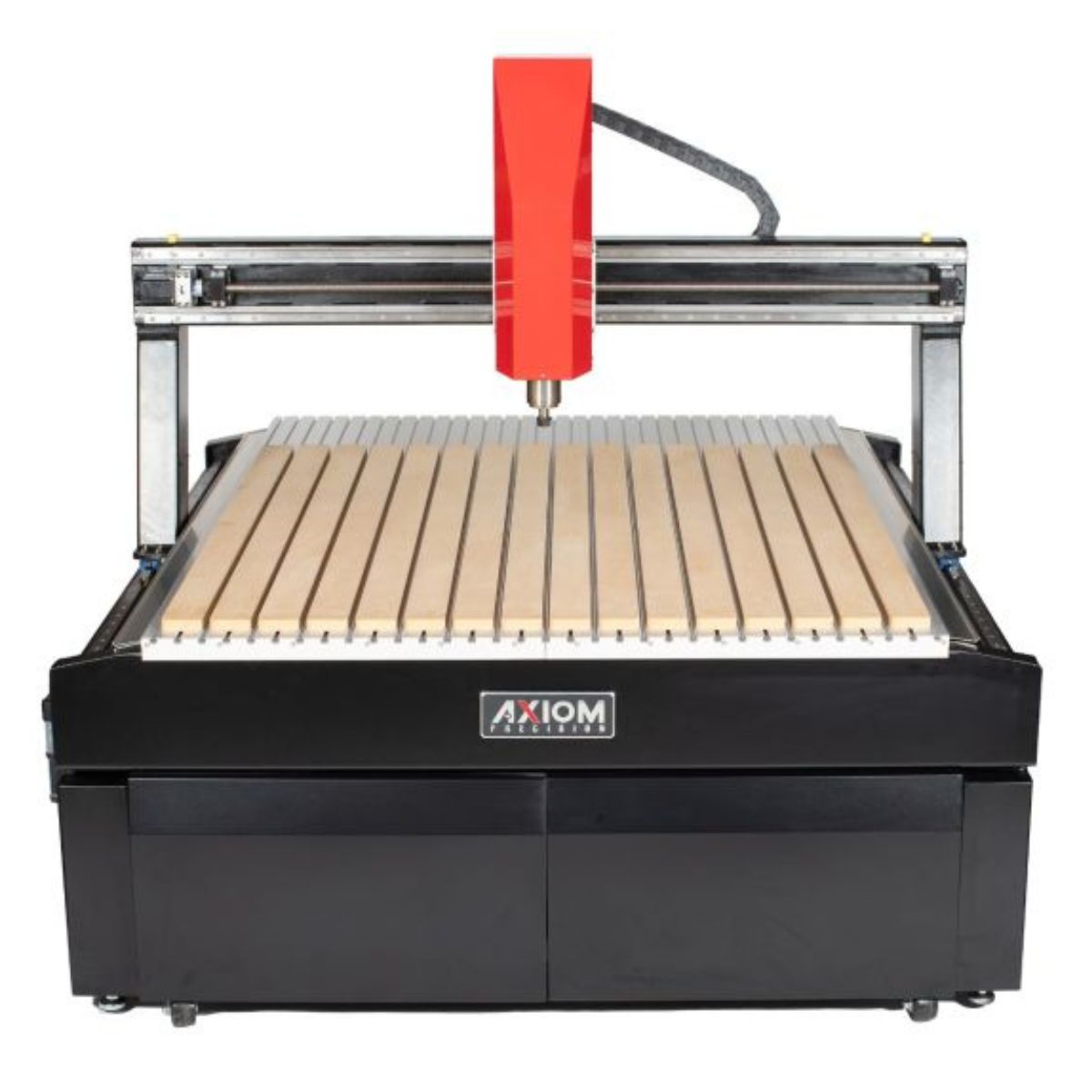

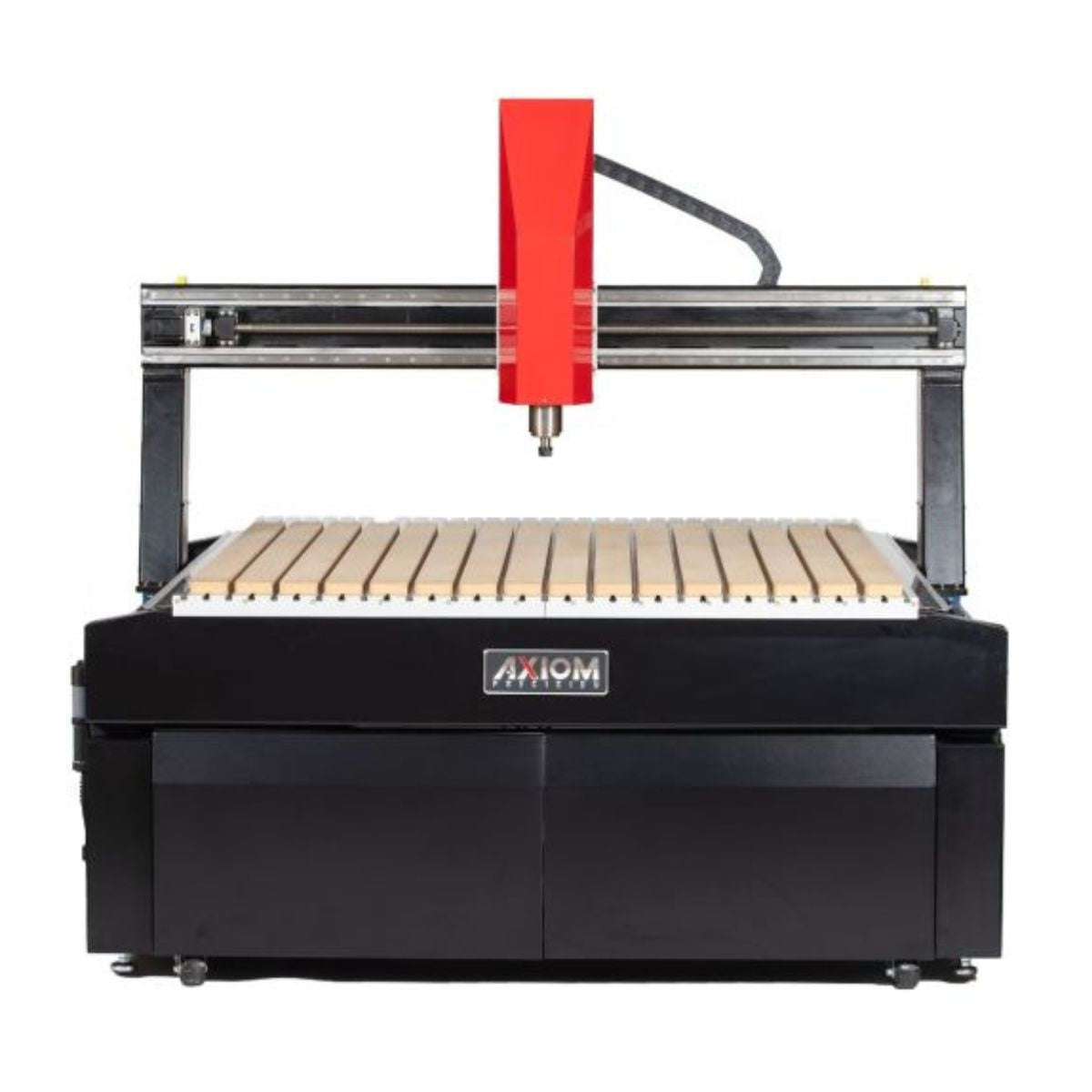

Meet the Axiom AR25 Elite CNC Router, AR25 ELITE (60" x 60") CNC Router.
With servo motors, precision ball screws, and a welded steel frame, it is built for stable, controlled machining.
When your machine stays accurate across large work areas, your workflow becomes more efficient and predictable.
Axiom AR25 Elite for Large Format CNC Routing Work
Servo Motor Drive System Maintains Position Accuracy
The servo system delivers higher torque and faster response than stepper-driven machines. Closed-loop feedback continuously adjusts position during operation. This helps maintain accuracy across large sheets and longer run times. The result is smoother motion and consistent part quality.
Precision Ball Screws Support Repeatable Movement
Ball screws on all axes reduce backlash and keep motion tight and predictable. This is critical when machining large panels that require consistent depth and alignment. The system supports repeatable results across multiple parts. It also helps maintain edge quality and detail clarity.

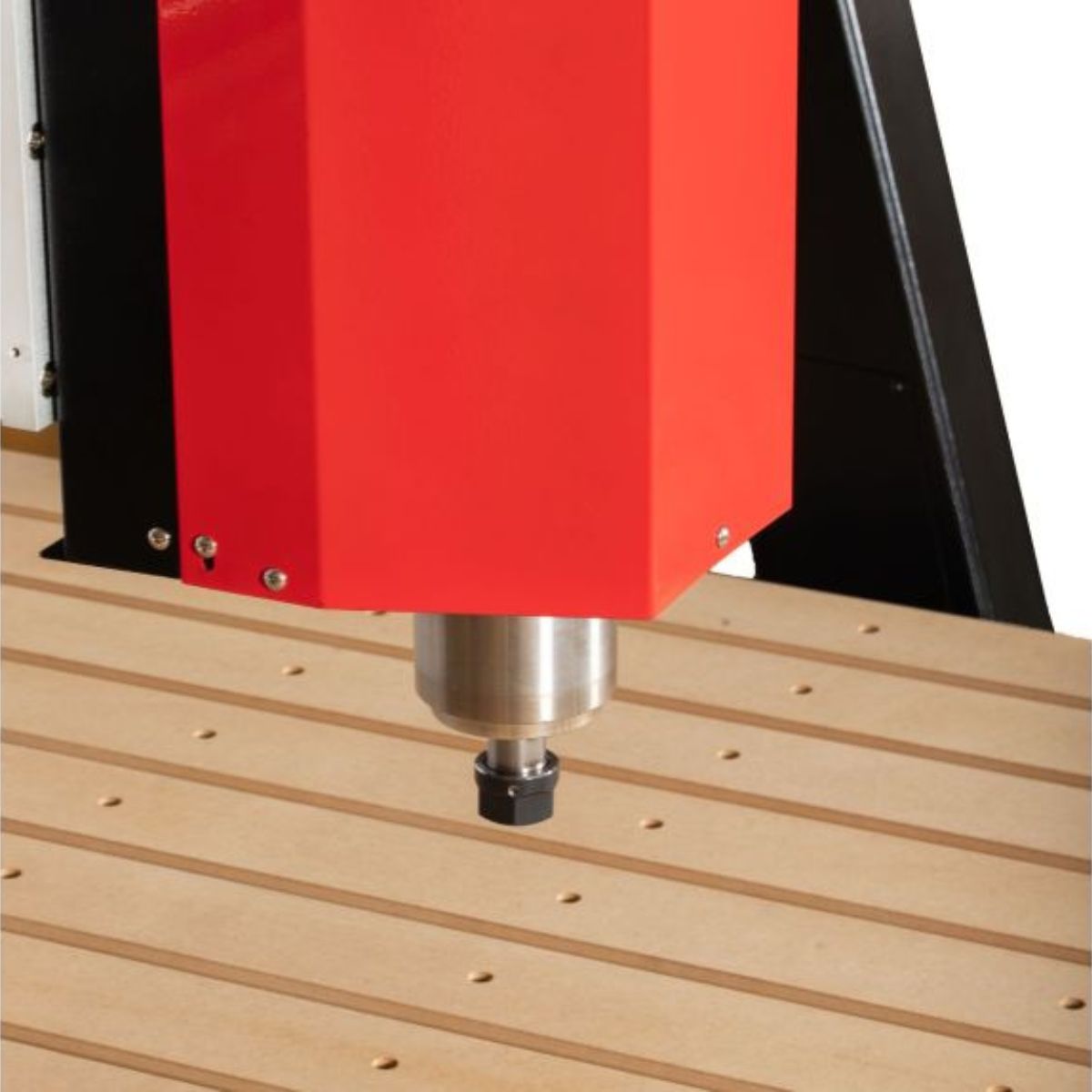

3HP Liquid-Cooled Spindle Handles Continuous Cutting
The 3HP electro spindle provides steady power across a wide speed range. Liquid cooling helps maintain stable temperatures during extended use. This allows for longer cutting cycles without performance drop. The ER20 collet system supports standard 1/4" and 1/2" tooling.
Welded Steel Frame Reduces Vibration on Large Work
The all-welded steel frame provides a stable platform for large-format machining. The added rigidity helps reduce vibration during heavier cutting passes. This improves surface finish and cut consistency. It also supports better control when working with larger materials.
What’s Included
What’s Included? Axiom AR25 Elite CNC Router, AR25 ELITE (60" x 60") CNC Router
-
CNC Router Machine Fully assembled unit ready for installation and operation
-
3HP Electro Spindle Provides cutting power across a range of materials
-
Industrial 4-Axis Controller Controls machine movement and job execution
-
Machine Stand with Tool Storage Supports the machine and keeps tools organized
-
Tool Touch-Off Device Sets tool height quickly and improves setup accuracy
-
ER20 Collets (1/4" and 1/2") Securely hold standard CNC tooling
Specs
Axiom AR25 Elite CNC Router, AR25 ELITE (60" x 60") CNC Router Specifications
- Working Area: 61" x 61"
- Z Travel: 7.48"
- Accuracy: +/- .00197"
- Max Engraving Speed: 400 IPM
- Max Moving Speed: 320 IPM
- Spindle: 3 HP ER20
- Spindle Speed: 0–24,000 RPM
- Power Requirement: 220V Single Phase
- Amperage: 15 Amps
- Drive System: Servo Motors
- Motion System: Precision Ball Screws
- Controller: Industrial 4-Axis CNC Controller
- Tool Capacity: 1/4" and 1/2" shank
- Machine Dimensions: 77" x 83" x 76"
- Machine Weight: 1347 lbs
