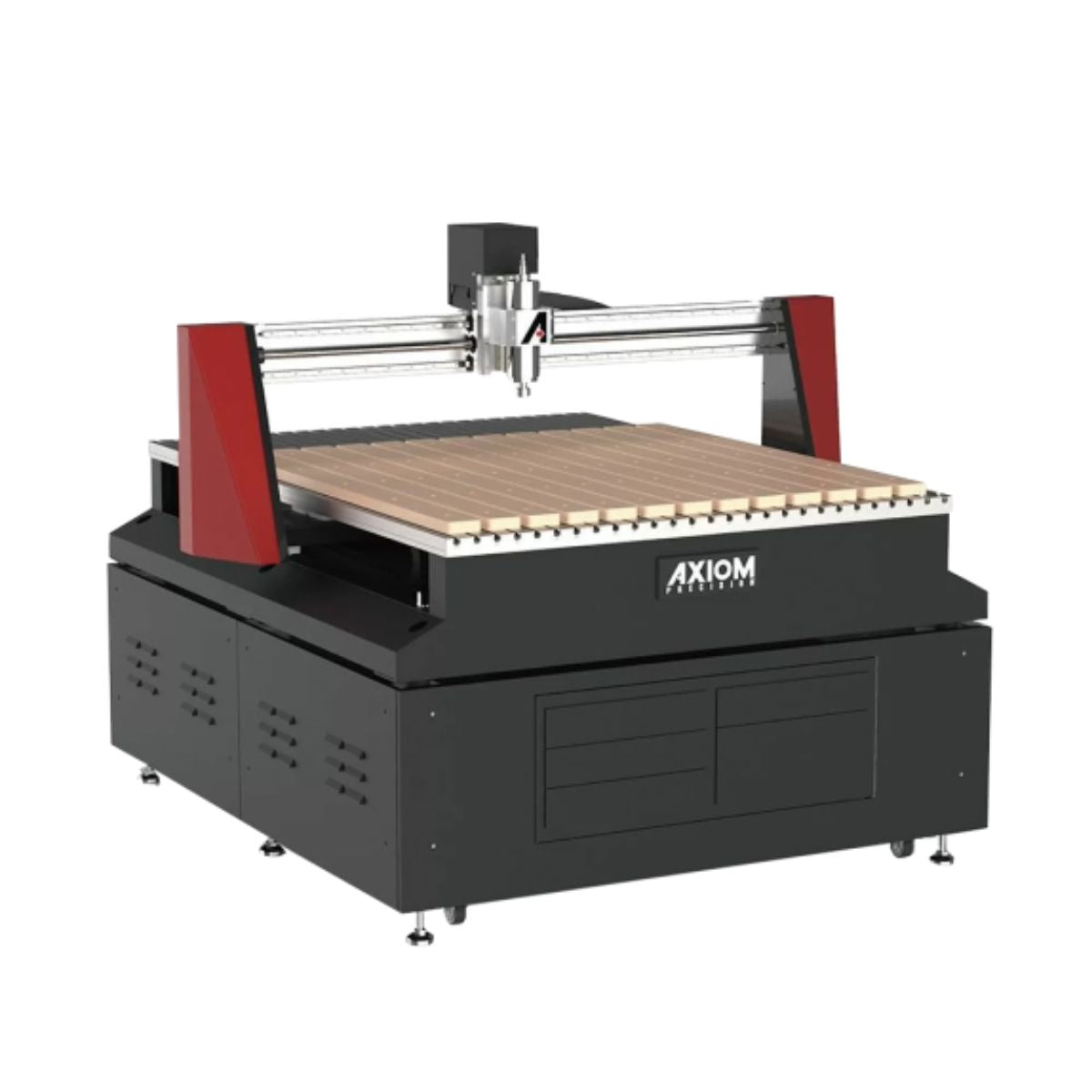

Axiom AR16 Elite CNC Router, AR16 ELITE (48" x 48") CNC Router
Are you limited by CNC machines that cannot handle full-size panels with consistent accuracy?
What if your router could process larger workpieces while maintaining clean cuts and repeatable results?
Meet the Axiom AR16 Elite CNC Router, AR16 ELITE (48" x 48") CNC Router.
With servo motors, precision ball screws, and a rigid steel frame, it is built for stable, controlled machining.
When your machine holds position and runs smoothly, your production work becomes more predictable and efficient.
Axiom AR16 Elite for Full-Size CNC Routing Work

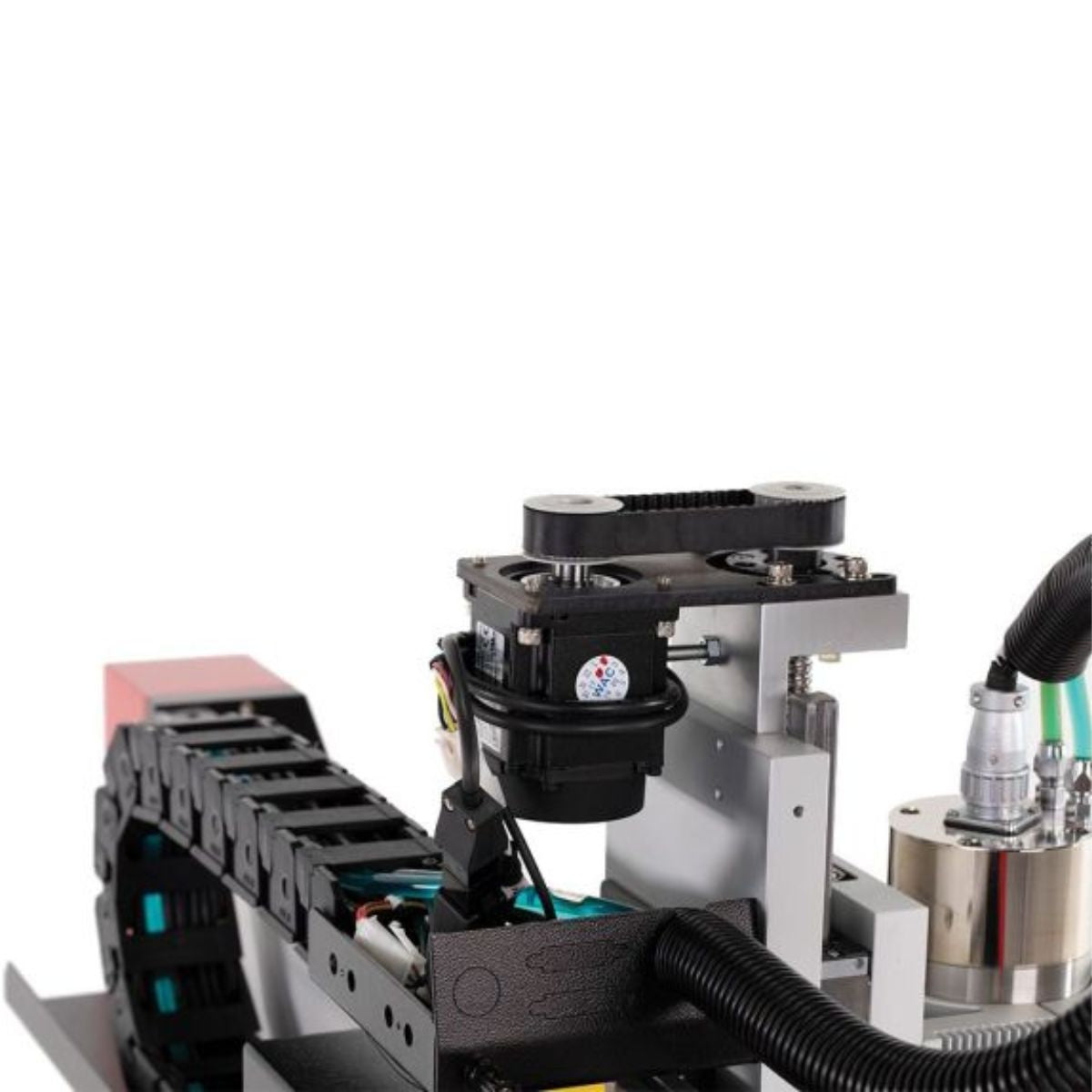

Servo Motor Drive System Improves Motion Accuracy
The servo-driven system delivers higher torque and faster response than stepper-based machines. Closed-loop feedback continuously corrects position during operation. This helps maintain accuracy across large sheets and long run times. The result is smoother motion and more consistent part quality.

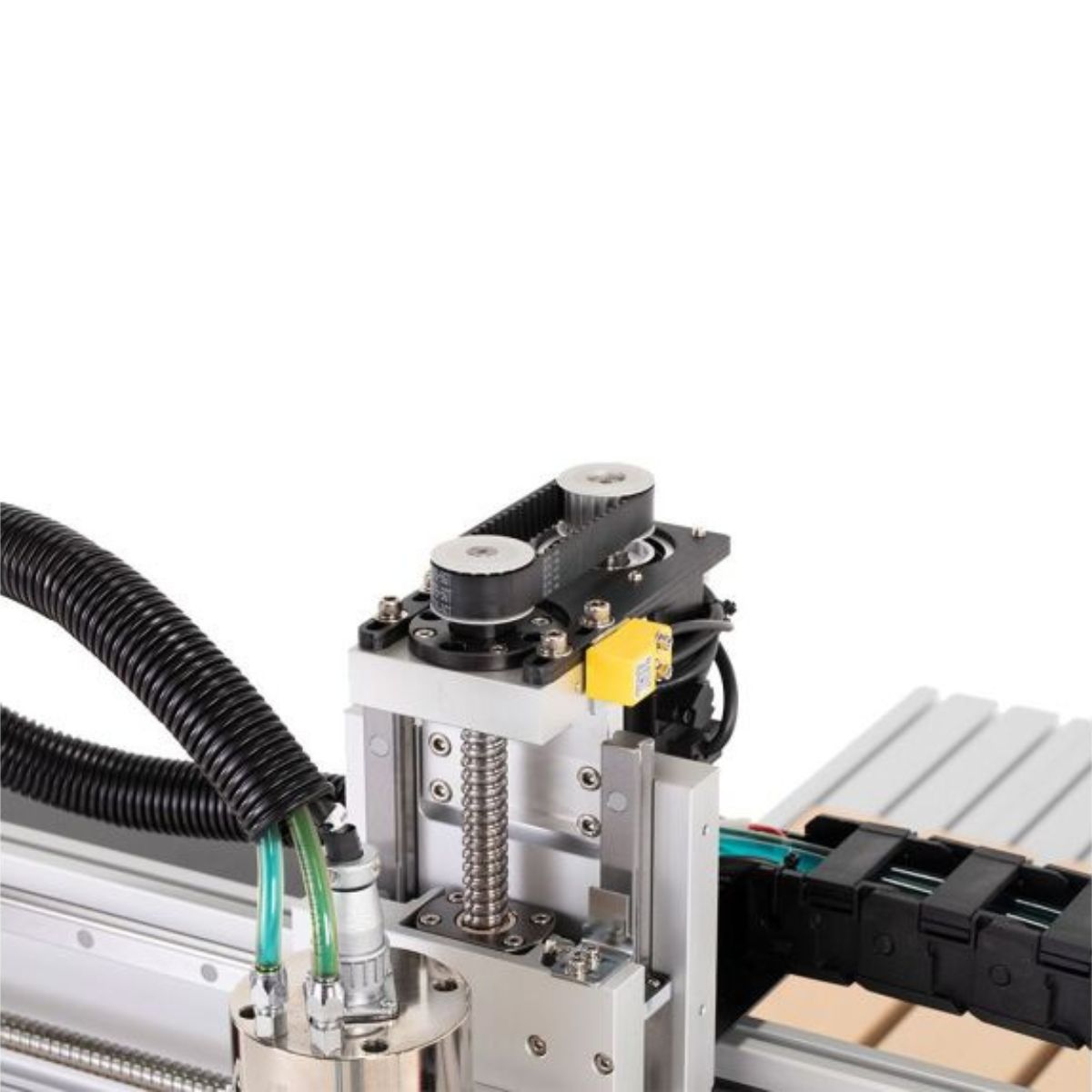

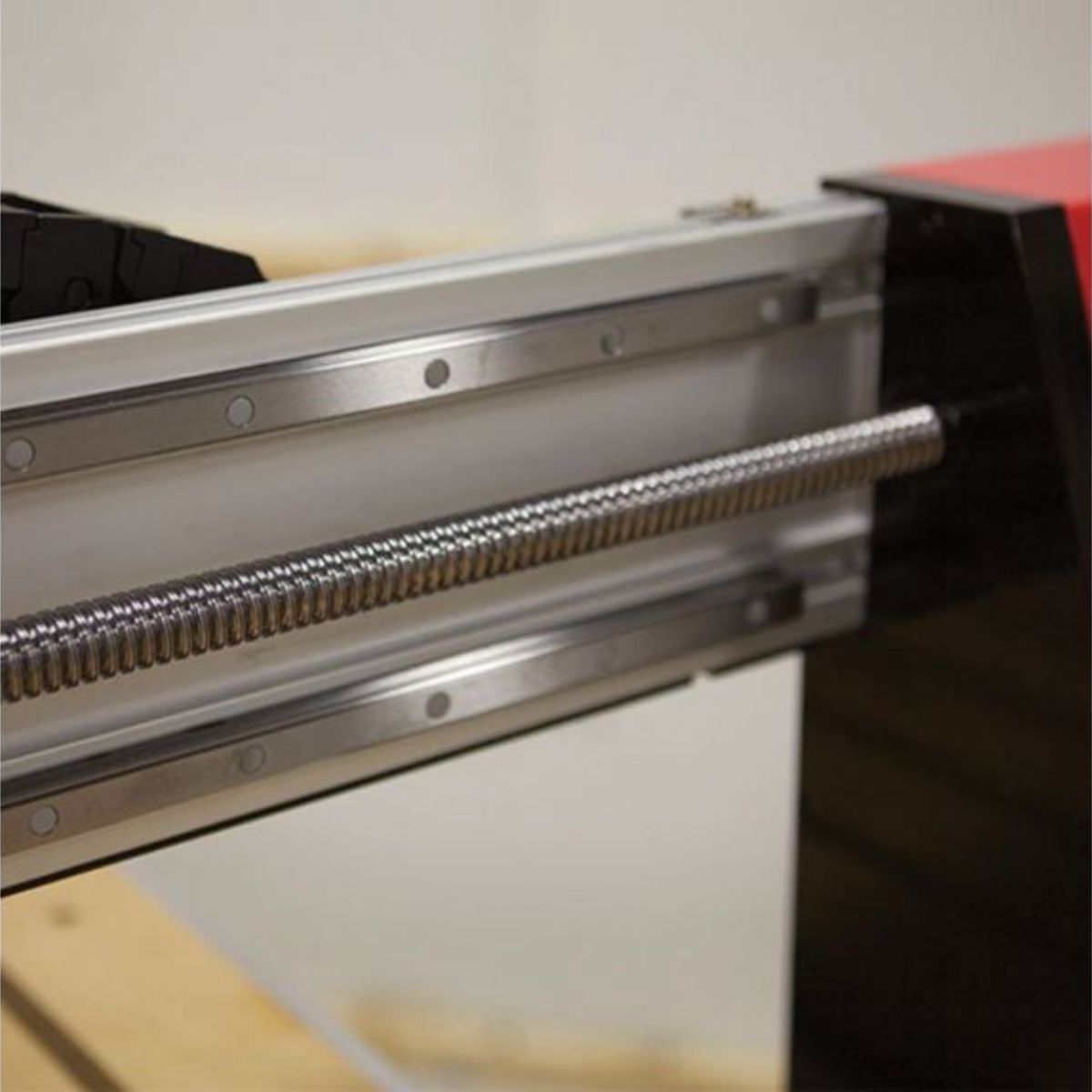

Precision Ball Screws Maintain Repeatable Positioning
Ball screws on all axes reduce backlash and keep motion tight and predictable. This is important when working on large panels that require consistent depth and alignment. The system supports repeatable results across multiple parts. It also helps maintain clean edges and detail definition.

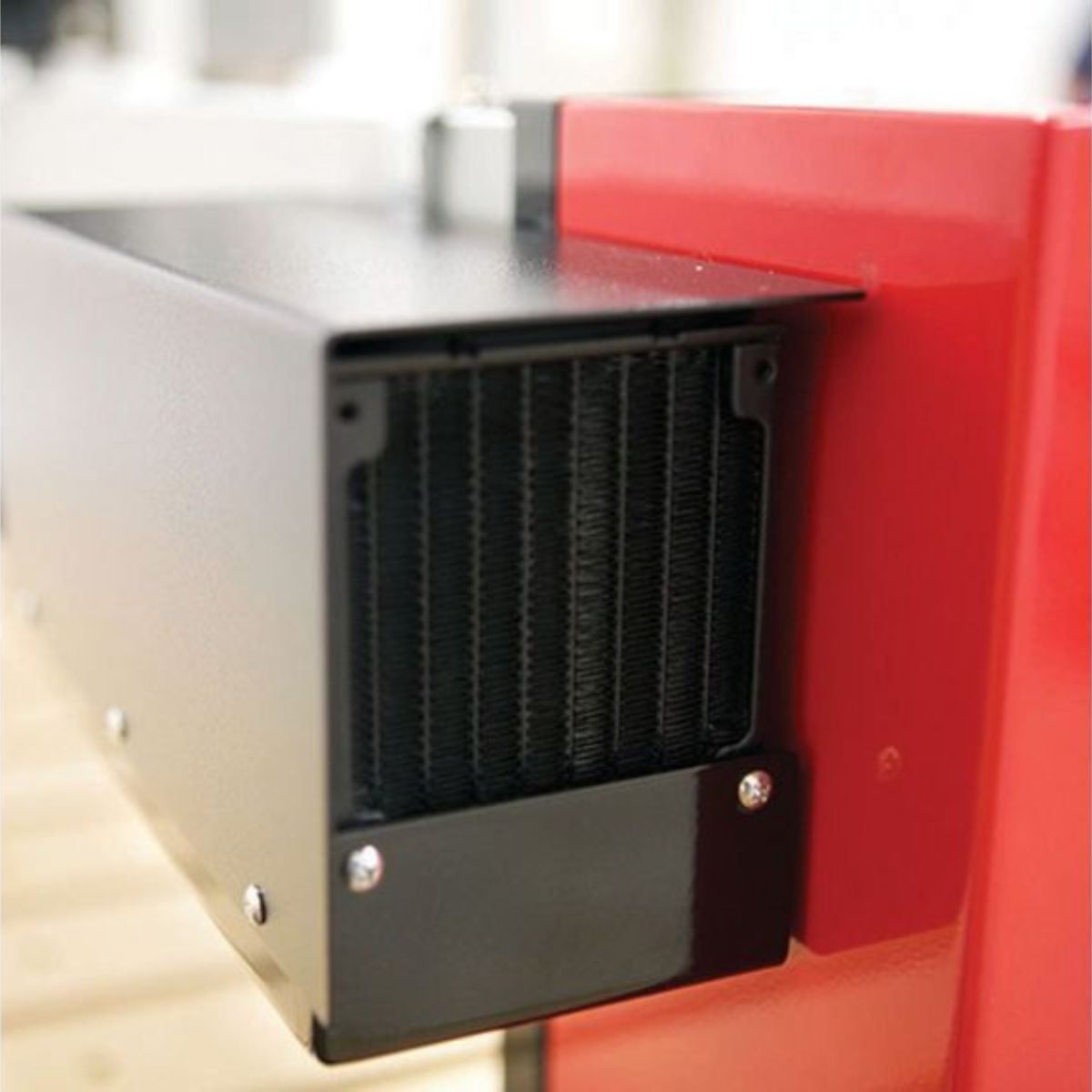

3HP Liquid-Cooled Spindle Supports Extended Run Time
The 3HP electro spindle provides steady power across a wide speed range. Liquid cooling helps maintain stable operating temperature during long jobs. This allows for continuous cutting without performance drop. The ER20 collet system supports standard 1/4" and 1/2" tooling.

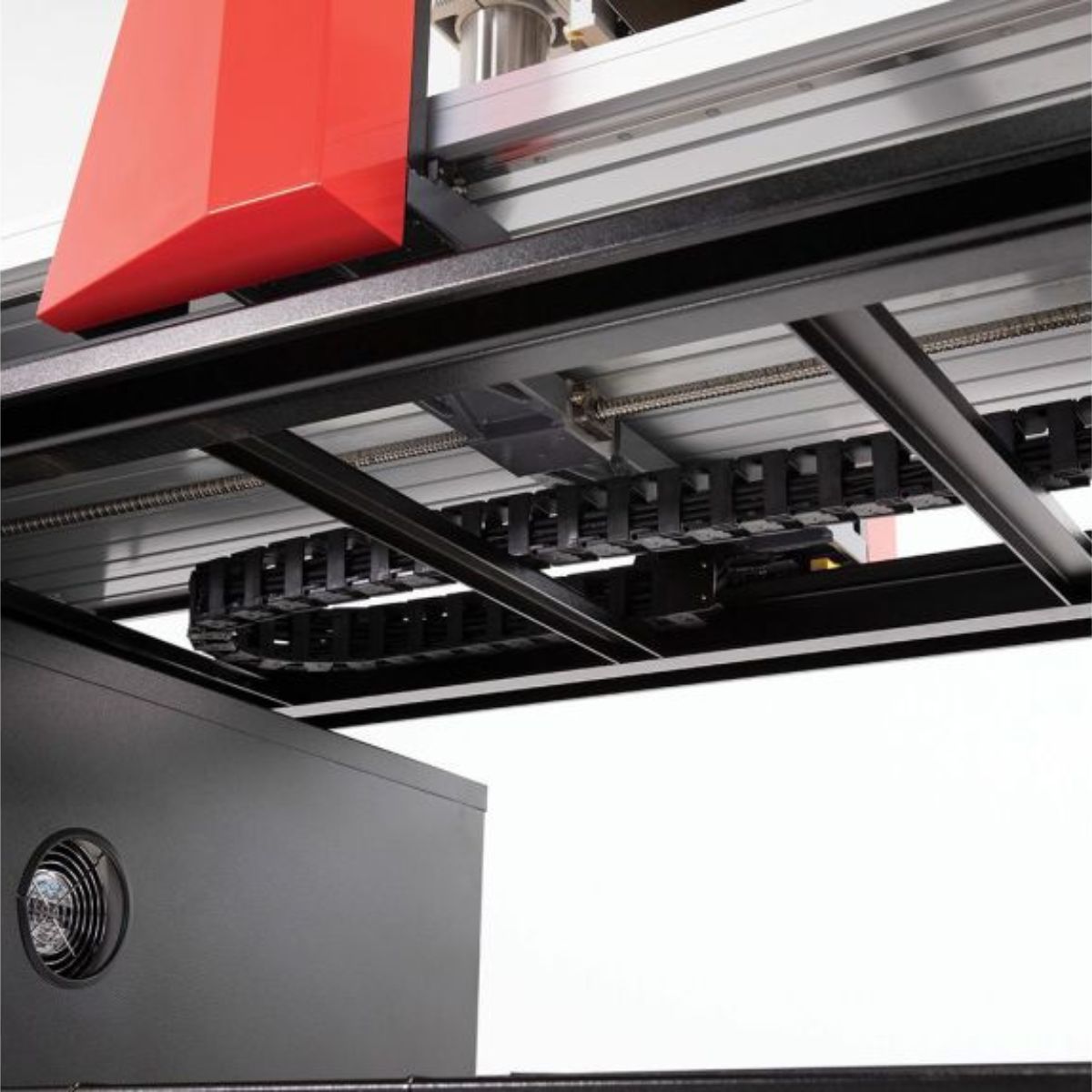

Rigid Steel Frame and Linear Guides Reduce Vibration
The steel frame provides a stable base for full-sheet machining. Prismatic linear guides keep axis movement aligned under load. This reduces vibration and helps improve surface finish. The added mass supports controlled cutting during heavier passes.
What’s Included
What’s Included? Axiom AR16 Elite CNC Router, AR16 ELITE (48" x 48") CNC Router
-
CNC Router Machine Fully assembled unit ready for installation and operation
-
3HP Electro Spindle Provides cutting power across a range of materials
-

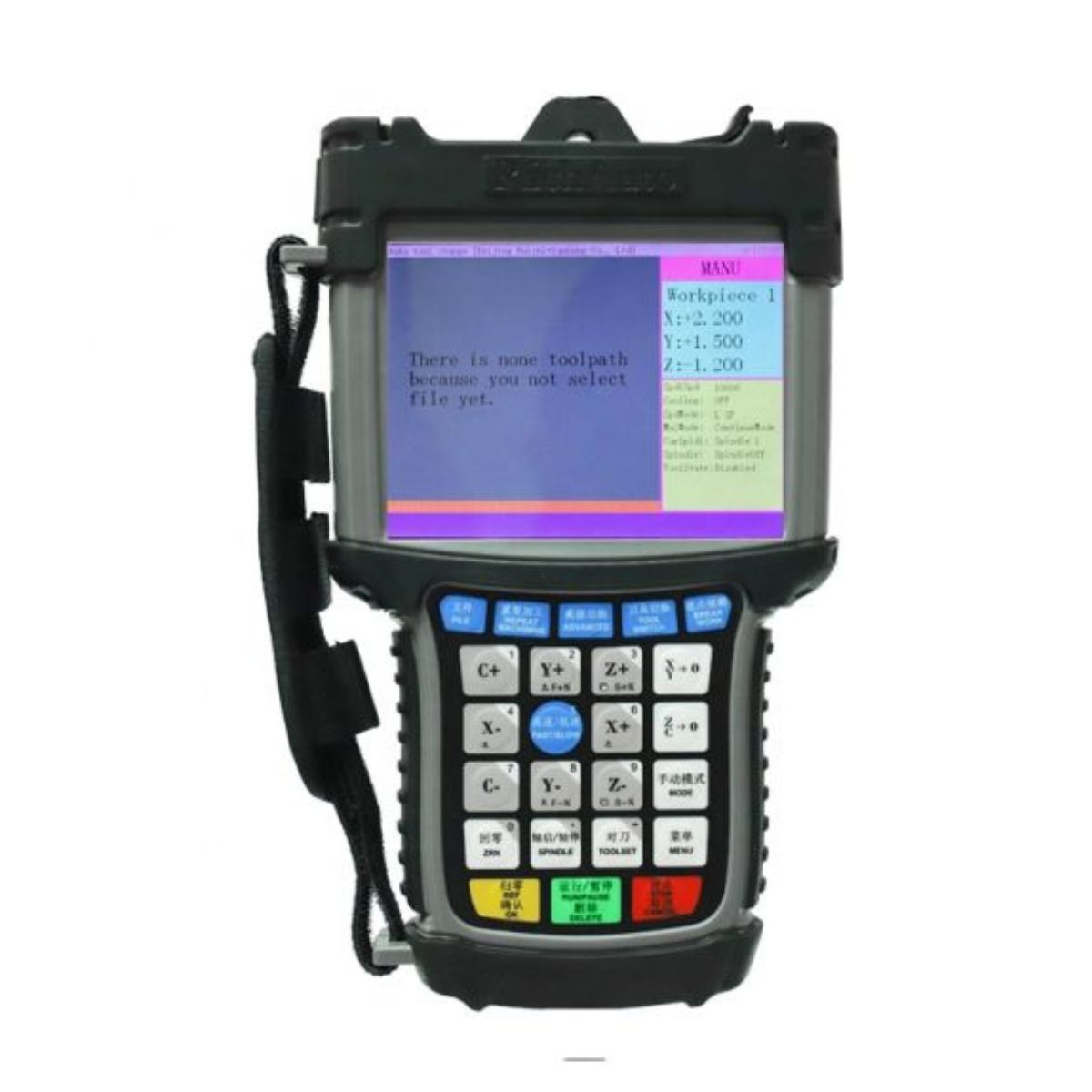

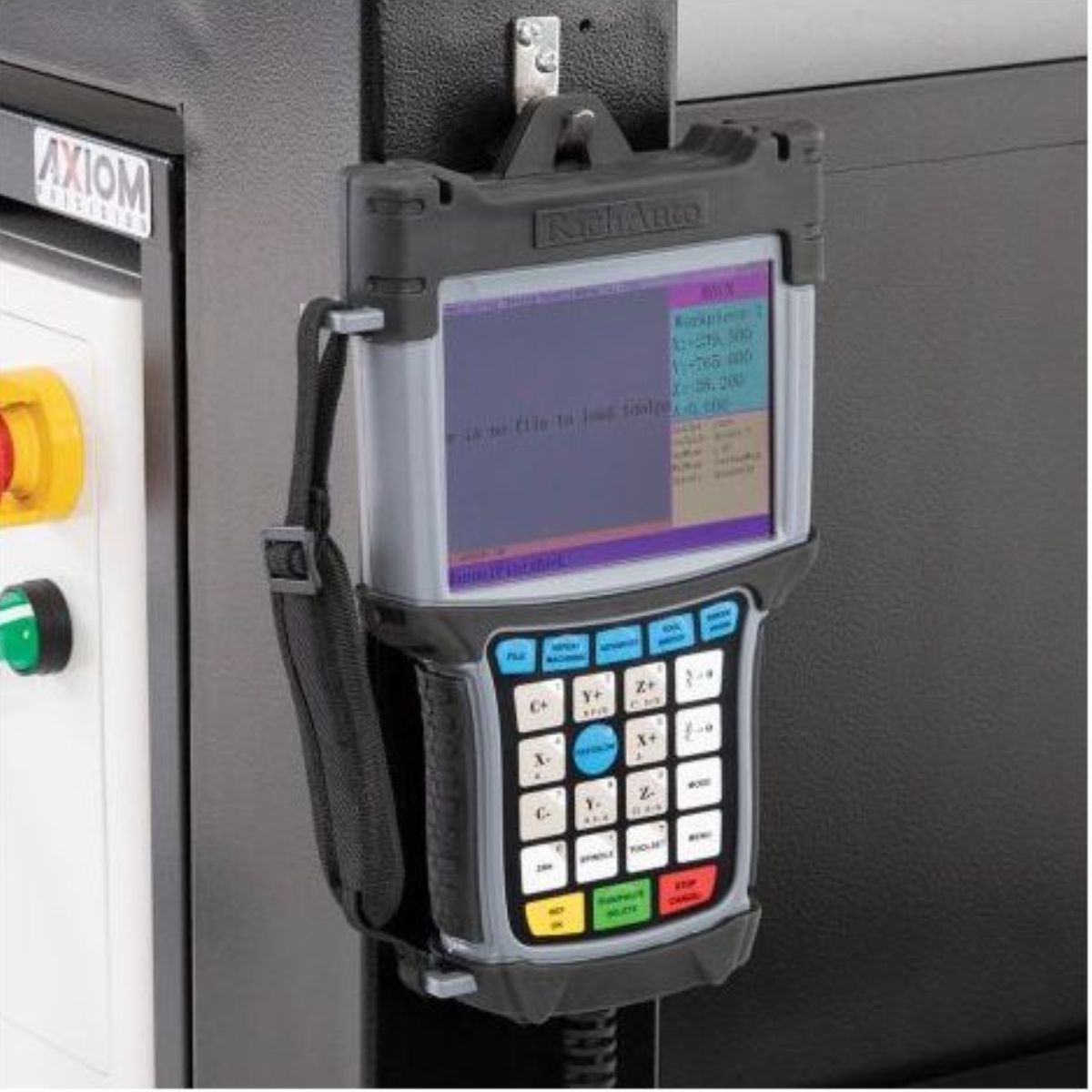

Industrial 4-Axis Controller Manages machine movement and job control
-
Machine Stand Supports the router and maintains working height
-
Tool Storage Keeps tooling organized and accessible
-
ER20 Collets (1/4" and 1/2") Securely hold standard CNC tooling
Specs
Axiom AR16 Elite CNC Router, AR16 ELITE (48" x 48") CNC Router Specifications
- Working Area: 48" x 48"
- Z Travel: 7.48"
- Accuracy: +/- .00197"
- Max Engraving Speed: 320 IPM
- Spindle: 3 HP ER20
- Spindle Speed: Up to 24,000 RPM
- Power Requirement: 220V Single Phase
- Amperage: 15 Amps
- Drive System: Servo Motors
- Motion System: Precision Ball Screws
- Guides: Prismatic Linear Guides
- Tool Capacity: 1/4" and 1/2" shank
- Machine Dimensions: 60" x 48" x 48"
- Machine Weight: 1347 lbs
- Warranty: 1 Year
