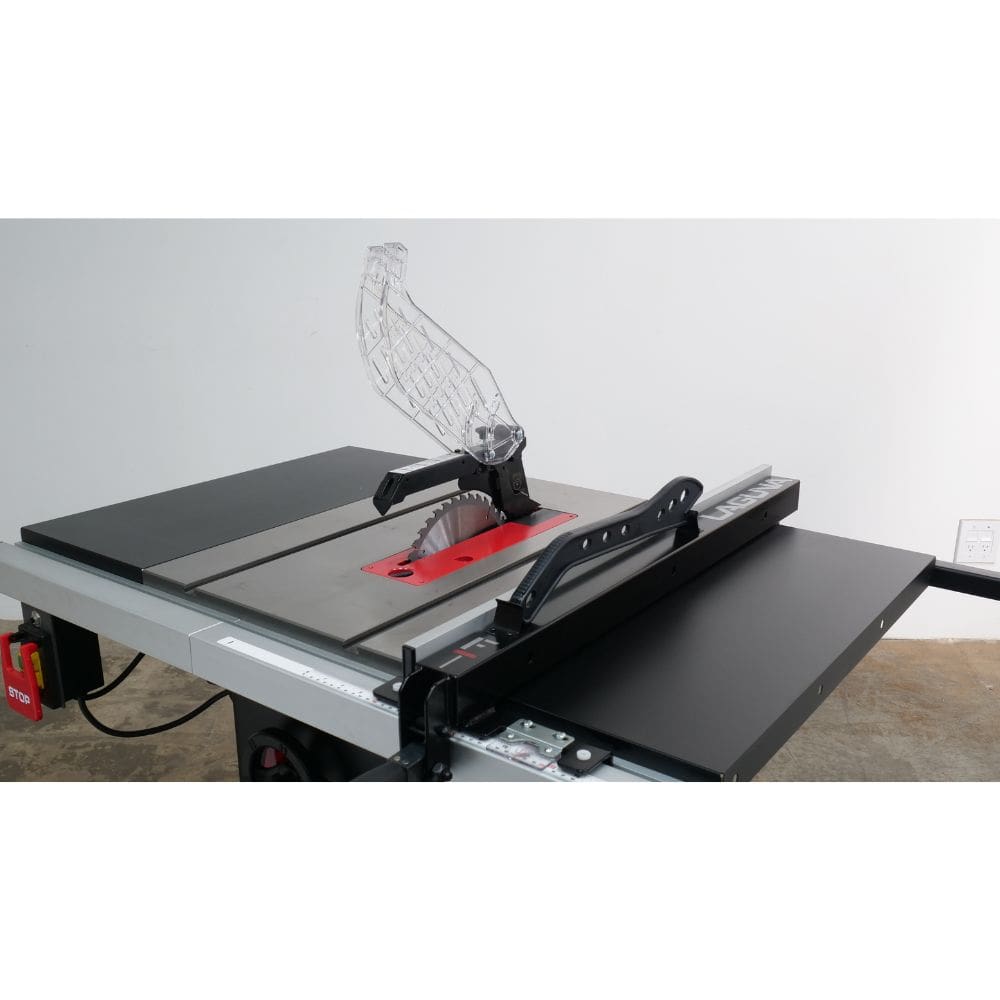

Laguna Fusion F1 Table Saw - 1.5 HP 110V
Are you working around a small-shop table saw that drifts, vibrates, or won’t hold settings the way your work requires?
What if your saw stayed steady, cut clean, and let you set up once without constant readjusting?

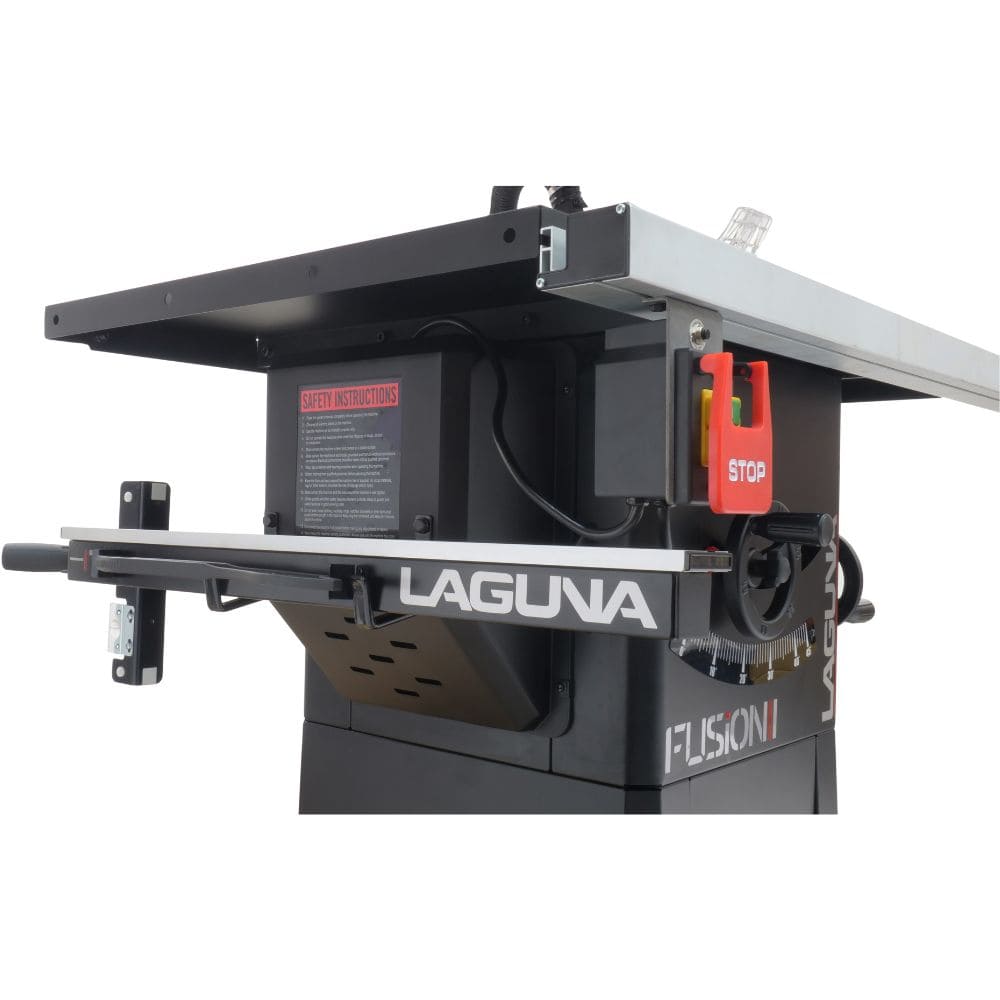

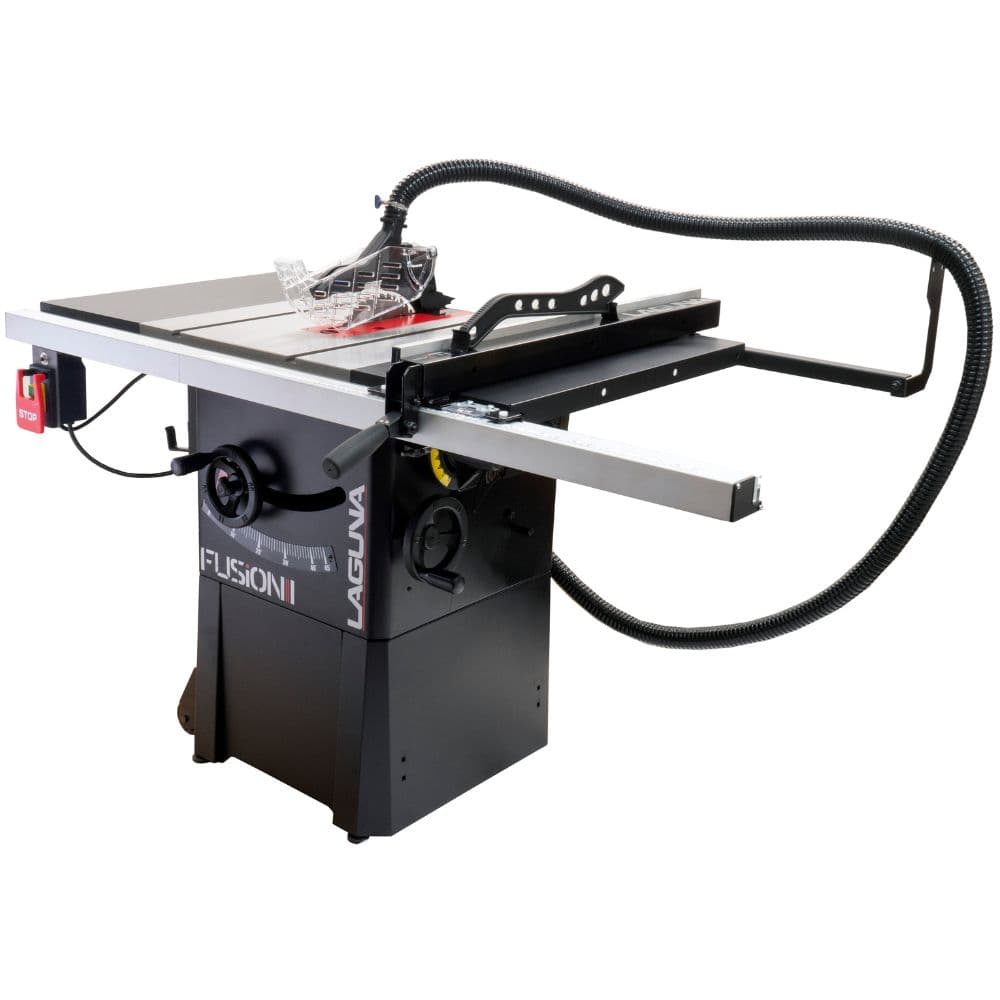

Meet the Laguna Fusion F1, a compact cabinet-style saw built to give small shops dependable alignment and smoother control.
With its cast iron table, over/under trunnion design, and stable fence system, it brings real accuracy to a 110V footprint.
When your saw holds its line and stays predictable, your cuts come easier and your workflow feels more settled.
The Laguna F1 Table Saw Is Built for Accurate Cuts in Small Shops
Sized for tight spaces but built with the stability serious hobbyists expect.
Stable Cutting Platform
The precision-ground cast iron table adds mass that dampens vibration and keeps stock supported as it enters the blade. That firmness helps your cuts stay straight and repeatable, especially when working with hardwood or longer pieces.
Smooth, Predictable Adjustments

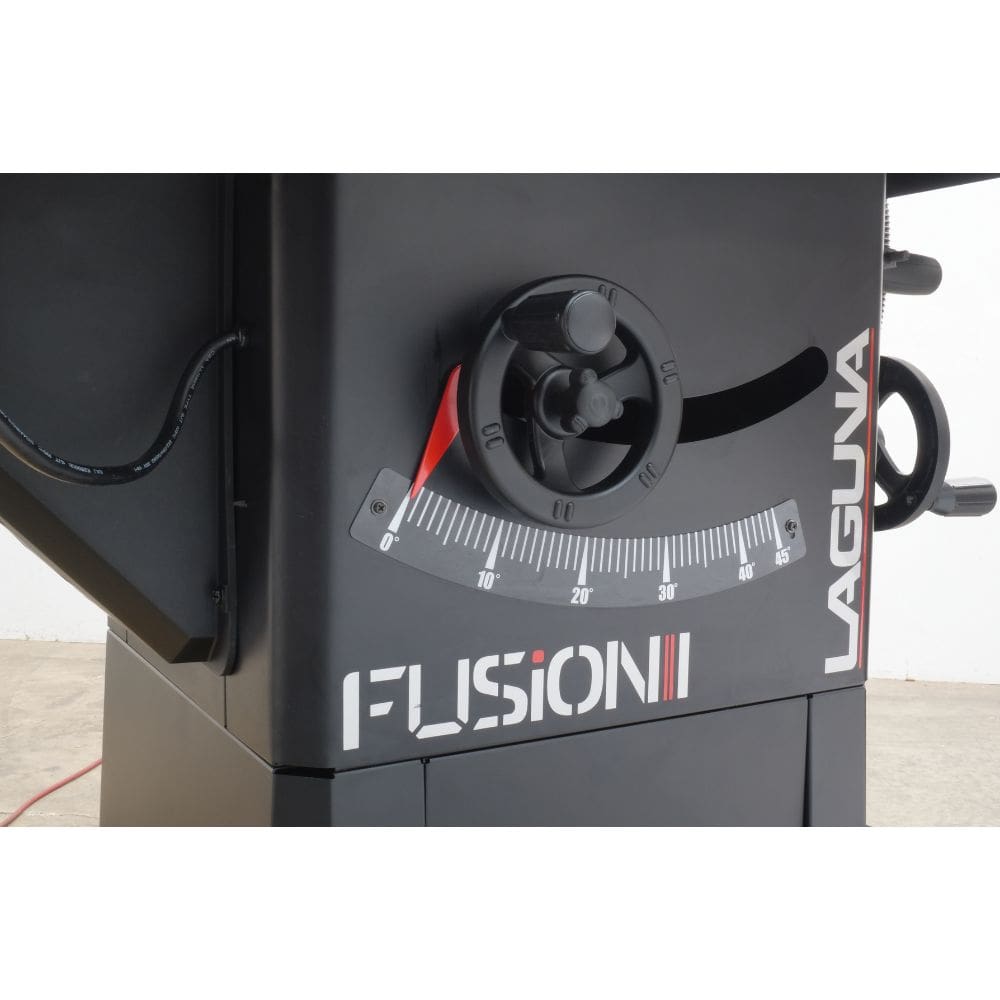

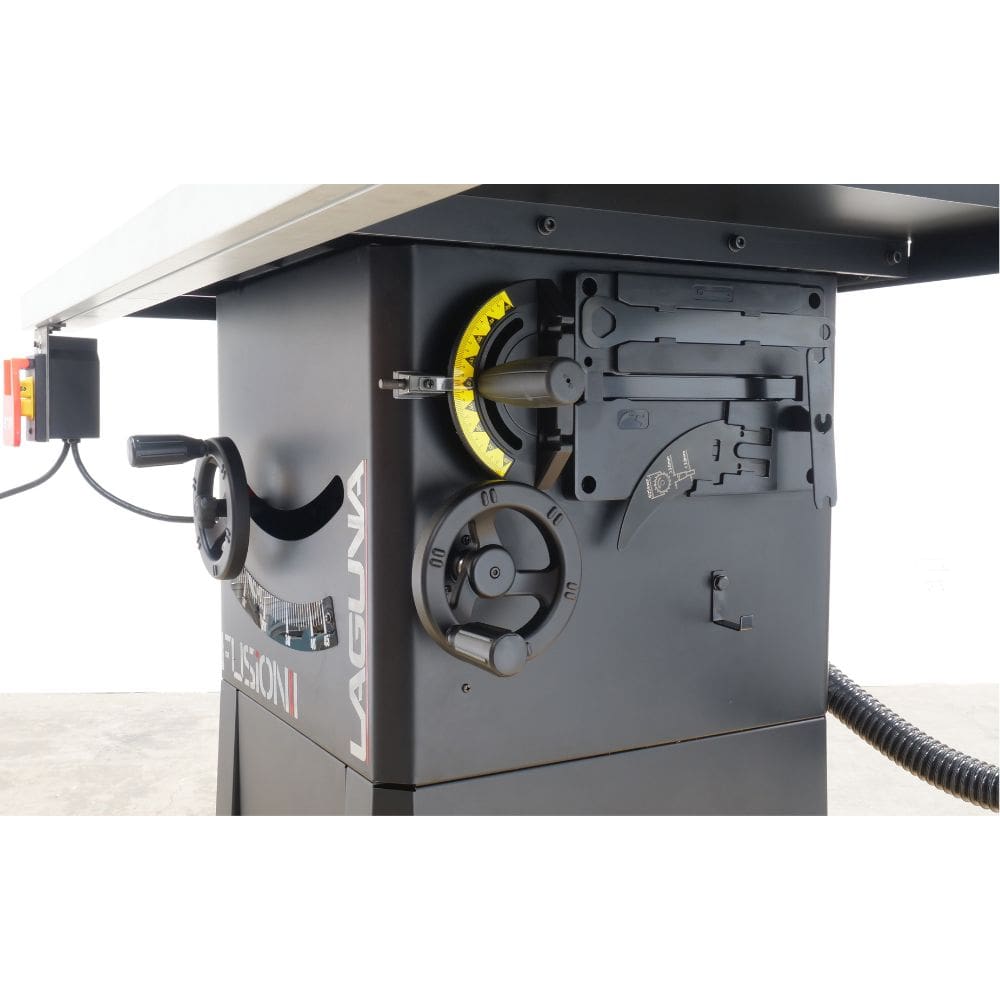

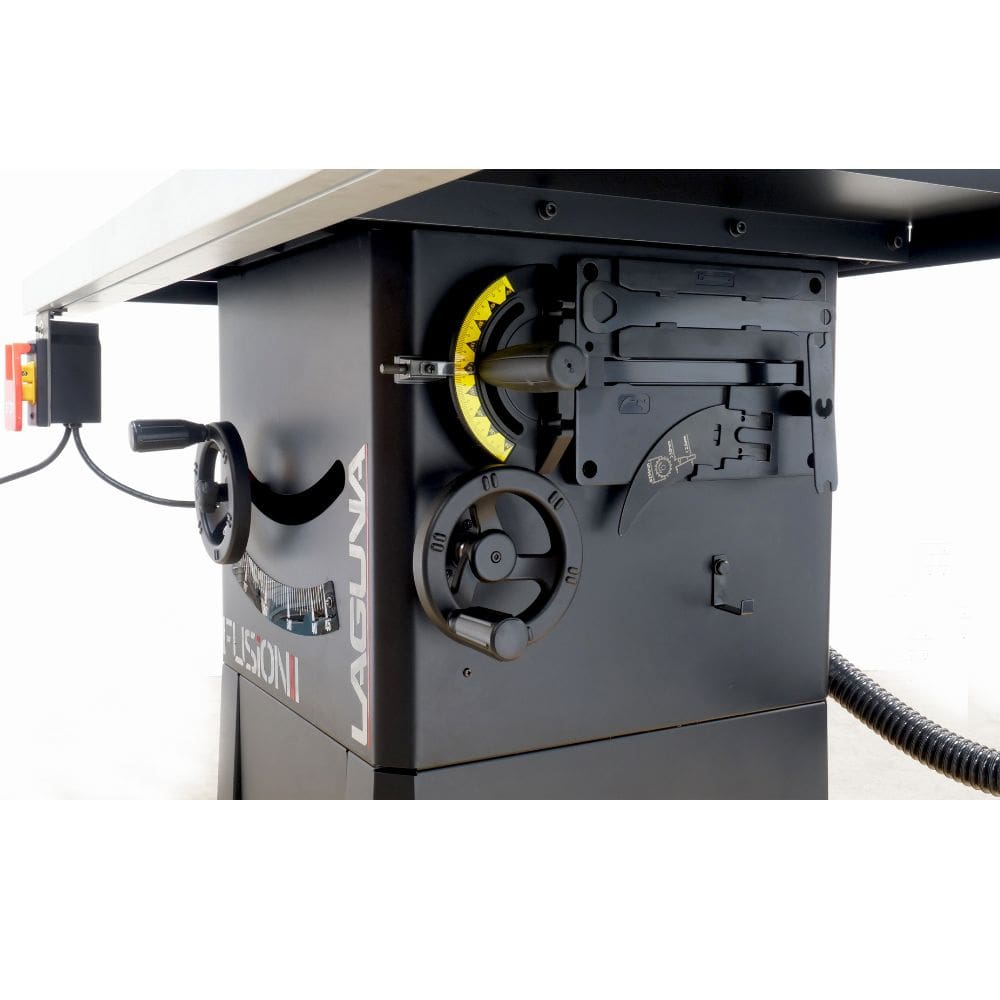

The over/under trunnion design lets you raise, lower, and tilt the blade with a steady feel that holds its settings. Paired with the camlock fence, the F1 stays easier to tune and keeps alignment consistent through repeated setups.
Practical Power on Standard 110V
The 1.5 HP TEFC motor runs on a common household circuit and delivers steady power for hardwoods and sheet goods. It’s a straightforward fit for garages, basements, and shared spaces where 220V power isn’t available.

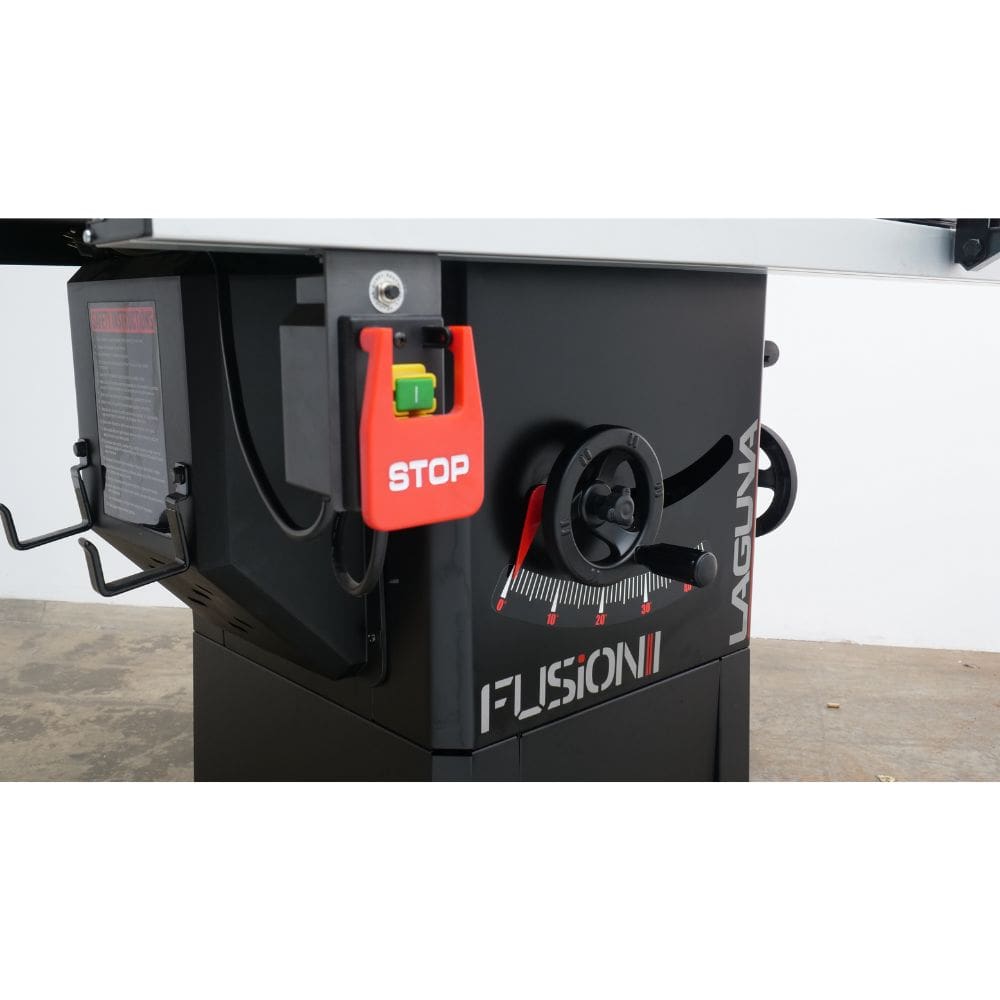

Cleaner Workflow and Simple Safety

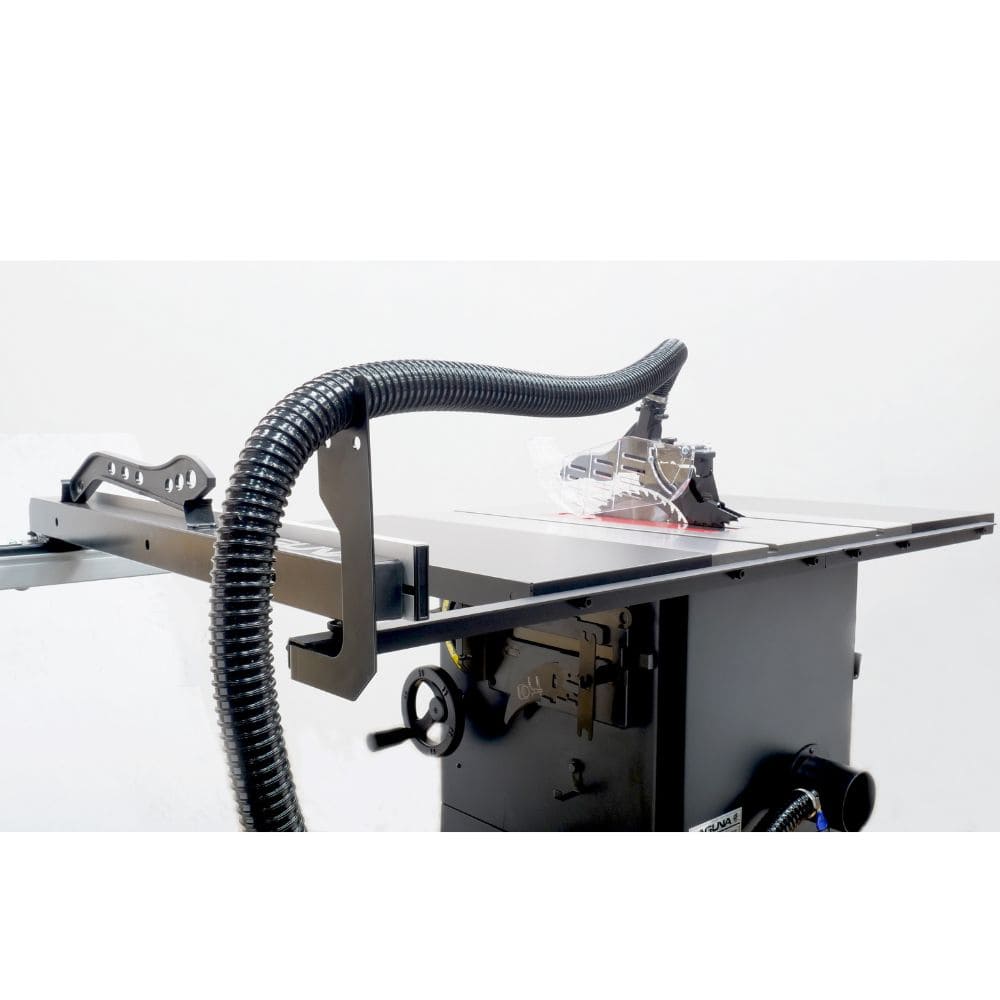

The Fusion dust path helps pull debris from below the table, and the blade guard includes a dust port for top-side pickup. If you want stronger capture at the cut line, the optional Laguna Tablesaw Dust Collection Kit adds an overhead hose assembly that connects directly to the guard. The quick-release guard, riving knife, and onboard storage keep essential components close, making it easier to work safely without breaking your rhythm.
Handle your projects like a pro, from the first rip to the final trim.
What's Included
What’s Included — Laguna Fusion F1 Table Saw
-
Fusion F1 saw unit — compact cabinet-style build for steady cutting.
-

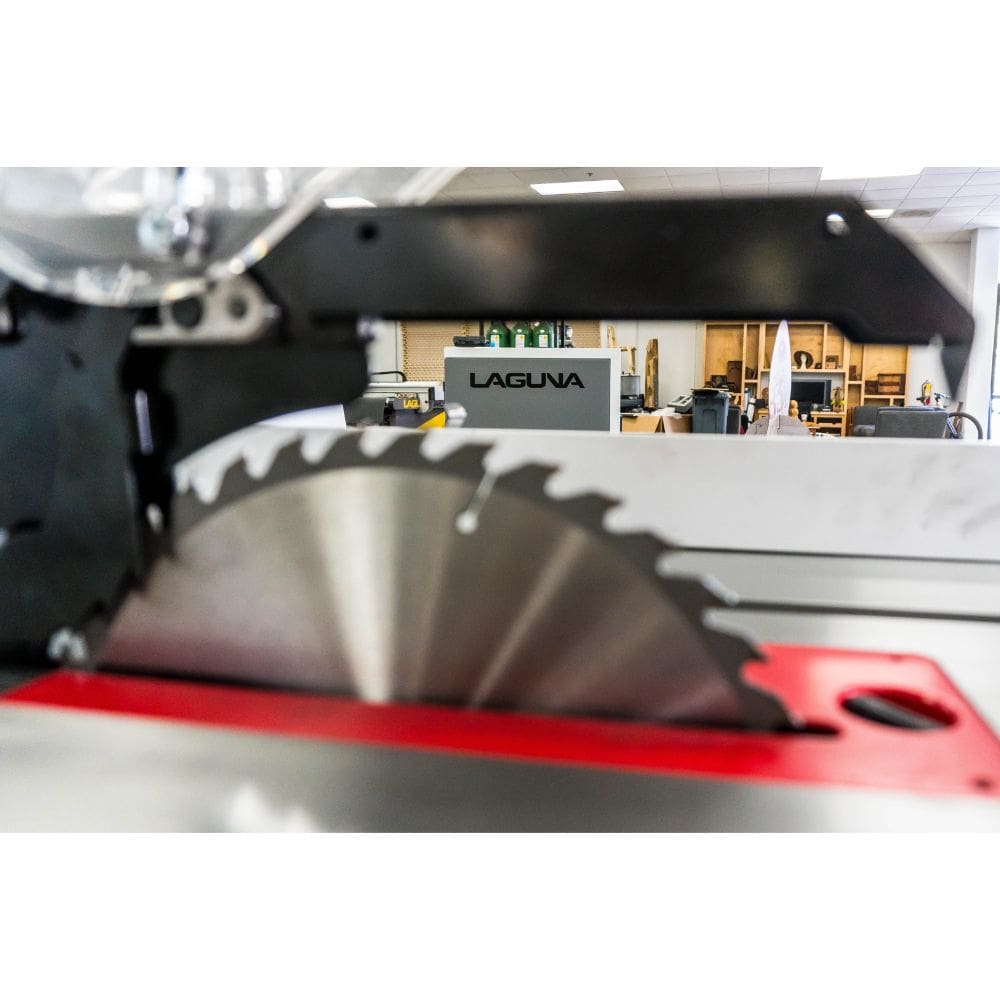

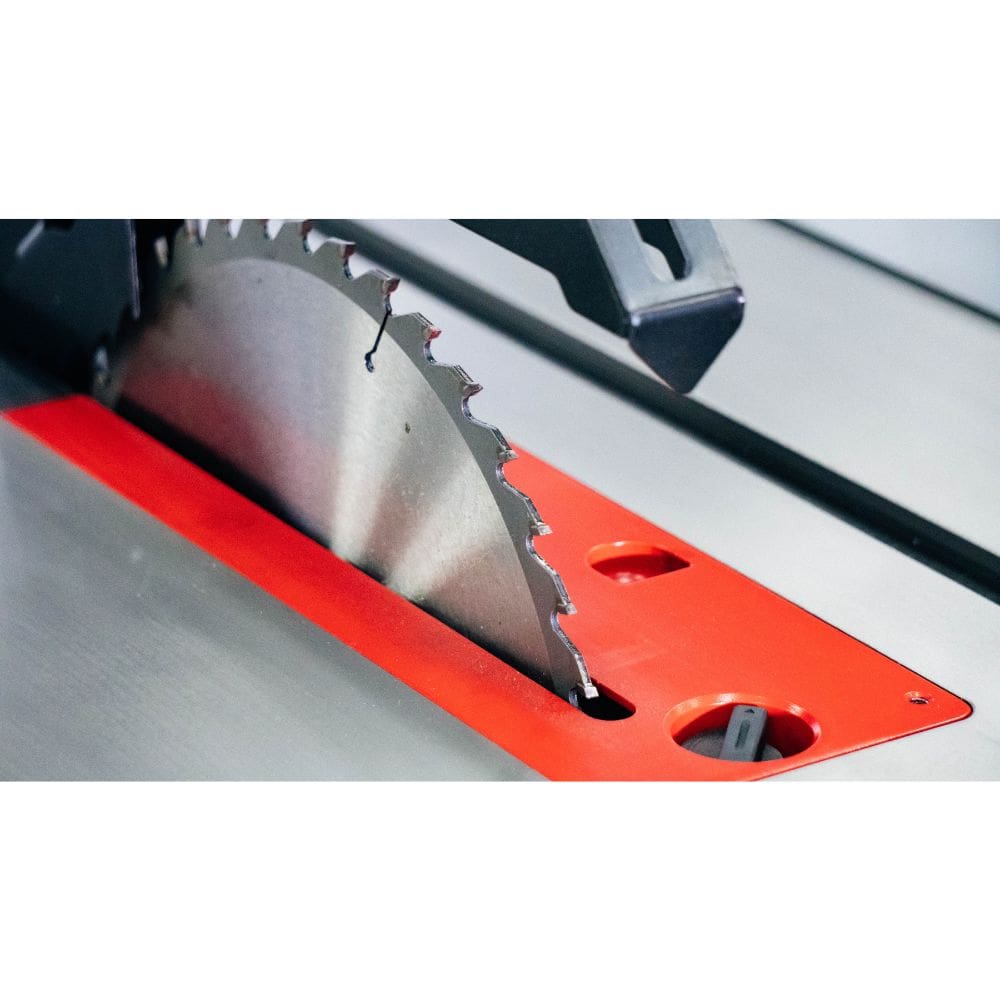

10" 40T carbide-tipped blade — ready for clean, general-purpose cuts out of the box.
-

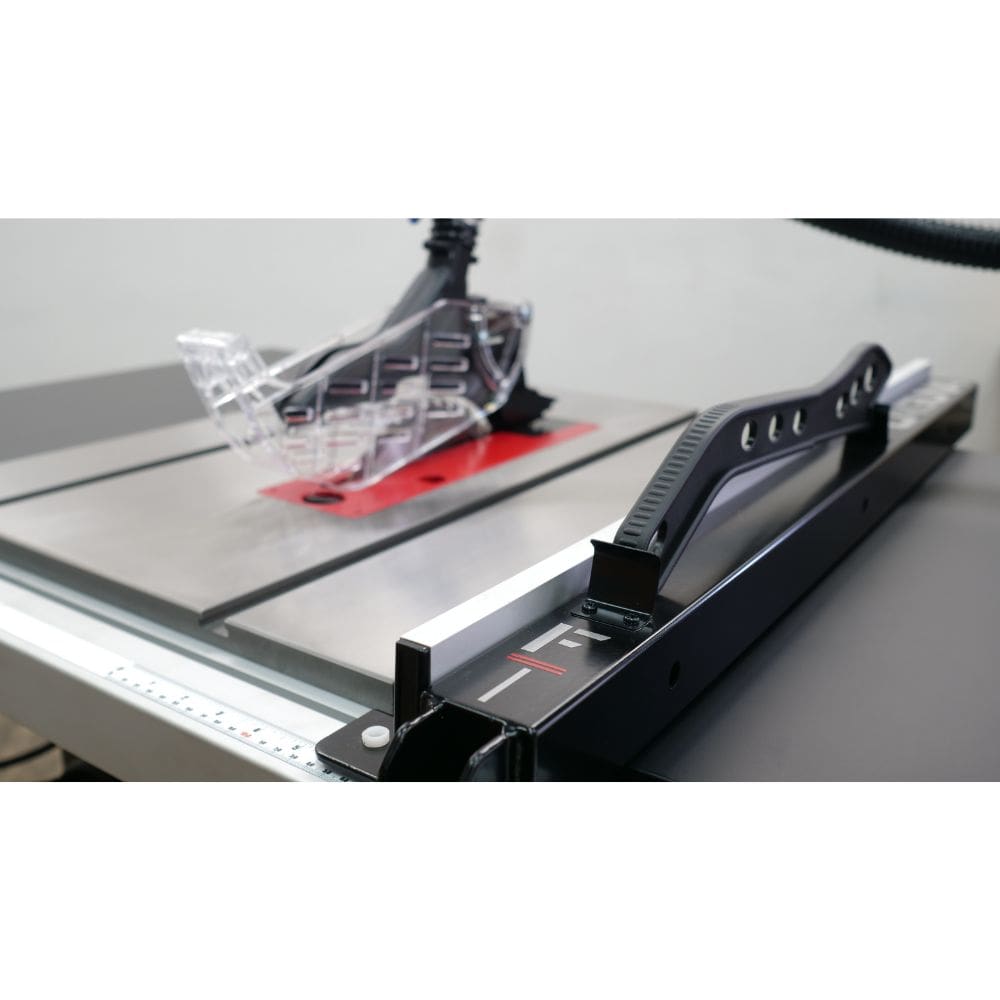

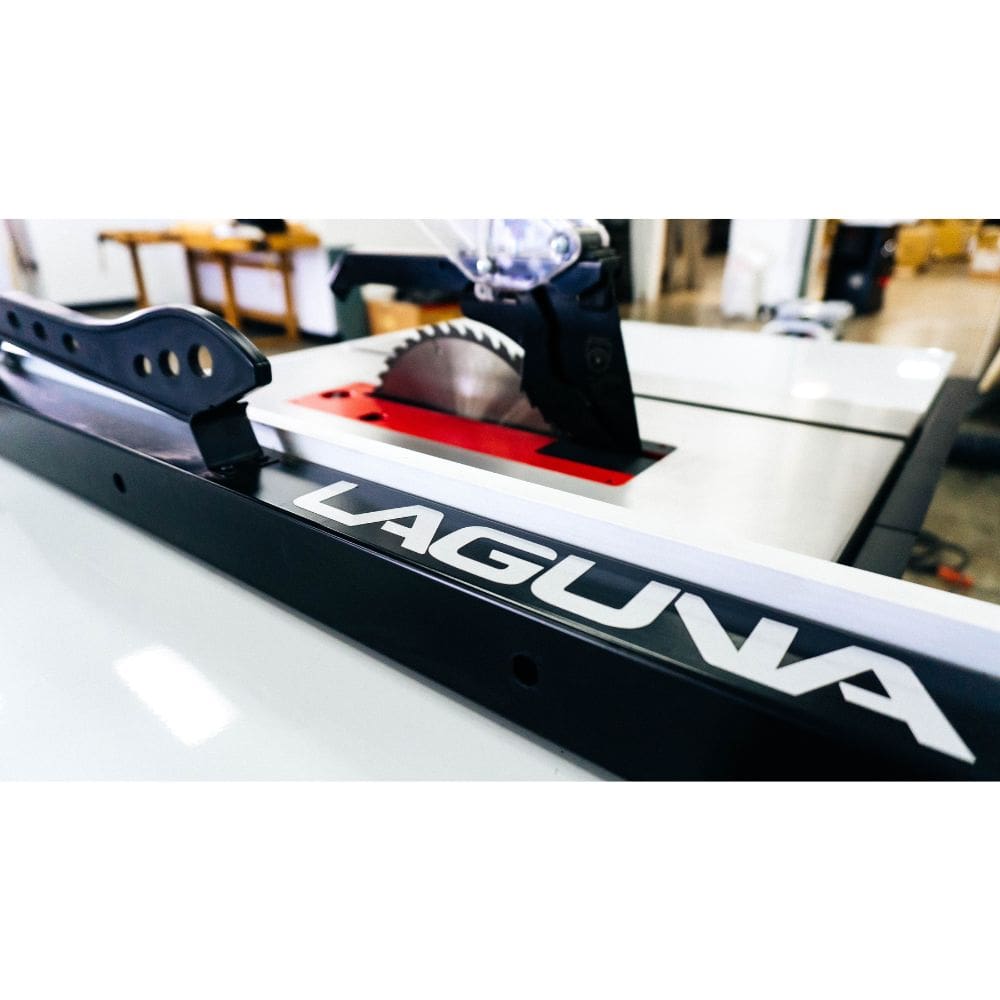

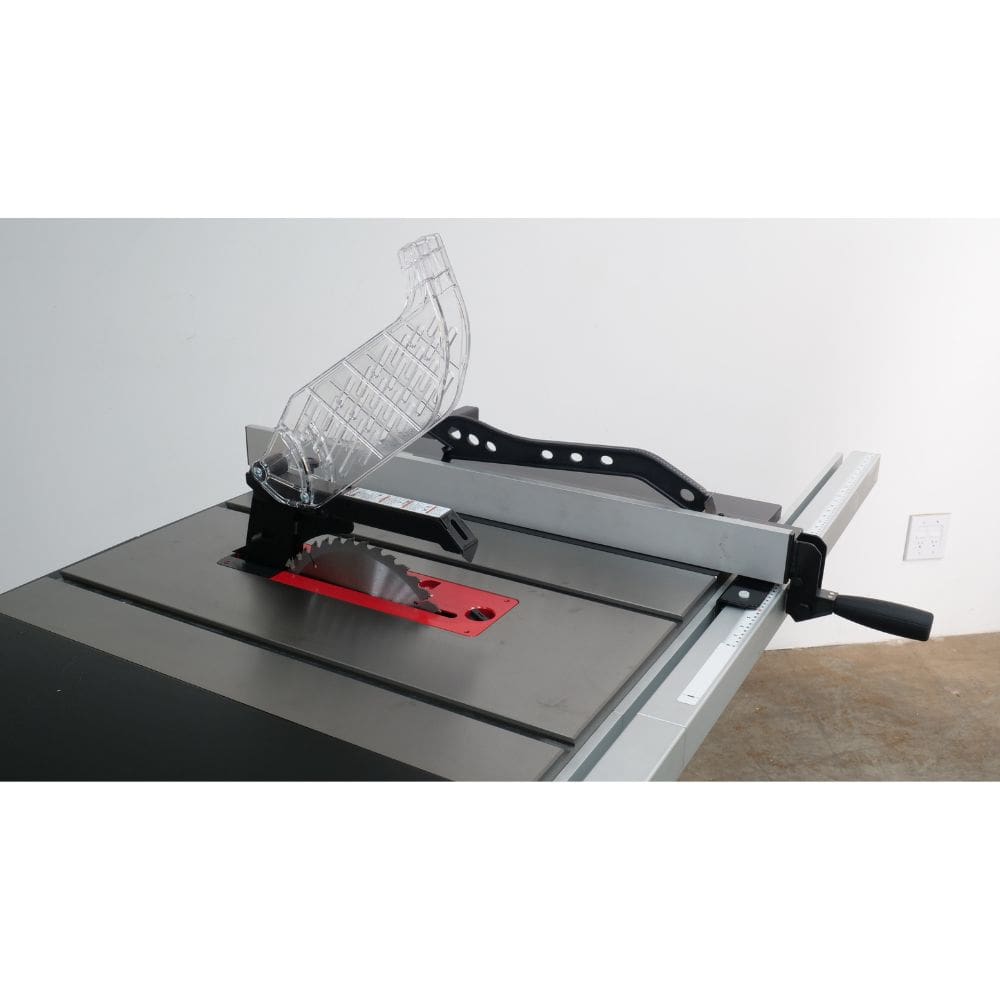

Rip fence with camlock mechanism — locks firmly for accurate ripping.
-

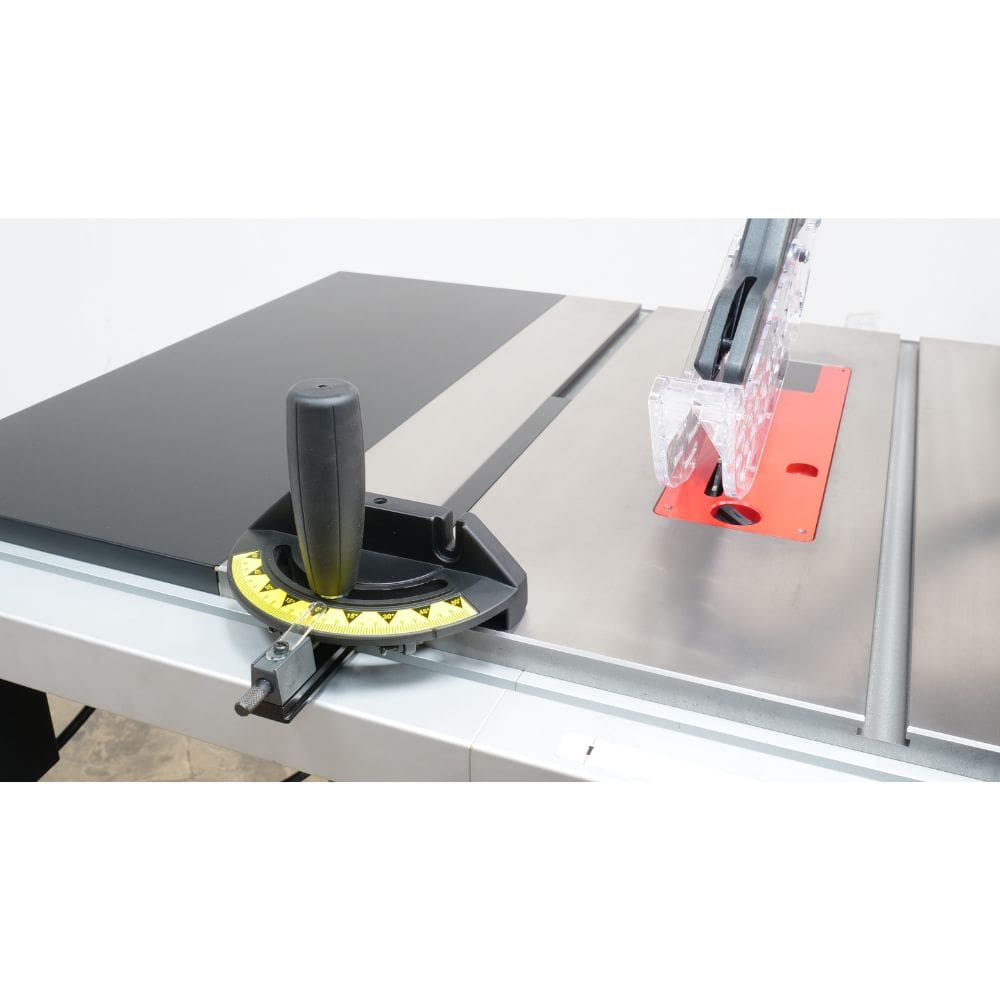

Miter gauge — supports angled and crosscut work.
-

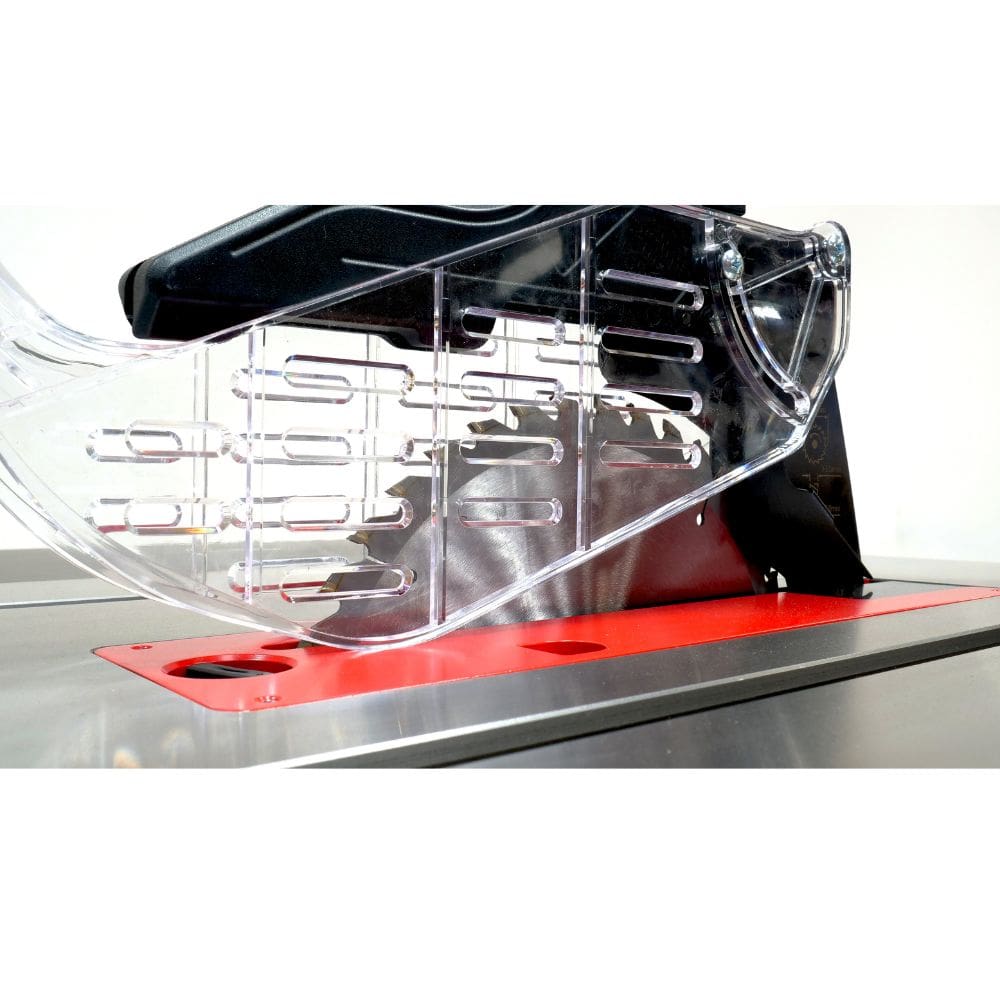

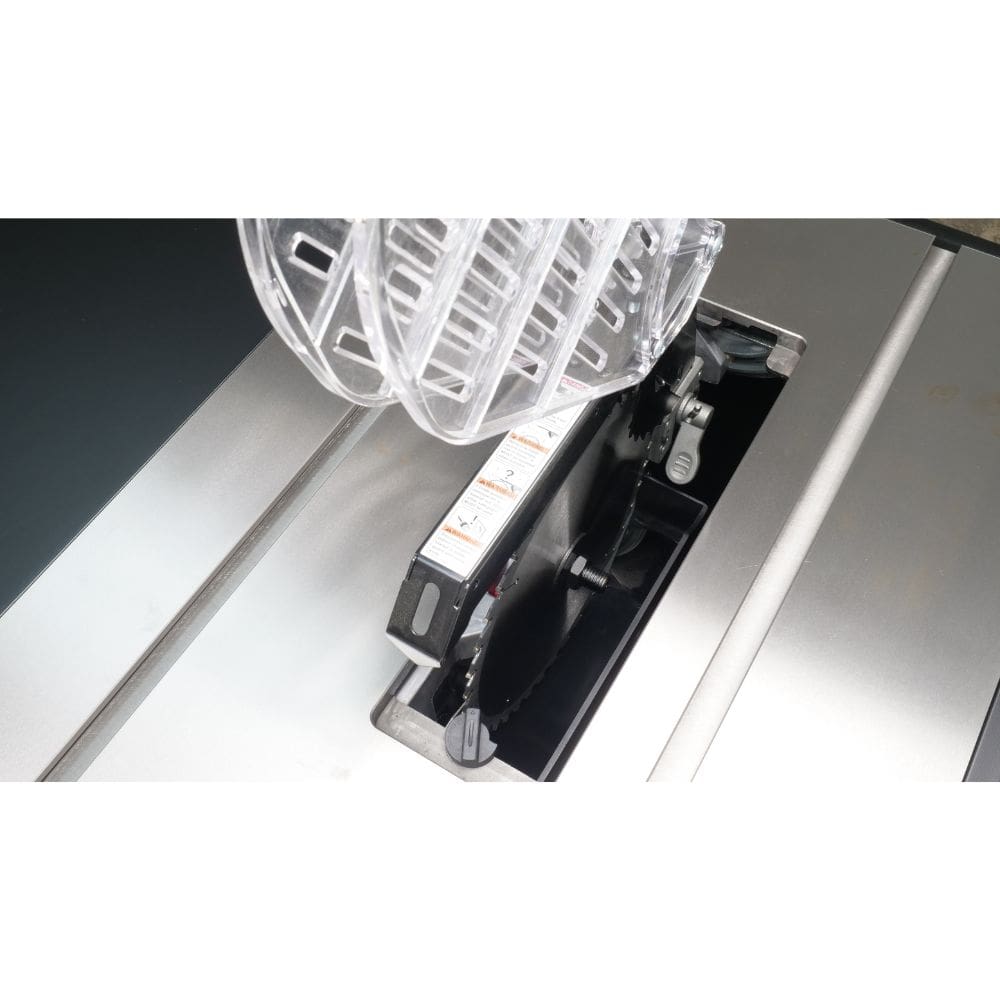

Blade guard with dust port — improves visibility and dust capture.
-

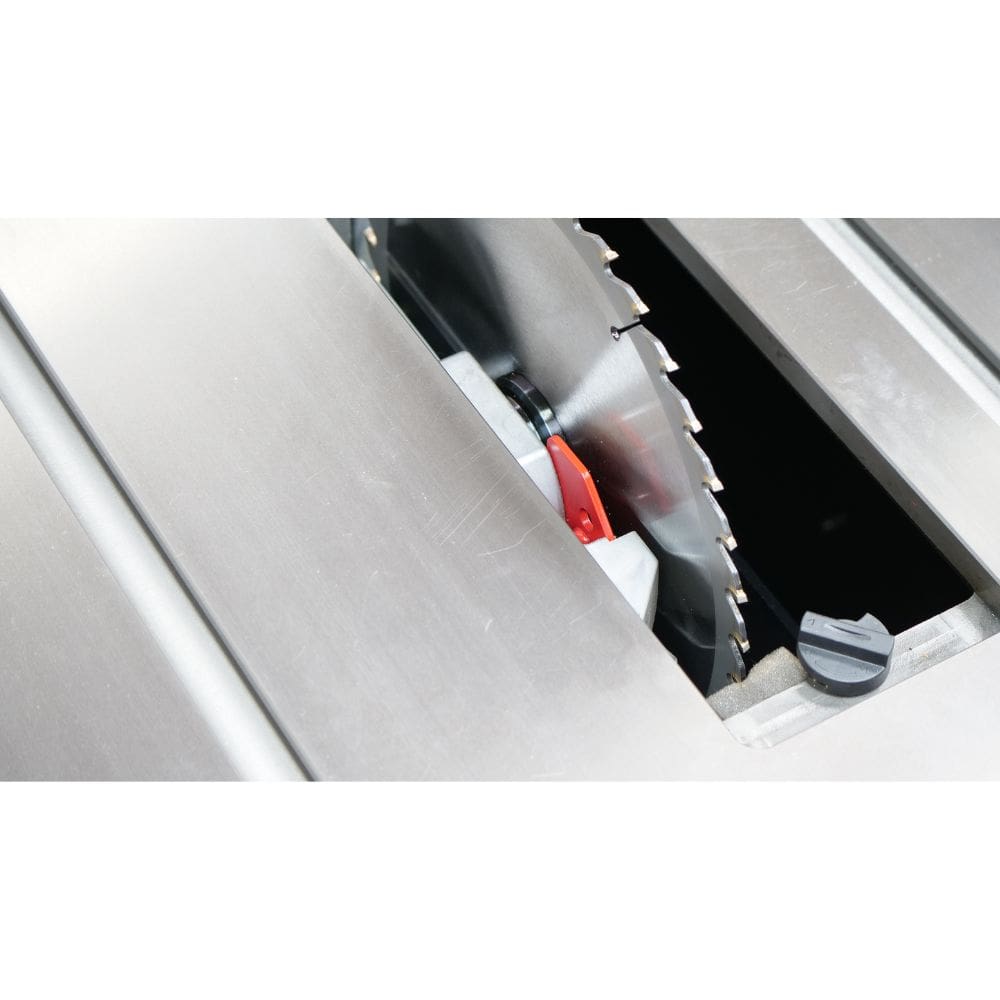

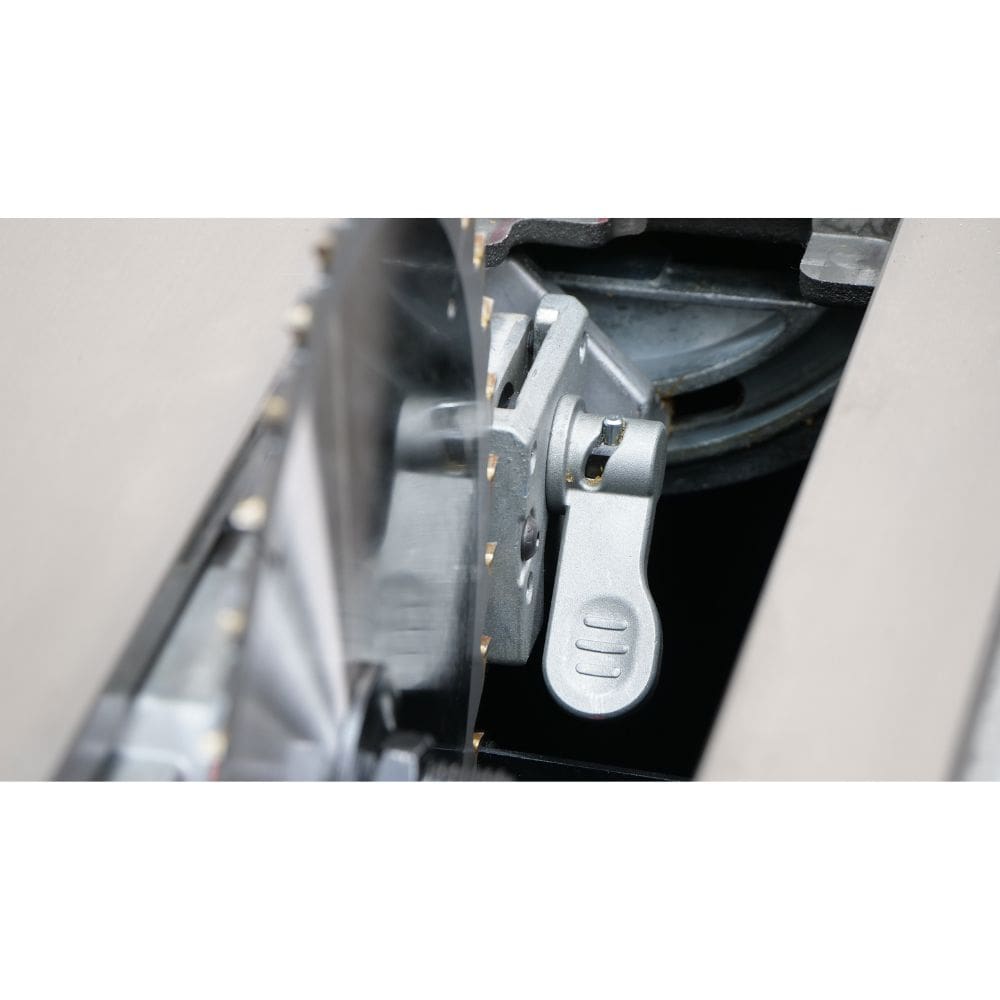

Riving knife — reduces kickback and keeps rips more controlled.
-
Push stick — supports safer feeding during narrow cuts.
-
Blade-changing wrench — for quick, simple adjustments.
-
Integrated onboard tool storage — keeps essential tools within reach.
-
NEMA 5-15P plug installed — ready for 110V shop use.
Specs
Laguna Fusion F1 Specifications
-
Motor Power: 1.5 HP
-
Voltage: 110V, Single-Phase, 60Hz
-
Dust Port Size: 4″
-
Blade Diameter: 10″
-
Arbor Size: ⅝″
-
Arbor Speed: 4000 RPM
-
Maximum Dado Width: ¾″
-
Maximum Blade Tilt: 45°
-
Max Depth of Cut at 90°: 3-⅛″
-
Max Depth of Cut at 45°: 2-⅛″
-
Rip Capacity (Right of Blade): 31″
-
Table Size (with Wings): 44″ × 27″
-
Table Height: 34-⅜″
-
Net Weight: 195 lbs
-
Dimensions (L × W × H): 58″ × 37.22″ × 20.5″
Product Manual & Assembly Laguna Fusion F1 Table Saw
To ensure you get the best performance from your new tool, we encourage you to take a moment to read through the manual. Inside, you'll find detailed instructions on assembly, setup, and maintenance to help you make the most of your investment.
Laguna Fusion F1 Table Saw Manual
