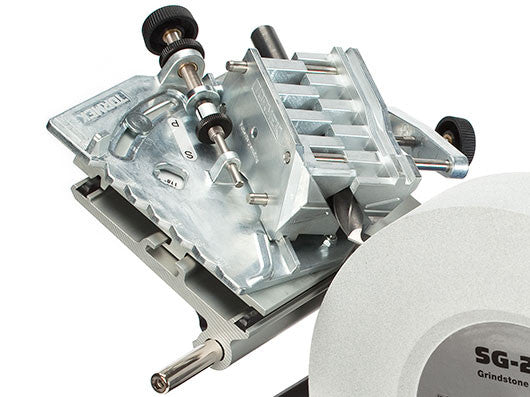

Tormek DBS-22 Drill Bit Sharpener Attachment

Tormek DBS-22 Drill Bit Sharpening Attachment

Restore Clean, Accurate Drilling Performance

Built for users who want straighter holes, longer bit life, and sharpening they can trust.

• Sharpens a precise four-facet point that reduces wandering and lowers drilling pressure.
• Restores worn or broken bits from 1/8" to 7/8" with consistent angle control.
• Adjustable point and relief angles match different bit sizes and materials.
• Helps bits run cooler and last significantly longer than conventional cone-point sharpening.
• Allows visual control throughout sharpening for accurate, repeatable setup.

What's Included

What’s Included? Tormek DBS-22 Drill Bit Sharpening Attachment

• DBS-22 Sharpening Attachment: Fully assembled and ready to mount.
• Magnifying glass: Helps align smaller bits precisely in the jig.
• Jig setting template: Magnetic guide for consistent angle setup.
• PTFE lubricant: For smooth sliding action and reduced wear.
• Instruction manual: Covers setup, angle selection, and sharpening steps.

Specs

Tormek DBS-22 Drill Bit Sharpening Attachment Specifications

• Shipping Weight: 3.35 kg (7.39 lb)
• Compatible Bit Sizes: 3 mm–22 mm (1/8"–7/8")
• Material: Precision-cast zinc, stainless steel, black composite
• Warranty: 2 years
