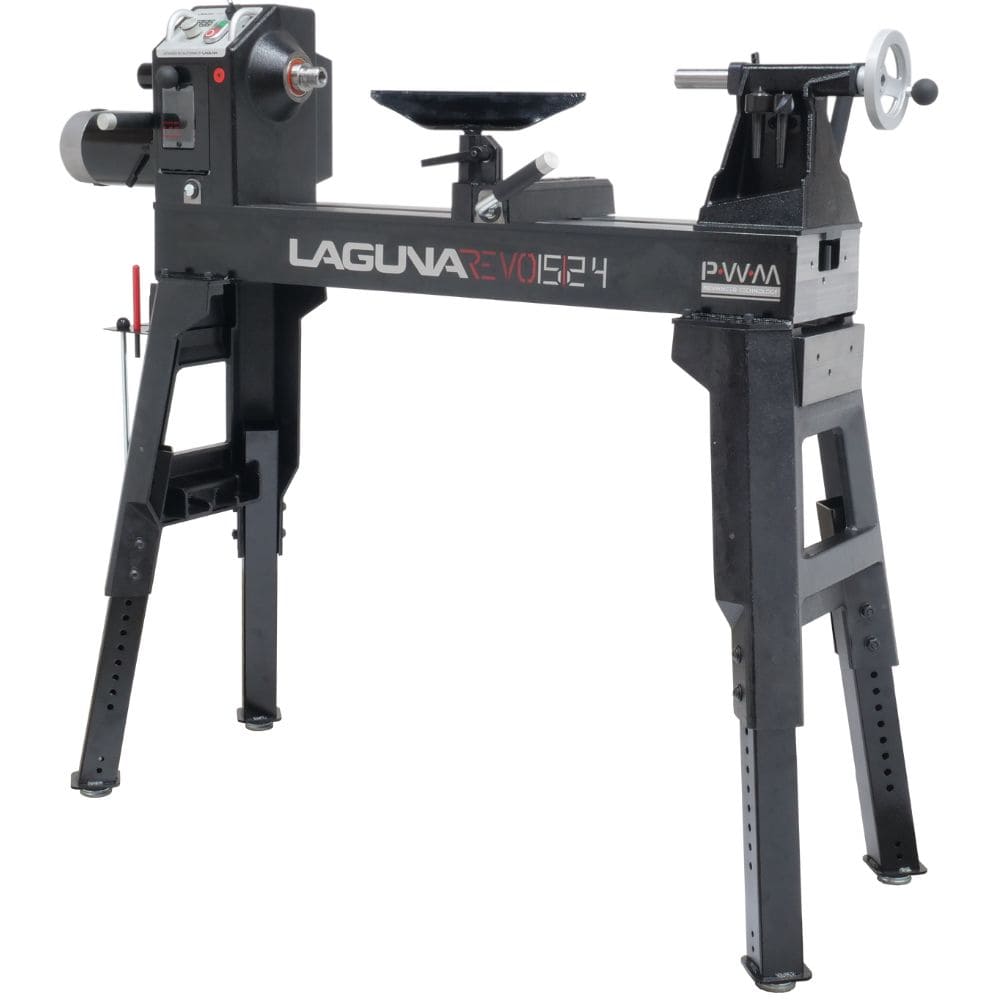

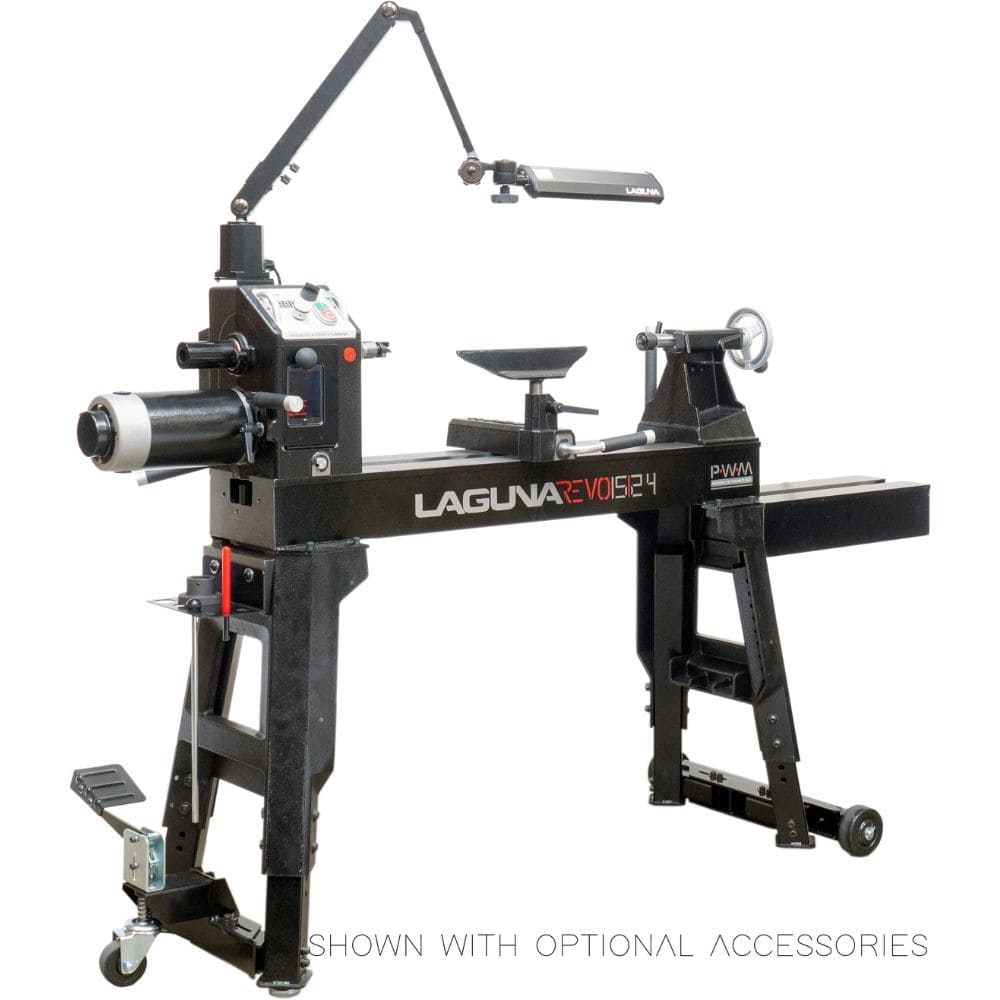

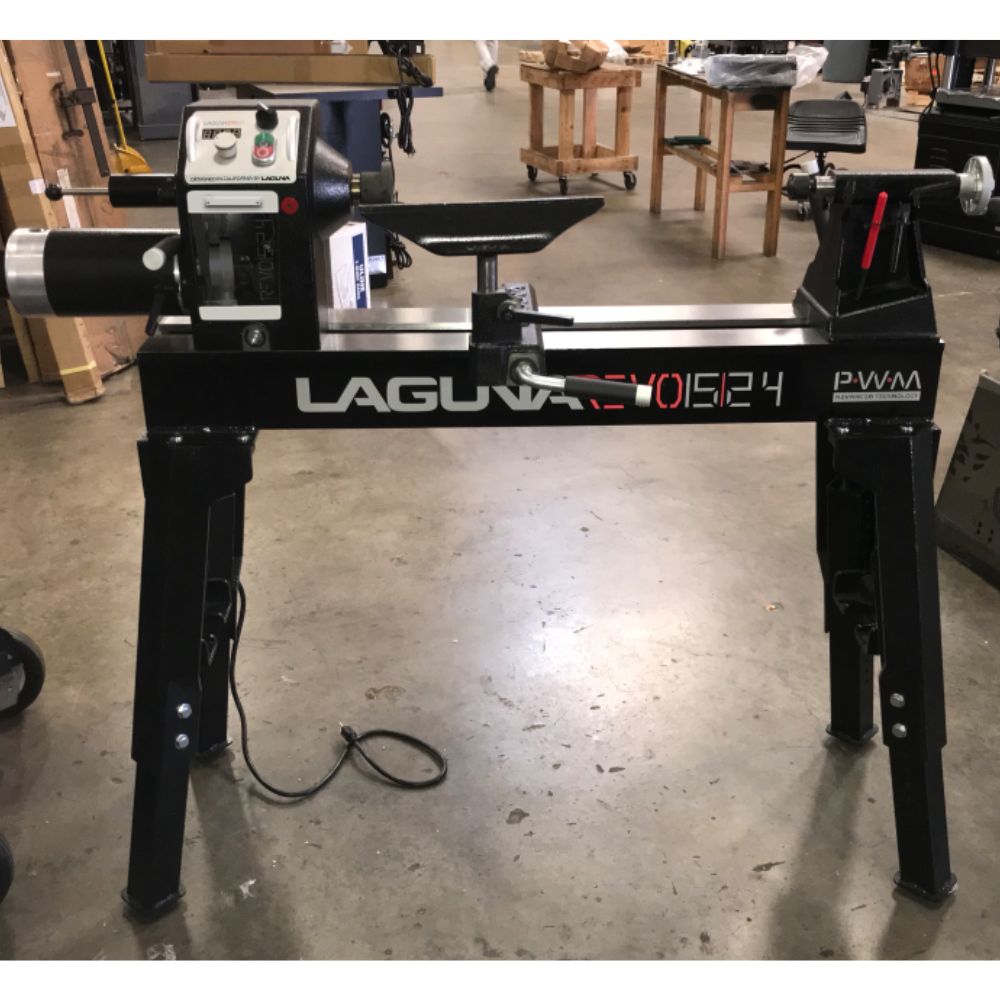

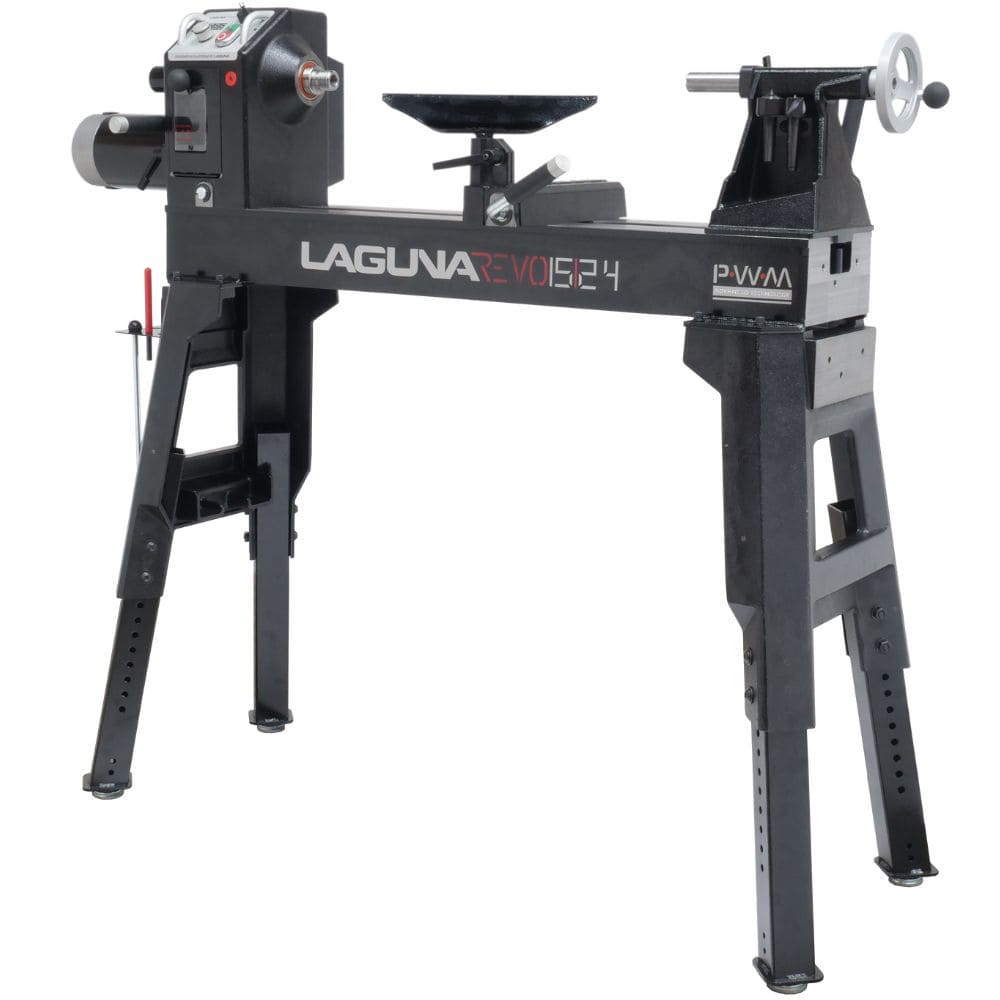

Laguna Tools Wood Turning Lathe Revo 1524
The Revo 15|24 is built for woodworkers who need power and precision in a compact footprint. Designed to bridge the gap between smaller bench-top models and full-size lathes, this machine offers more capacity without requiring more space. Whether you're shaping bowls or turning detailed spindles, the Revo 15|24 gives you consistent control thanks to its variable speed system and stable steel bed.
The adjustable height legs offer a tailored working position, reducing strain during long sessions. A sliding headstock adds versatility and comfort, especially when working on larger pieces in an outboard setup. The patent-pending Precise Point feature makes aligning your centers straightforward, cutting down on setup time and helping you focus on your work.
With a thoughtfully engineered build and efficient use of space, the Revo 15|24 is ideal for those who want to turn with precision without giving up shop room. It’s a practical choice for serious hobbyists and seasoned craftsmen alike.
Features & Benefits Laguna Revo 15|24 Lathe
Finding the right lathe often comes down to a balance of space, control, and performance, and the Revo 15|24 fits that equation comfortably. It’s a solid choice for woodworkers who need capability without compromising on shop space. Whether you’re shaping spindles, turning bowls, or tackling more intricate pieces, this lathe offers the kind of responsive feel and control that makes a real difference in day-to-day use.
The overall design supports a smoother workflow and gives you flexibility to fine-tune your setup to match your personal style and project needs. The thoughtful engineering behind this model makes it easy to stay focused on the craft, not on fighting the machine. From setup to finish, it offers consistency and dependability in a size that doesn’t overtake your workspace. If you’ve been looking for a middle ground between compact and full-sized, this lathe delivers on that promise in a way that feels intentional and grounded. It's built for makers who care about precision, not flash.

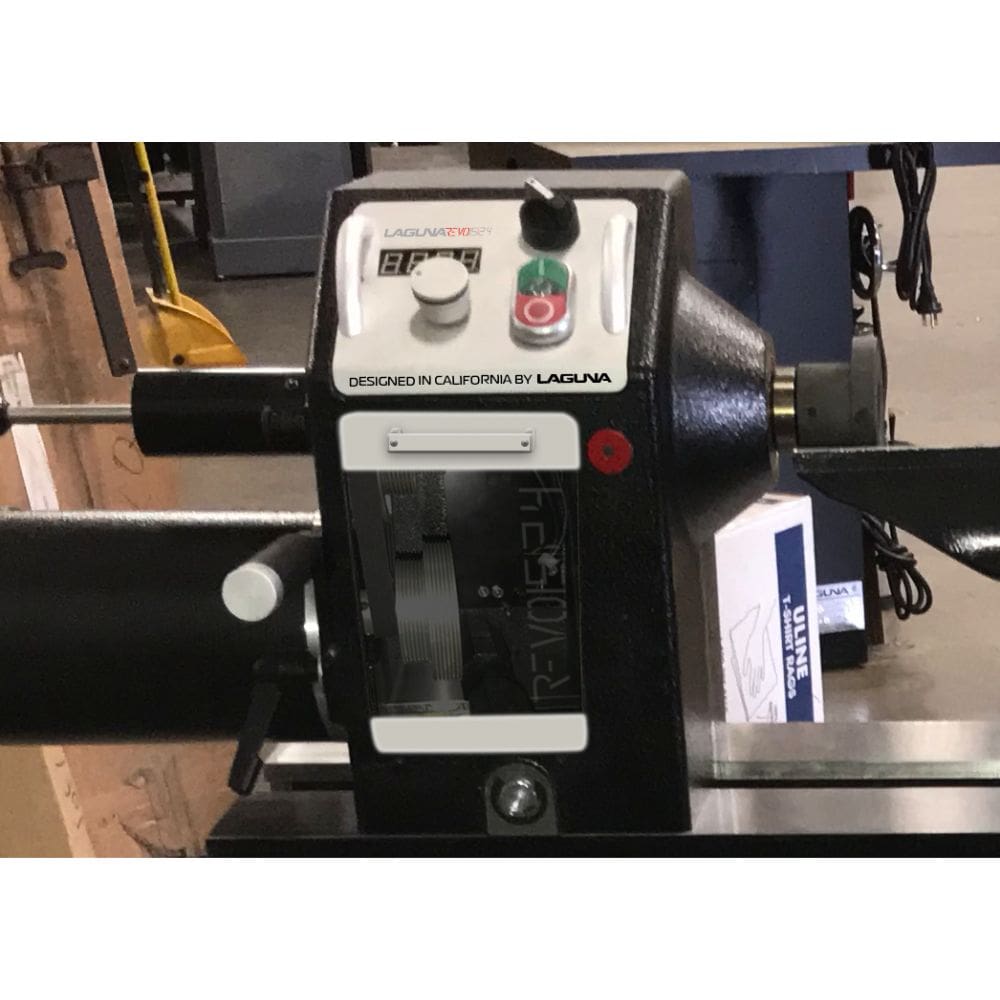

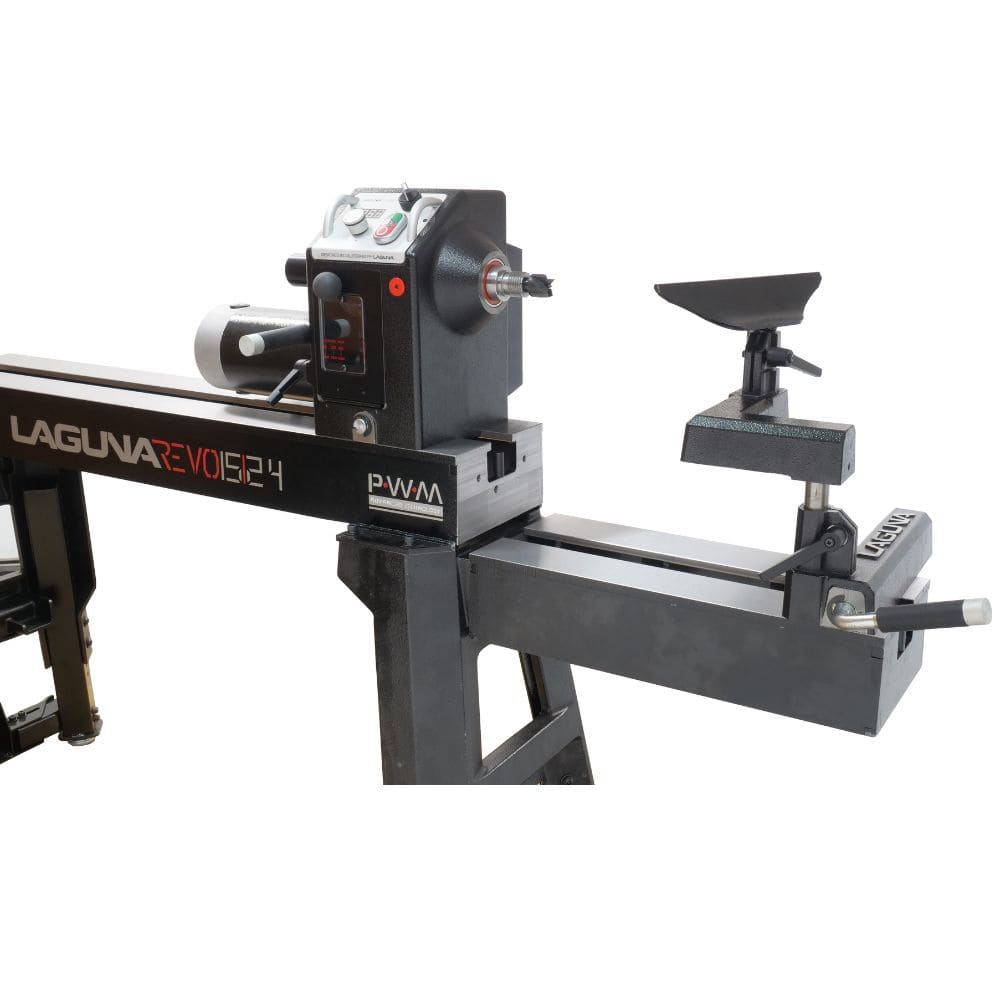

Sliding Headstock Adds Ergonomic Flexibility
The headstock glides smoothly along the steel bed, giving you the freedom to adjust for better comfort and control, especially during outboard turning work.

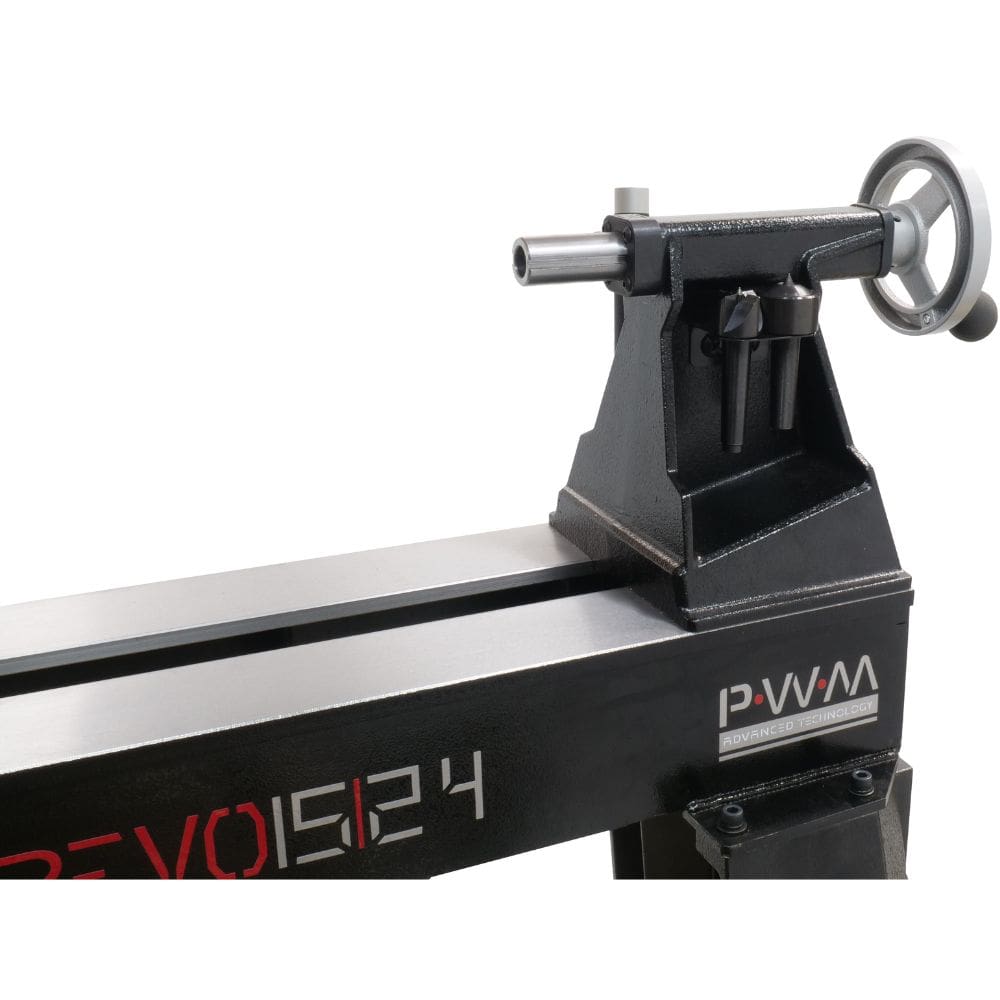

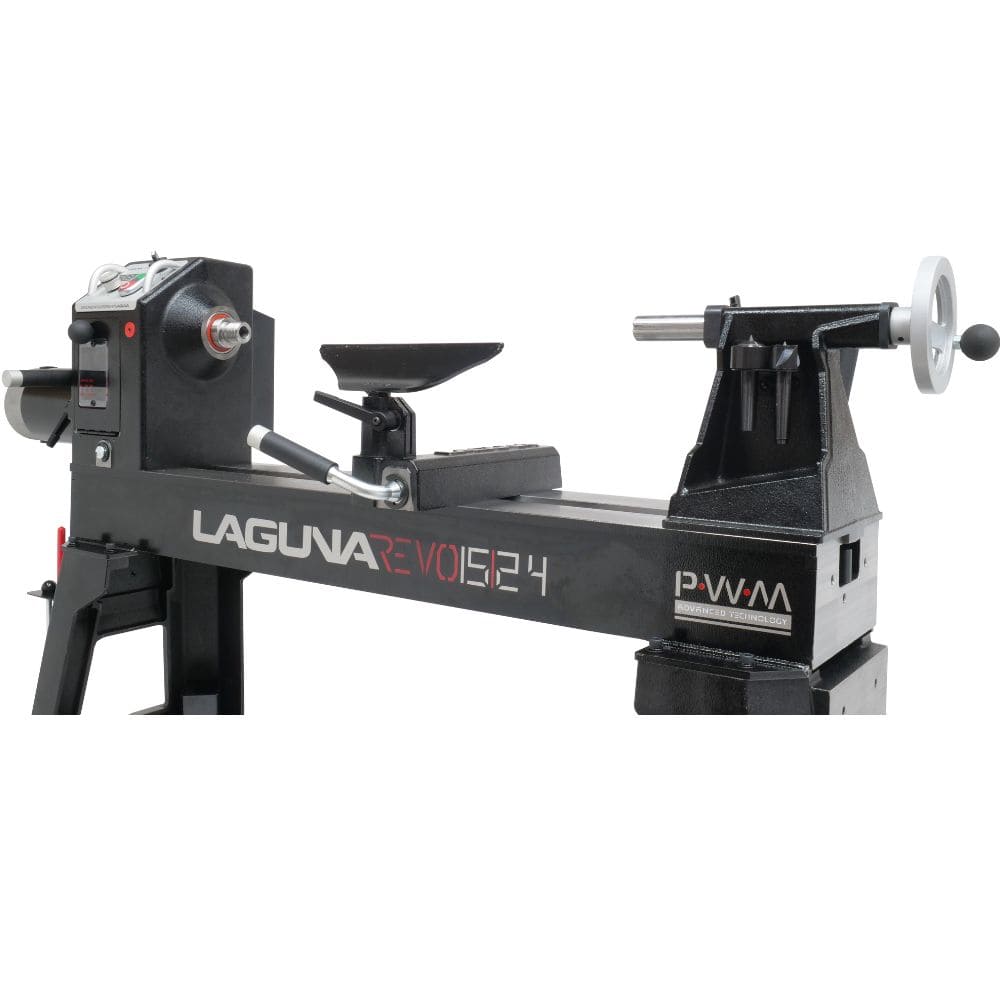

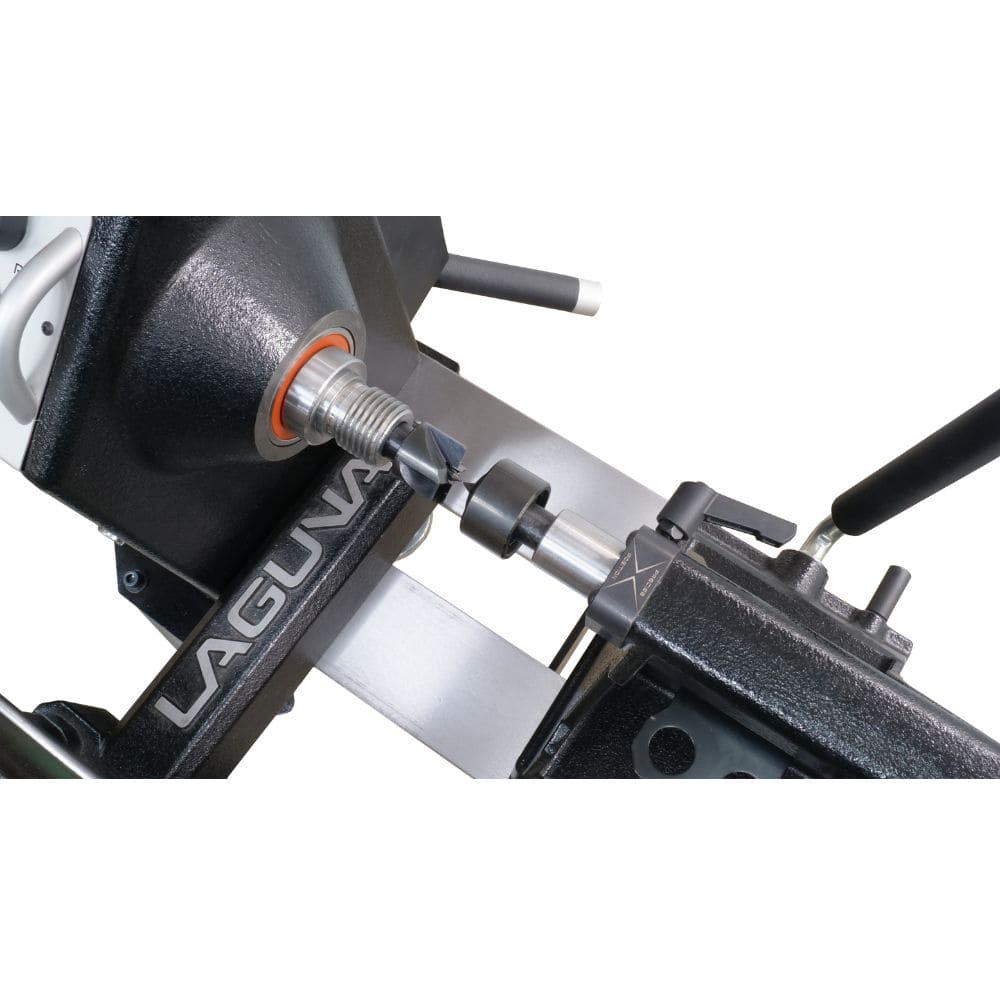

Precise Point Tailstock Alignment System
With the patent-pending Precise Point feature, you can fine-tune the tailstock quill to align perfectly with the headstock center—helping reduce setup time and improve accuracy.
Pulse Width Modulation for Torque Control
PWM control ensures you get steady torque at any speed. That means more reliable power when shaping denser woods or working with detailed cuts.

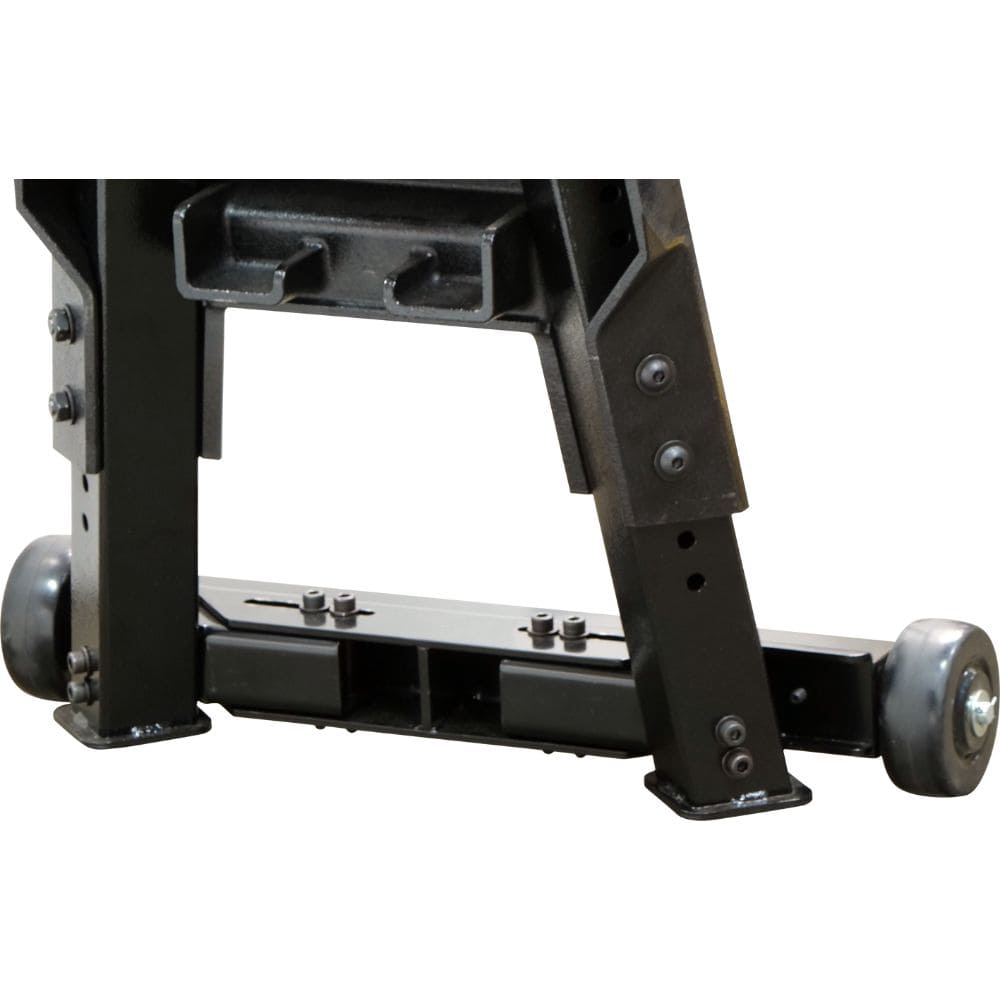

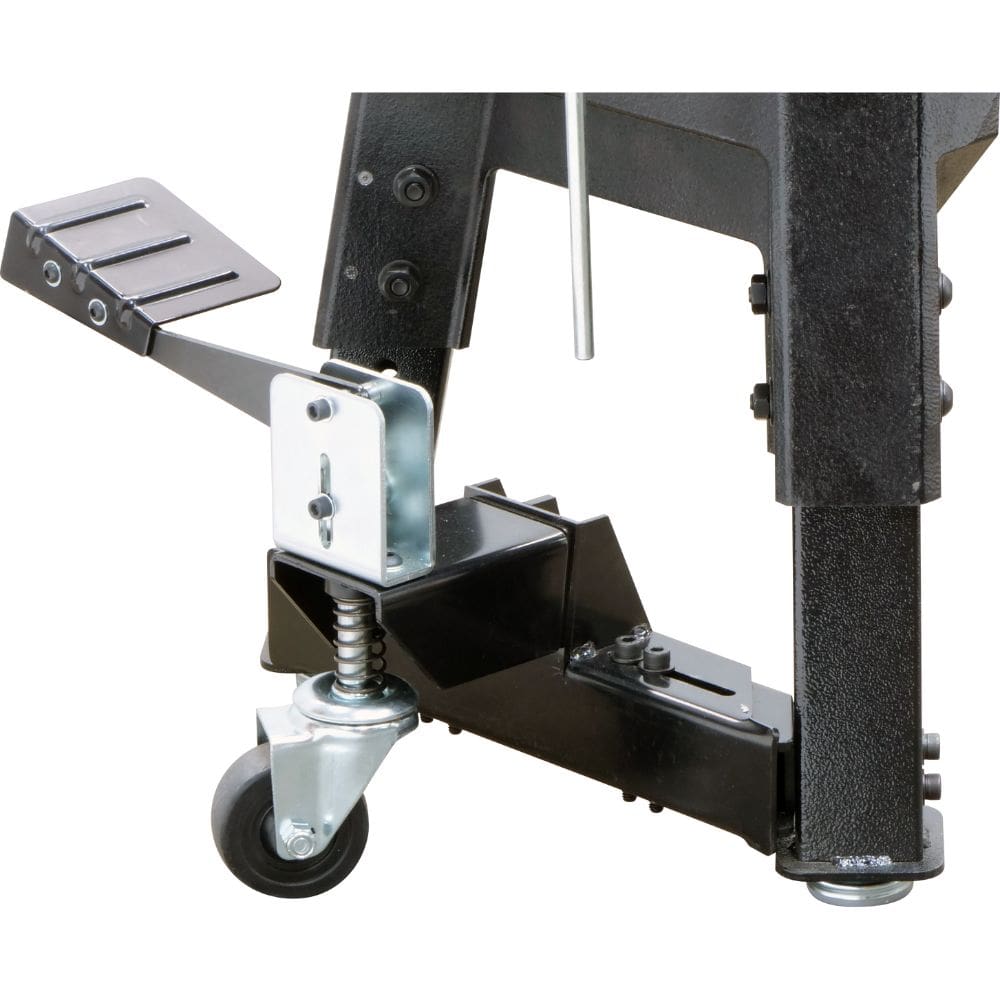

Adjustable Height Legs for Custom Setup
Tailor the working height to your comfort—whether you prefer sitting or standing—thanks to the variable leg height settings. It supports a healthier working posture.

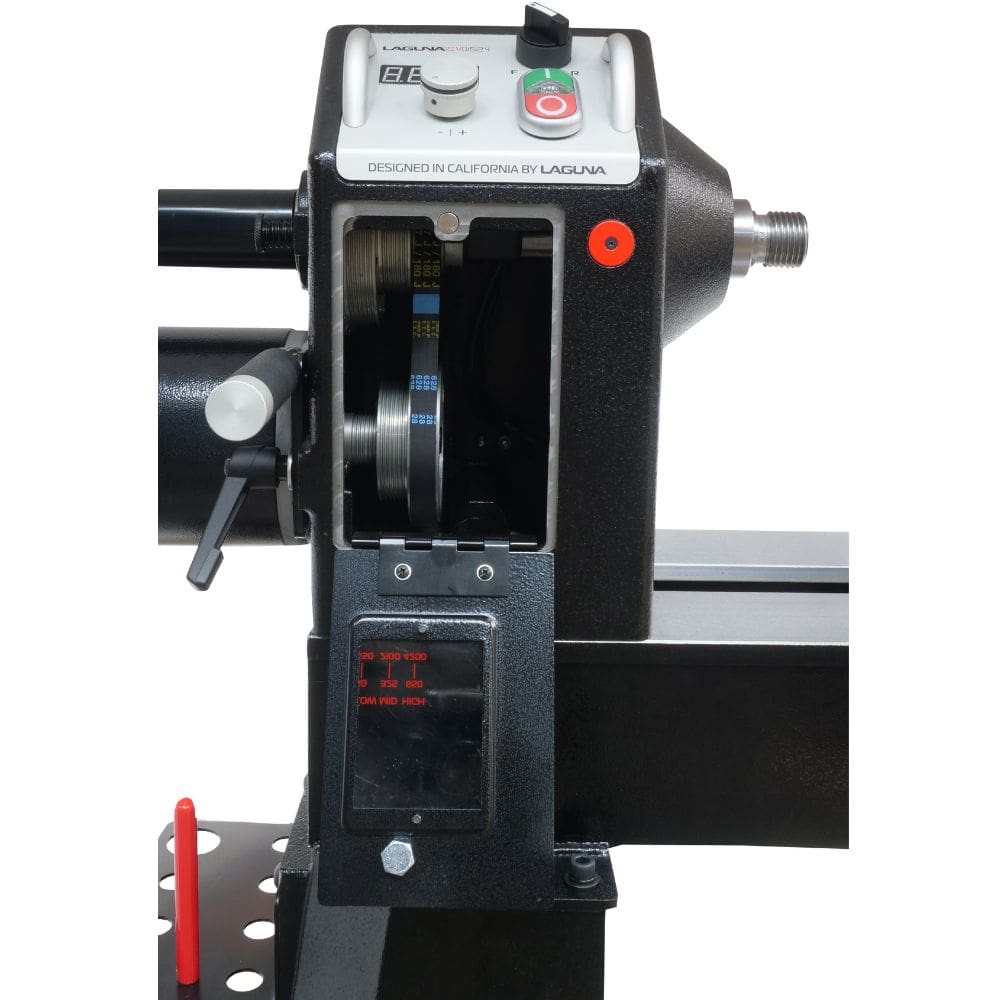

Variable Speed Ranges for Project Versatility
Three-step pulley system offers low, mid, and high speed ranges (50–4200 RPM), giving you the flexibility to adapt to a wide variety of woodturning techniques and materials.
Durable Steel Bed for Smooth Operation
The steel bed provides a stable foundation that helps reduce vibration and allows the banjo to slide effortlessly along its length. It's designed for long-term use.
Compact Footprint with Substantial Capacity
Despite its shop-friendly size, the lathe delivers a 15-½″ swing over the bed and 24″ between centers—ideal for bowls, furniture parts, and small-to-medium projects.
Spindle Lock and Indexing Support Precision Cuts
The spring-loaded spindle lock paired with a 24-point indexing system allows for detailed layout work and repeatable positioning during intricate carving or sanding.
Reliable Bearings for Smooth Rotation
Front and rear bearings from TPI Taiwan ensure stable and smooth spindle performance. They’re built to handle ongoing stress without sacrificing precision.

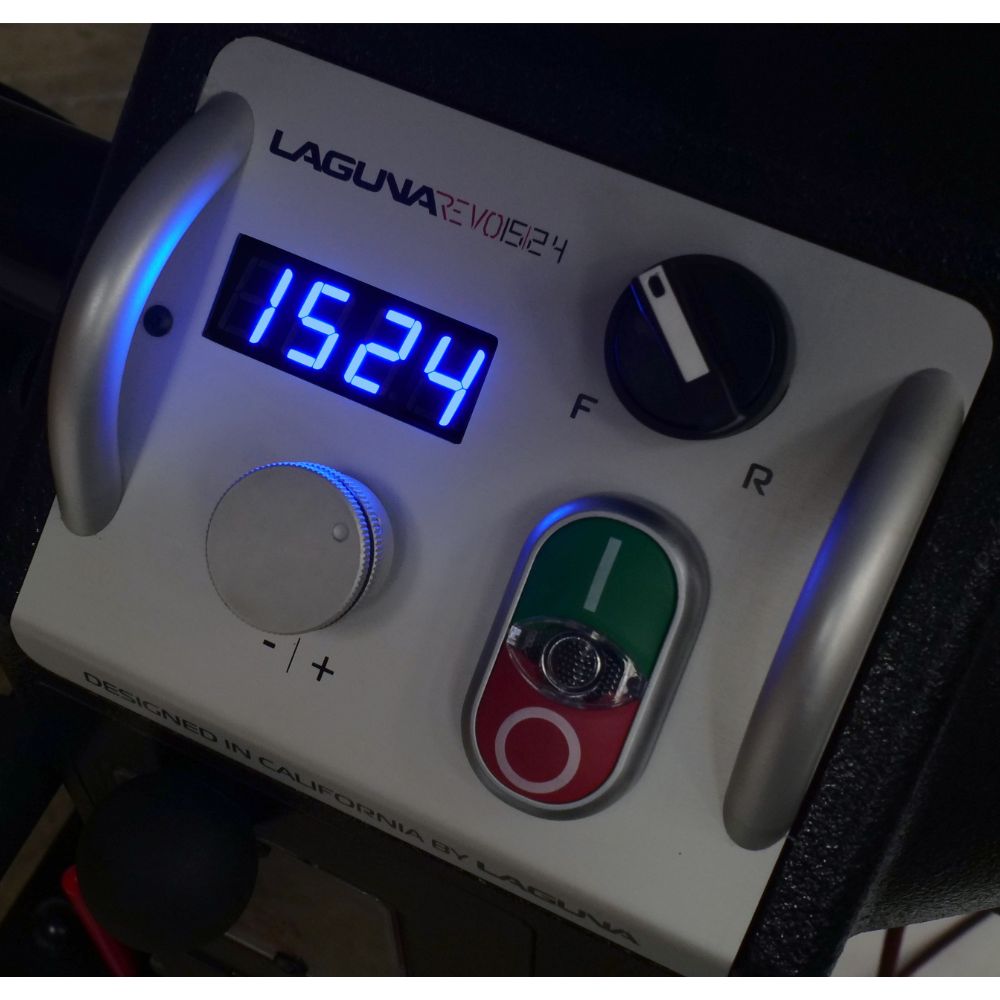

Simple, Clear Controls for Everyday Use
The user interface is clean, intuitive, and thoughtfully placed—so adjustments and fine-tuning don’t interrupt your rhythm. It supports a smoother overall workflow.
What's included? Laguna Revo 15|24 Lathe
- Revo 15|24 Lathe (Main Unit)
- Adjustable Height Legs

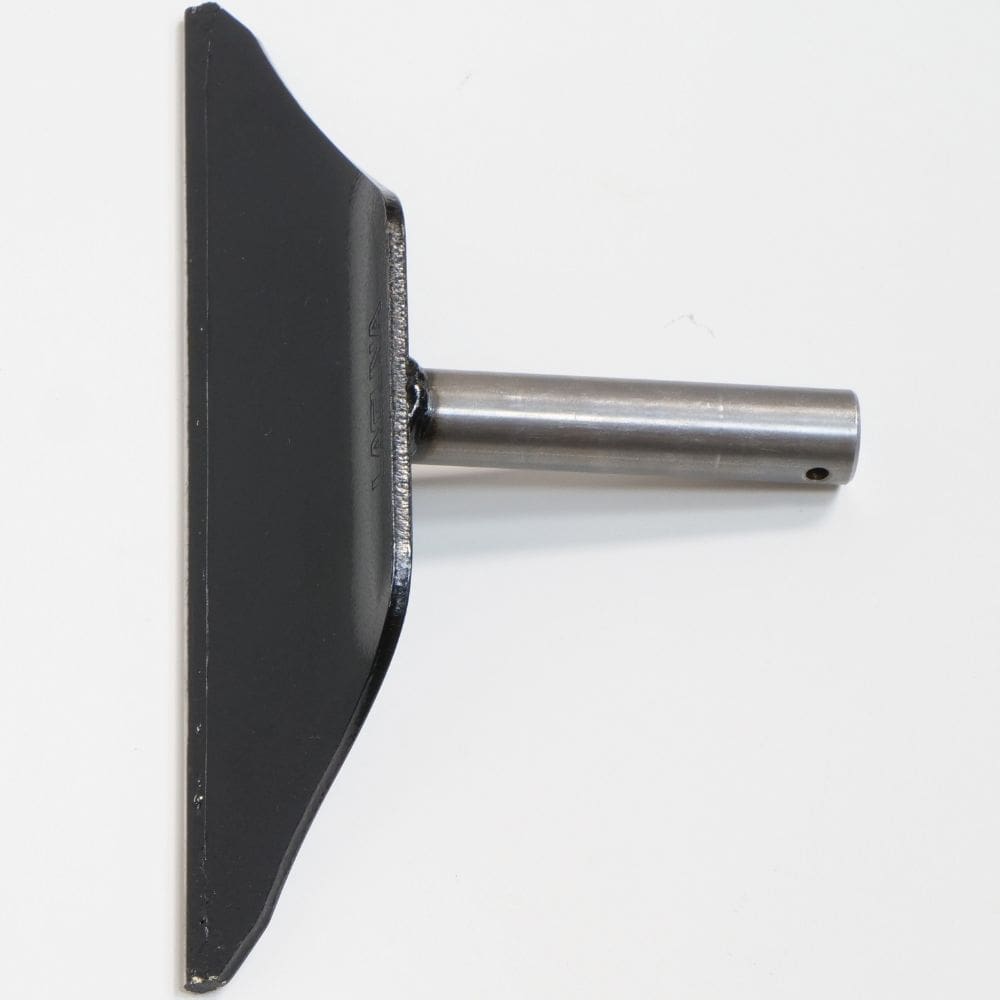

- Tool Rest
- Tailstock Assembly
- Headstock with Sliding Function
- Drive Center
- Live Center
- Spindle Lock Pin
- Power Cord (6 ft)
- Owner’s Manual
Specifications Laguna Revo 15|24 Lathe
-
Electrical: 110V, 8 Amp, 60Hz
-
Motor: 1.5HP, Permanent Magnet DC, 2150 RPM
-
Speed Control: Pulse Width Module (PWM)
-
Breaker Requirement: 15 Amp
-
Swing Over Bed: 15.5″
-
Swing Over Banjo: 11.1″
-
Max Outboard Swing: 25″ (with accessory)
-
Tool-Rest Post Size: 1″
-
Tool-Rest Length: 12″
-
Bed Gap: 1.97″
-
Spindle Taper: MT#2
-
RPM Range High: 650–4200
-
RPM Range Mid: 325–2100
-
RPM Range Low: 50–650
-
Vacuum Chuck Compatibility: No
-
Tailstock Quill: MT#2
-
Floor To Spindle Center (Low): 36.41″
-
Floor To Spindle Center (High): 51.41″
-
Floor To Bed (Min): 25.6″
-
Floor To Bed (Max): 43.6″
-
Front Bearing: TPI Taiwan 6206LLU
-
Rear Bearing: TPI Taiwan 6205LLU
-
Spindle Index Positions: 24
-
Distance Between Centers: 24″
-
Headstock/Tailstock Through-Bore: 0.375″
-
Headstock Travel: Full Length
-
Spindle Thread Size: 1.25″ x 8 TPI RH
-
Floor Space: 60″ x 22″ x 22″
-
Box Dimensions: 52″ x 22″ x 22″
-
Net Weight: 288 lbs
-
Shipping Weight: 302 lbs
-
NEMA Plug: 5-15P
-
Power Cord Length: 6′
Product Manual & Assembly Laguna Revo 15|24 Lathe
Reading through this manual not only ensures proper use, but also helps you maximize the machine’s potential over time. From setup to troubleshooting, every section is written with clarity and purpose to support your craft at every turn. So take a few moments to get familiar—you’ll be rewarded with smoother operation, better results, and a more enjoyable turning experience.
Laguna Revo 15|24 Lathe Manual
