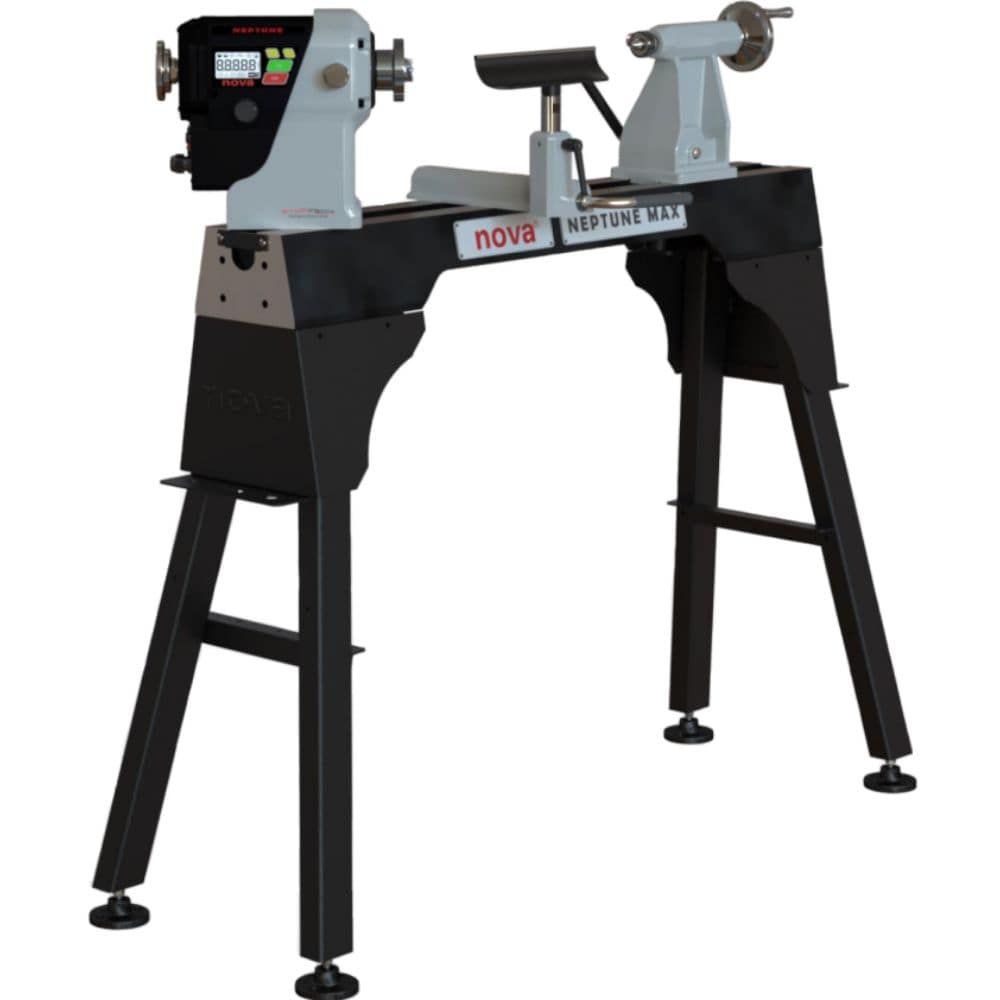

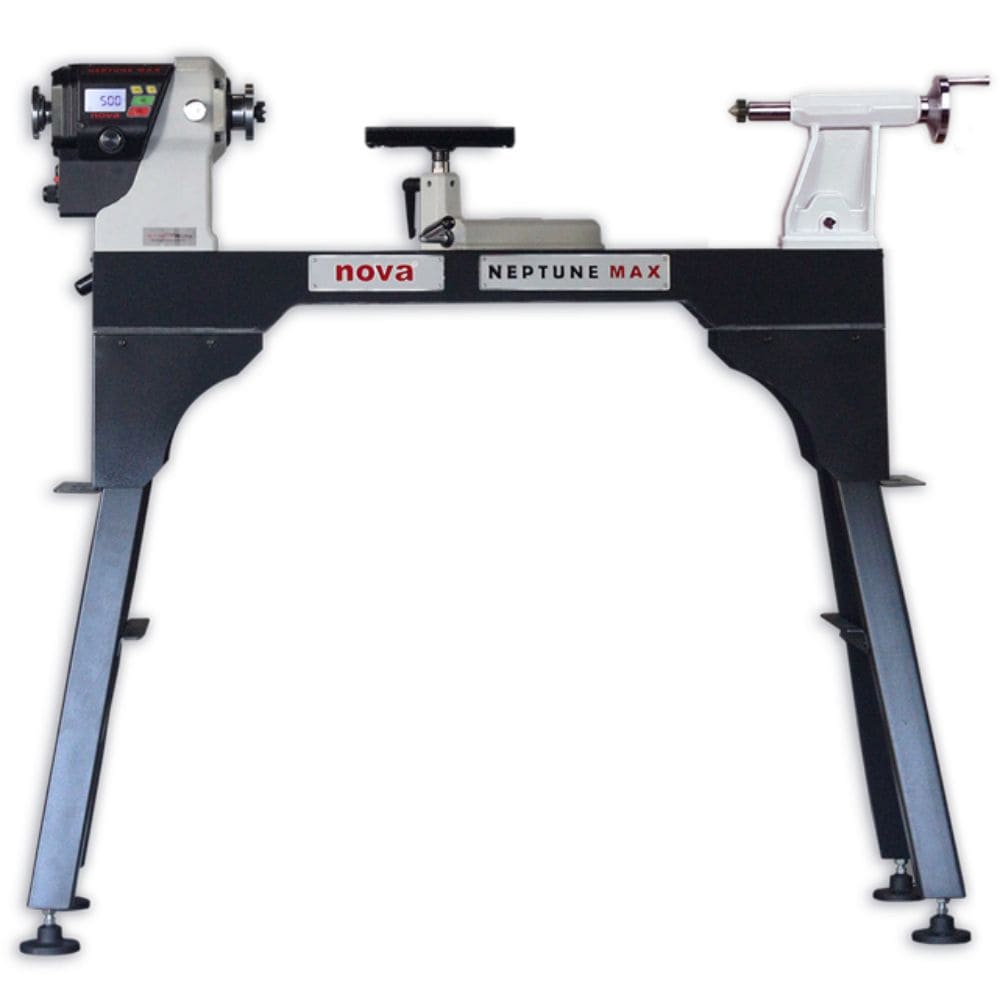

Nova Neptune Max 55710 15 Inch DVR Wood Lathe
Ready to take your woodturning to the next level? This lathe is a cut above the rest! Experience the NOVA Neptune Max—where advanced technology meets woodworking mastery.
Powered by a 1.5HP direct-drive digital motor, it offers exceptional torque and smooth operation with an adjustable speed range from 100 to 4,000 RPM. Its software-driven controller provides precise control, while the motor adapts to varying loads for consistent speed under heavy force.
With a 15” swing and 28” between centers, the Neptune Max is perfect for large and small projects. The 360-degree swiveling headstock provides maximum flexibility, and the self-ejecting tailstock adds convenience. The bed’s CAD-designed webbing ensures smooth, stable performance. The lathe includes customizable speed settings with two-speed ramp modes. Its electronic braking system provides rapid, safe stopping. The Neptune Max is energy-efficient with superior performance.
Upgrade your woodworking experience with the built-to-last Nova Neptune Max
Features & Benefits Nova Neptune Max
The NOVA Neptune Max redefines woodturning with cutting-edge technology, delivering the perfect balance of power, precision, and versatility. This 15” digital direct drive lathe offers unparalleled performance for projects of all sizes.

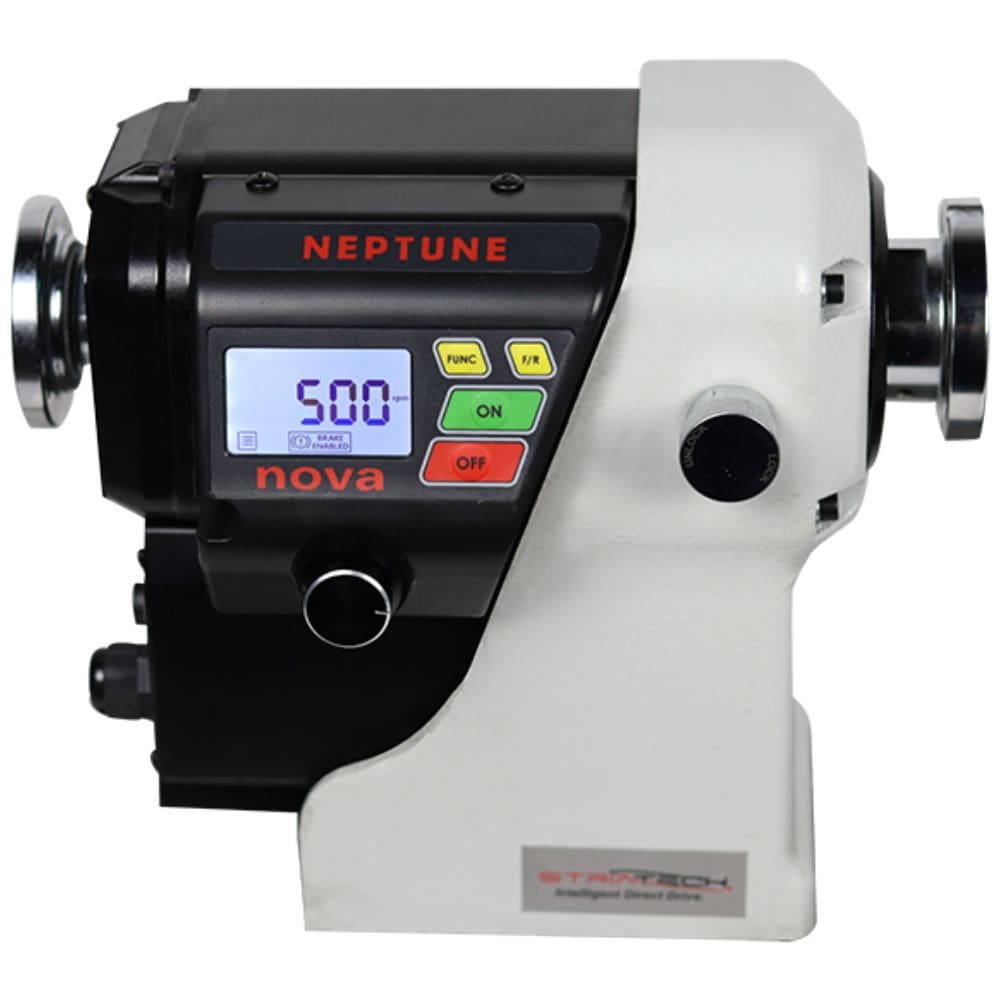

Direct Drive Smart Motor
At its core, the 1.5HP direct-drive DVR motor from Striatech ensures consistent torque across a 100–4,000 RPM range, adapting intelligently to load variations for smooth and efficient operation. Easy-to-read large monitor interface with an intuitive, icon-based menu with a 24-position digital indexing system for precision turning. The lathe spindle also acts as the motor rotor, eliminating power loss from belts or pulleys.
Adjustable Speed Settings
Tailor your work with 4 customizable speed settings, perfect for your preferred turning speeds or specific project needs. Whether you're tackling rough cuts, shaping, fine detailing, or finishing, easily adjust to the perfect pace for each stage.
Smooth Speed Ramping
The Neptune Max offers two adjustable speed ramp settings, giving you full control over your turning process:
-
Normal Mode: Enjoy a moderate, gradual speed increase – ideal for most standard turning tasks.
-
Extra Large Mode (X-Large/Unbalanced): For larger, heavier, or unbalanced workpieces, this setting allows for a slow, controlled ramp-up.

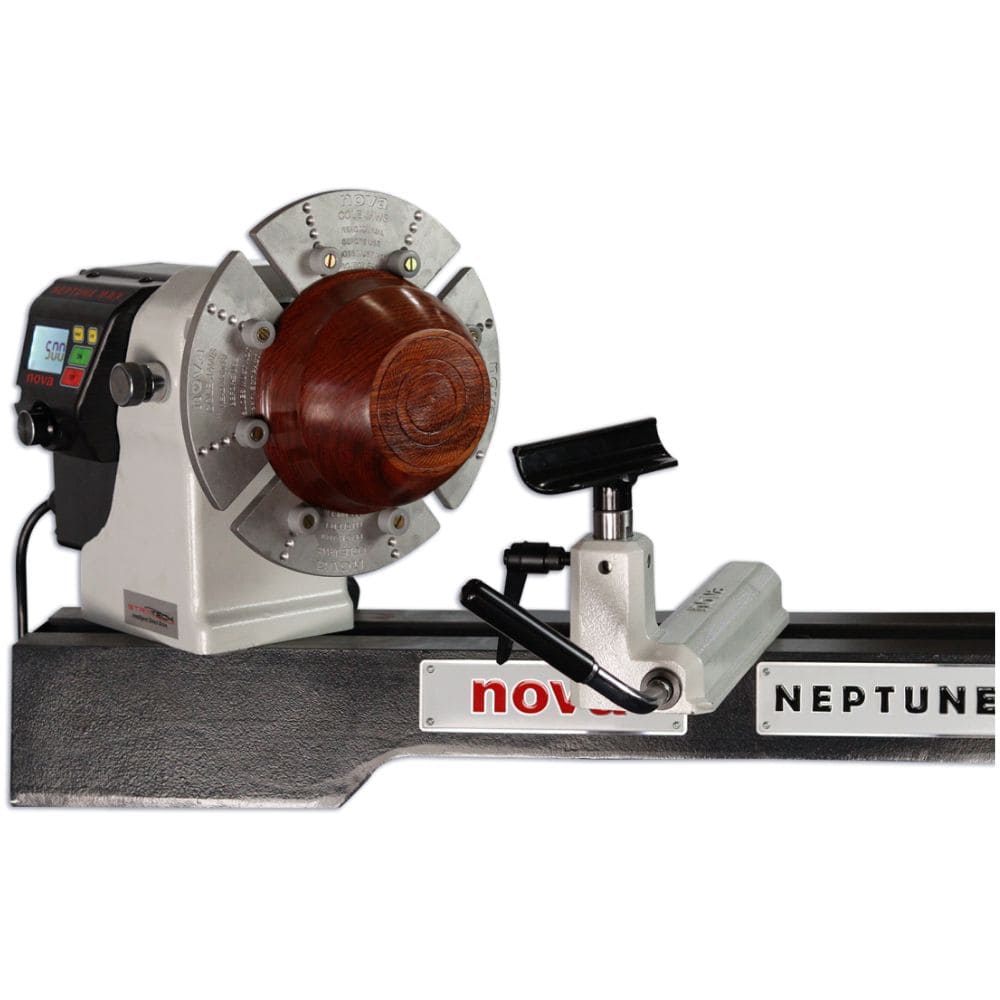

360-Degree Swiveling/Sliding Headstock
Catering to the needs of both right-handed and left-handed woodturners, the 360-degree swiveling and sliding headstock are engineered for maximum flexibility, allowing for effortless positioning. The 15” swing and 28” between centers accommodate everything from intricate spindle work to large bowls.
The headstock rotates a full 360° and can be securely locked at any angle, with preset detent stops at 0°, 22.5°, 45°, 90°, and 180° for precise positioning.
Next-Level Control with Intelligent Software
Experience exceptional lathe control with Neptune’s advanced software, unlocking a realm of features not found in traditional wood lathes. Powered by a superior digital direct drive system, Neptune delivers the precision and power you need, ensuring smooth, vibration-free performance across its extensive speed range—putting total control right at your fingertips for flawless results every time.
World-Class Safe Braking System
Neptune’s electronic braking system lets you halt the lathe swiftly and safely, eliminating the need for manual intervention on the hand wheel or workpiece, saving you time, and enhancing protection. The 4-inch tailstock features a self-ejecting mechanism for added convenience.
Unmatched Warranty Protection
With no belts and no pulleys, fewer moving parts mean longer motor life and low maintenance. However, you can enjoy 10 years of coverage on the advanced digital motor and 5 years on electronic and mechanical components.
Energy Efficiency at Its Best
Neptune is designed to save you energy, with the potential to reduce power consumption by up to 80% compared to traditional AC/DC-powered lathes. Neptune continuously monitors motor conditions, adjusting power levels to maintain your preset speed—even as loads like chisel-cutting force change. The motor intelligently draws only the necessary power to meet those demands, ensuring consistent performance while saving power.
Master every detail with the Neptune Max—unrivaled torque, precision control, and a seamless speed range
What's included with Nova Neptune Max
- Nova Neptune Max 15" Floor Lathe 55710
- Heavy duty floor stand
- Knock-out bar
- 9” (229mm) tool rest
- Live center
- 2MT spur center
- 3” (80mm) faceplate
- USB A-A cable
- Allen keys (3mm, 10mm, 14mm)
- User Manual
Important Notice: The following M10 modular tool rest options are not compatible with the M12, 1" tool rest post included with this machine. To use these M10 tool rests, a separate M10 tool post must be purchased separately.
M10 Modular Tool Rest Options:
- 9024 – 5/8″ x 3″ Post for Modular Tool Rest System
- 9025 – 1″ x 5″ Post for Modular Tool Rest System
- 9026 – 4″ Tool Rest for Modular Tool Rest System
- 9027 – 6″ Tool Rest for Modular Tool Rest System
- 9028 – 12″ Tool Rest for Modular Tool Rest System
- 9090 – Large Bowl Rest – X Radius
- 9091 – Small Bowl Rest – Y Radius
- 9092 – "S" Bowl Rest – X and Y Radius
- 9093 – Small Box Rest 9094 – Large Box Rest
-
Note: Wear components such as bearings, keypads, and cam locks are not covered.
Designed by Teknatool, this wood lathe utilizes DVR technology for safe and efficient turning
Specifications Nova Neptune Max
-
Lathe Capacity: Turning Diameter: Up to 15 inches (381 mm). Maximum Length Between Centers: 28 inches (711 mm)
-
Size & Packaging: Overall Lathe Size: 50.9” (L) x 19.3” (W) x 47.2” (H)
-
Weight: 198 lbs (90 kg)
-
Headstock (Where the Spindle is Located): Spindle Thread: 1-1/4” x 8 TPI (Standard) or M33 x 3.5 RH (Europe). Spindle Taper: MT2 (Morse Taper #2). Head Swivels: Rotates 360° with preset lock positions at -45°, -22.5°, 0°, 22.5°, 45°, 90°, and 180°. Movable Headstock: Yes, can slide along the bed for better access. Spindle Indexing: 24 positions for precise control
-
Tailstock (The Opposite End of the Lathe): Taper: MT2 (Morse Taper #2). Quill Travel (How Far It Moves In & Out): 3.9 inches (100 mm). Hole Diameter: 2/5 inch (10 mm)
-
Tool Rest (Support for Cutting Tools): Tool Rest Length: 9 inches (229 mm). Tool Rest Shaft Diameter: 1 inch (25.4 mm)
-
Motor Details: Type: DVR Direct Drive Smart Motor (No belts or pulleys)
-
Speed Range: 50 – 4,000 RPM (Adjustable)
-
Power Output: 1.5 HP (1.1KW)
-
Voltage: 110–120V (North America). 220–240V (Europe & Other Regions)
-
Current Draw: Max 14A (North America). Max 10A (Europe)
-
Additional Info: European models use the M33 spindle thread. The ASR locking ring is not included in the standard package. Other markets come with the 1-1/4” x 8 TPI spindle.
