JET J-9225 8-3/4" Zip Miter Metal Bandsaw

JET J-9225 8-3/4" Zip Miter Metal Bandsaw

Are you losing time repositioning heavy stock every time you need to cut a miter on the bandsaw?

What if your saw head swiveled to meet the cut angle while your material stayed locked in place?

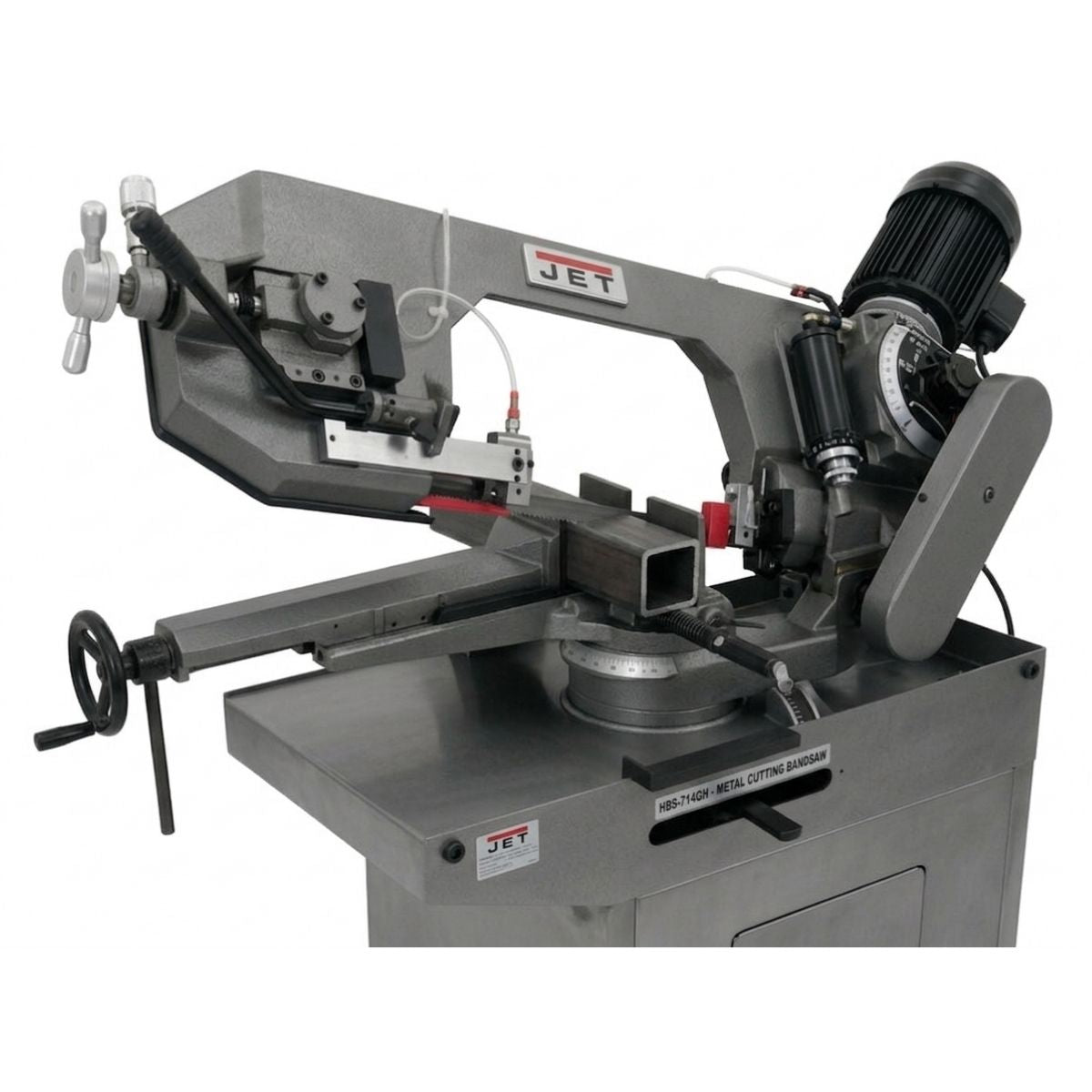

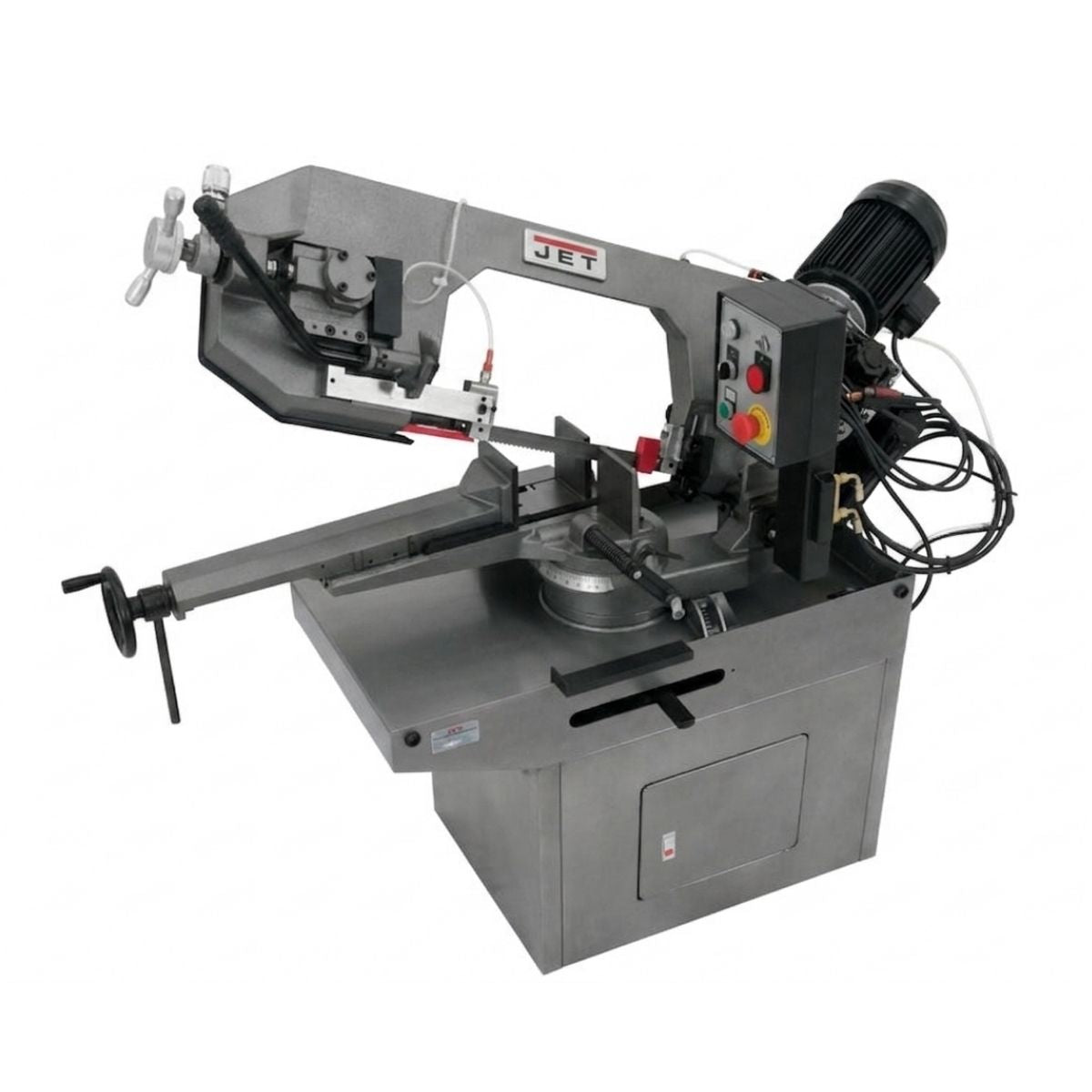

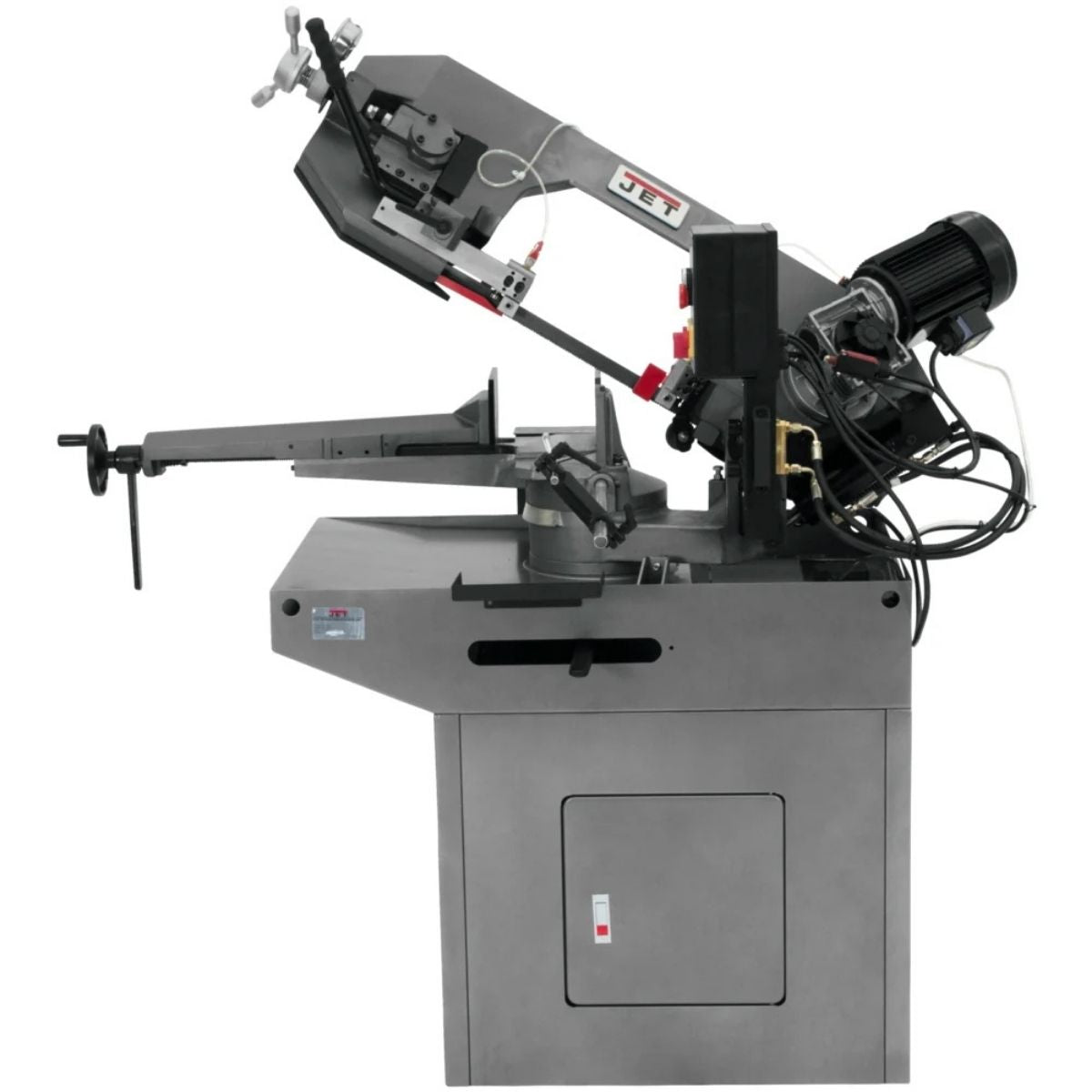

Meet the JET J-9225 8-3/4" Zip Miter Metal Bandsaw, a horizontal mitering bandsaw built for shops that cut metal bar, tube, and structural stock on a daily basis.

With the J-9225, the cast iron saw head swivels from 0° to 60° while the vise and workpiece stay put, so you get accurate miters without repositioning your stock.

When you need clean, repeatable cuts on metal stock without slowing down your workflow, the J-9225 gives you a dependable machine to build your process around.

JET J-9225 for Accurate Metal Crosscuts and Miters

Swiveling Cast Iron Head Handles Miter Cuts Without Moving Stock

The saw head on the J-9225 pivots from 0° to 60° while the base and vise remain stationary. Your material stays clamped in one position for the full range of miter angles. That means less handling, faster setups, and cuts that come out square and consistent from part to part.

Quick Positioning Vise Reduces Setup Time Between Cuts

The quick positioning vise clamps down fast so you can move through a run of parts without stopping to reset your fixturing. It holds stock securely during the cut and releases cleanly when you are ready for the next piece. For production runs or repetitive cutting tasks, that speed adds up.

Hydraulic Downfeed System Controls Blade Descent Through Material

The fully adjustable hydraulic downfeed lets you set the rate at which the saw head drops into the cut. A controlled feed rate protects the blade and produces a cleaner cut surface on metal stock. It also reduces operator fatigue by letting the machine do the work at the right pace.

Cam Follower Blade Guides Maintain Blade Alignment Under Load

The adjustable blade guides use cam follower bearings mounted on eccentric shafts to hold the blade steady through the cut. Consistent blade support means straighter cuts and longer blade life. The guides are adjustable so you can dial them in as the blade wears or when you change to a different blade width.

What's Included

What's Included? JET J-9225 8-3/4" Zip Miter Metal Bandsaw

• JET J-9225 Horizontal Mitering Bandsaw — The main machine, ready for installation in a 230V 3-phase shop environment.
• Adjustable Material Stop — Lets you set a repeatable stop position for cutting multiple pieces to the same length.

Specs

JET J-9225 8-3/4" Zip Miter Metal Bandsaw Specifications

• Model Number: J-9225
• Stock Number: JT9-414467
• Motor: 1-1/2 HP, 230V, 3-Phase
• Prewired Voltage: 230V
• Drive: Geared Head
• Blade Wheel Diameter: 11-5/8"
• Round Capacity at 90°: 8-3/4"
• Round Capacity at 45°: 6-1/4"
• Rectangle Capacity at 90°: 8-3/4" x 7"
• Rectangle Capacity at 45°: 6-1/4" x 7-1/4"
• Head Movement: 0° – 60°
• Overall Dimensions (L x W x H): 51" x 33" x 59-1/4"
• Net Weight: 476 lbs
• Gross Weight: 542 lbs
• Warranty: 2 Years
• A manual is available for this machine from JET.
